ProLiant ML330e/ML330 Server
Setup and Installation Guide
Second Edition (March 2001)
Part Number 173868-002
Compaq Computer Corporation
Notice
© 2001 Compaq Computer Corporation
Compaq, the Compaq logo, ProLiant, Compaq Insight Manager, ROMPaq, and SmartStart Registered in
U.S. Patent and Trademark Office. CarePaq is a trademark of Compaq Information Technologies Group,
L.P. in the United States and other countries.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation in the
United States and other countries.
Intel and Pentium are trademarks of Intel Corporation in the United States and other countries.
The Open Group and UNIX are trademarks of The Open Group in the United States and other countries.
All other product names mentioned herein may be trademarks of their respective companies. Compaq
shall not be liable for technical or editorial errors or omissions contained herein. The information in this
document is provided “as is” without warranty of any kind and is subject to change without notice. The
warranties for Compaq products are set forth in the express limited warranty statements accompanying
such products. Nothing herein should be construed as constituting an additional warranty.
Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Second Edition (March 2001)
Part Number 173868-002
Contents
About This Guide
Text Conventions........................................................................................................ix
Symbols in Text...........................................................................................................x
Symbols on Equipment...............................................................................................xi
Getting Help ..............................................................................................................xii
Compaq Technical Support ................................................................................xii
Compaq Website.................................................................................................xii
Compaq Authorized Reseller............................................................................ xiii
Chapter 1
Server Features
Standard Features..................................................................................................... 1-3

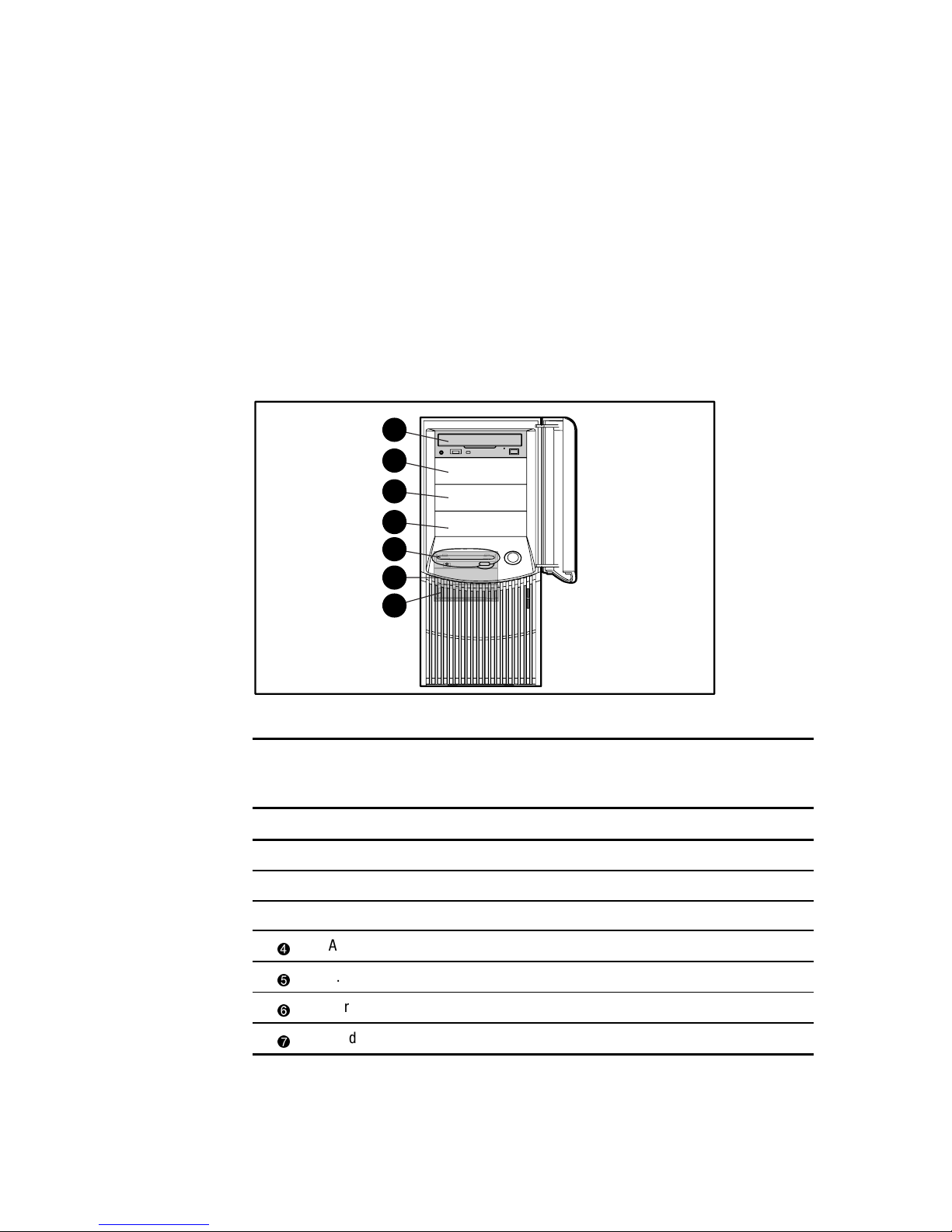

Drive Bay Components .................................................................................... 1-3

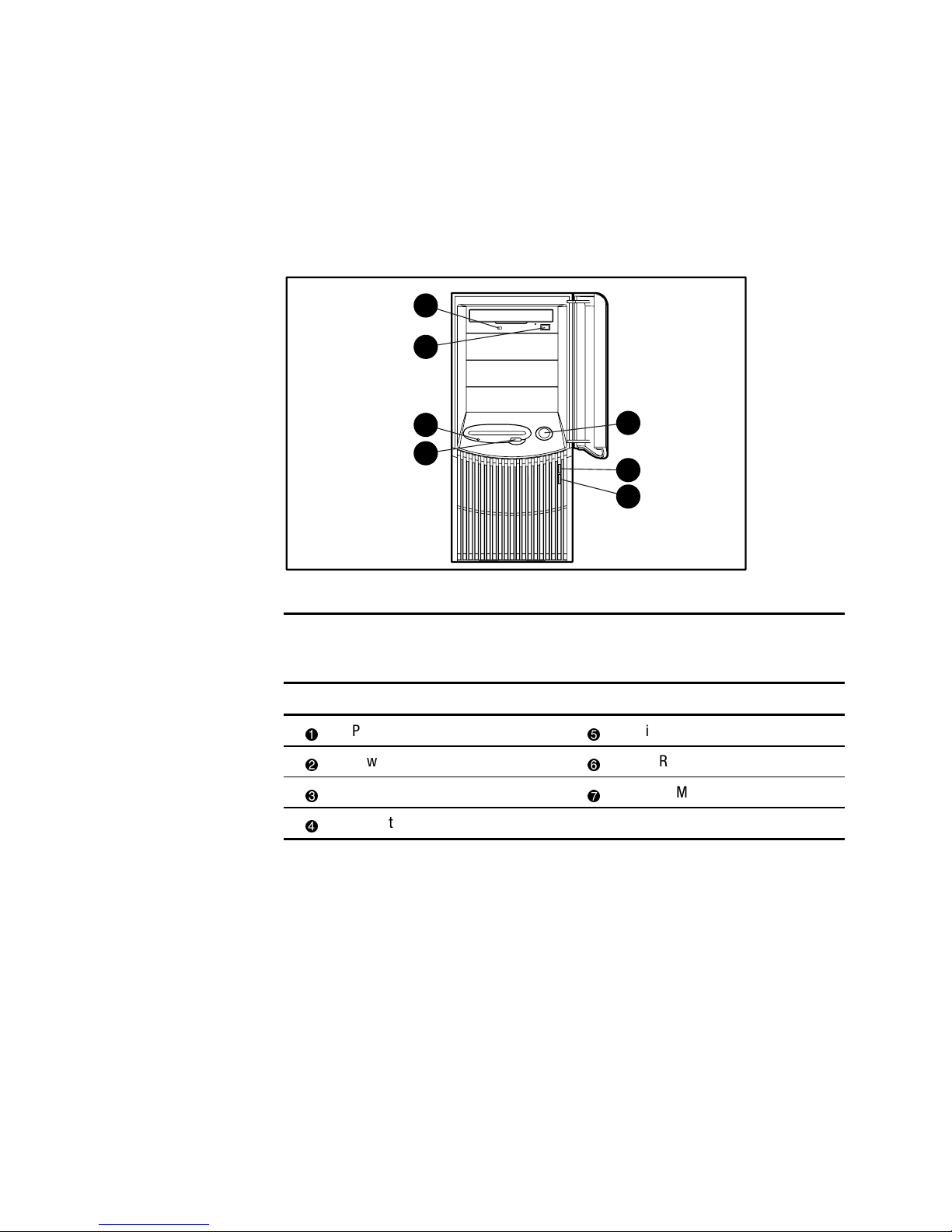

Front Panel Components .................................................................................. 1-4

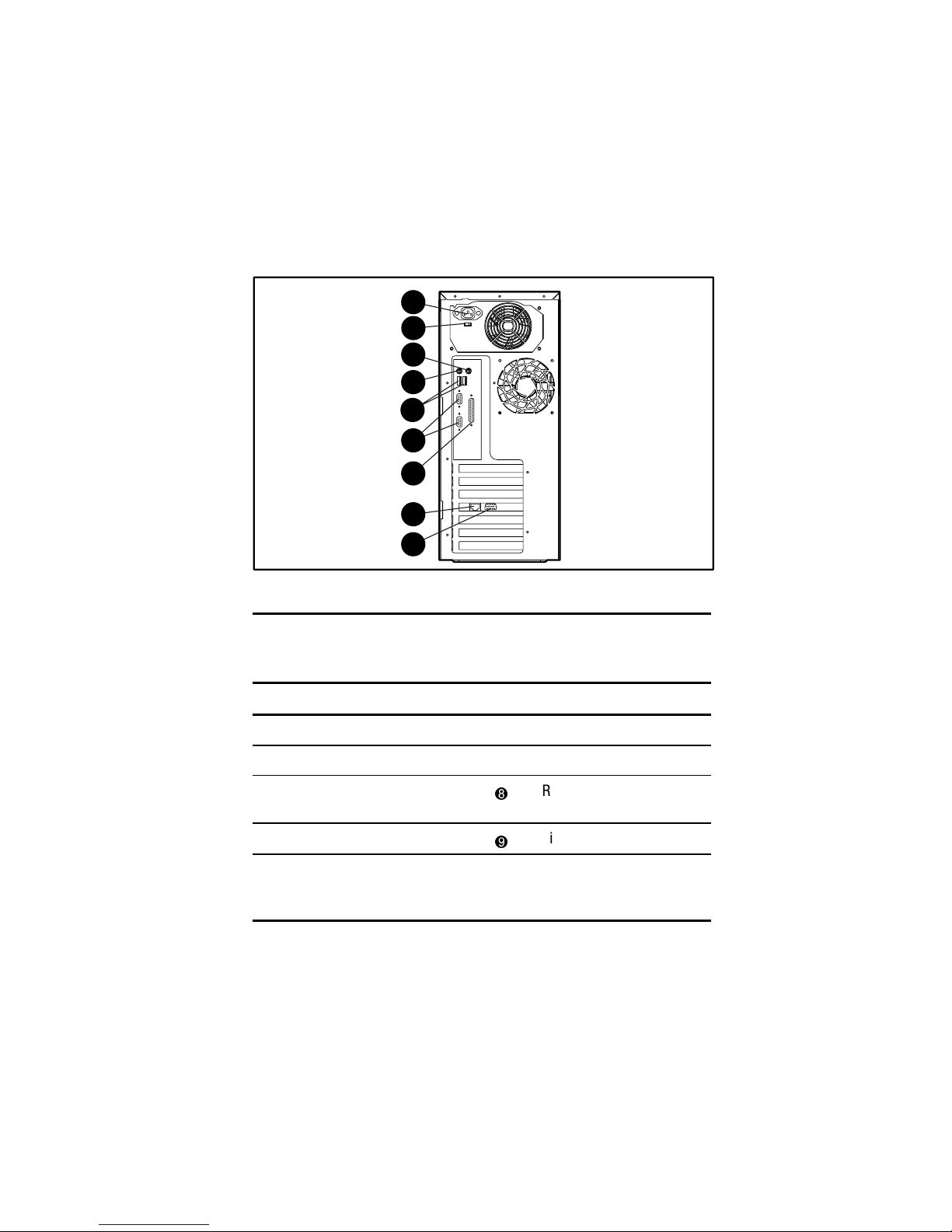

Rear Panel Connectors...................................................................................... 1-5
System Board Components............................................................................... 1-6
Processors and System Memory....................................................................... 1-8
Expansion Slots ................................................................................................ 1-8
Disk Controllers................................................................................................ 1-8
Network Controller........................................................................................... 1-8
Ports/Connectors............................................................................................... 1-9
BIOS................................................................................................................. 1-9

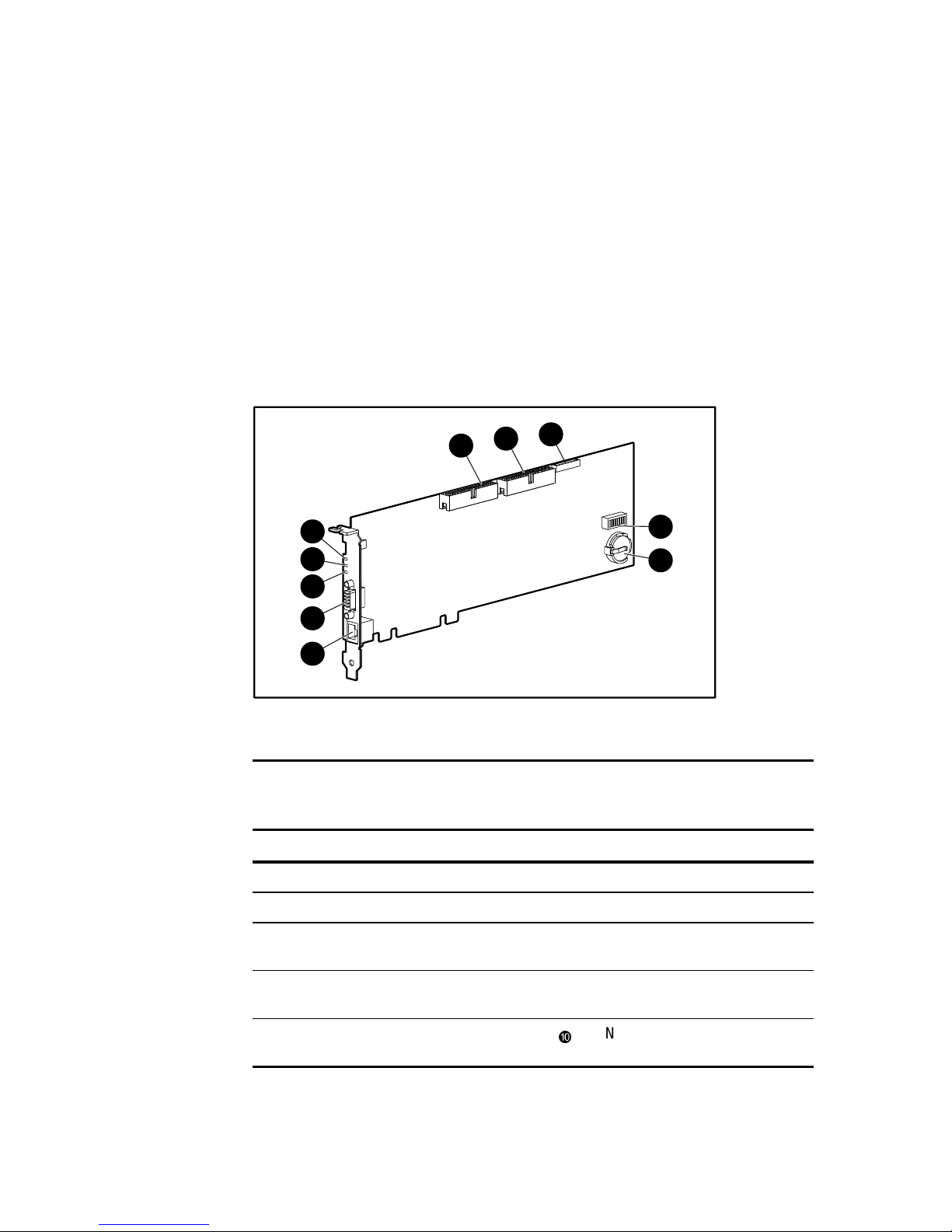

Server Feature Board Components (ProLiant ML330 Server) ....................... 1-10
Server Feature Board Components (ProLiant ML330e Server) ..................... 1-11
Power Supply.................................................................................................. 1-12
Warranty......................................................................................................... 1-12
iv Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Server Features
continued
Server Configuration and Management ................................................................. 1-13
Configuration Utilities .................................................................................... 1-13
Compaq SmartStart and Support Software ..................................................... 1-13
Compaq Insight Manager................................................................................ 1-14
Diagnostic Tools............................................................................................. 1-14
Security Features.................................................................................................... 1-15
Chapter 2
Overview of Server Installation
Selecting a Site......................................................................................................... 2-2
Unpacking the Server............................................................................................... 2-2
Locating Materials ................................................................................................... 2-3
Connecting the Power Cord and Peripheral Devices ............................................... 2-4
Installation Sequence ............................................................................................... 2-5
Preconfigured Operating System ...................................................................... 2-5
Operating System Purchased Separately........................................................... 2-7
Configuring the Server............................................................................................. 2-9
Chapter 3
Hardware Options Installation
Shutting Down the Server........................................................................................ 3-2
Removing the Front Bezel ....................................................................................... 3-3
Removing the Access Panel..................................................................................... 3-4
Removing the Bezel Blanks..................................................................................... 3-5
Removing a Drive Tray............................................................................................ 3-6
Storage Devices ....................................................................................................... 3-7
Drive Positions.................................................................................................. 3-7
Installing a Hard Drive...................................................................................... 3-8
Removing a Hard Drive.................................................................................. 3-11
Installing a Hard Drive into a Removable Media Bay .................................... 3-13
Installing a Tape Drive or Other Device into a Removable Media Bay ......... 3-15
Removing a Tape Drive or Other Device from a Removable Media Bay ...... 3-18
Expansion Slots...................................................................................................... 3-20
Installing an Expansion Board........................................................................ 3-21
Configuring PCI Devices................................................................................ 3-22
Interrupt Settings............................................................................................. 3-23
Memory Modules................................................................................................... 3-23
Technical Information and Important Guidelines for DIMM Installation ...... 3-23
Installing a Memory Module .......................................................................... 3-24
Removing a Memory Module......................................................................... 3-26
Contents v
Hardware Options Installation
continued
Replacing the Battery ............................................................................................ 3-27
Replacing the System Board Battery.............................................................. 3-27
Replacing the Server Feature Board Battery .................................................. 3-29
Chapter 4
Cabling Guidelines
Storage Device Installation Guidelines.................................................................... 4-1
SCSI Cabling (for the ProLiant ML330 Server)............................................... 4-1
ATA/100 Cabling (for ProLiant ML330e Servers) .......................................... 4-8
Connecting the Server Management Information Cable (SMIC) .......................... 4-11
Chapter 5
Server Configuration and Utilities
BIOS Setup Utility for ProLiant ML330 Servers .................................................... 5-2
Navigating the BIOS Setup Utility ................................................................... 5-2
Using the BIOS Setup Utility ........................................................................... 5-3
ROM Based Setup Utility (RBSU) for ProLiant ML330e Servers.......................... 5-8
Navigating the ROM Based Setup Utility (RBSU) .......................................... 5-8
Using the ROM Based Setup Utility (RBSU)................................................... 5-9
ROMPaq ................................................................................................................ 5-12
SmartStart .............................................................................................................. 5-13
Compaq Insight Manager....................................................................................... 5-13
SmartStart Diskette Builder................................................................................... 5-14
Compaq Survey Utility.......................................................................................... 5-14
Installing Survey............................................................................................. 5-15
Running Survey.............................................................................................. 5-15
Compaq Diagnostics Utility................................................................................... 5-16
Automatic Server Recovery (ASR) ....................................................................... 5-16
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers .....................................................A-1
Communications Commission Notice .....................................................................A-1
Class A Equipment ..................................................................................................A-2
Class B Equipment ..................................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo—
United States Only............................................................................................A-3
Modifications....................................................................................................A-3
Cables ...............................................................................................................A-3
Mouse Compliance Statement ..........................................................................A-4
vi Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Regulatory Compliance Notices
continued
Canadian Notice (Avis Canadien)........................................................................... A-4
Class A Equipment .......................................................................................... A-4
Class B Equipment........................................................................................... A-4
European Union Notice........................................................................................... A-4
Japanese Notice....................................................................................................... A-5
Taiwanese Notice.................................................................................................... A-5
Battery Replacement Notice ................................................................................... A-6
Laser Compliance ................................................................................................... A-7
Power Cords............................................................................................................ A-8
Appendix B
Electrostatic Discharge
Grounding Methods .................................................................................................B-2
Appendix C
Server Error Messages
Appendix D
Troubleshooting
When the Server Does Not Start ............................................................................. D-2
Diagnosis Steps................................................................................................ D-4
Problems After Initial Boot..................................................................................... D-7
Other Information Resources................................................................................ D-11
Appendix E
LED Indicators, Switches, and Jumpers
LEDs ........................................................................................................................E-3
System Status LEDs..........................................................................................E-3
Network Controller LEDs.................................................................................E-5
Switches ...................................................................................................................E-6
System Configuration Switch (SW2).......................................................................E-7
Clearing and Resetting System Password Settings ...........................................E-8
Clearing and Resetting System Configuration Settings....................................E-8
Enabling ROMPaq Disaster Recovery Mode ...................................................E-9
Reserved Processor Switch (SW1).........................................................................E-10
Server Feature Board Switch .................................................................................E-11
Jumper Settings......................................................................................................E-12
SCSI Device Jumper Settings .........................................................................E-12
ATA Device Jumper Settings .........................................................................E-12
Contents vii
Appendix F
Specifications
Server Specifications ............................................................................................... F-1
Minimum Hardware Configuration ......................................................................... F-3
Supported Operating Systems.................................................................................. F-4
Drivers ..................................................................................................................... F-5
Index
About This Guide
This guide is designed to be used as step-by-step instructions for the
installation of a Compaq ProLiant ML330e/ML330 server and as a reference
for operation, troubleshooting, and future upgrades.
Text Conventions
This document uses the following conventions to distinguish elements of text:
Keys Keys are displayed in boldface. A plus sign (+)
between two keys indicates that they should be
pressed simultaneously.
USER INPUT User input is displayed in a different typeface and in
uppercase.
FILENAMES File names are displayed in uppercase italics.
Menu Options,
Command Names,
Dialog Box Names
These elements are displayed in initial capital
letters.
COMMANDS,
DIRECTORY NAMES,
and DRIVE NAMES
These elements are displayed in uppercase.
Type When you are instructed to type information, type
the information without pressing the Enter key.
Enter When you are instructed to enter information, type
the information, and then press the Enter key.
x Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings:
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions
could result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents clarifying information or specific
instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or interesting points
of information.
About This Guide xi
Symbols on Equipment
These symbols may be located on equipment in areas where hazardous
conditions may exist:
This symbol, in conjunction with any of the following symbols, indicates
the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific
details.
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.
This symbol indicates the presence of electric shock hazards. The area
contains no user- or field-serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do
not open this enclosure.
This symbol, on an RJ-45 receptacle, indicates a network interface
connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into
this receptacle.
This symbol indicates the presence of a hot surface or hot component. If
this surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching it.
xii Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Getting Help
If you have a problem and have exhausted the information in this guide, you
can obtain further information and other help from the following locations.
Compaq Technical Support
In North America, call the Compaq Technical Support Phone Center at
1-800-OK-COMPAQ. This service is available 24 hours a day, 7 days a week.
For continuous quality improvement, calls may be recorded or monitored.
Outside North America, call the nearest Compaq Technical Support Phone
Center. Telephone numbers for worldwide Technical Support Centers are
listed on the Compaq website. Access the Compaq website by logging on to
the Internet:
http://www.compaq.com
Be sure to have the following information available before you call Compaq:
■ Technical support registration number (if applicable)
■ Product serial number
■ Product model name and number
■ Applicable error messages
■ Add-on boards or hardware
■ Third-party hardware or software
■ Operating system type and revision level
■ Detailed, specific questions
Compaq Website
The Compaq website has information on this product as well as the latest
drivers and Flash ROM images. You can access the Compaq website by
logging on to the Internet:
http://www.compaq.com
About This Guide xiii
Compaq Authorized Reseller
For the name of your nearest Compaq authorized reseller:
■ In the United States, call 1-800-345-1518.
■ In Canada, call 1-800-263-5868.
■ Elsewhere, see the Compaq website for locations and telephone
numbers:
http://www.compaq.com
Chapter 1
Server Features
The Compaq ProLiant™ ML330e/ML330 server delivers the latest
performance features at an affordable price. As the primary server in a small-
to-medium business, the ProLiant ML330e/ML330 server is ideal for
applications such as file/print, simple database, and remote access. This
business-critical server delivers Intel Pentium III technology, error checking
and correcting (ECC) memory, easy expandability, and leading server
management tools such as Compaq Insight Manager™ software, BIOS Setup
utility, and ROM Based Setup Utility (RBSU).
1-2 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Server features include:
■ Intel 256-KB Pentium III processor with 133-MHz front-side system
bus
■ 64 MB of PC133-MHz Registered, error checking and correcting
(ECC), synchronous dynamic random access memory (SDRAM)
DIMMs, upgradable to 2 GB. Models of the ProLiant ML330 server,
933 MHz and higher, come standard with 128 MB of PC133-MHz ECC,
SDRAM DIMMs.
■ Capacity for five 36-GB hard drives for a maximum of 180 GB of
internal storage (ProLiant ML330 server) or four 40-GB hard drives for
a maximum of 160 GB of internal storage (ProLiant ML330e server)
■ Four removable media bays (three available)
■ IDE CD-ROM drive
■ 1.44-MB, 3.5-inch diskette drive
■ Integrated single-channel Wide Ultra2 SCSI Controller
(ProLiant ML330 server) or an integrated dual-channel ATA/100
Controller (ProLiant ML330e server)
■ Integrated PCI 10/100 Wake on LAN NIC
■ Integrated ATI Rage XL Video Controller
■ Three available 32-bit PCI slots and two 64-bit PCI slots
■ CE Mark-compliant power supply
ML330

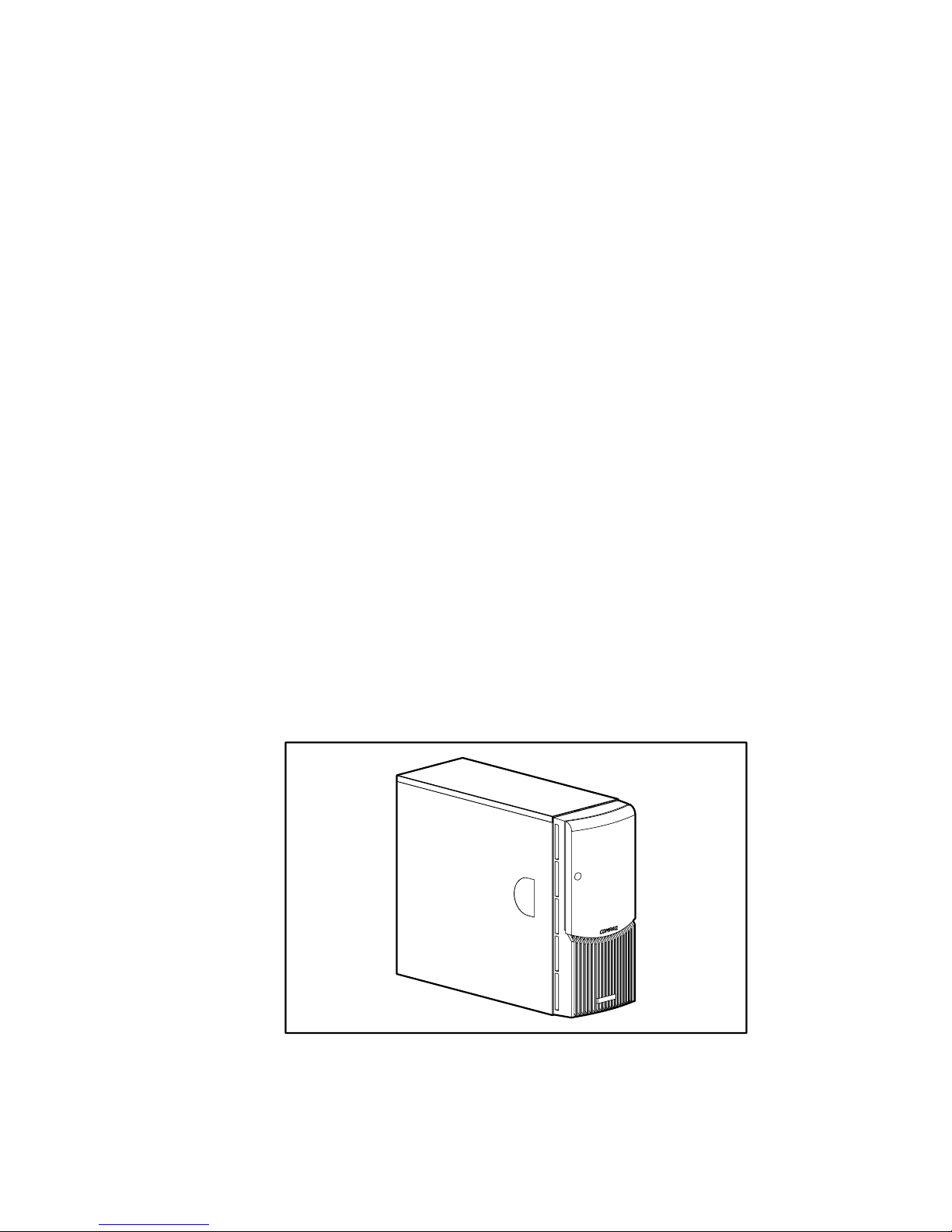

Figure 1-1. Compaq ProLiant ML330e/ML330 server
Server Features 1-3
Standard Features
The following features are standard on the ProLiant ML330e/ML330 server,
unless otherwise noted.
Drive Bay Components
The ProLiant ML330e/ML330 server supports a maximum of seven internal
drive bays. Figure 1-2 and Table 1-1 show the drive configuration.
1
2
3
4
5
6
7
Figure 1-2. Identifying drive positions
Table 1-1
Drive Bay Components and Dimensions
Item Component Dimension
IDE CD-ROM drive bay 5.25 in x 1.60 in
Available removable media bay 5.25 in x 1.60 in
Available removable media bay 5.25 in x 1.60 in
Available removable media bay 5.25 in x 1.60 in
1.44-MB diskette drive bay 3.5 in x 1.0 in
Hard drive bay 3.5 in x 1.0 in
Hard drive bay 3.5 in x 1.0 in
1-4 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Front Panel Components
Figure 1-3 and Table 1-2 show the front panel components, including buttons
and LEDs.
7
6
5
4
3
2
1
Figure 1-3. Front panel components
Table 1-2
Front Panel Components
Item Component Item Component
Power button
Diskette drive activity LED
Power LED
CD-ROM drive eject button
Hard drive activity LED
CD-ROM drive activity LED
Diskette drive eject button
Server Features 1-5
Rear Panel Connectors
Figure 1-4 and Table 1-3 show the connectors on the rear panel of the
ProLiant ML330e/ML330 server.
1
3
4
7
8
9
6
5
2
Figure 1-4. Identifying rear panel connectors
Table 1-3
Rear Panel Connectors
Item Connector Item Connector
Power cord connector
Serial port connectors
Voltage selector switch
Parallel port connector
Mouse connector
RJ-45 Ethernet for NIC
connector
Keyboard connector
Video connector
USB port connectors
(ProLiant ML330e
server only)
1-6 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
System Board Components
Figure 1-5 and Table 1-4 show the components and connectors of the
ProLiant ML330e/ML330 server system board.
16 17
18
22
23
20
24251
2
3
4
5
6
7
10
8
9
11
12
1415
19
21
13
Figure 1-5. Identifying system board components
Server Features 1-7
Table 1-4
System Board Components
Item Component Item Component Item Component
32-bit PCI slot 6
Serial port
connector B
DIMM sockets (four)
32-bit PCI slot 5
Parallel port connector
Primary IDE connector
32-bit PCI slot 4
Serial port
connector A
Power button connector
32-bit PCI slot 3
(Server Feature Board)
USB port connectors
(ProLiant ML330e
server only)
Server Management
Information Cable
(SMIC) connector
64-bit PCI slot 2
Mouse connector
Secondary IDE
connector
64-bit PCI slot 1
(half-length)
Keyboard connector
Remote Insight
Lights-Out Edition board
connector
Battery
Power supply
connector
System configuration
switch (SW2)
System fan connector
Diskette drive
connector
Reserved processor
switch (SW1)
Processor
IMPORTANT: Power for the Remote Insight Lights-Out Edition board must come from the
external power supply of the Remote Insight Lights-Out Edition board and not from the
system board.
1-8 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Processors and System Memory
■ Pentium III processor with integrated 256-KB Cache Single
Processor capability
■ ECC for memory error detection and correction
■ 64-MB, PC133-MHz ECC Registered SDRAM DIMM system memory,
expandable to 2 GB
■ Support for 64-MB, 128-MB, 256-MB, or 512-MB, PC133-MHz ECC
Registered SDRAM DIMMs
■ Support for up to four Registered SDRAM DIMMs (PC133-MHz ECC),
installed one at a time in any order
Expansion Slots
■ Six expansion slots (five available): four 32-bit PCI slots (three
available) and two 64-bit PCI slots
■ PCI bus that provides peripheral transactions at a bus clock speed of
33 MHz
Disk Controllers
■ Integrated single-channel Wide Ultra2 SCSI controller on the PCI local
bus (ProLiant ML330 server). The controller provides an internal SCSI
bus.
■ Integrated dual-channel ATA/100 controller (ProLiant ML330e server)
■ Optional controller boards for controller duplexing or expanding storage
capacity available
Network Controller
■ Integrated PCI 10/100 Wake on LAN NIC
■ Preboot Execution Environment (PXE) support for downloading
complete operating system configurations from your network
(ProLiant ML330e servers only)
Server Features 1-9
Ports/Connectors
■ Serial (2)
■ Parallel
■ Keyboard
■ Mouse
■ USB (2)—Available with the ProLiant ML330e server only
BIOS
■ ROMPaq™ utility for BIOS firmware upgrade
■ BIOS Setup utility for system configuration (ProLiant ML330 server)
■ ROM Based Setup Utility (RBSU) for system configuration
(ProLiant ML330e server)
1-10 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Server Feature Board Components
(ProLiant ML330 Server)
Figure 1-6 and Table 1-5 show the components of the Server Feature Board
for the ProLiant ML330 server with a standard integrated single-channel Wide
Ultra2 SCSI controller.
NOTE: For Server Feature Board components for the ProLiant ML330e server, refer to
Figure 1-7 and Table 1-6 in the following section “Server Feature Board Components
(ProLiant ML330e Server).”
5
6
7
8
9
4
3
1
2
Figure 1-6. Identifying Server Feature Board components
(ProLiant ML330 server)
Table 1-5
Server Feature Board Components (ProLiant ML330 Server)
Item Component Item Component
SCSI channel connector
Video connector
Server Management Information
Cable (SMIC) connector
Network speed indicator
Server Feature Board
configuration switch
Network link status indicator
Replaceable lithium battery
(CR2032)
Network activity indicator
RJ-45 Ethernet connector for NIC
Server Features 1-11
Server Feature Board Components
(ProLiant ML330e Server)
Figure 1-7 and Table 1-6 show the components of the Server Feature Board
for the ProLiant ML330e server with a standard integrated dual-channel
ATA/100 controller.
NOTE: For Server Feature Board components for the ProLiant ML330 server, refer to
Figure 1-6 and Table 1-5 in the preceding section “Server Feature Board Components
(ProLiant ML330 Server)”.
6
7
8
9
10
5
4
3
1
2
Figure 1-7. Identifying Server Feature Board components
(ProLiant ML330e server)
Table 1-6
Server Feature Board Components (ProLiant ML330e Model)
Item Component Item Component
ATA/100 connector (primary)
RJ-45 Ethernet connector for NIC
ATA/100 connector (secondary)
Video connector
Server Management Information
Cable (SMIC) connector
Network speed indicator
Server Feature Board configuration
switch
Network link status indicator
Replaceable lithium battery
(CR2032)
Network activity indicator
1-12 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Interfaces
■ Integrated single-channel Wide Ultra2 SCSI controller
(ProLiant ML330 server)
■ Integrated dual-channel ATA/100 controller (ProLiant ML330e server)
■ Integrated PCI 10/100 Wake on LAN NIC
Video
■ Integrated ATI Rage XL Video controller providing maximum
resolution of 1600 x 1200 noninterlaced at 65 K colors
■ Support for SVGA, VGA, and EGA graphics resolution
■ 4-MB SDRAM video memory
Power Supply
■ CE Mark-compliant power supply
Warranty
The Compaq Three-Year Pre-Failure Warranty helps prevent unplanned
shutdowns of the system by allowing for the replacement of covered parts
before they fail. The warranty covers processors, memory, and hard drives.
Compaq Insight Manager, included with the system, must be installed for the
Compaq Pre-Failure Warranty to be in effect. Certain restrictions and
exclusions apply. Consult the Compaq Customer Support Center or refer to the
Limited Warranty Statement included with your server for details.
Server Features 1-13
Server Configuration and Management
The ProLiant ML330e/ML330 server offers an extensive set of features and
optional tools to support effective server management and configuration,
including:
■ Configuration Utilities
■ Compaq SmartStart™ and Support Software
■ Compaq Insight Manager
■ Diagnostics tools (POST, DIAGS, ASR)
Configuration Utilities
The BIOS Setup utility (F10 setup), for the ProLiant ML330 server, and
RBSU (F9 setup), for the ProLiant ML330e server, perform a wide range of
configuration activities and utilities, including the following:
■ Viewing system information
■ Selecting the operating system
■ Configuring system devices and installed options
■ Selecting the primary boot controller
■ Managing storage options
■ Backing up and restoring saved configurations
■ ROMPaq utilities to upgrade flash BIOS
Compaq SmartStart and Support Software
SmartStart, located on the SmartStart and Support Software CD, is the
intelligent way to set up your Compaq server. SmartStart includes:
■ Driver updates
■ Assisted operating system installations
For information concerning SmartStart, refer to the Server Setup and
Management pack included in the shipping box.
1-14 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Compaq Insight Manager
Compaq Insight Manager, which is loaded from the Compaq Management CD,
is an easy-to-use software utility for collecting server information. Compaq
Insight Manager performs the following functions:
■ Forwards server alerts and fault conditions
■ Monitors fault conditions and server performance
■ Controls server security and configuration
■ Remotely controls server
■ Initiates rapid recovery services
Diagnostic Tools
The software and firmware diagnostic tools available for your use include:
■ Power-On Self-Test (POST)
■ Diagnostics (DIAGS)
■ Automatic Server Recovery (ASR)
Server Features 1-15
Security Features
Security features include:
■ Setup Password
■ Power-on Password
■ Diskette Drive Control
■ Diskette Write Control
■ Diskette Boot Override
■ CD Boot Override
■ Intruder Alert—ProLiant ML330 servers only
A hardware-associated security feature is the intruder alert. An intruder alert
message is displayed if the front bezel has been unlatched or removed. This
feature is available only on ProLiant ML330 servers. Refer to Chapter 5,
“Server Configuration and Utilities,” for information on enabling intruder
alert.
Most security features are established through the setup and configuration
utilities for the server. Refer to Chapter 5 for more information about the setup
utilities used with your server. For information concerning server security
features, refer to the SmartStart and Support Software CD included in the
shipping box.
Chapter 2
Overview of Server Installation
The following instructions are provided as an overview for first-time
installation of your Compaq ProLiant ML330e/ML330 server. If you have any
problems, contact your Compaq authorized reseller.
WARNING: To reduce the risk of electric shock or damage to the equipment:
■ Do not disable the power cord grounding plug. The grounding plug is an
important safety feature.
■ Plug the power cord into a grounded (earthed) electrical outlet that is
easily accessible at all times.
■ Disconnect power from the server by unplugging the power cord from
either the electrical outlet or the server.
■ Do not place anything on power cords or cables. Arrange them so that no
one can accidentally step on or trip over them. Do not pull on a cord or
cable. When unplugging from the electrical outlet, grasp the cord by
the plug.
CAUTION: Electrostatic discharge can damage electronic components. Be sure
that you are properly grounded (earthed) before beginning any installation
procedure. See Appendix B, “Electrostatic Discharge,” for more information.
2-2 Compaq ProLiant ML330e/ML330 Server Setup and Installation Guide
Selecting a Site
Make sure that the installation area that you select has the following features:
■ A sturdy, level installation site that includes dedicated and properly
grounded (earthed) circuits, air conditioning, and static electricity
protection
IMPORTANT: The ProLiant ML330e/ML330 server must be operated only when in an
upright, vertical position.
■ 7.6 cm (3.0 inches) clearance on all sides of server for proper ventilation
■ A separate electrical circuit for the server
CAUTION: Protect the server from power fluctuations and temporary
interruptions with a regulating uninterruptible power supply (UPS). This device
protects the hardware from damage caused by power surges and voltage spikes
and keeps the system in operation during a power failure.
Unpacking the Server
Unpack the server, keyboard, and cables according to the instructions and
illustrations printed on the Quick Start poster.
Overview of Server Installation 2-3
Locating Materials
Locate the following materials that were shipped with your
ProLiant ML330e/ML330 server:
■ Keyboard
■ Mouse
■ Power cord
■ Documentation and software packs inside the shipping box
In addition to these supplied items, you may need:
■ Torx T-15 screwdriver
■ Phillips #2 screwdriver
■ Hardware options
■ Uninterruptible power supply (UPS)
■ Ethernet cable
■ Monitor
■ Application software
Loading...
