Compaq Presario M2000 User Manual
b
Hardware and Software
Guide
Compaq Notebook Series
Document Part Number: 383110-001
May 2005
This guide explains how to identify, access, and use the hardware
and software features available on your notebook.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its proprietor. Bluetooth is a
trademark owned by its proprietor and used by Hewlett-Packard Company
under license. Adobe and Acrobat are trademarks of Adobe Systems
Incorporated.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Hardware and Software Guide
Compaq Notebook Series
First Edition May 2005
Reference Number: M2000
Document Part Number: 383110-001
Contents
1 Hardware
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Power Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Wireless (Select Models Only) and
Volume Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Antennae (Select Models Only) . . . . . . . . . . . . . . . . 1–8
Front Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Speakers, Jacks and Display Release Button. . . . . . 1–10
Rear Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11
Left-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12
Ports and Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12
PC Card Slot and Button . . . . . . . . . . . . . . . . . . . . . 1–13
Right-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . 1–14
Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–16
Mini PCI and Memory Compartments . . . . . . . . . . 1–16
Bays, Battery Latch and Vents . . . . . . . . . . . . . . . . 1–17
Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . 1–18
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–18
Optical Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–19
Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20
Hardware and Software Guide iii
Contents
2 TouchPad and Keyboard
TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Identifying TouchPad Components. . . . . . . . . . . . . . 2–1
Using the TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Setting TouchPad Preferences . . . . . . . . . . . . . . . . . . 2–3
Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Identifying Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Hotkey Quick Reference . . . . . . . . . . . . . . . . . . . . . . 2–6
Using Hotkey Procedures . . . . . . . . . . . . . . . . . . . . . 2–7
Using Hotkey Commands . . . . . . . . . . . . . . . . . . . . . 2–8
Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14
Using the Embedded Numeric Keypad . . . . . . . . . . 2–15
Using an External Numeric Keypad . . . . . . . . . . . . 2–18
3Power
Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Selecting a Power Source . . . . . . . . . . . . . . . . . . . . . 3–1
Switching Between Battery and
External Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Power Control and Light Locations . . . . . . . . . . . . . . . . . 3–4
Standby, Hibernation and Shutdown Overviews . . . . . . . 3–5
Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5
Hibernation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6
Leaving Your Work. . . . . . . . . . . . . . . . . . . . . . . . . . 3–7
Interference with Drive Media . . . . . . . . . . . . . . . . . 3–7
Standby, Hibernation and Shutdown Procedures. . . . . . . 3–8
Turning the Notebook On or Off. . . . . . . . . . . . . . . . 3–8
Initiating or Resuming from Standby . . . . . . . . . . . . 3–9
Initiating or Restoring from Hibernation. . . . . . . . . 3–10
Using Emergency Shutdown Procedures . . . . . . . . 3–11
Power Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12
Using Power Schemes . . . . . . . . . . . . . . . . . . . . . . . 3–12
Prompting for Standby Password . . . . . . . . . . . . . . 3–12
Setting Other Power Preferences. . . . . . . . . . . . . . . 3–13
iv Hardware and Software Guide
Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14
Charging a Battery Pack . . . . . . . . . . . . . . . . . . . . . 3–14
Monitoring the Charge in a Battery Pack . . . . . . . . 3–15
Managing Low-Battery Conditions. . . . . . . . . . . . . 3–16
Calibrating a Battery Pack. . . . . . . . . . . . . . . . . . . . 3–18
Conserving Battery Pack Power . . . . . . . . . . . . . . . 3–22
Replacing a Battery Pack. . . . . . . . . . . . . . . . . . . . . 3–23
Storing a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . 3–26
Disposing of a Used Battery Pack . . . . . . . . . . . . . . . . . 3–26
4Multimedia
Internal Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Volume Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
External Audio Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

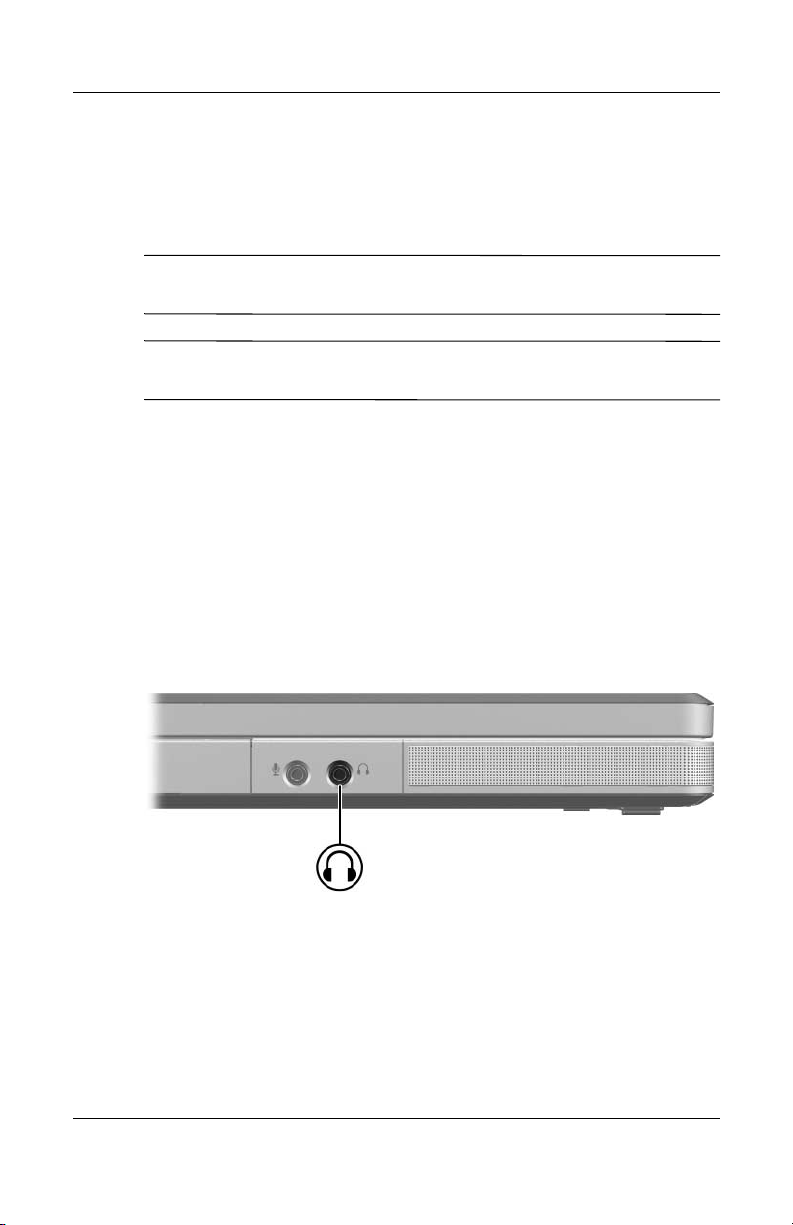

Using the Audio-Out (Headphone) Jack . . . . . . . . . . 4–3
Using the Audio-In (Microphone) Jack. . . . . . . . . . . 4–4
External Video Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Connecting an S-Video Device
(Select Models Only). . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Displaying a Video Image . . . . . . . . . . . . . . . . . . . . . 4–6
CD and DVD Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Inserting or Removing a Disc . . . . . . . . . . . . . . . . . . 4–6
Using Media Activity Hotkeys . . . . . . . . . . . . . . . . . 4–8
Setting AutoPlay Preferences . . . . . . . . . . . . . . . . . . 4–9
Protecting Playback . . . . . . . . . . . . . . . . . . . . . . . . . 4–10
Protecting a CD or DVD Write Process . . . . . . . . . 4–10
Multimedia Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11
Observing the Copyright Warning . . . . . . . . . . . . . 4–12
Installing Software. . . . . . . . . . . . . . . . . . . . . . . . . . 4–13
Enabling AutoPlay. . . . . . . . . . . . . . . . . . . . . . . . . . 4–14
Changing DVD Region Settings . . . . . . . . . . . . . . . 4–14
Contents
Hardware and Software Guide v
Contents
5 Wireless
(Select Models Only)
Wireless Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1
Wireless Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
802.11 Wireless Devices (Select Models Only) . . . . . . . 5–3
Setting Up a WLAN in Your Home . . . . . . . . . . . . . 5–4
Connecting to a WLAN in Your Home. . . . . . . . . . . 5–5
Connecting to a Public WLAN . . . . . . . . . . . . . . . . . 5–6
Using Wireless Security Features . . . . . . . . . . . . . . . 5–6
Identifying an 802.11 Wireless Device . . . . . . . . . . . 5–7
Troubleshooting Devices. . . . . . . . . . . . . . . . . . . . . . 5–7
Bluetooth Wireless Devices (Select Models Only) . . . . . 5–8
Wireless Device Power States . . . . . . . . . . . . . . . . . . . . 5–10
Turning On the Devices. . . . . . . . . . . . . . . . . . . . . . 5–12
Turning Off and Disabling the Devices. . . . . . . . . . 5–13
6Security
Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1
QuickLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Setup Utility and Windows Passwords . . . . . . . . . . . . . . 6–3
Coordinating Passwords . . . . . . . . . . . . . . . . . . . . . . 6–5
Choosing a Password. . . . . . . . . . . . . . . . . . . . . . . . . 6–5
Setup Utility Administrator Password . . . . . . . . . . . . . . . 6–6
Setting an Administrator Password . . . . . . . . . . . . . . 6–7
Entering an Administrator Password. . . . . . . . . . . . . 6–7
Setup Utility Power-On Password . . . . . . . . . . . . . . . . . . 6–8
Setting a Power-On Password . . . . . . . . . . . . . . . . . . 6–9
Entering a Power-On Password. . . . . . . . . . . . . . . . . 6–9
Setup Utility Device Security. . . . . . . . . . . . . . . . . . . . . 6–10
Antivirus Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11
Critical Security Updates for Windows XP . . . . . . . . . . 6–12
Firewall Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13
Optional Security Cable . . . . . . . . . . . . . . . . . . . . . . . . . 6–14
vi Hardware and Software Guide
Contents
7 Hardware Upgrades and Replacements
Device Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1
Connecting a Powered Device. . . . . . . . . . . . . . . . . . 7–1
Connecting a USB Device. . . . . . . . . . . . . . . . . . . . . 7–2
Connecting a 1394 Device
(Select Models Only). . . . . . . . . . . . . . . . . . . . . . . . . 7–3
Connecting a Communication Device. . . . . . . . . . . . 7–4
Digital Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4
Using the Memory Reader Light . . . . . . . . . . . . . . . . 7–5
Inserting a Digital Memory Card. . . . . . . . . . . . . . . . 7–6
Removing a Digital Memory Card . . . . . . . . . . . . . . 7–7
PC Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8
Inserting a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . 7–9
Stopping or Removing a PC Card . . . . . . . . . . . . . . 7–10
Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11
Adding a Drive to the System . . . . . . . . . . . . . . . . . 7–11
Using the IDE Drive Light . . . . . . . . . . . . . . . . . . . 7–11
Caring for Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–12
Replacing the Internal Hard Drive. . . . . . . . . . . . . . 7–13
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Increasing Memory . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Removing or Inserting a Memory Module . . . . . . . 7–18
8 Software Updates and Recoveries and
System Software
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1
Preparing for a Software Update . . . . . . . . . . . . . . . . 8–2
Downloading and Installing an Update . . . . . . . . . . . 8–4
Software Recoveries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8
Using System Restore . . . . . . . . . . . . . . . . . . . . . . . . 8–8
Repairing or Reinstalling Software . . . . . . . . . . . . . . 8–9
Hardware and Software Guide vii
Contents
Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–9
Opening the Setup Utility . . . . . . . . . . . . . . . . . . . . . 8–9
Changing the Language of the Setup Utility . . . . . . 8–10
Navigating and Selecting in the Setup Utility . . . . . 8–10
Displaying System Information. . . . . . . . . . . . . . . . 8–11
Restoring Default Settings in the Setup Utility . . . . 8–12
Using Advanced Setup Utility Features . . . . . . . . . 8–13
Closing the Setup Utility . . . . . . . . . . . . . . . . . . . . . 8–14
A Specifications
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
Rated Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Expansion Port Input/Output Signals. . . . . . . . . . . . . . . . A–3
Index
viii Hardware and Software Guide
Top Components
Keys
1
Hardware
Component Description
Function keys (12) Perform system and application tasks.
1
Windows logo key Displays the Microsoft® Windows®
2
Hardware and Software Guide 1–1
When combined with
keys perform additional tasks as
hotkeys.
Start menu.
fn, the function
(Continued)
Hardware
Component Description
fn key Combines with other keys to perform
3
system tasks. For example, pressing
fn+f7 decreases screen brightness.
4 Keypad keys (15) Can be used like the keys on an
external numeric keypad.
Windows applications key Displays a shortcut menu for items
5
beneath the pointer.
1–2 Hardware and Software Guide
TouchPad
Component Description
TouchPad* Moves the pointer.
1
Hardware
Left TouchPad button* Functions like the left button on an
2
Right TouchPad button* Functions like the right button on an
3
TouchPad vertical and
4
horizontal scrolling regions*
*This table describes default settings. For information about changing the
functions of TouchPad components, refer to the “Setting TouchPad
Preferences” section in Chapter 2, “TouchPad and Keyboard.”
Hardware and Software Guide 1–3
external mouse.
external mouse.
Scrolls upward or downward, or left
or right.
Hardware
Power Controls
Component Description
Display switch* If the notebook is closed while on, initiates
1
2 Power/standby button* When the notebook is
standby.
■ Off, press to turn on the notebook.
■ On, briefly press to initiate hibernation.
■ In standby, briefly press to resume from
standby.
■ In hibernation, briefly press to restore
from hibernation.
If the system has stopped responding
✎
and Windows shutdown procedures
cannot be used, press and hold for at
least 4 seconds to turn off the
notebook.
*This table describes default settings. For information about changing the
function of the display switch or power/standby button, refer to the “Setting
Other Power Preferences” section in Chapter 3, “Power.”
1–4 Hardware and Software Guide
Lights
Component Description
Caps lock light On: Caps lock is on.
1
Hardware
Wireless light
2
(select models only)*
Power/standby light
3
Hardware and Software Guide 1–5
†
On: One or more optional internal wireless
devices, such as a WLAN and/or a
Bluetooth® device (select models only),
are turned on.
On: Notebook is turned on.
Blinking: Notebook is in standby.
Off: Notebook is off.
(Continued)
Hardware
Component Description
Mute light On: Volume is muted.
4
Num lock light On: Num lock or the embedded numeric
5
*For information about establishing a wireless connection, refer to
Chapter 5, “Wireless (Select Models Only).”
†
The notebook has 2 power/standby lights. The power/standby light on
the top of the notebook is visible only when the notebook is open; the
power/standby light on the front of the notebook is visible whether
the notebook is open or closed.
keypad is on.
1–6 Hardware and Software Guide
Wireless (Select Models Only) and
Volume
Component Description
Buttons
Hardware
Wireless button
1
(select models only)
Volume down button Decreases system volume.
2
Volume up button Increases system volume.
3
Volume mute button Mutes or restores volume.
4
Hardware and Software Guide 1–7
Turns the wireless functionality on or
off but does not create a wireless
connection.
To establish a wireless
✎
connection, a wireless network
must already be set up. For
information about establishing
a wireless connection, refer to
Chapter 5, “Wireless (Select
Models Only).”
Hardware
Antennae (Select Models Only)
Component Description
Antennae (2)* Send and receive wireless device signals.
Exposure to Radio Frequency
Å
Radiation. The radiated output
power of this device is below the
FCC radio frequency exposure limits.
Nevertheless, the device should be
used in such a manner that the
potential for human contact during
normal operation is minimized. To
avoid the possibility of exceeding
the FCC radio frequency exposure
limits, human proximity to the
antennae should be not less than
20 cm (8 inches) during normal
operation, including when the
notebook display is closed.
*The antennae (select models only) are not visible from the outside of the
notebook. For optimal transmission, keep the areas immediately around
the antennae free from obstructions.
1–8 Hardware and Software Guide
Front Components
Lights
Component Description
Power/standby light* On: Notebook is turned on.
1
Blinking: Notebook is in standby.
Off: Notebook is off.
IDE (Integrated Drive
2
Electronics) drive light
On or blinking: The internal hard drive
or an optical drive is being accessed.
Hardware
Battery light On: The battery pack is charging.
3
Blinking: The battery pack has
reached a low-battery condition.
Off: The battery pack is fully charged
or not inserted.
*The light on the power/standby button and the power/standby light on
the front of the notebook display the same information. The light on the
power/standby button is visible when the notebook is open; the
power/standby light on the front of the notebook is visible whether the
notebook is open or closed.
Hardware and Software Guide 1–9
Hardware
Speakers, Jacks and Display Release Button
Component Description
Stereo speakers (2) Produce stereo sound.
1
Display release button Opens the notebook.
2
Audio-in
3
(microphone) jack
Audio-out
4
(headphone) jack
1–10 Hardware and Software Guide
Connects an optional monaural (single
sound channel) microphone.
Connects optional headphones or
powered stereo speakers. Also connects
the audio function of an audio/video
device such as a television or VCR.
Rear Components
Component Description
Exhaust vent* Provides airflow to cool internal
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a
hard surface, such as a printer,
or a soft surface, such as pillows
or thick rugs or clothing, to block
airflow.
*The notebook has 4 vents. This and all other vents are visible on the
bottom of the notebook. One vent is also visible on the left side of
the notebook.
Hardware
Hardware and Software Guide 1–11
Hardware
Left-Side Components
Ports and Jacks
Component Description
Power connector Connects the AC adapter cable.
1
Monitor port Connects an optional VGA monitor or
2
Expansion Port 2
3
(select models only)*
†
projector.
Connects the notebook to an optional
docking device.
RJ-45 (network) jack Connects an optional network cable.
4
RJ-11 (modem) jack Connects the modem cable.
5
USB port
6
*The notebook has only one expansion port. The term
describes the type of expansion port.
†
For expansion port signal information, refer to the “Expansion Port
Input/Output Signals” section.
‡
Depending on the model, the notebook has 2 or 3 USB ports. The other
USB ports are on the right side of the notebook.
1–12 Hardware and Software Guide
‡
Connects an optional USB device.
Expansion Port 2
PC Card Slot and Button
Component Description
PC Card slot Supports an optional Type I or Type II
1
PC Card eject button Ejects an optional PC Card from the
2
32-bit (CardBus) or 16-bit PC Card.
PC Card slot.
Hardware
Hardware and Software Guide 1–13
Hardware
Right-Side Components
Component Description
USB ports (1 or 2 depending
1
on the notebook model)*
Memory Reader
2
(select models only)
1394 port
3
(select models only)
Memory Reader light
4
(select models only)
Optical drive
5
‡
Connect optional USB devices.
Supports an optional digital
memory card.
Connects an optional 1394a device
such as a scanner, a digital camera,
or a digital camcorder.
On: An optional digital memory card is
being accessed.
Supports an optical disc.
†
(Continued)
1–14 Hardware and Software Guide
Component Description
Hardware
S-Video-out jack
6
(select models only)
Security cable slot Attaches an optional security cable to
7
*Depending on the model, the notebook has 2 or 3 USB ports. The other
USB port is on the left side.
†
The digital memory card could be a Secure Digital (SD) Memory Card,
Memory Stick, Memory Stick Pro, xD-Picture Card, MultiMediaCard, or
SmartMedia (SM) card.
‡
The type of optical drive—for example, a DVD-ROM drive, a DVD/CD-RW
Combo Drive, or a DVD+R/RW and CD-RW Combo Drive—varies by
notebook model.
Connects an optional S-Video device
such as a television, VCR, camcorder,
projector, or video capture card.
the notebook.
Security solutions are designed
Ä
to act as deterrents. These
deterrents may not prevent a
product from being mishandled
or stolen.
Hardware and Software Guide 1–15
Hardware
Bottom Components
Mini PCI and Memory Compartments
Component Description
Mini PCI
1
compartment
Memory
2
compartment
1–16 Hardware and Software Guide
Holds an optional wireless LAN device.
To prevent an unresponsive system and
Ä
the display of a warning message,
install only a Mini PCI device authorized
for use in your notebook by the
governmental agency that regulates
wireless devices in your country. If you
install an unauthorized device and then
receive a warning message, remove the
device to restore notebook functionality.
Then contact Customer Care.
Contains 2 memory slots that support
replaceable memory modules. The number
of preinstalled memory modules varies by
notebook model.
Bays, Battery Latch and Vents
Component Description
Battery bay Holds a battery pack.
1
Hardware
Battery pack release latch Releases a battery pack from the
2
Exhaust vents (4)
3
Hard drive bay Holds the internal hard drive.
4
*Battery packs vary by model.
†
The notebook has 4 vents. One vent is also visible on the rear of the
notebook.
Hardware and Software Guide 1–17
†
battery bay.*
Provide airflow to cool internal
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows or thick
rugs or clothing, to block airflow.
Hardware
Additional Components
Hardware
The components included with your notebook vary by region,
country, notebook model, and the optional hardware you
purchased. The following sections identify the standard external
components included with most notebook models.
Component Description
Battery pack* Powers the notebook when the notebook is
1
AC adapter Converts AC power to DC power.
2
Power cord* Connects an AC adapter to an AC outlet.
3
Modem cable* Connects a modem to an RJ-11 telephone
4
Country-specific modem
5
adapter (included by
region as required)*
*Battery packs vary by model. Power cords, modem cables, and modem
adapters vary in appearance by region and country.
1–18 Hardware and Software Guide
not connected to external power.
jack or to a country-specific modem
adapter.
Adapts the modem cable to a non-RJ-11
(modem) jack.
Optical Discs
Software on optical discs, such as CDs or DVDs, is included
with all notebook models.
■ The software applications packaged in the Required for Setup
bag are not preinstalled on your notebook. Depending on how
you want to use your notebook, you may want to install some
or all of these applications.
■ The software applications packaged in the Save for Later bag
are preinstalled or preloaded on your notebook. The software
discs are provided in case you ever need to repair or
this software.
❏ Additional discs packaged with your notebook provide
operating system recovery software and driver recovery
software. Application recovery software is provided with
select notebook models.
❏ The User Guides CD contains Adobe® Acrobat® PDF
files, not software. The files on the User Guides CD are
not preinstalled or preloaded on your notebook.
Hardware
reinstall
Hardware and Software Guide 1–19
Hardware
Labels
The labels affixed to the notebook provide information you
may need when you troubleshoot system problems or travel
internationally with the notebook.
■ Service Tag—Provides the product name, product number
■ Microsoft Certificate of Authenticity—Contains the
■ Regulatory label—Provides regulatory information about the
■ Modem Approval label—Provides regulatory information
(P/N), and serial number (S/N) of your notebook. You may
need the product number and the serial number when you
contact Customer Care. The Service Tag label is affixed to
the bottom of the notebook. To display the information on
Service Tag on your screen, select Start > Help and
the
Support.
Microsoft® Windows® Product Key. You may need the
Product Key to update or troubleshoot the operating system.
This certificate is affixed to the bottom of the notebook.
notebook. The Regulatory label is affixed to the inside of
battery bay.
the
about the modem and lists the agency approval markings
required by some of the countries in which the modem has
been approved for use. You may need this information when
traveling internationally. The Modem Approval label is
affixed to the inside of the memory compartment cover.
■ Wireless certification labels—Some notebook models include
an optional WLAN device and/or an optional Bluetooth®
device. If your notebook model includes one or more wireless
devices, a certificate providing regulatory information about
each device and the approval markings of some of the
countries in which the device has been approved for use is
included with your notebook. You may need this information
when traveling internationally. Wireless certification labels
are affixed to the inside of the Mini PCI compartment cover.
1–20 Hardware and Software Guide
TouchPad and Keyboard
TouchPad
Identifying TouchPad Components
The TouchPad includes the following components:
1 To uch Pad 3 Right TouchPad button
2
2 Left TouchPad button 4 TouchPad vertical and
horizontal scrolling regions
Hardware and Software Guide 2–1
TouchPad and Keyboard
Using the TouchPad
The TouchPad provides the navigation, selection, and scroll
functions of an optional external mouse:
■ To move the pointer, slide your finger across the TouchPad
surface in the direction you want to move the pointer.
■ To execute the click functions of the left or right button on an
external mouse, press the left or right TouchPad button.
■ To scroll, place your finger onto a scrolling region, and then
slide your finger along the scrolling region in the direction
you want to scroll. (Sliding your finger from the TouchPad to
a scrolling region without first lifting your finger from the
TouchPad and then placing it on the scrolling region will not
activate the scrolling region.)
The TouchPad is enabled when the notebook is turned on. If you
work with keystrokes rather than mouse actions, you may prefer
to disable the TouchPad to prevent accidental TouchPad activity.
2–2 Hardware and Software Guide
