Compaq nw9440 - Mobile Workstation, Nx9420 User Manual

Pointing Devices and
Keyboard

Document Part Number: 419590-001

January 2007

This guide explains the pointing devices and keyboard.

Contents

1 Pointing devices

Identifying pointing devices. . . . . . . . . . . . . . . . . . . . . . . 1–2

Using the TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Using the pointing stick controls (select models only) . . 1–4

Using an external mouse . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Setting TouchPad preferences . . . . . . . . . . . . . . . . . . . . . 1–5

2 Keyboard

Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Hotkey quick reference . . . . . . . . . . . . . . . . . . . . . . . 2–2

Hotkey procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

HP Quick Launch buttons (select models only). . . . . . . . 2–5

Presentation button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

Info Center button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

HP Quick Launch Buttons control panel . . . . . . . . . . . . 2–10

Opening the HP Quick Launch Buttons

control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Setting button preferences . . . . . . . . . . . . . . . . . . . . 2–11

Displaying the Q Menu . . . . . . . . . . . . . . . . . . . . . . 2–12

Setting tiling preferences . . . . . . . . . . . . . . . . . . . . . 2–16

Setting the ambient light sensor. . . . . . . . . . . . . . . . 2–17

Setting other preferences . . . . . . . . . . . . . . . . . . . . . 2–17

Index

Pointing Devices and Keyboard ii

✎

1

Pointing devices

The following sections provide information on the pointing
device features of the computer, which vary by model.

Your computer may look slightly different from the
illustrations in this section.

Pointing Devices and Keyboard 1–1

Pointing devices

Identifying pointing devices

The pointing stick (select models only) and TouchPad controls

✎

can be used interchangeably.

Component Description

Fingerprint reader

1

(select models only)*

Left pointing stick button

2

(select models only)

Pointing stick

3

(select models only)

Center pointing stick button

4

(select models only)

Allows a fingerprint logon to
Windows® instead of a password
logon. On select models, a center
button replaces the fingerprint reader.

Functions like the left button on an
external mouse.

Moves the pointer and selects or
activates items on the screen.

Functions like the center button on an
external mouse.

(Continued)

1–2 Pointing Devices and Keyboard

Component Description

Pointing devices

Right pointing stick button

5

(select models only)

TouchPad scroll zone* Scrolls up or down.

6

Right TouchPad button Functions like the right button on an

7

Center TouchPad button

8

(select models only)

Left TouchPad button* Functions like the left button on an

9

TouchPad* Moves the pointer and selects or

-

*This table describes default settings. To view and change TouchPad
preferences, select Start > Control Panel > Hardware and Sound >
Mouse.

Functions like the right button on an
external mouse.

external mouse.

Functions like the center button on
an external mouse. On select models,
a fingerprint reader replaces the
center button.

external mouse.

activates items on the screen. Can be
set to perform other mouse functions,
such as scrolling, selecting, and
double-clicking.

Pointing Devices and Keyboard 1–3

Pointing devices

Using the TouchPad

To move the pointer, slide your finger across the TouchPad
surface in the direction you want the pointer to go. Use the
TouchPad buttons as you would the corresponding buttons on an
external mouse. To scroll up and down using the TouchPad
vertical scroll zone, slide your finger up and down over the lines.

If you are using the TouchPad to move the pointer, you must

✎

lift your finger off the TouchPad before moving it to the scroll
zone. Simply sliding your finger from the TouchPad to the
scroll zone will not activate the scrolling function.

Using the pointing stick controls
(select models only)

To move the pointer, press the pointing stick in the direction
you want the pointer to go. Use the pointing stick buttons as you
would the corresponding buttons on an external mouse.

Using an external mouse

An external USB mouse can be connected to the computer using
one of the USB ports on either side of the computer. A USB
mouse can also be connected to the system using the ports on an
optional docking device (select models only).

1–4 Pointing Devices and Keyboard

Setting TouchPad preferences

Mouse Properties in Windows allows you to customize pointing
device settings, including:

■ TouchPad tapping, which enables you to tap the TouchPad

once to select an object or twice to double-click an object
(enabled by default).

■ Edge motion, which enables you to continue to scroll even

though your finger has reached the edge of the TouchPad
(disabled by default).

■ Button preference, which allows you to switch between

left-hand and right-hand use (right-hand preference is
enabled by default). With some application software, you can
program the center button for special functions.

Pointing devices

Other features, such as mouse speed preferences and mouse trails,
are also found in Mouse Properties.

To access Mouse Properties:

» Select Start > Control Panel > Hardware and Sound >

Mouse.

Pointing Devices and Keyboard 1–5

The following sections provide information on the keyboard
features of the computer.

Hotkeys

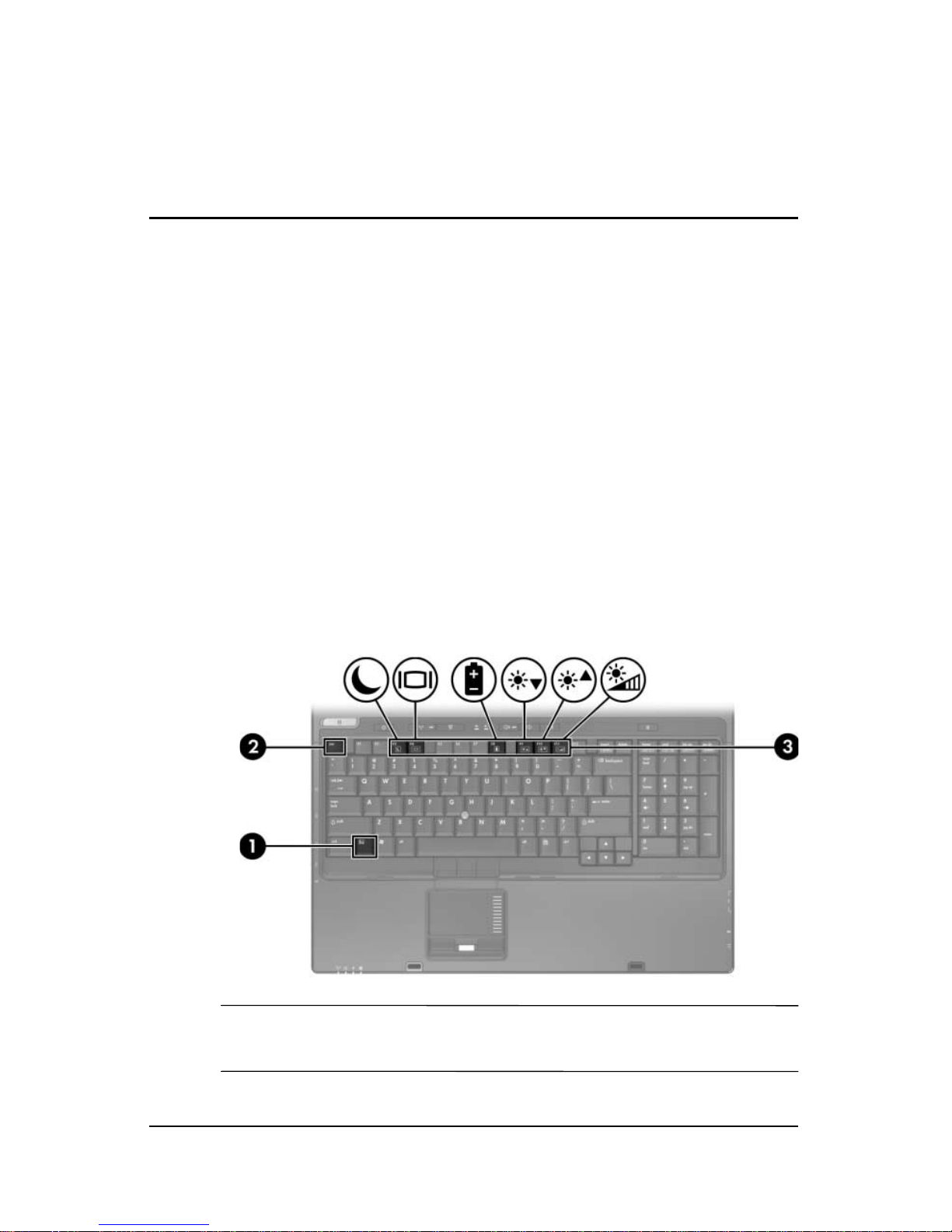

Hotkeys are preset combinations of the fn key 1 and either the

esc key 2, or one of the function keys 3.

2

Keyboard

The icons on the
hotkey functions. Hotkey functions and procedures are discussed
in the following sections.

f3, f4, and f8 through f11 keys represent the

Your computer may look slightly different from the

✎

Pointing Devices and Keyboard 2–1

illustrations in this section.

Keyboard

Hotkey quick reference

To perform this function Press

Initiate Sleep fn+f3

Exit Sleep Power button

Alternate between computer
display and external display

View/clear battery information fn+f8

Decrease screen brightness fn+f9

Increase screen brightness fn+f10

Turn on and off ambient light
sensor

Display system information fn+esc

Clear system information fn+esc or press OK

fn+f4

fn+f11

2–2 Pointing Devices and Keyboard

Hotkey procedures

To use a hotkey command on the computer keyboard, either

■ Briefly press the fn key, and then briefly press the second key

of the hotkey command.

– or –

■ Press and hold down the fn key, briefly press the second key

of the hotkey command, and then release both keys at the
same time.

Initiate Sleep (fn+f3)

Press fn+f3 to initiate Sleep.

When Sleep is initiated, your work is stored in random access
memory (RAM), the screen is cleared, and power is conserved.
While the computer is in the Sleep state, the power lights blink.

Keyboard

✎

The computer must be on before you can initiate Sleep.

To exit Sleep, briefly press the power button.

If a critical battery level occurs while the computer is in the
Sleep state, the computer initiates Hibernation and the
information stored in RAM is saved to the hard drive. The
factory setting for critical battery action is Hibernate, but this
setting can be changed in advanced power settings.

The function of the
you can set the
Sleep. In all Windows operating system windows, references to
the sleep button apply to the

fn+f3 hotkey can be changed. For example,

fn+f3 hotkey to initiate Hibernation instead of

fn+f3 hotkey.

Pointing Devices and Keyboard 2–3

Keyboard

Switch the screen image (fn+f4)

Press fn+f4 to switch the screen image among display devices
connected to the system. For example, if a monitor is connected
to the computer, each time you press
among the computer display, the monitor display, and a
simultaneous display on both the computer and the monitor.

Most external monitors receive video information from the
computer using the external VGA video standard. The
hotkey can also alternate images among other devices receiving
video information from the computer, such as S-Video.

The following video transmission types, with examples of devices
that use them, are supported by the

■ LCD (computer display)

fn+f4, the image switches

fn+f4 hotkey:

fn+f4

■ External VGA (most external monitors)

■ S-Video (televisions, camcorders, VCRs, and video capture

cards with S-Video-in jacks)

■ Composite video (televisions, camcorders, VCRs, and video

capture cards with composite-video-in jacks)

Composite video devices can be connected to the system only

✎

by using an optional docking device.

View battery pack charge information (fn+f8)

Press fn+f8 to display charge information for all installed battery
packs. The display indicates which battery packs are charging and
reports the amount of charge remaining in each battery pack.

Battery pack locations are indicated by number:

■ Location 1 is the primary battery pack.

■ Location 2 is the optional accessory battery pack.

2–4 Pointing Devices and Keyboard

Keyboard

Decrease screen brightness (fn+f9)

Press fn+f9 to decrease screen brightness. Hold down the hotkey
to decrease the brightness level incrementally.

Increase screen brightness (fn+f10)

Press fn+f10 to increase screen brightness. Hold down the hotkey
to increase the brightness level incrementally.

Activate the ambient light sensor (fn+f11)

Press fn+f11 hotkey to turn on and off the ambient light sensor.

Display and clear system information (fn+esc)

The fn+esc hotkey displays information about system hardware
components and the system BIOS version numbers

In the Windows

fn+esc display, the version of the system BIOS

(basic input-output system) is displayed as the BIOS date. On
some computer models, the BIOS date is displayed in decimal
format. The BIOS date is sometimes called the system ROM
version number.

To clear the

fn+esc display, press esc, or press enter.

Pointing Devices and Keyboard 2–5

Keyboard

HP Quick Launch buttons
(select models only)

Use the HP Quick Launch buttons to open frequently used
programs, sometimes called applications in the HP Quick Launch
Buttons control panel.

Your computer may look slightly different from the

✎

illustrations in this section.

Component Description

1 Info Center button Launches Info Center, which enables

you to open various software solutions.
You can also reprogram this button to
perform one of the following actions:

■ Open a program, folder, file, or
Web site.

■ Open Presentation feature or the
Q Menu.

■ Open an e-mail editor.

■ Open a search box that allows you

to search for a Web site.

(Continued)

2–6 Pointing Devices and Keyboard

Keyboard

Component Description

2 Presentation button Starts the Presentation feature. This

feature opens a program, folder, file,
or Web site, and simultaneously
displays it on both the computer
screen and on an external device.

The presentation button can be
reprogrammed to perform one of the
following actions:

■ Open the Q Menu or Info Center.

■ Open an e-mail editor.

■ Open a search box that allows you

to search for a Web site.

Calculator launch button Launches Windows calculator.

3

Pointing Devices and Keyboard 2–7

Keyboard

Presentation button

When you press the presentation button the first time, the
Presentation Settings dialog box opens. In this dialog box,
you can set the button to perform any of the following actions:

■ Open a program, folder, file, or Web site that you specify.

■ Choose a power preference.

■ Choose a display setting.

The image simultaneously displays on the computer screen and
on an external device connected to one of the following:

■ The external monitor port

■ The S-Video-out jack on the rear panel

■ Ports and jacks on an optional docking device

2–8 Pointing Devices and Keyboard

If you choose not to use the presentation button default settings,
you can reprogram the button to perform one of the following
actions:

■ Open the Q Menu or the Info Center.

■ Open an e-mail editor.

■ Open a search box that allows you to search for a Web site.

Info Center button

Keyboard

When you press the Info Center button the first time, the Info
Center opens, enabling you to open preset software solutions.
If you choose not to use this default setting for the Info Center
button, you can reprogram the button to perform one of the
following actions:

■ Open the Q Menu or start the presentation feature.

■ Open an e-mail editor.

■ Open a search box that allows you to search for a Web site.

Pointing Devices and Keyboard 2–9

Keyboard

HP Quick Launch Buttons control panel

Some of the preferences listed in the HP Quick Launch Buttons

✎

control panel may not be supported by your computer.

You can use the HP Quick Launch Buttons control panel to

■ Program the presentation button and the Info Center button,

and change the settings for each button.

■ Add, modify, and remove items on the Q Menu.

■ Set preferences for tiling windows on the Windows desktop.

■ Specify other preferences, including the following

❏ Preferences for the display of the HP Quick Launch

Buttons icon.

❏ Display of HP Quick Launch Buttons desktop

notifications.

❏ Enabling or disabling automatic mode change.

❏ Enabling or disabling the quick switch.

❏ Enabling or disabling the display resolution change

detection feature.

The following sections provide instructions for setting
preferences within the control panel. For additional on-screen
information about any item on the control panel, click the Help
button in the upper-right corner of the window.

2–10 Pointing Devices and Keyboard

Opening the HP Quick Launch Buttons
control panel

You can open the HP Quick Launch Buttons control panel in any
of the following ways:

■ Select Start > Control Panel > Hardware and Sound >

Quick Launch Buttons.

■ Double-click the HP Quick Launch Buttons icon in the

notification area, at the far right of the taskbar.

■ Right-click the HP Quick Launch Buttons icon, and select

Adjust HP Quick Launch Buttons Properties.

Setting button preferences

Keyboard

1. In the HP Quick Launch Buttons control panel, click the

Programmable Buttons tab.

2. You can program a button to perform one of the following
actions:

❏ To open the Q Menu or to open the Info Center when the

button is pressed:

a. Click the down arrow next to the button you want to

set, and click Q Menu.

b. To save your preferences and close the control panel,

click Apply, and then click OK.

❏ To open an e-mail editor or to search for a Web site when

the button is pressed:

a. Click the down arrow next to the button you want to

set, and click Launch eMail or Search URL.

b. To save your preferences and close the control panel,

click Apply, and then click OK.

Pointing Devices and Keyboard 2–11

Keyboard

❏ To open a program, folder, file, or Web site when the

button is pressed:

a. Click the down arrow next to the button you want

to set, and click Presentation.

b. Click the Configure button.

c. In the box under Program to Start, type the name

of the program, folder, or file, or the URL of the
Web site.

– or –

Click Browse to search for available programs,
folders, files, or Web sites, and then click to select one.

d. To save your preferences and close the control panel,

click Apply, and then click OK.

Displaying the Q Menu

The Q Menu provides quick access to many of the system tasks
accessed with the buttons, keys, or hotkeys found on most
computers.

To display the Q Menu on the desktop:

» Right-click the HP Quick Launch Buttons icon, and select

Launch Q Menu.

Setting Q Menu preferences

The Q Menu can display up to 40 items. Several system-defined
items are displayed by default. You can choose to display these
items or choose not to display them. Only user-defined items can
be added, modified, and removed.

The items on the Q Menu are managed from the Items to display
on Q Menu list.

2–12 Pointing Devices and Keyboard

Keyboard

Removing a Q Menu item

To remove an item from the Q Menu:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. On the Items to display on Q Menu list, clear the check
box for each item you want to remove.

3. To save your preferences and close the control panel,
click Apply, and then click OK.

Adding a listed item to the Q Menu

To add an item from the Items to display on Q Menu list to the
Q Menu:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. Select the check box for the item you want to add.

3. To save your preferences and close the control panel,
click Apply, and then click OK.

Adding a user-defined item to the Q Menu

To add an item to both the Items to display on Q Menu list and
to the Q Menu when it is not on the Items to display on Q Menu
list—for example, an item on a drive, network, or the Internet:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. Click Add.

Pointing Devices and Keyboard 2–13

Keyboard

3. In the Add New Menu Entry dialog box, you can add the
item by typing or by browsing:

❏ To add the item using the keyboard, type a name for

the item in the Display Name box and type the path to
the item in the File Name box. If you prefer to type the
Display Name, but browse for the File Name, leave
the File Name box blank.

❏ To add an item by browsing, click the Browse button.

In the window, select the item. (The full name of the item
is displayed in the File Name box and, if you did not type
a name earlier in the Display Name box, a Display Name
is generated from the item name and displayed in the
Display Name box.)

4. To save your preferences and close the dialog box,
click Apply, and then click OK.

Changing a user-defined item

User-defined items can be changed, but system-defined items
cannot be changed. If you select a system-defined item on the
Items to display on Q Menu list, the Modify button is
unavailable.

To change the display name and/or file name of a
user-defined item:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. Click the item on the Items to display on Q Menu list.

2–14 Pointing Devices and Keyboard

Keyboard

3. Click Modify.

❏ To change the Display Name or File Name of the item

using the keyboard, type the new name for the item in the

Display Name box or type the new path to the item in the
File Name box. If you prefer to type the Display Name,

but browse for the File Name, leave the File Name box
blank.

❏ To change the Display Name or File Name by browsing,

click the Browse button.

In the window, select the item. (The full name of the item
is displayed in the File Name box and, if you did not type
a name earlier in the Display Name box, a Display Name
is generated from the item name and displayed in the
Display Name box.)

4. To save your preferences and close the dialog box,
click Apply, and then click OK.

Pointing Devices and Keyboard 2–15

Keyboard

Repositioning a Q Menu item

To change the location of an item on the Q Menu:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. Select the item on the Items to display on Q Menu list. Then

❏ To move the item up in the list, click the Move Up button.

❏ To move the item down in the list, click the Move Down

button.

3. To save your preferences and close the control panel,
click Apply, and then click OK.

Removing an item from the Items to display
on Q Menu list

System-defined items cannot be removed from the Items to
display on Q Menu list. To remove a user-defined item:

1. In the HP Quick Launch Buttons control panel, click the
Q Menu tab.

2. Click the item you want to remove.

3. Click Remove.

4. To save your preferences and close the control panel,
click Apply, and then click OK.

Setting tiling preferences

To set tiling preferences on the Windows desktop:

1. In the HP Quick Launch Buttons control panel, click the
Quick Tile tab.

2. Click Vertical Tile or Horizontal Tile, and then click the
programs you want to be tiled in the Applications currently
running box.

3. To save your preferences and close the control panel,
click Apply, and then click OK.

2–16 Pointing Devices and Keyboard

Setting the ambient light sensor

The computer features a built-in light sensor that automatically
adjusts the display brightness based on the lighting conditions in
your environment.

You can turn the ambient light sensor on and off in 2 ways:

■ By pressing the fn+f11 hotkey.

■ By right-clicking the Quick launch buttons software icon in

the notification area, at the far right of the taskbar, and
clicking Turn Ambient light sensor on/off.

Setting other preferences

You can set other preferences from the HP Quick Launch Buttons
Preferences tab.

Keyboard

✎

Some of the preferences listed on the Preferences tab may not
be supported by your computer.

To set a preference:

1. In the HP Quick Launch Buttons control panel, click the

Preferences tab.

2. To display or enable a preference, click the check box next
to the item.

– or –

To clear or disable a preference, clear the check box next to
the item.

Pointing Devices and Keyboard 2–17

Keyboard

✎

3. To save your preferences and close the control panel,
click OK.

For on-screen information about any item on the Preferences
tab, click the Help button in the upper-right corner of the
window, and then click the item.

4. To save your preferences and close the display, click OK.

2–18 Pointing Devices and Keyboard

Index

A

alternating displays 2–4
ambient light sensor

2–2

B

battery charge, displaying

information

buttons

Center pointing stick
Center TouchPad
Info Center
presentation
Quick Launch
TouchPad

2–4

1–2

1–3

2–6

2–7, 2–8, 2–9

2–5, 2–10

1–3

C

Calculator launch button 2–7
composite video

2–4

E

external mouse 1–4

F

fingerprint reader 1–2
function keys

2–1

H

hotkey commands

alternate displays
battery charge information

2–4

decrease display brightness

2–5

display system information

2–5

increase display brightness

2–5

initiate Sleep

hotkeys

identifying
Quick Reference

2–1

2–4

2–1, 2–3

2–1

I

Info Center button 2–6

initiating Sleep

2–3

K

keys

function
hotkeys

2–1

2–1

Pointing Devices and Keyboard Index–1

Index

P

Pointing stick 1–2
power preference
presentation button

2–9

presentation feature

preferences, setting

Presentation mode

preferences, setting

2–8

2–7, 2–8,

2–11

2–11

Q

Quick Launch buttons 2–5,

2–10

S

scrolling zone, TouchPad 1–3
system information,

displaying

2–5

T

tiling, setting preferences 2–16
TouchPad

described
setting preferences

1–3

1–5

Index–2 Pointing Devices and Keyboard

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Windows is a U.S registered trademark of Microsoft Corporation.

The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.

Pointing Devices and Keyboard
First Edition: January 2007
Document Part Number: 419590-001
