Compaq nx7300 User Manual

Download

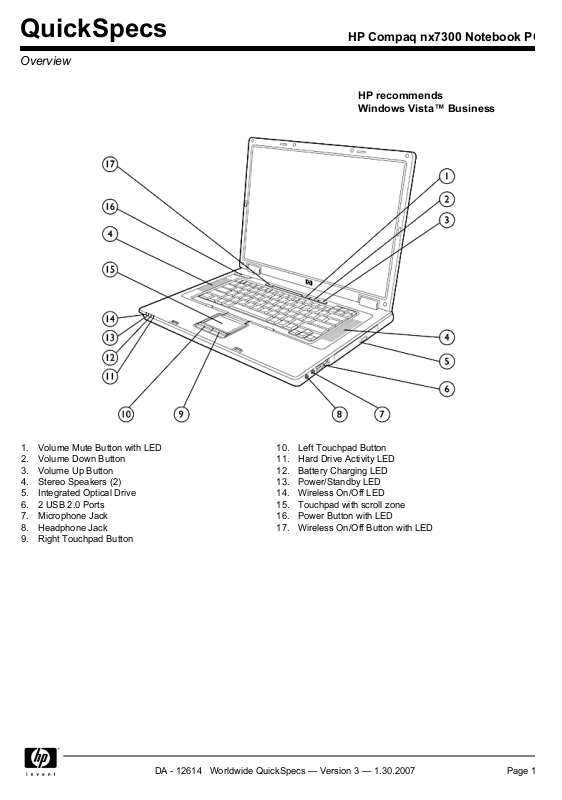

QuickSpecs

Overview

HP Compaq nx7300 Notebook PC
HP recommends Windows Vista™ Business
1.
Volume Mute Button with LED
2.
Volume Down Button
3.
Volume Up Button
4.
Stereo Speakers (2)
5.
Integrated Optical Drive
6.
2 USB 2.0 Ports
7.
Microphone Jack
8.
Headphone Jack
9.
Right Touchpad Button
10.
11.
12.
13.
14.
15.
16.
17.
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 1
QuickSpecs
Overview
1.
Kensington Lock Slot
2.
RJ-45 Port (NIC)
3.
RJ-11 Port (Modem)
4.
IEEE 1394a Port
5.
USB 2.0 Port
HP Compaq nx7300 Notebook PC
6.
PC Card Slot
7.
PC Card Eject Button
8.
VGA/External Monitor Port
9.
Power Connector
At A Glance
Genuine Windows Vista Business 32, Genuine Windows Vista Home Basic 32, Genuine Windows XP Professional, Genuine Windows XP Home Edition, FreeDOS Sleek light-weight design starting at 5.6 lb (2.54 kg) and 1.2 inch (30 mm) thin at front
15.4-inch wide screen display with BrightView option Intel® Core™ 2 Duo processors, Intel Core Duo processors, Intel Core Solo processors, or Intel Celeron® M processors Mobile Intel 945GM Express Chipset or Mobile Intel 940GML Express Chipset Up to 4GB of 533- or 667-MHz DDR2 SDRAM, dual channel memory support* Intel Graphics Media Accelerator 950 Up to 120-GB 5400 rpm, user-removable hard drive Optional LightScribe DVD+/-RW Drive with Double Layer Optional 802.11 a/b/g or 802.11 b/g wireless LAN modules and optional Bluetooth® IEEE 1394a Port Protected by a one-year standard parts and labor warranty – certain restrictions and exclusions apply.
* Memory greater than 2 GB requires Mobile Intel 945GM Express Chipset. Above 3-GB, all memory may not be available due to system resource requirements. 667-MHz memory is supported at a maximum speed of 533 MHz by the 940GML Express Chipset.
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 2
QuickSpecs

Standard Features

HP Compaq nx7300 Notebook PC
Processors
Intel Core 2 Duo Processor T7600 (2.33-GHz, 667-FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T7400 (2.16-GHz, 667-FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T7200 (2.0-GHz, 667-FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T5600 (1.83-GHz, 667-FSB, 2-MB L2 cache)*
Intel Core 2 Duo Processor T5500 (1.66-GHz, 667-FSB, 2-MB L2 cache)*
Intel Core Duo processor T2600* (2.16-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Core Duo processor T2500* (2.00-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Core Duo processor T2400* (1.83-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Core Duo processor T2300* (1.66-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Core Duo processor T2300E* (1.66-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Core Duo Processor T2250* (1.73-GHz, 533-MHz FSB, 2-MB L2 cache) (select countries only)
Intel Core Duo Processor T2050* (1.60-GHz, 533-MHz FSB, 2-MB L2 cache) (select countries only)
Intel Core Solo Processor T1350* (1.86-GHz, 533-MHz FSB, 2-MB L2 cache) (select countries only)
Intel Core Solo Processor T1300* (1.66-GHz, 667-MHz FSB, 2-MB L2 cache)
Intel Celeron M Processor 450* (2.0-GHz, 533-MHz FSB, 1-MB L2 cache)
Intel Celeron M Processor 440* (1.86-GHz, 533-MHz FSB, 1-MB L2 cache)
Intel Celeron M Processor 430* (1.73-GHz, 533-MHz FSB, 1-MB L2 cache)
Intel Celeron M Processor 420* (1.60-GHz, 533-MHz FSB, 1-MB L2 cache)
Intel Celeron M Processor 410* (1.46-GHz, 533-MHz FSB, 1-MB L2 cache)
* Intel's numbering is not a measurement of higher performance.
NOTE:
speeds in battery optimization mode.
Processor speed denotes maximum performance mode; processors will run at lower
Operating System
Chipset
Preinstalled
Supported
(select drivers available on
http://www.hp.com
Certified
* Certain Windows Vista product features require advanced or additional hardware. See
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx
Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit
Mobile Intel 945GM Express Chipset with 667-MHz front side bus or Mobile Intel 940GML Express Chipset with 533-MHz front side bus
)
Genuine Windows Vista Business 32* Genuine Windows Vista Home Basic 32* Genuine Windows XP Professional SP2 Genuine Windows XP Home Edition SP2 FreeDOS
Genuine Windows Vista Business 64*† Genuine Windows Vista Enterprise 32/64*† Genuine Windows 2000
† 64-bit versions for Intel Core 2 Duo models only
SuSE Linux Enterprise Desktop 10
for details. Windows Vista Upgrade
http://www.windowsvista.com/upgradeadvisor
and
.
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 3
QuickSpecs
Standard Features
HP Compaq nx7300 Notebook PC
Graphics
Display
Memory
Intel Graphics Media Accelerator 950 with up to 224-MB shared system memory Microsoft DirectX 9 capable
Internal
External
Standard
Maximum
Dual-channel
* 667-MHz memory is supported at a maximum speed of 533 MHz by the Mobile Intel 940GML Express Chipset.
NOTE:
recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.
Due to the non-industry standard nature of some third-party memory modules, we
15.4-inch WXGA display with 1280 x 800 resolution and 16M colors
15.4-inch WXGA BrightView display with 1280 x 800 resolution and 16M colors
15.4-inch WSXGA+ wide viewing angle display with 1680 x 1050 resolution and 16M colors
Up to 32-bit per pixel color depth
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
NOTE:
Resolutions are dependent upon monitor capability, and
resolution and color depth settings.
256-MB, 512-MB, or 1024-MB 533-MHz or 667-MHz* DDR2 SDRAM SODIMMs; two SODIMM slots supporting dual channel memory
Supports up to 4096-MB maximum (2048-MB 667-MHz SODIMM in slots 1 and 2; requires Mobile Intel 945GM Express Chipset)
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Communications
Wireless Devices
Integrated Broadcom 10/100 Ethernet PCI Controller
56K V.92 modem* with digital line guard
* Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.
Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards. Integrated Bluetooth is also an option (factory configurable only) and can be combined with any one of the supported wireless LAN options.
All integrated wireless LAN options
Intel PRO/Wireless 3945ABG Network Connection
Intel PRO/Wireless 3945BG Network Connection
Wi-Fi certified Cisco Compatible Extensions support (Version 4.0) Wired Equivalent Privacy (WEP) support up to 128-bit keys Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP­GTC, PEAP-MSCHAPv2, and LEAP Advanced Encryption Standard (AES) support WiFi Certified for WPA2, WMM Dual antennas integrated in the display enclosure
Intel Centrino mobile technology Integrated support for 802.11a, b and g Up to 54-mbps data rate
Intel Centrino mobile technology Integrated support for 802.11b and g Up to 54-mbps data rate
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 4
QuickSpecs
Standard Features
HP Compaq nx7300 Notebook PC
Keyboard
One-Touch Productivity Buttons
Pointing Device
Broadcom 4311AG WiFi Adapter
Broadcom 4311BG WiFi Adapter
HP Integrated Module with Bluetooth 2.0 Wireless Technology
The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. US and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and other features, 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, comfort-dished keycaps, and bright key legends for improved visibility in low light conditions.
Provide one-touch access to the following features: Wireless On/Off, Volume down, Volume up, and Volume Mute.
Touchpad with scroll zone and two soft-touch buttons
Integrated support for 802.11a, b and g Up to 54-mbps data rate
Integrated support for 802.11 b and g Up to 54-mbps data rate
Bluetooth Specification v2.0 compliant Works with a wide range of Bluetooth devices
Expansion Card Slots
Storage
One Type I/II PC Card slot
Hard Drives
NOTE:
cycles. Up to 8 GB is reserved for the system recovery software.
HP Mobile Data Protection System
Fixed Optical Drives
These hard drives are customer removable and will withstand multiple insertion/removal
Supports 32-bit CardBus and 16-bit PC Cards
40-, 60-, 80-, 100-, 120-GB 5400 rpm SMART SATA 100-GB 7200 rpm SMART SATA
Hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive and protecting it during normal use from shock and vibration.
CD-ROM DVD-ROM DVD/CD-RW Combo DVD+/-RW SuperMulti with Double Layer LightScribe DVD+/-RW with Double Layer
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 5
QuickSpecs
Standard Features
HP Compaq nx7300 Notebook PC
Interfaces
Audio
PC Card Slot
External Monitor
IEEE 1394a Port
External Microphone
Headphone/Line out
Power Connector
RJ-11
(Modem)
RJ-45
(NIC)
USB 2.0
Accessory Battery Connector
LED Status Indicators
PremierSound audio/speaker subsystem ADI1981HD High Definition CODEC Integrated 16-bit Sound Blaster Pro compatible audio 24-bit DAC Integrated stereo speakers External volume up, volume down, and mute buttons Stereo headphone/line out Stereo microphone in
One - Type I/II
One – VGA
One
One
One
One
One
One
Three
One
Nine
Software
HP Backup and Recovery Manager
Preinstalled Software with Windows Vista or Windows XP
Additional software available from the Web
Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes corrupted or if important information is accidentally deleted. HP Backup and Recovery Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 8 GB is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional hardware).
Adobe Acrobat Reader HP Backup and Recovery Manager HP Help and Support Center HP Mobile Print Driver (Windows XP models) HP ProtectTools Security Manager: BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools HP Quick Launch Buttons HP Wireless Assistant Sonic Digital Media Plus (Windows XP models): RecordNow! (for optional DVD+/-RW and DVD/CDRW drives) MyDVD (DVD Authoring for optional DVD+/-RW drives) Roxio Creator 9 (Window Vista models with optional DVD+/-RW or DVD/CDRW drives) Synaptics Touchpad Driver Symantec Norton Internet Security with complimentary 60-day live update Intervideo WinDVD - DVD Player (for optional DVD+/-RW, DVD/CDRW and DVD drives)
Smart Card Security for HP ProtectTools Device Access Manager for HP ProtectTools
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 6
QuickSpecs
Standard Features
HP Compaq nx7300 Notebook PC
SMBIOS Version 2.4
HP ProtectTools Security Manager
Security
System Management BIOS, previously known as DMI BIOS, is used to store system management information.
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. Modules currently available or planned are:
- BIOS Configuration for HP ProtectTools
- Credential Manager for HP ProtectTools
- Device Access Manager for HP ProtectTools
Standard Features
For more information on HP security solutions refer to
HP ProtectTools Security Manager Configuration Control Hardware Memory Change Alert Ownership Tag Setup Password Power-On Password DriveLock HP Disk Sanitizer Kensington Lock Slot Support for Computrace / LoJack for Laptops (must be purchased separately)
http://www.hp.com/go/security
.
Power Supply
*Fast Charge Technology recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 12-cell Ultra-Capacity batteries.
Battery
External 65-watt AC adapter, 6-foot (1.8-meter) power cord included. Total length including External AC adapter is 12 feet (3.66 meter). HP Fast Charge Technology*
Primary Battery
Optional 8-Cell Extended Life Battery
Optional HP 12-Cell Ultra-Capacity Battery
8-cell (69Wh) high capacity Lithium-Ion 6-cell (43Wh) high capacity Lithium-Ion
8-cell (52Wh) high capacity Lithium-Ion
12-cell (95Wh) high capacity Lithium-Ion
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 7
QuickSpecs
Standard Features
HP Compaq nx7300 Notebook PC
Battery Life
System Standby Time
Power Conservation
Service and Support
Primary Battery
Primary Battery and optional HP 8-Cell Extended Life Battery
Primary Battery and optional HP 12-Cell Ultra-Capacity Battery
NOTE:
Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
Up to 1 week
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode)
Hibernation
Standby
ACPI compliance
HP Services includes a one-year standard parts and labor warranty, pick-up or carry-in, and toll­free 7 x 24 hardware technical phone support (depending on model). On-site service and warranty upgrades are also available.
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
8-cell (69Wh) Primary 6-cell (43Wh) Primary
Up to 5 hours and 45 minutes Up to 3 hours and 30 minutes
Up to 9 hours and 45 minutes Up to 7 hours and 30 minutes
Up to 13 hours and 30 minutes
Up to 12 hours
.
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 8
QuickSpecs

Options

HP Compaq nx7300 Notebook PC
Memory
MultiBay II Storage
(9.5-mm)
NOTE: Requires HP
External MultiBay II
Other Storage
256-MB 533-MHz DDR2 SDRAM
512-MB 533-MHz DDR2 SDRAM
1-GB 533-MHz DDR2 SDRAM
512-MB 667-MHz DDR2 SDRAM*
1-GB 667-MHz DDR2 SDRAM*
2-GB 667-MHz DDR2 SDRAM*
* 667-MHz memory is supported at a maximum speed of 533 MHz by the Mobile Intel 940GML Express Chipset.
DVD-ROM MultiBay II Drive
Combo DVD/CD-RW MultiBay II Drive
DVD+/-RW Dual Format MultiBay II Drive
80-GB 5400 rpm MultiBay II Hard Drive
80-GB 5400 rpm Primary SATA Hard Drive
DVD+/-RW Double Layer Drive with LightScribe Upgrade
HP USB Digital Drive + 256-MB Secure Digital Card
HP USB Diskette Drive
PE830A
PE831A
PE832A
EM993AA
EM994AA
EM995AA
PA849A
PA850A
PA851A
PH357A
ET354AA
ET353AA
DL702AA
DC361B
Communications
Expansion Solutions
Power
Carrying Cases
Intel PRO/Wireless 3945ABG 802.11 a/b/g WLAN option kit
HP Monitor Stand
HP Adjustable Notebook Stand
HP External MultiBay II (9.5-mm)
HP 4-port USB 2.0 Hub
HP 2-bay Battery Charging Station
HP 10-bay Battery Charging Station
Battery Adapter kit #1
65W Smart AC Adapter
90W Smart AC Adapter
90W Smart Auto Adapter
65W Air/Auto/AC Combo Adapter
Primary 8-cell Battery Pack
HP 8-cell Extended Life Battery
HP 12-cell Ultra-Capacity Battery
HP Entry Value Case
HP Top Load Nylon Case
HP Executive Leather Case
HP Sport Backpack
EX150AA#xxx
PA507A
PA508A
PA509A#xxx
DG954A
DT533A#xxx
DT534A#ABA
PK402A
ED494AA#xxx
ED495AA#xxx
ED493AA
ED993AA#xxx
PB992A
PB993A
EJ092AA
DL617A
DC915A
PA847A
DG102A
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 9
QuickSpecs
Options
HP Compaq nx7300 Notebook PC
Security
Input/Output Devices
HP PCMCIA Smart Card Reader
HP/Kensington Cable Lock
USB/PS2 Keyboard
USB/PS2 Optical Mouse
HP USB Optical Travel Mouse
DC350B
PC766A
DC852A#xxx
DC369A
F2100A
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 10
QuickSpecs

Memory

Supports up to 4096 MB* of 533-MHz or 667-MHz** DDR2 SDRAM Two DIMM slots DIMM sizes supported: 256 MB, 512 MB, 1024 MB, and 2048 MB
Standard Memory
256 MB (256 MB x 1) 512 MB (512 MB x 1 or 256 MB x 2) 1024 MB (1024 MB x 1 or 512 MB x 2) 2048 MB (1024 MB x 2)
HP Compaq nx7300 Notebook PC
Optional Memory Upgrades
Support for up to 4096 MB* of memory is available (with the installation of optional DDR2 SDRAM memory kits). Both memory slots are user accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Up to
768 MB 512 MB 256 MB 1024 MB 1024 MB 1024 MB 1280 MB 1024 MB 1536 MB 1024 MB 2048 MB 1024 MB 1024 MB
4096 MB*
Memory Upgrades
* Memory greater than 2 GB requires Mobile Intel 945GM Express Chipset. Above 3-GB, all memory may not be available due to system resource requirements. ** 667-MHz memory is supported at a maximum speed of 533 MHz by the Mobile Intel 940GML Express Chipset.
NOTE:
standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
256-MB 533-MHz DDR2 SDRAM
512-MB 533-MHz DDR2 SDRAM
1024-MB 533-MHz DDR2 SDRAM
512-MB 667-MHz DDR2 SDRAM
1024-MB 667-MHz DDR2 SDRAM
2048-MB 667-MHz DDR2 SDRAM
This chart does not represent all possible memory configurations. Due to the non-industry
Slot 1 Slot 2
Empty
512 MB 512 MB
256 MB 512 MB
2048 MB 2048 MB
PE830A
PE831A
PE832A
EM993AA
EM994AA
EM995AA
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 11
QuickSpecs

Storage

Removable Media Drive Support
HP Compaq nx7300 Notebook PC
LightScribe DVD+/-RW Drive with Double Layer
DVD+/-RW SuperMulti Drive with Double Layer
DVD/CD-RW Combo Drive
DVD-ROM Drive
Hard Drive Support
Primary Hard Drives
100-GB 7200 rpm SMART SATA Hard Drive
120-GB 5400 rpm SMART SATA Hard Drive
100-GB 5400 rpm SMART SATA Hard Drive
80-GB 5400 rpm SMART SATA Hard Drive
60-GB 5400 rpm SMART SATA Hard Drive
40-GB 5400 rpm SMART SATA Hard Drive
Quantity Supported
One
One
One
One
Quantity Supported
One
One
One
One
One
One
Drive Bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Drive Bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 12
QuickSpecs

Technical Specifications

HP Compaq nx7300 Notebook PC
System Unit
Dimensions
Weight
NOTE:
includes 6-cell battery, 60-GB hard drive, 512-MB memory, 802.11 wireless communications module. Weight varies by configuration and components.
Stand-Alone Power Requirements
Temperature
Relative Humidity
Shock
Random Vibration
Altitude
(unpressurized)
Industry Standard Certifications
(HxWxD)
Height varies depending upon where on the notebook the measurement is made. Weight
1.2 in (at front) x 14.1 in x 10.2 in 30 mm (at front) x 357 mm x 260 mm
5.6 lb (2.54 kg)
Normal Operating Voltage
Average Operating Power
Max Operating Power
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Blue Angel
UL
CSA
FCC Compliance
Energy Star Compliant
ICES
GS
Australia / NZ A-Tick Compliance
CCC
Japan VCCI Compliance
MIC
BSMI
CE Marking Compliance
BNCI or BELUS
CIT
GOST
Saudi Arabian Compliance (ICCP)
SABS
UKRSERTCOMPUTER
19 V
25 W
< 65 W
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
-4° to 140° F (-20° to 60° C)
10% to 90%, non-condensing
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
125 G, 2 ms, half-sine
200 G, 2 ms, half-sine
0.75 grms
1.50 grms
-50 to 10,000 ft (-15.24 to 3,048 m)
-50 to 40,000 ft (-15.24 to 12,192 m)
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 13
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
HP 65W Smart AC Adapter
Dimensions
Weight
Input
Output
Connector
Environmental Design
EMI and Safety Certifications
Option Kit Contents
4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
0.62 lb (280 g)
100 to 240 VAC
Input Efficiency
Input frequency range
Input AC current
Output power 65W
DC output
Hold-up time
Output current limit
3 pin/grounded, mates with interchangeable cords
Operating temperature
Non-operating (storage) temperature
Altitude
Humidity
Storage Humidity
CE Mark – full compliance with LVD and EMC directives; Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF – over 200,000 hours at 25°C ambient condition.
65W AC Adapter, power cable, warranty booklet
83% min at 115 VAC
47 to 63 Hz
1.7 A at 90 VAC, 0.85 A at 180 VAC
65W
18.5V
5 msec at 115 VAC input
<11A, Over voltage protection- 29V max automatic shutdown
32° to 104° F (0° to 40° C)
-4° to 149° F (-20° to 65° C)
0 to 10,000 ft (0 to 3,048 m)
20% to 80%
10% to 90%
Optional HP 12-Cell Ultra-Capacity Battery
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
(H x W x L)
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
1.77 lb (0.803 kg)
12-cell Lithium-Ion
Voltage
Watt-hour Capacity
Amp-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
Smart Adapter
System ON
When pressed, LEDs light indicating level of charge remaining on battery
14.8V
95Wh
6.45Ah
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 to 4 hours
4 to 5 hours (depending on system power consumption)
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 14
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Optional HP 8-Cell Extended Life Battery
69Wh Primary 8-Cell Battery
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
(H x W x L)
(H x W x L)
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
8-cell Lithium-Ion
Voltage
Watt-hour Capacity
Amp-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or Standby
System ON
HP Fast Charge Technology
When pressed, LEDs light indicating level of charge remaining on battery
0.8 x 1.9 x 10.6 in (2.0 x 4.8 x 27.0 cm)
0.980 lb (0.445 kg)
8-cell Lithium-Ion
Voltage
Watt-hour Capacity
Amp-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF Mode or Standby
System ON
HP Fast Charge Technology
14.4V
52Wh
3.6Ah
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 90 minutes when system is OFF
14.4V
69Wh
4.8Ah
32° to 113° F (0° to 45° C)
14° to 140° F (-10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 1.5 hours when system is OFF
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 15
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
43Wh Primary 6-Cell Battery
15.4-inch Color TFT WSXGA+ Wide Viewing Angle Display
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Active Area
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
(H x W x L)
(W x H)
0.8 x 1.9 x 10.6 in (2.0 x 4.8 x 27.0 cm)
0.74 lb (0.336 kg)
6-cell Lithium-Ion
Voltage
Watt-hour Capacity
Amp-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF Mode or Standby
System ON
HP Fast Charge Technology
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
170 nit (typical)
Pitch
Format
Configuration
CCFL
129
±65° Horizontal, ± 50° Vertical (typical)
10.8V
43Wh
4.0Ah
32° to 113° F (0° to 45° C)
14° to 140° F (-10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 1.5 hours when system is OFF
0.197 mm
1680 x 1050
RGB stripe
15.4-inch Color TFT WXGA Display
Active Area
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
(W x H)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
170 nit (typical)
Pitch
Format
Configuration
CCFL
98
±45° Horizontal, ±25° Vertical (typical)
0.259 mm
1280 x 800
RGB stripe
Page 16
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
15.4-inch Color TFT WXGA BrightView Display
Hard Drives
100-GB 7200 rpm SATA
Active Area
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
(W x H)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
BrightView
Up to 16M
300:1 (typical)
60 Hz
170 nit (typical)
Pitch
Format
Configuration
CCFL
98
±45° Horizontal, ±25° Vertical (typical)
0.25 lb (113 g)
100 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
7200 rpm
195,371,568
41° to 140° F (5° to 60° C) [case temp]
ATA Security
0.259 mm
1280 x 800
RGB stripe
100 MB/s (Drive Capability)
1 ms
10 ms
18 ms
120-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
0.22 lb (101 g)
120 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
234,441,648
41° to 140° F (5° to 60° C) [case temp]
ATA Security
100 MB/s (Drive Capability)
3 ms
13ms
24 ms
Page 17
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
100-GB 5400 rpm SATA
80-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
0.22 lb (101 g)
100 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
195,371,568
41° to 140° F (5° to 60° C) [case temp]
ATA Security
0.22 lb (101 g)
80 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
156,301,488
41° to 140° F (5° to 60° C) [case temp]
ATA Security
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
60-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
0.22 lb (101 g)
60 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
117,231,408
41° to 140° F (5° to 60° C) [case temp]
ATA Security
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
Page 18
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
40-GB 5400 rpm SATA
Removable Storage Drives – Fixed Bay
CD-ROM Drive
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Transport
(read)
(write)
0.22 lb (101 g)
40 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous (maximum)
Single Track
Average
Maximum
5400 rpm
78,165,360
41° to 140° F (5° to 60° C) [case temp]
ATA Security
Random
24X CD-ROM
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW
None
700 MB
Tray Loading
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
<110 ms CD
3,600 KB/s
DVD-ROM Drive
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Transport
(read)
(write)
Random
24X CD-ROM
8X-DVD
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
None
4.7 GB
Tray Loading
<116 ms CD
<125 ms DVD
3,600 KB/s
10,800 KB/s
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 19
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
DVD/CD-RW Combo Drive
LightScribe DVD+/-RW Drive with Double Layer
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
(read)
(write)
(read)
(write)
Random
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
CD-R, CD-RW
8.5 GB
700 MB
Tray loading
Random
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, LightScribe
8.5 GB
8.5 GB
Tray Loading
<110 ms CD
<130 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
3,600 KB/s
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
10,800 KB/s
5,400 KB/s
2,700 KB/s
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 20
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
DVD+/-RW SuperMulti Drive with Double Layer
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
(read)
(write)
Random
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
Multiword DMA Mode
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
8.5 GB
8.5 GB
Tray Loading
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
10,800 KB/s
5,400 KB/s
2,700 KB/s
6,750 KB/s
PremierSound Audio
Hardware
Audio Output Quality
Implementation
Volume Controls
Full Duplex
Sound Blaster Pro compatible
Microphone Jack
Headphone/Line Out Jack
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Noise Floor
Play/Record Sampling Rate
(s)
DAC
ADC
ADI1981HD High Definition CODEC
Up, down, and mute buttons
Yes
Yes
Stereo or mono
Stereo
20 Hz – 20 kHz
>85 dB
0.01%
-110 dB
8 kHZ – 48kHz
16, 20 or 24-bit
16 or 20-bit
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 21
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Internal Speakers
Communications
Integrated Broadcom 10/100 Ethernet PCI Controller
(BCM4401)
Power Rating
Impedance
Ethernet Features
Power Management
Manageability
Interface
NIC Device Driver Name
Drivers Available
2 Watts
4 Ohms
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-
14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
ACPI compliant -- multiple power modes Situation-sensitive features reduce power consumption
Wake-on-LAN from standby and hibernation (configurable; Magic Packet and Microsoft Wake-Up Frame)
PXE 2.1 Remote Boot
Statistics Gathering (RMON, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
32-bit PCI, 33-MHz
Broadcom 440X 10/100 Integrated Controller
Microsoft Windows XP Microsoft Windows 2000
V.92 56K Data/Fax Modem
Form Factor
Power Management Support
Approvals/ Certifications
Data Mode Capabilities
MDC 1.5 Daughtercard
APM Revision 1.2, ACPI
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429 Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200 Automatic rate re-negotiation V.34 V.32bis V.32 V.23 V.22bis V.22
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 22
QuickSpecs
Technical Specifications
Fax Mode Capabilities
Command Set
HP Compaq nx7300 Notebook PC
V.21 Bell 212A Bell 103J
TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2
V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA Error control: +ES, +ER, +EB, +ESR, +ETBM Data compression: +DS, +DR V.251
Broadcom 4311BG
802.11b/g WiFi Adapter
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
1
(for
2
(for
2
IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant (details at
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17.5 dBm
15 dBm
Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
www.hp.com/go/notebooks/WLAN
)
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 23
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Choice of Configuration Utility:
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support. WLAN
5. may also be compatible with certain third-party software supplicants.
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)
LED Off – Radio OFF; Solid LED On – Radio ON
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
Broadcom 4311AG
802.11a/b/g WiFi Adapter
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
1
IEEE 802.11a IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant (details at
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
www.hp.com/go/notebooks/WLAN
)
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 24
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Network Architecture Models
Roaming
Output Power
2
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Choice of Configuration Utility:
(for
(for
2
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17.5 dBm
15 dBm
Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
Intel PRO/Wireless 3945ABG 802.11a/b/g Network Connection
Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support. WLAN
5. may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11a IEEE 802.11b IEEE 802.11g
Page 25
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Interoperability
Frequency Band
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
1
(for
2
(for
2
Wi-Fi certified Cisco Compatible Extensions Program compliant (details at
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
www.hp.com/go/notebooks/WLAN
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
)
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 26
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Intel PRO/Wireless 3945BG 802.11b/g Network Connection
Configuration Utility5Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet (required for Cisco Compatible Extensions support)
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support. WLAN
5. may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
1
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant (details at
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
www.hp.com/go/notebooks/WLAN
)
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
2
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna type
Range
(for
(for
2
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 b – Typical (@1 Mbps)
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 27
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Choice of Configuration Utility:
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support. WLAN
5. may also be compatible with certain third-party software supplicants.
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet (required for Cisco Compatible Extensions support)
LED Off – Radio OFF; Solid LED On – Radio ON
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
HP Integrated Module with Bluetooth Wireless Technology
Bluetooth Specification
Dimensions
Frequency Band
Number of Available Channels
Data Rates and Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
OS Support
Bluetooth Software Supported
Link Topology
2.0 Compliant
1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
2402 to 2480 MHz
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Microsoft Windows XP Professional and Home
Microsoft Windows 2000
Broadcom Bluetooth for Windows
Microsoft Windows XP Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 28
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Security
Power Management
Certifications
Temperature
Humidity
Altitude
Bluetooth Profiles Supported
*
indicates the profile is also supported by Microsoft Windows XP SP2
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
(with Bluetooth for Windows 4.0 software)
Serial Port Profile (SPP)*
Dial-Up Networking (DUN)*
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)*
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)*
Personal Area Networking Profile (PAN)*
Human Interface Device Profile (HID)*
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
-4° to 158° F (-20° to 70° C)
-40° to 176° F (-40° to 80° C)
10% to 90%
5% to 95%
15,000 ft (4,572 m)
40,000 ft (12,192 m)
Environmental Data
Eco-Label Certifications
System Configuration
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:
US Energy Star US Federal Energy Management Program (FEMP) Taiwan Green Mark China Energy Conservation Program IT ECO declaration
The configuration used for the Energy Consumption and Declared Noise Emissions data is based on a "Typically Configured Notebook."
Page 29
QuickSpecs
Technical Specifications
HP Compaq nx7300 Notebook PC
Energy Consumption
Normal Operation
Sleep (Energy Star low power mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Idle
Fixed Disk (random writes)
Optical Drive (sequential reads)
System Fan On
Idle
Fixed Disk (random writes)
Batteries
115 VAC 230 VAC 100 VAC
23 W
1.72 W 1.88 W 1.73 W
1.90 W 1.98 W 1.90 W
115 VAC 230 VAC 100 VAC
78.5 BTU/hr 80.2 BTU/hr 78.5 BTU/hr
5.9 BTU/hr 6.4 BTU/hr 5.9 BTU/hr
6.5 BTU/hr 6.8 BTU/hr 6.5 BTU/hr
*NOTE
: Heat dissipation is calculated based on the measured watts,
assuming the service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
Sound Power
(LWAd, bels)
3.0
3.9
System fan is usually off except when charging the battery
This product complies with ISO standards:
23.5 W
23 W
Sound Pressure
(LpAm, decibels)
28.0
33.8
34.0
29.0
34.0
42.0
EU Directive 91/ 157/ EEC EU Directive 93/ 86/ EEC EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater than 5ppm by weight Cadmium greater than 10ppm by weight Lead greater than 4000 ppm by weight.
Battery type and chemistry used in the product:
Primary battery 6-cell high capacity Lithium-Ion battery pack
Real Time Clock battery CR2032 (coin cell), Lithium
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.
Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 30
QuickSpecs
Technical Specifications
Packaging
HP Compaq nx7300 Notebook PC
ISO/IEC 15412
Input devices of this product comply with ISO 9241, part 9.
Plastics parts weighing over 0.055 pounds (25 grams) used in the product are marked per ISO 11469 and ISO1043.
This product contains 0% recycled materials (by wt.)
This product is greater than 85% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
Corrugated Paper 920 g
Internal:
EPE Foam 266 g LDPE Bag 14 g
Corrugated/Paper 210 g The plastic packaging material is made from 0% recycled content. The corrugated paper packaging materials contains at least 80% recycled content.
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html
Asbestos Certain Azo Colorants Certain Brominated Flame Retardants – may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.
):
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 31
QuickSpecs
Technical Specifications
End-of-life Management and Recycling
Hewlett-Packard Corporate Environmental Information
HP Compaq nx7300 Notebook PC
Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP offers our customers several other options for handling their aging computers while also minimizing the impact on the environment­including product trade-in and leasing services-in addition to recycling services. Please go to: sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/ productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/ operations/envmanagement.html
http://www.hp.com/recycle
or contact your nearest HP
Copyright © 2007 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista, and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Core Duo, Centrino, and SpeedStep are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
Page 32
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
