Compaq Netelligent 5708TX Specifications

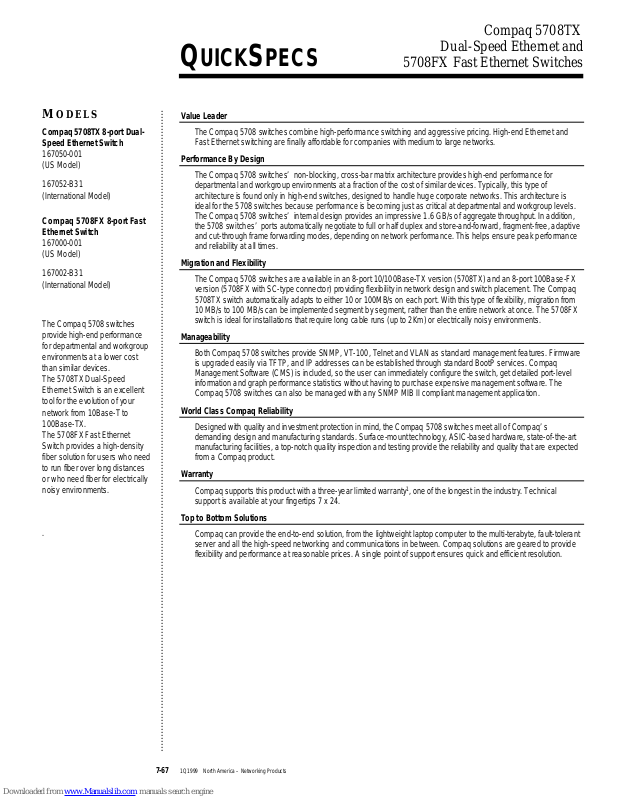

Page 1

...................................................................................................................................................................................................................

MODELS

Compaq 5708TX 8-port Dual-

fiber solution for users who need

Speed Ethernet Switch

167050-001

(US Model)

167052-B31

(International Model)

Compaq 5708FX 8-port Fast Ethernet Switch

167000-001

(US Model)

167002-B31

(International Model)

The Compaq 5708 switches provide high-end performance for departmental and workgroup environments at a lower cost than similar devices. The 5708TX Dual-Speed Ethernet Switch is an excellent tool for the evolution of your network from 10Base-T to 100Base-TX. The 5708FX Fast Ethernet Switch provides a high-density

to run fiber over long distances or who need fiber for electrically noisy environments.

Compaq 5708TX

Dual-Speed Ethernet and

QUICKSPECS

Value Leader

The Compaq 5708 switches combine high-performance switching and aggressive pricing. High-end Ethernet and Fast Ethernet switching are finally affordable for companies with medium to large networks.

Performance By Design

The Compaq 5708 switches’ non-blocking, cross-bar matrix architecture provides high-end performance for departmental and workgroup environments at a fraction of the cost of similar devices. Typically, this type of architecture is found only in high-end switches, designed to handle huge corporate networks. This architecture is ideal for the 5708 switches because performance is becoming just as critical at departmental and workgroup levels. The Compaq 5708 switches’ internal design provides an impressive 1.6 GB/s of aggregate throughput. In addition, the 5708 switches’ ports automatically negotiate to full or half duplex and store-and-forward, fragment-free, adaptive and cut-through frame forwarding modes, depending on network performance. This helps ensure peak performance and reliability at all times.

Migration and Flexibility

The Compaq 5708 switches are available in an 8-port 10/100Base-TX version (5708TX) and an 8-port 100Base-FX version (5708FX with SC-type connector) providing flexibility in network design and switch placement. The Compaq 5708TX switch automatically adapts to either 10 or 100MB/s on each port. With this type of flexibility, migration from 10 MB/s to 100 MB/s can be implemented segment by segment, rather than the entire network at once. The 5708FX switch is ideal for installations that require long cable runs (up to 2Km) or electrically noisy environments.

Manageability

Both Compaq 5708 switches provide SNMP, VT-100, Telnet and VLAN as standard management features. Firmware is upgraded easily via TFTP, and IP addresses can be established through standard BootP services. Compaq Management Software (CMS) is included, so the user can immediately configure the switch, get detailed port-level information and graph performance statistics without having to purchase expensive management software. The Compaq 5708 switches can also be managed with any SNMP MIB II compliant management application.

World Class Compaq Reliability

Designed with quality and investment protection in mind, the Compaq 5708 switches meet all of Compaq’s demanding design and manufacturing standards. Surface-mount technology, ASIC-based hardware, state-of-the-art manufacturing facilities, a top-notch quality inspection and testing provide the reliability and quality that are expected from a Compaq product.

Warranty

Compaq supports this product with a three-year limited warranty1, one of the longest in the industry. Technical support is available at your fingertips 7 x 24.

Top to Bottom Solutions

Compaq can provide the end-to-end solution, from the lightweight laptop computer to the multi-terabyte, fault-tolerant server and all the high-speed networking and communications in between. Compaq solutions are geared to provide flexibility and performance at reasonable prices. A single point of support ensures quick and efficient resolution.

5708FX Fast Ethernet Switches

7-67 1Q1999 North America – Networking Products

Page 2

Compaq 5708TX

Dual-Speed Ethernet and

QUICKSPECS

SPECIFICATIONS

Features

10/100Base-TX Ports 8 (5708TX only) 100Base-FX Ports 8 (5708FX only) MAC Address Table 4096 Entries Forwarding Modes Store and Forward

Cut-through Adaptive

Fragment-Free Buffer Memory 256 KB per port Flow Control Yes, enabled per port Duplex Support Auto-negotiate full/half duplex on a per-port basis and user selectable. Management SNMP, Telnet, VT-100, and VLAN

802.1d Spanning Tree Yes ASIC Architecture Non-blocking, high-speed, cross-bar matrix LEDs Link

Activity

Collision

Port transmission speed

Port duplex mode

Bandwidth utilization %

Filtering rate %

Forwarding rate %

Supported RFCs

RFC 1213 MIB II RFC 1215 Traps RFC 1493 Bridge MIB (Partial) RFC 1643 Ethernet RFC 854-859 TELNET RFC 1350 TFTP RFC 1542 BootP, XMODEM RFC 826, 925 ARP RFC 792, 1256 ICMP RFC 791 IP Emission FCC part 15, Class B

EN55022/CISPR22 Class B

VCCI Class 2 Immunity IEC 801-2 (Electrostatic Discharge)

IEC 801-3 (Radiated)

IEC 801-4 (Electrical Fast Transient/Burst)

EN55022 (CISPR22) (Radio Frequency Interference)

EN50082-1 (Electromagnetic)

EN55101-4 (Conducted)

EN60950 (IEC950) (Product Safety) Safety UL 1950, Second Edition (UL’s Standard for Information Technology

Equipment)

CAN/CSA C22.2 No. 950-M93

TÜV Product Services

EN 60950/1988+A1/1990 + A2/1992

CE 89/336/EEC (EMC Directive) Supported Cabling 5708TX–CAT5 UTP

5708FX–Multi-Mode 50/125 or

62.5/125–Micron fiber optic cabling

distance for half-duplex maximum 412 meters, full-duplex 2Km

5708FX Fast Ethernet Switches

7-68 1Q1999 North America – Networking Products

Page 3

QUICKSPECS

SPECIFICATIONS (continued)

Operating Environment

Temperature Humidity Altitude

Storage Environment

Temperature Humidity Altitude

Power Consumption

Power Supply Wattage

Weight

Unit Shipping

Dimensions (HxWxD)

Unit Shipping

Compaq 5708TX

Dual-Speed Ethernet and

5708FX Fast Ethernet Switches

32° to 122°F/0° to 50°C 5% to 95% (non-condensing) 0 to 10,000 ft/0 to 3 km

32° to 151°F/0° to 66°C 5% to 95% (non-condensing) 0 to 30,000 ft/0 to 9 km

120 - 240 VAC/50 - 60 Hz 57W; BTU/hr = 195

5 lbs/2.27 kg 9 lbs/4.08 kg

1.75 x 17 x 8.4 in/4.5 x 43.6 x 21.5 cm

4.75 x 20.5 x 12 in/12.2 x 52.6 x 30.8 cm
