Compaq NC4000 User Manual

Download
Maintenance and Service Guide
HP Compaq Notebook nc4000 Series
Document Part Number: 310030-001
May 2003
This troubleshooting reference is used for maintaining and servicing the notebook. The guide provides comprehensive information on identifying notebook features, components, and spare parts, troubleshooting notebook problems, and performing notebook disassembly procedures.
© 2003 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Pentium, and SpeedStep are trademarks of Intel Corporation in the U.S. and/or other countries. SD Logo is a trademark.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide HP Compaq Notebook nc4000 Series First Edition May 2003 Document Part Number: 310030-001

Contents

1 Product Description
1.1 Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.3 Clearing a Password . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
1.4 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
1.5 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–9
1.6 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–18
2 Troubleshooting
2.1 Computer Setup and Diagnostics Utilities . . . . . . . . 2–1
Using Computer Setup . . . . . . . . . . . . . . . . . . . . . . . 2–2
Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–3
Selecting from the Security Menu . . . . . . . . . . . . . . 2–4
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–5
2.2 Using Diagnostics for Window. . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing Configuration
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing Diagnostic
Test Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

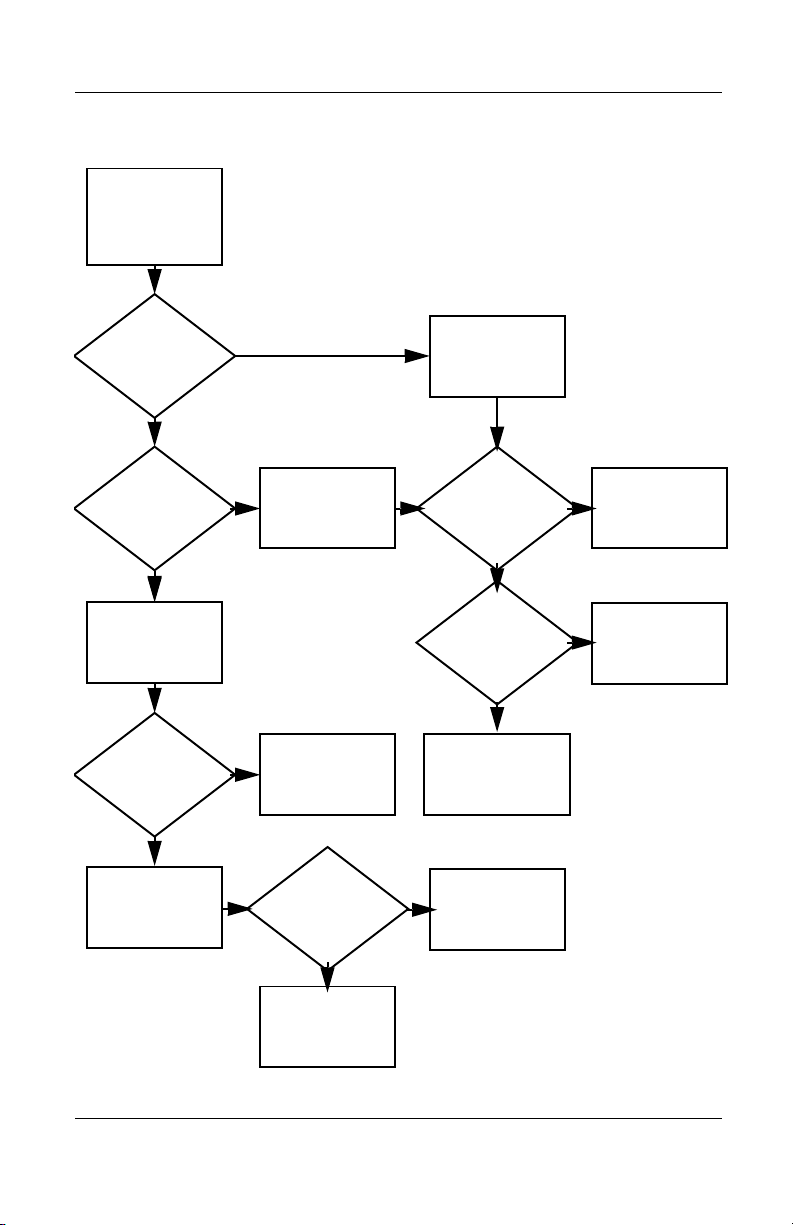

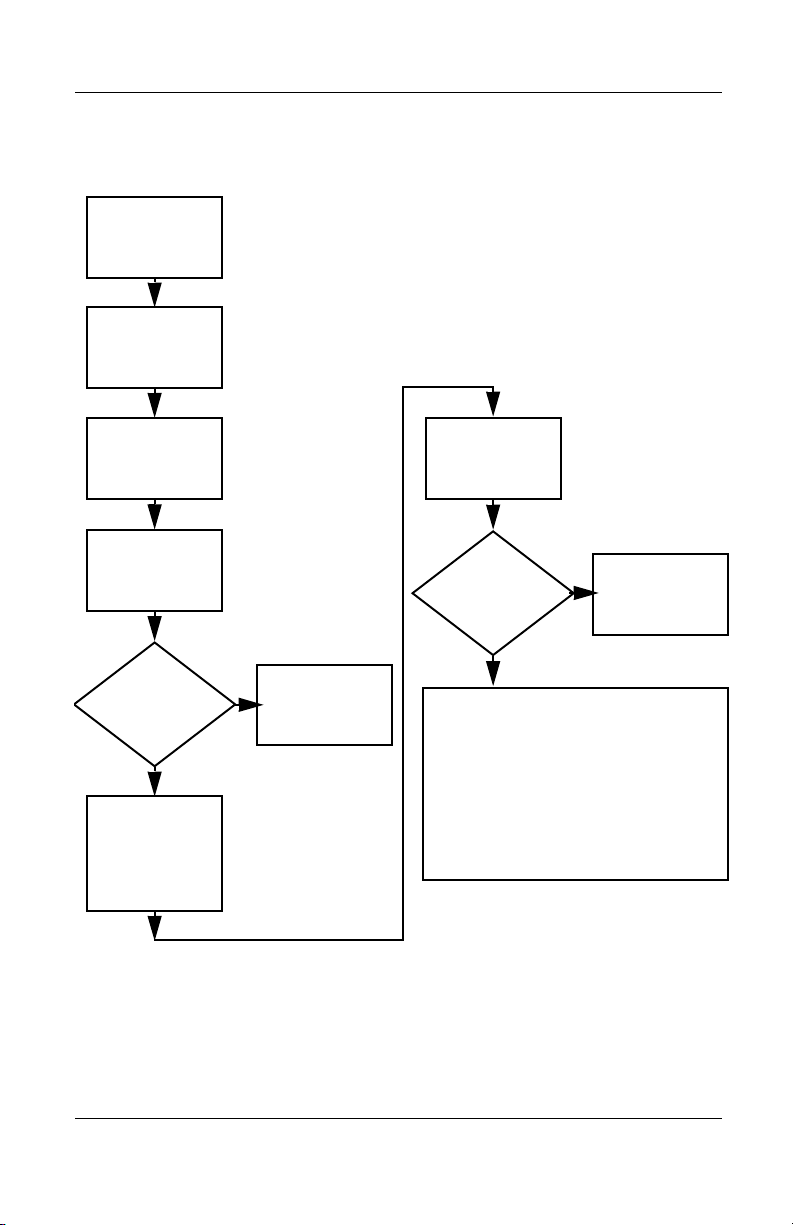

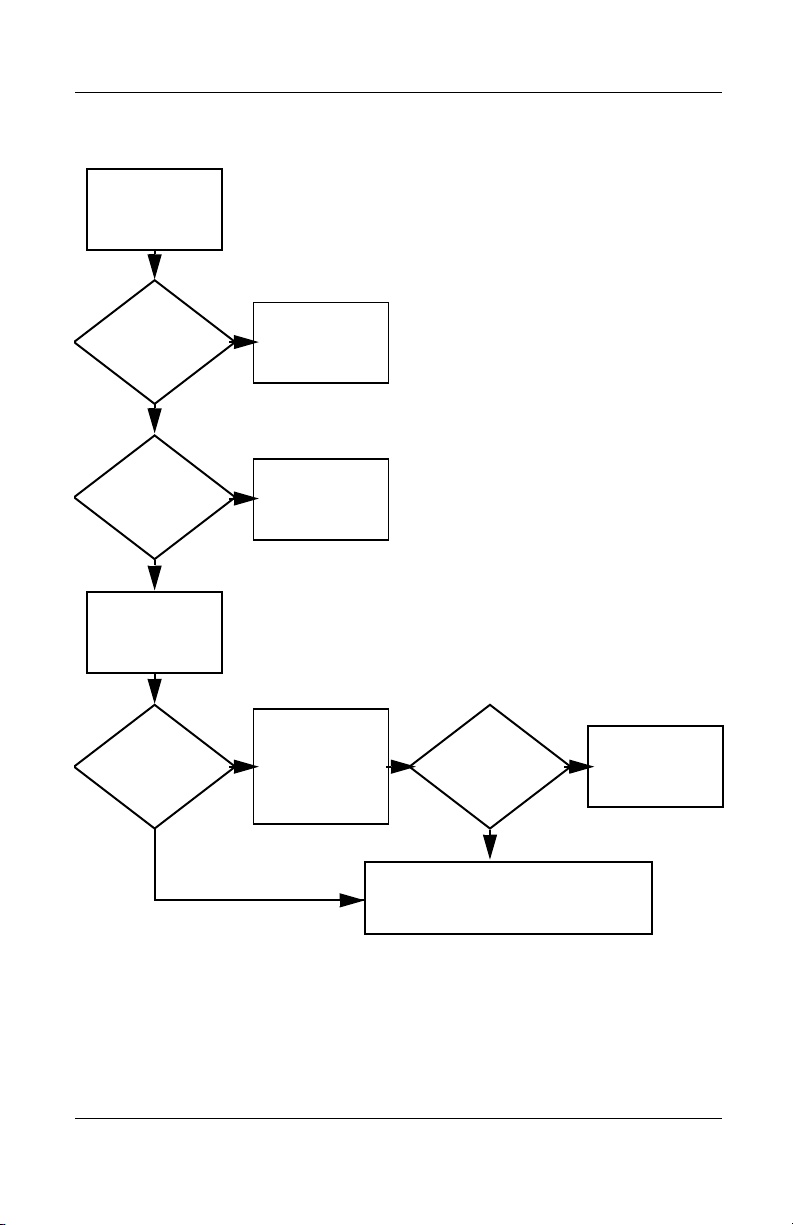

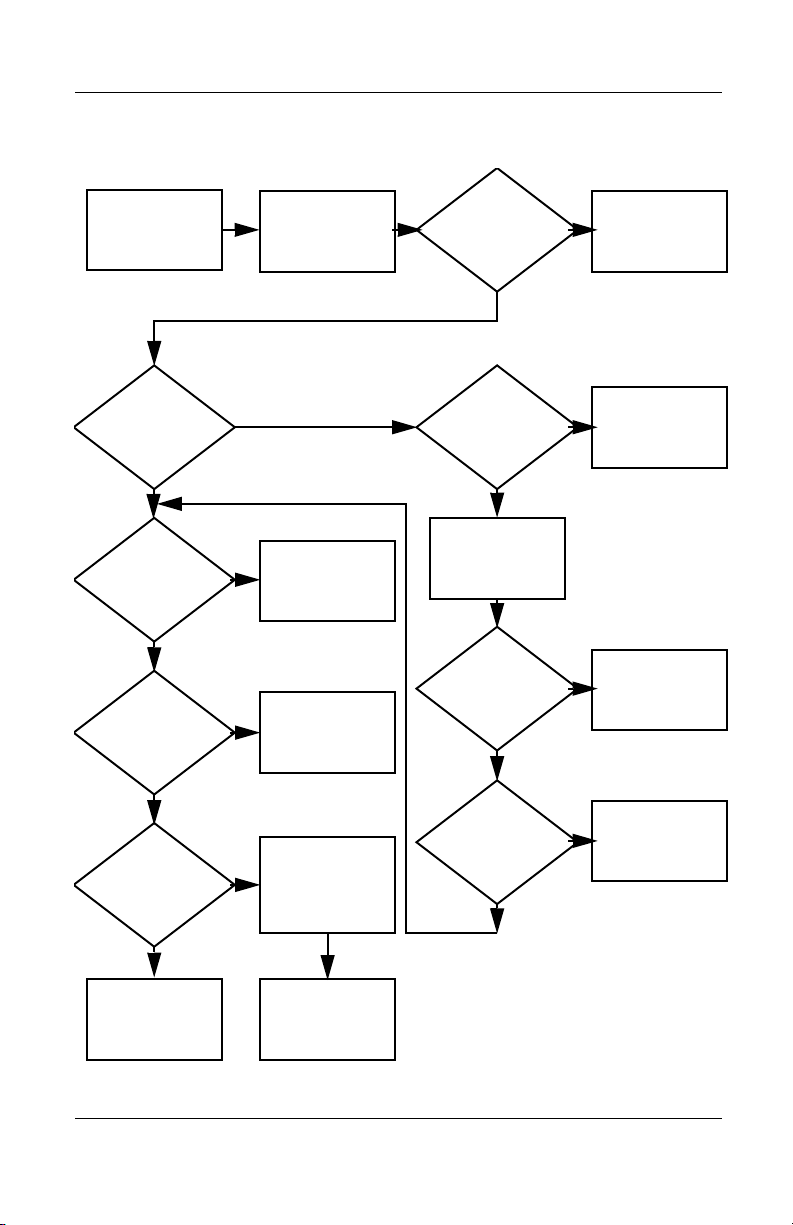

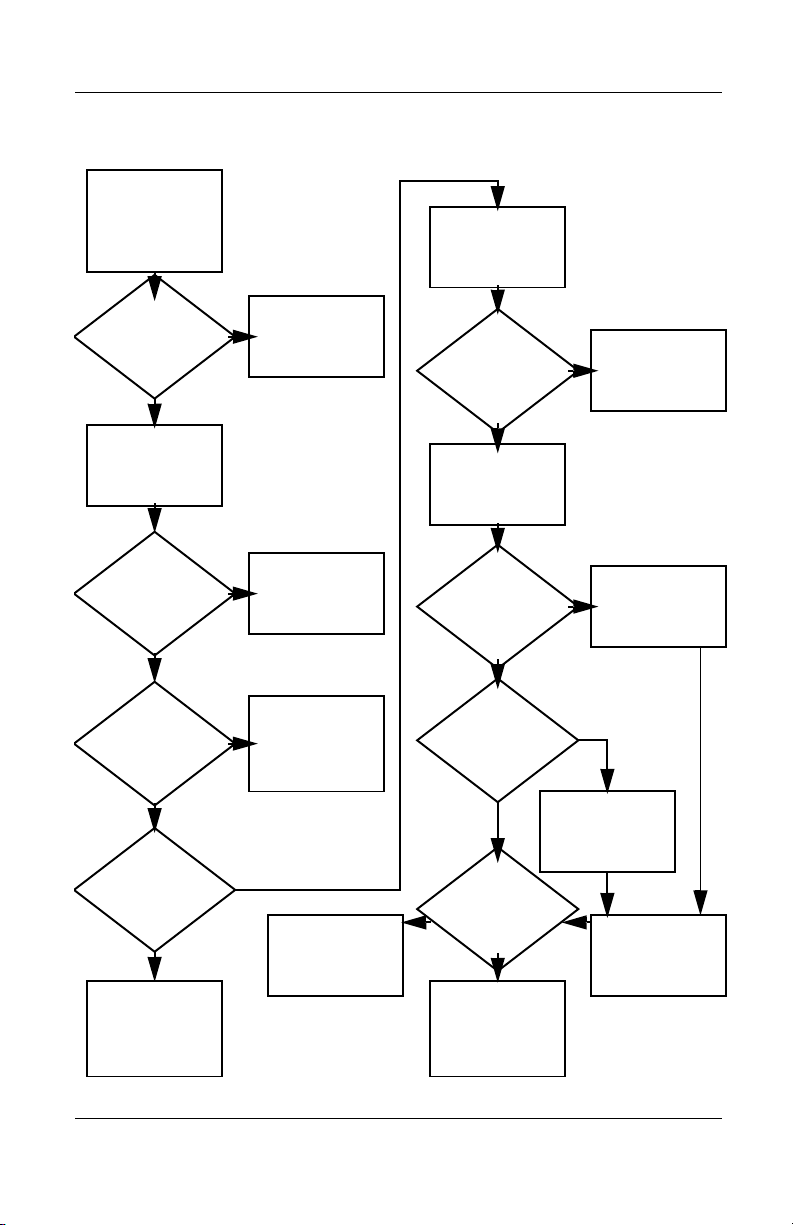

2.3 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . 2–10
Maintenance and Service Guide iii
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

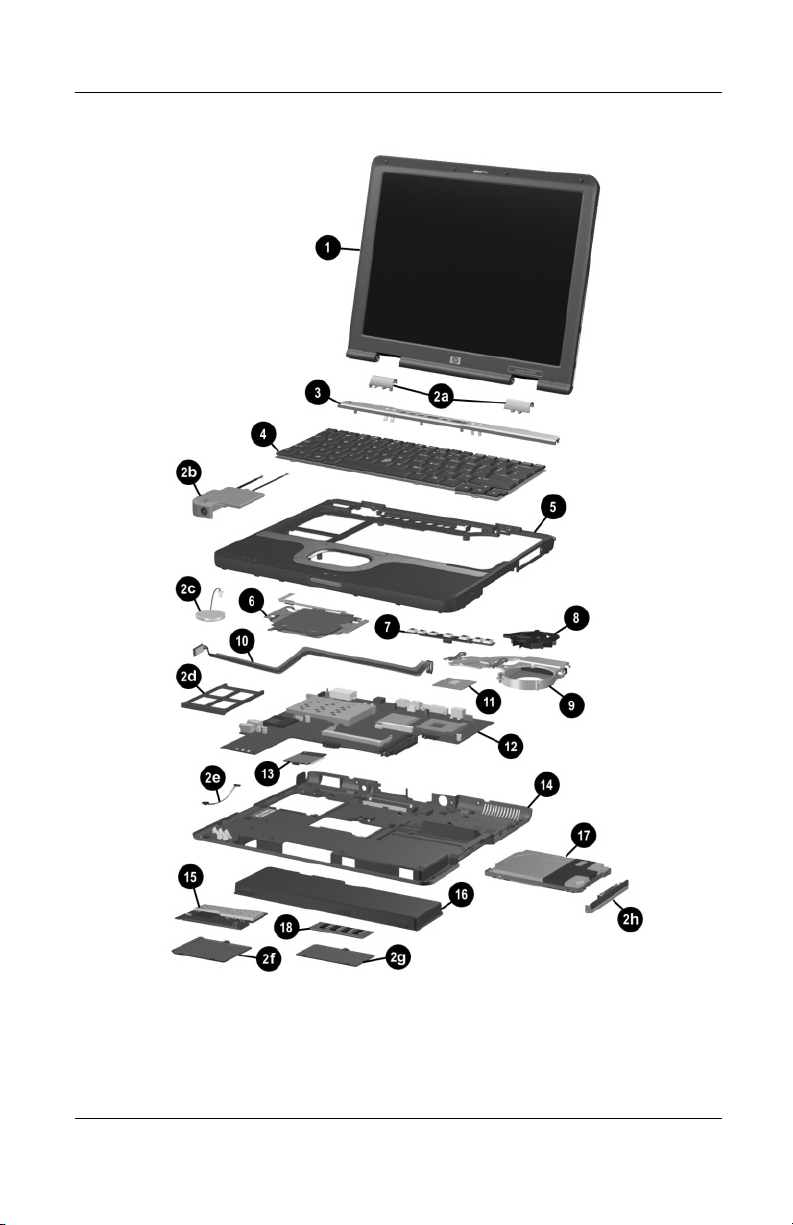

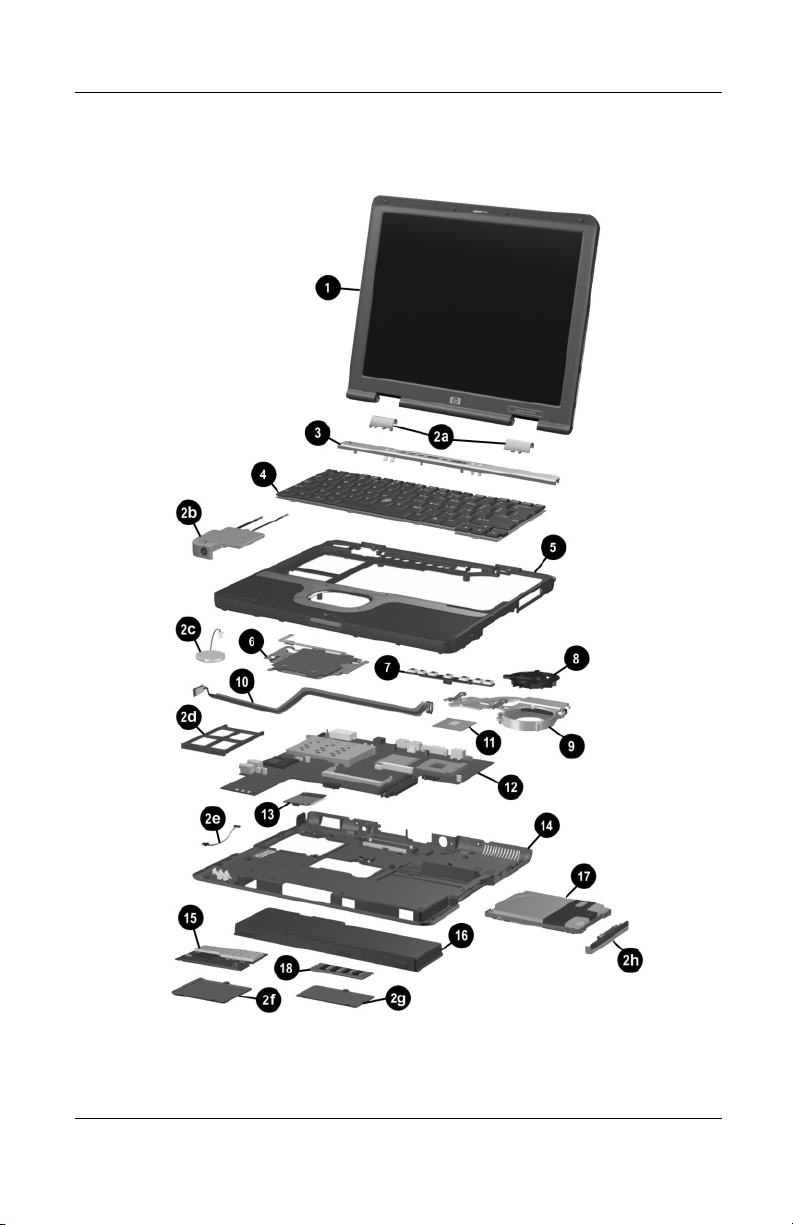

3.2 Notebook Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Miscellaneous Plastics Kit Components . . . . . . . . . . 3–8
3.4 Port Replicators and Mass Storage Devices . . . . . . 3–10
3.5 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–4
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–5
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–6
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–2
5.3 Preparing the Notebook for Disassembly . . . . . . . . . 5–4
5.4 Notebook Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8
5.5 Memory Expansion Board . . . . . . . . . . . . . . . . . . . . 5–9
5.6 Mini PCI Communications Board. . . . . . . . . . . . . . 5–10
5.7 LED Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

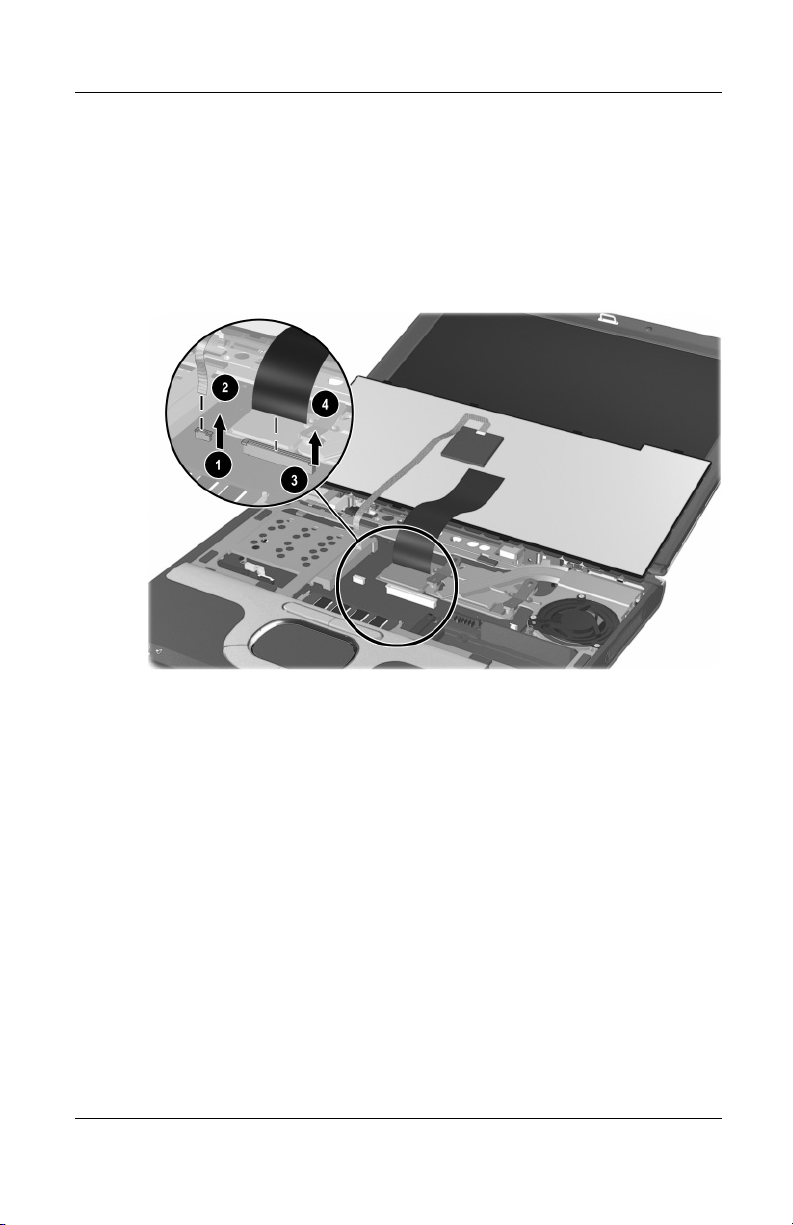

5.8 Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15
5.9 Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–20
iv Maintenance and Service Guide

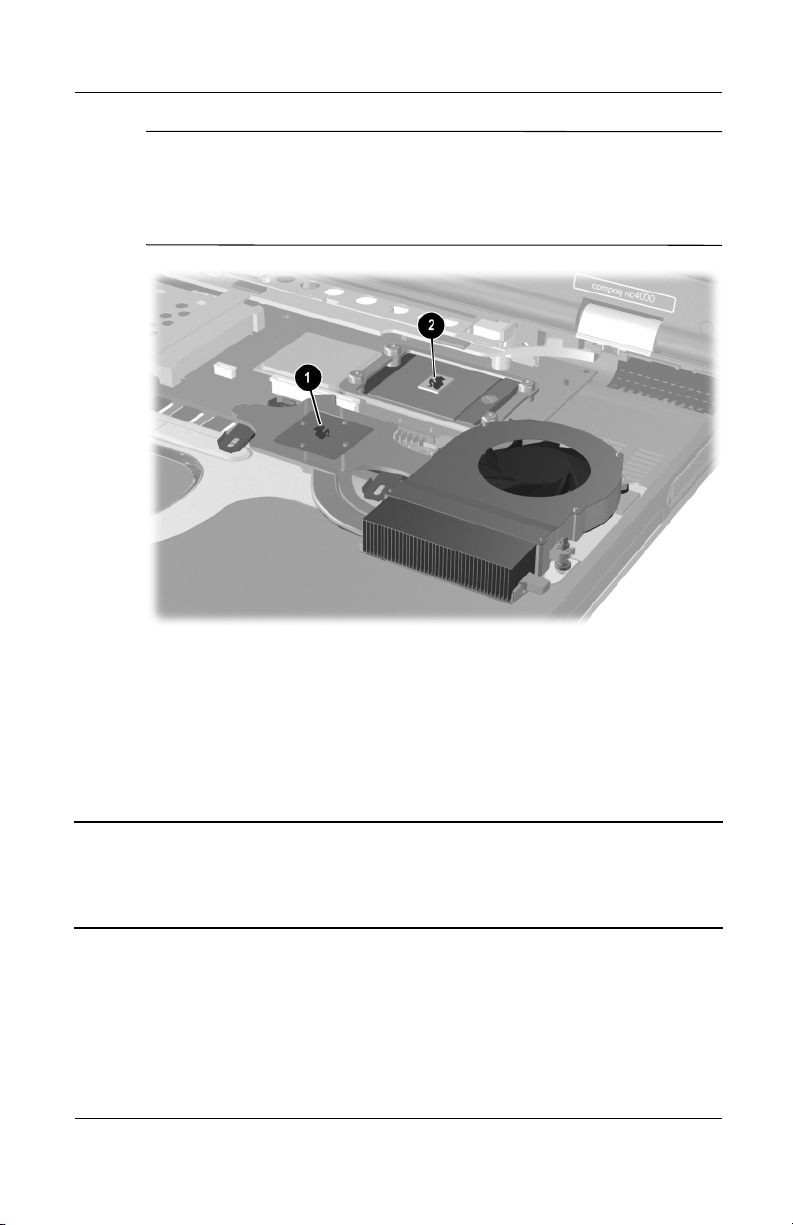

5.10 Heat Sink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22
5.11 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–26
5.12 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–28
5.13 Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–32
5.14 Bluetooth Wireless Device. . . . . . . . . . . . . . . . . . . 5–36
5.15 TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–37
5.16 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–40
5.17 Speaker/Microphone . . . . . . . . . . . . . . . . . . . . . . . 5–41
5.18 Switch Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–42
5.19 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–43
5.20 Modem Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–46
6 Specifications
A Connector Pin Assignments
B Power Cord Set Requirements
3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1
General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–2
Contents
C Screw Listing
Index
Maintenance and Service Guide v
1

Product Description

The HP Compaq Notebook nc4000 Series of personal notebooks offer advanced modularity, Intel Mobile Pentium-M processors with 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support.
HP Compaq Notebook nc4000 Series
Maintenance and Service Guide 1–1
Product Description

1.1 Models

Notebook models are shown in Tables 1-1 and 1-2.
Table 1 -1
HP Compaq Notebook nc4000 Model Naming Conventions
Key
Cnc4000 P 160 X2 60 0 C/C 51 O XXXXXX-XXX
123456789 10
Key Description Options
1 Brand/Series
designator
2 Processor type P = Intel Pentium-M
3 Processor speed 160 = 1.6 GHz
4Display type/
size/resolution
5 Hard drive size 60 = 60 GB
6 Optical drive
designator
7 Integrated
communication/ wireless device
8 RAM 51 = 512 MB 25 = 256 MB
9 Operating system 2 = Windows 2000 O = Windows XP Pro
10 SKU#
C = Compaq nc4000 = nc4000
140 = 1.4 GHz
150 = 1.5 GHz
X = XGA (1024 × 768) 2 = 12.x in
40 = 40 GB
N = None
G = Combination
modem and
GB NIC M = Modem N = None
130 = 1.3 GHz
30 = 30 GB
d = 802.11a/b/g c = 802.11b/g j = 802.11b/g +
Bluetooth
m = 802.11a/b/g +
Bluetooth N = none p = Bluetooth
1–2 Maintenance and Service Guide
Product Description
Table 1 -2
HP Compaq Notebook nc4000 Models
All HP Compaq Notebook nc4000 models use configuration code LN5Z and feature:
■ Dual point pointing device (TouchPad and pointing stick)
■ 6-cell, 4.0 wH lithium ion (Li ion) battery pack
■ 3-year warranty on parts and labor
Cnc4000 P 160 X2 40 N G/d 51 O
French Canada DG987A ABC United States DG987A ABA
Cnc4000 P 160 X2 40 N G/d 51 2
French Canada DG988A ABC United States DG988A ABA
Cnc4000 P 150 X2 60 N G/m 51 O
Asia Pacific France Italy
Cnc4000 P 150 X2 40 N G/j 51 O
Belgium Denmark Europe France Germany Greece Italy
Cnc4000 P 150 X2 40 N G/j 51 2
Belgium Denmark Europe France Germany Greece Italy
DG994A UUF DG994A ABF DG994A ABz
DG991A UUG DG991A ABY DG991A ABB DG991A ABF DG991A ABD DG991A AB7 DG991A ABZ
DG992A UUG DG992A ABY DG992A ABB DG992A ABF DG992A ABD DG992A AB7 DG992A ABZ
Japan United States
The Netherlands Norway Portugal Spain Sweden/Finland Switzerland United Kingdom
The Netherlands Norway Portugal Spain Sweden/Finland Switzerland United Kingdom
DG994A ABE DG994A ABA
DG991A ABH DG991A ABN DG991A AB9 DG991AABE
DG991A AK8 DG991A UUZ DG991A ABU
DG992A ABH DG992A ABN DG992A AB9 DG992AABE
DG992A AK8 DG992A UUZ DG992A ABU
Maintenance and Service Guide 1–3
Product Description
Table 1 -2
HP Compaq Notebook nc4000 Models
Cnc4000 P 150 X2 40 N G/c 25 O
(Continued)
Asia Pacific France Germany Italy
Cnc4000 P 140 X2 40 N G/N 25 O
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe France French Canada Germany Greece Hong Kong Hungary Iceland India Israel Italy Japan Japan (English) Korea
DG993A UUF DG993A ABF DG993A ABD DG993A ABZ
DG244A UUF DG244A ABG DG244A UUG DG244A AC4 DG244A AKB DG244A ABY DG244A ABB DG244A ABF DG244A ABC DG244A ABD DG244A AB7 DG244A AB5 DG244A AKC DG244A A2M DG244A ACJ DG244A ABT DG244A ABZ DG244A ABK DG244A ACF DG244A AB1
Japan Spain United States
Latin America The Netherlands Norway People’s
Republic
of China Poland Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
DG993A ABJ DG993A ABE DG993A ABA
DG244A ABM DG244A ABH DG244A ABN DG244A AB2
DG244A AKD DG244A AB9 DG244A ACB DG244A ABV DG244A AKN DG244A ABE DG244A AK8 DG244A UUZ DG244A AB0 DG244A AKL DG244A AB8 DG244A ABU DG244A ABA
1–4 Maintenance and Service Guide
Table 1 -2
HP Compaq Notebook nc4000 Models
Cnc4000 P 140 X2 40 N G/N 25 2
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe France French Canada Germany Greece Hong Kong Hungary Iceland India Israel Italy Japan Japan (English) Korea
DG245A UUF DG245A ABG DG245A UUG DG245A AC4 DG245A AKB DG245A ABY DG245A ABB DG245A ABF DG245A ABC DG245A ABD DG245A AB7 DG245A AB5 DG245A AKC DG245A A2M DG245A ACJ DG245A ABT DG245A ABZ DG245A ABK DG245A ACF DG245A AB1
Latin America The Netherlands Norway People’s
Republic
of China Poland Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
(Continued)
Product Description
DG245A ABM DG245A ABH DG245A ABN DG245A AB2
DG245A AKD DG245A AB9 DG245A ACB DG245A ABV DG245A AKN DG245A ABE DG245A AK8 DG245A UUZ DG245A AB0 DG245A AKL DG245A AB8 DG245A ABU DG245A ABA
Maintenance and Service Guide 1–5
Product Description
Table 1 -2
HP Compaq Notebook nc4000 Models
Cnc4000 P 130 X2 30 N G/p 25 O
(Continued)
Belgium Denmark Europe France Germany Greece Italy
Cnc4000 P 130 X2 30 N G/p 25 2
Belgium Denmark Europe France Germany Greece Italy
DG989A UUG DG989A ABY DG989A ABB DG989A ABF DG989A ABD DG989A AB7 DG989A ABZ
DG990A UUG DG990A ABY DG990A ABB DG990A ABF DG990A ABD DG990A AB7 DG990A ABZ
The Netherlands Norway Portugal Spain Sweden/Finland Switzerland United Kingdom
The Netherlands Norway Portugal Spain Sweden/Finland Switzerland United Kingdom

1.2 Features

■ Intel Pentium-M 1.6-, 1.5-, 1.4-, or 1.3-GHz processor with
400-MHz processor side bus and 1024-KB L2 cache, varying by notebook model
■ 12.1-inch XGA (1024 × 768) TFT display with over 16.7
million colors, varying by notebook model
■ ATI Mobility Radeon graphics with user selectable 32- or
64-MB DDR Synchronous DRAM (SDRAM)
■ 60-, 40-, or 30-GB high-capacity hard drive, varying by
notebook model
■ 256-MB high-performance SDRAM, expandable to 1.0 GB
■ Microsoft Windows 2000 or Windows XP Pro, varying by
notebook model
■ Full-size Windows 98 keyboard with Dual Stick (TouchPad
and pointing stick)
DG989A ABH DG989A ABN DG989A AB9 DG989AABE DG989A AK8 DG989A UUZ DG989A ABU
DG990A ABH DG990A ABN DG990A AB9 DG990AABE DG990A AK8 DG990A UUZ DG990A ABU
1–6 Maintenance and Service Guide
Product Description
■ 56-Kbps V.92 modem integrated on the system board
■ Integrated Secure Digital (SD) flash media slot
■ Integrated wireless support of 802.11a/b/g and Bluetooth
devices
■ Support for one Type I or II PC Card slot with support for
both 32-bit CardBus and 16-bit PC Cards
■ External 65 W AC adapter with power cord
■ 6-cell Li ion battery pack
■ PremierSound 16-bit sound
■ Support for the following drives through the optional
Advanced or Common Port Replicators or the USB MultiBay cradle:
❏ 1.44-MB diskette drive ❏ 24X Max CD-ROM drive ❏ 8X Max CD-RW drive ❏ 8X Max DVD-ROM drive ❏ 8X Max DVD-CDRW combination drive
■ Connectors for: ❏ One Type II PC Card slot ❏ External monitor ❏ Microphone in ❏ DC power ❏ RJ-11 (modem) ❏ RJ-45 (NIC) ❏ Infrared port ❏ S-video TV-out connector ❏ USB port ❏ Docking connector ❏ Travel battery connector
Maintenance and Service Guide 1–7
Product Description

1.3 Clearing a Password

If the notebook you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS:
1. Prepare the notebook for disassembly (refer to Section 5.3, “Preparing the Notebook for Disassembly,” for more information).
2. Remove the real time clock (RTC) battery (refer to Section 5.16, “RTC Battery”).
3. Wait approximately five minutes.
4. Replace the RTC battery and reassemble the notebook.
5. Connect AC power to the notebook. Do not reinsert any battery packs at this time.
6. Turn on the notebook.
All passwords and all CMOS settings have been cleared.
1–8 Maintenance and Service Guide

1.4 Power Management

The notebook comes with power management features that extend battery operating time and conserve power. The notebook supports the following power management features:
■ Standby
■ Hibernation
■ Setting customization by the user
■ Hotkeys for setting level of performance
■ Battery calibration
■ Lid switch Standby/resume
■ Power/Standby button
■ Advanced Configuration and Power Management (ACP)
compliance
Product Description
Maintenance and Service Guide 1–9
Product Description

1.5 External Components

The external components on the front and right side of the notebook are shown in below and described in Table 1-3.
.
Front and Right Side Components
Tabl e 1-3
Front and Right Side Components
Item Component Function
1 Microphone Inputs single-channel sound.
2 Wireless on/off light On: The wireless mini PCI card and/or
Bluetooth are on. Off: The wireless mini PCI card and
Bluetooth are off.
3 Power/Standby light On: Power is turned on.
Blinking: Notebook is in Standby.
4 Battery light On: A battery pack is charging.
Blinking: A battery pack that is the only available power source has reached a low-battery condition. When the battery reaches a critical low-battery condition, the battery light begins blinking more quickly.
5 Display release latch Opens the notebook.
1–10 Maintenance and Service Guide
Tabl e 1-3
Front and Right Side Components
Item Component Function
Product Description
(Continued)
6 Security cable slot Attaches an optional security cable to the
7 Hard drive bay Holds the primary hard drive.
8 Exhaust vent Enables airflow to cool internal
CAUTION: To prevent overheating, do not obstruct vents. Using the
Ä
notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing can block airflow.
notebook.
components.
Maintenance and Service Guide 1–11
Product Description
The notebook rear panel and left side components are shown below and described in Table 1-4.
Rear Panel and Left Side Components
Tabl e 1-4
Rear Panel and Left Side Components
Item Component Function
1 Exhaust vent Enables airflow to cool internal
CAUTION: To prevent overheating, do not obstruct vents. Using the
Ä
notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing can block airflow.
2 S-Video out jack Connects an optional S-Video device, such
3 External monitor
1–12 Maintenance and Service Guide
connector
components.
as a television, VCR, camcorder, overhead projector, or video capture card.
Connects an optional external monitor or overhead projector.
Tabl e 1-4
Rear Panel and Left Side Components
Item Component Function
Product Description
(Continued)
4 USB connectors (2) Connect USB 1.1- and 2.0-compliant
5 DC power connector
RJ-45 jack RJ-11 jack
6 RJ-45 network jack Connects a network cable.
7 RJ-11 modem jack Connects a modem cable.
8 Infrared port Links another IrDA-compliant device for
9 PC Card eject button Ejects an optional PC Card from the PC
10 PC Card slot Supports optional Type I or Type II 32-bit
11 Secure Digital
(SD) slot
12 Audio line-out jack Connects optional powered stereo
devices to the notebook using a standard USB cable.
The right connector also functions as a self-powered USB connector and allows an optional External MultiBay to be connected to the notebook using the External MultiBay-Powered USB cable.
Connects an AC adapter or an optional Automobile power adapter/charger, aircraft power adapter, or DC cable.
wireless communication.
Card slot.
(CardBus) or 16-bit PC Cards.
Supports SD Cards and MMCs (multimedia cards).
speakers, headphones, headset, or television audio.
13 Microphone input jack Connects an optional monaural
14 Speaker Produces system sound.
Maintenance and Service Guide 1–13
microphone.
Product Description
The notebook keyboard components are shown below and described in Table 1-5.
Keyboard Components
Table 1 -5
Keyboard Components
Item Component Function
1 Fn key Executes frequently used system functions
2 Caps lock key On: Caps lock is on.
3 F1 through F12
function keys
4 Num lock key On: Num lock is on and the internal keypad is
5 Internal keypad Converts keys to numeric keypad.
6 Cursor control
keys
7 Applications key Displays shortcut menu for items beneath the
8 Microsoft Windows
logo key
1–14 Maintenance and Service Guide
when pressed in combination with another key.
Execute frequently used system functions when pressed in combination with the Fn key.
enabled.
Move the cursor around the screen.
pointer.
Displays the Windows Start menu.
The notebook top components are shown below and described in Table 1-6.
Top Components
Tabl e 1-6
Top Components
Item Component Function
Product Description
1 Display lid switch Secures the display when it is closed.
2 Hard drive activity light On: The hard drive is being accessed.
3 Num lock light On: Num lock is on or the embedded
numeric keypad is enabled.
4 Quick Launch
buttons (3)
Maintenance and Service Guide 1–15
Enable you to access common functions with a single keystroke.
Product Description
Tabl e 1-6
Top Components
Item Component Function
5 Power button When the notebook is:
■ Off, press and release to turn on the
■ In Standby, press and release to exit
■ In Hibernation, press and release to exit
6 Mute button Mutes system volume.
7 Volume buttons (2) Adjust the system volume.
8 Caps lock light On: Caps lock is on.
9 Scroll lock light On: Scroll lock is on.
(Continued)
notebook.
Standby.
Hibernation. If the system has stopped responding and Windows shut down procedures cannot be used, press and hold for 5 seconds to turn off the notebook.
10 Pointing stick Moves the pointer and selects or activates
11 Pointing stick buttons Function like the left and right buttons on an
12 TouchPad Moves the pointer and selects or activates
13 TouchPad buttons Function like the left and right buttons on an
1–16 Maintenance and Service Guide
items on the screen.
external mouse.
items on the screen. Can be set to perform other mouse functions, such as scrolling and double-clicking.
external mouse.
The external components on the bottom of the notebook are shown below and described in Table 1-7.
Bottom Components
Table 1 -7
Bottom Components
Item Component Function
Product Description
1 Hard drive bay Supports the primary hard drive.
2 Hard drive retention screw Secures the hard drive to the
Maintenance and Service Guide 1–17

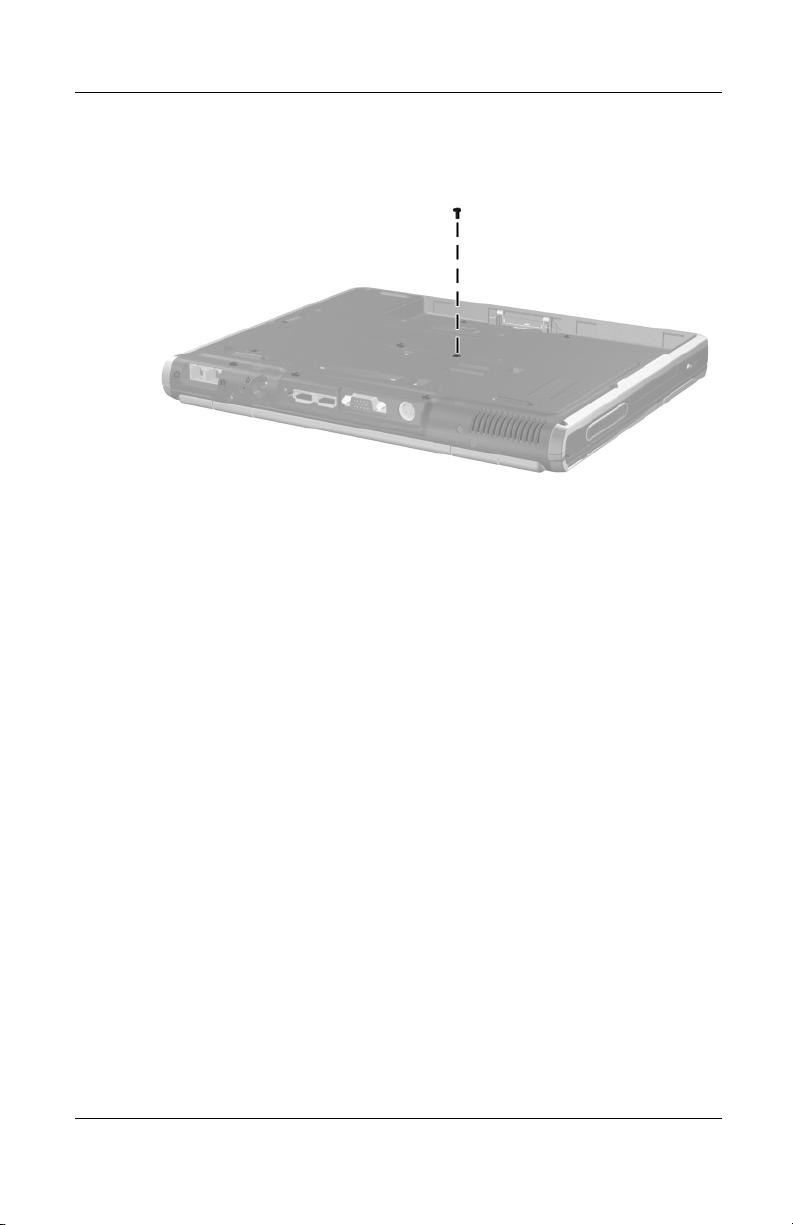

The hard drive is secured to the notebook by one screw.
notebook.
Product Description
Table 1 -7
Bottom Components
Item Component Function
(Continued)
3 Intake vents Enable airflow to cool internal
Ä
4 Travel battery connector Connects the optional travel
5 Docking connector Connects the notebook to an
6 Mini PCI compartment Contains the mini PCI wireless
7 Memory expansion
8 Battery release latch Releases the primary battery pack
9 Battery bay Holds the primary battery pack.
CAUTION: To prevent overheating, do not obstruct vents. Using the notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing can block airflow.
compartment
components.
battery bay. The travel battery connector has a plastic cover that must be opened before connecting the travel battery bay.
optional port replicator.
card.
Contains 1 memory expansion slot for optional memory expansion boards.
from the battery bay.
1–18 Maintenance and Service Guide

1.6 Design Overview

This section presents a design overview of key parts and features of the notebook. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections:
■ Memory expansion board
■ Hard drive
■ Display
■ Keyboard, TouchPad, and pointing stick
■ Audio
■ Intel Mobile Pentium-M processors
■ Fan
■ PC Card
■ Modem, NIC, and wireless devices
The notebook uses an electrical fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software applications. Exhaust air is displaced through the ventilation grill located on the left side of the notebook.
Product Description
CAUTION: To properly ventilate the notebook, allow at least a 7.6-cm
Ä
(3-inch) clearance on the left and right sides of the notebook.
Maintenance and Service Guide 1–19
2

Troubleshooting

WARNING: Only authorized technicians trained by HP should repair
Å
this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.

2.1 Computer Setup and Diagnostics Utilities

The notebook features two system management utilities:
■ Computer Setup—A system information and customization
utility that can be used even when your operating system is not working or will not load. This utility includes settings that are not available in Windows.
Maintenance and Service Guide 2–1
Troubleshooting
■ Diagnostics for Windows—A system information and
diagnostic utility that is used within your Windows operating system. Use this utility whenever possible to:
❏ Display system information.
❏ Test system components.
❏ Troubleshoot a device configuration problem in
Windows 2000, Windows XP Professional, or Windows XP Home.
It is not necessary to configure a device connected to a USB
✎
connector on the notebook or an optional docking base.

Using Computer Setup

Information and settings in Computer Setup are accessed from the File, Security, or Advanced menus:
1. Turn on or restart the notebook. Press F10 = ROM-Based Setup message is displayed in the lower left corner of the screen.
F10 while the
❏ To change the language, press F2.
❏ To view navigation information, press F1.
❏ To return to the Computer Setup menu, press esc.
2. Select the File, Security, or Advanced menu.
3. To close Computer Setup and restart the notebook:
❏ Select File > Save Changes and Exit and press enter.
or
❏ Select File > Ignore Changes and Exit and press enter.
4. When you are prompted to confirm your action, press F10.
2–2 Maintenance and Service Guide

Selecting from the File Menu

Table 2 -1
File Menu
Select To Do This
Troubleshooting
System Information
■ View identification information about the
notebook, a docking base, and any battery packs in the system.
■ View specification information about the
processor, memory and cache size, and system ROM.
Save to Floppy Save system configuration settings to a diskette.
Restore from Floppy Restore system configuration settings from a
Restore Defaults Replace configuration settings in Computer
Ignore Changes and Exit Cancel changes entered during the current
Save Changes and Exit Save changes entered during the current
diskette.
Setup with factory default settings. Identification information is retained.
session, then exit and restart the notebook.
session, then exit and restart the notebook.
Maintenance and Service Guide 2–3
Troubleshooting

Selecting from the Security Menu

Table 2 -2
Security Menu
Select To Do This
Setup Password Enter, change, or delete a setup password.
Power-on Password Enter, change, or delete a power-on password.
DriveLock Passwords Enable/disable DriveLock; change a DriveLock
Password Options (Password options can be
selected only when a power-on password has been set.)
Device Security Enable/disable:
The setup password is called an administrator password in Computer Security, a program accessed from the Windows Control Panel.
User or Master password.
DriveLock Settings are accessible only
✎
when you enter Computer Setup by turning on (not restarting) the notebook.
Enable/disable:
■ QuickLock
■ QuickLock on Standby
■ QuickBlank
To enable QuickLock on Standby or
✎
QuickBlank, you must first enable QuickLock.
■ Ports or diskette drives*
■ Diskette write*
■ CD-ROM or diskette startup
Settings for a DVD-ROM can be
✎
entered in the CD-ROM field.
System IDs Enter identification numbers for the notebook,
*Not applicable to SuperDisk LS-120 drives.
2–4 Maintenance and Service Guide
a docking base, and all battery packs in the system.

Selecting from the Advanced Menu

Table 2 -3
Advanced Menu
Select To Do This
Language Change the Computer Setup language.
Boot Options Enable/disable:
■ QuickBoot, which starts the notebook more
quickly by eliminating some startup tests. (If you suspect a memory failure and want to test memory automatically during startup, disable QuickBoot.)
■ MultiBoot, which sets a startup sequence that
can include most bootable devices and media in the system.
Troubleshooting
Device Options
■ Enable/disable the embedded numeric
keypad at startup.
■ Enable/disable multiple standard pointing
devices at startup. (To set the notebook to support only a single, usually nonstandard, pointing device at startup, select Disable.)
■ Enable/disable USB legacy support for a
USB keyboard. (When USB legacy support is enabled, the keyboard works even when a Windows operating system is not loaded.)
■ Set an optional external monitor or overhead
projector connected to a video card in a docking base as the primary device. (When the notebook display is set as secondary, the notebook must be shut down before undocking from a docking base.)
Maintenance and Service Guide 2–5
Troubleshooting
Table 2 -3
Advanced Menu
Select To Do This
(Continued)
Device Options
(continued)
■ Change the parallel port mode from
Enhanced Parallel Port (EPP, the default setting) to standard, bidirectional, EPP, or Enhanced Capabilities Port (ECP).
■ Set video-out mode to NTSC (default), PAL,
NTSC-J, or PAL-M.*
■ Enable/disable all settings in the SpeedStep
window. (When Disable is selected, the notebook runs in Battery Optimized mode.)
■ Specify how the notebook recognizes
multiple identical docking bases that are identically equipped. Select Disable to recognize the docking bases as a single docking base; select Enable to recognize the docking bases individually, by serial number.
■ Enable/disable the reporting of the processor
serial number by the processor to the software.
HDD Self Test Options Run a quick comprehensive self test on hard
drives in the system that support the test features.
*Video modes vary even within regions. However, NTSC is common in North
America; PAL, in Europe, Africa, and the Middle East; NTSC-J, in Japan; and PAL-M, in Brazil. Other South and Central American regions may use NTSC, PAL, or PAL-M.
2–6 Maintenance and Service Guide
Troubleshooting

2.2 Using Diagnostics for Windows

When you access Diagnostics for Windows, a scan of all system components is displayed on the screen before the diagnostics window opens.
You can display more or less information from anywhere within Diagnostics for Windows by selecting Level on the menu bar.
Diagnostics for Windows is designed to test HP components. If non-HP components are tested, the results might be inconclusive.

Obtaining, Saving, or Printing Configuration Information

1. Access Diagnostics for Windows by selecting Start > Settings > Control Panel > Diagnostics for Windows.
2. Select Categories, then select a category from the drop-down list.
❏ To save the information, select File > Save As.
❏ To print the information, select File > Print.
3. To close Diagnostics for Windows, select File > Exit.
Maintenance and Service Guide 2–7
Troubleshooting

Obtaining, Saving, or Printing Diagnostic Test Information

1. Access Diagnostics for Windows by selecting Start > Settings > Control Panel > Diagnostics for Windows.
2. Select the Test tab.
3. In the scroll box, select the category or device you want to test.
4. Select a test type:
❏ Quick Test—Runs a quick, general test on each device
in a selected category.
❏ Complete Test—Performs maximum testing on each
device in a selected category.
❏ Custom Test—Performs maximum testing on a selected
device.
◆ To run all tests for your selected device, select the
Check All button.
◆ To run only the tests you select, select the Uncheck
All button, then select the checkbox for each test you want to run.
5. Select a test mode:
❏ Interactive Mode—Provides maximum control over the
testing process. You determine whether the test was passed or failed and might be prompted to insert or remove devices.
❏ Unattended Mode—Does not display prompts. If errors
are found, they are displayed when testing is complete.
2–8 Maintenance and Service Guide
Troubleshooting
6. Select the Begin Testing button.
7. Select a tab to view a test report:
❏ Status tab—Summarizes the tests run, passed, and failed
during the current testing session.
❏ Log tab—Lists tests run on the system, the number of
times each test has run, the number of errors found on each test, and the total run time of each test.
❏ Error tab—Lists all errors found in the notebook with
the corresponding error codes.
8. Select a tab to save the report:
❏ Log tab—Select the Log tab Save button.
❏ Error tab—Select the Error tab Save button.
9. Select a tab to print the report:
❏ Log tab—Select File > Save As, then print the file from
your folder.
Maintenance and Service Guide 2–9
Troubleshooting

2.3 Troubleshooting Flowcharts

Tabl e 2-4
Troubleshooting Flowcharts Overview
Flowchart Description
2.1 Initial troubleshooting
2.2 No power, part 1
2.3 No power, part 2
2.4 No power, part 3
2.5 No power, part 4
2.6 No video, part 1
2.7 No video, part 2
2.8 Nonfunctioning docking station
2.9 No operating system (OS) loading
2.10 No OS loading from hard drive, part 1
2.11 No OS loading from hard drive, part 2
2.12 No OS loading from hard drive, part 3
2.13 No OS loading from diskette drive
2.14 No OS loading from CD- or DVD-ROM drive
2.15 No audio, part 1
2.16 No audio, part 2
2.17 Nonfunctioning device
2.18 Nonfunctioning keyboard
2.19 Nonfunctioning pointing device
2.20 No network or modem connection
2–10 Maintenance and Service Guide

Flowchart 2.1—Initial Troubleshooting

Begin
troubleshooting.
N
Is there
power?
Y
N
Beeps,
LEDs, or error
messages?
Y
N
Is there video?
(no boot)
Y
N
Is the OS
loading?
Y
N
Is there sound?
Y
Go to
Section 2.2,
No Power.
Check
LED board,
speaker
connections.
Go to
Section 2.6,
No Video.
Go to
Section 2.9,
No OS Loading.
Go to
Section 2.15,
No Audio.
All drives working?
Y
Keyboard/
pointing
device
working?
Y
Connecting
to network
or modem?
Y
End
N
N
or Section 2.19,
Pointing Device.
N
Troubleshooting
Go to
Section 2.17,
Nonfunctioning
Device.
Go to
Section 2.18,
Nonfunctioning
Keyboard,
Nonfunctioning
Go to
Section 2.20,
No Network or
Modem.
Maintenance and Service Guide 2–11
Troubleshooting

Flowchart 2.2—No Power, Part 1

No power
(power LED
is off).
Remove from
docking station
(if applicable).
N
Power up
on battery
power?
*Reset power.
Y
N
Power up
on AC
power?
*Reset power.
Y
Y
Power up
in docking
station?
Done
N
1. Reseat the power cables in the docking station and at the AC outlet.
2. Ensure the AC power source is active.
3. Ensure that the power strip is working.
YN
Power up
Done
in docking
station?
N
Power up
on battery
power?
Go to
Section 2.3,
No Power,
Part 2.
Y
N
Power up
on AC
power?
Go to
Section 2.4,
No Power,
Part 3.
Y
*NOTES:
1. On some models, there is a separate reset button.
2. On some models, the notebook can be reset using the Standby switch and
either the lid switch or the main power switch.
Go to
Section 2.8,
Nonfunctioning
Docking Station.
2–12 Maintenance and Service Guide

Flowchart 2.3—No Power, Part 2

Continued from
Section 2.2,
No Power, Part 1.
Visually check for
debris in battery
socket and clean
if necessary.
Y
Troubleshooting
Power on?
N
Check battery by
recharging,
moving it to
another notebook,
or replacing it.
Power on?
Y
Done
Done
N
Replace
power supply
(if applicable).
N
Go to
Power on?
Section 2.4,
No Power,
Part 3.
Y
Done
Maintenance and Service Guide 2–13
Troubleshooting

Flowchart 2.4—No Power, Part 3

Continued from
Section 2.3,
No Power, Part 2.
Plug directly
into AC outlet.
Y
Power LED
on?
N
Reseat AC adapter
in notebook and
at power source.
Power on?
N
Power outlet
active?
Y
Replace
power cord.
Power on?
Done
Y
Done
N
Internal or
Try different
outlet.
external AC
adapter?
Internal
Section 2.5,
No Power,
External
Replace external
AC adapter.
N
Go to
Power on?
Part 4.
Y
Y
Done
Done
N
2–14 Maintenance and Service Guide

Flowchart 2.5—No Power, Part 4

Continued from
Section 2.4,
No Power, Part 3.
Open
notebook.
Troubleshooting
Loose or
damaged
parts?
N
Close
notebook and
retest.
Power on?
Y
Done
Y
Reseat loose
components and
boards and
replace damaged
items.
N
Replace the following items (if applicable). Check notebook operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to
prevent shorting out among components.
Maintenance and Service Guide 2–15
Troubleshooting

Flowchart 2.6—No Video, Part 1

No video.
Docking
Station
Stand-alone
or docking
station?
Go to
Section 2.7,
No Video, Part 2.
*NOTE: To change from internal to
external display, use the hotkey combination.
Stand-alone
Y
Internal or
external
display*?
External
Adjust
brightness.
Internal
Y
Video OK? Done
N
Check for bent
pins on cable.
N
Video OK?
Adjust
brightness.
Video OK? Done
N
A
Press lid
switch to ensure
operation.
Y
Video OK? Done
N
Replace the following one at a time. Test after each replacement.
1. Cable between notebook and notebook display (if applicable)
2. Inverter board (if applicable)
3. Display
4. System board
N
Try another display.
Internal and
external
video OK?
Replace
system
board.
YY
Done
2–16 Maintenance and Service Guide
Done

Flowchart 2.7—No Video, Part 2

Continued from
Section 2.6,
No Video, Part 1.
Remove
notebook from
docking station,
if connected.
Troubleshooting
Adjust
display
brightness.
N
Video OK?
No Video, Part 1.
Y
Check that notebook is properly
seated in docking station, for
bent pins on cable, and for
monitor connection.
Y
Video OK?
N
Adjust external
monitor display.
Go to “A” in Section 2.6,
Done
Check brightness
of external
monitor.
Video OK?
N
Try another
external
monitor.
Internal
and external
video OK?
N
Go to Section 2.8,
Nonfunctioning
Docking Station.
Y
Done
Y
Done
Maintenance and Service Guide 2–17
Troubleshooting

Flowchart 2.8—Nonfunctioning Docking Station (if applicable)

Nonfunctioning
docking station.
Reseat power
cord in docking
station and
power outlet.
Check voltage
setting on
docking station.
Reset monitor
cable connector at
docking station.
Docking
station
operating?
N
Remove notebook, reseat all internal parts,
and replace any
damaged items in
docking station.
Reinstall
notebook into
docking station.
Y
Docking
station
operating?
Y
Done
N
Replace the following docking station components one at a time. Check notebook operation after each replacement.
1. Power supply
2. I/O board
3. Backplane board
4. Switch box
5. Docking motor mechanism
Done
2–18 Maintenance and Service Guide
Troubleshooting

Flowchart 2.9—No Operating System (OS) Loading

No OS
loading.*
Reseat power
cord in docking
station and
power outlet.
No OS loading
from hard drive,
go to
Section 2.10.
No OS loading
from diskette
drive, go to
Section 2.13.
No OS loading
from CD- or
DVD-ROM drive,
go to
Section 2.14.
No OS loading from network,
go to
Section 2.20.
*NOTE: Before beginning troubleshooting,
always check cable connections, cable ends, and drives for bent or damaged pins.
Maintenance and Service Guide 2–19
Troubleshooting

Flowchart 2.10—No OS Loading, Hard Drive, Part 1

OS not
loading from
hard drive.
Nonsystem
disk message?
N
Reseat
external
hard drive.
OS loading?
N
Boot from
CD?
Y
Check the setup
utility for correct
booting order.
Y
Go to
Section 2.11,
No OS Loading
from Hard Drive,
Part 2.
Y
Done
N
N
Go to Boot from
diskette?
Y
Section 2.13,
No OS
Loading from
Diskette Drive.
N
Boot from
hard drive?
Y
Done
Change boot priority through the setup utility
and reboot.
Boot from
hard drive?
N
Go to
Section 2.17,
Nonfunctioning
Device.
Y
2–20 Maintenance and Service Guide
Troubleshooting

Flowchart 2.11—No OS Loading, Hard Drive, Part 2

Continued from
Section 2.10,
No OS Loading
from Hard Drive,
Part 1.
CD or
diskette in
drive?
Y
Remove
diskette and
reboot.
N
1. Replace hard drive.
2. Replace system board.
accessible?
N
Run FDISK.
Reseat
hard drive.
Hard drive
Y
Done
Boot
from
hard drive?
N
Boot
from diskette
drive?
Y
Hard drive
accessible?
Y
Go to
Section 2.12,
No OS Loading
from Hard Drive,
Part 3.
Y
N
N
Done
Go to
Section 2.13,
No OS Loading
from Diskette
Drive.
Done
Hard drive
partitioned?
Y
Hard drive
formatted?
Y
Y
Notebook
booted?
Go to
Section 2.12,
No OS Loading
from Hard Drive,
Part 3.
N
Create partition, then format hard drive to bootable
C:\ prompt.
N
Format hard drive
and bring to
a bootable
C:\ prompt.
Load OS using
Restore CD
(if applicable).
N
Maintenance and Service Guide 2–21
Troubleshooting

Flowchart 2.12—No OS Loading, Hard Drive, Part 3

Continued from
Section 2.11,
No OS Loading
from Hard Drive,
Part 2.
N
System
files on hard
drive?
Y
Install OS
and reboot.
Virus
on hard
drive?
N
Run SCANDISK
and check for
bad sectors.
Can bad
sectors
be fixed?
Y
Fix bad
sectors.
Y
Clean virus.
OS
loading from
hard drive?
Y
Done
N
Y
Diagnostics
on diskette?
Replace
hard drive.
N
N
Replace
hard drive.
Run diagnostics
and follow
recommendations.
N
Boot from
hard drive?
Replace
hard drive.
Y
Done
2–22 Maintenance and Service Guide
Troubleshooting
Y

Flowchart 2.13—No OS Loading, Diskette Drive

OS not loading
from
diskette drive.
Nonsystem
disk message?
Boot
from another
device?
Y
Diskette
drive enabled
in the setup
utility?
Y
Y
N
N
Reseat
diskette drive.
Go to
Section 2.17,
Nonfunctioning
Device.
Enable drive
and cold boot
notebook.
OS
loading?
N
Bootable
diskette
in drive?
YN
Check diskette
for system files.
Try different
diskette.
Nonsystem
disk error?
N
Done
N
Install bootable
diskette and
reboot notebook.
Y
1. Replace diskette drive.
2. Replace system board.
Y
Y
Is diskette drive boot
order
correct?
N
Change boot
priority using
the setup utility.
Maintenance and Service Guide 2–23
Clear CMOS.
Refer to Section
1.2, “Clearing a Password,” for
instructions.
Go to
Section 2.17,
Nonfunctioning
Device.
N
OS
loading?
Done
Troubleshooting
Y
N

Flowchart 2.14—No OS Loading, CD- or DVD-ROM Drive

No OS
loading from
CD- or
DVD-ROM Drive.
Boots from
CD or DVD?
N
Reseat
drive.
N
Y
N
Y
Disc
in drive?
Install
bootable disc.
Done
Boots from
CD or DVD?
Booting
from another
device?
Y
Y
N
Bootable
disc in
drive?
Try another
bootable disc.
Done
Go to
Section 2.17,
Nonfunctioning
Device.
Install bootable
disc and
reboot
notebook.
Y
Clear CMOS.
Booting
order
correct?
N
Correct boot
order using
the setup utility.
2–24 Maintenance and Service Guide
Refer to Section
1.2, “Clearing a Password,” for
instructions.
Go to
Section 2.17,
Nonfunctioning
Device.

Flowchart 2.15—No Audio, Part 1

Y
Turn up audio
No audio.
internally or
externally.
Audio? Done
N
Troubleshooting
Notebook in
docking station
(if applicable)?
N
Go to
Section 2.16,
No Audio, Part 2.
Y
Undock
Replace the following docking station components one at a time as applicable. Check audio status after each change.
1. Reseat docking station audio cable.
2. Replace audio cable.
3. Replace speaker.
4. Replace docking station audio board.
5. Replace backplane board.
6. Replace I/O board.
Go to
Section 2.17,
Nonfunctioning
Device.
N
Internal
audio?
Y
Y
Audio? Done
N
Go to
Section 2.16,
No Audio, Part 2.
Maintenance and Service Guide 2–25
Troubleshooting

Flowchart 2.16—No Audio, Part 2

Continued from
Section 2.15,
No Audio, Part 1.
N
Audio driver in OS configured?
Reload
audio drivers.
Y
N
Correct
drivers for
application?
Load drivers and set configuration
in OS.
Y
Connect to
external
speaker.
Replace audio
board and
Audio?
YN
speaker
connections
in notebook
(if applicable).
Audio? Done
1. Replace internal speakers.
2. Replace audio board (if applicable).
3. Replace system board.
YN
2–26 Maintenance and Service Guide

Flowchart 2.17—Nonfunctioning Device

Nonfunctioning
device.
Reseat
device.
Unplug the nonfunctioning device from
the notebook and inspect cables and plugs for
bent or broken pins or other damage.
Y
Clear
CMOS.
Any physical
device detected?
N
Troubleshooting
Fix or
replace
broken item.
Reattach device. Close notebook,
plug in power,
and reboot.
Possible bad
hard drive.
Replace drive.
Go to
Section 2.9,
No OS Loading.
N
Device
boots
properly?
Y
Done
Maintenance and Service Guide 2–27
Possible bad NIC.
Replace card.
If integrated NIC,
replace system
board.
Possible bad diskette drive. Replace drive.
Device
boots
properly?
Y
Done
N
Troubleshooting

Flowchart 2.18—Nonfunctioning Keyboard

Keyboard
not operating
properly.
Connect notebook
to good external
keyboard.
N
External
device
works?
Replace
system
board.
Y
Reseat internal
keyboard
connector
(if applicable).
N
OK?
Replace internal
keyboard or
cable.
Y
Y
Done Done
OK?
N
Replace
system
board.
2–28 Maintenance and Service Guide
Troubleshooting

Flowchart 2.19—Nonfunctioning Pointing Device

Pointing device
not operating
properly.
Connect notebook
to good external
pointing device.
N
External
device
works?
Replace
system
board.
Y
Reseat internal
pointing device
connector
(if applicable).
N
OK?
Replace internal
pointing device
or cable.
Y
Y
Done Done
OK?
N
Replace
system
board.
Maintenance and Service Guide 2–29
Troubleshooting

Flowchart 2.20—No Network/Modem Connection

No network
or modem
connection.
N
Y
N
Replace jack
or have jack
activated.
Connect
to nondigital
line.
Reload
drivers and
reconfigure.
Y
OK?
Done
N
Network
or modem
jack active?
Y
Digital
line?
N
NIC/modem
configured
in OS?
Y
Disconnect all
power from
the notebook
and open.
Replace
NIC/modem
(if applicable).
Y
Reseat
NIC/modem
(if applicable).
OK? Done
N
Replace
system
board.
2–30 Maintenance and Service Guide

Illustrated Parts Catalog

This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers.

3.1 Serial Number Location

When ordering parts or requesting information, provide the notebook serial number and model number located on the bottom of the notebook.
3
Serial Number Location
Maintenance and Service Guide 3–1
Illustrated Parts Catalog

3.2 Notebook Major Components

Notebook Major Components
3–2 Maintenance and Service Guide
Spare Parts: Notebook Major Components
Item Description
Illustrated Parts Catalog
Tabl e 3-1
Spare Part Number
1 Display assembly, 12.1-inch TFT XGA with
wireless device antennae
Miscellaneous Plastics Kit, includes: 325528-001
2a 2b 2c 2d 2e 2f
2g 2h
3 LED switch cover 325512-001
Left and right display hinge covers Speaker/microphone RTC battery PC Card slot space saver Modem cable Mini PCI compartment covers (one with a 2.0×4.0 security screw for
use with the 5-GHz mini PCI wireless LAN board, one with a Phillips M2.0×4.0 screw for use with other mini PCI wireless
LAN boards) Memory expansion compartment cover Hard drive bezel Not illustrated:
Notebook feet (4)
Display rubber screw covers (6: 4 round, 2 oblong)
325509-001
Maintenance and Service Guide 3–3
Illustrated Parts Catalog
Notebook System Major Components
3–4 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
(Continued)
Spare Parts: Notebook Major Components
Spare Part
Item Description
4 Keyboards, include pointing stick
Asia Pacific Australia Brazil Czech
Republic Denmark Europe France French
Canada Germany Greece Hong Kong Hungary Iceland India International Israel Italy Japan
5 Top cover (includes TouchPad, speaker/microphone,
and RTC battery)
6 TouchPad with cable 325513-001
325530-371 325530-011 325530-201 325530-221
325530-081 325530-021 325530-051 325530-121
325530-041 325530-151 325530-AC1 325530-211 325530-DD1 325530-D61 325530-002 325530-BB1 325530-061 325530-291
Korea Latin America The Netherlands Norway People’s Republic
of China Poland Portugal Russia Saudi Arabia Slovakia Spain Sweden Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
Number
325530-AD1 325530-161 325530-331 325530-091 325530-AA1
325530-241 325530-131 325530-251 325530-171 325530-231 325530-071 325530-101 325530-111 325530-AB1 325530-281 325530-141 325530-031 325530-001
325510-001
7 Switch board 325515-001
8 Fan 291266-001
9 Heat sink with fan 325520-001
10 Bluetooth wireless device (not available on all
models)
Maintenance and Service Guide 3–5
333605-001
Illustrated Parts Catalog
Notebook System Major Components
3–6 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
(Continued)
Spare Parts: Notebook Major Components
Spare Part
Item Description
11 Processors
Intel Pentium-M 1.6 GHz Intel Pentium-M 1.5 GHz Intel Pentium-M 1.4 GHz Intel Pentium-M 1.3 GHz
12 System board 325514-001
13 Modem board with cable 325521-001
14 Base enclosure (includes left and right display
supports)
15 Mini PCI communications boards
802.11a/b/g wireless LAN board
802.11b/g wireless LAN board
16 Battery pack, 6 cell, 40 wH 315338-001
17 Hard drives (include hard drive bezel and frame)
60 GB 40 GB 30 GB
Number
319777-001 319776-001 319775-001 319774-001
325511-001
333782-001 333781-001
325524-001 325523-001 325522-001
18 Memory expansion boards
512 MB DDR 256 MB DDR
Maintenance and Service Guide 3–7
280875-001 280874-001
Illustrated Parts Catalog

3.3 Miscellaneous Plastics Kit Components

Miscellaneous Plastics Kit Components
3–8 Maintenance and Service Guide
Illustrated Parts Catalog
Tabl e 3-2
Miscellaneous Plastics Kit Components
Spare Part Number 325528-001
Item Description
1 Left and right display hinge covers
2 Speaker/microphone
3 RTC battery
4 PC Card slot space saver
5 Modem cable
6 Mini PCI compartment covers (one with a 2.0×4.0 security screw for
use with the 5-GHz mini PCI wireless LAN board, one with a Phillips M2.0×4.0 screw for use with other mini PCI wireless LAN boards)
7 Memory expansion compartment cover
8 Hard drive bezel
9 Notebook feet (4)
10 Display rubber screw covers (6: 4 round, 2 oblong)
Maintenance and Service Guide 3–9
Illustrated Parts Catalog

3.4 Port Replicators and Mass Storage Devices

Port Replicators and Mass Storage Devices
Tabl e 3-3
Port Replicators and Mass Storage Devices
Item Description
Spare Part Number
1 Advanced port replicator 316194-001
2 Common port replicator 316193-001
3 USB MultiBay cradle 322814-001
Optical drives (for use only with the Advanced and
Common port replicators and USB MultiBay cradle)
4a
4b
5 Hard drives (include hard drive bezel)
3–10 Maintenance and Service Guide
8X Max DVD-ROM drive 24X Max CD-RW drive 24X Max CD-ROM drive 24X Max Slim CD-ROM/CD-RW
combination drive
1.44-MB diskette drive
60 GB 40 GB 30 GB
202837-001 323226-001 228746-001 306800-001
241995-001
325524-001 325523-001 325522-001
Illustrated Parts Catalog

3.5 Miscellaneous

Tabl e 3-4
Spare Parts: Miscellaneous (not illustrated)
Description
65-watt AC adapter 239704-001
Adapter cables
Spare Part Number
Air adapter cable Auto adapter cable
Carrying cases
Top load leather cases 325817-001 and
Top load nylon cases 325815-001 and
Nylon case 325814-001
293204-001 293203-001
325817-002
325815-002
Maintenance and Service Guide 3–11
Illustrated Parts Catalog
Tabl e 3-4
Spare Parts: Miscellaneous (not illustrated)
Description
Power cord, three-wire
(Continued)
Spare Part Number
Australia Denmark Europe/Middle
East/Africa
Italy
Screw Kit (includes the following screws; refer to
Appendix C, “Screw Listing,” for more information on screw specifications and usage.)
246959-011 246959-081 246959-021
246959-061
■ Phillips M2.5×3.5 screw
■ Phillips M2.5×3.0 screw
■ Phillips M2.0×5.0 screw
■ Phillips M2.0×4.0 screw
■ Phillips M2.0×3.0 screw (silver)
■ Phillips M2.0×3.0 screw (black)
■ Spring-loaded Torx T8 M2.0×10.0
screw
Travel battery carrier 325527-001
Japan Korea Switzerland United Kingdom United States
■ Torx T8 M2.0×8.0 screw
■ Torx T8 M2.0×6.0 screw
■ Torx T8 M2.0×4.0 screw
■ Torx T5 M2.5×4.5 screw
■ 4.0-mm socket M2.0×10.0
alignment pin
■ M2.0×4.0 security screw
246959-291 246959-AD1 246959-AG1 246959-031 246959-001
325529-001
3–12 Maintenance and Service Guide
Removal and Replacement
This chapter provides essential information for proper and safe removal and replacement service.

4.1 Tools Required

You will need the following tools to complete the removal and replacement procedures:
■ Magnetic screwdriver
■ Torx T8 screwdriver
■ Torx T5 screwdriver
■ Phillips P0 screwdriver
■ Flat-bladed tool
4
Preliminaries
■ 5.0-mm socket
■ 4.0-mm socket
■ Tool kit (includes connector removal tool, loopback plugs,
and case utility tool)
Maintenance and Service Guide 4–1
Removal and Replacement Preliminaries

4.2 Service Considerations

The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures.
As you remove each subassembly from the notebook, place the
✎
subassembly (and all accompanying screws) away from the work area to prevent damage.

Plastic Parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and Connectors

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Ensure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
CAUTION: When servicing the notebook, ensure that cables are
Ä
placed in their proper locations during the reassembly process. Improper cable placement can damage the notebook.
4–2 Maintenance and Service Guide
Removal and Replacement Preliminaries

4.3 Preventing Damage to Removable Drives

Removable drives are fragile components that must be handled with care. To prevent damage to the notebook, damage to a removable drive, or loss of information, observe the following precautions:
■ Before removing or inserting a hard drive, shut down the
notebook. If you are unsure whether the notebook is off or in Hibernation, turn the notebook on, then shut it down.
■ Before removing a diskette drive or optical drive, ensure that
a diskette or disc is not in the drive. Ensure that the optical drive tray is closed.
■ Before handling a drive, ensure that you are discharged of
static electricity. While handling a drive, avoid touching the connector.
■ Handle drives on surfaces that have at least one inch of
shock-proof foam.
■ Avoid dropping drives from any height onto any surface.
■ After removing a hard drive, CD-ROM drive, or a diskette
drive, place it in a static-proof bag.
■ Avoid exposing a hard drive to products that have magnetic
fields, such as monitors or speakers.
■ Avoid exposing a drive to temperature extremes or liquids.
■ If a drive must be mailed, place the drive in a bubble pack
mailer or other suitable form of protective packaging and label the package “Fragile: Handle With Care.”
Maintenance and Service Guide 4–3
Removal and Replacement Preliminaries

4.4 Preventing Electrostatic Damage

Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases the discharge contains enough power to alter device parameters or melt silicon junctions.
A sudden discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge might not be affected at all and can work perfectly throughout a normal cycle. Or the device might function normally for a while, then degrade in the internal layers, reducing its life expectancy.

4.5 Packaging and Transporting Precautions

Use the following grounding precautions when packaging and transporting equipment:
■ To avoid hand contact, transport products in static-safe
containers, such as tubes, bags, or boxes.
■ Protect all electrostatic-sensitive parts and assemblies with
conductive or approved containers or packaging.
■ Keep electrostatic-sensitive parts in their containers until the
parts arrive at static-free workstations.
■ Place items on a grounded surface before removing items
from their containers.
■ Always be properly grounded when touching a sensitive
component or assembly.
4–4 Maintenance and Service Guide
Removal and Replacement Preliminaries
■ Store reusable electrostatic-sensitive parts from assemblies in
protective packaging or nonconductive foam.
■ Use transporters and conveyors made of antistatic belts and
roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

4.6 Workstation Precautions

Use the following grounding precautions at workstations:
■ Cover the workstation with approved static-shielding material
(refer to Table 4-2).
■ Use a wrist strap connected to a properly grounded work
surface and use properly grounded tools and equipment.
■ Use conductive field service tools, such as cutters,
screwdrivers, and vacuums.
■ When using fixtures that must directly contact dissipative
surfaces, only use fixtures made of static-safe materials.
■ Keep the work area free of nonconductive materials, such as
ordinary plastic assembly aids and Styrofoam.
■ Handle electrostatic-sensitive components, parts, and
assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
■ Avoid contact with pins, leads, or circuitry.
■ Turn off power and input signals before inserting or removing
connectors or test equipment.
Maintenance and Service Guide 4–5
Removal and Replacement Preliminaries

4.7 Grounding Equipment and Methods

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
■ When seated, wear a wrist strap connected to a grounded
system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, connect a wrist strap with alligator clips.
■ When standing, use foot straps and a grounded floor mat.
Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one-megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.
Other grounding equipment recommended for use in preventing electrostatic damage includes:
■ Antistatic tape
■ Antistatic smocks, aprons, and sleeve protectors
■ Conductive bins and other assembly or soldering aids
■ Nonconductive foam
■ Conductive tabletop workstations with ground cords of
one-megohm resistance
■ Static-dissipative tables or floor mats with hard ties to
the ground
■ Field service kits
■ Static awareness labels
■ Material-handling packages
■ Nonconductive plastic bags, tubes, or boxes
4–6 Maintenance and Service Guide
Removal and Replacement Preliminaries
■ Metal tote boxes
■ Electrostatic voltage levels and protective materials
Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities.
Tabl e 4-1
Typical Electrostatic Voltage Levels
Relative Humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
A Product can be degraded by as little as 700 volts.
✎
Table 4-2 lists the shielding protection provided by antistatic bags and floor mats.
Table 4 -2
Static-Shielding Materials
Material Use Voltage Protection Level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Maintenance and Service Guide 4–7
5
Removal and Replacement
Procedures
This chapter provides removal and replacement procedures.
Torx and Phillips screws are removed during disassembly. There are 55 screws, alignment pins, and standoffs, in 13 different sizes, that must be removed, replaced, and/or loosened when servicing the notebook. Make special note of each screw size and location during removal and replacement.
Refer to Appendix C, “Screw Listing,” for detailed information on screw sizes, locations, and usage.
Maintenance and Service Guide 5–1
Removal and Replacement Procedures

5.1 Serial Number

Report the notebook serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the notebook.
Serial Number Location

5.2 Disassembly Sequence Chart

Use the chart below to determine the section number to be referenced when removing notebook components.
Tabl e 5-1
Disassembly Sequence Chart
# of Screws
Section Description
5.3 Preparing the notebook for disassembly
Battery pack 0
Hard Drive 1
Hard drive bezel 6 screws,
5–2 Maintenance and Service Guide
Removed
2 alignment pins
Removal and Replacement Procedures
Tabl e 5-1
Disassembly Sequence Chart
Section Description
5.4 Notebook feet 0
5.5 Memory expansion board 1 loosened
5.6 Mini PCI communications board 1 loosened
5.7 LED switch cover 2
5.8 Keyboard 1
5.9 Fan 3
5.10 Heat sink and fan 2 loosened, 4 removed
5.11 Processor 0
5.12 Display assembly 4
5.13 Top cover 13
5.14 Bluetooth wireless device 0
5.15 TouchPad 2
(Continued)
# of Screws Removed
5.16 RTC battery 0
5.17 Speaker/microphone 2
5.18 Switch board 2
5.19 System board 5 screws, 2 standoffs
5.20 Modem board 2
Maintenance and Service Guide 5–3
Removal and Replacement Procedures

5.3 Preparing the Notebook for Disassembly

Perform the following steps before disassembling the notebook:
1. Turn off the notebook.
2. Disconnect the AC adapter and all external devices.
Battery Pack
Spare Part Number Information
Battery pack, 6 cell, 40 wH 315338-001
3. Remove the battery pack by following these steps:
a. Turn the notebook bottom side up with the front facing
forward.
b. Slide and hold the battery release latch
rear edge of the battery pack releases from the notebook.
c. Lift the rear edge of the battery pack up and swing it
forward
d. Remove the battery pack.
2.
1 to the left. The
Removing the Battery Pack
Reverse the above procedure to install the battery pack.
5–4 Maintenance and Service Guide
Removal and Replacement Procedures
Hard Drive
Spare Part Number Information
60 GB 40 GB 30 GB
325524-001 325523-001 325522-001
4. Remove the hard drive by following these steps:
a. Turn the notebook bottom side up with the left side
facing forward.
b. Remove the PM2.5×3.0 screw 1 that secures the
hard drive to the notebook.
c. Separate the hard drive bezel 2. d. Use the bezel to slide the hard drive forward 3 to unseat
the hard drive connector from the system board.
e. Remove the hard drive.
Removing the Hard Drive
Reverse the above procedure to install the hard drive.
Maintenance and Service Guide 5–5
Removal and Replacement Procedures
5. Remove the hard drive bezel by following these steps:
CAUTION: The hard drive bezel should only be removed if it is damaged and must be replaced. Unnecessarily removing the hard drive
Ä
bezel can result in damage to the hard drive bezel and hard drive and loss of information.
The hard drive bezel is included with the hard drive and also in
✎
the Miscellaneous Plastics Kit, spare part number 325528-001.
a. Use a flat-bladed tool to press down on the tabs 1 on the
hard drive lower bezel.
b. Remove the lower bezel 2 from the hard drive
upper bezel.
Removing the Hard Drive Lower Bezel
5–6 Maintenance and Service Guide
Removal and Replacement Procedures
c. Remove the two Torx T5 M2.5×4.5 screws 1 and the two
PM2.5×3.5 screws 2 that secure the hard drive to the hard drive frame.
d. Use a 4.0-mm socket to remove the two M2.0×10.0
alignment pins 3 from the back of the hard drive.
e. Remove the hard drive from the hard drive frame 4.
Removing the Hard Drive from the Hard Drive Frame
f. Remove the two PM2.0×3.0 screws 1 that secure the
hard drive upper bezel to the hard drive frame.
g. Remove the upper bezel from the frame 2.
Removing the Hard Drive Upper Bezel
Maintenance and Service Guide 5–7
Removal and Replacement Procedures

5.4 Notebook Feet

The notebook feet are adhesive-backed rubber pads. The notebook feet are included in the Miscellaneous Plastics Kit, spare part number 325528-001. The notebook feet attach to the base enclosure as illustrated below.
Replacing the Notebook Feet
5–8 Maintenance and Service Guide
Removal and Replacement Procedures

5.5 Memory Expansion Board

Memory Expansion Boards
Spare Part Number Information
512 MB DDR 256 MB DDR
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the front facing forward.
3. Loosen the PM2.0×4.0 screw 1 that secures the memory expansion compartment cover to the notebook.
4. Lift the rear edge of the cover up and swing it forward 2.
5. Remove the cover.
The memory expansion compartment cover is included in the
✎
Miscellaneous Plastics Kit, spare part number 325528-001.
280875-001 280874-001
Removing the Memory Expansion Compartment Cover
Maintenance and Service Guide 5–9
Removal and Replacement Procedures
6. Spread the retaining tabs 1 that secure the memory expansion board to the socket. The board rises up at a 45-degree angle.
7. Pull the board away from the socket at a 45-degree angle 2.
Removing a Memory Expansion Board
Reverse the above procedure to install a memory expansion board.

5.6 Mini PCI Communications Board

Mini PCI Communications Boards
Spare Part Number Information
802.11a/b/g wireless LAN board
802.11b/g wireless LAN board
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the front facing forward.
3. Loosen the PM2.0×4.0 screw 1 that secures the mini PCI compartment cover to the notebook.
5–10 Maintenance and Service Guide
333782-001 333781-001
Removal and Replacement Procedures
The mini PCI compartment cover on notebook models equipped
✎
with a 5-GHz wireless communications device is secured by a M2.0×4.0 security screw. This screw can only be removed using a special security driver.
4. Lift the rear edge of the cover up and swing it forward 2.
5. Remove the cover.
The mini PCI compartment cover is included in the
✎
Miscellaneous Plastics Kit, spare part number 325528-001.
Removing the Mini PCI Compartment Cover
Maintenance and Service Guide 5–11
Removal and Replacement Procedures
6. Disconnect the two antenna cables from the mini PCI communications board. Note that the longer cable 1 connects to the left socket and the shorter cable 2 connects to the right socket.
7. Spread the retaining tabs 3 that secure the mini PCI communications board to the socket. The board rises up at a 45-degree angle.
8. Pull the board away from the socket at a 45-degree angle 4.
Removing a Mini PCI Communications Board
Reverse the above procedure to install a mini PCI communications board.
5–12 Maintenance and Service Guide
Removal and Replacement Procedures

5.7 LED Switch Cover

LED Switch Cover
Spare Part Number Information
LED switch cover 325512-001
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the rear panel facing forward.
3. Remove the two T8M2.0×8.0 screws that secure the LED switch cover to the notebook.
Removing the LED Switch Cover Screws
4. Turn the notebook top side up with the front facing forward.
5. Open the notebook as far as it will open.
Maintenance and Service Guide 5–13
Removal and Replacement Procedures
6. Press down on the esc key 1 to reveal the notch 2 in the left side of the LED switch cover.
7. Insert a flat-bladed tool into the notch and lift the left side of the LED switch cover 3.
8. After the left side of the LED switch cover has disengaged from the notebook, swing the LED switch cover up and to the right.
9. Remove the LED switch cover.
Removing the LED Switch Cover
Reverse the above procedure to install the LED switch cover.
5–14 Maintenance and Service Guide

5.8 Keyboard

Spare Part Number Information
Asia Pacific Australia Brazil Czech Republic Denmark Europe France French Canada Germany Greece Hong Kong Hungary Iceland India International Israel Italy Japan Korea
325530-371 325530-011 325530-201 325530-221 325530-081 325530-021 325530-051 325530-121 325530-041 325530-151 325530-AC1 325530-211 325530-DD1 325530-D61 325530-002 325530-BB1 325530-061 325530-291 325530-AD1
Removal and Replacement Procedures
Keyboards
Latin America The Netherlands Norway People’s Republic
of China Poland Portugal Russia Saudi Arabia Slovakia Spain Sweden Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
325530-161 325530-331 325530-091 325530-AA1
325530-241 325530-131 325530-251 325530-171 325530-231 325530-071 325530-101 325530-111 325530-AB1 325530-281 325530-141 325530-031 325530-001
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the LED switch cover (Section 5.7).
3. Close the notebook and turn it bottom side up with the rear panel facing forward.
Maintenance and Service Guide 5–15
Removal and Replacement Procedures
4. Remove the T8M2.0×8.0 screw that secures the keyboard to the notebook.
Removing the Keyboard Screw
5. Turn the notebook top side up with the front facing forward.
6. Open the notebook as far as it will open.
5–16 Maintenance and Service Guide
Removal and Replacement Procedures
7. Lift the rear edge of the keyboard 1.
8. Slide the keyboard toward the display 2 until the notches on the front edge of the keyboard clear the top cover.
9. Swing the front edge of the keyboard up and back 3 until it rests on the display.
Releasing the Keyboard
Maintenance and Service Guide 5–17
Removal and Replacement Procedures
10. Release the zero insertion force (ZIF) connector 1 to which
the pointing stick cable is attached and disconnect the pointing stick cable 2 from the system board.
11. Release the ZIF connector 3 to which the keyboard cable is attached and disconnect the keyboard cable 4 from the system board.
Removing the Keyboard
12. Remove the keyboard.
Reverse the above procedure to install the keyboard.
5–18 Maintenance and Service Guide
Removal and Replacement Procedures
After the keyboard is removed, the internal memory expansion socket is accessible. Follow these steps to remove a memory expansion board from the internal memory expansion socket:
1. Spread the retaining tabs 1 that secure the memory
expansion board to the socket. The board rises up at a 45-degree angle.
2. Pull the board away from the socket at a 45-degree angle 2.
Removing an Internal Memory Expansion Board
Reverse the above procedure to install the internal memory expansion board.
Maintenance and Service Guide 5–19
Removal and Replacement Procedures

5.9 Fan

Fan
Spare Part Number Information
Fan 291266-001
The fan is also spared with the heat sink, spare part number
✎
325520-001.
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the LED switch cover (Section 5.7).
3. Remove the keyboard (Section 5.8).
5–20 Maintenance and Service Guide
Removal and Replacement Procedures
4. Disconnect the fan cable 1 from the system board.
5. Remove the three PM2.0×3.0 screws 2 that secure the fan to
the heat sink.
6. Remove the fan.
CAUTION: When installing the fan in the heat sink, make sure the fan
Ä
cable is not get crimped by the screw next to the cable clip 3. If the cable is crimped and damaged, the fan will not cool the notebook internal components, which could result in damage.
Removing the Fan
Reverse the above procedure to install the fan.
Maintenance and Service Guide 5–21
Removal and Replacement Procedures

5.10 Heat Sink

Heat Sink
Spare Part Number Information
Heat sink (includes fan) 325520-001
The fan is also spared seperately, using spare part number
✎
291266-001.
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the LED switch cover (Section 5.7).
3. Remove the keyboard (Section 5.8).
5–22 Maintenance and Service Guide
Removal and Replacement Procedures
4. Disconnect the fan cable 1 from the system board.
5. Loosen the two spring-loaded T8 M2.0×10.0 screws 2 that
secure the heat sink to the base enclosure.
6. Fold back the insulator material 3 to expose the heat sink
screws.
7. Remove the four T8 M2.0×4.0 screws 4 that secure the
heat sink to the base enclosure.
Removing the Heat Sink Screws
Maintenance and Service Guide 5–23
Removal and Replacement Procedures
Note that the four T8 M2.0×4.0 heat sink screws should be
✎
removed and installed in the 1, 2, 3, 4 sequence stamped on the heat sink.
Heat Sink Screw Removal and Installation Sequence
5–24 Maintenance and Service Guide
Removal and Replacement Procedures
8. Lift the front edge of the heat sink until it clears the
base enclosure 1.
9. Slide the heat sink forward at an angle 2 and remove it.
Removing the Heat Sink
Maintenance and Service Guide 5–25
Removal and Replacement Procedures
Each time the heat sink is removed, any thermal grease residue
✎
should be carefully cleaned from the heat sink 1 and processor surfaces 2, and new thermal grease should be applied to both surfaces.
Removing the Thermal Grease From the Heat Sink and Processor
Reverse the above procedure to install the heat sink and fan.

5.11 Processor

Processor
Spare Part Number Information
Intel Pentium-M 1.6 GHz Intel Pentium-M 1.5 GHz Intel Pentium-M 1.4 GHz Intel Pentium-M 1.3 GHz
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the LED switch cover (Section 5.7).
3. Remove the keyboard (Section 5.8).
5–26 Maintenance and Service Guide
319777-001 319776-001 319775-001 319774-001
Removal and Replacement Procedures
4. Remove the heat sink and fan (Section 5.10).
5. Use a flat-bladed tool to turn the processor locking screw
one-quarter turn counterclockwise 1.
6. Lift the processor straight up 2 and remove it.
Note that the gold triangle 3 should be in the lower right corner
✎
when installing the processor.
Removing the Processor
Reverse the above procedure to install the processor.
Maintenance and Service Guide 5–27
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
