Compaq EP Series User Manual

Maintenance & Service Guide

Compaq Deskpro EP Series of Personal Computers

Guide to Features & Upgrades

Compaq Deskpro EP Series of Personal Computers

Notice

The information in this guide is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.

This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form without prior written consent from Compaq Computer Corporation.

Compaq, the Compaq logo, and Deskpro Registered U. S. Patent and Trademark Office.

PREMIER

Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation.

Intel and Pentium are registered trademarks of Intel Corporation. MMX and Celeron are trademarks of Intel Corporation.

SOUND is a trademark of Compaq Computer Corporation.

•

Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.

The software described in this guide is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of the agreement.

Maintenance & Service Guide

Compaq Deskpro EP Series of Personal Computers

Fourth Edition (June 2000) First Edition (July 1999) Part Number 134011-004 Spare Part Number 143685-001

Compaq Computer Corporation

preface

About This Guide

Symbols and Conventions ........................................................................................................ vii

Technician Notes ...................................................................................................................... vii

Locating Additional Documentation ....................................................................................... viii

chapter 1

Product Description

1.1 Model Overview ............................................................................................................. 1-2

1.2 System Design................................................................................................................. 1-3

1.3 Preinstalled Software ......................................................................................................1-4

1.3.1 Ordering Additional Software ............................................................................ 1-4

1.4 Computer Features .......................................................................................................... 1-5

1.4.1 Front Panel Controls and LEDs - 440BX........................................................... 1-5

1.4.2 Front Panel Controls and LEDs - Intel 810/810e ...............................................1-6

1.4.3 Rear Panel Connectors - 440BX......................................................................... 1-7

1.4.4 Rear Panel Connectors - Intel 810/810e............................................................. 1-8

1.4.5 Drive Positions ...................................................................................................1-9

1.5 Serial Number Location ................................................................................................ 1-10

chapter 2

Spare Parts

ONTENTS

2.1 System Unit..................................................................................................................... 2-2

2.1.1 System Unit - 440BX .........................................................................................2-2

2.1.2 System Unit - Intel 810/810e.............................................................................. 2-4

2.2 Mass Storage Devices ..................................................................................................... 2-6

2.3 Cables.............................................................................................................................. 2-8

2.4 Standard and Optional Boards ......................................................................................2-10

2.5 Keyboards ..................................................................................................................... 2-15

2.6 Miscellaneous Hardware Kit......................................................................................... 2-16

2.7 Miscellaneous Plastics Kit ............................................................................................2-17

2.8 Miscellaneous Parts....................................................................................................... 2-18

2.9 Shipping Boxes ............................................................................................................. 2-19

2.10 Documentation and Software........................................................................................ 2-19

chapter 3

Removal and Replacement Preliminaries

3.1 Routine Care ...................................................................................................................3-1

3.1.1 Cleaning Safety Precautions............................................................................... 3-1

3.1.2 Cleaning the Computer Case .............................................................................. 3-1

3.1.3 Cleaning the Keyboard ....................................................................................... 3-2

3.1.4 Cleaning the Monitor.......................................................................................... 3-2

3.1.5 Cleaning the Mouse............................................................................................ 3-2

Contents iii

3.2 Electrostatic Discharge Information................................................................................ 3-3

3.2.1 Generating Static ................................................................................................3-3

3.2.2 Preventing Electrostatic Damage to Equipment ................................................. 3-3

3.2.3 Personal Grounding Methods and Equipment.................................................... 3-4

3.2.4 Grounding Workstations.....................................................................................3-4

3.2.5 Recommended Materials and Equipment........................................................... 3-4

3.3 Service Considerations.................................................................................................... 3-5

3.3.1 Tools and Software Requirements...................................................................... 3-5

3.3.2 Screws................................................................................................................. 3-5

3.3.3 Cables and Connectors ....................................................................................... 3-5

3.3.4 Hard Drives ........................................................................................................3-6

3.3.5 Plastic Parts......................................................................................................... 3-6

chapter 4

Removal and Replacement Procedures

4.1 Disassembly Sequence Chart .......................................................................................... 4-1

4.2 Disassembly Preparation................................................................................................. 4-2

4.3 Feet Installation............................................................................................................... 4-3

4.4 Logo Plate ....................................................................................................................... 4-4

4.5 Cable Lock ...................................................................................................................... 4-5

4.6 Access Panel ...................................................................................................................4-7

4.7 Front Bezel...................................................................................................................... 4-8

4.8 Power Button................................................................................................................... 4-9

4.9 Subpanel and Bezel Blanks........................................................................................... 4-10

4.10 Power Switch ................................................................................................................4-11

4.11 Mass Storage Devices ................................................................................................... 4-12

4.11.1 Removing an Internal 3.5-Inch Hard Drive...................................................... 4-14

4.11.2 Removing an External 5.25-Inch Drive............................................................ 4-16

4.11.3 Removing an External 3.5-Inch Drive.............................................................. 4-18

4.12 Removing the Drivelocks.............................................................................................. 4-21

4.13 Expansion Boards .........................................................................................................4-24

4.13.1 440BX ..............................................................................................................4-24

4.13.2 Intel 810 and 810e ............................................................................................ 4-25

4.13.3 Removing an Expansion Board ........................................................................ 4-26

4.13.4 Installing an Expansion Board.......................................................................... 4-27

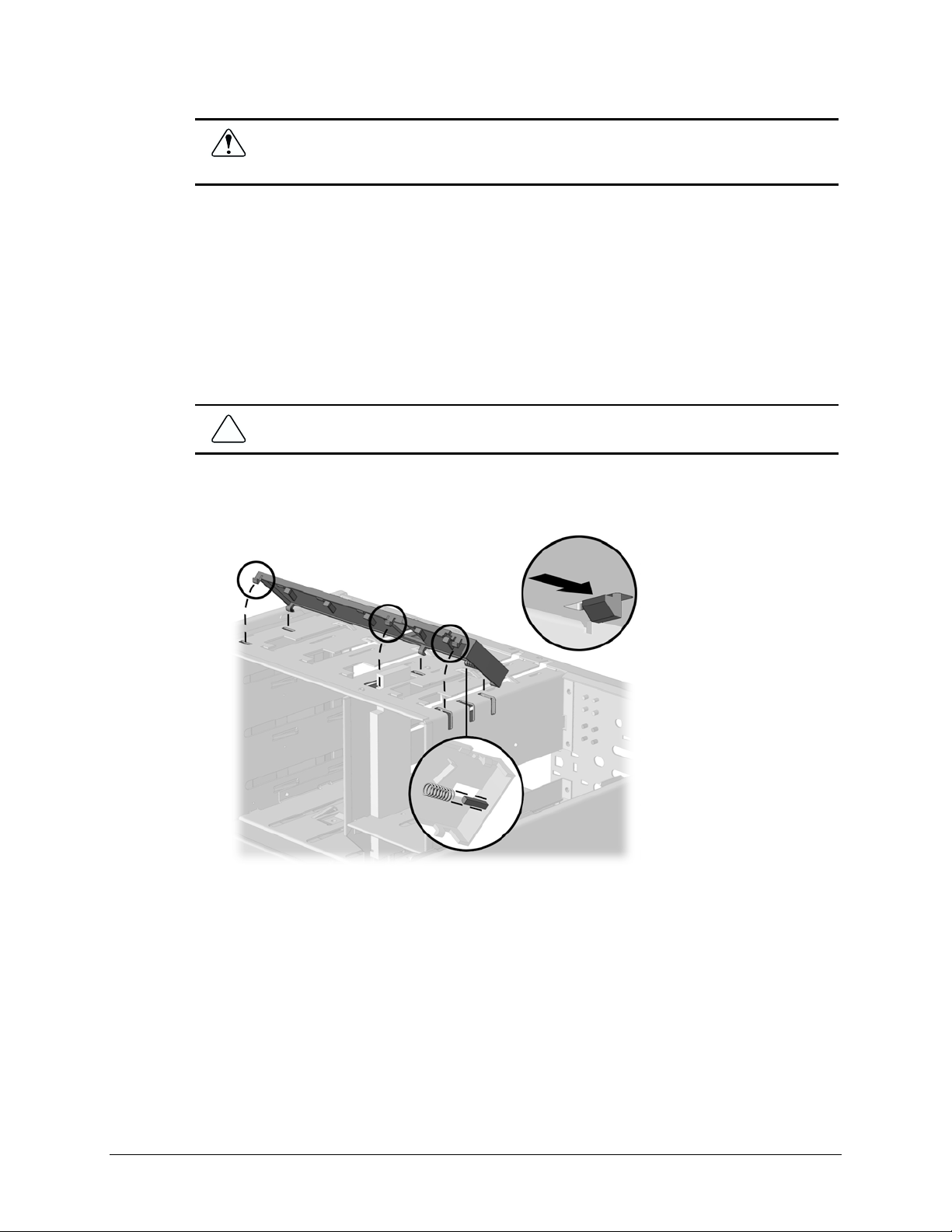

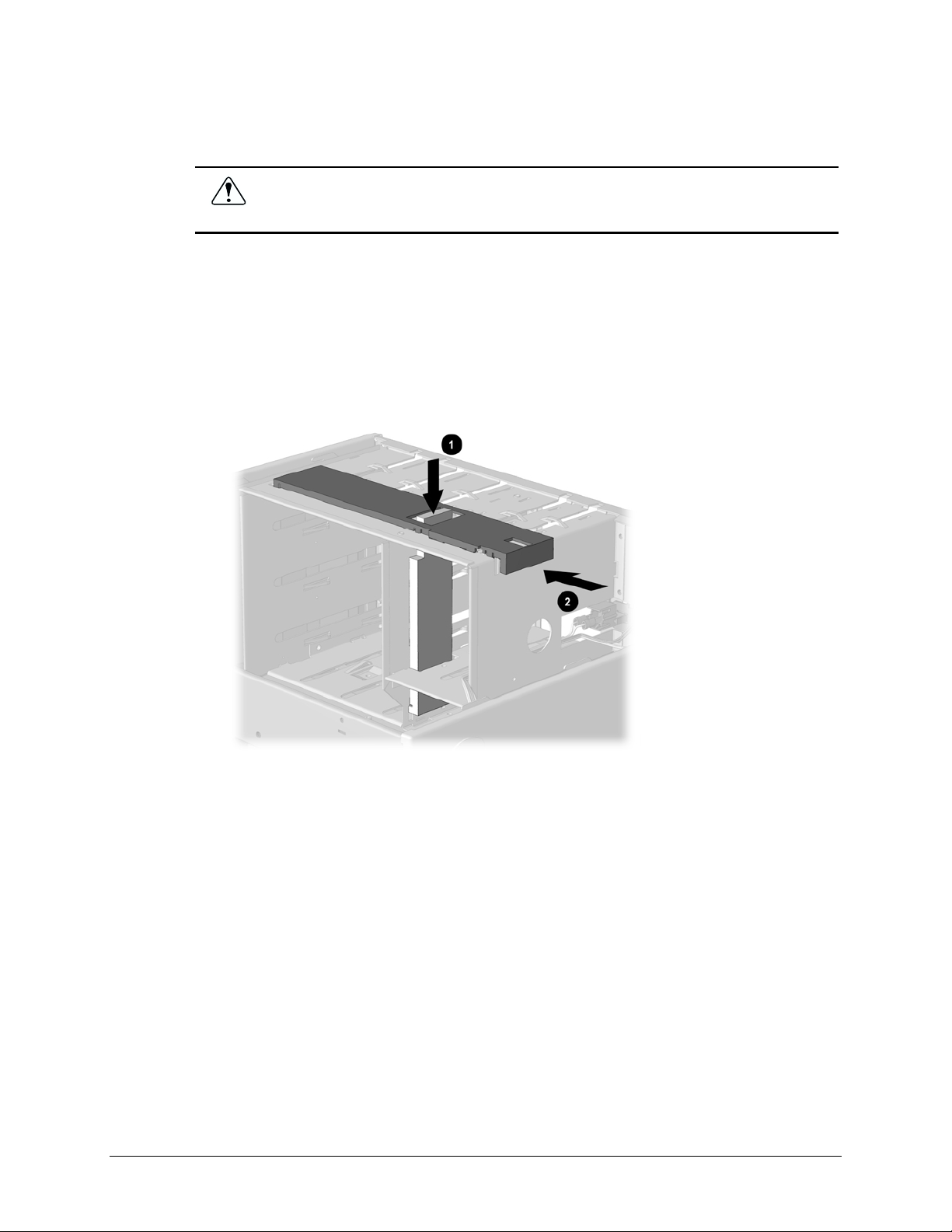

4.14 Board Guide .................................................................................................................. 4-29

4.15 System Memory ............................................................................................................ 4-30

4.15.1 440BX ..............................................................................................................4-30

4.15.2 Intel 810/810e................................................................................................... 4-30

4.16 AGP Graphics Board (440BX) .....................................................................................4-32

4.16.1 AGP Graphics Board Removal (440BX)..........................................................4-32

4.16.2 Graphics Memory Upgrade (440BX)............................................................... 4-33

4.17 Processor Components.................................................................................................. 4-34

4.17.1 Processor........................................................................................................... 4-34

4.17.2 Processor Guide Rails....................................................................................... 4-37

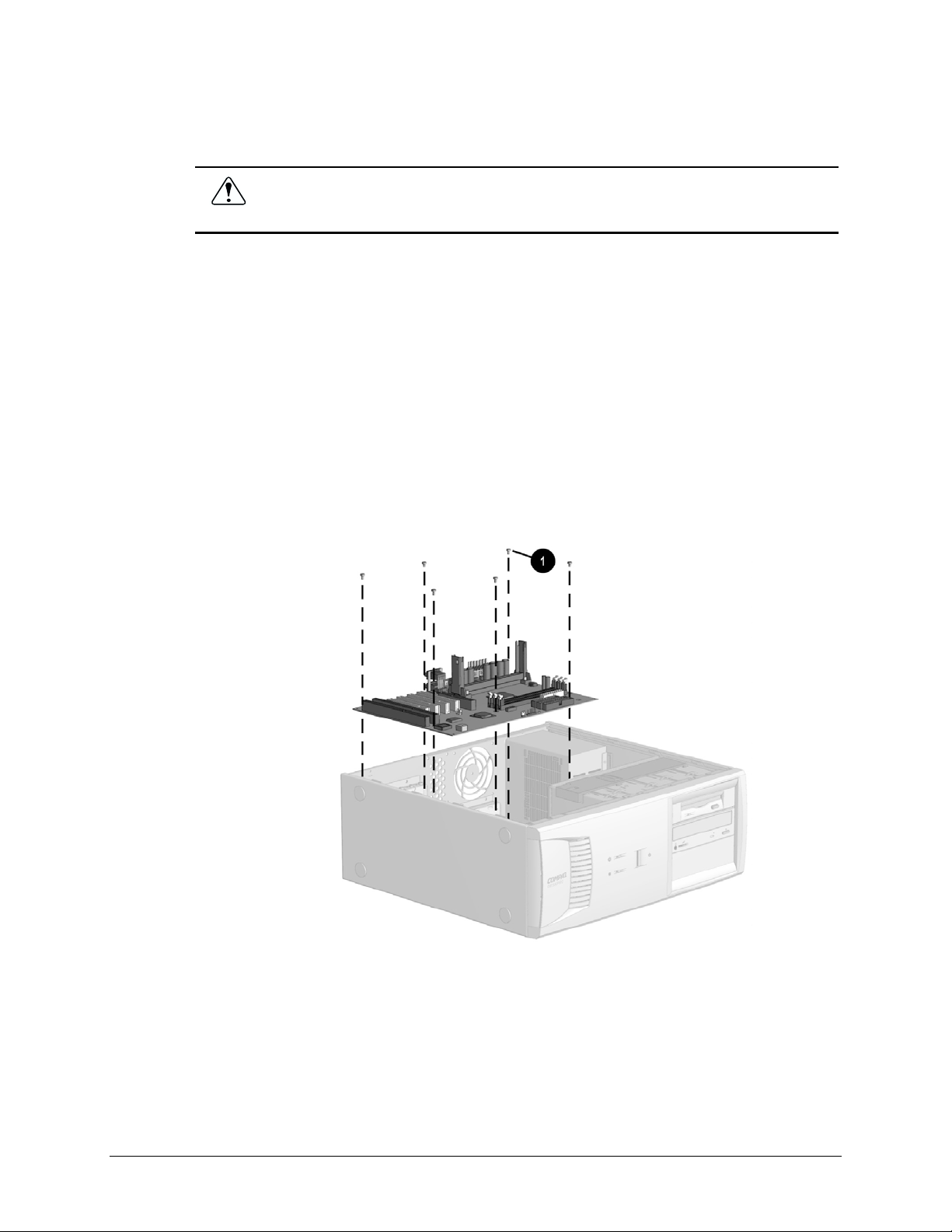

4.18 System Board ................................................................................................................4-39

4.19 Internal Speaker ............................................................................................................4-40

4.20 Lithium Battery .............................................................................................................4-42

4.21 Fan Assembly................................................................................................................4-45

4.22 Power Supply ................................................................................................................4-46

4.23 Converting a Desktop to a Minitower........................................................................... 4-48

4.24 Converting a Minitower to a Desktop........................................................................... 4-51

iv Contents

chapter 5

Connectors, Jumpers, and Switches

5.1 System Board .................................................................................................................. 5-1

5.1.1 Connectors, Jumpers, and Switches.................................................................... 5-1

5.1.2 Switches.............................................................................................................. 5-4

5.1.3 Jumpers (440BX)................................................................................................ 5-5

5.1.4 Jumpers (Intel 810/810e).................................................................................... 5-7

5.2 Hard Drives................................................................................................................... 5-10

5.2.1 Using the Cable-Select Feature with Ultra ATA Devices ................................5-10

5.2.2 Drive Jumper Settings ......................................................................................5-11

chapter 6

Specifications

6.1 Specifications.................................................................................................................. 6-1

6.1.1 System ................................................................................................................ 6-1

6.1.2 Interrupts ............................................................................................................ 6-2

6.1.3 DMA................................................................................................................... 6-3

6.1.4 I/O....................................................................................................................... 6-3

6.1.5 Memory Map...................................................................................................... 6-5

6.2 Drives.............................................................................................................................. 6-5

6.2.1 1.44-MB Diskette Drive ..................................................................................... 6-5

6.2.2 Ultra ATA Hard Drives ...................................................................................... 6-6

6.2.3 CD-ROM Drives................................................................................................. 6-7

6.3 Compaq Enhanced Keyboard.......................................................................................... 6-9

6.4 2-Button Mouse...............................................................................................................6-9

6.5 Supported Graphics Resolutions..................................................................................... 6-9

6.5.1 ATI RAGE PRO TURBO 1X AGP.................................................................... 6-9

6.5.2 ATI RAGE PRO IIC AGP................................................................................ 6-10

6.5.3 NVIDIA RIVA 128 AGP ................................................................................. 6-10

6.5.4 Matrox MGA G100 AGP ................................................................................. 6-10

6.5.5 Matrox Millenium G200-SD AGP ...................................................................6-11

6.5.6 Matrox Millenium G400-SG AGP ...................................................................6-11

6.5.7 Integrated Intel 3D Graphics ............................................................................6-11

6.6 Audio Controllers.......................................................................................................... 6-12

chapter 7

Service Notes

Index

............................................................................................................................................... I-1

..................................................................................................................................... 7-1

Contents v

preface

BOUT THIS GUIDE

This

Maintenance & Service Guide

for reference when servicing the Compaq Deskpro EP Series of Personal Computers. Only authorized technicians trained by Compaq should attempt to repair this equipment.

Compaq Computer Corporation reserves the right to make changes to these models without notice.

Symbols and Conventions

The following text and symbols mark special messages throughout this guide:

✎

WARNING:

could result in bodily harm or loss of life.

CAUTION:

damage to equipment or loss of data.

Text set off in this manner presents commentary, sidelights, clarifying information, or specific instructions.

Text set off in this manner indicates that failure to follow directions in the warning

Text set off in this manner indicates that failure to follow directions could result in

Technician Notes

WARNING:

equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indications of component replacement or printed wiring board modifications may void any warranty.

Only authorized technicians trained by Compaq should attempt to repair this

is a troubleshooting and repair guide that can be used

WARNING:

•

Disconnect the power from the computer by unplugging the power cord either from the electrical outlet or the computer.

CAUTION:

the AC power cord into a properly grounded AC outlet only.

To reduce the risk of electric shock or damage to the equipment:

Do not disable the power grounding plug. The grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

The computer is designed to be electrically grounded. To ensure proper operation, plug

Compaq Deskpro EP Series of Personal Computers vii

Locating Additional Documentation

The following documentation is available to support these products:

! User Documentation

! Technical Training Guides

! Compaq Service Advisories and Bulletins

! Compaq QuickFind

! Technical Reference Guide

! Compaq Service Quick Reference Guide

viii About This Guide

chapter

RODUCT DESCRIPTION

This chapter describes the model offerings and features of Compaq Deskpro EP Series of Personal Computers.

Compaq Deskpro EP Series of Personal Computers

Compaq Deskpro EP Series of Personal Computers 1-1

1.1 Model Overview

Compaq Deskpro EP Series of Personal Computers ship as either desktop or minitower models. They contain the unique, flexible Compaq ATX chassis, which allows you to easily reconfigure the unit as a minitower by (1) removing the drives from the computer, (2) standing the unit on its side, (3) rotating the drives and bezel blanks 90 degrees, then (4) reinserting the drives into the drive bays.

✎

The Compaq Deskpro EP Series, Intel 440BX chipset models will be referred to in this MSG as 440BX.

The Compaq Deskpro EP Series, Intel 810 chipset models will be referred to in this MSG as 810 or Intel 810.

The Compaq Deskpro EP Series, Intel 810e chipset models will be referred to in this MSG as 810e or Intel 810e.

1-2 Product Description

1.2 System Design

! Desktop models of the Compaq Deskpro EP Series of Personal Computers use an

innovative chassis to house the removable system board, expansion boards, power supply, and mass storage devices.

Internal components are accessible when the access panel is removed.

The front bezel is a multi-part assembly that attaches to the chassis with release

latches. Attached to the back of the front bezel is a subpanel that holds the bezel blanks.

! The system board may be removed from the chassis after the access panel is

removed. Details of the disassembly procedure are found in Chapter 4, “Removal and Replacement Procedures.”

! The drive bays are located in the front of the chassis; there are two 3.5-inch drive

bays for internal hard drives and three 5.25-inch drive bays for accessible mass storage.

The chassis design allows drive installation without the use of rails. Guide screws

installed on each side of the drive ensures its proper alignment within the drive bay. Extra guide screws are provided in the front of the chassis.

! The desktop model of this computer may be converted to a minitower

configuration. See Chapter 4, “Removal and Replacement Procedures,” for additional information and instructions.

Detailed descriptions of the system components are presented in the sections that follow.

Compaq Deskpro EP Series of Personal Computers 1-3

1.3 Preinstalled Software

This computer ships with Windows 95, Windows 98, or Windows NT 4.0 installed as the operating system, and also contains the following preloaded software:

ROM-based Setup utilities

Compaq Diagnostics for Windows

! Compaq support software and device drivers

! Online

! Intelligent Manageability

! Power Management with Energy Saver features

! Security Management

! Remote Management Tools

! Microsoft Internet Explorer

Safety & Comfort Guide

1.3.1 Ordering Additional Software

If you plan to run any of the following operating systems on the computer, you must install the corresponding Compaq device drivers and utilities before attempting to use the computer:

IBM OS/2

! NetWare

! Microsoft Windows NT Workstation 3.51 or 4.0

A version of Microsoft Windows 95 that is different from the one included with

the computer

To order copies of suitable device drivers and utilities:

Order the

contains the latest device drivers, utilities, and flashable ROM images needed to run MS-DOS, Windows 3.1, Windows 95, Windows NT Workstation 3.51, IBM OS/2, and NetWare on the Compaq commercial desktop product.

Support Software CD for Compaq Desktop Products.

(English only)

This compact disc

! Download the software from the Compaq World Wide Web site

(www.compaq.com).

Purchase backup diskettes.

The

Support Software CD

A single CD-ROM that gives one-time access to the latest support software (North

America only).

! A yearly subscription that delivers up to 12 monthly CD-ROMs.

The annual subscription provides continuous access to the latest developments.

✎

1-4 Product Description

can be purchased in either of two ways:

When calling Compaq to place an order, be sure to have the serial number of the computer available. This number is necessary for all purchases.

1.4 Computer Features

Compaq Deskpro EP Series of Personal Computers ship with a mouse and keyboard. Some models are also equipped with a CD-ROM drive. A Compaq color monitor or other compatible monitor does not ship with the computer.

1.4.1 Front Panel Controls and LEDs - 440BX

Front Panel Controls and LEDs - 440BX

Ref. Component/Function Ref. Component/Function

Power-On Light

Diskette Drive Activity Light

Diskette Eject Button

CD-ROM Eject Button*

CD-ROM Activity Light*

*CD-ROM models only. **Flashes when an ATAPI device, such as the hard drive, is active.

CD-ROM Volume Control*

CD-ROM Headphone Jack*

Dual-State Power Button

Drive Activity Light**

Compaq Deskpro EP Series of Personal Computers 1-5

1.4.2 Front Panel Controls and LEDs - Intel 810/810e

Front Panel Controls and LEDs - Intel 810/ 810e

Ref. Component/Function Ref. Component/Function

Power-On Light

Diskette Drive Activity Light

Diskette Eject Button

Serial Number

CD-ROM Eject Button*

*CD-ROM models only. **Flashes when an ATAPI device, such as the hard drive, is active.

CD-ROM Drive Busy Indicator*

Headphone Volume Control

Stereo Headphone Jack

Dual-State Power Button

Drive Activity Light**

1-6 Product Description

1.4.3 Rear Panel Connectors - 440BX

Rear Panel Connectors - 440BX

Ref. Component Component

Power Cord Connector

Voltage Select Switch (switches

voltage between 115V and 230V to match geographical requirements)

Universal Serial Bus (USB)

Connectors (2) (connects the computer to any USB peripheral while the computer is operating; is a fully functional plug and play connector)

Keyboard Connector

Mouse Connector

Parallel Port Connector

Audio features are available on select models only.

;

Serial Connectors (2)

Monitor Connector

Headphone Connector*

Line-Out Audio Connector*

Line-In Audio Connector*

Microphone Connector *

Compaq Deskpro EP Series of Personal Computers 1-7

1.4.4 Rear Panel Connectors - Intel 810/810e

Rear Panel Connectors - Intel 810/810e

Ref. Component Ref. Component

Power Cord Connector

Voltage Select Switch (switches

voltage between 115V and 230V to match geographical requirements)

Universal Serial Bus (USB)

Connectors (2) (connects the computer to any USB peripheral while the computer is operating; is a fully functional plug and play connector)

Serial Connectors

Keyboard Connector*

Mouse Connector*

Monitor Connector

*Keyboard and mouse ports are interchangeable

;

Headphone Connector

Line-Out Audio Connector

Serial Number

Line-In Audio Connector

Microphone Connector

Parallel Port Connector

1-8 Product Description

1.4.5 Drive Positions

Drive Positions

Reference Drive Bay Configuration

1, 2

4, 5

✎

1, 2 Two standard 5.25-inch, half-height bays for optional drives

3 One standard 3.5-inch, 1.44-MB diskette drive mounted with a drive

adapter into a 5.25-inch bay

4, 5 Two standard 3.5-inch drive bays; Bay 4 contains the preinstalled hard

drive; Bay 5 is available for an optional hard drive

Drive bay numbers are stamped on the chassis.

To verify the type and size of the mass storage devices installed in the computer, run Compaq Computer Setup.

Compaq Deskpro EP Series of Personal Computers 1-9

1.5 Serial Number Location

The serial number and model information label is located on the access panel of the unit 1. A second barcode label is located on the rear of the unit 2.

Serial Number Locations

For the purpose of AssetControl, the serial number is embedded in CMOS and in the EEPROM on the system board and may be accessed through Diagnostics for Windows.

✎

The computer serial number should be provided to Compaq when requesting information or ordering spare parts.

If the system board is replaced with a spare part from Compaq, the invalid serial number condition will be recognized during POST. The original serial number must then be reentered through Computer Setup. Refer to the Software Reference Guide for more information.

CAUTION:

number and will create a mismatch between the serial number label and the electronic serial number.

A system board borrowed from another computer is recognized as a valid serial

1-10 Product Description

chapter

SPARE P ARTS

Compaq Deskpro EP Series of Personal Computers

Compaq Despro EP Series of Personal Computers 2-1

The Compaq Deskpro EP Series, Intel 440BX chipset models will be referred to in this MSG as 440BX.

The Compaq Deskpro EP Series, Intel 810 chipset models will be referred to in this MSG as 810 or Intel 810.

The Compaq Deskpro EP Series, Intel 810e chipset models will be referred to in this MSG as 810e or Intel 810e.

2.1 System Unit

2.1.1 System Unit - 440BX

System Unit Spare Parts - 440BX Model

2-2 Spare Parts

System Unit Spare Parts - 440BX

Description Spare Part Number

1 Access panel 166867-001 2 Front bezel, complete with subpanel and bezel blanks 166868-001 3 Power supply, 200 Watt 166814-001 3 Power supply, 145 Watt 332863-001 4 Logo Kit, Deskpro EP (1 ea., DT and MT) 166924-001 5 Feet Miscellaneous Plastics 6 Power switch with cable, LED and switch holder (3 ea.) 166925-001 7 Chassis/basepan (repair/exchange only) 166880-001

Major Differences Between 440BX and Intel 810/810e

System Board Assembly

440BX, PII, two-DIMM model, 332857-001 (PCA 008312-101)

440BX, PII, three-DIMM model, 166813-001 (PCA 009635-101)

440BX, PII/PIII, three-DIMM model 118053-001 (PCA 010233-101) Date code of X908XXXXXXXX or later

440BX, PIII three-DIMM model 164483-001 (PCA 010582-101)

Intel 810, Celeron 401963-001 (PCA 010174-101)

Intel 810e, Celeron 164122-001 (PCA 010546-101)

Intel 810e, Celeron 187672-001 (PCA 010697-101)

Power Supply 145 Watt

332863-001 166814-001 166867-001 166880-001 166838-001

n/a 103748-001 137384-001 Not spared 143218-001

174871-001 n/a 137384-001 Not spared 143218-001

Power Supply 200 Watt

Access Panel

Chassis Assembly

Diskette Drive Cable

Compaq Despro EP Series of Personal Computers

2-3

2.1.2 System Unit - Intel 810/810e

System Unit Spare Parts - Intel 810/810e Model

2-4 Spare Parts

System Unit Spare Parts - Intel 810/810e

Description Spare Part Number

1 Access panel (includes gasket) 137384-001 2 Front bezel, complete with subpanel and bezel blanks 166868-001 3 Power supply, 200W 103748-001

* Power supply, 145W (only used with PCA 010697-101) 174871-001 4 Logo Kit, Deskpro EP (1 ea., DT and MT) 166924-001 5 Feet Miscellaneous Plastics 6 Chassis/basepan (repair/exchange only) Not spared

*Not Shown

Major Differences Between 440BX and Intel 810/810e

System Board Assembly

440BX, PII, two-DIMM model, 332857-001 (PCA 008312-101)

440BX, PII, three-DIMM model, 166813-001 (PCA 009635-101)

440BX, PII/PIII, three-DIMM model 118053-001 (PCA 010233-101) Date code of X908XXXXXXXX or later

440BX, PIII three-DIMM model 164483-001 (PCA 010582-101)

Intel 810, Celeron 401963-001 (PCA 010174-101)

Intel 810e, Celeron 164122-001 (PCA 010546-101)

Intel 810e, Celeron 187672-001 (PCA 010697-101)

Power Supply 145 Watt

332863-001 166814-001 166867-001 166880-001 166838-001

n/a 103748-001 137384-001 Not spared 143218-001

174871-001 n/a 137384-001 Not spared 143218-001

Power Supply 200 Watt

Access Panel

Chassis Assembly

Diskette Drive Cable

Compaq Despro EP Series of Personal Computers

2-5

2.2 Mass Storage Devices

Mass Storage Devices

2-6 Spare Parts

Mass Storage Devices

Description Spare Part Number

1 2.1-GB Ultra ATA hard drive (33/5400) 332861-001 * 3.2-GB Ultra ATA hard drive (33/5400) 332866-001 * 4.3-GB Ultra ATA hard drive (33/5400) 327646-001 * 4.3-GB Ultra ATA hard drive (66/5400) 134197-001 * 5.1-GB Ultra ATA hard drive (33/5400) 166872-001 * 6.4-GB Ultra ATA hard drive (33/5400) 166973-001 * 6.4-GB Ultra ATA hard drive (66/5400) 134198-001 * 10.0-GB Ultra ATA hard drive (33/5400) 320662-001 * 10.0-GB Ultra ATA hard drive (66/7200) 135364-001 * 10.0-GB Ultra ATA hard drive (66/5400) 134193-001 * 13.5-GB Ultra ATA hard drive (66/7200) 140515-001 * 15.0-GB Ultra ATA hard drive (33/7200) 120419-001 * 20.0-GB Ultra ATA hard drive (33/7200) 120420-001 * 22.6-GB Ultra ATA hard drive (33/7200) 388511-001 2 Diskette drive, 3.5-inch (141087-705), 1.44-MB, 3-mode, 1/3-

height, without bezel, includes drive bay adapter (179026-002) * Diskette drive adapter 180808-001 3 24X Max tray load IDE CD-ROM drive 166869-001 * 32X Max tray load IDE CD-ROM drive 327659-001 * 40X Max tray load IDE CD-ROM drive 400807-001 * 52X Max tray load IDE CD-ROM drive 120696-001 * 60X Max tray load IDE CD-ROM drive 134195-001 * 8X DVD Drive 134196-001

*Not shown (nn/nnnn) = hard drive transfer rate (MBytes/sec)/RPM

179161-001

. The increased speed of the Ultra ATA/66 drive is realized only on the Deskpro

EP Intel 800 series. Ultra ATA/66 hard drives are backwards compatible with Ultra ATA/33 devices;

however, the data transfer rate is reduced to 33MB/sec.

Compaq Despro EP Series of Personal Computers 2-7

2.3 Cables

Cables

2-8 Spare Parts

Cables

Description Spare Part Number

Cable Kit includes: 166879-001

1a Diskette drive cable without twist, 11”

440BX only, (166838-001)

1b Audio cable, 21”, (288489-002)

* IDE hard drive cable, 7”

* IDE hard drive/CD-ROM cable, 14”

2a Diskette drive cable with twist, 11”, with pull tab,

* IDE Ultra ATA hard drive/CD-ROM cable, 10”, with pull tab,

* Switch mounting bracket (3 ea.), (166777-001) * Dual-LED power cable (1 ea.), (387727-001) * 40-position data cable, 12.5” (105876-001) * Diskette drive/tape cable, with twist, no key, 34”

* RTF card for EP diskette drive cable (157354-001) * Diskette drive cable with twist, 11”, without pull tab

3 Cable, IDE CD-ROM/hard drive, 14-inch, 80-conductor 278296-001 4 Power cord, AC, black (US, LA, Asia/Pacific, Brazil) 142766-001

* NIC Remote Wakeup cable 166974-001 * Power switch with cable and switch mounting bracket

* Audio cable, 25”.

* Video cable for P1610W color monitor 305717-001

*Not shown

440BX only, (247116-001)

440BX only, (242947-001)

Cable Kit (use on Intel 800 series products) includes: 166879-002

center polarization (143218-001)

center polarization, (108950-007)

Opt. (356107-001)

(387795-001)

(440BX and 810e PCA=010697-101 only) (3 ea.)

Use with Creative Labs SoundBlaster PCI 128V Audio Board.

166925-001

149806-001

Compaq Despro EP Series of Personal Computers 2-9

2.4 Standard and Optional Boards

Standard and Optional Boards

2-10 Spare Parts

Standard and Optional Boards

Description Spare Part Number

1a PII System board, three-DIMM model (440BX)

(PCA=009635-101).

PII System board, two-DIMM model (440BX)

(PCA=008312-101).

PII/PIII System board, three-DIMM model (440BX)

(PCA=010233-101) Shipped on all PII and PIII units after 2/23/99).

1c Intel 810 System Board (PCA=010174-101). 401963-001

* Intel 810e System Board (PCA=010546-101). 161422-001 * Intel 810e System Board (PCA=010697-101). 187672-001 * PIII System board, three-DIMM model (440BX)

(PCA=010582-101).

2b Processor, Intel Celeron 266/66 w/heatsink. Use on 2-DIMM board). 332858-001

Processor, Celeron 300A/66 w/heatsink. 356136-001

Processor, Celeron 333/66 w/heatsink. 356082-001

Processor, Celeron 366/66 w/28K cache, heatsink. 103253-001

Processor, Celeron 400/66 w/128K cache, heatsink. 402126-001

2c Processor, Celeron 466/66 (includes heatsink, clip, and

thermal crayon). Use on 010174-101 system board.

* Processor, Celeron 466/66 (401264-006), w/heatsink, clip, and

thermal interface. Use on 010697-101 system board.

Processor, Celeron 500/66 w/heatsink. Use on 010174-101

system board.

* Processor, Celeron 500/66 (401264-007), w/heatsink, clip, and

thermal interface). Use on 010697-101 system board.

Processor, PII 266/66 w/heatsink. 332862-001

Processor, PII 300/66 w/heatsink. Use on 2-DIMM board. 166881-001

Processor, PII 333/66 w/heatsink. 166887-001

2a Processor, PII 350/100 w/heatsink. Use on 3-DIMM board. 166874-001

Processor, PII 400/100 w/heatsink. Use on 3-DIMM board. 166882-001

Processor, PII 450/100 w/heatsink. 167032-001

Processor, PIII, 450/100 (352772-004) w/heatsink (401405-001)

and thermal compound (243199-002). Use on 010233-101 system

board.

Processor, PIII, 450/100 (352772-004) w/heatsink (401405-003),

keyed heatsink clip (120891-001), and retention mechanism

(350767-005). Use on 010546-101 system board.

Processor, PIII, 500/100 (352772-005) w/heatsink (401405-001),

and thermal compound (243199-002). Use on 010233-101

system board.

Processor, PIII, 500/100 (352772-005), w/heatsink (401405-003),

keyed heatsink clip (120891-001), and retention mechanism

(350767-005). Use on 010546-101 system board.

Processor, PIII, 500/100 (158353-001), w/heatsink, clip, and thermal

interface. Use on 010697-101 system board.

*Not shown

166813-001

332857-001

118053-001

164483-001

103747-001

176740-001

155379-001

176741-001

122735-001

164400-001

116401-001

164401-001

176742-001

Continued

2-11

Standard and Optional Boards, continued

2-12 Spare Parts
