Compaq 2T-QINTL-TL Installation Information
RM Tape Library Interlock Kit Installation Information
EK-TPLBR-IN. A01
May 1999
Introduction
The 2T-QINTL-TL interlock kit contains the components for installing the slide assemblies, the interlock system,
and the shipping bracket on the rackmounted tape library. The interlock system helps prevent cabinet instability by
allowing only one system at a time to be pulled out of the cabinet. The shipping bracket is used to secure the tape
library in the cabinet during shipment or when moving the cabinet to a new location.
The interlock system consists of a vertical rod, on which are mounted actuator latches for each product installed in
the cabinet. These actuator latches engage the interlock actuator on the rear of rackmount systems. When a
rackmount system is pulled out of the cabinet, the actuator latches rotate to prevent any other rackmount system that
has an interlock actuator from being pulled out of the cabinet.
Table 1 lists the parts that are shipped with the 2T-QINTL-TL interlock kit. The callouts in column 1 refer to the
part location in Figure 1.

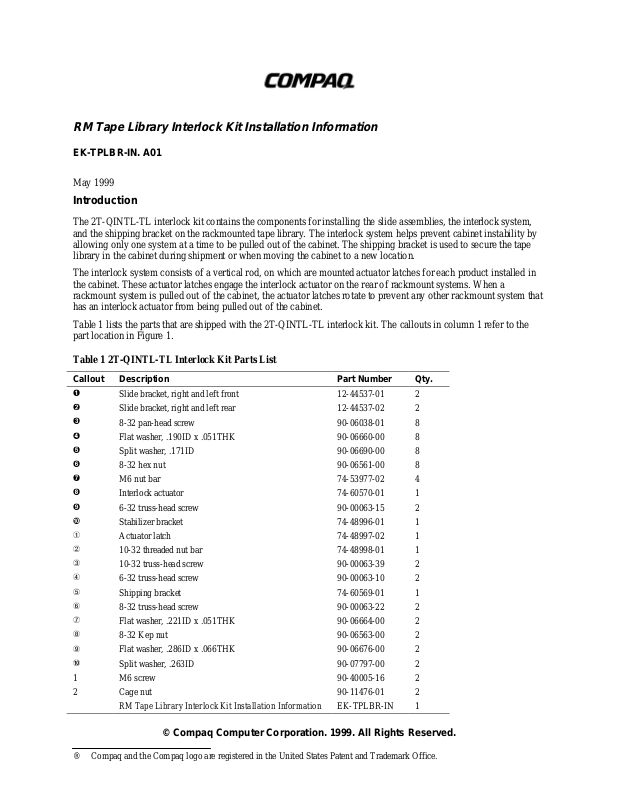

Table 1 2T-QINTL-TL Interlock Kit Parts List
Callout Description Part Number Qty.
¡
¢
1 M6 screw 90-40005-16 2
2 Cage nut 90-11476-01 2
Slide bracket, right and left front 12-44537-01 2
Slide bracket, right and left rear 12-44537-02 2
8-32 pan-head screw 90-06038-01 8
Flat washer, .190ID x .051THK 90-06660-00 8
Split washer, .171ID 90- 06690-00 8
8-32 hex nut 90-06561-00 8
M6 nut bar 74-53977-02 4
Interlock actuato r 74-60570-01 1
6-32 truss-head screw 90-00063-15 2
Stabilizer bracket 74-48996-01 1
Actuator latch 74-48997-02 1
10-32 threaded nut ba r 74-48998-01 1
10-32 truss-head screw 90-00063-39 2
6-32 truss-head screw 90-00063-10 2
Shipping bracket 74-60569-01 1
8-32 truss-head screw 90-00063-22 2
Flat washer, .221ID x .051THK 90-06664-00 2
8-32 Kep nut 90-06563-00 2
Flat washer, .286ID x .066THK 90-06676-00 2
Split washer, .263ID 90- 07797-00 2
RM Tape Library Interlock Kit Installation Information
EK-TPLBR-IN 1
© Compaq Computer Corporation . 1999. All Rig hts Reserved.
® Compaq and the Compaq logo are registered in the United States Patent and Trademark Office.
Installing the Slide Assemblies
The rackmount tape library requires 35.56 cm (14.00 in.) of vertical space or 24 contiguous holes in a 48.26-cm (19in) EIA cabinet. The bottom hole in this installation area (4) is identified as hole 1 and the top hole is identified as
hole 24 (see Figure 1).
In the following installation procedures, directions are referred to while viewing the rackmount tape library from the
front of the cabinet. To install the slide assemblies, refer to Figure 1 and the following procedures:
1. Remove the inner races from the right and left slide assemblies. Set the inner races aside.
2. Attach the right front slide bracket (P/N 12-44537-01) to the right slide assembly with two 8-32 pan-head
screws , flat washers , split washers , and 8-32 hex nuts .
3. Attach the right rear slide bracket (P/N 12-44537-02) to the right slide assembly with two 8-32 pan-head
screws , flat washers , split washers , and 8-32 hex nuts , but do not tighten.
4. Attach the left front slide bracket (P/N 12-44537-01) to the left slide assembly with two 8-32 pan-head
screws , flat washers , split washers , and 8-32 hex nuts .
5. Attach the left rear slide bracket (P/N 12-44537-02) to the left slide assembly with two 8-32 pan-head screws
, flat wash ers , split washers , and 8-32 hex nuts , but do not tighten.
6. Place the right front slide bracket on the inside of the right front rail and align two holes of the M6 nut bar
with the two slide bracket holes and with the 2nd and 4th holes of the installation area on the right front rail.
Install two M6 screws (3) in the 2nd and 4th holes of the installation area to secure the right front slide bracket
to the right front rail.
7. Place the right rear slide bracket on the inside of the right rear rail and align two holes of the M6 nut bar
with the two slide bracket holes and with the 2nd and 4th holes of the installation area on the right rear rail.
Install two M6 screws (3) in the 2nd and 4th holes of the installation area to secure the right rear slide bracket to
the right rear rail. Tighten the two 8-32 pan-head screws and 8-32 hex nuts that secure the right rear slide
bracket to the right slide assembly.
8. Place the left front slide bracket on the inside of the left front rail and align two holes of the M6 nut bar
with the two slide bracket holes and with the 2nd and 4th holes of the installation area on the left front rail.
Install two M6 screws (3) in the 2nd and 4th holes of the installation area to secure the left front slide bracket to
the left front rail.
9. Place the left rear slide bracket on the inside of the left rear rail and align two holes of the M6 nut bar with
the two slide bracket holes and with the 2nd and 4th holes of the installation area on the left rear rail. Install two
M6 screws (3) in the 2nd and 4th holes of the installation area to secure the left rear slide bracket to the left rear
rail. Tighten the two 8-32 pan-head screws and 8-32 hex nuts that secure the left rear slide bracket to the
left slide assembly.
10. Attach the right inner race to the right side of the tape library chassis and the left inner race to the left side of the
tape library chassis.
11. Pull both slide assemblies out fully to their locked positions, then lift the chassis and position it so that the inner
races fit into the front end of the slide assemblies. Push the chassis into the slide assemblies until it stops, then
release the two locking levers and push the chassis all the way into the cabinet.
Installing the Interlock System
In the following installation procedures, directions are referred to while viewing the rackmount tape library from the
rear of the cabinet. To install the interlock system, refer to Figure 1 and the following procedures:
1. Mount the interlock actuator on the lower right rear of the tape library chassis using two 6-32 truss-head
screws ¡.
2. Remove the screws securing the vertical rod’s bottom mounting bracket to the cabinet and slide the mounting
bracket off the bottom of the vertical rod.
3. Slide the stabilizer bracket ¢ for the new product onto the bottom of the vertical rod.
