Compaq 222863-001 - TaskSmart W2200 Model 10, 227952-001 - TaskSmart - W2200 Model 30, TaskSmart W2200 System Reference Manual
TaskSmart W2200 Appliance Server
System Reference Guide
Second Edition (May 2001)
Part Number 230915-002
Compaq Computer Corporation
Notice
© 2001 Compaq Computer Corporatio n
Compaq, the Compaq logo, and Compaq Insight Manager Registered in U.S. Patent and Trademark
Office. TaskSmart is a trademark of Compaq Information Technologies Group, L.P. in the United States
and other countries.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United Stat es
and other countries.
Intel and Pentium are trademarks of Intel Corporat ion in the United States an d other countries.
Linux is a trademark of Linus Torvalds.
All other product names mentioned herein may be trademarks of their r espective companies.
Compaq shall not be liable for technical or e ditorial errors or omissions contained herein. The
information in this document is provided “as is” without warranty of any kind and is subject to change
without notice. The warranties for Compaq pro ducts are set forth in the express limited warranty
statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty.
Compaq TaskSmart W2200 Appliance Server
System Reference Guide
Second Edition (May 2001)
Part Number 230915-002
Contents
About This Guide
Text Conventions.......................................................................................................vii
Symbols in Text....................................................................................................... viii
Symbols on Equipment............................................................................................ viii
Important Safety Information.....................................................................................ix
Rack Stability ..............................................................................................................x
Getting Help ................................................................................................................x
Compaq Technical Support..................................................................................x
Compaq Website..................................................................................................xi
Compaq Authorized Reseller...............................................................................xi
Chapter 1
System Overview
Standard Features..................................................................................................... 1-2
Key Benefits............................................................................................................ 1-3
Rapid Deployment............................................................................................ 1-3
Advanced Management Tools.......................................................................... 1-4
Performance and Scalability............................................................................. 1-4
Appliance Features .................................................................................................. 1-4
Automatic Server Recovery-2.......................................................................... 1-5
Compaq Diagnostic Utility............................................................................... 1-5

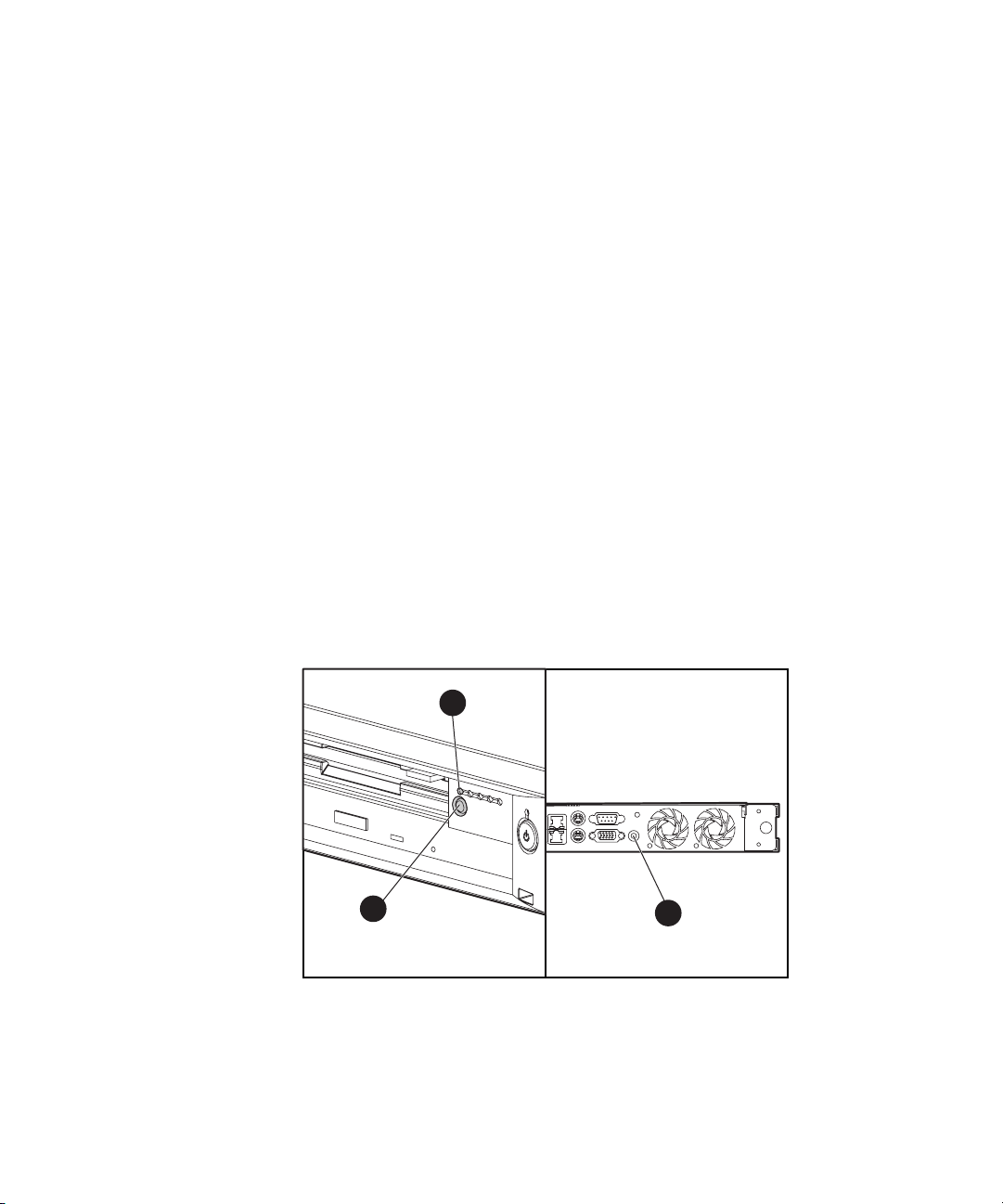

Unit Identification System................................................................................ 1-6
Quick Restore CD............................................................................................. 1-7
Appliance Features and Web Server Software Components ................................... 1-7
Server Management Features................................................................................... 1-8
Web Server Configuration Application............................................................ 1-8
TaskSmart Configuration Utility...................................................................... 1-8
Compaq Remote Insight Lights-Out Edition Board (Model 30) ...................... 1-9
Compaq Insight Manager ................................................................................. 1-9
Warranties................................................................................................................ 1-9
iv
Chapter 2
Hardware
Rack Hardware Deployment Options ......................................................................2-1
Telco Rack........................................................................................................ 2-2
Third-Party Cabinet Rack.................................................................................2-2
Desktop/Stackable Chassis...............................................................................2-4
External Cabling......................................................................................................2-4
Connecting the Power Cord and Peripheral Devices........................................ 2-4
Routing the Power Cord and Peripheral Device Cables ...................................2-5
Server Connectors....................................................................................................2-6
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers..................................................... A-1
Federal Communications Commission Notice-United States Only........................ A-1
Class A Equipment .......................................................................................... A-2
Class B Equipment...........................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo............. A-3
Modifications................................................................................................... A-3
Cables .............................................................................................................. A-3
Canadian Notice (Avis Canadien)........................................................................... A-4
Class A Equipment .......................................................................................... A-4
Class B Equipment...........................................................................................A-4
European Union Notice........................................................................................... A-4
Japanese Notice....................................................................................................... A-5
Taiwanese Notice .................................................................................................... A-5
Laser Devices.......................................................................................................... A-5
Laser Safety Warnings..................................................................................... A-6
Compliance with Center for Devices and Radiological Health Regulations....A-6
Compliance with International Regulations..................................................... A-6
Laser Product Label......................................................................................... A-6
Battery Replacement Notice ................................................................................... A-7
Mouse Compliance Statement.................................................................................A-7
Appendix B
Electrostatic Discharge
Preventing Electrostatic Discharge Damage............................................................B-1
Grounding Methods.................................................................................................B-2
Appendix C
LED Indicators
LED Indicators.........................................................................................................C-1

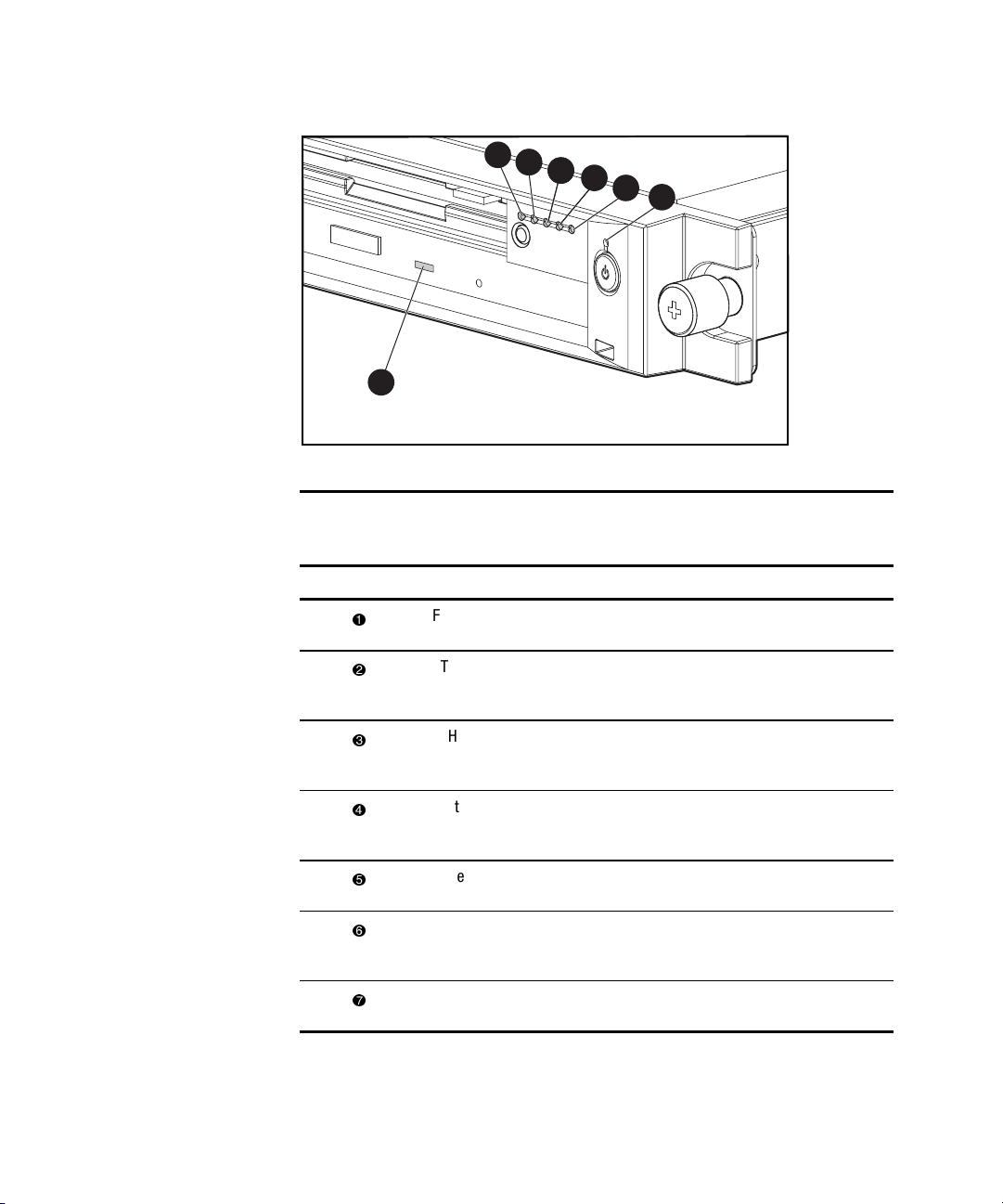

Front Panel LEDs .............................................................................................C-1
Rear Panel LEDs ..............................................................................................C-3
Appendix D
Specifications
Server Specifications...............................................................................................D-1
System Unit Specifications...............................................................................D-1
Laser Device Specifications .............................................................................D-3
Index
Contents v
The Compaq TaskSmart W2200 A ppliance Server System Reference Guide is
designed to be a familiarization tool for the newly purchased server.
Text Conventions
This document uses the following conv entions to distinguish elements of text:
Keys Keys appear in boldface. A plus sign (+) between
USER INPUT User input appears in a different typeface and in
FILENAMES File names appear in uppercase italics.
About This Guide
two keys indicates that they should be pressed
simultaneously.
uppercase.
Menu Options,
Command Names,
Dialog Box Names
COMMANDS,
DIRECTORY NAMES,
and DRIVE NAMES
Type When you are instructed to type information, type
Enter When you are instructed to enter inform ation, type
These elements appear in initial capital letters.
These elements appear in uppercase.
the information without pressing the Enter key.
the informat ion and then press the Enter key.
viii Compaq TaskSmart W2200 Appliance Server System Reference Guide
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions
could result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents clarifying information or specific
instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or interesting points
of information.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence
of potentially hazardous conditions:
This symbol, in conjunction with any of the following symbols, indicates
the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific
details.
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.
This symbol indicates the presence of electric shock hazards. The area
contains no user- or field-serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do
not open this enclosure.
About This Guide ix
This symbol, on an RJ-45 receptacle, indicates a network interface
connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into
this receptacle.
This symbol indicates the presence of a hot surface or hot component. If
this surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching.
These symbols, on power supplies or systems, indicate that
the equipment is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock,
remove all power cords to completely disconnect power from
the system.
This symbol indicates that the component exceeds the recommended
weight for one individual to safely handle.
Weight in kg
Weight in lb
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements and
guidelines for manual material handling.
Important Safety Information
Before installing this product, read the Important Safety Inform ation document
provided.
x Compaq TaskSmart W2200 Appliance Server System Reference Guide
Rack Stability
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
The leveling jacks are extended to the floor.
The full weight of the rack rests on the leveling jacks.
The stabilizing feet are secured to the rack in the case of a single-rack
installation.
The racks are coupled together in multiple-rack installations.
Only one component is extended at a time. A rack may become unstable if
more than one component is extended for any reason.
Getting Help
If you have a problem and have exhausted the inform ation in this guide, you
can get further informat ion and other help in the following loc ations
Compaq Technical Support
In North America, call the Compaq Technical Support Phone Center at
1-800-OK-COMPAQ. This service is available 24 hours a day, 7 days a week.
For continuous quality improvement, calls may be re corded or monitored.
Outside North America, call the nearest Compaq Technical Support Phone
Center. Telephone numbers for worldwide technical support centers are listed
on the Compaq website. Access the Compaq website by logging on to the
Internet at
www.compaq.com
Be sure to have the following informat ion availabl e before you ca ll Compaq:
Technical support registration number (if applicable)
Product serial number
Product model name and n umber
Applicable error messages
Add-on boards or hardw are
Third-party hardware or software
Operating system type an d revision leve l
Compaq Website
The Compaq website has information on this product as well as the latest
drivers and flash ROM images. You can access the Compaq website by
logging on to the Internet at
www.compaq.com
About This Guide xi
Compaq Authorized Reseller
For the name of your nearest Compaq authorized reseller:
In the United States, call 1-800-345-1518.
In Canada, call 1-800- 263-5868.
Elsewhere, see the Compaq website for locations and telephone
numbers.
Chapter 1
System Overview
The Compaq TaskSmart™ W2200 appliance server is the first in a family of
Internet-re ady hosting appliances t hat enables you to instantly and painles sly
setup and administer websites. The TaskSmart W2200 appliance server is
engineered for a single purpose resulting in performance optimization,
dependability, and manageability. The TaskSmart W2200 appliance server
comes with all of the software and hardware that is necessary for operation in
one integrated, optimiz ed, and tuned package for fast and easy deployment.
Figure 1-1. Compaq TaskSmart W2200 appliance server
1-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Standard Features
The following features are standard on the TaskSmart W2200 appliance
servers, unless othe rwise noted:
Table 1-1
TaskSmart W2200 Appliance Server Features
Model 10 Model 20 Model 30
Processor Intel Pentium III Intel Pentium III Intel Pentium III
Memory
128 MB
133 MHz
SDRAM (ECC)
256 MB
133 MHz
SDRAM (ECC)
256 MB
133 MHz
SDRAM (ECC)
20 GB (1)
Drives
Functionality N/A N/A
Ethernet Compaq NC3163 Fast Ethernet 10/100 NICs (2)
Indicators Front and rear panel indicators
Other
Ultra ATA/100
Hard drive
Tool-free fixed rails with cable management tray
Celadon bezel with “TaskSmart” label
18 GB (2)
SCSI
Hard drives
18 GB (2)
SCSI
Hard drives
Remote Insight
Lights-Out Edition
board
The TaskSmart W2200 appliance server provides minimized cabling, an
integrated Processor Power Module (PPM), a unit identification system that
simplifies the logistics of service procedure s. The TaskSmar t W2200
appliance server also supports numerous optional rack installation features,
including a rack management solution that contains slide rails and a cable
management system.
This combination of features, performance, form factor, and Compaq
manageability enables the TaskSmart W2200 appliance server to support Web
and application hosting and infrastructure applications while providing
maximum density in rac k configurations.
Key Benefits
The TaskSmart W2200 appliance server enables service providers to quickly
build scalabl e, Web hosting solutions to respond to their customers’ needs for
reliable and customized Web services.
Rapid deplo ym ent
Advanced management tools
Performance and scalability
Rapid Deployment
You can get your customers up and running faster by reducing the time to
build Web hosting and eComm erce solutions.
TaskSmart Configuration Utility (T CU) , with remote capabilities,
activates the appliance in minutes and launches a clear easy-to-use
configuration menu.
The unique profiling to ol optimizes the TaskSmart W2200 appliance
server with all the essential Web services.
System Overview 1-3
The TaskSma rt W2200 appl iance server comes tuned and t ested for use
right from the box.
Easy-to-navigate menus allow for setup of one or multiple hosts,
directly fr om your browse r.
The fixed system configurations, accurate software, and system drivers
are designe d as a 10-minute plug-in building block for your hosting and
eCommerce architecture.
The three preconfigured models help you to create a solution for your
customer that is highly ec onomical, highly performable, and remotely
manageable.
Different i ating the Web hosting services to your customers and gr owing
revenue with rapid deployment is a reality because the solutions are
based on the most reliable and widely deployed hardware in the
industry.
1-4 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Advanced Management Tools
Class management tools, usable in any dat a center, provide control and
flexibility for dynamic Web serving envir onments.
TaskSmart W 2200 appliance servers easily manage large volumes of
Web servers because it is the only hosting appliance with advanced
system management, proactive alerts, and reporting tools.
The secure browser-based administration interface provides your
customers with confidence because it is manageable from anywhere at
anytime.
Compaq gl obally delivers easier soft ware upgrades, changes, and
enhancements directly to your management console.
Saving time and money is another bene fit attributed to the easy-t o-use
site and appliance administ ration menus.
Performance and Scalability
Built upon industry standards, the TaskSmart W2200 appliance server allows
you to economically create scaleable solutions for your customers within your
existing, We b hosting infrastructure.
The TaskSmart W2200 appliance server integrates seamlessly into
standard Web hosting environments, ensuring total solution
compatibility.
The intuitive graphic user interface provides “recognize and select”
rather than “remember and type” administration, making the most
efficient use of valuable personnel resources.
The open software platform lets you take advantage of your own
Linux-based tools to integrate into any environment.
Affordability in Web hostin g so lutions is available for all customers ’
needs, whether the need is for creating one large, robust eCommerce site
or hundreds of smaller eCommerce sites.
Appliance Features
The followi ng list describes the standard software fe atures on the
TaskSmart W2200 appliance servers.
Initial boot configuration through TaskSmart C onfiguration Utility
(TCU) diskette or automatic temporary IP address assignment
Web browser- ba se d setu p and a dmi ni str ati o n
Linux opera t ing system (OS)
Configura t ion and data f ile backup support
Password-protected secure access
User modes allowing for three levels of system administration
G System Administrator
G Site Administrator
G User
Automatic Server Recovery-2 (ASR-2)
Compaq Diagnostic Utility
Unit identification system
Quick Restore CD
Automatic Server Recovery-2
System Overview 1-5
Automatic Server Recovery-2 (ASR-2) enables the server to automatically
boot from either the operating system or the Compaq utilities. If a critical
system failure occurs, ASR-2 automatically restarts the server.
For additional information on the ASR-2 feature, refer to the documentation
CD that shipped with your server.
Compaq Diagnostic Utility
The software and firmware diagnostic features available for your use include:
Power-On Self-Test (POST)
Diagnostics (DIAGS)
Automatic Server Recovery-2 (ASR-2)
To access the diagnostics utility for the TaskSmart W2200 appliance server,
the software must be downloaded from the Compaq we bsites at
http://www.compaq.com/support/files/server/us/index.html
ftp://ftp.compaq.com/pub/softpaq/index.html
1-6 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Unit Identification System
The TaskSmart W2200 appliance server has a two-feature unit identification
system. These conventions provide a visual reference for service personnel.
The unit identification system is a tool that relieves the burden of i dentifying a
specific appliance within a multiple appliance location.
The first recognition feature allows a user to illuminate the unit identification
LED from all remote mana gement locat ions. The a ppliance LED can be turned
on and off by using the Web Server Configuration Applic ation as a
management menu item.
The unit identification switch is the second feature. Each TaskSmart W2200
appliance server has two switches, one on the front of the server and one on
the back of the server. When activated from either the front or the back of the
server, the unit identification switches illuminate both the front and the back
unit identification LEDs.
When moving between the front and rear of a rack filled with
TaskSmart W2200 appliance servers, you can use the unit identification
switches to quickly identify one or more TaskSmart W2200 app liance servers
that require service or maintenance.
Figure 1-2 and Table 1-2 show the locati ons of the front and rear unit
identification switches, and LED indica t ors.
2
1
Figure 1-2. Front (left) and rear (right) unit identification switches and LED
indicators
3
Table 1-2
Unit ID Switches and LED Indicator Locations
Front unit identification switch
Front unit identification LED indicator
Rear unit identification LED indicator and switch
Quick Restore CD
The Compaq TaskSmart W2200 appliance server Quick Restore CD allows
you to restor e the server software image that was originally installed by
Compaq at the factory. For more information, see the TaskSmart W2200
appliance server Quick Restore CD documentation that is included with the
Web server.
Appliance Features and Web Server Software Components
System Overview 1-7
Preinstalled Apache, optimized for hosting sites wi th static or dynamic
content
Website creation—FrontPage 2000 Server Extensions
Virtual hosti ng se rvi ce s
Common Gateway Interface (CGI) and server-side includes (SSI)
Unix script and processing tools—Perl, Python, PHP
Email—SMTP, IMAP4, POP3, APOP
FTP and anonymous FTP
Telnet and secure shell (SSH)
Network Ti me Protocol (NTP) client support
Open Secure Sockets Layer (SSL)
1-8 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Server Management Features
The TaskSmart W2200 appliance server offers an extensive set of features and
optional tools that support effective appliance se rver management and
configuration, including:
Web Server Configuration Application, an easy-to-use customer
administration interface
TaskSmart Configuration Utilit y (T CU)
Compaq Remote Insight Lights-Out Edit ion board (Model 30 only)
Compaq Insight Manager™ CD
Simple network managem ent protocol (SNMP) management
Web Server Configuration Application
The TaskSmart W2200 appliance server has been designed for ease of
management. For this reason, a special administration interface, the Web
Server Configuration Application, ha s been create d t o provide links to all
major administrative tasks. The TaskSmart W2200 appliance server-specific
application is designed to make administration easier and more intuitive by
reducing the usual Windows desktop to show only those items requi red for
Web server administration. The Web Server Configuration Application menu
includes:
Rapid Start up
Configuration
Reports
Alerts
Management
Backup/Restore
TaskSmart Configuration Utility
Customer-s pecific configuration data can be saved to the Configuration Data
Diskette that is included with your server for later use with the Quick Restore
CD. This diskette restore s t he appliance to your specific configuration.
Compaq Remote Insight Lights-Out Edition Board
(Model 30)
The Compaq Remote Insight Lights-Out Edition board is PCI-based and
provides text-based appliance server management. The built-in Intel i960
processor allows the Remote Insight Lights-Out Edition board to work
independently of the operating system. Remote Insight Lights-Out Edition
board also provides remote access, remote video, sends alerts, and performs
other functions even if the host server operat ing system is not responding.
Compaq Insight Manager
Compaq Insight Manager is a Microsoft Windows-based applicatio n for
managing Compaq system devices. Compaq Insight Manager delive rs
intelligent monitoring and alerting as well as visual control of your Com paq
devices. Documentation for Compaq Insight Mana ger is available on the
Compaq Management CD i n [CD-ROM DRIVE]:/OVERVIEW.HLP.
IMPORTANT: You must install and use Compaq Insight Manager on a Microsoft Windows
platform to benefit from the pre-failure warranty for processors and memory modules.
System Overview 1-9
Compaq Insight Manager performs the following functions:
Forwards server alerts and fault conditions
Monitors fault condit ions and server performance
Controls server security and configuration
Remotely controls the server
Initiates rapid recovery services
Warranties
The TaskSmart W2200 appliance server is equipped with several standard
warranties. For more information, refer to the Important Warr anty Inform at i on
card that ships with your server.
This chapter covers the hardware of the Compaq TaskSmart W2200 appliance
server. No internal device s are covered. If the server must be opene d, refer to
the maintenance and service guide.
Rack Hardware Deployment Options
Some rack-mount configurations re quire separate or additional equipment. For
example, the sliding rail and cable management system requires ball-bearing
rails and the c able tension system to de ploy in this manner. The bal l -bearing
rails and cable tension guide is not supplied with this appliance alth ough the
server can be mounted in this manner. The TaskSmart W2200 appliance server
ships standard with fixed r ails and supports several rack deployme nt options:
Telco Rack
Chapter 2
Hardware
Third-Pa rty Ca bi ne t Rac k
Desktop/Stackable Chassi s
2-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Telco Rack
The Telco rack option contains a set of variable-depth rack brackets. The
brackets support installation of the TaskSmart W2200 appliance ser ver in to a
Telco rack, as displayed in Figure 2-1. These bracket s adjust to fit se veral
types of Telco racks. The Telco rack option includes the necessary mounting
screws, brackets, and installation instr uctions.
Figure 2-1. Server mounted into Telco rack
Third-Party Cabinet Rack
Compaq provides a third-party cabinet rack (option) that allows you to mount
the TaskSmart W2200 appliance server into a third-party cabinet rack. The
variable-depth rack rails support server installatio n into racks with depths of
711 mm to 838 mm (28 in. to 33 in.) with the cable manage ment tray. Without
the cable management tray, the depths are 559 mm t o 838 mm (22 in. to
33 in.).
Hardware 2-3
Figure 2-2 shows the installation of the server into a typical third-party cabinet
rack.
Figure 2-2. Installing the server into a typical third-party cabinet rack
Figure 2-3 shows the cable tray for the third-party cabinet rack.
Figure 2-3. Cable tray for the third-party rack option (cables removed for
clarity)
2-4 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Desktop/Stackable Chassis
The desktop/stackable chassis option consists of a slide-on sheet metal chassis
that converts the rack model TaskSmart W2200 appliance server for desktop
use. When installed into the desktop chas sis, the server can be deployed for
out-of-rac k use, as displayed in Figure 2- 4.
Figure 2-4. Server mounted into the desktop/stackable chassis
External Cabling
This section provides guidelines that help you to make informed decisions
about cabling your TaskSmart W2200 appliance server for optimal
performance. Use this section along with the technical information on the rack
installation and connection card, po st ers, and other documentation provided
for complete and comprehensive information.
Connecting the Power Cord and Peripheral Devices
Rear panel cabling on the TaskSmart W2200 appliance server must always be
connected and disconnected in a specific sequence. For a detailed explanation
of connectors and the proper cabling sequence, refer to the rack installation
and connection card.
CAUTION: Always follow the cabling order for the TaskSmart W2200 appliance
server. Using an improper cabling sequence can result in electrical damage to
peripheral devices.
Routing the Power Cord and Peripheral Device Cables
Cords and cables connected to the server rear panel are routed through a fixed
cable tray. The cable tray prevents loose cabling in the rear of the rack and
protects connectors from damage that results when cables are improperly
disconnected.
When multiple TaskSmart W2200 appliance servers are installed into a rack,
the fixed cable trays effectively organize the rear panel cabling. See
Figure 2-5.
Hardware 2-5
Figure 2-5. Multiple TaskSmart W2200 appliance servers installed into a
Compaq rack with properly routed cabling
2-6 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Server Connectors
Server rear panel connector locations and use are show n i n Figure 2-6 an d
Table 2-1.
1 32 5
10
Figure 2-6. Rear panel connectors
Item Description
89
Expansion slot
RJ-45 Fast Ethernet connector for ETH1
RJ-45 Fast Ethernet connector for ETH0
Mouse connector
Serial connector
Video connector
Keyboard connector
not used
not used
Power connector
4
7
Table 2-1
Rear Panel Connectors
6
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers
For the purpose of regulatory compliance certifications and identification, your
Compaq TaskSmart W2200 appliance server is assigned a Compaq series
number. The Compaq series number for this product is Series ES1018. The
series number for the TaskSmart W2200 appliance server can be found on the
product labe l , along with the required approval markings and information.
When requesting certification information for this pro duc t, always refer to this
series number. This series number must not be confused with the marketing
name or model number for y our TaskSmart W2200 appliance server.
Appendix A
Federal Communications Commission Notice-United States Only
Part 15 of the Federal Communic ations Commi ssion (FCC) Rule s and
Regulations has establishe d Radio Frequency (RF) emission limits to provide
an interference-free radio frequency spectrum. Many electronic devices,
including computers, generate RF energy incidental to their intended function
and are, therefore, covered by these rules. These rules place computers and
related peripheral devic es into two Classes, A and B, depending upon their
intended installation. Class A devices are those that may reasonably be
expected to be installed in a business or commercial envi ronment. Class B
devices are those that may reasonably be expected to be installed in a
residential environment (personal c omputers).
A-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
The FCC requires devices in both Classes to bear labels indicating the
interference potential as well as additional operating instructions for the user.
The rating label on the device shows the Class (A or B) into which the
equipment is categorized. Class B devices have a FCC logo or FCC ID on the
label. Class A devices do n ot have an FCC logo or FCC ID on the label. After
determining the Class of your device, refer to the corresponding C lass
statements.
Class A Equipment
This equipment has been tested and found to comply with the limits for a
Class A digita l device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio f requency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user must correct the
interference at personal expense.
Class B Equipment
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the F CC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radi o
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interf erence to radio communicati ons.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined when the equipment is turned
off and on, the user is encouraged to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio or television technician
for help.
Declaration of Conformity for Products Marked with the FCC Logo
This device complies with Part 15 of the FCC Rules. Operation is s ubject to
the following two conditions: (1) this device may not cause harm ful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For questions regarding your product, contact Compaq at the following
address:
Compaq Computer Corporation
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
or call 1-800-652-6672 (1-800-OK-COMPAQ). (For continuous quality
improvement, calls may be recorded or monitored.)
For questions regarding this FCC declaration, contact Compaq at the following
address:
Compaq Computer Corporation
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Regulatory Compliance Notices A-3
or call 281-514-3333.
To identify this product, refer to the part, series, or model number found on the
product.
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Compaq Computer
Corporation may void the user's auth ority to oper ate the equipm ent.
Cables
Connections to this device must be made with shielded cables with metallic
RFI/EMI connector hoods to ensure compliance with FCC rules and
regulations.
A-4 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Canadian Notice (Avis Canadien)
Class A Equipment
This Class A digital apparatus meets all req uirem ents of the Canadian
Interferenc e-Causing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les exigences du
Règlement s ur le matériel brouilleur du Canada.
Class B Equipment
This Class B digital apparatus meets all re quirements of the Canadian
Interferenc e-Causing Eq uipment Regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du
Règlement s ur le matériel brouilleur du Canada.
European Union Notice
Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low-Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity t o the following
European Norms (equivalent international standards are in brackets):
EN55022 (CISPR 22)-Electromagnetic Interference
EN55024 (IEC61000-4-2,3,4,5,6,8,11) – Ele ctromagnetic Immunity
EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics
EN61000-3-3 (IEC610 00-3-3) – Power Line Flicker
EN60950 (IEC950)-Product Safety
Japanese Notice
Taiwanese Notice
Regulatory Compliance Notices A-5
Laser Devices
All Compaq syst ems equippe d with a laser device comply with safety
standards, including International Electrotechnical Commission (IEC) 825.
With specific regard to the laser, the equipment complies with laser product
performance standards set by government agencies as a Class 1 laser product.
The product does not emit hazardous light; the beam is totally enclosed during
all modes of customer oper ation and maintenance.
A-6 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Laser Safety Warnings
WARNING: To reduce the risk of exposure to hazardous radiation:
Do not try to open the laser device enclosure. There are no
user-serviceable components inside.
Do not operate controls, make adjustments, or perform procedures to the
laser device other than those specified herein.
Allow only Compaq authorized service technicians to repair the laser
device.
Compliance with Center for Devices and Radiological Health Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and
Drug Administ ration implemented reg ul ations for laser products on
August 2, 1976. These regulations apply to laser pr oducts manufac tured from
August 1, 19 76. Complianc e is mandat ory for products marketed in the United
States.
Compliance with International Regulations
All Compaq syst ems equipped with laser devi ces comply wi t h appropriate
safety standards, including IEC 825.
Laser Product Label
The following label or equivalent is located on the surface of the Compaq
supplied lase r device.
This label indicates that the product is
classified as a CLASS 1 LASER
PRODUCT. This label appears on a
laser device installed in your product.
Battery Replacement Notice
Your computer is provided with an internal lithium battery or battery pack.
The battery c an explode and cause personal injury if mistreated or incorrectl y
replaced. The battery must be replaced with a designated spare provided by a
Compaq authorized service provider.
For more information about battery replacement or proper disposal, contact
your Compaq authorized r eseller or your authorized service provider.
WARNING: Your computer contains an internal lithium manganese dioxide,
vanadium pentoxide, or alkaline battery pack. Improperly handled battery packs
pose a risk of fire and burns. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose the battery to temperatures higher than 60°C (140°F).
Do not disassemble, crush, or puncture the battery; short external
contacts; or dispose of the battery in fire or water.
Replace only with the Compaq spare parts designated for this product.
Batteries, battery packs, and accumulators must not be disposed of
with the general household waste. To forward these materials for
recycling or proper disposal, please use the public collection
system, or return them to Compaq, your authorized Compaq
partners, or their agents.
Regulatory Compliance Notices A-7
Mouse Compliance Statement
This appliance complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Electrostatic Discharge
To prevent da mage to the Compaq TaskSmart W2200 appliance server, be
aware of the following precautions when setting up the system or handling
parts. A discharge of static electricity from a finger or other conductor can
damage syste m boards or ot her static-sensitive devices. This type of damage
can reduce the life expectancy of the device.
IMPORTANT: Although some references may be made to internal components, this
device has no user-serviceable parts.
Preventing Electrostatic Discharge
Appendix B
Damage
To prevent electrostatic discharge (ESD) damage, observe the following
precautions:
Avoid hand contact by tr ansporting a nd storing products in static -safe
containers.
Keep electrostatic-sensitive parts in their containers until they arrive at
static-free workstations.
Place parts on a grounded (earthed) surface before removing them from
their containers.
Avoid touc hing pins, le ads, or circuitry.
Always be properly grounded when touching a static -sensitive
component or assembly.
B-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Grounding Methods
Several meth ods are availabl e for ground ing. Use one or more of the following
methods when handling or installing electrostatic-sensitive parts:
Use a wrist strap connected by a ground cord to a grounded (earthed)
workstation or computer chassis. Wrist straps are flexible straps with a
minimum of 1 megohm
provide pr oper ground, wear the strap snugly agai nst the skin.
Use heel straps, toe straps, or boot straps at standing workstations. Wear
the straps on both feet when st anding on conductive floors or dissipati ng
floor mats.
Use conduct ive field service tools.
Use a portable field service kit with a folding static-dissipating
work mat.
If you do not have any of the suggested equipment for proper grou nding, have
a Compaq authorized reseller install the part.
NOTE: For more information on static electricity or for assistance with product
installation, contact your Compaq authorized reseller.
± 10 percent resistance in the ground cords. To
LED Indicators
The Compaq TaskSmart W2200 appliance server contains the following sets
of LEDs, whic h indicate the st atus of hardware components and settings:
Front panel LEDs
Rear panel LEDs
Use the foll owing subsect i ons to determ i ne the location and status of LEDs on
your TaskSmart W2200 appl iance server.
Appendix C
LED Indicators
Front Panel LEDs
The set of seven LEDs on the front of the server indicates server status.
Figure C-1 and Table C-1 locate and identify the function of the LEDs.
C-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
1
22
33
4
7
Figure C-1. Identifying the front panel LEDs
Table C-1
Front Panel LEDs
Location LED Description Status
5
6
Front unit identification On = local management
Off = deactivated
ETH1 link/activity On = link
Off = no link
Blinking = activity
ETH0 link/activity On = link
Off = no link
Blinking = activity
System health Green = good
Amber = degraded
Red = critical error
Drive activity On = activity
Off = no activity
Power Up/Down Green = power up
Amber = power good
Off = power down
CD-ROM drive activity On = activity
Off = no activity
Rear Panel LEDs
The server rear panel contains three LEDs: one for the rear unit identification
LED switch and two for the RJ-45 connectors. Use the Figure C-2 and
Table C-2 to identify each LED.
Figure C-2. Identifying the rear panel LEDs
LED Indicators C-3
21 3
Table C-2
Rear Panel LEDs
Location LED Status
ETH1 link/activity On = link
Off = no link
Blinking = activity
ETH0 link/activity On = link
Off = no link
Blinking = activity
Rear unit identification LED
switch
Blue = activated
Off = deactivated
Server Specifications
Table D-1 and Table D-2 provide the operating an d performance specificati ons
for Compaq TaskSmart W2200 appliance server components.
System Unit Specifications
Appendix D
Specifications
Table D-1
System Unit Specifications
Item Description
Height 4.24 cm (1.67 in)
Width 42.55 cm (16.75 in)
Depth 54.61 cm (21.5 in)
Weight (configured with two SCSI hard
drives, two DIMM modules, and a PCI
expansion board)
11.15 kg (24.58 lb)
continued
D-2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Table D-1
System Unit Specifications
Item Description
International input voltage requirements
Rated input voltage 100 VAC to 240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 3.3 A, 1.7 A (110 V, 220 V)
U.S. and international input voltage requirements
Rated input voltage 100 VAC to 240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 2 A, 1 A (100 VAC to 120 VAC, 200 VAC to
Rated steady-state power 180 W
Maximum peak power 200 W (for max. duration of two minutes)
BTUs 820 BTU/hr
Temperature range
continued
240 VAC)
Operating
Nonoperating
Relative humidity (noncondensing)
Operating 10% to 90%
Maximum wet-bulb temperature
10°C to 35°C (50°F to 95°F)
Shipping: -40°C to 60°C (-40°F to 140°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Shipping: 10% to 90%Nonoperating
Storage: 10% to 95%
28°C (82°F)
Laser Device Specifications
Laser type Semiconductor GaAlAs
Wave length 780 nm +/- 35 nm
Divergence angle 53.5 degrees +/- 0.5 degrees
Output power Less than 0.2 mW or 10,869 W-m-2 sr-1
Polarization Circular 0.25
Numerical aperture 0.45 in +/- 0.04 in
Specifications D-3
Table D-2
Laser Device Specifications
A
accumulators A-7
alkaline battery, warn ing A-7
Apache, software features 1-7
ASR-2 (Autom atic Server
Recovery-2)
as a feature 1-5
software features 1-5
Automatic Server Recovery-2 See
ASR-2
B
backup support, software
features 1-5
batteries
recycling or disposal A-7
replacement notice A-7
warning A-7
benefits See ke y benefits
C
cabinet rack, third-party,
option 2-2
cable tray, third-party rack option,
illustrated 2-3
cables, routing 2-5
cabling
external, guidelines 2-4
Index
multiple servers in a rack,
illustrated 2-5
order, caution 2-4
power cord 2-4
Canadian No t ice
Class A equipment A-4
Class B equipm ent A-4
cautions
cabling orde r 2-4
defined viii
CDRH (Center for Devices and
Radiological Health),
compliance regulations A-6
CD-ROM drive, LED, activity C-2
CDs, Compaq Management 1-9
CE marking A-4
Center for Devices and
Radiological Health See
CDRH
CGI (Common Gateway Interface),
software features 1-7
Class 1 laser product A-5
Common Gateway Interface See
CGI
Compaq
address
for FCC questions A-3
for product questions A-3
telephone num be r
for FCC questions A-3
for product questions A-3
website x, xi
Compaq authorized reseller xi
2 Compaq TaskSmart W2200 Appliance Server System Reference Guide
Compaq Diagnostic Utility,
software features 1-5
Compaq Insight Manager
configuring and managing
server with 1-9
described 1-9
documentat ion 1-9
functions 1-9
Compaq Insight Manager CD,
software features 1-8
Compaq Management CD 1-9
Compaq Remote Insight Lights-Ou t
Edition boa rd See Remote
Insight Lights-Out Edition board
configuration
tools 1-8
utility, feature 1-8
configuration and mana gement
tools
Compaq Insight Manager 1-9
diagnostic tools 1-5
features 1-8
connectors
expansion slot 2-6
keyboard, location 2-6
locations 2-6
mouse, location 2-6
power, location 2-6
rear panel 2- 6
RJ-45 Fast Ethernet,
location 2-6
RJ-45, location 2-6
serial, location 2-6
video, location 2-6
D
deployment options
desktop/stackable chassis 2-1
sliding rail and cable
management system 2-1
Telco rack 2-1
third-party cabinet rack 2-1
desktop/stackable chassis
option 2-4
server mounted into,
illustrated 2-4
diagnostic tools, config uring and
managing ser ver with 1-5
disposal, battery A-7
dissipati ng floor mats B-2
drives
LEDs, activity C-2
E
electric shock
symbol viii
warning viii
electromagnetic immunity A-4
electromagnetic interference A-4
electrostatic discharge See ESD
email, software features 1-7
ESD (electrostatic discharge)
damage preve nti on
measures B-1
defined B-1
Ethernet, LEDs, link status C-3
European Union Notice A-4
exclamation point symbol viii
external cabling 2-4
F
FCC (Federal Communications
Commission)
cables A-3
Class A equipment, compliance
notice A-2
Class B equipment, compliance
notice A-2
Declaration of
Conformity A -3
modifications A-3
mouse compliance
statement A-7
notice A-1
features
appliance server 1-1
backup support 1-5
PPM 1-2
Index 3
secure access 1-5
software 1-4
Apache 1-7
ASR-2 1-5
CGI 1-7
Compaq Diagnostic Utility 1-5
Compaq Insight Manager
CD 1-8
email 1-7
FrontPage 200 0 1-7
FTP 1-7
Linux 1-5
NTP client support 1-7
Quick Restore CD 1-5
SSH 1-7
SSI 1-7
SSL 1-7
TCU 1-4
Telnet 1-7
unit identification system 1-5
Unix script 1-7
virtual host i ng services 1-7
standard 1-2
user modes 1-5
Federal Communications
Commission See FCC
flicker, power line A-4
front panel, LEDs See LEDs
FrontPage 2000, software
features 1-7
FTP, software features 1-7
G
grounding, methods B-2
guidelines, cabling 2-4
H
harmonics, power line A-4
hazard symbol viii
hazardous conditions symbols on
equipment viii
hazardous energy circuits
symbol viii
health LEDs C-2
heel straps B-2
help
additional sources x
Compaq authorized resellers,
telephone numbers xi
Compaq website xi
technical support telephone
numbers x
hot surface, warning ix
humidity ra nges D-2
I
illustrations
cable tray, third-party rack
option 2-3
cabling, multiple servers 2-5
front panel LED s,
identifying C-2
rear panel connectors 2-6
rear panel LE Ds,
identifying C-3
server 1-1
mounted into Telco rack 2-2
mounted into the
desktop/stackable
chassis 2-4
third-party cabinet rack,
installing server into 2-3
unit identification switches,
front and rear panel
locations 1-6
immunity, electromagnetic A-4
Important Safe ty Infor m at io n
document ix
Important Warranty Information
card 1-9
interference, electromagnetic A-4
international regulations,
compliance A-6
K
key benefits
advanced management
tools 1-4
4 Compaq TaskSmart W2200 Appliance Server System Reference Guide
listed 1-3
performance and
scalability 1-4
rapid deployment 1-3
keyboard, connector, location 2-6
L
labels
laser device A-6
on equipme nt viii
laser
Class 1 product A-5
compliance A-6
regulations, CDRH A-6
warning A-6
laser device
product labe l A-6
regulatory compliance
notice A-5
LEDs
CD-ROM drive activity C-2
drive activity C-2
Ethernet activity C-2
Ethernet link/activity C-3
front and rear unit
identification switches
locations, illustrated 1-6
front panel C-1
front unit identification C-2
identifying (front panel),
illustrated C-2
identifying (rear panel),
illustrated C-3
listed C-1
power C-2
rear panel C-3
rear unit identification C-3
system health C-2
link status, LE Ds, Ethernet C-3
Linux, software features 1-5
lithium manganese dioxide battery,
warning A-7
M
management , tools 1-8
N
network interface connection,
warning ix
Network Tim e Protocol See NTP
NTP (Network Time Protocol)
client supp ort, softwar e
features 1-7
O
operating system, software
features 1-5
options
desktop/stackable chassis 2-4
Telco rack 2-2
third-party cabinet rack 2-2
P
power
connector, location 2-6
cord, routing 2-5
LEDs C-2
sources, warning ix
power line
flicker A-4
harmonics A-4
PPM (Processor Power Module),
features 1-2
Processor Power Module See PPM
product safe ty A-4
Q
Quick Restore CD
defined 1-7
software features 1-5
R
rack stability, warning x
Index 5
radiation, w arning A-6
rear panel
connectors, illustrated 2-6
LEDs C-3
recycling, battery A-7
regulatory compliance,
identification number A-1
Remote Insight Lights-Out Edition
board, as a feature 1-9
RJ-45 Fast Ethernet connectors,
location 2-6
RJ-45 receptacle
symbol ix
warning ix
S
safety
information ix
product A-4
screwdriver symbol viii
secure access, software
features 1-5
secure shell See SSH
Secure Sockets Layer See SSL
serial connector, location 2-6
series number, regulatory
compliance A-1
server
features 1-1
illustrated 1-1
server-side includes See SSI
setup and adm i nistration, software
features 1-5
software, features 1-4
specifications, system unit D-1
SSH (secure shell), software
features 1-7
SSI (server-side includes), software
features 1-7
SSL (Secure Sockets Layer),
software features 1-7
static electricity B-1
static-dissipating work mat B-2
static-sensitive devices B-1
status LEDs See LEDs
straps
heel B-2
toe B-2
wrist B-2
symbols
in text viii
on equipme nt viii
system board, saf ety B-1
system health, LEDs C-2
system unit, specifications D-1
depth D-1
height D-1
humidity ra nges D-2
international input voltage
requireme nt s D-2
power supply D-2
temperature range D-2
U.S. and international input
voltage requi rements D-2
weight D-1
width D-1
T
tables
Front Panel LEDs C-2
Laser Device
Specifications D-3
Rear Panel Connectors 2-6
Rear Panel LEDs C-3
System Unit
Specifications D-1
TaskSmart W2 200 Appliance
Server Features 1-2
Unit ID Switches and LED
Indicator Locations 1-7
TaskSmart Configuration
Utility See TCU
TCU (TaskSmart Configuration
Utility)
feature 1-8
software features 1-4
technical support x
Telco rack
option 2-2
6 Compaq TaskSmart W2200 Appliance Server System Reference Guide
server mounted into,
illustrated 2-2
telephone numbers xi
for FCC questions A-3
for product questions A-3
telephone symbol ix
Telnet, software features 1-7
temperature
system unit ranges D-2
wet-bulb limitation D-2
text convent ions vii
third-party cabinet rack
installing server into,
illustrated 2-3
option 2-2
toe straps B-2
tools
conductive B-2
configuration and
management 1-8
diagnostic tools 1-5
U
unit identification LEDs
front C-2
rear C-3
unit identification switches
front panel locat i o ns,
illustrated 1-6
rear panel locations,
illustrated 1-6
unit identification system
defined 1-6
software features 1-5
Unix script, software features 1-7
user modes, software feat ures 1-5
V
vanadium pentoxide battery,
warning A-7
video, connector, location 2-6
W
warnings
battery disp osal A-7
defined viii
electric shock viii
hazardous radiation A-6
heavy weight ix
hot surface ix
laser safety A-6
multiple sources of power ix
network interface
connection ix
rack stability x
RJ-45 receptacle ix
warranties 1-9
Web Server Config ur ati on
Application
administration 1-8
software features 1-8
website, Compaq x, xi
weight, warning ix
wrist strap B-2
www.compaq.com x, xi
