AlphaPC 164LX Motherboard Tru64 UNIX

User’s Manual

Order Number: EC–R2ZPC–TE

Revision/Update Information:

Compaq Computer Corporation

This is a revised document. It supersedes the AlphaPC 164LX

Motherboard DIGITAL UNIX User’s Manual, EC–R2ZPB–TE.

March 1999

The information in this publication is subje c t to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. THIS

INFORMATION IS PROVIDED “AS IS” AND COMPAQ COMPUTER CORPORATION DISCLAIMS ANY WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE AND AGAINST INFRINGEMENT.

This publication con ta ins information protecte d by copyright. No part of this publication may be photocopi ed or reproduced in any form wit hout prior written consen t from Compaq Computer Corporation.

The software described i n thi s publication is furnished unde r a l ic ense agreement or nondi scl osure agreement. The software may be used or copied only in accordance with t he terms of the agreement.

COMPAQ, the Compaq logo, the Di gital logo, and DIGITAL Registere d in U . S . Pa tent and Trademark Office.

AlphaPC, DECnet, OpenVMS, and Tru64 are trademarks of Compaq Computer Corporation.

Microsoft, MS-DOS, Windows, and Windows NT are registered trad em arks of Microsoft Corporation .

Intel is a registered tra demark of Intel Corporat ion.

Other product names mentioned herein may be the trademarks of their respective companies.

1 About This Manual

1.1 Manual Conventions and Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

2 Features

2.1 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.2 Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.3 Physical Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.3.1 ATX Hole Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.3.2 ATX I/O Shield Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

3 AlphaPC 164LX Jumper Configuration

3.1 CPU Speed Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Bcache Size Jumpers (CF1 and CF2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.3 Boot Option Jumper (CF7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.4 Flash ROM Update Jumper (J28). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

4 AlphaPC 164LX Connector Pinouts

4.1 PCI Bus Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 ISA Expansion Bus Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.3 SDRAM DIMM Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.4 EIDE Drive Bus Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.5 Diskette (Floppy) Drive Bus Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.6 Parallel Bus Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.7 COM1/COM2 Serial Line Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4.8 Keyboard/Mouse Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4.9 SROM Test Data Input Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.10 Input Power Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

iii

4.11 Enclosure Fan Power Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.12 Speaker Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4.13 Microprocessor Fan Power Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4.14 Power LED Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4.15 EIDE Drive LED Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.16 Reset Button Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.17 Halt Button Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.18 Soft Power Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

5 Memory and Microprocessor Configuration

5.1 Configuring SDRAM Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Upgrading SDRAM Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.3 Increasing Microprocessor Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

5.3.1 Preparatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

5.3.2 Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

5.3.3 Removing the 21164 Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

5.3.4 Installing the 21164 Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

6 Interrupts and ISA Bus Addresses

6.1 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.2 ISA I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

6.2.1 Flash ROM Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

7 Alpha SRM Console Firmware

7.1 Alpha SRM Console Firmware Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.2 Basic Alpha SRM Console Command Descriptions . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.3 Environment Variables for Alpha SRM Console Commands. . . . . . . . . . . . . . . . 7-18

7.3.1 Environment Variable Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

7.3.1.1 Architecture-Required Environment Variables . . . . . . . . . . . . . . . . . . . . 7-19

7.3.1.2 System-Defined Environment Variables. . . . . . . . . . . . . . . . . . . . . . . . . 7-20

7.4 Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM . . . . . . 7-22

7.4.1 AlphaBIOS Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

7.4.2 Starting the AlphaBIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

7.4.3 Installing Alpha SRM Console Using AlphaBIOS Setup Program. . . . . . . . . 7-24

7.5 Installing the Tru64 UNIX Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29

7.5.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29

8 Troubleshooting

8.1 Hardware Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

8.2 Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

8.3 Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

8.4 Fail-Safe Booter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

9 Battery Recycle/Disposal Information

A Support

A.1 Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

A.2 Supporting Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

A.2.1 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

A.2.2 Thermal Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

A.2.3 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

A.2.4 Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

A.3 Alpha Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

A.4 Third–Party Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Figures

2–1 AlphaPC 164LX Jumper/Connector/Component Location . . . . . . . . . . . . . . . . . . 2-2

2–2 ATX Hole Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2–3 ATX I/O Shield Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

3–1 AlphaPC 164LX Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

5–1 Fan/Heat-Sink Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

7–1 AlphaBIOS Boot Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

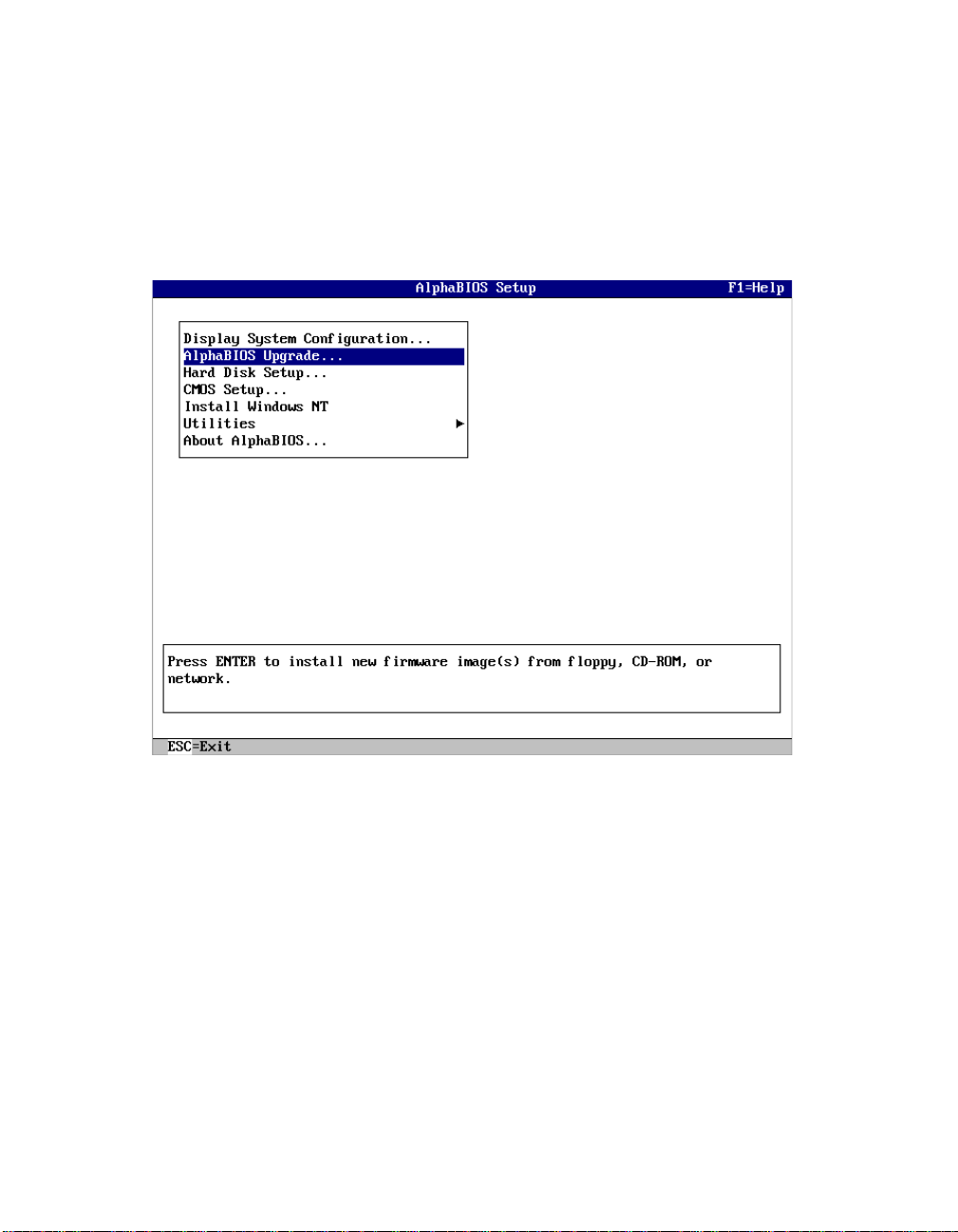

7–2 AlphaBIOS Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24

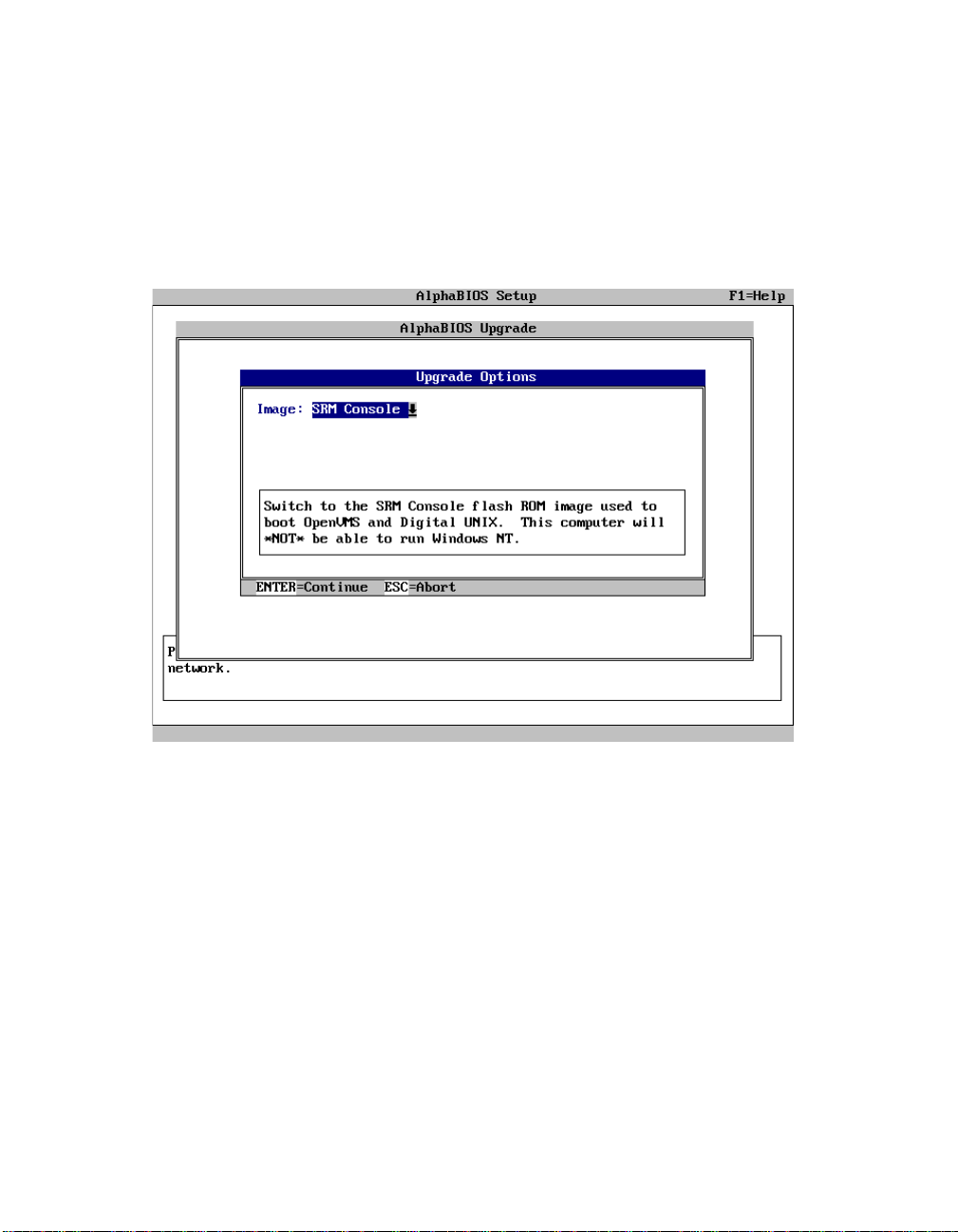

7–3 AlphaBIOS Upgrade Options Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

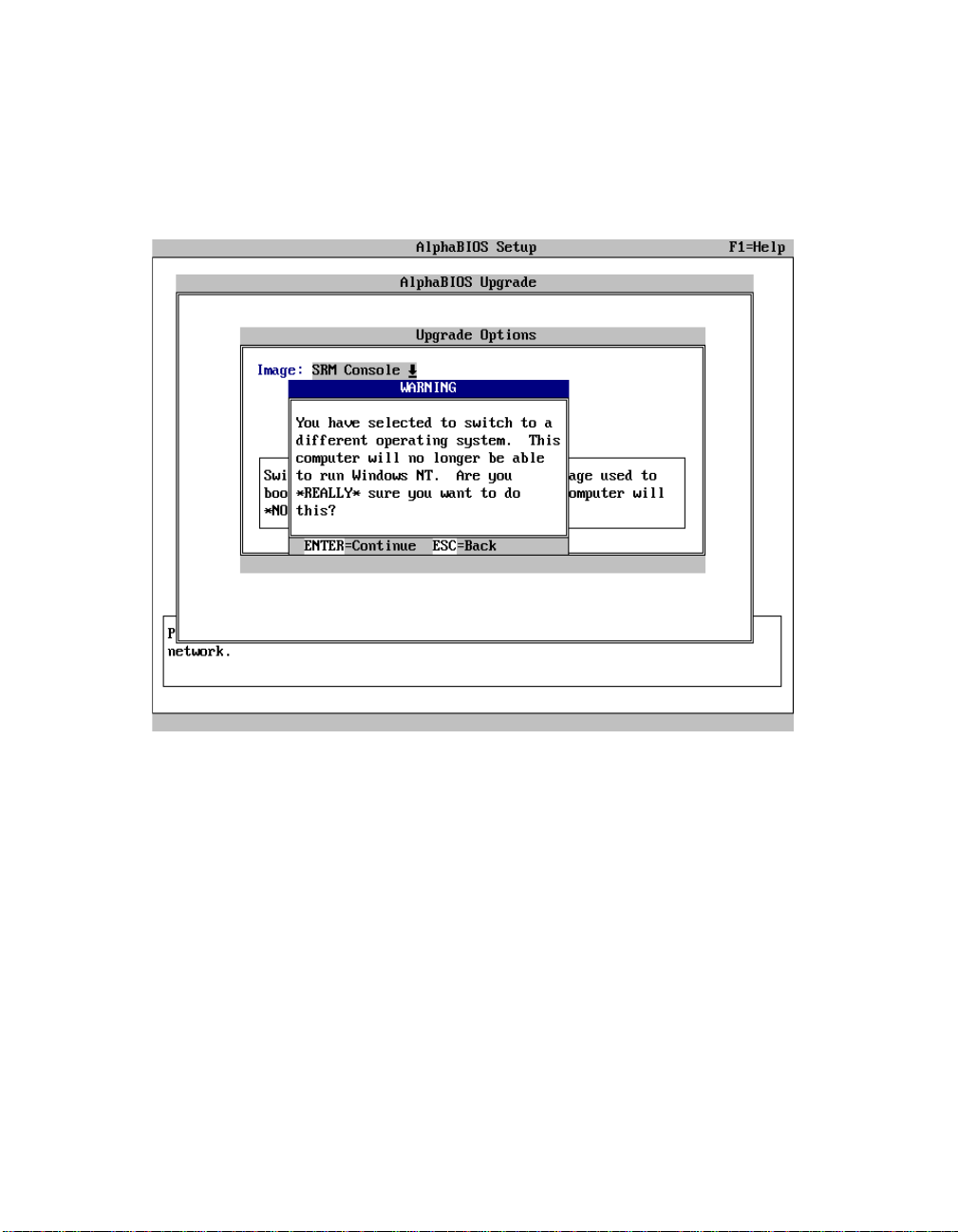

7–4 AlphaBIOS Warning Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26

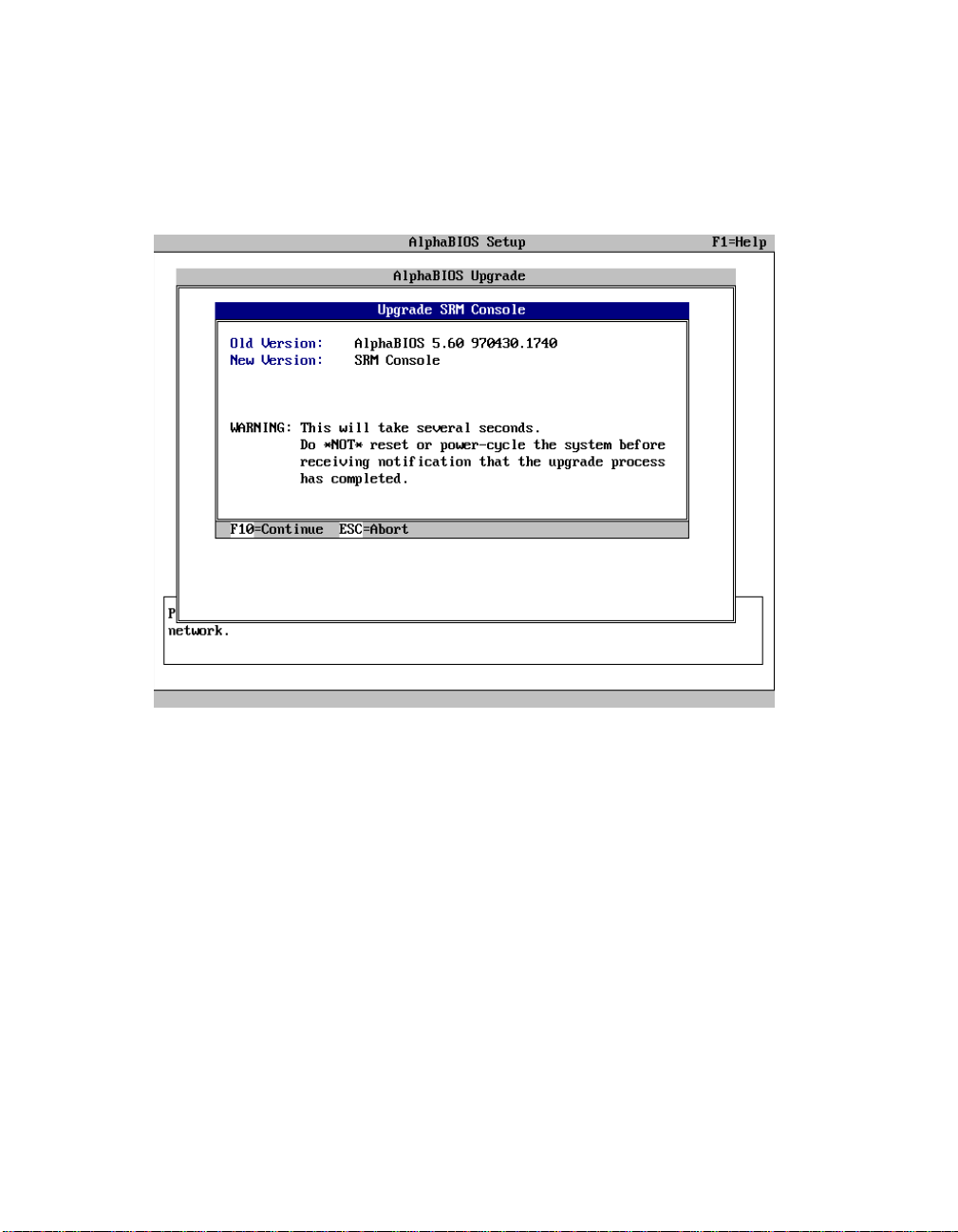

7–5 AlphaBIOS Upgrade SRM Console Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27

7–6 AlphaBIOS Upgrade Complete Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28

Tables

2–1 AlphaPC 164LX Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2–2 AlphaPC 164LX Jumper/Connector/Component List . . . . . . . . . . . . . . . . . . . . . . 2-3

2–3 Power Supply DC Current Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2–4 AlphaPC 164LX Motherboard Environmental Requirements . . . . . . . . . . . . . . . . 2-5

4–1 PCI Bus Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4–2 ISA Expansion Bus Connector Pinouts (J30, J31) . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4–3 SDRAM DIMM Connector Pinouts (J8 through J11) . . . . . . . . . . . . . . . . . . . . . 4-4

4–4 EIDE Drive Bus Connector Pinouts (J6, J7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4–5 Diskette (Floppy) Drive Bus Connector Pinouts (J15). . . . . . . . . . . . . . . . . . . . . . 4-6

4–6 Parallel Bus Connector Pinouts (J13). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4–7 COM1/COM2 Serial Line Connector Pinouts (J4). . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4–8 Keyboard/Mouse Connector Pinouts (J5). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4–9 SROM Test Data Input Connector Pinouts (J29) . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4–10 Input Power Connector Pinouts (J3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4–11 Enclosure Fan (+12 V dc) Power Connector Pinouts (J2, J19) . . . . . . . . . . . . . . 4-8

4–12 Speaker Connector Pinouts (J20). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4–13 Microprocessor Fan Power Connector Pinouts (J18) . . . . . . . . . . . . . . . . . . . . . . 4-9

4–14 Power LED Connector Pinouts (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4–15 EIDE Drive LED Connector Pinouts (J25). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4–16 Reset Button Connector Pinouts (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4–17 Halt Button Connector Pinouts (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4–18 Soft Power Connector Pinouts (J1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

5–1 AlphaPC 164LX SDRAM Memory Configurations . . . . . . . . . . . . . . . . . . . . . . . . 5-2

6–1 ISA Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6–2 ISA I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

7–1 AlphaBIOS Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

8–1 Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

8–2 Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

vii

About This Manual

This manual describes the AlphaPC 164LX motherboard, a module for computing systems based on the Alpha 21164 microprocessor and the companion 21174 core

logic chip. It describes the motherboard’s features and how to set its configuration jumpers. This manual helps users to install and populate the AlphaPC 164LX motherboard with memory modules and peripheral cards.

1.1 Manual Conventions and Terminology

The following conventions are used in this manual.

Caution: Cautions indicate potential damage to equipment, software, or data. Note: Notes provide additional information about a topic. Numbering: All numbers a re dec imal or hexadec imal un less o therwi se ind icate d. In

case of ambiguity, a subscript indicates the radix of nondecimal numbers. For example, 19 is a decimal number, but 19

Extents: Extents are specified by a single number or a pair of numbers in square brackets ([ ]) separated by a colon (:), and are inclusive. For example, bits [7:3] specify an extent including bits 7, 6, 5, 4, and 3. Multiple bit fields are shown as extents.

and 19A are hexadecimal numbers.

Register Fi gures: Register figures have bit and field position numbering starting at the right (low -order) and increasing to the left (high-order).

Signal Names: All signal names are printed in boldface type. Signal names that originate in an industry-standard specification, such as PCI or IDE, are printed in the case as found in the speci ficat ion ( usuall y upper case) . Activ e low s ignals have e ither a pound sign “#” appended, or a “not” overscore bar; for example, DEVSEL# and

RESET

About This Manual 1–1

Manual Conventions and Terminology

Italic Type: Italic type emphasizes important information and indicates complete titles of documents.

Terms: The following terms are used in this manual:

This term... Refers to...

Alpha SRM console The Alpha SRM Console firmw are DIGITAL UNIX installation guide The DIGITAL UNIX Installation Guide Tru64 UNIX The Tru64 UNIX (formerly DIGITAL UNIX)

operating system

1–2 About This Manual

Features

Table 2–1 provides an overview of the AlphaPC 164LX motherboard’s features.

Table 2–1 AlphaPC 164LX Features

Feature Description

Microprocessor Alpha 21164 microprocessor

(64-bit RISC)

Core logic chip 21174 core logic chip, comprising a single co ntrol chip that pro-

vides an interface to system memory and the PCI bus

Synchronous DRAM (SDRAM) memory

Caching: L1 Icache 8KB, direct-mapped instruction cache on the CPU chip L1 Dcache 8KB, direct-mapped data cache on the CPU chip L2 Scache 96KB, three-way , set -associ ative, wr ite-ba c k unifie d instru ctio n

L3 backup cache Onboard 2MB, direct-mapped, synchronous SSR AM backup

I/O and miscellaneous support 32-bit and 64-bit, 33-MHz PCI

Firmware Alpha SRM Console firmware

32MB to 1GB memory array –- Two banks of 128-bit memory; 168-pin unbuffered SDRAM DIMMs

and data cache on the CPU chip

cache with 128-bit data path

Two 64-bit and two 32-bit PCI expansi on slots PCI/EIDE control (CMD PCI0646) Intel 82378ZB PCI-to-ISA bridge chip Two dedicated ISA expansion slots SMC FDC37C935 combination controller chip provides control

for diskettes, two UARTs with modem control, parallel port, keyboard, mouse, and time-of-year cl ock

1MB flash ROM

Features 2–1

Figure 2–1 shows the AlphaPC 164LX motherboard and its components and Table 2–2 describes these components.

Figure 2–1 AlphaPC 164LX Jumper/Connector/Component Location

J31J30J28J27

J25

J24

J18

J19

J20

J21

J22

U62

U61

U48

U40

U31 U32 U33

U20 U21 U22

U8 U9

U10

J29

U58

U59 U60

J26

J23

U49

U50

U43

U41

U37

U42

U53

J17

J16

J15

J13

2–2 Features

Denotes Pin #1

J2J11J10

Mouse Keyboard

Top: Bottom:

FM-05933.AI4

COM1 COM2

J9J8J1J3

Top:

Bottom:

Table 2–2 AlphaPC 164LX Jumper/Connector/Component List

Item No. Description Item No. Description

B1 RTC battery (CR2032) J25 Hard-drive LED connector J1 Soft power connector J26 PCI slot 0 (64-bit) J2 Fan powe r, enclos ure (+12V) J27 System co nfiguration jumpe rs J3 Power (+3V, +5V, -5V, +12V, -12V) J28 Flash ROM update enable/disable

jumper J4 COM1/COM2 (DB9) connectors J29 SROM test port connector J5 Keyboard/mouse connectors J30 ISA slot 1 J6 EIDE drive 2/3 connector J31 ISA slot 0 J7 EIDE drive 0/1 connector U8 to U10 Cache SRAM (L3) J8 SDRAM DIMM 0 [0:63] connector U20 to U22 Cache SRAM (L3) J9 SDRAM DIMM 1 [64:128] connector U31 to U33 Cache SRAM (L3) J10 SDRAM DIMM 2 [0:63] connector U37 I/O interface and address control

(DS 21174-CA) J11 SDRAM DIMM 3 [64:128] connector U40 Microprocessor, socket

(DS Alpha 21164) J12 Reserved U41 Patch 8K PAL J13 Parallel I/O connector U42 EIDE controller J14 Reserved U43 System clock PLL (CY2308) J15 Diskette (floppy) drive connector U48 Microprocessor clock synthesizer

(MC12439) J16 PCI slot 3 (32-bit) U49 Serial ROM, socketed (Xilinx

XC17128D) J17 PCI slot 2 (32-bit) U50 PCI-to-ISA bridge (Intel 82378ZB) J18 Microprocessor fan/fan sense connec-

tor

U53 Combination controller, Super I/O

(SMC FDC37C935) J19 Enclosure fan +12V power connector U58 Flash ROM (1MB) J20 Speaker connector U59 PCI arbiter PAL J21 Reset button connector U60 PCI interrupt request PAL J22 Halt button connector U61 Power controller J23 PCI slot 1 (64-bit) U62 P ower sens e J24 Power LED connector

Features 2–3

Power Requirements

2.1 Power Requirements

The AlphaPC 164LX motherboard has a total power dissipatio n of 100 W, excluding

any plug-in PCI and ISA devices. Table 2–3 lists the power requirement for each dc supply voltage.

The power supply must be ATX-compliant.

Table 2–3 Power Supply DC Current Requirements

Voltage/Tolerance Current

+3.3 V dc, ±5% 5.0 A

+5 V dc,

–5 V dc,

+12 V dc,

–12 V dc,

Caution: Fan sensor requi red. The 21 16 4 mic rop rocessor cooling fan must have

±5% 14.0 A

±5% 0 A

±5% 1.0 A ±5% 100.0 mA

Values indicated are for an AlphaPC 164LX mot herboard with an Alpha 21164 microprocessor operating at 600 MHz, with 64MB SDRAM, excluding adapter cards and disk drives.

a built-in sensor t hat will dr ive a sig nal if t he airflow st ops. The se nsor is connected to motherboard connector J18. When the signal is generated, it resets the system.

2.2 Environmental Requirements

The 21164 microprocessor is cooled by a small fan blowing directly into the chip’s heat sink. The AlphaPC 164LX motherboard is designed to run efficiently by using only this fan. Additional fans may be necessary depending upon cabinetry and the requirements of plug-in cards.

2–4 Features

Physical Parameters

The AlphaPC 164LX motherboard is specified to run within the environment listed

in Table 2–4.

Table 2–4 AlphaPC 164LX Motherboard Environmental Requirements

Parameter Specification

Operating temperature 10°C to 40°C (50°F to 104°F) Storage temperature –55°C to 125°C (–67°F to 257°F) Relative humidity 10% to 90% with maximum wet bulb temp erature 28°C

(82°F) and minimum dew point 2°C (36°F)

Rate of (dry bulb) temperature change

2.3 Physical Parameters

The AlphaPC 164LX motherboa rd is an ATX-size printed-wiring boar d ( P WB) wi th the following dimensions :

• Length: 30.48 cm (12.0 in ±0.0005 in)

• Width: 24.38 cm (9.6 in ±0.0005 in)

• Height: 6.86 cm (2.7 in)

11°C/hour

±2°C/hour (20°F/hour ±4°F/hour)

Features 2–5

Physical Parameters

2.3.1 ATX Hole Specification

Figure 2–2 shows the ATX Hole Specification f or the Alph aPC 164LX. Measurements are shown in inches.

Figure 2–2 ATX Hole Specification

.800

TYP Between Connectors

.400

.650

.500

1.612

4.900

9.600

.600

.625

8.950

6.100

ISA Connector (2 Places)

This ATX hole is not supported on AlphaPC 164LX board, and no clearance is provided on side 2.

11.100

12.000

PCI Connector (4 Places)

1.300

This ATX hole is not supported on AlphaPC 164LX board, however clearance is provided on side 2.

2–6 Features

FM-06012.AI4

2.3.2 ATX I/O Shield Requirements

Figure 2–3 shows the ATX I/O shield dimensions for the AlphaPC 164LX. Measurements are shown in millimeters.

Figure 2–3 ATX I/O Shield Dimensions

Physical Parameters

R 1.00

5.00 TYP

21.36

16.05

9.25

3.58

2.45

4.35

11.15

15.47

17.95

22.95

23.96

29.10

33.10

68.4

64.9

64.91

60.26

51.27

42.28

40.48

34.13

24.7

25.14

16.7

16.15

14.35

8.00

0.99

9.98

11.78

18.13

19.93

28.92

35.5

37.91

43.5

44.26

46.06

55.05

64.04

7.19 TYP

74.8

70.39

72.19

78.2

81.18

85.4

87.2

90.17

94.4

98.9

95.40

FM-05986.AI4

14.96

R 1.00

Features 2–7

AlphaPC 164LX Jumper Configuration

The AlphaPC 164LX motherboard has two groups of jumpers located at J27 and J28 , as shown in Figure 2–1. These jumpers set the hardware configuration and boot

options. Figure 3–1 shows these jumper configurations.

3.1 CPU Speed Selection

The clock synthesizer at location U47 makes it possible to change the frequency of the microprocessor’ s sy stem cloc k output wi thout ha ving to c hange the clock cr ystal. Simply set the system clock divisor jumpers to adjust the frequency of the microprocessor’s system clock output. These system clock divisor jumpers are located at J27–1/2 (IRQ3), J27–3/4 (IRQ2), J27–5/6 (IRQ1), and J27–7/8 (IRQ0). The jumper configuration is set in IRQ3 through IRQ0. These four jumpers set the speed at power-up as li ste d in Fig ure 3–1. The microprocessor frequency divi ded by the ratio determines the system clock frequency.

3.2 Bcache Size Jumpers (CF1 and CF2)

The Bcache size jumpers ar e located at J27–11/12 (CF) and J27–13/1 4 (CF2). These jumpers configure the Bcache as specified in Figure 3–1.

AlphaPC 164LX Jumper Configuration 3–1

Bcache Size Jumpe rs (CF1 and CF2)

Figure 3–1 AlphaPC 164LX Configuration Jumpers

J27 System Configuration Jumpers

IRQ3 IRQ2

IRQ1 IRQ0 CF0 CF1 CF2 CF3

CF4 CF5 CF6 CF7

7 9

17 19

Frequency Ratio IRQ3 IRQ2 IRQ1 IRQ0 Comments

Reserved (Default Out)

Bcache Size CF1 CF2 Comments

Reserved (Default Out) Reserved (Default Out) Reserved (Default Out) Reserved (Default Out) Boot_Option (Default Out)

Reserved (Default Out)

J28 Flash ROM Update Jumpers

1 to 2 In = Disable

2 to 3 In = Enable (Default)

466 MHz 7 In Out Out Out Default 533 MHz 8 Out In In In 600 MHz 9 Out In In Out

All other combinations are reserved.

2MB Out Out Default

All other combinations are reserved.

3–2 AlphaPC 164LX Jumper Confi guration

3.3 Boot Option Jumper (CF7)

The boot option jumper is located at J27–23/24 (CF7). The default position for this jumper is out (Figure 3–1). This jumper selects the image to be loaded into memory from the system flash ROM. With the jumper out, the SRM Console firmware is loaded. With the jumper in, the fail-safe booter is loaded. For more informatio n about the fail-safe booter, refer to Section 8.4.

3.4 Flash ROM Update Jumper (J28)

When J28–2/3 are jumpered together (default), the flash ROM is write-enabled. When J28–1/2 are jumpered together, the flash ROM is write-protected.

Boot Option Jumper (CF7)

AlphaPC 164LX Jumper Configuration 3–3

AlphaPC 164LX Connector Pinouts

This chapter contains pinouts for all of the AlphaPC 164LX connectors. See

Figure 2–1 for connector locations.

4.1 PCI Bus Connector Pinouts

Table 4–1 shows the PCI bus connector pinouts.

Table 4–1 PCI Bus Connector Pinouts

Pin Signal Pin Signal Pin Signal Pin Signal 32-Bit and 64-Bit PCI Connectors (J16, J17, J23, J26)

A1 TRST# A2 +12V A3 TMS A4 TDI A5 Vdd A6 INTA A7 INTC A8 Vdd A9 —A10Vdd A11 — A12 Gnd

A13 Gnd A14 — A15 RST# A16 Vdd A17 GNT# A18 Gnd A19 — A20 AD[30] A21 +3V A22 AD[28] A23 AD[26] A24 Gnd A25 AD[24] A26 IDSEL A27 +3V A28 AD[22] A29 AD[20] A30 Gnd A31 AD[18] A32 AD[16] A33 +3V A34 FRAME# A35 Gnd A36 TRDY# A37 STOP# A38 STOP# A39 +3V A40 SDONE A41 SBO# A42 Gnd A43 PAR A44 AD[15] A45 +3V A46 AD[13] A47 AD[11] A48 Gnd A49 AD[09] A50 Not used A51 Not used A52 C/BE#[0] A53 +3V A54 AD[06] A55 AD[04] A56 Gnd A57 AD[02] A58 AD[00] A59 Vdd A60 REQ64# A61 Vdd A62 Vdd B1 -12V B2 TCK B3 Gnd B4 TDO B5 Vdd B6 Vdd B7 INTB B8 INTD B9 PRSNT1# B10 —

AlphaPC 164LX Connector Pinouts 4–1

PCI Bus Connector Pinouts

Table 4–1 PCI Bus Connector Pinouts (Continued)

Pin Signal Pin Signal Pin Signal Pin Signal

B11 PRSNT2# B12 Gnd B13 Gnd B14 — B15 Gnd B16 CLK B17 Gnd B18 REQ# B19 Vdd B20 AD[31] B21 AD[29] B22 Gnd B23 AD[27] B24 AD[25] B25 +3V B26 C/BE#[3] B27 AD[23] B28 Gnd B29 AD[21] B30 AD[19] B31 +3V B32 AD[17] B33 C/BE#[2] B34 Gnd B35 IRDY# B36 +3V B37 DEVSEL# B38 Gnd B39 LOCK# B40 PERR# B41 +3V B42 SERR# B43 +3V B44 C/BE#[1] B45 AD[14] B46 Gnd B47 AD[12] B48 AD[10] B49 Gnd B50 Not used B51 Not used B52 AD[08] B53 AD[07] B54 +3V B55 AD[05] B56 AD[03] B57 Gnd B58 AD[01] B59 Vdd B60 ACK64# B61 Vdd B62 Vdd

64-Bit PCI Connectors Only (J23, J26)

A63 Gnd A64 C/BE#[7] A65 C/BE#[5] A66 Vdd A67 PAR64 A68 D[62] A69 Gnd A70 D[60] A71 D[58] A72 Gnd A73 D[56] A74 D[54] A75 Vdd A76 D[52] A77 D[50] A78 Gnd A79 D[48] A80 D[46] A81 Gnd A82 D[44] A83 D[42] A84 Vdd A85 D[40] A86 D[38] A87 Gnd A88 D[36] A89 D[34] A90 Gnd A91 D[32] A92 — A93 Gnd A94 — B63 — B64 Gnd B65 C/BE#[6] B66 C/BE#[4] B67 Gnd B68 D[63] B69 D[61] B70 Vdd B71 D[59] B72 D[57] B73 Gnd B74 D[55] B75 D[53] B76 Gnd B77 D[51] B78 D[49] B79 Vdd B80 D[47] B81 D[45] B82 Gnd B83 D[43] B84 D[41] B85 Gnd B86 D[39] B87 D[37] B88 Vdd B89 D[35] B90 D[33] B91 Gnd B92 — B93 — B94 Gnd

4–2 AlphaPC 164LX Connec tor Pinouts

ISA Expansion Bus Connector Pinouts

4.2 ISA Expansion Bus Connector Pinouts

Table 4–2 shows the ISA expansion bus connector pinouts.

Table 4–2 ISA Expansion Bus Connector Pinouts (J30, J31)

Pin Signal Pin Signal Pin Signal Pin Signal

1 Gnd 2 IOCHCK# 3 RSTDRV 4 SD7 5 Vdd 6 SD6 7 IRQ9 8 SD5 9 –5V 10 SD4 11 DRQ2 12 SD3 13 –12V 14 SD2 15 ZEROWS# 16 SD1 17 +12V 18 SD0 19 Gnd 20 IOCHRDY 21 SMEMW# 22 AEN 23 SMEMR# 24 SA19 25 IOW# 26 SA18 27 IOR# 28 SA17 29 DACK3# 30 SA16 31 DRQ3 32 SA15 33 DACK1# 34 SA14 35 DRQ1 36 SA13 37 REFRESH# 38 SA12 39 SYSCLK 40 SA11 41 IRQ7 42 SA10 43 IRQ6 44 SA9 45 IRQ5 46 SA8 47 IRQ4 48 SA7 49 IRQ3 50 SA6 51 DACK2# 52 SA5 53 TC 54 SA4 55 BALE 56 SA3 57 Vdd 58 SA2 59 OSC 60 SA1 61 Gnd 62 SA0 63 MEMCS16# 64 SBHE# 65 IOCS16# 66 LA23 67 IRQ10 68 LA22 69 IRQ11 70 LA21 71 IRQ12 72 LA20 73 IRQ15 74 LA19 75 IRQ14 76 LA18 77 DACK0# 78 LA17 79 DRQ0 80 MEMR# 81 DACK5# 82 MEMW# 83 DRQ5 84 SD8 85 DACK6# 86 SD9 87 DRQ6 88 SD10 89 DACK7# 90 SD11 91 DRQ7 92 SD12 93 Vdd 94 SD13 95 MASTER# 96 SD14 97 Gnd 98 SD15 —— ——

AlphaPC 164LX Connector Pinouts 4–3

SDRAM DIMM Connector Pinouts

4.3 SDRAM DIMM Connector Pinouts

Table 4–3 shows the SDRAM DIMM connector pinouts.

Table 4–3 SDRAM DIMM Connector Pinouts (J8 through J11)1

Pin Signal Pin Signal Pin Signal Pin Signal

1 Gnd 2 DQ0 3 DQ1 4 DQ2 5 DQ3 6 +3V 7 DQ4 8 DQ5 9 DQ6 10 DQ7 11 DQ8 12 Gnd 13 DQ9 14 DQ10 15 DQ11 16 DQ12 17 DQ13 18 +3V 19 DQ14 20 DQ15 21 CB0 22 CB1 23 Gnd 24 NC 25 NC 26 +3V 27 WE 29 DQMB1 30 S0 33 A0 34 A2 35 A4 36 A6 37 A8 38 A10 39 A12 40 +3V 41 +3V 42 CK0 43 Gnd 44 NC 45 S2 49 +3V 50 NC 51 NC 52 CB2 53 CB3 54 Gnd 55 DQ16 56 DQ17 57 DQ18 58 DQ19 59 +3V 60 DQ20 61 NC 62 NC 63 CKE1 64 Gnd 65 DQ21 66 DQ22 67 DQ23 68 Gnd 69 DQ24 70 DQ25 71 DQ26 72 DQ27 73 +3V 74 DQ28 75 DQ29 76 DQ30 77 DQ31 78 Gnd 79 CK2 80 NC 81 NC 82 SDA 83 SCL 84 +3V 85 Gnd 86 DQ32 87 DQ33 88 DQ34 89 DQ35 90 +3V 91 DQ36 92 DQ37 93 DQ38 94 DQ39 95 DQ40 96 Gnd 97 DQ41 98 DQ42 99 DQ43 100 DQ44 101 DQ45 102 +3V 103 DQ46 104 DQ47 105 CB4 106 CB5 107 Gnd 108 NC 109 NC 110 +3V 111 CAS 113 DQMB5 114 S1 115 RAS 117 A1 118 A3 119 A5 120 A7 121 A9 122 BA0 123 A13 124 +3V

46 DQMB2 47 DQMB3 48 NC

31 NC 32 Gnd

28 DQMB0

112 DQMB4 116 Gnd

4–4 AlphaPC 164LX Connec tor Pinouts

EIDE Drive Bus Connector Pinouts

Table 4–3 SDRAM DIMM Connector Pinouts (J8 through J11)

Pin Signal Pin Signal Pin Signal Pin Signal

125 CK1 126 BA1 129 S3

130 DQMB6 131 DQMB7 132 PD

127 Gnd 128 CKE0

(Continued)

133 +3V 134 NC 135 NC 136 CB6 137 CB7 138 Gnd 139 DQ48 140 DQ49 141 DQ50 142 DQ51 143 +3V 144 DQ52 145 NC 146 NC 147 PD 148 Gnd 149 DQ53 150 DQ54 151 DQ55 152 Gnd 153 DQ56 154 DQ57 155 DQ58 156 DQ59 157 +3V 158 DQ60 159 DQ61 160 DQ62 161 DQ63 162 Gnd 163 CK3 164 NC 165 SA0 166 SA1 167 SA2 168 +3V

Pins 1 through 84 are on the front side and pins 85 through 168 are on the back side.

The AlphaPC 164LX uses BA1 as both BA1 and ADDR12. Therefore, four-bank DIMMs using ADDR[11:0] are the maximum size. (Two-bank DIMMs can use ADDR[12:0].)

Pull-down.

4.4 EIDE Drive Bus Connector Pinouts

Table 4–4 shows the EIDE drive bus connector pinouts.

Table 4–4 EIDE Drive Bus Connector Pinouts (J6, J7)

Pin Signal Pin Signal Pin Signal Pin Signal

1 RESET 2 Gnd 3 IDE_D7 4 IDE_D8 5 IDE_D6 6 IDE_D9 7 IDE_D5 8 IDE_D10 9 IDE_D4 10 IDE_D11 11 IDE_D3 12 IDE_D12 13 IDE_D2 14 IDE_D13 15 IDE_D1 16 IDE_D14 17 IDE_D0 18 IDE_D15 19 Gnd 20 NC (key pin) 21 MARQ 22 Gnd 23 IOW 25 IOR

26 Gnd 27 CHRDY 28 BALE

24 Gnd

29 MACK 30 Gnd 31 IRQ 32 IOCS16 33 ADDR1 34 NC 35 ADDR0 36 ADDR2 37 CS0

38 CS1 39 ACT 40 Gnd

AlphaPC 164LX Connector Pinouts 4–5

Diskette (Floppy) Drive Bus Connector Pinouts

4.5 Diskette (Floppy) Drive Bus Connector Pinouts

Table 4–5 shows the diskette (floppy) drive bus connector pinouts.

Table 4–5 Diskette (Floppy) Drive Bus Connector Pinouts (J15)

Pin Signal Pin Signal Pin Signal Pin Signal

1 Gnd 2 DEN0 3 Gnd 4NC 5 Gnd 6 DEN1 7 Gnd 8 INDEX 9 Gnd 10 MTR0 11 Gnd 12 DR1 13 Gnd 14 DR0 15 Gnd 16 MTR1 17 Gnd 18 DIR 19 Gnd 20 STEP 21 Gnd 22 WDATA 23 Gnd 24 WGATE 25 Gnd 26 TRK0 27 Gnd 28 WRTPRT 29 ID0 30 RDATA 31 Gnd 32 HDSEL 33 ID1 34 DSKCHG —— — —

4.6 Parallel Bus Connector Pinouts

Table 4–6 shows the parallel bus connector pinouts.

Table 4–6 Parallel Bus Connector Pinouts (J13)

Pin Signal Pin Signal Pin Signal Pin Signal

1 STB 2 PD0 3 PD1 4 PD2 5 PD3 6 PD4 7 PD5 8 PD6 9 PD7 10 ACK 11 BUSY 12 PE 13 SLCT 14 AFD 15 ERR 16 INIT 17 SLIN 18 Gnd 19 Gnd 20 Gnd 21 Gnd 22 Gnd 23 Gnd 24 Gnd 25 Gnd —— —— — —

4–6 AlphaPC 164LX Connec tor Pinouts

COM1/COM2 Serial Line Connector Pinouts

4.7 COM1/COM2 Serial Line Connector Pinouts

Table 4–7 shows the COM1/COM2 serial line connector pinouts.

Table 4–7 COM1/COM2 Serial Line Connector Pinouts (J4)

COM1 Pin (Top) COM1 Signal

1 DCD1 1 DCD2 2 RxD1 2 RxD2 3 TxD1 3 TxD2 4 DTR1 4 DTR2 5 SG1 5 SG2 6 DSR1 6 DSR2 7 RTS1 7 RTS2 8 CTS1 8 CTS2 9 RI1 9 RI2

COM2 Pin (Bottom) COM2 Signal

4.8 Keyboard/Mouse Connector Pinouts

Table 4–8 shows the keyboard/mouse connector pinouts.

Table 4–8 Keyboard/Mouse Connector Pinouts (J5)

Keyboard Pin (Top) Keyboard Signal

1 KBDATA 1 MSDATA 2NC 2NC 3 Gnd 3 Gnd 4 Vdd 4 Vdd 5 KBCLK 5 MSCLK 6NC 6NC

Mouse Pin (Bottom) Mouse Signal

AlphaPC 164LX Connector Pinouts 4–7

SROM Test Data Input Connector Pinouts

4.9 SROM Test Data Input Connector Pinouts

Table 4–9 shows the SROM test data input connector pinouts.

Table 4–9 SROM Test Data Input Connector Pinouts (J29)

Pin Signal Name

1NC — 2 SROM_CLK_L Clock out 3 Gnd — 4NC — 5 TEST_SROM_D_L SROM serial data in 6NC —

4.10 Input Power Connector Pinouts

Table 4–10 shows the input power connector pinouts.

Table 4–10 Input Power Connector Pinouts (J3)

Pin Voltage Pin Voltage Pin Voltage Pin Voltage

1 +3.3 V dc 2 +3.3 V dc 3 Gnd 4 +5 V dc 5 Gnd 6+5 V dc 7 Gnd 8 P_DCOK 9 5 V SB 10 +12 V dc 11 +3.3 V dc 12 –12 V dc

13 Gnd 14 PS_ON 15 Gnd 16 Gnd 17 Gnd 18 –5 V dc 19 +5 V dc 20 +5 V dc

This pinout is ATX-compliant.

4.11 Enclosure Fan Power Con nector Pinouts

Table 4–11 shows the enclosure fan power connector pinouts.

Table 4–11 Enclosure Fan (+12 V dc) Power Connector Pinouts (J2, J19)

Pin Voltage

1 Gnd 2 +12 V dc 3 Gnd

4–8 AlphaPC 164LX Connec tor Pinouts

Speaker Connector Pinouts

4.12 Speaker Connector Pinouts

Table 4–12 shows the speaker connector pinouts.

Table 4–12 Speaker Connector Pinouts (J20)

Pin Signal Name

1 SPKR Speaker output 2 Gnd —

3 Gnd — 4 Gnd —

4.13 Microprocessor Fan Power Connector Pinouts

Table 4–13 shows the microprocessor fan power connector pinouts.

Table 4–13 Microprocessor Fan Power Connector Pinouts (J18)

Pin Signal Name

1 +12 V dc — 2 FAN_CONN_L Fan connected 3 Gnd —

4.14 Power LED Connector Pinouts

Table 4–14 shows the power LED connector pinouts.

Table 4–14 Power LED Connector Pinouts (J24)

Pin Signal Name

1 POWER_LED_L Power LED input 2 Gnd —

3NC — 4NC — 5NC —

AlphaPC 164LX Connector Pinouts 4–9

EIDE Drive LED Connector Pinouts

4.15 EIDE Drive LED Connector Pinouts

Table 4–15 shows the EIDE drive LED connector pinouts.

Table 4–15 EIDE Drive LED Connector Pinouts (J25)

Pin Signal Name

1 HD_ACT_L Hard drive active 2 HD_LED_L Hard drive LED input

4.16 Reset Button Connector Pinouts

Table 4–16 shows the reset button connector pinouts.

Table 4–16 Reset Button Connector Pinouts (J21)

Pin Signal Name

1 RESET_BUTTON Reset system 2 Gnd —

4.17 Halt Button Connector Pinouts

Table 4–17 shows the halt button connector pinouts.

Table 4–17 Halt Button Connector Pinouts (J22)

Pin Signal Name

1 HALT_BUTTON Halt system 2 Gnd —

Note: The Halt button is not used with the Windows NT operating system.

4.18 Soft Power Connector Pinouts

Table 4–18 shows the soft power connector pinouts.

Table 4–18 Soft Power Connector Pinouts (J1)

Pin Signal Name

1 Input System power on/off 2 Gnd —

4–10 AlphaPC 164LX Connector Pinouts

Memory and Microprocessor Configuration

For higher system speed or greater throughput, you can upgrade SDRAM memory by replacing DIMMs with those of greater size.

When configuring or upgrading SDRAM, observe the following rules:

• Each DIMM must be a 168-pin unbuffered version and have a frequency of

100 MHz.

• All DIMMs must be of equal size if they are in the same bank.

5.1 Configuring SDRAM Memory

Although not an exhaustive list, Table 5–1 lists the tested SDRAM memory configurations available.

For a list of vendors who supply components and accessories for the AlphaPC 164LX, see Appendix A.

Refer to Figure 2–1 for DIMM connector locations.

Note: 1Mb × 72 is not supported.

Memory and Microprocessor Configuration 5–1

Upgrading SDRAM Memory

Table 5–1 AlphaPC 164LX SDRAM Memory Configurations

Bank 0 Bank 1

Total Memory J8 J9 J10 J11

32MB 2Mb X 72 2Mb X 72 —— 64MB 2Mb

96MB 4Mb 128MB 4Mb

160MB 8Mb 192MB 8Mb 256MB 8Mb

512MB 16Mb

X 72 2Mb X 72 2Mb X 72 2Mb X 72 X 72 4Mb X 72 — —

4Mb

X 72 4Mb X 72 2Mb X 72 2Mb X 72 X 72 4Mb X 72 4Mb X 72 4Mb X 72 X 72 8Mb X 72 — —

8Mb

X 72 8Mb X 72 2Mb X 72 2Mb X 72 X 72 8Mb X 72 4Mb X 72 4Mb X 72 X 72 8Mb X 72 8Mb X 72 8Mb X 72

X 72 16Mb X 72 — —

16Mb

X 72 16Mb X 72 16Mb X 72 16Mb X 72

5.2 Upgrading SDRAM Memory

You can upgrade memory in the AlphaPC 164LX by adding more DIMMs or replacing the ones that you have with a greater size. Refer to Figure 2–1 for DIMM

connector locations. Use the following general guidelines:

1. Observe antistatic precautions. Handle DIMMs only at the edges to prevent damage.

2. Remove powe r from the sy stem.

3. Open levers and align the DIMM.

4. Firmly push the module into the con nector. Ensure that the DIMM s naps into the plastic locking levers on both ends.

5. Restore power to the system.

5–2 Memory and Microprocessor Configuration

Increasing Microprocess o r Speed

5.3 Increasing Microprocessor Speed

This section describes how to complete the following actions to increase microprocessor speed:

• Replace the Alpha 21164 microprocessor with an Alpha chip that has a higher

speed rating.

• Reconfigure the clock divisor jumpers.

5.3.1 Preparatory Information

Caution: Static-Sensitive Component – Due to the sensitive nature of electronic

components to static electricity, anyone handling the microprocessor must wear a properly grounded antistatic wriststrap. Use of antistatic mats, ESD approved workstations, or exercising other good ESD practices is recommended.

An Alpha 21164 microprocessor with a higher speed rating is available from your local distributor. See Appendix A for information about supporting products.

When replacing the microprocessor chip, also replace the thermal conducting GRAFOIL pad. See Appendix A for information about the parts kit, which includes the heat sink, GRAFOIL pad, two hex nuts, heat-sink clips, 60-mm fan, fan guard, and four screws.

5.3.2 Required Tools

The following tools are required when replacing the microprocessor chip: A TS30 manual nut/torque driver (or equivalent) with the following attachments is

required to affix the heat sink and fan to the microprocessor’s IPGA package:

• 1/4-inch hex bit

• 7/16-inch socket with 1/4-inch hex drive

• #2 Phillips-head screwdriver bit

Memory and Microprocessor Configuration 5–3

Increasing Microprocessor Speed

5.3.3 Removing the 21164 Microprocessor

Remove the microprocessor currently in place at location U40 by performing the following st eps:

1. Unplug the fan power/sensor cable from connector J18 (see Figure 2–1).

2. Remove the four 6-32

X 0.875-inch screws that secure the fan and fan guard to

the heat sink.

3. Remove the fan and fan guard.

4. If the sink/chip/fan clip is used, remove it by unhook ing its end s from around t he ZIF socket retainers.

5. Using a 7/16-inch socket, remove the two nuts securing the heat sink to the microprocessor studs.

6. Remove the heat sink by gently lifting it off the microprocessor.

7. Remove and discard the GRAFOIL heat conduction pad.

8. Thoroughly clean the bottom surface of the heat sink before affixing it to the new microprocessor.

9. Lift the ZIF socket actuator handle to a full 90° angle.

10. Remove the microprocessor chip by lifting it straight out of the socket.

5.3.4 Installing the 21164 Microprocessor

Install the new microprocessor in location U40 by performing the following steps:

Note: Install the heat sink only after the microprocessor has been assembled to

the ZIF socket.

1. Observe ant istatic precautions.

2. Lift the ZIF socket actuator handle to a full 90° angle.

3. Ensure that all the pins on the microprocessor package are straight.

4. The ZIF socket and microprocessor are keyed to allow for proper installation. Align the microprocessor, with its missing AD01 pin, with the corresponding plugged AD01 position on the ZIF socket. Gently lower into position.

5. Close the ZIF socket actuator handle to its locked position.

5–4 Memory and Microprocessor Configuration

Increasing Microprocess o r Speed

6. Install the heat sink and heat-sink fan as directed in the following steps. A heatsink/fan kit is available from the vendor listed in Appendix A. Refer to

Figure 5–1 for heat-sink and fan assembly details.

Figure 5–1 shows the Fan/Heat-Sink Assembly on AlphaPC 164LX.

Figure 5–1 Fan/Heat-Sink Assembly

Screw, 6-32 x 0.875 in Qty 4

Guard, Fan

Fan

Clip, Heat Sink/Chip/Fan

Nut, Hex, 1/4-20, 2011-T3 Aluminum, 0.438 in Across Flats, Qty 2 Torque to 20 +/- 2 in-lbs

Heat Sink, with Fan Mounting Holes

Thermal Pad

Airflow

Alpha 21164

FM-06013.AI4

a. Put the GRAFOIL thermal pad in place. The GRAFOIL pad is used to

improve the thermal conductivity between the chip package and the heat sink by replacing micro air pockets with a less insulative material. Perform the following steps to position the GRAFOIL pad:

1. Perform a visual inspection of the package slug to ensure that it is free of contamination.

2. Wearing clean gloves, pick up the GRAFOIL pad. Do not perform this with bare hands because skin oils can be transferred to the pad.

Memory and Microprocessor Configuration 5–5

Increasing Microprocessor Speed

3. Place the GRAFOIL pad on the gold-plated slug surface and align it with the threaded studs.

b. Attach the microprocessor heat sink. The heat-sink material is clear anod-

ized, hot-water-sealed, 6061-T6 aluminum. The nut material is 2011-T3 aluminum (this grade is critical). Perform the following steps to attach the heat sink:

1. Observe antistatic precautions.

2. Align the heat-sink holes with the threaded studs on the ceramic package.

3. Handle the heat sink by the edges and lower it onto the chip package, taking care not to damage the stud threads.

4. Set a calibrated torque driver to 20 in-lbs, ±2 in-lbs (2.3 Nm, ±0.2 Nm). The torque driver should have a mounted 7/16-inch socket.

5. Insert a nut into the 7/16-inch socket, place on one of the studs, and tighten to the specified torque. Repeat for the second nut.

6. If the sink/chip/fan clip is used, properly install it by positioning it over the assembly and hooking its ends around the ZIF socket retainers.

c. Attach the heat-sink fan assembly:

1. Place the fan assembly on top of the heat sink, aligning the fan mounting holes with the corresponding threaded heat-sink holes. Align the fan so that the fan power/sensor wires exit the fan closest to connector J18 (see Figure 2–1). Fan airflow must be directed into the heat sink (fan label facing down toward the heat sink).

2. Place the fan guard on top of the fan. Orient the guard so that the corner mounting areas lay flush against the heat sink.

3. Secure the fan and fan guard to the heat sink with four 6-32 screws.

4. Plug the fan power/sensor cable into connector J18.

Important: When installing the microprocessor, you must change the frequency of

its clock output by set ting the syste m clock diviso r jumpers, as desc ribed in Section 3.1.

5–6 Memory and Microprocessor Configuration

X 0.875-inch

This section lists the system and I/O interrupt assignments. It also lists the physical AlphaPC 164LX I/O space assignments.

6.1 Interrupts

Table 6–1 lists each AlphaPC 164LX ISA interrupt and its source.

Table 6–1 ISA Interrupts

Interrupt Number Interrupt Source

IRQ0 Internal timer 1 IRQ1 Keyboard IRQ2 Interrupt from controller 2 IRQ3 COM2 IRQ4 COM1 IRQ5 Available

Interrupts and ISA Bus Addresses

IRQ6 Diskette (floppy) IRQ7 Parallel port

IRQ8# IRQ9 Available IRQ10 Available IRQ11 Available IRQ12 Mouse

Reserved

Interrupts and ISA Bus Addresses 6–1

ISA I/O Address Map

Table 6–1 ISA Interrupts (Continued)

Interrupt Number Interrupt Source

IRQ13 Available IRQ14 EIDE IRQ15 EIDE

The # symbol indicates an active low signal.

6.2 ISA I/O Address Map

Table 6–2 lists the AlphaPC 164LX ISA I/O space address mapping.

Table 6–2 ISA I/O Address Map

Range (hex) Usage

000-00F 8237 DMA #1 020-021 8259 PIC #1 040-043 8253 timer 060-061 Ubus IRQ12 and NMI control 070 CMOS RAM address and NMI mask register 080-08F DMA page registers 0A0-0A1 8259 PIC #2 0C0-0DF 8237 DMA #2 2F8-2FF Serial port—COM2

370-377 Secondary diskette (floppy) 3BC-3BF Parallel port—LPT1 3F0-3F7 Primary diskette (floppy) 3F8-3FF Serial port—COM1 800 FLASH_ADR19 register 801 AlphaPC 164LX configuration register 804-806 PCI interrupt registers

6–2 Interrupts and ISA Bus Addresses

6.2.1 Flash ROM Address Map

The address range for the flas h ROM is FFF8.00 00–FFFF.FFFF . Flash spa ce of 1MB is obtained by double mapping this 512KB space. FLASH_ADR19 register at I/O location 800 512KB of flash. Writing a 1 to this location enables the upper 512KB of flash.

provides th is function. Writing a 0 to this location enables the lower

ISA I/O Address Map

Interrupts and ISA Bus Addresses 6–3

Alpha SRM Console Firmware

The Alpha SRM Console firmware initializes the system and enables you to install and boot the T ru64 UNIX operat ing system. This fi rmware re sides i n the fla sh ROM on the AlphaPC 164LX motherboard.

7.1 Alpha SRM Console Firmware Conventions

The following conventions are used in this section:

Convention Description

>>>

Backslash (\) at the end of a line Continuation symbo l to c ontinu e lo ng co mmands

Maximum command length 255 characters. Multiple contiguous spaces or tabs Treated as a single space. Command abbreviations Allowed, if not ambiguous. Command qualifiers or options Prefix with a space and a dash (-). Numbers Hexadecimal, unless otherwise specified.

Alpha SRM Console prompt.

on the next line. Continuation line prompt.

(Registers, such as R0–R31, are shown in decimal notation.)

Alpha SRM Console Firmware 7–1

Alpha SRM Console Firmware Conventions

The following table lists Alpha SRM Conso le special keys and their functions . These special keys, also referred to as shortcut keys, provide command recall, line editing, and basic input/output control flow.

Shortcut Key Function

Enter Backspace or

Delete Ctrl/A Ctrl/B

Up arrow Down arrow

Ctrl/C Ctrl/D

Left arrow Ctrl/E Ctrl/F

Right arrow Ctrl/H Ctrl/O Ctrl/Q Ctrl/R Ctrl/S Ctrl/U

Terminate the command line input. Delete one character to the left of the cursor.

Toggles insert/overstrike mode. (Overstrik e is the default.) Recall previous commands. (The last 16 commands are

stored.)

Terminate the foreground process. Move the cursor one position to the left.

Move the cursor to the end of the line. Move the cursor one position to the right.

Move the cursor to the beginning of the line. Suppress or resume (toggle) console output. Resume the flow (XON) of data to the console. Retype the current command line. Stop the flow (XOFF) of data to the console. Delete the entire line.

7–2 Alpha SRM Console Firmware

Basic Alpha SRM Console Command Descriptions

7.2 Basic Alpha SRM Console Command Descriptions

This section describes the following basic Alpha SRM Console commands that are necessary to boot the Tru64 UNIX operating system:

• arc

• boot

• deposit

• examine

• fwupdate

• set

• show

The Alpha SRM Console offers additional commands. For a complete list of Alpha SRM Console commands, enter

help at the Alpha SRM Console prompt (>>>).

Alpha SRM Console Firmware 7–3

Basic Alpha SRM Console Command Descriptions

arc

Loads and runs the AlphaBIOS firmware update utility from a diskette.

Syntax

arc nt

Arguments

None

Options

None

Description

None

Examples

Either of the following commands load and run the AlphaBIOS firmware update utility from a diskette:

>>>arc

>>>nt

7–4 Alpha SRM Console Firmware

boot

Syntax

Arguments

Options

Basic Alpha SRM Console Command Descriptions

Initializes the processor, loads a program image from the specified boot device, and transfers control to the loaded image.

boot [-file <filename>] [-flags <longword>[,<longword>]] [-protocols <enet_protocol>] [-halt] [<boot_device>]

<boot_device>

A device path or list of devices from which the firmware will attempt to boot. Use the set bootdef_dev command to set an environment variable that specifies a default boot device.

boot Command Option Description

-file <filename>

-flags

<longword> [,<longword>]

-protocols <enet_protocol>

-halt

Specifies the name of a file to load into the system. Use the set boot_file command to set the environment variable that specifies a default boot file.

Specifies additional information for the operating system. For Tru64 UNIX systems, the following values may be used:

Use the set boot_osflags command to set an environment variable that specifies a default boot flag value.

Specifies the Ethernet protocols that will be used for a network boot. Values may be mop or bootp.

Forces the bootstrap operation to halt and invoke the console program after the image is loaded and the page tables and other data structures are set up.

i = Interactive boot s = Boot to single user a = Autoboot to multiuser

Alpha SRM Console Firmware 7–5

Basic Alpha SRM Console Command Descriptions

Description

The boot command initiali zes the processor , l oa ds a pr ogr am i ma ge from the specified boot device, and transfers control to that image. If you do not specify a boot device in the command line, the default boot device is used. The default boot device is determined by the value of the bootdef_dev environment variable.

If you specify a list of devices, a bootstrap is attempted from each device in th e order in wh ich the device is listed. Then control passes to the first successfully booted image. In a list, always enter network devices last because network bootst raps t ermi nate on ly if a fa tal er ror occurs or if an image is successfully loaded.

The -flags option can pass additional information to the operating system about the boot that you are requesting. On an OpenVMS system, the -flags option specifies the system root number and boot flags. If you do not specify a boot flag qualifier, the def aul t bo ot flag’s value specified by the boot_osflags environment variable is used.

The -protocols option allows selection of either the DECnet MOP or the TCP/IP BOOTP network protocols. The keywords mop and bootp ar e valid ar guments for th is option. It is possible to set the default protocol for a port by setting the environment variable ewa0_protocols or era0_protocols to the appropriate protocol.

Explicitly stating the boot flags or the boot device overrides the current default value for the curr ent boo t requ est, bu t d oes not chang e the corresponding environment variable.

See the Environment Variables for Alpha SRM Console Commands section in this chapter for more information about environment variables.

7–6 Alpha SRM Console Firmware

Basic Alpha SRM Console Command Descriptions

Examples

boot Command Example Description

>>>boot >>>boot ewa0 >>>boot -file dec2.sys ewa0

>>>boot -protocol bootp ewa0

>>>boot -flags 0,1

>>>boot -halt dka0

Boots the system fr om t he def a ul t boot device. Boots the system from Ethernet port ewa0. Boots the file named dec2.sys from Ethernet

port ewa0. Boots the system using the T CP/IP BOOTP

protocol from Ethernet port ewa0. Boots the system from the defau lt bo ot device

using flag setting 0,1. Loads the bootstrap image from disk dka0,

halts the bootstrap operation, and invokes the console program. Subsequently, you can enter continue to transfer control to the operating system.

Alpha SRM Console Firmware 7–7

Basic Alpha SRM Console Command Descriptions

deposit

Writes data to the specified address.

Syntax

deposit [-{b,w,l,q,o,h}] [{physical, virtual, gpr, fpr, ipr}] [-n <count>] [-s <step>] [<device>:]<address> <data>

Arguments

<device>: The optional device name (or address space) selects the device to

access. The following platform-independent devices are supported:

• pmem

Physical memory.

• vmem

Virtual memory. All access and protection checking occur. If the access is not allowed to a program running with the current processor stat us (PS), the console issu es an error message. If memory mapping is not enabled, virtua l addresses are equal to physical addresses.

<address> An address t hat specifies the offset within a device into w hich data is deposited. The address may be any legal symbolic address.

Valid symbolic addresses are shown in the following table.

Symbolic Address Description

gpr-name ipr-name PC +

7–8 Alpha SRM Console Firmware

Represents general-purpose register. Represents internal processor register. Program counter. The location immediately following the last location referenced by

examine or deposit.

Basic Alpha SRM Console Command Descriptions

Symbolic Address Description

The location immediately preceding the last location referenced by

examine or deposit.

* @

The location last referenced by examine or deposit. The location addressed by the last location referenced by examine or

deposit.

<data>

The data to be deposited.

Options

deposit Command Option Description

-b

-w

-l

-q

-o

-h

Specifies data type is byte. Specifies data type is word. Specifies data type is longword. Specifies data type is quadword. Specifies data type is octaword. Specifies data type is hexword.

-physical

-virtual

-gpr

-fpr

-ipr

-n <count>

-s <step>

References physical address space. References virtual address space. References general-purpose register address space. References floating-point register address space. References internal processor register address space. Specifies the number of consecutive locations to

examine. Specifies the address increment as a hexadecimal value.

This option allows you to override the increment that is normally derived from the data size.

Alpha SRM Console Firmware 7–9

Basic Alpha SRM Console Command Descriptions

Description

The deposit command writ es dat a to th e speci fied addres s, such a s a memory location, register, device, or file. The defaults for address space, data size, and address are the last specified values. After initialization, the defau lt for address space is physical memory; for data size, the default is a quadword; and for address, the default is zero.

An address or device can be specified by concatenating the device name with the address. For example, use pmem:0 and specify the size of the address space to be written. If a conflicting device, address, or data size is specified, the console ignores the command and issues an error response.

Examples

deposit Command Example Description

>>>d -n 1ff pmem:0 0

>>>d -l -n 3 pmem:1234 5

>>>d -n 8 r0 ffffffff >>>d -l -n 10 -s 200 pmem:0 8

7–10 Alpha SRM Console Firmware

Clears the first 512 bytes of physical memory.

Writes the value 5 into four longwords, starting at physical memory address 1234.

Loads GPRs R0 through R8 wit h -1. Writes the value 8 in the first longword of

the first 17 pages in physical memory.

examine

Syntax

Arguments

Options

Basic Alpha SRM Console Command Descriptions

Displays the contents of the specified address.

examine [-{b,w,l,q,o,h,d}] [-{physical, virtual, gpr, fpr, ipr}] [-n <count>] [-s <step>] [<device>:]<address>

<device>:

The optional device name (or address space) selects the device to access.

The address specifies the first location to examine within the current device. The address can be any legal address specified.

examine Command Option Descript ion

-b

-w

-l

-q

-o

-h

-d

-physical

-virtual

-gpr

-fpr

Specifies data type is byte. Specifies data type is word. Specifies data type is longword. Specifies data type is quadword. Specifies data type is octaword. Specifies data type is hexword. Specifies the data displayed is the decoded macro

instruction. The Alpha inst ru cti on deco de (- d) does no t recognize machine-specific PALcode instructions.

References physical address space. References virtual address space. References general-purpose register address space. References floating-point register address space.

Alpha SRM Console Firmware 7–11

Basic Alpha SRM Console Command Descriptions

examine Command Option Descript ion

-ipr

-n <count>

-s <step>

Description

References internal processor register address space. Specifies the number of consecutive locations to

examine. Specifies the address increment as a hexadecimal value.

This option allows you to override the increment that is normally derived from the data size.

The examine command displays the contents of the speci fi ed address, such as a memory location, register, device, or file. The defaults for address space, data siz e, and address ar e the last speci fied values. After initialization, the default for address space is physical memory; for data size, the default is a quadword; and for address, the default is zero.

An address or device can be specified by concatenating the device name with the address. For example, use pmem:0 and specify the size of the address space to be displayed. If a conflicting device, address, or data size is specified, the console ignores the command and issues an error response.

The display line cons ists of t he device name, the he xadecimal address (or offset within the device), and the examined data (also in hexadecimal).

The examine command suppo rts the s ame op tions as the deposit command. Additionally , the examine command supports instruc tion decoding with the -d option, which disassembles instructions beginning at the current address.

7–12 Alpha SRM Console Firmware

Basic Alpha SRM Console Command Descriptions

Examples

examine Command Example Display Description

>>>e r0 gpr: 0 (R0) 0000000000000002

>>>e -g 0 gpr: 0 (R0) 0000000000000002

>>>e grp:0 gpr: 0 (R0) 0000000000000002

>>>examine -n 5 r7 gpr: 38 (R7) 0000000000000000

gpr: 40 (R8) 0000000000000000 gpr: 48 (R9) 0000000000000000 gpr: 50 (R10) 000000007FFBF800 gpr: 58 (R11) 000000007FF781A2 gpr: 60 (R12) 0000000000000000

>>>examine ipr:11 ipr 11 (KSP) FFFFFFFF8228DFD0

Examines the contents of R0, using a symbolic address.

Examines the contents of R0, using address space.

Examines the contents of R0, using a device name.

Examines the contents of R7 and the next f i ve registers.

Examines the contents of internal processor register 11.

Alpha SRM Console Firmware 7–13

Basic Alpha SRM Console Command Descriptions

fwupdate

Loads and runs the AlphaBIOS firmware update utility from a diskette.

Syntax

fwupdate

Arguments

None

Options

None

Description

The fwupdate command script is used to load and run the AlphaBIOS firmware update utility from a diskette. The file fwupdate.exe is extracted from a diskette with a FAT file structure. This executable is then loaded to physical address 900000 and is executed in PALmode.

Examples

The following fwupdate command script loads and runs the AlphaBIOS firmware update utility from a diskette:

>>>fwupdate

7–14 Alpha SRM Console Firmware

Basic Alpha SRM Console Command Descriptions

set

Sets or modifies the value of an environment variable.

Syntax

set <envar> <value> [-default] [-integer] [-string]

Arguments

<envar>

The environment variable to be assigned a new value.

<value>

The value that is assi gned to the env ironment variable . It can be ei ther a numeric value or an ASCII string.

Options

set Command Option Description

-default

-integer

-string

Description

Restores an environment variable to its default valu e. Creates an environment variable as an integer. Creates an environment variable as a string.

The set command is used to set or modify the value of an environment variable. Environment variables are used to pass configuration information between the console and the operating system. See Section 7.3 for more information about environment variables.

Alpha SRM Console Firmware 7–15

Basic Alpha SRM Console Command Descriptions

Examples

set Command Example Description

>>>set bootdef_dev ewa0 >>>set auto_action boot

>>>set boot_osflags 0,1 >>>set foobar 5

Modifies the default boot device to ewa0. Attempts to boot the operating system following an

error, halt, or power-up. Modifies the default boot flags to 0,1. Creates an environment variable called foobar and

gives it a valu e of 5.

7–16 Alpha SRM Console Firmware

Basic Alpha SRM Console Command Descriptions

show

Displays the current value of the specified environment variable or information about the system.

Syntax

show [{config, device [device_name], iobq, hwrpb, map, memory, pal, version, <envar>...}]

Arguments

show Command Argument Description

config

device [device name]

iobq hwrpb map memory pal version <envar>

Options

None

Description

Displays the current memory configuration, PCI logical slots, and ISA logical slots.

Displays the devices and controllers in the system. Specifying a device name returns information on that device only.

Displays the input/output counter blocks. Displays the hardware restart parameter block. Displays the system virtual memory map. Displays the memory module configuration. Displays the version of Tru64 UNIX PALcode. Displays the version of the console. Displays the current value of a specified environment

variable.

The show command displays information about the system and the current value of a speci fied environme nt variable. See

Section 7.3 for

more information about environment variables.

Alpha SRM Console Firmware 7–17

Environment Variables for Alpha SRM Console Commands

Examples

show Command Example Description

>>>show device dka0.0.0.6.0 DKA0 RZ26L 441A dka400.4.0.6.0 DKA400 RRD43 3213 dva0.0.0.0.1 DVA0 ewa0.0.0.12.0 EWA0 08-00-2B-E2-1C-25 pka0.7.0.6.0 PKA0 SCSI Bus ID 7

>>>show memory 48 Meg of System Memory

>>>show * (refer to Section 7.3)

>>>show boot* (refer to Section 7.3)

Lists device information, such as system designation, drive model, or Ethernet address.

Lists system random-access memory (RAM) size.

Lists all environment variables and their settings.

Lists all environment variables, beginning with boot.

7.3 Environment Variables for Alpha SRM Console Commands

This section describes environment variables that are used to define the system operational state and to pass information between the firmware and the operating system.

7.3.1 Environment Variable Descriptions

Environment variables are classified as either Alpha SRM Console architecturerequired or system-defined.

7–18 Alpha SRM Console Firmware

Environment Variables for Alpha SRM Console Commands

7.3.1.1 Architecture-Required Environment Variables

The following table shows common Alpha SRM Console architecture-required environment variables and their descriptions. For a complete list, enter show * at the Alpha SRM Console prompt.

Architecture-Required Environment Variable Description

auto_action

boot_file

boot_osflags

bootdef_dev

When used with the set or show command, this variable modifies or displays the console action that follows an error, halt, or power-up. The action can be halt, boot, or restart. The default is halt.

When used with the set or show command, this variable modifies or displays the file name to be used when a bootstrap requires a file name. The default is null.

When used with the set or show command, this variable modifies or displays the additional parameters to be passed to system software. The default is 0.

When used with the set or show command, this variable modifies or displays the default device or device list from which the system will attempt to boot. If the system software is preloaded, the variable is preset to point to the device containing the preloaded software. The default is null.

Alpha SRM Console Firmware 7–19

Environment Variables for Alpha SRM Console Commands

7.3.1.2 System-Defined Environment Variables

The following table shows common Alpha SRM Console system-defined environment variables and their descriptions. For a complete list, enter show * at the Alpha SRM Console prompt.

System-Defined Environment Variable Description

console

control_scsi_term ewa0_mode

os_type

pci_parity

oem_string

When used with the set command, this variable modifies the console output to either the serial port or the graphics controller.

This variable is unused in the motherboard system. This variable determines if the AUI (ThinWire) or the

twisted-pair Ethernet ports will be enabled. AUI is the default. (Autosensing is not supported.)

When used with the set or show command, this variable modifies or displays the specified firmware that will be loaded on the next power cycle. Specify the value osf or UNIX to select the Alpha SRM Console.

This variable controls PCI parity checking. The possible values are:

on = Parity checking is enabled. off = Parity checking is disabled; this is the

default.

sniff = Parity checking is enabled or disabled

depending on the PCI device.

When used with the set or show command, this variable modifies or displays a text string that identifies the product name in the Alph a SRM Console ban ne r.

7–20 Alpha SRM Console Firmware

Environment Variables for Alpha SRM Console Commands

System-Defined Environment Variable Description

language n

The language environment variable assigns language n to the system (wher e n is the option number of a language listed in the menu that follows). Use the following procedure to select the language:

1. At the Alpha SRM Console prompt, enter the following commands:

>>>set language 0 >>>init

The following menu and prompt are displayed:

Language

=======================================

0 none (display menu) 40 Français (Suisse Romande) 30 Dansk 42 Italiano 32 Deutsch 44 Nederlands 34 Deutsch (Schweiz) 46 Norsk 36 English (American) 48 Portugues 38 English (British/Irish) 4A Suomi 3A Español 4C Svenska 3C Français 4E Vlaams 3E Français (Canadian)

(1..16):

2. Enter the number that corresponds to the language that you want to use. The following example shows how to assign the English (American) language to the system:

(1..16):36

3. When you receive a message to reset the system, power-cycle the system.

Alpha SRM Console Firmware 7–21

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

7.4 Using the AlphaBIOS Firmware Update Utility to Update

the Flash ROM

Use the AlphaBIOS firmware update utility to update the firmware in a flash ROM.

7.4.1 AlphaBIOS Conventions

AlphaBIOS uses universally accepted keys and key combinations for navigating the interface and selecting items. If you are familiar with MS-DOS or Microsoft Windows keyb oard conventions, navigating AlphaBIOS is simple. Use the keys and key combinations shown in Table 7–1 when navigating and selecting items in

AlphaBIOS.

Table 7–1 AlphaBIOS Keys

Key or Key Combination Description

Tab Move highlight forward between fields of a dialog. Shift + Tab Move highlight backwards between fields of a dialog. ↓ or ↑ Move highlight with in a menu, or cycle thr oug h availabl e field

values in a dialog window.

Alt + ↓ Drop down a menu of choices from a drop-down listbox. A

Home Move to the beginning o f a text-entry f i eld. End Move to the end of a text-entry field. ← or → Move to the left or right in a text-entry field. Esc Discard changes and back up to previous screen.

Two levels of keyboard help are available:

• Press F1 once to display explanations of the keystrokes available for the

currently displayed part of AlphaBIOS.

• Press F1 twice t o displ ay expla nat ions of the keys trokes ava ilabl e for nav igati ng

throughout AlphaBIOS.

7–22 Alpha SRM Console Firmware

drop-down listbox can be recognized by the symbol ⇓.

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

7.4.2 Starting the AlphaBIOS

To start the AlphaBIOS, follow this procedure:

1. Insert the AlphaBIOS diskette into diskette drive A.

2. At the Alpha SRM Console prompt, enter the following command:

>>>fwupdate

Note:

Because the firmware update utility reinitializes some system components, it may appear as if your system is restarting.

Figure 7–1 shows an example of the AlphaBIOS Boot screen with the “Press <F2> to enter SETUP” message at the bottom.

Figure 7–1 AlphaBIOS Boot Screen

AlphaBIOS Version 5.60

Please select the operating system to start:

Windows NT Workstation 4.00

Press Enter to choose.

digital

Press <F2> to enter SETUP

3. Press F2 to start the AlphaBIOS setup p rogram.

Alpha SRM Console Firmware 7–23

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

7.4.3 Installing Alpha SRM Console Using AlphaBIOS Setup Program

Figure 7–2 shows an example of the AlphaBIOS Setup screen. Select the AlphaBIOS Upgrade... option by using the arrow or Tab keys.

Figure 7–2 AlphaBIOS Setup Screen

Press Enter to begin installing the SRM Console firmware image.

7–24 Alpha SRM Console Firmware

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

Figure 7–3 shows an example of the AlphaBIOS Upgrade Options screen. If more than one image is found, the new image's name is displayed. If the name of the new image is not SRM Console, use the down arrow key to cycle through the available field values until SRM Console is displayed.

Figure 7–3 AlphaBIOS Upgrade Options Screen

Press Enter to continue the installation.

Alpha SRM Console Firmware 7–25

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

Figure 7–4 shows an example of th e AlphaBIOS scre en that warn s you that you ha ve selected to switch the operating system.

Figure 7–4 AlphaBIOS Warning Screen

Press Enter to continue the installation.

7–26 Alpha SRM Console Firmware

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

A screen similar to Figure 7–5 is displayed. The version numbers shown on your screen may be different than those shown in Figure 7–5.

Figure 7–5 AlphaBIOS Upgrade SRM Console Screen

Press F10 to continue the installation.

Alpha SRM Console Firmware 7–27

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

Figure 7–6 shows an example of the AlphaBIOS Upgrade Complete screen.

Figure 7–6 AlphaBIOS Upgrade Complete Screen

To load the SRM Console, power-cycle the system.

7–28 Alpha SRM Console Firmware

Installing the Tru64 UNIX Operating System

7.5 Installing the Tru64 UNIX Operating System

Note: The DIGITAL UNIX product name has been changed to Tru64 UNIX.

Some references to older documentation titles use the DIGITAL UNIX product name.

Note: Tru64 UNIX Version 4.0D is the minimum revision required for the

AlphaPC 164LX motherboard system.

This section supplements the DIGITAL UNIX Installation Guide for installing the Tru64 UNIX operating system on an A lph aPC 164 LX m otherboa rd sy stem.

Note: If you already have a previous version of Tru64 UNIX installed, see the

DIGIT AL UNIX I nstallati on Guide for i nformation on h ow to upgr ade to a new version of the operating system. Be sur e to revi ew the preinst alla tion tasks, which are covered in the DIGITAL UNIX Installation Guide.

7.5.1 Requirements

You need the following hardware and software to install the Tru64 UNIX operating system on an AlphaPC 164LX motherboard system:

• A minimum of 32MB of main memory; 64MB is recommended

• A 1GB (or larger) SCSI or EIDE hard disk capable of storing the supported

software s ubsets

• Supported load devices

– SCSI CD–ROM drive capable of reliably reading in 512-byte block mode

– EIDE (ATAPI) CD–ROM drive

– A network interface

• A console terminal with ASCII capability or a supported graphics display

console

• Tru64 UNIX Version 4.0D or higher Operating System Volume 1 compact disc

• Alpha SRM Console Version 4.9 or higher

Alpha SRM Console Firmware 7–29

This chapter contains information about troubleshooting hardware and software during AlphaPC 164LX startup.

8.1 Hardware Startup

Use the following troubleshooting steps if video is not working on your system. If you still have no video after reviewing these steps, please call your system vendor.

Troubleshooting Steps: No Video

1. Check the connection to the ac outlet.

2. Check the voltage setting on the power supply (115 V ac in the U.S.).

3. Check that the frequency/jumper selection matches the speed of the Alpha chip.

4. Check that the oscillator is installed into the motherboard correctly.

5. Check that the CPU fan is connected and spinning.

6. Ensure that the flash ROM update procedure was performed correctly. If you have a terminal attached to COM1, check the output for error messages after verifying that the flash ROM update procedure was performed correctly.

Troubleshooting

7. Reseat the video card and ensure that it is connected to the monitor.

8. Reseat the DIMMs.

9. Replace the DI MMs.

Troubleshooting 8–1

Beep Codes

8.2 Beep Codes

The beep codes provide error information about the AlphaPC 164LX system. Table

8–1 lists and describes the beep codes.

Table 8–1 Beep Codes

Beep Code Description

1–2–31 4 No valid header found in ROM; loading entire ROM. 5 No memory found. 6 Checksum error detected when image was read back from memory.

One beep and a pause, followed by two beeps and a pause, followed by three b eeps.

8.3 Post Codes

The post codes indicate the progress of the SROM and SRM Console firmware. Table 8–2 lists and describes the post codes.

Table 8–2 Post Codes

Source

SROM 00 Firmware initialization is complete

This sequence represents the fail-safe booter startup.

Post Code (hex) Description

01 CPU speed detected 02 CPU speed converted 03 Configuration jumpers read 04 Bcache configuration value computed 05 Bcache control value computed 06 Bcache turned off 0C Memory sized and memory bank 0 written 0F Bcache turned on 13 All of memory rewritten (good data parity written) 14 Memory errors cleared; start reading system ROM 15 Loading ROM witho ut SR OM decompression 16 Loading ROM using SROM d ecompression 17 System ROM loaded to memory 18 Icache flush code written to memory 19 CPU errors cleared; jump to system code

8–2 Troubleshooting

Table 8–2 Post Codes (Continued)

Post Code

Source

(hex) Description

20 ISA bus reset 3F Fatal error. Second code identifies source of error:

05 = No memory found 06 = Checksum error detected when image was read back from memory

SRM Console

FF FE

Starting console

Idle PCB initialization FD Semaphore initialization FC Heap initialization FB Heap initialization F A Heap initialization F9 Driver structure initialization F8 Idle process PID initialization F7 File system init ialization F6 Timer data structures initialization F5 Lowering IPL F4 Entering idle loop F3 Creating task to deallocate dead PCBs F2 Creating polling task F1 Creating timer task F0 Creating power-up task EF Configuring memory EE Phase 1 driver startup ED Configuring the PCI/ISA bus EC Phase 3 driver startup EB Switching stdin/out/err to console t erminal device EA Phase 4 driver startup E9 Building per CPU slot in the HWRPB E8 SCSI class driver initialization E7 Phase 5 driver startup

Post Codes

Fail-safe booter

BF Fail-safe booter startup

Troubleshooting 8–3

Fail-Safe Booter

8.4 Fail-Safe Booter

The fail-safe booter provides an emergency recovery mechanism when the primary firmware image cont ained in flash memory has been corrupted. Wh en flash memory has been corrupted, and no image can be loaded safely from the flash, you can run the fail-safe booter and boot another image from a diskette that is capable of reprogramming the flash.

Starting the Fail-Safe Booter

You can start the fail-safe booter in one of two ways:

• If the primary firmware image is unavailable when the system is powered on or

reset, the fail-safe booter runs automatically. When the fail-safe booter runs, the system emits a series of beeps through the speaker as beep code 1-2-3; that is, one beep and a pause, followed by two beeps and a pause, followed by three beeps. After the diskette activity light flashes, inser t the AlphaPC 164LX SRM Console Firmware diskette. The fail-safe booter will load and run the AlphaBIOS firmware update utility from this diskette. Proceed to Section 7.4 and follow the procedure for updating your flash ROM.

• You can also start the fail-safe booter manually as follows:

1. Power off your system.

2. Add jumper CF7 as described in Section 3.3.

3. Power on your system.

4. Insert the AlphaPC 164LX SRM Console Firmware diskett e into t he disk ett e drive.

5. Proceed to Section 7.4 and follow the procedures.

8–4 Troubleshooting

Battery Recycle/Disposal Information

NOTICE

Recycle or dispose of batteries promptly in accordance with your organization’s environmental policies. If this is a LITHIUM battery, the following additional precautions may apply:

• Replace batteries correctly to prevent possible explosion.

• Replace batteries with the same or equivalent type.

• Prior to disposal or recycling, protect all batteries against accidental short

circuiting by aff ixi ng nonc ondu ct ive tape across battery terminals or condu ct ive surfaces.

• Keep batteries away from small children.

Battery Recycle/Disposal Information 9–1

A.1 Customer Support

The Alpha OEM website provides the following information for customer support.

URL Description

Support

http://www.d igital.com/alphaoem

Contains the following links:

• Developers’ Area: Development tools, code examples,

driver developers’ information, and technical white papers

• Motherboard Products: Motherboard details and

performance information

• Microprocessor products: Microprocessor details and

performance information

• News: Press releases

• Technical Information: Motherboard firmware and

drivers, hardware compatibility lists, and product documentation library

• Customer Support: Feedback form

Support A–1

Supporting Products

A.2 Supporting Products

This section lists sources for components and accessories that are not included with the AlphaPC 164LX.

A.2.1 Memory

Dual inline memory modules (DIM Ms) are availabl e from a variety of vend ors. For a list of qualified vendors, visi t the Alpha OEM World Wide Web Internet site at URL:

http://www.digital.com/alphaoem

Click on Technical Information. Then click on Alpha OEM Hardware Compatibility List.

A.2.2 Thermal Products

Components included in this heat-sink and fan solution are heat sink, GRAFOIL pad, two hex nuts, heat-sink clips, 60-mm fan, and four screws. These are available from:

United Machine and Tool Design Company, Inc.

18 River Road P.O. Box 168 Fremont, NH 03044 Phone: 603 Fax: 603 PN 70

–642–5819

–32810–02

A.2.3 Power Supply

An ATX form-factor power supply, suitable for use with the AlphaPC 164LX

(+3.3 V, +5 V, –5 V, +12 V, –12 V), is available from:

Quantum Power Labs, Inc.

1410 Gail Borden Place C–4

El Paso, TX 79935 Phone: 915 Fax: 915 PN 11

A–2 Support

–599–2699

–006A (300 W)

–642–5040

–599–2688

Antec, Inc.

2859 Bayview Drive Fremont, CA 94538 Phone: 510

–770–1200, ext. 313

Contact: Han Liu PN PP

–253X

A.2.4 Enclosure

An enclosure, suitable for housing the AlphaPC 164LX and its power supply, is available from:

Delta Axxion Technology

1550 Northwestern Drive El Paso, TX 79912 Phone: 915

–225–8888

PN DL17

A.3 Alpha Documentation

Alpha Documentation

The following table lists some of the available Alpha documentation. You can download Alpha documenta tion f rom the Alpha OEM World Wide Web Internet site:

http://www.digital.com/alphaoem

Click on Technical Information. Then click on Documentation Library.

Title Order Number

Alpha Architecture Reference Manual Alpha Architecture Handbook EC–QD2KB–TE Alpha 21164 Microprocessor Hardware

Reference Manual Alpha 21164 Microprocessor Data Sheet EC–QP98C–TE

Not available on website. To purchase the Alpha Architecture Refer en c e Ma nual, contact your sales office or call Butterworth-Heinemann (DIGITAL Press) at 1−800−366−2665.

EY–W938E–DP

EC–QP99C–TE

Support A–3

Third–Party Documentation

A.4 Third–Party Documentation

You can order the following third-party documentation directly from the vendor.

Title Vendor

PCI Local Bus Specification, Revision 2.1 PCI Multimedia Design Guide, Revision 1.0 PCI System Design Guide PCI-to-PCI Bridge Architecture Specification, Revision 1.0 PCI BIOS Specification, Revision 2.1

82420/82430 PCIset ISA and EISA Bridges (includes 82378IB/ZB SIO) (PN 290483)

Super I/O Combination Controller (FDC37C935) Data Sheet

PCI Special Interest Group U.S. 1–800–433–5177

International 1–503–797–4207 Fax 1–503–234–6762

Intel Corpora t ion Literature Sales P.O. Box 7641 Mt. Prospect, IL 60056 Phone: 1–800–628–8686 FaxBACK Service: 1–800–628–2283 BBS: 1–916–356–3600

Standard Microsystems Corpor ation 80 Arkay Drive Hauppauge, NY 11788 Phone: 1–516–435–6000 Fax: 1–516–231–6004

A–4 Support

Compaq 164LX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Figures

Tables

About This Manual

1.1 Manual Conventions and Terminology

Features

Power Requirements

2.2 Environmental Requirements

Physical Parameters

2.3.1 ATX Hole Specification

2.3.2 ATX I/O Shield Requirements

AlphaPC 164LX Jumper Configuration

3.1 CPU Speed Selection

3.2 Bcache Size Jumpers (CF1 and CF2)

3.3 Boot Option Jumper (CF7)

3.4 Flash ROM Update Jumper (J28)

AlphaPC 164LX Connector Pinouts

4.1 PCI Bus Connector Pinouts

ISA Expansion Bus Connector Pinouts

SDRAM DIMM Connector Pinouts

EIDE Drive Bus Connector Pinouts

Diskette (Floppy) Drive Bus Connector Pinouts

4.6 Parallel Bus Connector Pinouts

COM1/COM2 Serial Line Connector Pinouts

4.8 Keyboard/Mouse Connector Pinouts

SROM Test Data Input Connector Pinouts

4.10 Input Power Connector Pinouts

4.11 Enclosure Fan Power Con nector Pinouts

Speaker Connector Pinouts

4.13 Microprocessor Fan Power Connector Pinouts

4.14 Power LED Connector Pinouts

EIDE Drive LED Connector Pinouts

4.16 Reset Button Connector Pinouts

4.17 Halt Button Connector Pinouts

4.18 Soft Power Connector Pinouts

Memory and Microprocessor Configuration

5.1 Configuring SDRAM Memory

Upgrading SDRAM Memory

Increasing Microprocess o r Speed

5.3.1 Preparatory Information

5.3.2 Required Tools

5.3.3 Removing the 21164 Microprocessor

5.3.4 Installing the 21164 Microprocessor

6.1 Interrupts

Interrupts and ISA Bus Addresses

ISA I/O Address Map

6.2.1 Flash ROM Address Map

Alpha SRM Console Firmware

7.1 Alpha SRM Console Firmware Conventions

Basic Alpha SRM Console Command Descriptions

Environment Variables for Alpha SRM Console Commands

7.3.1 Environment Variable Descriptions

7.3.1.1 Architecture-Required Environment Variables

7.3.1.2 System-Defined Environment Variables

Using the AlphaBIOS Firmware Update Utility to Update the Flash ROM

7.4.1 AlphaBIOS Conventions

7.4.2 Starting the AlphaBIOS

7.4.3 Installing Alpha SRM Console Using AlphaBIOS Setup Program

Installing the Tru64 UNIX Operating System

7.5.1 Requirements

8.1 Hardware Startup

Troubleshooting

Beep Codes

8.3 Post Codes

Fail-Safe Booter

Battery Recycle/Disposal Information

Support
