Compaq 1500, N1000v User Manual

Please check out our eBay auctions for more great deals on Factory Service Manuals:
Maintenance and Service Guide
Compaq Evo Notebook N1020v Series Compaq Evo Notebook N1000v Series Compaq Presario 1500 Series Mobile PC
Document Part Number: 279372-002
November 2002
This guide is a troubleshooting reference used for maintaining and servicing the notebook. It provides comprehensive information on identifying computer features, components, and spare parts, troubleshooting computer problems, and performing computer disassembly procedures.
© 2002 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, Evo, and Presario are trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries. Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Pentium, Celeron, and SpeedStep are trademarks of the Intel Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
Maintenance and Service Guide Second Edition November 2002 First Edition July 2002 Document Part Number: 279372-002
Contents
1 Product Description
1.1 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–27
1.3 Clearing a Password. . . . . . . . . . . . . . . . . . . . . . . . . 1–29
1.4 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . 1–30
1.5 Computer External Components . . . . . . . . . . . . . . . 1–31
1.6 Design Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–41
2 Troubleshooting
2.1 Computer Setup and Diagnostics Utilities . . . . . . . . . 2–1
Selecting Computer Setup or
Compaq Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–3
Selecting from the Security Menu. . . . . . . . . . . . . . . 2–4
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–5
2.2 Using Compaq Diagnostics . . . . . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing
Configuration Information. . . . . . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing Diagnostic
Test Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
2.3 Troubleshooting Flowcharts. . . . . . . . . . . . . . . . . . . 2–10
Maintenance and Service Guide iii
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . 3–1

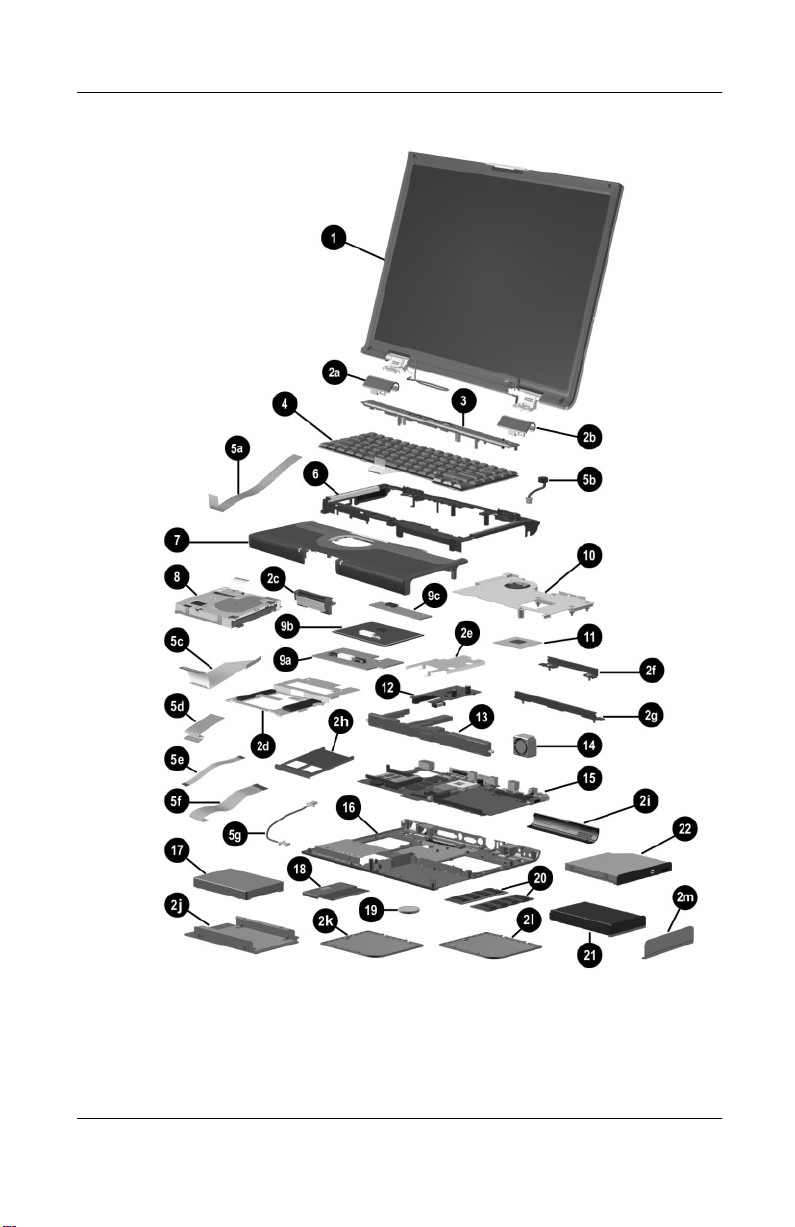

3.2 Computer System Major Components. . . . . . . . . . . . 3–2
3.3 Miscellaneous Plastics/Hardware Kit . . . . . . . . . . . 3–18
3.4 Miscellaneous Cable Kit . . . . . . . . . . . . . . . . . . . . . 3–20
3.5 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–22
3.6 Miscellaneous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–24
4 Removal and Replacement Preliminaries
4.1 Tools Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations. . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . . 4–4
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–5
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–6
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Computer for Disassembly . . . . . . . . . 5–4
5.4 Computer Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13
5.5 Memory Expansion Board . . . . . . . . . . . . . . . . . . . . 5–13
5.6 Mini PCI Communications Board . . . . . . . . . . . . . . 5–15
5.7 Disk Cell RTC Battery. . . . . . . . . . . . . . . . . . . . . . . 5–18
5.8 Connector Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19
5.9 LED Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–20
5.10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22
5.11 Heat Spreader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–25
5.12 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–28
5.13 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–30
5.14 Palm Rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–35
5.15 Diskette Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–39
iv Maintenance and Service Guide
5.16 TouchPad Components . . . . . . . . . . . . . . . . . . . . . 5–41
5.17 Display Release Assembly. . . . . . . . . . . . . . . . . . . 5–46
5.18 Charger Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–47
5.19 Speaker Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–48
5.20 Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–50
5.21 Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–54
5.22 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–56
5.23 Modem Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–60
6 Specifications
A Connector Pin Assignments
B Screw Listing
C Power Cord Set Requirements
3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1
General Requirements . . . . . . . . . . . . . . . . . . . . . . . . B–1
Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–2
Index
Maintenance and Service Guide v
1

Product Description

The Compaq Evo Notebook N1020v Series, Evo Notebook N1000v Series, and Presario 1500 Series Mobile PCs offer advanced modularity, Intel Mobile Pentium 4 and Intel Celeron processors with SpeedStep technology and 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support.
Figure 1-1. Compaq Evo Notebook N1020v Series, N1000v Series, and Presario 1500 Series Mobile PC
Maintenance and Service Guide 1–1
Product Description

1.1 Models

Computer models are shown in Tables 1-1 through 1-4.
Table 1-1
Compaq Evo Notebook N1020v, N1000v, and Presario 1500
Model Naming Conventions
Key
N1020v P 220 P5 40 V C 51 O XXXXXX-XXX
123456789 10
Key Description Options
1 Brand/Series
designator
2 Processor type P = Intel Pentium 4 C = Intel Celeron
3 Processor speed 220 = 2.2 GHz
4Display type/
size/resolution
5 Hard drive size 60 = 60 GB
6 Optical drive
designator
7 Integrated
communication
8 RAM 51 = 512 MB
9 Operating system 2 = Windows 2000 O = Windows XP Pro
10 SKU#
N = Evo Notebook P = Presario
200 = 2.0 GHz 180 = 1.8 GHz 170 = 1.7 GHz
P = SXGA+ (1400 × 1050) X = XGA (1024 × 768)
40 = 40 GB
V = DVD-ROM drive W = DVD-RW drive
M = Modem 0 = None
38 = 384 MB
1020 = 1020 Series 1000 = 1000 Series 1500 = 1500 Series
160 = 1.6 GHz 150 = 1.5 GHz 140 = 1.4 GHz
30 = 30 GB 20 = 20 GB
D = CD-ROM drive R = CD-RW drive
C = Modem/NIC
25 = 256 MB 12 = 128 MB
E = Windows XP
5 = 15.x inch 4 = 14.x inch
combination card
Home
1–2 Maintenance and Service Guide
Product Description
Table 1-2
Compaq Evo Notebook N1020v Models
The following Evo Notebook N1020v models use config. code LDMZ and feature:
■
TouchPad pointing device
■
8-cell, 4.4-Ah lithium ion (Li ion) battery pack
■
2-year warranty
■
diskette drive
N1020v P 240 X5 40 W C 25 E
Germany 470045-522
N1020v P 240 X5 40 W C 25 O
Germany 470050-123
N1020v P 200 X4 30 V C 25 E
Germany 470045-521
N1020v P 200 X4 30 V C 25 O
Germany 470050-122
N1020v P 180 X5 30 W C 25 O
Germany 470048-008
N1020v P 180 X4 30 V C 25 O
Germany 470048-007
N1020v C 160 X4 30 W C 25 E
Germany 470049-801
N1020v C 150 X4 20 V C 25 E
Germany 470049-800
N1020v C 150 X4 20 V C 25 O
Germany 470050-730
Maintenance and Service Guide 1–3
Product Description
Table 1-2
Compaq Evo Notebook N1020v Models
The following Evo Notebook N1020v models use config. code LDLZ and feature:
■
TouchPad pointing device
■
8-cell, 4.4-Ah lithium ion (Li ion) battery pack
■
1-year warranty
■
diskette drive
N1020v P 240 P5 40 W C 25 E
Japan 470047-926 Japan (English) 470047-929
N1020v P 240 P5 40 W C 25 O
Japan 470045-698 Japan (English) 470045-699
N1020v P 240 X5 40 W C 25 E
(Continued)
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
470045-654 470045-657 470045-658 470045-662
470045-663 470045-666 470045-667 470045-670 470045-671 470045-674
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
470045-675 470045-678 470045-679 470045-653 470045-682 470045-683 470045-686 470045-687 470045-690 470045-691
1–4 Maintenance and Service Guide
Table 1-2
Compaq Evo Notebook N1020v Models
N1020v P 240 X5 40 W C 25 O
Asia/Pacific Australia Belgium Brazil Czech Republic Denmark European
International France French Canada Greece/Poland Hong Kong Hungary India Israel Italy Korea
N1020v P 240 X5 40 V C 25 O
470051-325 470051-312 470050-058 470050-116 470050-061 470050-062 470050-066
470050-067 470045-649 470050-070 470051-336 470050-071 470051-329 470050-074 470050-076 470051-340
Latin America Latin America
(NAFTA) The Netherlands Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
Product Description
(Continued)
470050-101 470050-115
470050-079 470050-080 470050-085 470050-086 470050-057 470050-089 470050-090 470050-093 470050-094 470051-332 470051-319 470050-097 470050-098 470045-648
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
N1020v P 240 X4 40 W C 25 O
Brazil Latin America
470050-708 470050-710 470050-711 470050-712
470050-714 470050-715 470050-716 470050-718 470050-719 470050-720
470050-117 470050-102
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
Latin America
(NAFTA)
United States
470050-721 470050-722 470050-723 470050-707 470050-724 470050-725 470050-726 470050-727 470050-728 470050-729
470050-114
470051-359
Maintenance and Service Guide 1–5
Product Description
Table 1-2
Compaq Evo Notebook N1020v Models
N1020v P 200 X5 30 W C 25 O
(Continued)
Brazil Latin America
N1020v P 200 X4 30 W C 25 O
Brazil Latin America
N1020v P 200 X4 30 V C 25 E
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
N1020v P 200 X4 30 V C 25 O
Belgium Czech Republic Denmark European
International France French Canada Greece/Poland Hungary Israel Italy The Netherlands
470050-118 470050-104
470050-119 470050-105
470045-655 470045-656 470045-659 470045-660
470045-664 470045-665 470045-668 470045-669 470045-672 470045-673
470050-059 470050-060 470050-064 470050-065
470050-068 470045-650 470050-069 470050-072 470050-073 470050-077 470050-078
Latin America
(NAFTA)
United States
Latin America
(NAFTA)
United States
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom United States
470050-113
470051-360
470050-111
470051-361
470045-676 470045-677 470045-680 470045-652 470045-681 470045-684 470045-685 470045-688 470045-689 470045-692
470050-081 470050-084 470050-087 470050-056 470050-088 470050-091 470050-092 470050-095 470050-096 470050-099 470045-647
1–6 Maintenance and Service Guide
Table 1-2
Compaq Evo Notebook N1020v Models
N1020v P 200 X4 20 V C 25 O
(Continued)
Product Description
Asia/Pacific Australia Hong Kong India Korea
N1020v P 200 X4 20 D C 25 O
Asia/Pacific Australia Hong Kong India Japan
N1020v P 200 X4 20 D C 12 2
Japan 470045-697 Japan (English) 470045-700
N1020v P 180 X5 30 W C 25 O
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
470051-324 470051-311 470051-335 470051-328 470051-338
470051-323 470051-296 470051-334 470051-327 470045-696
470047-943 470047-946 470047-947 470047-950
470047-952 470047-960 470047-962 470047-966 470047-980 470047-985
People’s
Republic of
China Ta i wa n Thailand
Japan (English) Korea Ta i wa n Thailand
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
470051-343
470051-331 470051-316
470045-701 470051-337 470051-330 470051-314
470047-986 470047-989 470047-990 470047-937 470047-993 470047-994 470047-998 470048-001 470084-004 470804-005
N1020v P 180 X4 40 W C 40 O
Asia/Pacific Australia
470051-326 470051-313
Korea Ta i wa n
470051-341 470051-333
Maintenance and Service Guide 1–7
Product Description
Table 1-2
Compaq Evo Notebook N1020v Models
N1020v P 180 X4 30 W C 25 O
(Continued)
Brazil Latin America Latin America
(NAFTA)
N1020v P 180 X4 30 V C 25 O
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
N1020v C 160 X4 30 W C 25 E
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
470050-120 470050-106 470050-110
470047-944 470047-945 470047-948 470047-949
470047-955 470047-959 470047-963 470047-964 470047-983 470047-984
470049-667 470049-670 470049-671 470047-921
470049-674 470049-675 470049-678 470049-679 470049-682 470049-780
People’s
Republic of China
United States
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
470051-344
470051-362
470047-987 470047-988 470047-991 470047-934 470047-992 470047-995 470047-996 470048-002 470048-003 470048-006
470049-781 470049-784 470049-785 470049-666 470049-788 470049-789 470049-792 470049-793 470049-797 470049-798
N1020v C 160 X4 30 W C 25 O
Brazil Latin America
470050-121 470050-107
Latin America
(NAFTA)
United States
470050-108
470051-363
1–8 Maintenance and Service Guide
Table 1-2
Compaq Evo Notebook N1020v Models
N1020v C 160 X4 20 D C 25 E
(Continued)
Product Description
French Canada Japan
N1020v C 160 X4 20 D C 25 O
Japan Japan (English)
N1020v C 160 X4 20 D C 12 2
Japan 470045-695 Japan (English) 470045-702
N1020v C 150 X4 20 V C 25 E
Belgium Czech Republic Denmark European
International France Greece/Poland Hungary Israel Italy The Netherlands
470045-651 470047-933
470047-932 470047-931
470049-668 470049-669 470049-672 470049-661
470049-673 470049-676 470049-677 470049-680 470049-681 470049-779
Japan English United States
United States 470047-364
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
470047-930 470045-646
470049-782 470049-783 470049-786 470049-665 470049-787 470049-790 470049-791 470049-794 470049-795 470049-799
Maintenance and Service Guide 1–9
Product Description
Table 1-3
Compaq Evo Notebook N1000v Models
The following Evo Notebook N1000v models use config. code KQDZ and feature:
■
Dual Stick pointing device (TouchPad and pointing stick)
■
8-cell, 4.0-Ah lithium ion (Li ion) battery pack
■
3-year warranty
■
diskette drive
■
32 MB of discrete video memory
N1000v P 180 P5 40 W C 25 O
Australia 470038-699
N1000v P 180 P5 40 W C 25 2
Australia 470038-700
N1000v P 180 X4 40 W C 25 O
Australia 470038-697
N1000v P 180 X4 40 W C 25 2
Australia 470038-698
N1000v P 170 X5 30 W C 25 O
Asia Pacific Australia French Canada
470038-336 470038-333 470039-985
Korea United States
470038-341 470037-782
N1000v P 170 X5 30 W C 25 2
Asia Pacific Australia French Canada
470038-335 470038-334 470039-988
Korea United States
470038-342 470037-783
N1000v P 170 X4 30 V C 25 O
Australia 470038-695
N1000v P 170 X4 30 V C 25 2
Australia 470038-696
1–10 Maintenance and Service Guide
Product Description
Table 1-3
Compaq Evo Notebook N1000v Models
The following Evo Notebook N1000v models use config. code KT2Z and feature:
■
TouchPad pointing device
■
8-cell, 4.0-Ah Li ion battery pack
■
2-year warranty
■
diskette drive
■
32 MB of discrete video memory
N1000v P 220 P5 30 W C 25 O
Germany 470036-634
N1000v P 220 P5 30 W C 25 2
Germany 470036-635
N1000v P 200 X4 20 V C 25 O
Germany 470036-632
N1000v P 200 X5 20 V C 25 2
Germany 470036-633
(Continued)
Maintenance and Service Guide 1–11
Product Description
Table 1-3
Compaq Evo Notebook N1000v Models
The following Evo Notebook N1000v models use config. code KQFZ and feature:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
N1000v P 220 P5 40 W C 25 O
Japan 470036-636 Japan (English) 470036-639
N1000v P 220 P5 30 W C 25 O
(Continued)
Belgium Czech Republic Denmark France French Canada Greece/Poland Hungary Israel Italy The Netherlands Norway
470036-696 470036-700 470036-704 470036-707 470038-312 470036-712 470036-715 470036-720 470036-723 470036-730 470036-733
Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom United States
N1000v P 220 P5 30 W C 25 2
Belgium Czech Republic Denmark France Greece/Poland Hungary Israel Italy The Netherlands Norway
470036-697 470036-701 470036-705 470036-706 470036-713 470036-714 470036-721 470036-722 470036-731 470036-732
Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
N1000v P 220 P5 30 V C 25 O
Taiwan 470038-800
470036-739 470036-743 470036-692 470036-748 470036-751 470036-756 470036-759 470036-764 470036-767 470038-311
470036-741 470036-742 470036-693 470036-749 470036-750 470036-757 470036-758 470036-765 470036-766
1–12 Maintenance and Service Guide
Table 1-3
Compaq Evo Notebook N1000v Models
N1000v P 220 P5 30 V C 25 2
Taiwan 470038-801
N1000v P 220 X5 30 W C 25 O
Product Description
(Continued)
Latin America 470037-832 Latin America
(NAFTA)
N1000v P 200 P5 30 V C 25 O
Hong Kong 470038-807
N1000v P 200 X5 30 W C 25 O
Asia Pacific Australia French Canada Korea Latin America
N1000v P 200 X5 30 W C 25 2
French Canada Latin America
N1000v P 200 X5 20 W C 25 O
Latin America 4770037-831 Latin America
N1000v P 200 X5 20 D C 12 O
Asia Pacific Australia Japan Japan (English)
N1000v P 200 X5 20 D C 12 2
470037-828 470037-824 470036-619 470037-829 470036-616
4770036-620 4770036-622
470037-957 470037-953 470036-638 470036-641
Latin America
(NAFTA) Thailand United States
Latin America
(NAFTA) United States
(NAFTA)
Korea Ta i wa n Thailand
470037-833
470036-617
470037-825 470036-618
4770036-623
4770036-621
470037-834
470037-960 470038-782 470037-956
Japan Japan (English)
470036-637 470036-640
Taiwan 470038-783
Maintenance and Service Guide 1–13
Product Description
Table 1-3
Compaq Evo Notebook N1000v Models
N1000v P 200 X4 30 W C 25 O
(Continued)
Brazil Latin America
N1000v P 200 X4 30 V C 25 O
People’s Republic of
China
N1000v P 200 X4 20 V C 25 O
Asia Pacific Australia Belgium Czech Republic Denmark France French Canada Greece/Poland Hungary Israel Italy Korea Latin America Latin America
(NAFTA)
470038-304 470038-299
470038-791
470037-837 470037-835 470036-694 470036-698 470036-702 470036-709 470036-629 470036-710 470036-717 470036-718 470036-725 470037-838 470036-625 470036-624
Latin America
(NAFTA) United States
The Netherlands Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States
470038-305
470038-310
470036-727 470036-735 470036-736 470036-745 470036-689 470036-746 470036-753 470036-754 470036-761 470038-803 470037-836 470036-762 470036-769 470036-628
1–14 Maintenance and Service Guide
Table 1-3
Compaq Evo Notebook N1000v Models
N1000v P 200 X4 20 V C 25 2
(Continued)
Product Description
Belgium Czech Republic Denmark France French Canada Greece/Poland Hungary Israel Italy Latin America Latin America
(NAFTA)
The Netherlands
N1000v P 200 X4 20 D C 12 O
Hong Kong 470038-804 People’s
N1000v P 160 X4 30 W C 25 O
Brazil Latin America
N1000v P 150 X4 20 V C 25 O
Brazil Latin America
470036-695 470036-699 470036-703 470036-708 470036-630 470036-711 470036-716 470036-719 470036-724 470036-626 470036-627
470036-728
470038-303 470038-300
470038-302 470038-301
Norway Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Ta i wa n Tu r ke y United Kingdom United States
Republic of
China
Latin America
(NAFTA) United States
Latin America
(NAFTA) United States
470036-734 470036-737 470036-744 470036-690 470036-747 470036-752 470036-755 470036-760 470038-802 470036-763 470036-768 470036-631
470038-790
470038-306
470038-309
470038-307
470038-308
N1000v C 150 X4 20 V C 25 O
Asia Pacific Australia French Canada Korea
470037-827 470037-823 470037-787 470037-830
Norway Thailand United States
470037-809 470037-826 470037-785
Maintenance and Service Guide 1–15
Product Description
Table 1-3
Compaq Evo Notebook N1000v Models
N1000v C 150 X4 20 V C 25 2
French Canada 4770037-786 United States 470037-784
N1000v C 150 X4 20 D C 12 O
(Continued)
Asia Pacific Australia Hong Kong Japan Japan (English)
N1000v C 150 X4 20 D C 12 2
Japan 470037-950 Japan (English) 470037-952
N1000v C 150 X4 20 D C 12 E
Japan 470038-313 Japan (English) 470038-314
N1000v C 140 X4 20 D C 12 E
United States (NAFTA) 470040-456
470037-958 470037-954 470038-805 470037-949 470037-951
Korea Ta i wa n Thailand United States
470037-959 470038-793 470037-955 470041-610
Table 1-4
Compaq Presario 1500 Models
The following Presario 1500 notebook models use config. code LDLZ and feature:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
2-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1527 P 240 X5 30 W C 51 E
Germany 470046-799
P1525 P 240 X5 30 W C 25 E
Belgium Germany
470045-511 470045-530
Norway 470045-534
1–16 Maintenance and Service Guide
Product Description
Table 1-4
Compaq Presario 1500 Models
P1522 P 200 X4 30 W C 25 E
Belgium 470046-243
The following Presario 1500 notebook models use config. code KT2Z and feature:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
2-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1515 P 240 X5 30 W C 25 E
(Continued)
Belgium Germany
470044-593 470044-594
Italy The Netherlands
P1510 P 220 X5 30 W C 25 E
Belgium Denmark Germany Italy
470036-664 470036-665 470036-667 470036-599
The Netherlands Norway Sweden/Finland
P1508 P 200 X5 20 V C 25 E
Sweden/Finland 470041-611
P1507 P 200 X4 20 W C 25 E
The Netherlands 470039-996
P1505 P 200 X4 20 W C 25 E
Belgium Denmark Germany Italy
470036-663 470036-597 470036-666 470036-668
The Netherlands Norway Sweden/Finland
470044-595 470044-596
470036-670 470036-671 470036-673
470036-669 470036-672 470036-598
Maintenance and Service Guide 1–17
Product Description
Table 1-4
Compaq Presario 1500 Models
The following Presario 1500 notebook models use config. code LDLZ and feature:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1525 P 240 P5 40 W C 51 E
(Continued)
Canada (English) French Canada
470047-864 470047-863
United States 470046-473
P1522 P 240 X5 60 W C 51 O
Latin America 470045-559 Latin America
470045-560
(NAFTA)
P1575 P 240 X5 40 W C 51 E
Korea 470050-054
P1528 P 240 X5 40 W C 51 E
United States 470046-474
P1580 P 240 X5 40 W C 25 E
Asia Pacific 470050-696 Thailand 470050-701
P1513 P 240 X5 40 W C 25 E
Korea 470045-728
P1527 P 240 X5 30 W C 51 E
The Netherlands 470048-572
P1555 P 240 X5 30 W C 25 E
Asia Pacific Australia/New Zealand India
470047-701 470047-705 470047-700
Korea Thailand
470050-053 470047-704
1–18 Maintenance and Service Guide
Table 1-4
Compaq Presario 1500 Models
P1525 P 240 X5 30 W C 25 E
(Continued)
Product Description
Czech Republic Denmark European
International France Greece/Poland Israel Italy The Netherlands
P1516 P 240 X5 30 W C 25 E
European
International
P1515 P 240 X5 30 W C 25 E
European
International France Greece/Poland
P1510 P 240 X5 30 W C 25 E
Australia 470045-732
P1508 P 240 X5 30 W C 25 E
Asia Pacific 470045-720 Thailand 470045-719
P1510 P 240 X5 30 V C 25 E
470045-421 470047-908 470045-550
470045-551 470045-552 470045-553 470047-909 470047-910
470047-873
470044-599
470047-867 470044-600
Portugal Russia Saudi Arabia Slovenia Spain Sweden/Finland Switzerland Tu r ke y United Kingdom
Israel Russia Saudi Arabia Switzerland
470047-911 470045-554 470045-420 470045-555 470047-912 470047-913 470045-556 470045-557 470045-558
470044-601 470047-347 470044-598 470044-802
India 470045-723
P1514 P 240 X5 20 V C 25 E
Korea 470045-729
P1572 P 240 X4 40 W C 25 E
Hong Kong 470050-700
Maintenance and Service Guide 1–19
Product Description
Table 1-4
Compaq Presario 1500 Models
P1520 P 240 X4 40 W C 25 E
(Continued)
Latin America 470045-422 Latin America
(NAFTA)
P1508 P 240 X4 40 W C 25 E
Hong Kong 470045-737
P1568 P 240 X4 40 V C 25 E
Taiwan 470050-704
P1532 P 240 X4 30 W C 25 E
Asia Pacific 470050-697
P1570 P 240 X4 30 V C 25 E
Hong Kong 470050-699 Taiwan 470048-576
P1545 P 240 X4 30 V C 25 E
India 470047-699
P1515 P 240 X4 30 V C 25 E
Korea 470045-730
P1512 P 240 X4 30 V C 25 E
Taiwan 470045-739
P1511 P 240 X4 30 V C 12 E
India 470045-725
470045-429
P1550 P 240 X4 20 W C 25 E
Australia/New Zealand 470047-706
P1509 P 240 X4 20 W C 25 E
Australia 470045-731
P1565 P 240 X4 20 V C 25 E
Hong Kong 470048-578 Korea 470050-055
1–20 Maintenance and Service Guide
Product Description
Table 1-4
Compaq Presario 1500 Models
P1509 P 240 X4 20 D C 25 E
Asia Pacific 470045-721 Thailand 470045-722
P1512 P 240 X4 20 D C 12 E
India 470045-726
P1523 P 200 X5 20 W C 25 E
France 470048-571
P1505 P 200 X4 40 W C 25 E
Hong Kong 470042-497
P1522 P 200 X4 30 W C 25 E
Czech Republic European
International France
P1516 P 200 X4 30 W C 25 E
470046-238 470046-239
470046-240
Greece/Poland Saudi Arabia United Kingdom
(Continued)
470046-783 470046-235 470046-241
Canada (English) French Canada
1507 P 200 X4 30 W C 25 E
Hong Kong 470045-736
P1538 P 200 X4 30 V C 25 E
Taiwan 470050-703
P1511 P 200 X4 30 V C 25 E
Taiwan 470046-696
P1508 P 200 X4 20 W C 25 E
Asia Pacific 470041-812 Australia 470041-811
P1536 P 200 X4 20 V C 25 E
Taiwan 470050-705
470047-878 470047-879
United States 470047-876
Maintenance and Service Guide 1–21
Product Description
Table 1-4
Compaq Presario 1500 Models
P1506 P 200 X4 20 V C 25 E
Hong Kong 470045-735
P1540 P 200 X4 20 R C 25 E
Asia Pacific 470047-702 Thailand 470047-703
P1535 P 200 X4 20 R C 25 E
India 470047-698
P1510 P 200 X4 20 D C 12 E
Taiwan 470045-738
P1530 P 190 X4 30 V C 25 E
People’s Republic of
China
P1520 P 180 X5 40 W C 51 E
Canada (English) French Canada
470047-697
470047-865 470047-866
United States 470047-344
(Continued)
P1531 P 180 X4 30 V C 25 E
People’s Republic of
China
P1502 P 180 X4 30 V C 12 E
People’s Republic of
China
P1528 P 180 X4 20 D C 25 E
Asia Pacific 470050-698
P1504 P 160 X4 30 W C 25 E
Hong Kong 470040-458
P1522 C 170 X4 20 D C 25 E
People’s Republic of
China
470048-574
470045-734
470050-706
1–22 Maintenance and Service Guide
Product Description
Table 1-4
Compaq Presario 1500 Models
P1525 C 160 X4 20 R C 25 E
Asia Pacific 470050-695 Taiwan 470048-577
P1520 C 160 X4 20 D C 25 E
(Continued)
People’s Republic of
470048-575
China
The following Presario 1500 notebook model uses config. code KQF1 and features:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1505 P 160 X5 30 W C 25 E
United States 470037-316 Wireless promotional model
The following Presario 1500 notebook model uses config. code KQF2 and features:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1501 P 160 P5 30 W C 25 E
United States 470037-317
Maintenance and Service Guide 1–23
Product Description
Table 1-4
Compaq Presario 1500 Models
The following Presario 1500 notebook model uses config. code KQF3 and features:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1500 C 150 X4 20 W C 25 E
United States 470038-813 Wireless promotional model
The following Presario 1500 notebook model uses config. code KQF4 and features:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1510 P 220 P5 40 W C 51 E
(Continued)
United States 470036-657 Wireless promotional model
The following Presario 1500 notebook models use config. code KQFZ and feature:
■
TouchPad
■
8-cell, 4.0-Ah Li ion battery pack
■
1-year warranty
■
diskette drive
■
32 MB of discrete video memory
P1510 P 220 X5 30 W C 25 E
Europe International Greece/Poland Hungary Israel
470036-775 470036-778 470036-779 470036-782
Russia Saudi Arabia Switzerland United Kingdom
470036-786 470036-771 470036-596 470036-796
P1502 P 220 X5 30 W C 51 E
Latin America 470036-600 Latin America
470036-799
(NAFTA)
1–24 Maintenance and Service Guide
Loading...
+ 190 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
