Compal Confidential

2 2

PAZ00 Schematics Document

Nvdia(T20) + four x4 DDRII

2010-07-15

REV: 1.0a

3 3

4 4

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

D

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

2008/09/202006/08/18

2008/09/202006/08/18

2008/09/202006/08/18

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

Cover Page

Cover Page

Cover Page

T20 schematic

T20 schematic

Wednesday, July 21, 2010

Wednesday, July 21, 2010

Wednesday, July 21, 2010

T20 schematic

E

0.1

0.1

1

1

1

0.1

33

33

33

A

1 1

B

C

D

E

LCD Conn.

LVDS

DDC_I2C(5V)

2 2

HDMI Conn.

I2C LEVEL Shifter

LVDS Bridge
SN75LVDS83

DDC_I2C(3,3V)

HDMI

RGB

Nvidia Tegra T20

DDR2

USB1(Client)

(For Sirius sku)

UART

(For Procyon sku)

ULPI

(For Sirius sku)

SDIO

DDR2 SDRAM * 4
512M/1GB

USB PHY
(USB3315)

USB Port (Mini)

USB2 (HOST)

USB Hub *2 port
SMSC USB 2512

BT module

WIFI

USB Port (Full)

SD/MMC conn

SDIO1(3.3V)

eMMC

HSMMC

(4/8/16/32GB)

NAND Flash
(128M)

CAM_I2C(3.3V)

3 3

PWR_I2C(1.8V)

PMU
TI TPS658621

ENE KBC

PS2

KB926

USB3 (Host)

GNE_I2C(1.8V) GNE_I2C(3.3V)

I2C LEVEL Shifter

I2C LEVEL Shifter

PWR_I2C(3.3V)

Thermal Sensor
ADI ADT7421

USB Hub *4 port
SMSC USB 2514

GNE_I2C(3.3V)

GNE_I2C(3.3V)

USB2.0

USB 2.0

DMIC

Audio Codec
ALC5632

G-SENSOR
Bosch BMA150

Light sensor

WWAN

Webcam

Audio AMP
TPA6017

HeadPhone/Ext. MIC

SIM

Speaker

Intersil 29011

LED T/P

SPI

GNE_I2C(3.3V)

TPM ST19NP18

DC/DC Interface

SPI ROM

EC_I2C(3.3V)

Battery

DC IN

4 4

Keyboard

BATT IN

Security Classification

Security Classification

CHARGER

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

A

B

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

C

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

D

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Block Diagram

Block Diagram

Block Diagram

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Date: Sheet of

Date: Sheet of

Date: Sheet of

E

2 33Wednesday, July 21, 2010

2 33Wednesday, July 21, 2010

2 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

4

3

2

1

0.5A

5.5A

1A

D D

+LCD_INV Panel

6.036A

+5VALW

1.25A

+5VS

2A(SB)

0.75A

USB PWR SW

AMP

100mA

160mA

10mA

200mA

2.286A

PMU

C C

4A

0.5A6.5A

0.5A

DDR2

USB PHY+1.8VS

WiFi

20mA

130mA

100mA

100mA

1.2V

1.05VS

+3.3VS_LDO0

+1.1VS_LDO1

+1.2VS_LDO2

+3.3VS_LDO3

+1.8VS_LDO4

+2.85VS_LDO6

+3.3VS_LDO7

+1.8VS_LDO8

100mA

160mA

10mA

200mA

20mA

130mA

100mA

100mA

NC

AVDD_PLL

VDD_RTC

AVDD_USB

AVDD_OSC

AVDD_CRT

HDMI(AVDD_HDMI)

HDMI
(+AVDD_HDMI_PLL)

110mA

600mA

1.5A

150mA

+2.85VS_LDO9

+1.2VS_SM0

+1.0VS_SM1

+2.85VS_LDO5

150mA

EMMC

AC

VIN

B+

6.843A

15.25A

+3VALW KBC

0.5A

SPI ROM

0.5A

14.25A

+3VS

1.5A

+LCD_VDD Panel

0.5A

WebCam

1A

WiFi

1A

WWAN

0.5A

USB PHY

B B

BATTDC

0.45A

T20+3VS_S3

A A

0.15A

+VDDIO_NAND

0.15A

+VDDIO_VI

0.15A

+VDDIO_BB

5

4

1A

USB HUB x2

1A

Codec

0.5A

G sensor

0.5A

BT

0.5A

Light sensor

0.75A

Card Reader

0.5A

Thermal sensor

5A

T20

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

+VDDIO_LCD

+VDDIO_UART

+VDDIO_AUDIO

+VDD_FUSE

+VDDIO_SDIO

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

LA-5952P

LA-5952P

LA-5952P

Date: Sheet of

Date: Sheet of

Date: Sheet of

Power delivery

Power delivery

Power delivery

1

3 33Wednesday, July 21, 2010

3 33Wednesday, July 21, 2010

3 33Wednesday, July 21, 2010

0.1

0.1

0.1

A

1 1

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

A

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

Power Sequence

Power Sequence

Power Sequence

LA-5952P

LA-5952P

LA-5952P

4 33Wednesday, July 21, 2010

4 33Wednesday, July 21, 2010

4 33Wednesday, July 21, 2010

0.1

0.1

0.1

A

B

C

D

E

Voltage Rails

S5

DescriptionPower Plane

VIN

B+

1 1

2 2

+VDD_CPU

+1.8V

+VDD_CORE

+RTCVCC RTC power

+3VS_S3 3.3V switched power rail ON OFFON

+3VALW

+3VS

+5VALW

+5VS

Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.

I2C/SM BUS Control

Adapter power supply (19V)

AC or battery power rail for power circuit.

Core voltage for CPU

1.8V power rail for DDR

VCCP switched power rail

3.3V always on power rail

3.3V switched power rail

5V always on power rail

5V switched power rail

S3S1

N/AN/AN/A

N/A N/A N/A

OFF

OFFON

ON

ON

ON

ON

ON

OFF

OFFOFFON

ONONON

ON ON*

OFF

OFF

ON ON*

OFF

OFFON

BOM configuration

BOM configuration

BOM configurationBOM configuration

@ : For reserve.

@ : For reserve.

@ : For reserve.@ : For reserve.
45@ : For 45 level.

45@ : For 45 level.

45@ : For 45 level.45@ : For 45 level.
PR@ : For Procyon sku only

PR@ : For Procyon sku only

PR@ : For Procyon sku onlyPR@ : For Procyon sku only
SI@ : For Sirius sku only

SI@ : For Sirius sku only

SI@ : For Sirius sku onlySI@ : For Sirius sku only

Table

SOURCE

EC_SMB_CK1

EC_SMB_DA1

DDC_SCL_3P3

DDC_SDA_3P3

CAM_I2C_SCL

CAM_I2C_SDA

GEN1_I2C_SCL

GEN1_I2C_SDA

PWR_I2C_SCL

3 3

PWR_I2C_SDA

(3.3V)

(3.3V)

(3.3V)

(3.3V)

(1.8V)

KB926

T-20

T-20

T-20

T-20

T-20

EC
KB926

V
(3.3V)

Battery PMIC

V
(3.3V)

V
(1.8V)

Thermal
Sensor

V
(3.3V)

Audio
Codec

V
(3.3V)

G sensor TPM

V
(3.3V)

V
(3.3V)

Light
sensor

V
(3.3V)

HDMI

V
(3.3V)

LCD
Panel

V
(3.3V)

ZZZ1

ZZZ1

X76 Hynix

X76 Hynix

X7624051L02

X7624051L02

ZZZ

ZZZ

PCB_LA-63 52P

PCB_LA-63 52P

DAZ0EF00100

DAZ0EF00100

4 4

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS T HE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS T HE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS T HE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUST ODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUST ODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUST ODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

2008/09/ 202006/08/ 18

2008/09/ 202006/08/ 18

2008/09/ 202006/08/ 18

D

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

Notes List

Notes List

Notes List

Wednesd ay, July 21, 2010

Wednesd ay, July 21, 2010

Wednesd ay, July 21, 2010

E

5 33

5 33

5 33

0.1

0.1

0.1

5

4

3

2

1

S3 PWR modify P VT

+VDDIO_LCD

+3VS

D D

LVDS_SHTDN#13

EN_VDD_PNL8,13

+2.85VS_LDO6

C C

+3.3VS_LDO7

B B

A A

12

R1 0_0402_5%R1 0_0402_5%

1

1

C3 0.1U_0201_6.3V6KC3 0.1U_0201_6.3V6K

Reverse T20.T25 to

C24.7U_0603_6.3V6K C24.7U_0603_6.3V6K

2

2

EN_VDD_PNL ,
T20.V25 to LVDS _SHTDN#

LVDS_SHTDN# LVDS_SHTDN#_PWR0

EN_VDD_PNL EN_VDD_PNL_PWR2

TEMP_ALERT#7

DDC_SCL_3P314
DDC_SDA_3P314

R12 0_0402_5%R12 0_0402_5%

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

+1.8VS_LDO8

Change R to 040 2(PVT),
Change all pull down resistor to 10K by NVIDI A suggest.(PVT2 )

FORCE_RECOVERY#

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

+AVDD_HDMI

12

1

C12

C12

2

12

R21

R21
47K_0402_1%

47K_0402_1%

+AVDD_VDAC

R9 0_0402_5%

R9 0_0402_5%

@

@

R13 0_0402_5%R13 0_0402_5%

19

R31

R31

1 2

47K_0402_1%

47K_0402_1%

R1270 0_0402_5%@R1270 0_0402_5%@

R1271 0_0402_5%@R1271 0_0402_5%@

HDMI_HPD14,19

DDC_SCL_3P3
DDC_SDA_3P3

12

C6

C6

3.3V

1

C13

C13

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

+AVDD_HDMI_PLL

12

1

2

5

12

12

+VDDIO_LCD

12

2.85V

1

1

C7

C7

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

2

D12

D12

2 1

RB161M-20_SOD123-2

RB161M-20_SOD123-2

C14

C14

0.1U_0402_10V7K

0.1U_0402_10V7K

R22

R22

12

R32

R32

R7

R7
100K_0402_1%

100K_0402_1%

TEMP_ALERT#

HDMI_HPD

1.8V

12

100K_0402_5%

100K_0402_5%

12

R33

R33

10K_0402_5%

10K_0402_5%

@R34

@

10K_0402_5%

10K_0402_5%

R23

R23

R34

U1D

U1D

U22

VDDIO_LCD1

V22

VDDIO_LCD2

Y24

LCD_M1

AD24

LCD_PWR0

U24

LCD_PWR1

AA24

LCD_PWR2

AB21

LCD_SCK

V24

LCD_CS0#

AC25

LCD_CS1#

AA25

LCD_SDOUT

W25

LCD_SDIN

AD23

LCD_DC0

AC24

LCD_DC1

V23

HDMI_INT#

Y22

CRT_HSYNC

AC23

CRT_VSYNC

W23

DDC_SCL

Y23

DDC_SDA

AH17

AVDD_VDAC

AA15

AVDD_HDMI_1

Y15

AVDD_HDMI_2

AA12

AVDD_HDMI_PLL

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

GMI_AD12
GMI_AD13
GMI_AD14
GMI_AD15

12

@

@

R24

R24

100K_0402_5%

100K_0402_5%

12

R35

R35

10K_0402_5%

10K_0402_5%

LCD_HSYNC

LCD_VSYNC

LCD

LCD

CRT

CRT

VDAC_VREF

VDAC_RSET

HDMI_TXCN

HDMI_TXD0N
HDMI_TXD0P

HDMI_TXD1N
HDMI_TXD1P

HDMI_TXD2N
HDMI_TXD2P

HDMI

HDMI

eMMC boot NAND boot

1 1

0
0

12

12

@

@

@

@

R25

R25

R26

R26

100K_0402_5%

100K_0402_5%

100K_0402_5%

100K_0402_5%

12

12

R36

R36

R37

R37

10K_0402_5%

10K_0402_5%

10K_0402_5%

10K_0402_5%

Change R1253 to SD028330A80
for RoHS part n eed

LCD_PCLK_R

V28

LCD_PCLK

AE24

LCD_WR#

LCD_DE

LCD_D00
LCD_D01
LCD_D02
LCD_D03
LCD_D04
LCD_D05
LCD_D06
LCD_D07
LCD_D08
LCD_D09
LCD_D10
LCD_D11
LCD_D12
LCD_D13
LCD_D14
LCD_D15
LCD_D16
LCD_D17
LCD_D18
LCD_D19
LCD_D20
LCD_D21
LCD_D22
LCD_D23

VDAC_R
VDAC_G
VDAC_B

HDMI_TXCP

HDMI_RSET

12

100K_0402_5%

100K_0402_5%

12

@R38

@

10K_0402_5%

10K_0402_5%

LCD_DE

U23

LCD_HSYNC

AD27

LCD_VSYNC

AD26

LCD_D00

AA26

LCD_D01

AC26

LCD_D02

AC27

LCD_D03

AC28

LCD_D04

AD25

LCD_D05

AD28

LCD_D06

Y26

LCD_D07

Y27

LCD_D08

Y28

LCD_D09

Y25

LCD_D10

AA28

LCD_D11

AA27

LCD_D12

U25

LCD_D13

U28

LCD_D14

U27

LCD_D15

U26

LCD_D16

V27

LCD_D17

V26
AB25
AA23
AB23
AA22

LVDS_SHTDN#_V25 LVDS_SHTDN#

V25
AC22

AB17
AB18
AE19

VDAC_VREF

AC17

VDAC_RSET

AE18

HDMI_TXCN

AF17

HDMI_TXCP

AG17

HDMI_TXD0N

AE16

HDMI_TXD0P

AE17

HDMI_TXD1N

AC18

HDMI_TXD1P

AD18

HDMI_TXD2N

AH18

HDMI_TXD2P

AG18

HDMI_RSET

AF18

100K_0402_5%

100K_0402_5%

@R39

@

10K_0402_5%

10K_0402_5%

12

@

@

R28

R28

R29

R29

100K_0402_5%

100K_0402_5%

12

R40

R40

R39

10K_0402_5%

10K_0402_5%

4

01EVT remove pull high

TO@

TO@

SAN@

SAN@

10
0
0

12

@

@

R27

R27

12

R38

R14 1K_0402_1%R 14 1K_0402_1%

12

12

R1253

R1253

12

33_0402_5%

33_0402_5%

LCD_DE 13
LCD_HSYNC 13
LCD_VSYNC 13

LCD_D00 13
LCD_D01 13
LCD_D02 13
LCD_D03 13
LCD_D04 13
LCD_D05 13
LCD_D06 13
LCD_D07 13
LCD_D08 13
LCD_D09 13
LCD_D10 13
LCD_D11 13
LCD_D12 13
LCD_D13 13
LCD_D14 13
LCD_D15 13
LCD_D16 13
LCD_D17 13

12

R1272 0_0402_5%R1272 0_0402_5%

C9 0.1U_0402_10V7KC9 0.1U_0402_10V7K

1 2

1 2

R11 1K_0402_1%R 11 1K_0402_1%

12

+VDDIO_NAND

12

@

@

R30

R30

100K_0402_5%

100K_0402_5%

12

R41

R41

10K_0402_5%

10K_0402_5%

LCD_PCLK

C1

C1
10P_0201_25V8

10P_0201_25V8

1 2

@

@

CAM_I2C_SCL
CAM_I2C_SDA

+3VS

HDMI_TXCN 14
HDMI_TXCP 14

HDMI_TXD0N 14
HDMI_TXD0P 14

HDMI_TXD1N 14
HDMI_TXD1P 14

HDMI_TXD2N 14
HDMI_TXD2P 14

SW1

@SW1

@

NSS507-212F-CCCG1T_3P

NSS507-212F-CCCG1T_3P

4

4

5

5

6

6

7

7

1

PAZ00 Procyon D DR / eMMC strap pin define

Net Name Description

100K_0402_5%

100K_0402_5%

NAND_RE#
NAND_WE#
NAND_CLE
NAND_ALE
GMI_AD12
GMI_AD13
GMI_AD14
GMI_AD15
NAND_D4
NAND_D5
NAND_D6
NAND_D7

SAN@ : SNADISK eMMC use

10K_0402_5%

10K_0402_5%

TO@ : Toshiba e MMC use

LCD_PCLK 13

+VDDIO_VI

R17

R17

2.2K_0402_5%

2.2K_0402_5%

+3VS_S3

R1279 0_0402_5%R1279 0_0402_5%

R10 0_0402_5%@ R10 0_0402_5%@

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

33221

RB751V-40TE17_SOD323-2

RB751V-40TE17_SOD323-2

NAND_D4

NAND_D5

NAND_D6

NAND_D7

+3VS

+3VS_S3

R1278 0_0402_5%R1278 0_0402_5%

12

R4 0_0402_5%@ R4 0_0402_5%@

C4

C4

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

12

12

R18

R18

2.2K_0402_5%

2.2K_0402_5%

+VDDIO_VI

12

12

1

1

C8

C8

C10

C10

2

2

0.1U_0402_10V7K

0.1U_0402_10V7K

D15

@ D15

@

1 2

12

R1238 0_0402_5%R1238 0_0402_5%

01EVT bypass SW1.2

NAND_D[5:4] DDR2 RAM configration.

00 Hynix 512M

NAND_D4=0 ; Install R38 ; @R27
NAND_D5=0 ; Install R39 ; @R28

01 Micron 512M

NAND_D4=1 ; Install R27 ; @R38
NAND_D5=0 ; Install R39 ; @R28

NAND_D[7:6] eMMC configration.

00 SANDISK eMMC

NAND_D6=0 ; Install R40 ; @R29
NAND_D7=0 ; Install R41 ; @R30

01 Toshiba eMMC

NAND_D6=1 ; Install R29 ; @R40
NAND_D7=0 ; Install R41 ; @R30

3

+VDDIO_NAND

U1E

12

1

2

1

C5

C5

0.1U_0402_10V7K

0.1U_0402_10V7K

2

NAND_ALE

NAND_CE0
NAND_CE1

HSMMC_CLK

EN_VDDIO_MMC

NAND_RE#
NAND_WE#

NAND_CLE

HSMMC_CMD

NAND_BSY#
NAND_WP#

CAM_I2C_SCL19
CAM_I2C_SDA19

TPM_RESET#
TPM_DATA#
TPM_ACCPCMD
LIGHT_INT

ACCELERO_INT#18

+VDDIO_NAND

SDIO1_CD#18

+VDDIO_VI

NAND_ALE

NAND_CE0
NAND_CE1

HSMMC_CLK

EN_VDDIO_MMC

NAND_RE#
NAND_WE#

NAND_CLE

HSMMC_CMD

NAND_BSY#
NAND_WP#

CAM_I2C_SCL
CAM_I2C_SDA

ACCELERO_INT#

R15 10K_0402_5%R15 10K_0402_5%

SDIO1_CD#

12

U1E

Y7

VDDIO_NAND_1

Y8

VDDIO_NAND_2

Y9

VDDIO_NAND_3

AH3

GMI_ADV#

AF5

GMI_CS0#

AF12

GMI_CS1#

AD12

GMI_CS2#

AC6

GMI_CS3#

AC12

GMI_CS4#

AB12

GMI_CS5#

AD5

GMI_CS6#

AD9

GMI_CS7#

AG9

GMI_OE#

AF6

GMI_WR#

AF3

GMI_CLK

AC9

GMI_DPD

AC7

GMI_RST#

AF1

GMI_WAIT

AF2

GMI_WP#

AC10

GMI_IORDY

VI MIPI

VI MIPI

L21

VDDIO_VI

H28

CAM_I2C_SCL

H27

CAM_I2C_SDA

L24

VI_MCLK

L28

VI_PCLK

L25

VI_HSYNC

K25

VI_VSYNC

H23

VI_D00

H25

VI_D01

J23

VI_D02

J28

VI_D03

J24

VI_D04

J27

VI_D05

J25

VI_D06

J26

VI_D07

K23

VI_D08

L26

VI_D09

L23

VI_D10

M22

VI_D11

L22

VI_GP0

M23

VI_GP3

J22

VI_GP4

L27

VI_GP5

M24

VI_GP6

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

NAND

NAND

GEN2_I2C_SCL
GEN2_I2C_SDA

GMI_AD0
GMI_AD1
GMI_AD2
GMI_AD3
GMI_AD4
GMI_AD5
GMI_AD6
GMI_AD7
GMI_AD8

GMI_AD9
GMI_AD10
GMI_AD11
GMI_AD12
GMI_AD13
GMI_AD14
GMI_AD15
GMI_AD16
GMI_AD17
GMI_AD18
GMI_AD19
GMI_AD20
GMI_AD21
GMI_AD22
GMI_AD23
GMI_AD24
GMI_AD25
GMI_AD26
GMI_AD27

AVDD_DSI_CSI_1
AVDD_DSI_CSI_2

DSI_CSI_RUP

CSI_CLKAN
CSI_CLKAP

CSI_D1AN
CSI_D1AP

CSI_D2AN
CSI_D2AP

CSI_CLKBN
CSI_CLKBP

CSI_D1BN
CSI_D1BP

DSI_CLKAN
DSI_CLKAP

DSI_D1AN
DSI_D1AP

DSI_D2AN
DSI_D2AP

DSI_CSI_RDN

AD11
AD6

AG5
AE9
AF11
AG6
AH8
AG11
AF9
AF8
AE6
AE12
AH12
AH6
AH11
AG3
AH9
AH5
AG12
AD3
AE5
AG8
AD8
AE7
AC5
AE11
AE8
AC11
AE10
AC8

AA17
Y16

AF21

AH26
AG26

AD20
AE20

AH23
AG23

AB20
AC20

AH24
AG24

AD21
AC21

AF20
AG20

AH21
AG21

AH20

Change +3VS to +VDDIO_VI 04/29

FORCE_RECOVERY#

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

Strap option

USB recovery

JTAG_ARM1

JTAG_ARM0

RAM_Code[3:0]

Boot_Select
[3:0]

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Strap pin

GMI_OE#

GMI_CLK

GMI_ADV#

GMI_AD[7:4]

GMI_AD
[15:12]

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Net Name Description

NAND_RE#

NAND_CLE

NAND_ALE

NAND_D[7:4]

GMI_AD
[15:12]

0 : USB recovery mode.
1 : Boot from secondary device.

00 : Serial JTAG chain, MPCORE and AVP.
01 : MPCORE only JTAG.
10 : AVP only JTAG.
11 : Reserved.

RAM_Code[3:2]: Secondary boot device configration.

RAM_Code[1:0]: DDR2 RAM configration.

0000 : eMMC primary x 4
0001 : eMMC primary x 8
0010 : eMMC primary x 4, high voltage
0011 : NAND
0100 : NAND (42nm)
0101 : Mobile LBA NAND
0110 : FlexMuxOne NAND
0111 : eSD x 4
1000 : SPI Flash
1001 : SNOR (Muxed x 16)
1010 : SNOR (Muxed x 32)
1011 : SNOR (Non-Muxed x 16)
1100 : MuxOne NAND
1101 : Reserved
1110 : Reserved
1111 : Use fuse data

NAND_D0
NAND_D1
NAND_D2
NAND_D3
NAND_D4
NAND_D5
NAND_D6
NAND_D7

SDIO1_WP
HSMMC_CD#
HSMMC_WP
GMI_AD12
GMI_AD13
GMI_AD14
GMI_AD15

T20_WAKE#_R

GMI_AD18

HSMMC_DAT0
HSMMC_DAT1
HSMMC_DAT2
HSMMC_DAT3
HSMMC_DAT4
HSMMC_DAT5
HSMMC_DAT6
HSMMC_DAT7

R16

R16

49.9_0402_1%

49.9_0402_1%

1 2

eMMC : 00 for Sandisk 01 for Toshiba
NAND Flash : 00 for Micron 01 for TBD

00 Hynix 512M
01 Micron 512M
10 TBD
11 TBD

NAND_D[0..7] 12

R5 100K_0402_5%R5 100K_0402_5%

SDIO1_WP 18

1 2
1 2

R6

R6
100K_0201_5%

100K_0201_5%

12

R8 0_0201_5%R8 0_0201_5%

+AVDD_DSI_CSI

1

C11

C11

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

Title

Title

Title

T20(1/4)LCD/CRT/HDMI/NAND

T20(1/4)LCD/CRT/HDMI/NAND

T20(1/4)LCD/CRT/HDMI/NAND

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

T20 schematic

T20 schematic

T20 schematic

Date: Sheet of

Date: Sheet of

Date: Sheet of

T20_WAKE# 9,19

GMI_AD18

HSMMC_DAT[0..7] 12

1.2V

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

1

+VDDIO_NAND

R1295

R1295

100K_0402_5%

100K_0402_5%

GMI_AD18

Default

1

00

PAZ00
L01-L04: 00
L05-L07: 01

00

PAZ00 : 0001

PAZ01 : 0011

6 33Wednesday, July 21, 2010

6 33Wednesday, July 21, 2010

6 33Wednesday, July 21, 2010

1 2

0.2

0.2

0.2

5

For leakage current issue(PVT2)

+3VS

5

Q31B

PWR_I2C_SCL

D D

PWR_I2C_SDA

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

1.8V

Q31B

2

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

Q31A

Q31A

+1.8VS_LDO4

3

4

61

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

2.2K_0402_5%

2.2K_0402_5%

5

Q33B

Q33B

3

4

6 1

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

sourcer request change L1 from
SM01000ER0T to SM01000ER00(Pre-MP 7/8)

220Ω @100MHz

L1

L1

1 2

FBMA-10-100505-221T_0402

FBMA-10-100505-221T_0402

1.1V

+1.1VS_LDO1

C C

B B

A A

+AVDD_PLL_P_C

1 2

0_0402_5%

0_0402_5%

1 2

0_0402_5%

0_0402_5%

1 2

0_0402_5%

0_0402_5%

1 2

0_0402_5%

0_0402_5%

1 2

0_0402_5%

0_0402_5%

R44

R44

R45

R45

R46

R46

R47

R47

R43

R43

1

C23

C23

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

+1.8VS_SYS

+1.8VS_LDO4

1.1V

+AVDD_PLLU

1

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

1.8V

5

+AVDD_PLLX

C26

C26

1.1V

1

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

R51

R51
0_0402_5%

0_0402_5%

1 2

CLK_32K_IN

+AVDD_PLLM +AVDD_PLLE

C27

C27

C22 4.7U_0603_6.3V6KC22 4.7U_0603_6.3V6K

1.1V

1

C28

C28

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

1

C30

C30

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

12

@

@

R267

R267
330_0402_5%

330_0402_5%

1

@

@

C232

C232
10P_0402_50V8J

10P_0402_50V8J

2

+AVDD_OSC

1

2

1.05V

1

2

0.1U_0402_25V4K

0.1U_0402_25V4K

+3VS

12

Q33A

Q33A

12

R193

R193

2.2K_0402_5%

2.2K_0402_5%

PWR_I2C_SCL_3V3

PWR_I2C_SDA_3V3

R168

R168

2

01EVT change MOS for EN power <3.3V

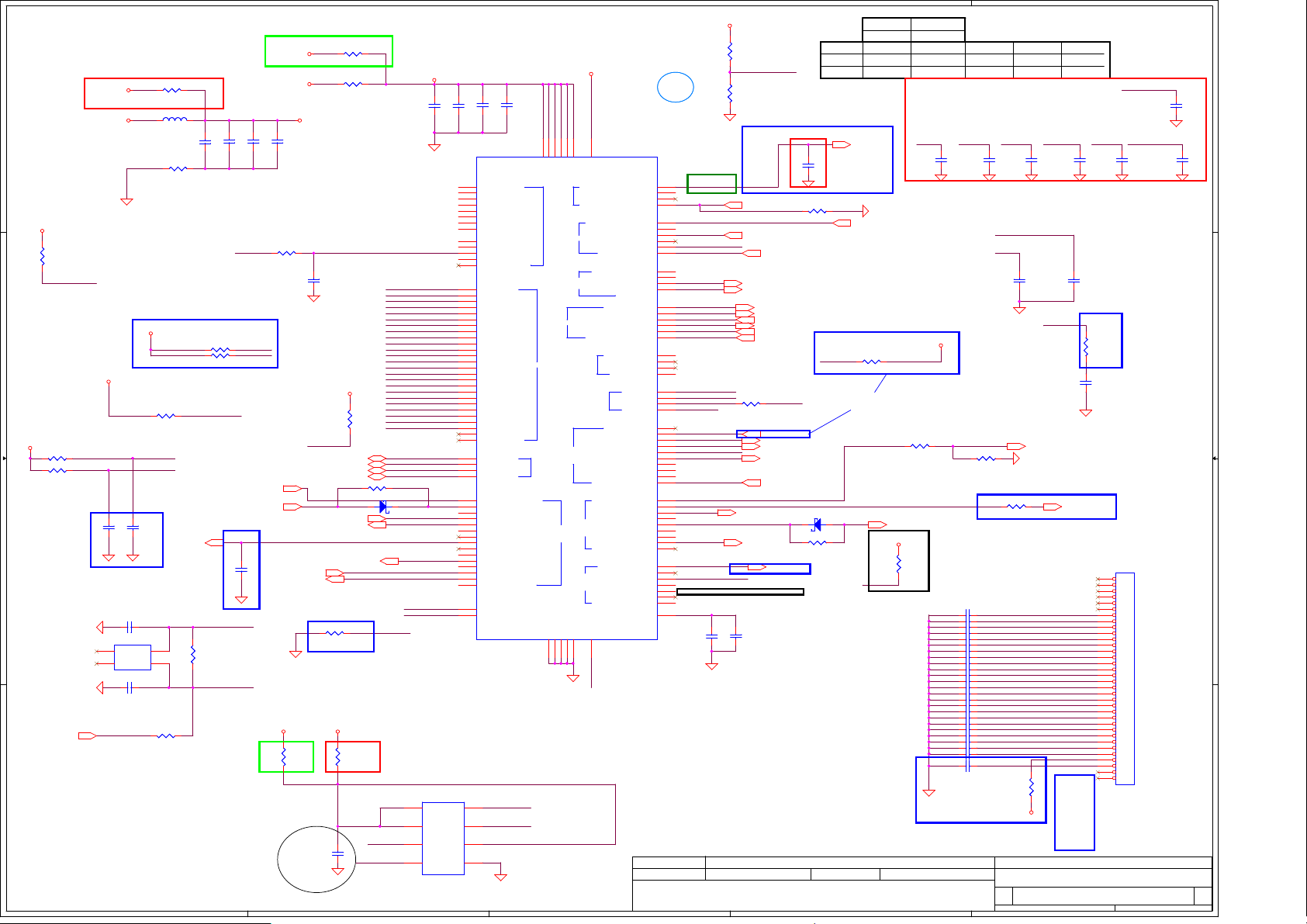

U1B

U1B

OSC, PLL, SYS

OSC, PLL, SYS

H12

AVDD_OSC

H14

AVDD_PLLA_P_C

AA18

AVDD_PLLU

L7

AVDD_PLLX

H15

AVDD_PLLM

Y1

AVDD_PLLE

@

@

C29

C29

G18

VDDIO_SYS

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

4

TPS658621_XTAL1

XTAL_IN

XTAL_OUT

AVDD_PLL_S_LF

PWR_I2C_SCL
PWR_I2C_SDA

SYS_RESET#

CLK_32K_IN

PWR_INT#

CORE_PWR_REQ

CPU_PWR_REQ

SYS_CLK_REQ

CLK_32K_OUT

KB_COL0
KB_COL1
KB_COL2
KB_COL3
KB_COL4
KB_COL5
KB_COL6
KB_COL7

KB_ROW00
KB_ROW01
KB_ROW02
KB_ROW03
KB_ROW04
KB_ROW05
KB_ROW06
KB_ROW07
KB_ROW08
KB_ROW09
KB_ROW10
KB_ROW11
KB_ROW12
KB_ROW13
KB_ROW14
KB_ROW15

JTAG_RTCK

JTAG_TCK

JTAG_TDI
JTAG_TDO
JTAG_TMS

JTAG_TRST#

OWR

TEST_MODE_EN

4

T20_XTAL_IN

E3

T20_XTAL_OUT

E2

PLL_S_PLL_LF

G12

C1
C2

SYS_RESET#_R

D17

B14

D14

G14
C14

D7
D5

A6
D6
A5
B5
C5
B3
A3
C3

C12
B12
A12
D11
A11
B11
C11
C9
B9
A9
D8
A8
B8
C8
C6
B6

A17
B17
B15
C15
C17
A15

G11
A14

12

C285

C285
10P_0402_50V8J

10P_0402_50V8J

R42

R42

2M_0402_5%

2M_0402_5%

1

C25

C25

2

2.2K_0402_5%

2.2K_0402_5%

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

PWR_I2C_SCL
PWR_I2C_SDA

1 2

FBMA-10-100505-101T 0402

FBMA-10-100505-101T 0402

CLK_32K_IN

PWR_INT#

CORE_PWR_REQ
CPU_PWR_REQ

CLK_32K_OUT

+1.8VS

C15

C15

01EVT for WWAN noise

+1.8VS

C40

C40

JTAG_RTCK
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST#

R59

R59

1 2

0_0201_5%

0_0201_5%

1 2

R48

R48

R50

R50

1

C16

C16

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

2

3

1

Y5

Y5

32.768KHZ_12.5PF_9H03200413

32.768KHZ_12.5PF_9H03200413

OSC4OSC

NC3NC

PVT move from PWR to HW part.

2

8P_0402_50V8J

8P_0402_50V8J

C21

C21

1 2

Y4 12MHZ 9PF X3S012000B91H-XY4 12MHZ 9PF X3S012000B91H-X

2

IN1NC

4

OUT3NC

C24

C24

1 2

8P_0402_50V8J

8P_0402_50V8J

+1.8VS

1.8V

12

12

R49

R49

2.2K_0402_5%

2.2K_0402_5%

PWR_I2C_SCL 28

Change R50 to bead SM01000DI00 for ESD issue

CLK_32K_IN 28

PWR_INT# 28

CORE_PWR_REQ
CPU_PWR_REQ

CLK_32K_OUT

PWR_I2C_SDA 28

SYS_RESET# 17,19,28

DDR_A_D[0..31]10,11

1.8V

1

1

C17

C17

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

C39

C39

C42

C42

2

47P_0402_50V8J

47P_0402_50V8J

47P_0402_50V8J

47P_0402_50V8J

12

1

C19

C19

C18

C18

2

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

1

C41

C41

2

2

47P_0402_50V8J

47P_0402_50V8J

47P_0402_50V8J

47P_0402_50V8J

T8T8
T9T9
T10T10
T11T11
T12T12
T13T13

R58

R58
10K_0201_5%

10K_0201_5%

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

12

1

2

TPS658621_XTAL2

C286

C286
10P_0402_50V8J

10P_0402_50V8J

+2.85VS_LDO9

1 2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

C20

C20

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

2008/10/03 2009/10/03

2008/10/03 2009/10/03

2008/10/03 2009/10/03

THERMD_P

THERMD_N

+1.8VS

2.85V

+VDD_DDR_RX

R520_0402_5% R520_0402_5%

1

C31

C31

2

DDR_A_D0
DDR_A_D1
DDR_A_D2
DDR_A_D3
DDR_A_D4
DDR_A_D5
DDR_A_D6
DDR_A_D7
DDR_A_D8
DDR_A_D9
DDR_A_D10
DDR_A_D11
DDR_A_D12
DDR_A_D13
DDR_A_D14
DDR_A_D15
DDR_A_D16
DDR_A_D17
DDR_A_D18
DDR_A_D19
DDR_A_D20
DDR_A_D21
DDR_A_D22
DDR_A_D23
DDR_A_D24
DDR_A_D25
DDR_A_D26
DDR_A_D27
DDR_A_D28
DDR_A_D29
DDR_A_D30
DDR_A_D31

Compal Secret Data

Compal Secret Data

Compal Secret Data

R238 100_0402_5%R238 100_0402_5%

1 2

1000P_0402_50V7K

1000P_0402_50V7K

1 2

R239 100_0402_5%R239 100_0402_5%

U1C

U1C

H20

VDDIO_DDR_01

J12

VDDIO_DDR_02

J13

VDDIO_DDR_03

J14

VDDIO_DDR_04

J15

VDDIO_DDR_05

J16

VDDIO_DDR_06

J17

VDDIO_DDR_07

J18

VDDIO_DDR_08

J19

VDDIO_DDR_09

J20

VDDIO_DDR_10

J21

VDDIO_DDR_11

K20

VDDIO_DDR_12

L16

VDDIO_DDR_13

L17

VDDIO_DDR_14

L20

VDDIO_DDR_15

M17

VDDIO_DDR_16

M18

VDDIO_DDR_17

M20

VDDIO_DDR_18

N18

VDDIO_DDR_19

N20

VDDIO_DDR_20

P20

VDDIO_DDR_21

R20

VDDIO_DDR_22

T20

VDDIO_DDR_23

U20

VDDIO_DDR_24

V20

VDDIO_DDR_25

H17

VDD_DDR_RX

F20

DDR_DQ00

E18

DDR_DQ01

D18

DDR_DQ02

F18

DDR_DQ03

F17

DDR_DQ04

E21

DDR_DQ05

D21

DDR_DQ06

F21

DDR_DQ07

E17

DDR_DQ08

D15

DDR_DQ09

F16

DDR_DQ10

E14

DDR_DQ11

F13

DDR_DQ12

D16

DDR_DQ13

D12

DDR_DQ14

D13

DDR_DQ15

F23

DDR_DQ16

F25

DDR_DQ17

H22

DDR_DQ18

G25

DDR_DQ19

F22

DDR_DQ20

D24

DDR_DQ21

H24

DDR_DQ22

E23

DDR_DQ23

F9

DDR_DQ24

F12

DDR_DQ25

E12

DDR_DQ26

E9

DDR_DQ27

F10

DDR_DQ28

G8

DDR_DQ29

F11

DDR_DQ30

G9

DDR_DQ31

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

Deciphered Date

Deciphered Date

Deciphered Date

2

+3VS

1

C212

C212

2

PWR_I2C_SCL_3V3
PWR_I2C_SDA_3V3

DDR2

DDR2

2

R232

R232

1 2

20_0402_5%

20_0402_5%

THERMD_F_P

THERMD_F_N

DDR_DM0
DDR_DM1
DDR_DM2
DDR_DM3

DDR_DQS0N
DDR_DQS0P

DDR_DQS1N
DDR_DQS1P

DDR_DQS2N
DDR_DQS2P

DDR_DQS3N
DDR_DQS3P

DDR_A00
DDR_A01
DDR_A02
DDR_A03
DDR_A04
DDR_A05
DDR_A06
DDR_A07
DDR_A08
DDR_A09
DDR_A10
DDR_A11
DDR_A12
DDR_A13
DDR_A14

DDR_RAS#
DDR_CAS#

DDR_WE#

DDR_BA0
DDR_BA1
DDR_BA2

DDR_CS0#
DDR_CS1#

DDR_ODT0

DDR_CKE0
DDR_CKE1

DDR_CLK#

DDR_CLK

THERMD_N
THERMD_P

DDR_COMP_PU
DDR_COMP_PD

DDR_QUSE0
DDR_QUSE1
DDR_QUSE2
DDR_QUSE3

+3VS_TH

1

C211

C211

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

U22

U22

2

VDD

D+

3

D-

THERM#

ALERT#

8

SCL

7

SDA

GND

ADT7421ARMZ-REEL_MSOP8P

ADT7421ARMZ-REEL_MSOP8P

address 0X4C

DDR_A_DM0

F19

DDR_A_DM1

E15

DDR_A_DM2

G23

DDR_A_DM3

D9

D19
E20

F14
F15

E24
F24

E11
D10

DDR_A_MA0

A20

DDR_A_MA1

C24

DDR_A_MA2

D20

DDR_A_MA3

B20

DDR_A_MA4

F26

DDR_A_MA5

C26

DDR_A_MA6

C27

DDR_A_MA7

F28

DDR_A_MA8

A26

DDR_A_MA9

A23

DDR_A_MA10

D23

DDR_A_MA11

C20

DDR_A_MA12DDR_A_MA12

C18

DDR_A_MA13

E28
C28

B23
H26
F27

B26
A24
B24

E25
C23

B21

A21
C21

E27
E26

THERMD_N

E6

THERMD_P

F7

R53 49.9_0402_1%R53 49.9_0402_1%

E8
F8

G15
G17
A18
B18

1 2

R54 49.9_0402_1%R54 49.9_0402_1%

1 2

DDR_QUSE0
DDR_QUSE1
DDR_QUSE2
DDR_QUSE3

R55

R55

1 2

0_0402_5%

0_0402_5%

R57

R57

1 2

0_0201_5%

0_0201_5%

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

1

+3VALW

12

R237

R237
100K_0402_5%

100K_0402_5%

1

TEMP_THERM#

4
6

5

DDR_A_DM[0..3] 10,11

DDR_A_DQS#0 1 0
DDR_A_DQS0 10

DDR_A_DQS#1 1 0
DDR_A_DQS1 10

DDR_A_DQS#2 1 1
DDR_A_DQS2 11

DDR_A_DQS#3 1 1
DDR_A_DQS3 11

DDR_A_MA[0..13] 10,11

DDR_A_RAS# 10,11
DDR_A_CAS# 10,11
DDR_A_WE# 10,11

DDR_A_BS#0 10,11
DDR_A_BS#1 10,11
DDR_A_BS#2 10,11

M_CS#0 10,11

01EVT remove for x8 RAM

M_ODT 10,11

M_CKE0 10,11

01EVT remove for x8 RAM

M_CLK_DDR#0 10,11
M_CLK_DDR0 10,11

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

01EVT for thermal throttle

TEMP_ALERT#

+1.8VS

1

1.8V

7 33Wednesday, July 21, 2010

7 33Wednesday, July 21, 2010

7 33Wednesday, July 21, 2010

TEMP_THERM#
TEMP_ALERT# 6

0.1

0.1

0.1

A

100607_Reserve L23, R1317 and C311 only

3.3V

+3.3VS_LDO3

2.2U_0603_6.3V6K

1 1

+3VS

2 2

2.2U_0603_6.3V6K

R68 0_0402_5 %R68 0_0402_5%

+AVDD_USB

R60

R60

12

0_0402_5%

0_0402_5%

C34

C34

R62 0_0402_5 %R62 0_0402_5%

+VDDIO_SDIO

12

Reserve PEI-E power trace

3 3

4 4

R92

R92

1 2

0_0402_5%

0_0402_5%

R78

R78

1 2

0_0402_5%

0_0402_5%

R80

R80

1 2

0_0402_5%

0_0402_5%

R85

R85

1 2

0_0402_5%

0_0402_5%

A

+AVDD_PEX_PLL

+AVDD_PEX

+VDD_PEX

+VDDIO_PEX_CLK

Change L23 to 0 ohm for
mini USB client only.(PVT4)

12

3.3V

+AVDD_USB_PLL

12

1

C33

C33

0.1U_0402_10V7K

0.1U_0402_10V7K

2

3.3V

1

C37

C37

0.1U_0402_10V7K

0.1U_0402_10V7K

2

12

R71 1K_0402_1%R71 1K_0402_1%

12

R72 1K_0402_1%R72 1K_0402_1%

U1H

U1H

P8

AVDD_PEX_PLL

R8

AVDD_PEX_1

R9

AVDD_PEX_2

T9

AVDD_PEX_3

U8

VDD_PEX_1

U9

VDD_PEX_2

V9

VDD_PEX_3

V8

VDDIO_PEX_CLK

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

U1F

U1F

AA14

AVDD_USB_1

Y14

AVDD_USB_2

AB11

AVDD_USB_PLL

VDDIO_SDIOP1SDIO3_DATA0

SDIO

SDIO

AB8

VDDIO_HSIC

AB9

AVDD_IC_USB

AA3

DNC_0001

AB4

DNC_0002

AB6

DNC_0003

AC13

DNC_0004

AC3

DNC_0005

AE21

DNC_0006

AE22

DNC_0007

AE23

DNC_0008

AF23

DNC_0009

AF24

DNC_0010

AF26

DNC_0011

AF27

DNC_0012

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

PEX

PEX

USB

USB

HSIC

HSIC

NC

NC

PEX_L0_TXN

PEX_L0_TXP

PEX_L0_RXN
PEX_L0_RXP

PEX_L1_TXN

PEX_L1_TXP

PEX_L1_RXN
PEX_L1_RXP

PEX_L2_TXN

PEX_L2_TXP

PEX_L2_RXN
PEX_L2_RXP

PEX_L3_TXN

PEX_L3_TXP

PEX_L3_RXN
PEX_L3_RXP

PEX_CLK_OUT1_N
PEX_CLK_OUT1_P

PEX_CLK_OUT2_N
PEX_CLK_OUT2_P

PEX_TSTCLKN
PEX_TSTCLKP

PEX_REFCLKN
PEX_REFCLKP

PEX_TERMP

USB1_VBUS

USB1_DN
USB1_DP

USB1_ID

USB3_VBUS

USB3_DN
USB3_DP

USB3_ID

USB_REXT

SDIO3_DATA1
SDIO3_DATA2
SDIO3_DATA3
SDIO3_DATA4
SDIO3_DATA5
SDIO3_DATA6
SDIO3_DATA7

SDIO3_CLK

SDIO3_CMD

GPIO_PV4
GPIO_PV5
GPIO_PV6

HSIC_DATA

HSIC_STROBE

HSIC_REXT

IC_DN
IC_DP

IC_REXT

DNC_00013
DNC_00014
DNC_00015
DNC_00016
DNC_00017
DNC_00018
DNC_00019
DNC_00020
DNC_00021
DNC_00022
DNC_00023

AD1
AD2

AA5
AA4

AC2
AC1

AA7
AA6

AA1
AA2

V4
V3

Y3
Y2

V6
V5

AC4
AD4

Y4
Y5

V1
V2

U1
U2

W6

B

For USB detect issue(PVT2)

L23

+USB1_VBUS +U SB1_VBUS_R

+VBUS

AD17

USB1_DN

AC14

USB1_DP

AD14

USB1_ID

AE14

+USB3_VBUS

AH14

USB3_DN

AH15

USB3_DP

B

AG15

AF15

AC16

R3
U3
U4
R4
T4
T6
R5
U7

R2

R1

P7
R7
R6

AC15

AD15

AE15

AF14
AG14

AE13

AF28
D22
G20
G21
M21
M7
R21
U5
V7
W4
Y6

PEX_TERMP

USB3_ID

USB_REXT

1 2

WF_LED

SDIO2_CMD 15

W_DISABLE#
PEX_RST0#

PEX_WAKE#

1 2

SDIO1_CLK_R

+USB1_VBUS

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

@

@

R86 2.49K_0402_1%

R86 2.49K_0402_1%

L23

1 2

0_0603_5%

0_0603_5%

R1317

@ R1317

@

100K_0402_1%

100K_0402_1%

1 2

L:HOST
H:Client

USB3_DN 16
USB3_DP 16

1 2

R65 10K_0402_5%R65 10K_0402_5%

R661K_0402_1% R661K_0402_1%

SDIO2_DAT0 15
SDIO2_DAT1 15
SDIO2_DAT2 15
SDIO2_DAT3 15

WF_RST# 15,20

12

R67 100K_0402_5 %R67 100K_0402_5%

1 2

1

C230

C230
10P_0402_50V8J

10P_0402_50V8J

2

WF_LED

PEX_WAKE# 15

01EVT modify GPIO pin

R206 33_0402_1%R206 33_0402_1%

R69

R69
100K_0402_5%

100K_0402_5%

+VDDIO_SDIO

100607_Modify mini USB detect circuit.

100K_0402_5%

100K_0402_5%

R229

R229

2.2K_0402_5%

2.2K_0402_5%

GEN1_I2C_SCL

GEN1_I2C_SDA

1 2

C

USB1_ID1: From Connector

USB1_ID1

USB1_ID2

USB1_ID2: From EC

S3 PWR modify PVT

+5VS

+5VALW

1

C233

C233
10P_0402_50V8J

10P_0402_50V8J

2

ULPI_CLK_R

SDIO1_CLK_R18

EC_REQUEST#

R73

R73

R79

R79

C

+3VS

R74 0_0402_5 %R74 0_0402_5%

+VBUS

0_0402_5%

0_0402_5%
R1267

R1267

1

@C280

@

0.01U_0402_16V7K

0.01U_0402_16V7K

2

+VDDIO_UART

2.2K_0402_5%

2.2K_0402_5%

5

@

@

Q5B

Q5B

4

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

2

1 2

R1225 0_0402_5%R1225 0_0402_5%

61

2005/05/26 2006/07/26

2005/05/26 2006/07/26

2005/05/26 2006/07/26

C280

3

SDIO1_CLK_R

SDIO1_CMD18
SDIO1_DAT018
SDIO1_DAT118
SDIO1_DAT218
SDIO1_DAT318

ULPI_RESET#1 6

EN_VDDIO_SD18

T20_Codec17
WF_PWDN#

R83

R83

USB1_DN 16
USB1_DP 16

12

12

+USB1_VBUS_R 16

ULPI_CLK_R

1

C311

@C311

@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

R1262 0_0402_5%R1262 0_0402_5%

R63 0_0402_5 %@R 63 0_0402_5%@

3.3V

SDIO2_CLK 15

+VDDIO_SDIO

W_DISABLE#

PEX_RST0# 15,18

EC_REQUEST#19

+VDDIO_BB

+5VS +5VS

12

61

Q28A

Q28A

2

+VDDIO_UART

12

R81

@R81

@

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

1 2

100K_0402_5%

100K_0402_5%

12

10K_0402_5%

10K_0402_5%

1 2

3

Q28B

Q28B

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

5

4

For Layout specing issue.

12

R82

@R82

@

2.2K_0402_5%

2.2K_0402_5%

@

@

Q5A

Q5A

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

1 2

R1224 0_0402_5%R1224 0_0402_5%

Issued Date

Issued Date

Issued Date

+3VS

+3VS_S3

R12800_0402_5%R12800_0402_5%

R64 0_0402_5%@R64 0_0402_5%@

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

ULPI_D[0..7]

ULPI_CLK_R

ULPI_DIR
ULPI_NXT
ULPI_STP

+VDDIO_AUDIO

12

HP_DET17

+3VS

12

12

Compal Secret Data

Compal Secret Data

Compal Secret Data

R1303 0_0402_5%R1303 0_0402_5%

R1304 1K_0402_5%@ R1304 1K_0402_5%@

33_0402_1%

33_0402_1%

1 2

D1 RB751V-40TE17_SOD323-2@D1 RB751V-40TE17_SOD323-2@
D2 RB751V-40TE17_SOD323-2@D2 RB751V-40TE17_SOD323-2@

+VDDIO_BB

12

12

1

C35

C35

2

R177 10_0402_5%R177 10_0402_5%

R265

R265

SDIO1_CMD
SDIO1_DAT0
SDIO1_DAT1
SDIO1_DAT2
SDIO1_DAT3

ULPI_RESET#

T20_Codec

R84

R84

2.2K_0402_5%

2.2K_0402_5%

Deciphered Date

Deciphered Date

Deciphered Date

12

12

12

12

1

2

ULPI_D0
ULPI_D1
ULPI_D2
ULPI_D3
ULPI_D4
ULPI_D5
ULPI_D6
ULPI_D7

SDIO1_CLK

EN_VDDIO_SD

C38

C38

1 2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

HP_DET

D

Add R1303 and remove D1,D2 for mini USB client only.

USB1_ID

USB1_ID

3.3V

C36

C36

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

ULPI_CLK

12

ULPI_DIR
ULPI_NXT
ULPI_STP

GEN1_I2C_SCL_3V3 13 ,17,18

GEN1_I2C_SDA_3V3 13,17,18

U1G

U1G

M8

VDDIO_BB

P4

ULPI_DATA0

P6

ULPI_DATA1

N4

ULPI_DATA2

L3

ULPI_DATA3

L4

ULPI_DATA4

L6

ULPI_DATA5

P5

ULPI_DATA6

N6

ULPI_DATA7

M2

ULPI_CLK

M3

ULPI_DIR

M1

ULPI_NXT

P3

ULPI_STP

L2

DAP3_DIN

L1

DAP3_DOUT

J3

DAP3_FS

M4

DAP3_SCLK

M6

SDIO1_CLK

J5

SDIO1_CMD

K6

SDIO1_DATA0

K4

SDIO1_DATA1

M5

SDIO1_DATA2

L5

SDIO1_DATA3

P2

GPIO_PV0

J7

GPIO_PV1

U6

GPIO_PV2

J6

GPIO_PV3

P21

VDDIO_AUDIO

R25

SPDIF_IN

N23

SPDIF_OUT

M28

SPI1_SCK

M27

SPI1_CS0#

M26

SPI1_MOSI

P26

SPI1_MISO

P24

SPI2_SCK

P23

SPI2_CS0#

P22

SPI2_CS1#

P28

SPI2_CS2#

N25

SPI2_MOSI

M25

SPI2_MISO

T20-H-A2 1G_FCBGA 664P

T20-H-A2 1G_FCBGA 664P

1

2

D

R1254

@R1254

@

100K_0402_5%

100K_0402_5%

1 2

BB UART

BB UART

GEN1_I2C_SCL
GEN1_I2C_SDA

AUDIO

AUDIO

SDIO2_CLKDAP4_SCLK

C278

C278
10P_0402_50V8J

10P_0402_50V8J

1

C277

C277
10P_0402_50V8J

10P_0402_50V8J

2

01EVT EMI request

E

DVT for USB_ID folating issue

+3VS

R61 0_0402_5 %R61 0_0402_5%

VDDIO_UART

UART2_TXD

UART2_RXD
UART2_RTS#
UART2_CTS#

UART3_TXD

UART3_RXD
UART3_RTS#
UART3_CTS#

GPIO_PU0
GPIO_PU1
GPIO_PU2
GPIO_PU3
GPIO_PU4
GPIO_PU5
GPIO_PU6

DAP4_DIN

DAP4_DUT

DAP4_FS

DAP4_SCLK

DAP_MCLK1

DAP_MCLK2

DAP1_SCLK

DAP1_FS

DAP1_DUT

DAP1_DIN

DAP2_SCLK

DAP2_FS

DAP2_DUT

DAP2_DIN

DAP_MCLK1_R D AP_MCLK2_R DAP1_SCLK_R

Title

Title

Title

T20(3/4)USB/SDIO/UART/AUDIO

T20(3/4)USB/SDIO/UART/AUDIO

T20(3/4)USB/SDIO/UART/AUDIO

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

+VDDIO_UART

12

H11

GEN1_I2C_SCL

H6

GEN1_I2C_SDA

H5

H7
F4

UART1_TXD

G6

UART1_RXD

F5

F3
F2
F1
E4

BT_RST#

J1
G4
E1

LCD_BL_PWM

F6

LCD_BL_EN

E5
H4
J2

H1
J4
H3
H2

P27
R24

P25
R27
R28
R26

R23
R22
T23
T25

1

2

01EVT switch GPIO

R207 33_0402_1%R207 33_0402_1%

DAP_MCLK1
DAP_MCLK2

DAP1_SCLK
DAP1_FS
DAP1_DOUT
DAP1_DIN

EN_VDD_PNL_T25 EN_VDD_PNL

C228

C228
10P_0402_50V8J

10P_0402_50V8J

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

T20 schematic

T20 schematic

T20 schematic

LCD_BL_EN

R70

R70

1 2

100K_0402_5%

100K_0402_5%

12

R75 47_0402_5%R75 47_0402_5%

R76 47_0402_5%R76 47_0402_5%
R77 47_0402_5%R77 47_0402_5%

R1275 0_0402_5%R1275 0_0402_5%

1

C229

C229
10P_0402_50V8J

10P_0402_50V8J

2

E

1

C32

C32

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

BT_WAKEUP

LCD_BL_PWM
LCD_BL_EN

12
12

12

DAP1_FS
DAP1_DOUT

DAP1_DIN 17

12

8 33Wednesday, July 21, 2010

8 33Wednesday, July 21, 2010

8 33Wednesday, July 21, 2010

UART1_TXD
UART1_RXD

1

C289

@C289

@

0.1U_0402_10V6K

0.1U_0402_10V6K

2

UART3_TXD 15

UART3_RXD 15
UART3_RTS# 15
UART3_CTS# 15

BT_RST# 15

DAP4_DIN
DAP4_DOUT
DAP4_FS

DAP4_SCLK

DAP_MCLK1_R
DAP_MCLK2_R 16

DAP1_SCLK_R

EN_VDD_PNL 6

1

C227

C227
10P_0402_50V8J

10P_0402_50V8J

2

0.1

0.1

0.1

A

U1A

U1A

CORE

A1

A2
A27
A28

AA10
AA13
AA16
AA19
AA21

AA8
AA9

1 1

2 2

3 3

4 4

A

AB24
AB27

AC19
AD10
AD13
AD16
AD19
AD22

AE25
AE27

AG10
AG13
AG16
AG19

AG22
AG25
AG27
AG28

AH27
AH28

W21
W24
W27

AB2

AB5

AD7
AE2

AE4
AG1

AG2

AG4
AG7
AH1
AH2

B1
B10
B13
B16
B19

B2
B22
B25
B27
B28

B4

B7

D2
D25
D27

D4
E10
E13
E16
E19
E22

E7

G2
G24
G27

G5
H10
H13
H16
H18
H19
H21

H8

K2
K21
K24
K27

K5

K8
L11
L12
L13
L14
L15
L18

L8
M12
N13
N14
N16
N17

N2
N21
N24
N27

N5

N8
P17
P18
R11
R14
R15
R17
R18
T11
T12
T14
T17
T18

T2
T21
T24
T27

T5

T8
U11
U12
U15
U18
U21
V11
V14
V15
V16
V21

W2

W5

W8
Y11
Y12
Y13

CORE

GND_001
GND_002
GND_003
GND_004
GND_005
GND_006
GND_007
GND_008
GND_009
GND_010
GND_011
GND_012
GND_013
GND_014
GND_015
GND_016
GND_017
GND_018
GND_019
GND_020
GND_021
GND_022
GND_023
GND_024
GND_025
GND_026
GND_027
GND_028
GND_029
GND_030
GND_031
GND_032
GND_033
GND_034
GND_035
GND_036
GND_037
GND_038
GND_039
GND_040
GND_041
GND_042
GND_043
GND_044
GND_045
GND_046
GND_047
GND_048
GND_049
GND_050
GND_051
GND_052
GND_053
GND_054
GND_055
GND_056
GND_057
GND_058
GND_059
GND_060
GND_061
GND_062
GND_063
GND_064
GND_065
GND_066
GND_067
GND_068
GND_069
GND_070
GND_071
GND_072
GND_073
GND_074
GND_075
GND_076
GND_077
GND_078
GND_079
GND_080
GND_081
GND_082
GND_083
GND_084
GND_085
GND_086
GND_087
GND_088
GND_089
GND_090
GND_091
GND_092
GND_093
GND_094
GND_095
GND_096
GND_097
GND_098
GND_099
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136

T20-H-A2 1G_FCBGA 664PT20_23X23

T20-H-A2 1G_FCBGA 664PT20_23X23

VDD_RTC_00 1
VDD_RTC_00 2

VDD_CPU_01
VDD_CPU_02
VDD_CPU_03
VDD_CPU_04
VDD_CPU_05
VDD_CPU_06
VDD_CPU_07
VDD_CPU_08
VDD_CPU_09
VDD_CPU_10
VDD_CPU_11
VDD_CPU_12
VDD_CPU_13
VDD_CPU_14
VDD_CPU_15
VDD_CPU_16
VDD_CPU_17

VDD_CORE_01
VDD_CORE_02
VDD_CORE_03
VDD_CORE_04
VDD_CORE_05
VDD_CORE_06
VDD_CORE_07
VDD_CORE_08
VDD_CORE_09
VDD_CORE_10
VDD_CORE_11
VDD_CORE_12
VDD_CORE_13
VDD_CORE_14
VDD_CORE_15
VDD_CORE_16
VDD_CORE_17
VDD_CORE_18
VDD_CORE_19
VDD_CORE_20
VDD_CORE_21
VDD_CORE_22

VPP_FUSE

VPP_KFUSE

VDD_CORE_SEN SE

GND_CORE_SE NSE

VDD_CPU_SENS E

GND_CPU_SEN SE

VDD_TP

GND_TP

VGND_TP

B

1.0~1.2V

+VDD_RTC

V12

R87 0_0402_5%R87 0_0402_5%

V13

1

2

H9
J10
J11
J8
J9
K9
L9
M11
M9
N11
N12
P11
P12
P13
P14
R12
R13

AA20
M13
M14
M15
M16
N15
P15
P16
R16
T13
T15
T16
U13
U14
U16
U17
V17
V18
W20
Y19
Y20
Y21

AB15

VDD_KFUSE

AB14

Y18

Y17

N9

P9

W9

Y10

AA11

B

+1.2VS_LDO2

12

C43

C43

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

1

C44

C44

2

1

C48

C48

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

01EVT for WWAN noise

+VDD_CORE

C102

C102

R94

R94

1 2

10K_0402_5%

10K_0402_5%

1

C45

C45

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

C49

C49

C50

C50

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1

1

C101

C101

2

2

47P_0402_50V8J

47P_0402_50V8J

+VDD_FUSE

12

C53

C53

100K_0402_5%

100K_0402_5%

Change to 100K ( SD028100380 ) by NV suggest

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

1

C46

C46

2

1

2

1

C103

C103

2

47P_0402_50V8J

47P_0402_50V8J

3.3V

R93

@R93

@

0_0402_5%

0_0402_5%

Issued Date

Issued Date

Issued Date

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

1.0~1.2V

C51

C51

0.1U_0402_25V4K

0.1U_0402_25V4K

C107

C107

47P_0402_50V8J

47P_0402_50V8J

12

C

0.9~1.0V

+VDD_CPU

1

2

1

2

1

2

+3VS

C

01EVT for WWAN noise

+1.0VS_SM1

1 2

R88 0_0805_5%R88 0_0805_5%

C47

C47

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

+VDD_CORE

1 2

R89 0_0805_5%R89 0_0805_5%

1

C52

C52

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

47P_0402_50V8J

47P_0402_50V8J

2007/05/29 2008/05/29

2007/05/29 2008/05/29

2007/05/29 2008/05/29

+VDD_CPU

C148

C148

+1.2VS_SM0

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

1

C108

C108

2

47P_0402_50V8J

47P_0402_50V8J

Change connector form ACES-87213 to ACES_87036 by ME 4/16 ,remove 5VS & 1.8VS

01EVT for T20 UART/ ENE TX/ WINBOND JTAG debug

1

C147

C147

2

47P_0402_50V8J

47P_0402_50V8J

D

1

C149

C149

2

47P_0402_50V8J

47P_0402_50V8J

UART1_RXD
UART1_TXD
T20_WAKE#6,19

+3VALW

+1.8VS

SYSTEM_RESET#28
EC_TX_P80_DATA

D

E

1

2

47P_0402_50V8J

47P_0402_50V8J

JP1

UART1_RXD
UART1_TXD
T20_WAKE#

SYSTEM_RESET#
EC_TX_P80_DATA

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

T20 schematic

T20 schematic

T20 schematic

Date: Sheet of

Date: Sheet of

Date: Sheet of

JP1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

GND

12

GND

ACES_87036-1001-CP

ACES_87036-1001-CP

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

T20(4/4)Power/GND/NC

T20(4/4)Power/GND/NC

T20(4/4)Power/GND/NC

9 33W ednesday, July 21, 2010

9 33W ednesday, July 21, 2010

9 33W ednesday, July 21, 2010

E

0.1

0.1

0.1

5

DDR_A_BS#[0..2]7,11

DDR_A_D[0..15]7

DDR_A_DQS[0..1]7

DDR_A_DQS#[0..1]7

DDR_A_MA[0..13]7,11

D D

DDR_A_DM[0..1]7

4

3

2

1

U3

@U3

DDR_A_DQS0
DDR_A_DQS#0

+1.8VS

R95

+VRAM_VREFA

R96

R96

1K_0402_1%

1K_0402_1%

C C

B B

R95
1K_0402_1%

1K_0402_1%

1 2

(SSTL-1.8) VREF = .5*VDDQ

2

C55

C55

0.1U_0402_10V7K

0.1U_0402_10V7K

1

1 2

Close to U7

DDR_A_DM0

DDR_A_D0
DDR_A_D6
DDR_A_D2
DDR_A_D3
DDR_A_D7
DDR_A_D4
DDR_A_D5
DDR_A_D1

DDR_A_MA0
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA4
DDR_A_MA5
DDR_A_MA6
DDR_A_MA7
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA11
DDR_A_MA12
DDR_A_MA13

0.01U_0402_25V7K

0.01U_0402_25V7K

@

B7

DQS

A8

DQS#

B3

DM/RDQS

C8

DQ0

C2

DQ1

D7

DQ2

D3

DQ3

D1

DQ4

D9

DQ5

B1

DQ6

B9

DQ7

E2

VREF

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10

K7

A11

L2

A12

L8

A13

A2

NU/RDQS

L3

NC

L7

NC

HY5PS1G831CLFP-Y5_FBGA60~D

HY5PS1G831CLFP-Y5_FBGA60~D

+1.8VS

2

1

C56

C56

C57

C57

1

2

1U_0402_6.3V4Z

1U_0402_6.3V4Z

0.1U_0402_10V7K

0.1U_0402_10V7K

A9

VDDQ

C1

VDDQ

C3

VDDQ

C7

VDDQ

C9

VDDQ

A1

VDD

E9

VDD

H9

VDD

L1

VDD

E1

VDDL

ODT

CK

CK#

CKE

BA0
BA1
BA2

CS#
RAS#
CAS#

WE#

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSS

VSS

VSS

VSS

VSSDL

1

C58

C58

2

F9
E8

M_CLK_DDR#0

F8
F2

DDR_A_BS#0

G2

DDR_A_BS#1

G3

DDR_A_BS#2

G1
G8
F7
G7
F3

A7
B2
B8
D2
D8
A3
E3
J1
K9
E7

2

C59

C59

0.1U_0402_10V7K

0.1U_0402_10V7K

1

M_ODT

M_CLK_DDR0

DDR_A_RAS#
DDR_A_CAS#

DDR_A_WE#

+1.8VS +1.8VS

Group1Group0

+VRAM_VREFA

M_ODT 7

M_CKE0

M_CS#0

M_CLK_DDR0 7

M_CLK_DDR#0 7

M_CKE0 7

M_CS#0 7
DDR_A_RAS# 7
DDR_A_CAS# 7

DDR_A_WE# 7

M_ODT

2

1

R97

R97
10K_0402_5%

10K_0402_5%

1 2

C54

C54

0.1U_0402_10V7K

0.1U_0402_10V7K

(SSTL-1.8) VREF = .5*VDDQ

Close to U7

DDR_A_DQS1
DDR_A_DQS#1

DDR_A_DM1
DDR_A_D15
DDR_A_D10
DDR_A_D11
DDR_A_D8
DDR_A_D13
DDR_A_D14
DDR_A_D9
DDR_A_D12

DDR_A_MA0
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA4
DDR_A_MA5
DDR_A_MA6
DDR_A_MA7
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA11
DDR_A_MA12
DDR_A_MA13

0.01U_0402_25V7K

0.01U_0402_25V7K

U4

@U4

@

B7

DQS

A8

DQS#

B3

DM/RDQS

C8

DQ0

C2

DQ1

D7

DQ2

D3

DQ3

D1

DQ4

D9

DQ5

B1

DQ6

B9

DQ7

E2

VREF

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10

K7

A11

L2

A12

L8

A13

A2

NU/RDQS

L3

NC

L7

NC

HY5PS1G831CLFP-Y5_FBGA60~D

HY5PS1G831CLFP-Y5_FBGA60~D

+1.8VS

1

C60

C60

2

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

2

1

C61

C61

0.1U_0402_10V7K

0.1U_0402_10V7K

A9
C1
C3
C7
C9
A1

VDD

E9

VDD

H9

VDD

L1

VDD

E1

VDDL

F9

ODT

E8

CK

F8

CK#

F2

CKE

G2

BA0

G3

BA1

G1

BA2

G8

CS#

F7

RAS#

G7

CAS#

F3

WE#

A7
B2
B8
D2
D8
A3

VSS

E3

VSS

J1

VSS

K9

VSS

E7

1

C62

C62

2

1U_0402_6.3V4Z

1U_0402_6.3V4Z

M_ODT

M_CLK_DDR0

M_CLK_DDR#0

M_CKE0
DDR_A_BS#0
DDR_A_BS#1
DDR_A_BS#2

M_CS#0

DDR_A_RAS#

DDR_A_CAS#

DDR_A_WE#

2

C63

C63

0.1U_0402_10V7K

0.1U_0402_10V7K

1

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

DDRII(1/2)

DDRII(1/2)

DDRII(1/2)

T20 schematic

T20 schematic

T20 schematic

1

0.1

0.1

10 33Wednesday, July 21, 2010

10 33Wednesday, July 21, 2010

10 33Wednesday, July 21, 2010

0.1

5

DDR_A_BS#[0..2]7,10

DDR_A_D[16..31]7

DDR_A_DQS[2..3]7

DDR_A_DQS#[2..3]7

D D

DDR_A_MA[0..13]7,10

DDR_A_DM[2..3]7

4

3

2

1

M_CKE0

M_CS#0

+1.8VS

M_ODT 7

M_CLK_DDR0 7

M_CLK_DDR#0 7

M_CKE0 7

M_CS#0 7
DDR_A_RAS# 7
DDR_A_CAS# 7

DDR_A_WE# 7

+VRAM_VREFA

(SSTL-1.8) VREF = .5*VDDQ

2

C64

C64

0.1U_0402_10V7K

0.1U_0402_10V7K

1

Close to U7

Group3

DDR_A_DQS3
DDR_A_DQS#3

DDR_A_DM3
DDR_A_D28
DDR_A_D24
DDR_A_D30
DDR_A_D27
DDR_A_D29
DDR_A_D25
DDR_A_D31
DDR_A_D26

DDR_A_MA0
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA4
DDR_A_MA5
DDR_A_MA6
DDR_A_MA7
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA11
DDR_A_MA12
DDR_A_MA13

0.01U_0402_25V7K

0.01U_0402_25V7K

U6

@U6

@

B7

DQS

A8

DQS#

B3

DM/RDQS

C8

DQ0

C2

DQ1

D7

DQ2

D3

DQ3

D1

DQ4

D9

DQ5

B1

DQ6

B9

DQ7

E2

VREF

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10

K7

A11

L2

A12

L8

A13

A2

NU/RDQS

L3

NC

L7

NC

HY5PS1G831CLFP-Y5_FBGA60~D

HY5PS1G831CLFP-Y5_FBGA60~D

+1.8VS

1

C69

C69

2

0.1U_0402_10V7K

0.1U_0402_10V7K

2

C71

C71

1

1U_0402_6.3V4Z

1U_0402_6.3V4Z

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDDL

RAS#
CAS#

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

1

C72

C72

2

WE#

VDD
VDD
VDD
VDD

ODT

CK#
CKE
BA0
BA1
BA2
CS#

VSS
VSS
VSS
VSS

CK

A9
C1
C3
C7
C9
A1
E9
H9
L1
E1

F9

M_CLK_DDR0

E8

M_CLK_DDR#0

F8
F2

DDR_A_BS#0

G2
G3

DDR_A_BS#2

G1
G8

DDR_A_RAS#

F7

DDR_A_CAS#

G7

DDR_A_WE#

F3

A7
B2
B8
D2
D8
A3
E3
J1
K9
E7

2

C73

C73

0.1U_0402_10V7K

0.1U_0402_10V7K

1

M_ODT

U5

@U5

DDR_A_DQS2
DDR_A_DQS#2
DDR_A_DM2

DDR_A_D17
DDR_A_D23
DDR_A_D18

+VRAM_VREFA

C C

B B

2

C65

C65

0.1U_0402_10V7K

0.1U_0402_10V7K

1

Close to U7

Group2

(SSTL-1.8) VREF = .5*VDDQ

DDR_A_D21
DDR_A_D16
DDR_A_D22
DDR_A_D20
DDR_A_D19

DDR_A_MA0
DDR_A_MA1
DDR_A_MA2
DDR_A_MA3
DDR_A_MA4
DDR_A_MA5
DDR_A_MA6
DDR_A_MA7
DDR_A_MA8
DDR_A_MA9
DDR_A_MA10
DDR_A_MA11
DDR_A_MA12
DDR_A_MA13

0.01U_0402_25V7K

0.01U_0402_25V7K

@

B7

DQS

A8

DQS#

B3

DM/RDQS

C8

DQ0

C2

DQ1

D7

DQ2

D3

DQ3

D1

DQ4

D9

DQ5

B1

DQ6

B9

DQ7

E2

VREF

H8

A0

H3

A1

H7

A2

J2

A3

J8

A4

J3

A5

J7

A6

K2

A7

K8

A8

K3

A9

H2

A10

K7

A11

L2

A12

L8

A13

A2

NU/RDQS

L3

NC

L7

NC

HY5PS1G831CLFP-Y5_FBGA60~D

HY5PS1G831CLFP-Y5_FBGA60~D

+1.8VS

1

C66

C66

2

0.1U_0402_10V7K

0.1U_0402_10V7K

2

C67

C67

1

1U_0402_6.3V4Z

1U_0402_6.3V4Z

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD
VDD
VDD
VDD

VDDL

ODT

CKE

RAS#
CAS#

WE#

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSS
VSS
VSS
VSS

VSSDL

A9
C1
C3
C7
C9
A1
E9
H9
L1
E1

M_ODT

F9

M_CLK_DDR0

E8

CK#

BA0
BA1
BA2
CS#

CK

1

2

M_CLK_DDR#0

F8
F2

DDR_A_BS#0

G2

DDR_A_BS#1

G3

DDR_A_BS#2 DDR_A_BS#1

G1
G8

DDR_A_RAS#

F7

DDR_A_CAS#

G7

DDR_A_WE#

F3

A7
B2
B8
D2
D8
A3
E3
J1
K9
E7

2

C68

C68

C70

C70

0.1U_0402_10V7K

0.1U_0402_10V7K

1

+1.8VS

M_CKE0

M_CS#0

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

DDRII(2/2)

DDRII(2/2)

DDRII(2/2)

T20 schematic

T20 schematic

T20 schematic

11 33Wednesday, July 21, 2010

11 33Wednesday, July 21, 2010

11 33Wednesday, July 21, 2010

1

0.1

0.1

0.1

5

4

3

2

1

Change PWR to +3VS_S3 for eMMC cold boot issue (Pre-MP 7/8)

+VCORE_MMC +VDDIO_MMC

1

1

C74

C74

HSMMC_CMD_R

W5

2

2

C75

C75

0.1U_0402_10V7K

0.1U_0402_10V7K

33_0402_1%

33_0402_1%

R99

R99

1 2

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

100607_Change from 0 ohm to 63.4 ohm.

R100

W6

HSMMC_DAT0_R

H3

HSMMC_DAT1_R

H4

HSMMC_DAT2_R

H5

HSMMC_DAT3_R

J2

HSMMC_DAT4_R

J3

HSMMC_DAT5_R

J4

HSMMC_DAT6_R

J5

HSMMC_DAT7_R

J6

EMMC_VDDI

K2

U1
U2
U3

SYS_RESET_eMMC#

U5
U6
U7
U10
U12
U13
U14
V1
V2
V3
V12
V13
V14
W1
W2
W3
W7
W8
W9
W10
W11
W12
W13
W14
Y1
Y3
Y6
Y7
Y8
Y9
Y10
Y11
Y12
Y13
Y14
AA1
AA2
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AE1
AE14
AG2
AG13
AH4
AH6
AH9
AH11

HSMMC_CLK_R

1 2

C78

C78

R100

1 2

R101 33_0402_1%R101 33_0402_1%

1 2

R102 33_0402_1%R102 33_0402_1%

1 2

R103 33_0402_1%R103 33_0402_1%

1 2

R104 33_0402_1%R104 33_0402_1%

1 2

R105 33_0402_1%R105 33_0402_1%

1 2

R106 33_0402_1%R106 33_0402_1%

1 2

R107 33_0402_1%R107 33_0402_1%

1 2

R108 33_0402_1%R108 33_0402_1%

1 2

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

63.4_0402_1%

63.4_0402_1%

R1311 0_0402_5%@R1311 0_0402_5%@

+VDDIO_NAND

C76

C76

HSMMC_CMD

HSMMC_CLK

HSMMC_DAT0
HSMMC_DAT1
HSMMC_DAT2
HSMMC_DAT3
HSMMC_DAT4
HSMMC_DAT5
HSMMC_DAT6
HSMMC_DAT7

12

HSMMC_CMD_R

HSMMC_DAT0_R
HSMMC_DAT1_R
HSMMC_DAT2_R
HSMMC_DAT3_R
HSMMC_DAT4_R
HSMMC_DAT5_R
HSMMC_DAT6_R
HSMMC_DAT7_R

1

2

1 2

1

C77

C77

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

2

HSMMC_CMD

HSMMC_CLK

Add reset Pin for
Toshiba eMMC

4.4 interface(PVT2)

R1315 100K_ 0402_5%R1315 100K_ 0402_5%

R109 0_0603_5%R109 0_0603_5%

Remove EN_VDDIO_MMC

3.3V

+VDDIO_MMC

12

12

R111

R111

R112

R112

R113

R113

10K_0402_5%

10K_0402_5%

100K_0402_5%

100K_0402_5%

HSMMC_DAT[0..7] 6

+VDDIO_MMC+VDDIO_MMC

12

5

3

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

+VDDIO_MMC

12

12

R114

R114

100K_0402_5%

100K_0402_5%

Q30B

Q30B

R115

R115

100K_0402_5%

100K_0402_5%

+VDDIO_N

0.1U_0201_6.3V6K

0.1U_0201_6.3V6K

1

1

C98

C98

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

R118

R118

100K_0402_5%

100K_0402_5%

12

NAND_BSY#

NAND_CE0
NAND_CE1
NAND_RE#
NAND_ALE
NAND_CLE
NAND_WE#
NAND_WP#

+VDDIO_N

R119

R119

100K_0402_5%

100K_0402_5%

12

100K_0402_5%

100K_0402_5%

NAND_BSY#

NAND_CE0
NAND_CE1
NAND_RE#
NAND_ALE
NAND_CLE
NAND_WE#
NAND_WP#

4

12

R116

R116

100K_0402_5%

100K_0402_5%

SYS_RESET# 17,19,28

12

12

R117

R117

100K_0402_5%

100K_0402_5%

2

U25

SI@ U25

SI@

7

R/B#

6

NC27

9

CE#

10

NC28

8

RE#

17

ALE

16

CLE

18

WE#

19

WP#

1

NC1

2

NC2

3

NC3

4

NC4

5

NC5

11

NC6

14

NC7

15

NC8

23

NC9

24

NC10

25

NC11

27

NC12

28

NC13

12

VCC1

13

VSS1

NAND01GW3B2AN6F_TS OP48

NAND01GW3B2AN6F_TS OP48

+VDDIO_NAND

1

C95

C95

C96

C96

0.1U_0402_10V7K

2

0.1U_0402_10V7K

2

I/O[0]
I/O[1]
I/O[2]
I/O[3]
I/O[4]
I/O[5]
I/O[6]
I/O[7]

NC14
NC15
NC16
NC17
NC18
NC19
NC20
NC21
NC22
NC23
NC24
NC25
NC26

VCC2
VSS2

R169 0_0603_5%R169 0_0603_5%

1 2

PRL

NAND_D0

29

NAND_D1

30

NAND_D2

31

NAND_D3

32

NAND_D4

41

NAND_D5

42

NAND_D6

43

NAND_D7

44

26
33
34
35
39
40
45
46
47
48
20
21
22
38

37
36

+VDDIO_N

+VDDIO_N

Change +3VS to +VDDIO_NAND 4/29

NAND_D[0..7] 6

R98 0_0402_5%@ R98 0_0402_5%@

U7

U7

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

4G SDIN4C2-8G

4G SDIN4C2-8G

+VCORE_MMC

12

M6

N5

T10

VCC

VCC

R1313 0_0402_5%R1313 0_0402_5%

U9

VCC

VCC

VSSQ

VSSQ

VSSQ

Y5

AA4

AA6

+3VS_S3

+VDDIO_MMC

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

12

Y4 must connector to Y3 & AA2 for with out use 3.5 mil trace

k6

W4

Y4

AA3

AA5

VCCQ

VCCQ

VCCQ

VCCQ

VCCQ

CMD

CLK

DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT6
DAT7

VDDi

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

VSSQ

VSSQ

K4

Y2

VSS

VSSP5VSS

VSS

U8

M7

R10

NC

+2.85VS_LDO5

D D

A4
A6
A9

A11

B2

B13

D1

D14

H1
H2
H6
H7
H8

H9
H10
H11
H12
H13
H14

J1
J7
J8
J9

M10
M12
M13
M14

N10
N12
N13
N14

R12
R13
R14

J10
J11
J12
J13
J14

K1

K3

K5

K7

K8

K9
K10
K11
K12
K13
K14

L1

L2

L3

L4
L12
L13
L14

M1
M2
M3
M5
M8
M9

N1

N2

N3

P1

P2

P3
P10
P12
P13
P14

R1

R2

R3

R5

T1

T2

T3

T5
T12
T13
T14

C C

B B

A A

Y2 must connector to AA2 for with out use 3.5 mil trace
Y5 must connector to Y6 & Y7 & AA7

for with out use 3.5 mil trace

Change to 3 mil for Toshiba eMMC 4.4

5

interface.(PVT 2nd build)

4

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

eMMC/NAND

eMMC/NAND

eMMC/NAND

T20 schematic

T20 schematic

T20 schematic

1

12 33Wednesday, July 21, 2010

12 33Wednesday, July 21, 2010

12 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

4

3

2

1

+3VS

1

2

+3VS

S

S

G

G

2

D

D

1 3

LVDS Bridge

51
52
54
55
56

3

50

2

4
6

7
11
12
14

8
10

15
19
20
22
23
24
16
18

27
28

32
30
25
31
17

SN75LVDS83DGGRG4_TSSOP56

SN75LVDS83DGGRG4_TSSOP56

C83

C83
1U_0402_6.3V4Z

1U_0402_6.3V4Z

+LCD_INV B+

1

C88

C88

68P_0402_50V8J

68P_0402_50V8J

W=60mils

Q11

Q11
AO3413_SOT23

AO3413_SOT23

+LCD_VDD

1

2

4

W=60mils

C94

C94

0.1U_0402_10V6K

0.1U_0402_10V6K

2

FBMA-10-100505-221T_0402

FBMA-10-100505-221T_0402

U8

U8

D0
D1
D2
D3
D4
D6
D27
D5

D7
D8
D9
D12
D13
D14
D10
D11

D15
D18
D19
D20
D21
D22
D16
D17

D24
D25

SHTDN#
D26
D23
CLKIN
CLKSEL

LVDSVcc

PLLVcc

Y0M

Y1M

Y2M

Y3M

CLKOUTP

CLKOUTM

GND
GND
GND
GND

GND
PLLGND
PLLGND

LVDSGND
LVDSGND
LVDSGND

1

Vcc

9

Vcc

26

Vcc

44
34

47

Y0P

48

45

Y1P

46

41

Y2P

42

37

Y3P

38

39
40

5
13
21
53
29
33
35
36
43
49

Rated Current M AX:3000mA

L5

L5

FBMA-L11-201209-221LMA30T_0805

FBMA-L11-201209-221LMA30T_0805

1

C89

C89

0.1U_0402_25V6

0.1U_0402_25V6

2

LCD_BL_PWM

INVT_PWM19

+3VS

R121

R121

+VDD_BIO

+LCDVDD_R

12

R135

R135

0_0603_5%

0_0603_5%

1 2

1 2

LVDSA0
LVDSA0#

LVDSA1
LVDSA1#

LVDSA2
LVDSA2#

LVDSACLK
LVDSACLK#

0_0805_5%

0_0805_5%

1

C86

C86

0.1U_0402_10V6K

0.1U_0402_10V6K

2

1

C90

C90

2

+3VS_LVDS_CAM

D D

LCD_D126
LCD_D136
LCD_D146
LCD_D156
LCD_D166
LCD_D176

LCD_D066
LCD_D076
LCD_D086
LCD_D096
LCD_D106
LCD_D116

LCD_D006
LCD_D016
LCD_D026
LCD_D036
LCD_D046
LCD_D056

12

61

12

LCD_HSYNC6
LCD_VSYNC6

LVDS_SHTDN#6

LCD_DE6

1 : Rising edge
0 : Falling edge

0.01U_0402_25V7K

0.01U_0402_25V7K

+3VS

12

2

3

5

4

+VDD_BIO

+VDD_LVDS

C81

C81

R131

R131
100K_0402_5%

100K_0402_5%

1 2

R134 47K_04 02_5%R134 47K_0402_5%

Q6B

Q6B
2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

C C

LVDS_SHTDN#

12

R125

R125
10K_0402_5%

10K_0402_5%

+VDD_BIO

1

1

C85

2

2

R130

R130

150_0603_5%

150_0603_5%

Q6A

Q6A

100K_0402_5%

100K_0402_5%

C85

0.01U_0402_25V7K

0.01U_0402_25V7K

+LCD_VDD

R136

R136

C84

C84

0.01U_0402_25V7K

0.01U_0402_25V7K

B B

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

EN_VDD_PNL6

A A

5

LCD_D12
LCD_D13
LCD_D14
LCD_D15
LCD_D16
LCD_D17

LCD_D06
LCD_D07
LCD_D08
LCD_D09
LCD_D10
LCD_D11

LCD_D00
LCD_D01
LCD_D02
LCD_D03
LCD_D04
LCD_D05

LCD_HSYNC
LCD_VSYNC

LVDS_SHTDN#
LCD_DE

LCD_PCLK_OUT

1 2

R126

R126

10K_0402_5%

10K_0402_5%

1

1

2

2

0.1U_0402_10V6K

0.1U_0402_10V6K

C91

C91

C92

C92

0.01U_0402_16V7K

0.01U_0402_16V7K

C82

C82

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

2

1

1

2

+3VS

R122

R122
FBMA-10-100505-221T_0402

FBMA-10-100505-221T_0402

1 2

Change R121,R122 to SM01000ER00

+VDD_LVDS

L3

L3

1

2

680P_0402_50V7K

680P_0402_50V7K

W=20mils

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

for RF issue(Pre-MP 7/15)

01EVT for WWAN noise

1.5A

12

1

2

1

C263

C263

2

0.1U_0402_10V7K

0.1U_0402_10V7K

12

R13220_0402_5% R13220_0402_5%

12

R13320_0402_5% @R13320_0402_5% @

Issued Date

Issued Date

Issued Date

3

C183

C183

C87

C87

4.7U_0805_10V4Z

4.7U_0805_10V4Z

1

C265

C265

C264

C264

2

2200P_0402_50V7K

2200P_0402_50V7K

INVT_PWM_R

12

0.1U_0402_10V6K

0.1U_0402_10V6K

1 2

C93

C93

C184

C184

1 2

47P_0402_50V8J

47P_0402_50V8J

+LCD_VDD

1

2

47P_0402_50V8J

47P_0402_50V8J

1

1

C266

C266

C267

C267

2

2

68P_0402_50V8K

68P_0402_50V8K

0.1U_0402_10V7K

0.1U_0402_10V7K

R1265

R1265
100K_0402_5%

100K_0402_5%

01EVT for WWAN noise

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

+3VS

1

C80

C80

C79

C79

2

0.1U_0402_10V6K

0.1U_0402_10V6K

LVDSA0#
LVDSA0

LVDSA1#
LVDSA1
LVDSA2#
LVDSA2

LVDSACLK#
LVDSACLK

LCD_BL_EN

01EVT for WWAN noise

1

1

C268

C268

C269

C269

2

2

68P_0402_50V8K

68P_0402_50V8K

2200P_0402_50V7K

2200P_0402_50V7K

680P_0402_50V7K

680P_0402_50V7K

1

2

GEN1_I2C_SCL_3V38,17,18

GEN1_I2C_SDA_3V38,17,18

LCD_BL_EN

R127

R127

10K_0402_5%

10K_0402_5%

1 2

USB3_HUB_P216

USB3_HUB_N216

1

1

C270

C270

C271

C271

2

2

68P_0402_50V8K

0.1U_0402_10V7K

0.1U_0402_10V7K

Compal Secret Data

Compal Secret Data

Compal Secret Data

68P_0402_50V8K

2200P_0402_50V7K

2200P_0402_50V7K

4.7K_0402_5%

4.7K_0402_5%

@ R270

@

4.7K_0402_5%

4.7K_0402_5%

Deciphered Date

Deciphered Date

Deciphered Date

R123 0_0402_5%R123 0_0402_5%

1 2

R124 0_0402_5%R124 0_0402_5%

R290 0_0402_5%R290 0_0402_5%

1 2

R291 0_0402_5%R291 0_0402_5%

1 2

R292 0_0402_5%R292 0_0402_5%

1 2

R293 0_0402_5%R293 0_0402_5%

1 2

R294 0_0402_5%R294 0_0402_5%

1 2

R295 0_0402_5%R295 0_0402_5%

1 2

R296 0_0402_5%R296 0_0402_5%

1 2

R297 0_0402_5%R297 0_0402_5%

1 2

R1261 22_0402_5%R 1261 22_0402_5%

12

1 2

+3VS_LVDS_CAM

Reserve for EMI request

R128 0_0402_5%@R128 0_0402_5%@

1 2

L4

L4

1

1

4

4

WCM-2012-900T_0805

WCM-2012-900T_0805

R129 0_0402_5%@R129 0_0402_5%@

1 2

LCD_PCLK6

+3VS

12

12

R271

R271

4.7K_0402_5%

12

2

4.7K_0402_5%

PD#OE
FS

12

R272

4.7K_0402_5%

4.7K_0402_5%

@R272

@

R269

R269

R270

+LCDVDD_R

LVDS_A0#
LVDS_A0

LVDS_A1#
LVDS_A1
LVDS_A2#
LVDS_A2

LVDS_ACLK#
LVDS_ACLK

INVT_PWM_R

+LCD_INV

USB3_N2
USB3_P2

DMIC_CLK
DMIC_DAT

2

2

3

3

PD#OE

FS

LCD_PCLK LCD_PCLK_OUT

JLVDS1

JLVDS1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

I-PEX_20143-030E-20F~D

I-PEX_20143-030E-20F~D

CONN@

CONN@

USB3_P2

USB3_N2

U24

@U24

@

1

CLKIN

2

CLKIN#

3

SSEXTR

GND4CLKOUT#

PCS3PS850BHG-08CR_TDFN8_2X 2

PCS3PS850BHG-08CR_TDFN8_2X 2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

VDD

DLY_CTRL

CLKOUT

R3

R3

12

0_0402_5%

0_0402_5%

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

T20 schematic

T20 schematic

T20 schematic

34

MGND4

33

MGND3

32

MGND2

31

MGND1

+3VS

8

7

6

5

R274

@R274

@

1 2

15K_0402_5%

15K_0402_5%

LCD_PCLK_OUT

LCD PANEL

LCD PANEL

LCD PANEL

1

Sourcer request

12

R273

@ R273

@

4.99_0402_1%

4.99_0402_1%

1

C273

@C273

@

0.1U_0402_10V6K

0.1U_0402_10V6K

2

R279

@R279

@

4.7K_0402_5%

4.7K_0402_5%

R281

@R281

@

4.7K_0402_5%

4.7K_0402_5%

13 33Wednesday, July 21, 2010

13 33Wednesday, July 21, 2010

13 33Wednesday, July 21, 2010

+3VS

12

12

0.1

0.1

0.1

5

4

3

2

1

D D

DDC_SDA_3P36

DDC_SCL_3P36

DDC_SCL_3P3 HDMICLK

R137

@R137

@

2.2K_0402_5%

2.2K_0402_5%

+3VS

12

12

R138

@R138

@

2.2K_0402_5%

2.2K_0402_5%

+3VS

4

Q4B 2N7002DW-7-F_SOT363-6@Q4B 2N7002DW-7-F_SOT363-6@

1 2

0_0402_5%

0_0402_5%

5

R1255

R1255

2

HDMIDATDDC_SDA_3P3

R1256

R1256

1 2

0_0402_5%

0_0402_5%

61

Q4A 2N7002DW-7-F_SOT363-6@Q4A 2N7002DW-7-F_SOT363-6@

3

DVT reserve R for NV suggestion 4/16

C C

HDMI_TXCP6

HDMI_TXCN6

HDMI_TXD0P6

B B

HDMI_TXD0N6

HDMI_TXD1P6

HDMI_TXD1N6

HDMI_TXD2P6

HDMI_TXD2N6

HDMI_TXCP

HDMI_TXCN

HDMI_TXD0P

HDMI_TXD0N

HDMI_TXD1P

HDMI_TXD1N

HDMI_TXD2P

HDMI_TXD2N

R139 20_0402_1%R139 20_0402_1%

1 2

WCM-2012-900T_0805

WCM-2012-900T_0805

4

4

1

1

L6

L6

@

@

R140 20_0402_1%R140 20_0402_1%

1 2

R141 20_0402_1%R141 20_0402_1%

1 2

WCM-2012-900T_0805

WCM-2012-900T_0805

4

4

1

1

L7

L7

@

@

R144 20_0402_1%R 144 20_0402_1%

1 2

1 2

R146 20_0402_1%R146 20_0402_1%

WCM-2012-900T_0805

WCM-2012-900T_0805

4

4

1

1

L8

L8

@

@

R148

R148

1 2

R149

R149

1 2

WCM-2012-900T_0805

WCM-2012-900T_0805

4

4

1

1

L9

L9

@

@

R150 20_0402_1%R 150 20_0402_1%

1 2

3

3

2

2

3

3

2

2

3

3

2

2

20_0402_1%

20_0402_1%

20_0402_1%

20_0402_1%

3

3

2

2

HDMI_R_CK+

HDMI_R_CK-

HDMI_R_D0+

HDMI_R_D0-

HDMI_R_D1+

HDMI_R_D1-

HDMI_R_D2+

HDMI_R_D2-

HDMI Connector

HDMI_HPD6

C290

@C290

@

220P_0402_25V8J

220P_0402_25V8J

RB161M-20_SOD123-2

RB161M-20_SOD123-2

R142

R142

1 2

1.5K_0402_5%

1.5K_0402_5%

HDMICLK
HDMIDAT

R145

R145

12

1

2

21

D4

D4

R143

R143

1 2

1.5K_0402_5%

1.5K_0402_5%

1K_0402_5%

1K_0402_5%

R147

R147
100K_0402_5%

100K_0402_5%

+5VS_HDMI

12

+5VS_HDMI+5VS

1

C97

C97

2

0.1U_0402_10V6K

0.1U_0402_10V6K

HDMI_DET

HDMI_R_D2+

HDMI_R_D2­HDMI_R_D1+

HDMI_R_D1­HDMI_R_D0+

HDMI_R_D0­HDMI_R_CK+

HDMI_R_CK-

CONN@

CONN@

JHDMI1

JHDMI1

1

D2+

2

D2_shield

3

D2-

4

D1+

5

D1_shield

6

D1-

7

D0+

8

D0_shield

9

D0-

10

CK+

11

CK_shield

12

CK-

13

CEC

14

Reserved

15

SCL

16

SDA

17

DDC/CEC_GND

18

+5V

19

HP_DET

ACON_HMR2A-AK120C

ACON_HMR2A-AK120C

GND0
GND1
GND2
GND3

20
21
22
23

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HDMI Connector

HDMI Connector

HDMI Connector

T20 schematic

T20 schematic

T20 schematic

1

of

14 33Wednesday, July 21, 2010

14 33Wednesday, July 21, 2010

14 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

Mini-Express Card for WiFi

D D

C C

Add C*2 for 32.768KHz cross moat issue on PVT 5/5.

+3VS

C308 .01U_0402_16V7KC308 .01U_0402_16V7K

1 2

C309 .01U_0402_16V7KC309 .01U_0402_16V7K

1 2

CLK_32K_OUT

XCLKO_T2019

+1.0VS_SM1

XCLKO_T20

SI@

SI@

@R1250

@

BT_WAKEUP

+1.8VS

G

G

2

BSS138_NL_SOT23-3

BSS138_NL_SOT23-3

13

D

S

D

S

Q24

Q24

R1250

12

0_0402_5%

0_0402_5%

+3VS_S3

12

SI@

SI@

R1247

R1247
10K_0402_5%

10K_0402_5%

12

R1302

R1302
0_0402_5%

0_0402_5%

CLK_32K_OUT_Q

1

@

C3040.01U_0402_16V7K@C3040.01U_0402_16V7K

2

BT_WAKEUP

+3VS_WIFI +3VS_WIFI

+1.8VS

SDIO2_DAT08
SDIO2_CLK8
SDIO2_DAT18

R1251

R1251

12

0_0402_5%SI@

0_0402_5%SI@

DAP4_SCLK

UART3_CTS#8
UART3_TXD8

R1268

R1268
100K_0402_5%

100K_0402_5%

1 2

Mini-Express Card for WWAN

PEX_WAKE#8

B B

+3VS_WWAN

CM1

3G@CM1

3G@

+UIM_PWR

1

2

12

3G@DM1

3G@

RLZ20A_LL34

RLZ20A_LL34

DM1

UIM_RST

UIM_CLK_R

USB3_HUB_P416 USB3_HUB_N4 16

1

CM3

3G@ CM3

3G@

10P_0402_50V8J

10P_0402_50V8J

2

5

1

3

DM2

@DM2

@

DAN217_SC59

DAN217_SC59

2

1

2

3

+UIM_PWR

0.1U_0402_16V4Z

0.1U_0402_16V4Z

A A

4

R151

+3VS_S3

+3VS_WIFI +3VS_WIFI

1

SI@

SI@

C2620.01U_0402_16V 7K

C2620.01U_0402_16V 7K

2

SDIO2_DAT0
SDIO2_CLK
SDIO2_DAT1
SDIO2_CMD
CLK_32K_OUT_R
DAP4_DIN
DAP4_SCLK

UART3_CTS#

UART3_TXD

JGSIM2

JGSIM2

1

2

3

4

HB_4210826-SINR02

HB_4210826-SINR02

CONN@

CONN@

DM3

@DM3

@

DAN217_SC59

DAN217_SC59

VCC

GND

RST

CLK

RFU

NC9NC

4

5

6

VPP

7

I/O

8

RFU

10

DAN217_SC59

DAN217_SC59

R151

0_0603_5%

0_0603_5%

SI@

SI@

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

JMIN2

JMIN2

1

1

3

3

5

5

7

7

9

9
111112
131314
151516

171718
191920
212122
232324
252526
272728
292930
313132
333334
353536
373738
393940
414142
434344
454546
474748
494950
515152
G153G2

BELLW_80019-1021

BELLW_80019-1021

CONN@

CONN@

UIM_VPP

UIM_DATA

USB3_HUB_N4USB3_HUB_P4

1

DM4

@DM4

@
2

3

12

JMIN1

JMIN1

1

1

3

3

5

5

7

7
9910
111112
131314
151516

171718
191920
212122
232324
252526
272728
292930
313132
333334
353536
373738
393940
414142
434344
454546
474748
494950
515152
G153G2

BELLW_80019-1021

BELLW_80019-1021

CONN@

CONN@

+3VS

2
4
6
8

10

+UIM_PWR

+3VS_WIFI

+3VS_WiFi

SI@

SI@

1

C99

C99

2

2

2

4

4

6

6

8

8

10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54

01EVT for new WIFI/BT module UHMC-AGNB-AR-01/ UHMC-GNB-AR-01

R153

R153

3G@

3G@

1 2

0_0805_5%

0_0805_5%

+3VS_WWAN

2
4
6
8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54

+UIM_PWR

12

@RM1

@

4.7K_0402_5%

4.7K_0402_5%

1

22P_0402_50V8J

22P_0402_50V8J

2

SI@

SI@

C100

C100

0.1U_0402_10V6K

0.1U_0402_10V6K

1

2

0.1U_0402_10V6K

0.1U_0402_10V6K

+3VS_WWAN

3

C105

SI@ C105

SI@

0.1U_0402_10V6K

0.1U_0402_10V6K

1

1

2

C104

SI@ C104

SI@

Swap DAP4_DIN and DAP4_DOUT UART3_TXD and UART3_RXD
and UART3_RTS# UART3_CTS#

@

@

R1318

R1318

1 2

0_0805_5%

0_0805_5%

+UIM_PWR

UIM_DATA
UIM_CLK
UIM_RST
UIM_VPP

W_DISABLE#_C

1 2

R154 0_0402_5%@R154 0_0402_5%@

1

SI@

SI@

C106

C106

2

2

0.01U_0402_16V7K

0.01U_0402_16V7K

WF_RST# 8,20

SDIO2_DAT2
SDIO2_DAT3

DAP4_DOUT
DAP4_FS

UART3_RTS#

UART3_RXD

+3VALW

SDIO2_DAT2 8
SDIO2_DAT3 8SDIO2_CMD8

DAP4_DOUTDAP4_DIN
DAP4_FS

BT_RST# 8

UART3_RTS# 8

UART3_RXD 8

Reservce +3Valw PWR (PVT2)

+UIM_PWR

R1226

3G@ R1226

3G@

1 2

33_0402_5%

33_0402_5%

PEX_RST0# 8

USB3_HUB_N3 16
USB3_HUB_P3 16

WW_LED#

C189 install 0 ohm (Pre-MP)

C189

C189

3G@

3G@

1 2

0_0402_10V7K

0_0402_10V7K

R1319

@R1319

@

100K_0402_5%

100K_0402_5%

1 2

2

W_DISABLE#

C189's PN is 0 ohm resister(Pre-MP BOM)

+3VS_WWAN

RM1

CM4

@CM4

@

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

0.1U_0402_16V4Z

0.1U_0402_16V4Z

3

1

C109

3G@C109

3G@

2

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

1

C110

3G@ C110

3G@

10U_0805_10V4Z

10U_0805_10V4Z

Compal Secret Data

Compal Secret Data

Compal Secret Data

2

Deciphered Date

Deciphered Date

Deciphered Date

3G@ C111

3G@

1

C111

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

3G@ C112

3G@

UIM_CLK_R

3G@ CM2

3G@

1

C112

2

0.01U_0402_16V7K

0.01U_0402_16V7K

1

2

@C185

@

1

CM2
10P_0402_50V8J

10P_0402_50V8J

01EVT for WWAN noise

1

1

@

@

C186

C186

C185

2

39P_0402_50V8J

39P_0402_50V8J

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

1

@

@

C187

C187

2

2

39P_0402_50V8J

39P_0402_50V8J

39P_0402_50V8J

39P_0402_50V8J

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Compal Electronics, Inc.

WiFI/WWAN

WiFI/WWAN

WiFI/WWAN

T20 schematic

T20 schematic

T20 schematic

1

0.1

0.1

15 33Wednesday, July 21, 2010

15 33Wednesday, July 21, 2010

15 33Wednesday, July 21, 2010

0.1

5

+3VS_HUB1

12

R162

R162
100K_0402_5%

100K_0402_5%

D D

24M use 6035 size

C C

1 2

1M_0201_1%

1M_0201_1%

1 2

24MHZ_12PF_X5H024000DC1H

24MHZ_12PF_X5H024000DC1H

2

C123

C123

15P_0402_50V8J

15P_0402_50V8J

1

R158

R158

Y2

Y2

C131

C131

1

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

USB_RESET#

2

1

USB_XTAL1

USB_XTAL2

C124

C124

15P_0402_50V8J

15P_0402_50V8J

+3VS_HUB1

+3VS_HUB1

R165 100K_0402_5%R165 100K_0402_5%

1 2

R163 100K_0402_5%R163 100K_0402_5%

1 2

R164 100K_0402_5%R164 100K_0402_5%

1 2

R160 100K_0402_5%R160 100K_0402_5%

1 2

R166

R166

12

10K_0402_5%

10K_0402_5%

USB3_DN8

USB3_DP8

01EVT for WWAN noise, close to U12

DAP_MCLK2_R

12

PR@

PR@

R179

R179
10_0402_5%

10_0402_5%

B B

A A

1

PR@

PR@

C275

C275
10P_0402_50V8J

10P_0402_50V8J

2

C145

PR@C145

PR@

ULPI_D[0..7]

ULPI_STP
ULPI_NXT
ULPI_DIR

ULPI_RESET#8

ULPI_CLK_R

DAP_MCLK2_R8

100K_0402_5%

100K_0402_5%

R299

PR@ R299

PR@

Add for PWR consumpction test(PVT2)

C146 change to Pin17 for vendor suggest

1

C146

2

PR@C146

PR@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

USB3315C-CP-TR_QFN24_4X4

USB3315C-CP-TR_QFN24_4X4

1

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1 2

+1.8VS

R1320 0_0402_5%R1320 0_0402_5%

1 2

8.06K_0402_1%

8.06K_0402_1%

ULPI_D7
ULPI_D6
ULPI_D5
ULPI_D4
ULPI_D3
ULPI_D2
ULPI_D1
ULPI_D0

ULPI_CLK_R

R178

PR@ R178

PR@

ULPI_STP
ULPI_NXT
ULPI_DIR

12

17

VDDIO

21

VDD1.8

8

DATA[7]

9

DATA[6]

10

DATA[5]

11

DATA[4]

13

DATA[3]

14

DATA[2]

15

DATA[1]

16

DATA[0]

20

STP

18

NXT

19

DIR

12

CLKOUT

22

RESETB

23

REFCLK

24

RBIAS

PR@ U12

PR@

GND_FLAG

01EVT dor NV request

5

USB_XTAL1

USB_XTAL2

USB_RESET#

USB3_DN
USB3_DP

U12

VBUS

VBAT

VDD3.3

DM

DP

CPEN

4

R156

+3VS_HUB1

1

C113

C113

2

1

1

C115

C115

C114

C114

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

U9

U9

33

XTAL1/CLKIN

32

XTAL2

25

HS_IND/CFG_SEL1

24

SCL/SMBCLK/CFG_SEL0

22

SDA/SMBDATA/NON_REM1

28

SUSP_IND/LOCAL_PWR/NON_R EM0

26

RESET_N

11

TEST

27

VBUS_DET

30

USBUP_DM

31

USBUP_DP

1

1

C116

C116

2

5

1

C117

C117

C118

C118

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

10

15

23

29

36

VDD33

VDDA33

VDDA33

VDDA33

VDD33CR

Thermal Slug(VSS)

37

R156

1 2

1

0_0603_5%

0_0603_5%

C119

C119

2

4.7U_0603_6.3V4

4.7U_0603_6.3V4

0.1U_0402_16V4Z

0.1U_0402_16V4Z

14

34

VDD18

VDD18PLL

VDD33PLL

USBDN1_DM/PRT_DIS_M1

USBDN1_DP/PRT_DIS_P1

USBDN2_DM/PRT_DIS_M2

USBDN2_DP/PRT_DIS_P2

USBDN3_DM/PRT_DIS_M3

USBDN3_DP/PRT_DIS_P3

USBDN4_DM/PRT_DIS_M4

USBDN4_DP/PRT_DIS_P4

USB2514B-AEZG_QFN36_6X6

USB2514B-AEZG_QFN36_6X6

Change to 2513B on pre-MP SA00001VH00

01EVT for WWAN noise

+3VS_BT_WIFI

C192

@C192

@

R1321 0_0402_ 5%R1321 0_0402_5%

1 2

2

3

4

USB2_DN

5

USB2_DP

6

1

ID

7

25

4

R1227

R1227

1 2

1 2

R1228 0_0402_5%PR@ R1228 0_0402_5%PR@

PR@

PR@

C138

C138

0_0402_5%PR@

0_0402_5%PR@

+3VS_HUB2

12

1

2

1

1

C193

C193

2

39P_0402_50V8J

39P_0402_50V8J

+VDDIO_BB

1

C143

C143

2

PR@

PR@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

USB2_DN_R

USB2_DP_R

PR@

PR@

R195

R195
100K_0402_5%

100K_0402_5%

USB2_RESET#

0.1U_0402_16V4Z

0.1U_0402_16V4Z

@

@

1

2

1

@

@

C208

C208

2

2

39P_0402_50V8J

39P_0402_50V8J

39P_0402_50V8J

39P_0402_50V8J

PR@

PR@

C144

C144

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

Change +3VS to +VDDIO_BB 04/29

+3VS_HUB2

3

+3VS+3VS_HUB1

C120 0.1U_0402_16V4ZC120 0.1U_0402_16V4Z

1 2

1 2

C122 4.7U_0603_6.3V6KC122 4.7U_0603_6.3V6K
C126 0.1U_0402_16V4ZC126 0.1U_0402_16V4Z

1 2

1 2

C125 4.7U_0603_6.3V6KC125 4.7U_0603_6.3V6K

35

RBIAS

1
2
12

PRTPWR1

13

OCS1_N

3
4
16

PRTPWR2

17

OCS2_N

R161

R161

1 2

12K_0402_1%

12K_0402_1%

USB1_DN8

USB1_DP8

USB3_HUB_N3 15
USB3_HUB_P3 15

WWAN

USB3_HUB_N2 13
USB3_HUB_P2 13

Webcam

USB3_HUB_P1

USB3_HUB_N1 USB3_HUB_N1_L

01EVT for PR/SI A/B type USB co-lay

2

Reserve for EMI request

R152 0_0402_5%@R152 0_0402_5%@

1 2

L17

PR@ L17

PR@

1

1

4

4

WCM-2012-900T_0805

WCM-2012-900T_0805

R157 0_0402_5%@R157 0_0402_5%@

1 2

SI@ R199

SI@

R197 0_0402_5%PR@ R197 0_0402_5 %PR@

1 2

R198 0_0402_5%PR@ R198 0_0402_5 %PR@

1 2

R199

0_0402_5%

0_0402_5%

2

2

3

3

SI@

SI@

R204

R204

1 2

1 2

0_0402_5%

0_0402_5%

USB3_HUB_P1_L

USB1_DN_R

USB1_DP_R

Reserve for EMI request

01EVT swap USB port for SMSC 2512

USB3_HUB_N1

6

USB3_HUB_P1

7
18

PRTPWR3

19

OCS3_N

USB3_HUB_N4

8

USB3_HUB_P4

9
20

PRTPWR4

21

OCS4_N

1

C141

C142

2

PR@ C141

PR@

PR@C142

PR@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+3VS_HUB2

PR@

PR@

USB2_DN_R
USB2_DP_R

BT_WAKEUP

WF_PWDN#

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

1 2

1

2

4.7U_0603_6.3V4

4.7U_0603_6.3V4

PR@

PR@

R170 100K_0402_5%

R170 100K_0402_5%

1 2

PR@

PR@

R171 100K_0402_5%

R171 100K_0402_5%

1 2

R172 100K_0402_5%PR@ R172 100K_0402_5%PR@

1 2

R173 100K_0402_5%PR@ R173 100K_0402_5%PR@

1 2

R176

R176

12

10K_0402_5%

10K_0402_5%

R1289 0_0402_5%R1289 0_0402_5%

1 2
1 2

R1290 0_0402_5%R1290 0_0402_5%

3

USB port

USB3_HUB_N4 15
USB3_HUB_P4 15

SIM card

+3VS

PR@

PR@

R280

R280

0_0805_5%

0_0805_5%

USB2_XTAL1

USB2_XTAL2

USB2_RESET#

USB2_DN_H
USB2_DP_H

R1229 0_0402_5%PR@R1229 0_0402_5%PR@

1 2

R1230 0_0402_5%PR@R1230 0_0402_5%PR@

1 2

BT_WAKEUP_R

WF_PWDN# _R

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

+3VS_HUB2 +3VS

1

C134

PR@C134

PR@

2

PR@

PR@

5

10

23

U10

U10

33

XTAL1/CLKIN

32

XTAL2

25

HS_IND/CFG_SEL1

24

SCL/SMBCLK/CFG_SEL0

22

SDA/SMBDATA/NON_REM1

28

SUSP_IND/LOCAL_PWR/NON_R EM0

26

RESET_N

11

TEST

27

VBUS_DET

30

USBUP_DM

31

USBUP_DP

Compal Secret Data

Compal Secret Data

Compal Secret Data

29

VDD33

VDDA33

VDDA33

VDDA33

Deciphered Date

Deciphered Date

Deciphered Date

+3VS_HUB2

1

1

C132

C137

PR@C132

PR@

PR@C137

PR@

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

14

15

34

36

VDD18

VDD33CR

VDD33PLL

Thermal Slug(VSS)

USB2512B-AEZG_QFN36_6X6

USB2512B-AEZG_QFN36_6X6

37

USB2_DN_R

USB2_DP_R USB2_HUB_P1

1

1

C129

C135

PR@C129

PR@

PR@C135

PR@

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

VDD18PLL

USBDN1_DM/PRT_DIS_M1

USBDN1_DP/PRT_DIS_P1

USBDN2_DM/PRT_DIS_M2

USBDN2_DP/PRT_DIS_P2

USBDN3_DM/PRT_DIS_M3

USBDN3_DP/PRT_DIS_P3

USBDN4_DM/PRT_DIS_M4

USBDN4_DP/PRT_DIS_P4

0.1U_0402_16V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C130 0.1U_0402_16V4ZPR@C130 0.1U_0402_16V4ZPR@

1 2

1 2

C128 4.7U_0603_6.3V6KPR@C128 4.7U_0603_6.3V6KPR@
C133 0.1U_0402_16V4ZPR@C133 0.1U_0402_16V4ZPR@

1 2

1 2

C127 4.7U_0603_6.3V6KPR@C127 4.7U_0603_6.3V6KPR@

RBIAS

PRTPWR1

OCS1_N

PRTPWR2

OCS2_N

PRTPWR3

OCS3_N

PRTPWR4

OCS4_N

R1291 0_0402_5%@ R1291 0_0402_5%@

1 2

R1293 0_0402_5%@ R1293 0_0402_5%@

1 2

C121

PR@C121

PR@

Reserve USB2 to WiFi trace on PVT 4/26

2

1

+5VALW

01EVT change JUSB1.3 from +3VS to OC#

USB_OC#19

USB_EN#

+USB1_VBUS_R8

EVENT_LED20

R159 0_0402_5%@R159 0_0402_5%@

1 2

L18

L18

1

1

4

4

WCM-2012-900T_0805

WCM-2012-900T_0805

R167 0_0402_5%@R167 0_0402_5%@

1 2

1

1

C136

2

2

PR@C136

PR@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

35

1
2
12
13

3
4
16
17

6
7
18
19

8
9
20
21

USB2_WiFi_P1

Date: Sheet of

Date: Sheet of

Date: Sheet of

2

2

3

3

R174

R174

1 2

0_0603_5%

0_0603_5%

PR@

PR@

4.7U_0603_6.3V4

4.7U_0603_6.3V4

PR@C139

PR@

15P_0402_50V8J

15P_0402_50V8J

PR@

PR@

R175

R175

1 2

12K_0402_1%

12K_0402_1%

USB2_HUB_N1_R
USB2_HUB_P1_R

WiFi

USB2_HUB_N2
USB2_HUB_P2

BT

R1292 0_0402_5%@ R1292 0_0402_5%@

1 2

R1294 0_0402_5%@ R1294 0_0402_5%@

1 2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Compal Electronics, Inc.

HUB/USB POR

HUB/USB POR

HUB/USB POR

USB_OC#
USB1_DN_R
USB1_DP_R
USB3_HUB_N1_R
USB3_HUB_P1_R

USB_EN#
+USB1_VBUS_R

EVENT_LED

USB1_ID1

USB3_HUB_P1_R

USB3_HUB_N1_R

PR@R192

PR@

1 2

PR@Y3

PR@

2

C139

1

R1287 0_0402_5%R1287 0_0402_5%

1 2
1 2

R1288 0_0402_5%R1288 0_0402_5%

+3VS_BT_WIFI
USB2_HUB_P2
USB2_HUB_N2
BT_WAKEUP_R

USB2_HUB_P1
USB2_HUB_N1
WF_PWDN# _R
+3VS_BT_WIFI

USB2_HUB_N1USB2_WiFi_N1

T20 schematic

T20 schematic

T20 schematic

R192

1M_0201_1%

1M_0201_1%

Y3

1 2

24MHZ_12PF_X5H024000DC1H

24MHZ_12PF_X5H024000DC1H

USB2_HUB_N1
USB2_HUB_P1

1

JUSB1

JUSB1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

GND

12

12

GND

ACES_85201-1205N

ACES_85201-1205N

CONN@

CONN@

USB1_ID1

10K_0402_5%

10K_0402_5%

R289

R289

USB2_XTAL1

USB2_XTAL2

2

PR@

PR@

C140

C140

15P_0402_50V8J

15P_0402_50V8J

1

10

11
12

ACES_87213-1000G

ACES_87213-1000G

16 33Wednesday, July 21, 2010

16 33Wednesday, July 21, 2010

16 33Wednesday, July 21, 2010

1
2
3
4
5
6
7
8
9

13
14

1 2

+3VS

JP2

JP2

1
2
3
4
5
6
7
8
9
10

GND1
GND2

CONN@

CONN@

0.1

0.1

0.1

5

4

3

2

1

15.6 dB

12

R182

@R182

@

100K_0402_5%

100K_0402_5%

12

R185

R185
100K_0402_5%

100K_0402_5%

+3VS_VDD

1

2

GEN1_I2C_SCL_3V38,13,18

GEN1_I2C_SDA_3V38,13,18

EXT_MIC

C155 1U_0603_16V7_X7RC155 1U_0603_16V7_X7R

C154 0.1U_0402_16V4ZC154 0.1U_0402_16V4Z

1

2

DAP_MCLK1_R

DAP1_DOUT
DAP1_SCLK_R

DAP1_DIN8

DAP1_FS

DMIC_DAT

12

R252

R252
680_0402_5%

680_0402_5%

1

C224

C224

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

2

+5VS +5VAMP

+5VS

12

R183

R183
100K_0402_5%

100K_0402_5%

12

R196

@R196

@

100K_0402_5%

100K_0402_5%

SPKOUT-

SPKOUT+

C151

C151

0.1U_0402_16V4Z

0.1U_0402_16V4Z

DAP_MCLK1_R

DAP1_DOUT
DAP1_SCLK_R

DAP1_DIN

DAP1_FS

GEN1_I2C_SCL_3V3
GEN1_I2C_SDA_3V3
DMIC_CLK_L
DMIC_DAT

+3VS_AVDD

C222

C222

1U_0402_6.3V4Z

1U_0402_6.3V4Z

1 2

1U_0402_6.3V4Z

1U_0402_6.3V4Z

1 2

C223

@C223

@

R1276

R1276

MICBIAS

1 2

3.9K_0402_5%

3.9K_0402_5%

Add R1276 for Microphone short current PVT 04/21

R180

R180

1 2

0_0805_5%

0_0805_5%

0.1U_0402_16V4Z

0.1U_0402_16V4Z

4

1

1

C152

C152

1U_0603_16V7_X7R

1U_0603_16V7_X7R

2

2

+3VS_VDD

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C167

C167

2

C172 0.47U_0603_10V7KC172 0.47U_06 03_10V7K

1 2

C173 0.47U_0603_10V7KC173 0.47U_06 03_10V7K

1 2

U14

U14

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

1

C168

C168

2

C178 0.47U_0603_10V7KC178 0.47U_06 03_10V7K

1 2

C179 0.47U_0603_10V7KC179 0.47U_06 03_10V7K

1 2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

DBVDD
MCLK
NC

GPIO3/VSLRCK
DGND1
SDAC
BCLK
DGND2
SADC
DCVDD
SDALRCK
RSTN
SADLRCK
SCL
SDA
DMIC_CLK
DMIC_DAT
AVDD2
AGND2
PHONEP
PHONEN
MIC1P
MIC1N
LINE_IN_L
LINE_IN_R

ALC5632-GRT_QFN48_7X7

ALC5632-GRT_QFN48_7X7

1

C169

C169
10U_0805_10V4Z

10U_0805_10V4Z

2

SPK_OUT-

SPK_OUT+

+3VS +3VS_VDD

+3VS +3VS_AVDD

D D

Remove Q9 ,add C310(0.47UF)audio "bo" noise when system trun off
on battery mode.(Pre-MP 7/8)

SYS_RESET#

SYS_RESET#

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

Q9B

@Q9B

@

4

Change to 0.47UF
for Bobo noise(Pre-MP)

DMIC_CLK

C C

12

1

2

L10

L10

L11

L11

12

3

6 1

0.47U_0603_6.3V6K

0.47U_0603_6.3V6K

L16

L16

1 2

DAP1_SCLK_RDAP_MCLK1_R

12

2

C310

C310

12

1

2

BLM18BD601SN1D_0603

BLM18BD601SN1D_0603

BLM18BD601SN1D_0603

BLM18BD601SN1D_0603

5

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

FBMA-L10-160808-301LMT 0603

FBMA-L10-160808-301LMT 0603

R90

R90
10_0402_5%

10_0402_5%

C274

C274
10P_0402_50V8J

10P_0402_50V8J

+3VS_VDD

12

R1316

R1316

100K_0402_5%

100K_0402_5%

Q9A

@Q9A

@

1

2

DMIC_CLK_L

R181

R181
10_0402_5%

10_0402_5%

C276

C276
10P_0402_50V8J

10P_0402_50V8J

01EVT for WWAN noise, close to U14

TI TPE6017A2

GAIN0 GAIN1 Av

B B

0

0

10

1

0

1 1

A A

6dB

10dB

15.6dB

21.6dB

5

C153

C153

Thermal
GPIO5/VSADC
GPIO4/VSDAC

GPIO2/IRQ

GPIO1/VBCLK

HPVDD

HP_C_Depop

HP_OUT_R

HPGND

HP_OUT_L

SPKVDD

SPK_OUTN

SPK_OUT

SPKGND

AUX_OUTN

AUX_OUT

MIC2N
MIC2P

MICBIAS

VREF
AGND1
AVDD1

+3VS_AVDD+3VS_VDD

1

1

C156

C156
10U_0805_10V4Z

10U_0805_10V4Z

2

2

49
48
47
46

T20_Codec_R T20_Codec

45
44
43

HP_C_Depop

42

HP_OUTR

41
40

HP_OUTL

39
38

SPKOUT+

37

SPKOUT-

36
35

NC

NC

16

6

15

2

3

5

17

9

7

34
33
32
31
30
29
28
27
26
25

U15

U15

VDD
PVDD
PVDD

GAIN0

GAIN1

LIN-

RIN-

LIN+

RIN+

MICBIAS

VREF

PVT for R/L reverse

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

+3VS_VDD

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C159

C159

1

2

R1277

R1277

1 2

0_0402_5%

0_0402_5%

C161 1U_0603_ 16V7_X7RC161 1U_0603_16V7_X7R

1 2

C162

C162

1 2

4.7U_0603_6.3V6M

4.7U_0603_6.3V6M

0.1U_0402_16V4Z

0.1U_0402_16V4Z

SHUTDOWN

TPA6017A2PWPR_TSS OP20

TPA6017A2PWPR_TSS OP20

Issued Date

Issued Date

Issued Date

3

C164

1U_0603_16V7_X7R

C164

1U_0603_16V7_X7R

C163

C163

1

1

2

2

HP_OUTL HP_OUT_L

HP_OUTR

12

NC

19

8

LOUT-

14

ROUT-

4

LOUT+

18

ROUT+

1

GND

11

GND

13

GND

20

GND

21

GND

10

BYPASS

CODEC POWER

C150

C150

1U_0603_16V7_X7R

1U_0603_16V7_X7R

C160

C160

1

2

T20_Codec 8

+3VS_VDD

+3VS_AVDD

Reserve resistor.

C165 150U_B2_6.3VM_R35M

C165 150U_B2_6.3VM_R35M

+

+

1 2

C166 150U_B2_6.3VM_R35M

C166 150U_B2_6.3VM_R35M

1 2

+

+

EC_MUTE#

SPKL-

SPKR-

SPKL+

SPKR+

HP_OUT_R

EC_MUTE# 19

12

R1323 0_0402_5%R1323 0_0402_5%

12

R1324 0_0402_5%R1324 0_0402_5%

EMI request 4/14 EVT

SPKR­SPKR+
SPKL­SPKL+

Keep 10 mil width

2

C180

C180

0.47U_0603_10V7K

0.47U_0603_10V7K

1

Compal Secret Data

Compal Secret Data

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

C235 0.1U_0402_16V4ZC235 0.1U_0402_16V4Z

C236 0.1U_0402_16V4ZC236 0.1U_0402_16V4Z

HP_OUT_R_L

HP_OUT_R_R

EXT_MIC JHP1_4

L19 FBMA-L11-160808-800LMT_0603L19 FBMA-L11-160808-800LMT_0603

1 2

L20 FBMA-L11-160808-800LMT_0603L20 FBMA-L11-160808-800LMT_0603

1 2

L21 FBMA-L11-160808-800LMT_0603L21 FBMA-L11-160808-800LMT_0603

1 2

L22 FBMA-L11-160808-800LMT_0603L22 FBMA-L11-160808-800LMT_0603

1 2

+5VALW

W=40Mil

1 2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

EN_VDD_3V320

C234 0_0402_5%C234 0_0402_5%

1 2

1 2

1 2

DVT reverse pin 3 and pin 4 for iPhone connector

L12 BLM18BD601SN1D_0603L12 BLM18BD601SN1D_0603

1 2

L13 BLM18BD601SN1D_0603L13 BLM18BD601SN1D_0603

1 2

L14 BLM18BD6 01SN1D_0603L14 BLM18BD601SN1D_0603

1 2

C170

C170

0.01U_0402_16V7K

0.01U_0402_16V7K

1

C174

C174

2

330P_0402_50V7K

330P_0402_50V7K

D5

@D5

PSOT24C_SOT23-3

PSOT24C_SOT23-3

2

@

@

@

U13

U13

1

IN

OUT

2

GND

SHDN#3BYP

G9191-330T1U_SOT23-5

G9191-330T1U_SOT23-5

1

1

C171

C171

2

2

0.01U_0402_16V7K

0.01U_0402_16V7K

5

4

1

C158

C158

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

JHP1_3

HP_L_OUT

HP_R_OUT

PSOT24C_SOT23-3

PSOT24C_SOT23-3

3

1

+3VS_AVDD

C157

C157

D19

D19

2

10K_0402_5%

10K_0402_5%

2.2U_0603_6.3V6K

2.2U_0603_6.3V6K

1

2

HP_DET

R186

R186

(3.3V)
300mA

JHP1

JHP1

3
1

5
2
6

7

4

SINGA_2SJ-C960-002

SINGA_2SJ-C960-002

CONN@

CONN@

12

+3VS

01EVT add pull high.

SPK_R­SPK_R+
SPK_L­SPK_L+

1

1

C177

C176

C176

C175

C175

2

330P_0402_50V7K

330P_0402_50V7K

330P_0402_50V7K

330P_0402_50V7K

D6

@D6

@

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

C177

2

330P_0402_50V7K

330P_0402_50V7K

2

3

1

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

CODEC/AUDIO AMP

CODEC/AUDIO AMP

CODEC/AUDIO AMP

T20 schematic

T20 schematic

T20 schematic

1

2

3

PSOT24C_SOT23-3

PSOT24C_SOT23-3

1

1

2

SPEAKER

SPK_R­SPK_R+

SPK_L­SPK_L+

HP_DET 8

CONN@

CONN@

JSPR1

JSPR1

1

1

2

2

3

GND

4

GND

ACES_88231-02001

ACES_88231-02001

CONN@

CONN@

JSPL1

JSPL1

1

1

2

2

3

GND

4

GND

ACES_88231-02001

ACES_88231-02001

17 33Wednesday, July 21, 2010

17 33Wednesday, July 21, 2010

17 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

4

3

2

1

ACCELEROMETER (ST)

+3VS_ACL

1

9

2

ACCELERO_INT#

4

7

3

11

12

TPM_VCC

C191

C191

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

SI@

SI@

U27

U27

IN

IN

1

C181

C181

@

@

2

+3VS_ACL_IO

+3VS_ACL

C188

C188

10U_0805_6.3V6M

10U_0805_6.3V6M

5

4

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+3VS

C182

C182

@

@

2

10U_0805_6.3V6M

10U_0805_6.3V6M

ACCELERO_INT# 6GEN1_I2C_SCL_3V38,13,17

R1309

R1309
0_0402_5%

0_0402_5%

1

1 2

C303

C303

2

1U_0402_6.3V4Z

1U_0402_6.3V4Z

Change +3VS to +VDDIO_VI 04/29

+VDDIO_VI

12

SI@

SI@

R275

R275

499K_0402_1%

499K_0402_1%

2 in 1 Card reader

SDIO1_DAT38

SDIO1_CMD8

SDIO1_CLK_R8

SDIO1_DAT08

PEX_RST0#

100K_0402_5%

100K_0402_5%

SDIO1_DAT18
SDIO1_DAT28

SDIO1_WP6

1 2

R1259 0_0402_5%@ R1259 0_0402_5%@

1 2

R1260 0_0402_5%R1260 0_0402_5%

R155

@R155

@

SDIO1_CD#6

SDIO1_CD# SDIO1_CD#_R

PEX_RST0#8

PEX_RST0#

Light sensor

SI@

SI@

1
2
3
4
9

+V_SDIO_0

100K_0402_5%

100K_0402_5%

1 2

+3VS

U17

U17

VDDD
VDDA
GND
REXT
GND PAD

ISL29011IROZ-T7_ODFN8_2P1X2

ISL29011IROZ-T7_ODFN8_2P1X2

IRDR

INT#

SDA
SCL

SDIO1_DAT3
SDIO1_CMD

SDIO1_CLK_R

SDIO1_DAT0
SDIO1_DAT1

SDIO1_DAT2
SDIO1_WP

R208

R208

+VDDIO_NAND

8
7
6
5

12

12

R209

R209
100K_0402_5%

100K_0402_5%

+V_SDIO_0

GEN1_I2C_SDA_3V3
GEN1_I2C_SCL_3V3

12

R251

R251
10K_0402_5%

10K_0402_5%

JCR1

JCR1

1

D3

2

CMD

3

VSS1

4

VDD

5

CLK

6

VSS2

7

D0

8

D1

9

D2

10

WP

11

CD

12

GND1

13

GND2

14

GND3

15

GND4

PROCO_SDC009-A0-00K0

PROCO_SDC009-A0-00K0

Change +3VS to +VDDIO_NAND 04/29

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

LIGHT_INT

+V_SDIO_0

12

12

12

R200

R200

R201

R201

R202

47K_0402_1%

47K_0402_1%

47K_0402_1%

47K_0402_1%

SDIO1_DAT1
SDIO1_DAT0
SDIO1_DAT3
SDIO1_DAT2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

G SENSOR/BT/Light Sensor/CR

G SENSOR/BT/Light Sensor/CR

G SENSOR/BT/Light Sensor/CR

R202

47K_0402_1%

47K_0402_1%

SDIO1_CLK_R

T20 schematic

T20 schematic

T20 schematic

47K_0402_1%

47K_0402_1%

1 2

2

1

1

12

R203

R203

01EVT for WWAN noise

@

@

R184

R184
0_0402_5%

0_0402_5%

@

@

C194

C194
10P_0402_50V8J

10P_0402_50V8J

18 33Wednesday, July 21, 2010

18 33Wednesday, July 21, 2010

18 33Wednesday, July 21, 2010

0.1

0.1

0.1

+3VS_ACL+3VS +3VS_ACL_IO

@

@

D7

D7

D D

+3VS_ACL

GEN1_I2C_SDA_3V38,13,17

2 1

RB751V_SOD323

RB751V_SOD323

R194 10K_0402_ 1%@R1 94 10K_0402_1%@

1 2

GEN1_I2C_SCL_3V3

GEN1_I2C_SDA_3V3

G_CS#

0.4mA

R191

@R191

@

1 2

0_0603_5%

0_0603_5%

U16

@U16

@

5

CSB

6

SCK

8

SDI

10

reserved

1

reserved

VDDIO

VDD

INT

SDO

GND

GND

GND

BMA150_LGA12

BMA150_LGA12

Must be placed in the center of the system.

C C

TPM

Change +3VS to +VDDIO_VI 04/29

+VDDIO_VI

12

R277

SI@ R277

SI@

10K_0402_5%

10K_0402_5%

B B

TPM_RESET#

GEN1_I2C_SDA_3V3 TPM_VCC
GEN1_I2C_SCL_3V3

TPM_DATA#
TPM_ACCPCMD

SI@

SI@

U26

U26

1

GPIO1

2

GPIO2

6

GPIO3

9

GPIO4

15

GPIO5

26

LAD0

23

LAD1

20

LAD2

17

LAD3

28

LPCPD#

21

LCLK

22

LFRAME#

16

LRESET#

27

SERIRQ

7

PP

ST19NP18ER28PVLI_TSSOP28

ST19NP18ER28PVLI_TSSOP28

VPS_10
VPS_24

VNC

NC_5

NC_8
NC_12
NC_13
NC_14
NC_19
NC_25

GND1

GND2

GND3

+VDDIO_VI

12

SI@

SI@

R278

R278
0_0603_5%

0_0603_5%

SI@
10
24

3

5
8
12
13
14
19
25

4
11
18

SI@

1

2

01EVT for T20 EN high/low reverse.

+V_SDIO_0

1

OUT

2

EN_VDDIO_SD8

100K_0402_5%

100K_0402_5%

A A

R1305

R1305

1

2

1 2

3

APE8805A-33Y5P_SOT23-5

APE8805A-33Y5P_SOT23-5

C301

C301
1U_0402_6.3V4Z

1U_0402_6.3V4Z

GND

EN

Use SOT23-5 footprint/CIS symbol for SA00003AR00 4/30

5

4

5

Reverse +3VL to EC

+3VLP

R1274

@ R1274

@

+3VLP

D D

+3VALW

12

R91

R91
10K_0201_5%

10K_0201_5%

HOT_RST#

1 2

0_0603_5%

0_0603_5%

L15

L15

1 2

FBM-11-160808-601-T_0603

FBM-11-160808-601-T_0603

C201

C201

0.1U_0402_16V4Z

0.1U_0402_16V4Z

R211

R211

1 2

0_0603_5%

0_0603_5%

2

1

ECAGND

1

C202

C202

2

+3VALW_EC

C203

C203

10U_0805_6.3V6M

10U_0805_6.3V6M

1

1

C204

C204

2

2

10P_0402_50V8J

10P_0402_50V8J

R213

R213

1 2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+3VALW

68P_0402_50V8J

68P_0402_50V8J

47K_0402_5%

47K_0402_5%

C206

C206

+EC_AVCC+3VALW

2

1

01EVT for common design

+3VALW

C C

+3VALW

R250

R250

1 2

10K_0402_5%

1

C284

C284

2

@

@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C207

C207
22P_0402_50V8J

22P_0402_50V8J

1 2

X1

X1

NC

NC

1 2

C205

C205
22P_0402_50V8J

22P_0402_50V8J

10K_0402_5%

C283

C283

@

@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

4

OSC

1

OSC

R1252

@R1252

@

0_0402_5%

0_0402_5%

+3VALW

R214 2.2K_0402_5%R214 2.2K_0402_5%

EC_SMB_CK1

12

EC_SMB_DA1

12

R216 2.2K_0402_5%R216 2.2K_0402_5%

1

2

B B

01EVT for cross talk.

32.768KHZ_12.5PF_9H03200413

32.768KHZ_12.5PF_9H03200413

XCLKO_T2015

3

2

XCLKO_T20

47K_0402_5%

47K_0402_5%

R1232

R1232

12

R1233

R1233

12

47K_0402_5%

47K_0402_5%

LID_SW#

GMI_AD18

01EVT for WWAN noise

INVT_PWM13

1

C225

C225

2

XCLKI

12

@

@

R1234

R1234
20M_0402_5%

20M_0402_5%

XCLKO

12

KSO1
KSO2

47P_0402_50V8J

47P_0402_50V8J

KBC_S3

0_0402_5%

0_0402_5%

GMI_AD18_D

CAM_I2C_SCL6
CAM_I2C_SDA6

SYSTEM_RESET#28

INVT_PWM

ON/OFF#21

PWR_LED#

1 2

R218 100K_0603_5%R218 100K_0603_5%

01EVT for common design

+3VLP

12

R1322

R1322
0_0603_5%@

0_0603_5%@

Reserve +3VL PWR to KBC ROM.(Pre-MP)

A A

Need close Pin8

C305

C305

0.1U_0402_16V4Z

0.1U_0402_16V4Z

5

4

R1273

@ R1273

@

1 2

0_0603_5%

0_0603_5%

R210

R210

1 2

0_0603_5%

0_0603_5%

+3VALW_EC

R1296

@ R1296

@

1 2

EC_SMB_CK123
EC_SMB_DA123

1 2

R1297 0_0402_5%R 1297 0_0402_5%

D18 RB751V-40TE17_SOD323-2@D18 RB751V-40TE17_SOD323-2@

LID_SW#21

EC_TX_P80_DATA

ON/OFF#

EC_TX_P80_DATA

+3VALW

For PWR consump tion use(PVT2)

R1310

R1310
0_0603_5%

0_0603_5%

1 2

SPI_CLK_R

2

FWR#SPI_SI

1

4

+3VALW_EC

C196

C196

0.1U_0402_16V4Z

0.1U_0402_16V4Z

KSI0
KSI1
KSI2
KSI3
KSI4
KSI5
KSI6
KSI7
KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO14
KSO15

EC_SMB_CK1
EC_SMB_DA1
CAM_I2C_SCL
CAM_I2C_SDA

GMI_AD18_DGMI_AD18

12

LID_SW#
SYSTEM_RESET#

EC_TX_P80_DATA

MX25L2005CMI-12G_SO8

MX25L2005CMI-12G_SO8

+3VALW_EC

2

1

0.1U_0402_16V4Z

0.1U_0402_16V4Z

EC_RST#

KBC_S3

XCLKI
XCLKO

EC ROM

8

VCC

7

HOLD#

6

SCLK

5

SI

C197

C197

2

1

C198

C198

1

2

U18

U18

1

GA20/GPIO00

2

KBRST#/GPIO01

3

SERIRQ#

4

LFRAME#

5

LAD3

7

LAD2

8

LAD1

10

LAD0

12

PCICLK

13

PCIRST#/GPIO05

37

ECRST#

20

SCI#/GPIO0E

38

CLKRUN#/GPIO1D

55

KSI0/GPIO30

56

KSI1/GPIO31

57

KSI2/GPIO32

58

KSI3/GPIO33

59

KSI4/GPIO34

60

KSI5/GPIO35

61

KSI6/GPIO36

62

KSI7/GPIO37

39

KSO0/GPIO20

40

KSO1/GPIO21

41

KSO2/GPIO22

42

KSO3/GPIO23

43

KSO4/GPIO24

44

KSO5/GPIO25

45

KSO6/GPIO26

46

KSO7/GPIO27

47

KSO8/GPIO28

48

KSO9/GPIO29

49

KSO10/GPIO2A

50

KSO11/GPIO2B

51

KSO12/GPIO2C

52

KSO13/GPIO2D

53

KSO14/GPIO2E

54

KSO15/GPIO2F

81

KSO16/GPIO48

82

KSO17/GPIO49

77

SCL1/GPIO44

78

SDA1/GPIO45

79

SCL2/GPIO46

80

SDA2/GPIO47

6

PM_SLP_S3#/GPIO04

14

PM_SLP_S5#/GPIO07

15

EC_SMI#/GPIO08

16

LID_SW#/GPIO0A

17

SUSP#/GPIO0B

18

PBTN_OUT#/GPIO0C

19

EC_PME#/GPIO0D

25

EC_THERM#/GPIO11

28

FAN_SPEED1/FANFB1/GPIO14

29

FANFB2/GPIO15

30

EC_TX/GPIO16

31

EC_RX/GPIO17

32

ON_OFF/GPIO18

34

PWR_LED#/GPIO19

36

NUMLED#/GPIO1A

122

XCLK1

123

XCLK0

U19

U19

1

CS#

2

SO

3

WP#

4

GND

1

C199

C199

2

10U_0805_6.3V6M

10U_0805_6.3V6M

LPC & MISC

LPC & MISC

FSEL#SPICS#

FRD#SPI_SO

10U_0805_6.3V6M

10U_0805_6.3V6M

Int. K/B

Int. K/B
Matrix

Matrix

9

22

33

VCC

VCC

PWM Output

PWM Output

DA Output

DA Output

PS2 Interface

PS2 Interface

SPI Device Interface

SPI Device Interface

SM Bus

SM Bus

GPIO

GPIO

GND

11

24

+EC_AVCC

96

111

125

VCC

VCC

VCC

VCC

INVT_PWM/PWM1/GPIO0F

ACOFF/FANPWM2/GPIO13

AD Input

AD Input

TP_DATA/PSDAT3/GPIO4F

SPI Flash ROM

SPI Flash ROM

BATT_CHGI_LED#/GPIO52

GPIO

GPIO

BATT_LOW_LED#/GPIO54

GPO

GPO

GPI

GPI

GND

GND

GND

GND

35

94

113

3

67

AVCC

BEEP#/PWM2/GPIO10

FANPWM1/GPIO12

BATT_TEMP/AD0/GPIO38

BATT_OVP/AD1/GPIO39

ADP_I/AD2/GPIO3A

AD3/GPIO3B
AD4/GPIO42

SELIO2#/AD5/GPIO43

DAC_BRIG/DA0/GPIO3C
EN_DFAN1/DA1/GPIO3D

IREF/DA2/GPIO3E

DA3/GPIO3F

PSCLK1/GPIO4A
PSDAT1/GPIO4B
PSCLK2/GPIO4C
PSDAT2/GPIO4D

TP_CLK/PSCLK3/GPIO4E

SDICS#/GPXOA00
SDICLK/GPXOA01

SDIDO/GPXOA02

SDIDI/GPXID0

SPIDI/RD#

SPIDO/WR#

SPICLK/GPIO58

SPICS#

CIR_RX/GPIO40

CIR_RLC_TX/GPIO41

FSTCHG/SELIO#/GPIO50

CAPS_LED#/GPIO53

SUSP_LED#/GPIO55

SYSON/GPIO56

VR_ON/XCLK32K/GPIO57

AC_IN/GPIO59

EC_RSMRST#/GPXO03
EC_LID_OUT#/GPXO04

EC_ON/GPXO05

EC_SWI#/GPXO06

ICH_PWROK/GPXO06

BKOFF#/GPXO08

WL_OFF#/GPXO09

GPXO10
GPXO11

PM_SLP_S4#/GPXID1

ENBKL/GPXID2

GPXID3
GPXID4
GPXID5
GPXID6
GPXID7

V18R

AGND

KB926QFD3_LQFP128_14X14

KB926QFD3_LQFP128_14X14

69

ECAGND

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

+3VALW_EC

SI@

SI@

R386

R386

8.2K_0402_5%

8.2K_0402_5%

PVT change from pin 93

EVENT_LED_Q

21
23
26

ACOFF

27

63
64

ADP_I

65
66

BDID

75
76

68
70

IREF

71

CHGVADJ

72

83
84
85
86
87
88

97
98
99
109

FRD#SPI_SO

119

FWR#SPI_SI

120

SPI_CLK

126

FSEL#SPICS#

128

73

USB_OC#

74

FSTCHG

89

BATT_FULL_LED#

90

CAPS_LED#

91

BATT_LOW_LED#

92
93
95
121
127

EC_RESMUE_R

100
101

EC_ON

102
103
104
105
106
107
108

110
112
114
115
116
117
118

124

0.1U_0402_16V4Z

0.1U_0402_16V4Z

Issued Date

Issued Date

Issued Date

FORCE_RECOVERY_R#

USB1_ID2

01EVT for thermal throttle

HOT_RST#PWR_LED#

2

C210

C210

C209

C209

1

2

VCC 3.3V+/-5%

12

R1223

R1223
100K_0402_5%

100K_0402_5%

12

PR@

PR@

R386

R386
0_0402_5%

0_0402_5%

BDID

Procyon

Sirius

R1223 100K+/-5%

Board ID R386 V

010 0V 0V 0V

8.2K+/-5% 0.216V 0.250V 0.289V

01EVT for two LED driving

For AC in event LED flash issu ePre-MP

ACOFF

ADP_I

SYS_RESET# 7,12,17

IREF

CHGVADJ

EC_MUTE# 17
USB_EN#

EC_REQUEST# 8

T20_WAKE# 6,9

TP_CLK

TP_DATA

R220

R220

SPI_CLK_R

1 2

33_0402_1%

33_0402_1%

USB_OC# 16

FSTCHG

BATT_FULL_LED# 20

BATT_LOW_LED#

ACIN 20,24

EC_ON

USB1_ID2

1

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

1 2

RB751V-40TE17_SOD323-2

RB751V-40TE17_SOD323-2

1 2

R1269 0_0402_5%@R1269 0_0402_5%@

TEMP_THERM#

Compal Secret Data

Compal Secret Data

Compal Secret Data

1

C312

C312

0.1U_0402_10V7K

0.1U_0402_10V7K

2

R212

R212
10K_0402_5%

10K_0402_5%

12

USB_OC#

EVENT_LED_Q 20

BATT_TEMPA 23

R1243

R1243

1 2

4.7K_0402_5%

4.7K_0402_5%

@ C292

@

100P_0402_50V8J

100P_0402_50V8J

01EVT for USB PWR SW over current

1 2

R217 10K_0402_5%R217 10K_0402_5%

2

HDMI_HPD_R

FORCE_RECOVERY# 6

+3VALW

1 2

KBC_S3

R1285

R1285
10K_0402_5%

10K_0402_5%

D13

D13

S3 PWR modify P VT

Deciphered Date

Deciphered Date

Deciphered Date

1

min V typ

AD_BID

IREF ADP_I FSTCHG CHGVADJ ACOFF SYSTEM_RESET#

2

C292

1

2

C293

@C293

@

100P_0402_50V8J

100P_0402_50V8J

100P_0402_50V8J

100P_0402_50V8J

C294

@ C294

@

100P_0402_50V8J

100P_0402_50V8J

1

BATT_TEMPA trac e width 10 mil

BATT_TEMPA

ACIN

2

C195

C195

1

AD_BID

2

1

V

AD_BID

C295

@C295

@

100P_0402_50V8J

100P_0402_50V8J

Near chip

2

1

max

2

C296

@ C296

@

100P_0402_50V8J

100P_0402_50V8J

1

C200

C200
100P_0402_50V8J

100P_0402_50V8J

EC_RESMUE

2

1

@C291

@

100P_0402_50V8J

100P_0402_50V8J

100P_0402_50V8J

100P_0402_50V8J

01EVT for WWAN noise

SPI_CLK_R

+5VALW

EC_RESMUE

R215 20K_0402_5%R215 20K_0402_5%

R1240 0_0402_5%R 1240 0_0402_5%

12

1 2

01EVT for new TP module

EC_RESMUE 28

12

1

2

HDMI_HPD 6

R223

R223
0_0402_5%

0_0402_5%

C231

C231
10P_0402_50V8J

10P_0402_50V8J

01EVT for S5 HDMI_IN detect

CONN@

CONN@

JKB1

JKB1

ACES_88170-3400

ACES_88170-3400

1
2
3
4
5
6

C237 100P_0402_25V8KC237 100P_0402_25V8K

1 2

C238 100P_0402_25V8KC238 100P_0402_25V8K

1 2

C239 100P_0402_25V8KC239 100P_0402_25V8K

1 2

C240 100P_0402_25V8KC240 100P_0402_25V8K

1 2

C241 100P_0402_25V8KC241 100P_0402_25V8K

1 2

C242 100P_0402_25V8KC242 100P_0402_25V8K

1 2

C243 100P_0402_25V8KC243 100P_0402_25V8K

1 2

C244 100P_0402_25V8KC244 100P_0402_25V8K

1 2

C245 100P_0402_25V8KC245 100P_0402_25V8K

1 2

C246 100P_0402_25V8KC246 100P_0402_25V8K

1 2

C247 100P_0402_25V8KC247 100P_0402_25V8K

1 2

C248 100P_0201_25V8JC248 100P_0201_25V8J

1 2

C249 100P_0201_25V8JC249 100P_0201_25V8J

1 2

C250 100P_0201_25V8JC250 100P_0201_25V8J

1 2

C251 100P_0201_25V8JC251 100P_0201_25V8J

1 2

C252 100P_0201_25V8JC252 100P_0201_25V8J

1 2

C253 100P_0201_25V8JC253 100P_0201_25V8J

1 2

C254 100P_0201_25V8JC254 100P_0201_25V8J

1 2

C255 100P_0201_25V8JC255 100P_0201_25V8J

1 2

C256 100P_0201_25V8JC256 100P_0201_25V8J

1 2

C257 100P_0201_25V8JC257 100P_0201_25V8J

1 2

C258 100P_0201_25V8JC258 100P_0201_25V8J

1 2

C259 100P_0201_25V8JC259 100P_0201_25V8J

1 2

C260 100P_0402_25V8KC260 100P_0402_25V8K

1 2

CAPS_LED#

C272

C272

1 2

100P_0402_25V8K

100P_0402_25V8K

PVT change to +5VS for KB LED

R224

R224
300_0402_5%

300_0402_5%

+5VS

01EVT for KB LED

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

KSO2

7

KSO1

8

KSO0

9

KSO4

10

KSO3

11

KSO5

12

KSO14

13

KSO6

14

KSO7

15

KSO13

16

KSO8

17

KSO9

18

KSO10

19

KSO11

20

KSO12

21

KSO15

22

KSI7

23

KSI2

24

KSI3

25

KSI4

26

KSI0

27

KSI5

28

KSI6

29

KSI1

30
31
32
33
34

1 2

Remove ON/OFFBTN# on PVT
01EVT for Sirius power on.

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

ENE KB926/ROM

ENE KB926/ROM

ENE KB926/ROM

T20 schematic

T20 schematic

T20 schematic

1

19 33Wednesday, July 21, 2010

19 33Wednesday, July 21, 2010

19 33Wednesday, July 21, 2010

C291

@ C297

@

2

1

2

C297

1

0.1

0.1

0.1

5

4

3

2

1

VCCB

GND

U21

U21

B

+VDD_3V3_SBY

6
4
2

EN_VDD_1V8PG_VDDIO_SYS

EN_VDD_1V8 26PG_VDDIO_SYS

+TP_PWR

R1236

R1236
R1237

R1237

4.7K_0402_5% PR@

4.7K_0402_5% PR@
R1241

R1241

1 2

R1242

R1242

1 2

4.7K_0402_5% PR@

4.7K_0402_5% PR@

0_0603_5%

0_0603_5%

+TP_PWR

R1244

1 2

0_0603_5%

0_0603_5%

1 2

TP_CLK

+TP_PWR

01EVT for TP new module

D8

D8

4

3

2

IO1

VIN

1

GND

IO2

CM1293A-02SR SOT143-4

CM1293A-02SR SOT143-4

TP_DATA

TP_DATA
TP_CLK

+TP_PWR

TouchPAD

TouchPAD

TouchPADTouchPAD

JTP1

JTP1

1

TP_DATA

2

TP_CLK

3
4
5
6

P-TWO_161011-04021

P-TWO_161011-04021

1
2
3
4
GND
GND

CONN@

CONN@

TP_CLK
TP_DATA

+5VS

+3VS

4.7K_0402_5% SI@

4.7K_0402_5% SI@

1 2
1 2

4.7K_0402_5% SI@

4.7K_0402_5% SI@

TP_CLK
TP_DATA

PR@ R1244

PR@

R1245

R1245

SI@

SI@

+2.2VS

R2220_0402_5% R2220_0402_5%

D D

1 2

+VDDIO_ONKEY

SN74AVC1T45DCKR_SC70 -6

SN74AVC1T45DCKR_SC70 -6

1

VCCA

3

A

5

DIR

For 2.2V to 3.3V level shift

C C

EVENT_LED16

Q30A 2N7002DW-7-F_SOT363-6Q30A 2N7002DW -7-F_SOT363-6

6 1

2

01EVT change from 6pin to 4 pin

EVENT_LED_Q19

B B

+3.3VS_LDO3

A A

EVENT_LED_Q

+3VLP

EN_VDD_3V3_SET#

EN_VDD_3V3_RESET

EN_VDD_1V8

EN_VDD_3V3

+VDD_3V3_SBY

R221 0_0402_5%R221 0_ 0402_5%

12

2

3

+VDD_3V3_SBY

5

6

+VDD_3V3_SBY

8

9

+VDD_3V3_SBY

11

12

14

A

B

A

B

A

B

A

B

Vcc

Y*

Gnd

7

14

Vcc

Y*

Gnd

7

14

Vcc

Y*

Gnd

7

14

Vcc

Y*

Gnd

7

EN_VDD_3V3

1

U20AU20A

EN_VDD_3V3_RESET

4

U20BU20B

SNN_NOR_10

10

U20CU20C

EN_VDD_3V3_SET#

13

U20DU20D

power sequence logic

EN_VDD_3V3 17,21

TP30TP30

DC_IN

13

D

ACIN

ACIN1 9

SSM3K7002FU_SC70-3

SSM3K7002FU_SC70-3

D

Q19

Q19

2

G

G

S

S

5Vs change to 5Valw for event LED
function can't light on S3 issue.

+5VALW

Fine-tune LED lightness.

LED1

EVENT_LED

LED1

12

99-116UNC/U90/TR8_WHITE

99-116UNC/U90/TR8_WHITE

470_0402_5%

470_0402_5%
R276

R276

1 2

Change to 470 ohm(Pre-MP)

WF_RST#8,15

WF_LED

WF_RST#

+5VALW

+5VS

PWR_LED#
BATT_FULL_LED#19
BATT_LOW_LED#

PGOOD

WW_LED#

R228

SI@ R228

SI@

1 2

0_0402_5%

0_0402_5%

R226

PR@ R226

PR@

1 2

0_0402_5%

0_0402_5%

R225

R225

R227

R227

1 2

0_0402_5%

0_0402_5%

1 2

0_0402_5%

0_0402_5%

DC_IN
PWR_LED#
BATT_FULL_LED#
BATT_LOW_LED#
WL_WW _LED

2N7002DW-T/R7_SOT363-6

2N7002DW-T/R7_SOT363-6

1 2

0_0402_5%

0_0402_5%

R230

R230

+3VS

Q21B

Q21B

5

3

4

12

R298

R298

100K_0402_5%

100K_0402_5%

2

WL_WW _LED

61

Q21A

Q21A

2N7002DW-T/R7_SOT363-6

2N7002DW-T/R7_SOT363-6

01EVT for Procyon/Sirius WW/WL control

LED/B Connector

JLED1

JLED1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

LED_DIS#

8

9

9

10

10

11

GND

12

GND

P-TWO_161021-10021

P-TWO_161021-10021

CONN@

CONN@

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/22 2009/12/22

2008/12/22 2009/12/22

2008/12/22 2009/12/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

THERMAL/SEQUENCE

THERMAL/SEQUENCE

THERMAL/SEQUENCE

T20 schematic

T20 schematic

T20 schematic

1

0.1

0.1

20 33Wednesday, July 21, 2010

20 33Wednesday, July 21, 2010

20 33Wednesday, July 21, 2010

0.1

5

4

3

2

1

Power on circuit

+3VALW

12

R240

R240
100K_0402_5%

D9

D9

2

G

G

100K_0402_5%

2

51_ON#

3

C213

C213

1000P_0402_50V7K

1000P_0402_50V7K

13

D

D

Q16

Q16
SSM3K7002FU_SC70-3

SSM3K7002FU_SC70-3

S

S

ON/OFF# 19

51_ON#

2

1

01EVT move SW2 to sub-board.

LID_SW#19

01EVT for cross talk.

D D

ON/OFFBTN#

EC_ON

10K_0402_5%

10K_0402_5%

C C

EC_ON

R242

R242

1

DAN202UT106_SC70-3

DAN202UT106_SC70-3

12

Platform reset

Remove HOT_RST#

ON/OFFBTN#

LID_SW#

1

C282

C282

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1 2

R254 0_0402_5%

R254 0_0402_5%

PR@

PR@

1

C281

C281

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

01EVT move SW2 to sub-board.

+3VALW

2

3

D14

@D14

PSOT24C_SOT23-3

PSOT24C_SOT23-3

@

1

JPWR1

JPWR1

1

1

2

2

3

3

4

4

5

GND

6

GND

P-TWO_161011-04021

P-TWO_161011-04021

CONN@

CONN@

1

C307

C307
680P_0402_50V7K

680P_0402_50V7K

2

sourcer request change C307(680pF)
from SE00000PS00 to SE074681K80
(7/8 Pre-MP)

+5VALW to +5VS +3VALW to +3VS

+5VS

1
2
35

C221

C221
4700P_0402_25V7K

4700P_0402_25V7K

1

1

C216

C216

C217

2

C217

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z
10U_0805_10V4Z

10U_0805_10V4Z

Q7B

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

Q7B

12

3

4

R244

R244
470_0402_5%

470_0402_5%

EN_+VS#EN_+VS#

5

12

R246

R246

47K_0402_5%

47K_0402_5%

61

Q7A

Q7A

+5VALW+3VS+3VALW

C220

C220

RUNON_5VS

SI7326DN-T1-E3_PAK1212-8

SI7326DN-T1-E3_PAK1212-8

Q17

Q17

1

C218

C218

2

10U_0805_10V4Z

10U_0805_10V4Z

RUNON_5VS

12

R247

@R247

@

330K_0402_5%

B B

330K_0402_5%

1
2
35

4

1

C219

@C219

@

4700P_0402_25V7K

4700P_0402_25V7K

2

1

1

2

C215

C215

C214

C214

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z
10U_0805_10V4Z

10U_0805_10V4Z

Q8B

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

Q8B

12

R243

R243

470_0402_5%

470_0402_5%

3

5

4

EN_+VS#

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

2

B+

SI7326DN-T1-E3_PAK1212-8

SI7326DN-T1-E3_PAK1212-8

1

2

10U_0805_10V4Z

10U_0805_10V4Z

12

R248

R248

330K_0402_5%

330K_0402_5%

Q18

Q18

4

1

2

1

H5
H_1P0NH5H_1P0N

1

H3
H_2P6H3H_2P6

1

FD2FD2

H4
H_2P6H4H_2P6

1

1

H9
H_2P3NH9H_2P3N

1

H18

H18
H_2P8N

H_2P8N

1

FD4FD4

FD3FD3

1

H8

H8
H_2P9x2P3N

H_2P9x2P3N

1

H1

H2

H_6P0NH1H_6P0N

Q12

Q12
AO3413_SOT23

AO3413_SOT23

D

S

D

S

13

G

G

C298

C298

2

12

12

0.01U_0402_16V7K

Q29A

Q29A

0.01U_0402_16V7K

R1286

R1286
47K_0402_5%

47K_0402_5%

3VS_S3_DIS

61

2

0.1U_0402_10V6K

0.1U_0402_10V6K

2N7002DW-7-F_SOT363-6

A A

2N7002DW-7-F_SOT363-6

C299

C299

1 2

1 2

EN_VDD_3V3

0.1U_0402_10V6K

0.1U_0402_10V6K

R1284

R1284

10K_0402_5%

10K_0402_5%

1

2

C300

C300

+3VALW

+3VS_S3+3VALW

1

C306

C306

4.7U_0603_6.3V4

4.7U_0603_6.3V4

2

Q29B

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

Q29B

12

R1282

R1282
470_0402_5%

470_0402_5%

3

5

4

3VS_S3_DIS

EN_+VS#

2N7002DW-7-F_SOT363-6

2N7002DW-7-F_SOT363-6

R249

R249

10K_0402_5%

10K_0402_5%

Q8A

Q8A

+3VALW

12

61

2

+3VALW+3VS_S3

12

R1283

R1283
10K_0402_5%

10K_0402_5%

R1306 0_0402_5%@ R1306 0_0402_5%@

1 2

12

D16 RB751V-40TE17_S OD323-2D16 R B751V-40TE17_SOD323-2
D17 RB751V-40TE17_S OD323-2@D17 RB751V-40TE17_SOD323-2@

12

1 2

R1307 0_0402_5%R1307 0_0402_5%

EN_VDD_3V3 20

KBC_S3

BAS40-04_SOT23-3

BAS40-04_SOT23-3

+RTCBATT +3VLP

D11

D11

1

C226

C226

1U_0402_6.3V6K

1U_0402_6.3V6K

RTC

2

3

+3.3VS_RTC

12

H_2P6H2H_2P6

1

1

FD1FD1

1

S3 PWR modify PVT

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2008/12/19 2009/12/15

2008/12/19 2009/12/15

2008/12/19 2009/12/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

DC/DC interface/LED

DC/DC interface/LED

DC/DC interface/LED

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

T20 schematic

T20 schematic

T20 schematic

1

21 33Wednesday, July 21, 2010

21 33Wednesday, July 21, 2010

21 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

PF1

PF1

5A_24VD C_429007.W RML

D D

DC301001M80

PJP1

PJP1

+

2

-

1

SINGA_2DW -0005-B03

SINGA_2DW -0005-B03

@

@

C C

5A_24VD C_429007.W RML

DC_IN_S1

1000P_0 402_50V7K

1000P_0 402_50V7K

PC1

PC1

21

12

12

4

PL1

PL1

SMB3025 500YA_2P

SMB3025 500YA_2P

1 2

PC2

PC2

100P_04 02_50V8J

100P_04 02_50V8J

12

PC3

PC3
1000P_0 402_50V7K

1000P_0 402_50V7K

VIN

12

PC4

PC4
100P_04 02_50V8J

100P_04 02_50V8J

3

BATT+

51_ON#

PD2

PD2

12

LL4148_ LL34-2

LL4148_ LL34-2

PR3

PR3

100K_04 02_1%

100K_04 02_1%

1 2

PR4

PR4

22K_040 2_1%

22K_040 2_1%

2

VIN

1 2

PQ1

PQ1

BSS84_S OT23-3

BSS84_S OT23-3

N1

12

12

PC5

PC5

0.22U_06 03_25V7K

0.22U_06 03_25V7K

2

PR1

PR1

68_1206 _5%

68_1206 _5%

13

12

12

1

PD1

PD1
LL4148_ LL34-2

LL4148_ LL34-2

12

PR2

PR2
68_1206 _5%

68_1206 _5%

PC6

PC6

0.1U_060 3_25V7K

0.1U_060 3_25V7K

VS

RTC Battery

PR5

PJ2

PJ1

PJ1
JUMP_43 X79@

JUMP_43 X79@

+3VALW P

+5VALW P

B B

A A

2

112

(3A, 120mil , Via No. = 6)

(OCP min = 4.3A)

PJ3

PJ3
JUMP_43 X79@

JUMP_43 X79@

2

112

(3A, 120mil , Via No. = 6)

(OCP min = 4.7A)

5

+3VALW +1.8VS+1.8VSP

+5VALW

PJ2
JUMP_43 X79@

JUMP_43 X79@

2

112

(3A, 120mil , Via No. = 6)

4

Security Class ification

Security Class ification

Security Class ification

2005/10/ 17 2006/10/ 17

2005/10/ 17 2006/10/ 17

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2005/10/ 17 2006/10/ 17

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

PBJ1

PBJ1

12

MAXEL_M L1220T10@

MAXEL_M L1220T10@

SP093MX0000

2

+-

PR5

560_060 3_5%

560_060 3_5%

1 2

PR6

PR6

560_060 3_5%

560_060 3_5%

1 2

Title

Title

Title

Size Docu ment Number Rev

Size Docu ment Number Rev

Size Docu ment Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

+RTCBAT T

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

DCIN/DETECTOR

DCIN/DETECTOR

DCIN/DETECTOR

T20 schematic

T20 schematic

T20 schematic

22 33Wednesday, July 21, 2010

22 33Wednesday, July 21, 2010

22 33Wednesday, July 21, 2010

1

0.1

0.1

0.1

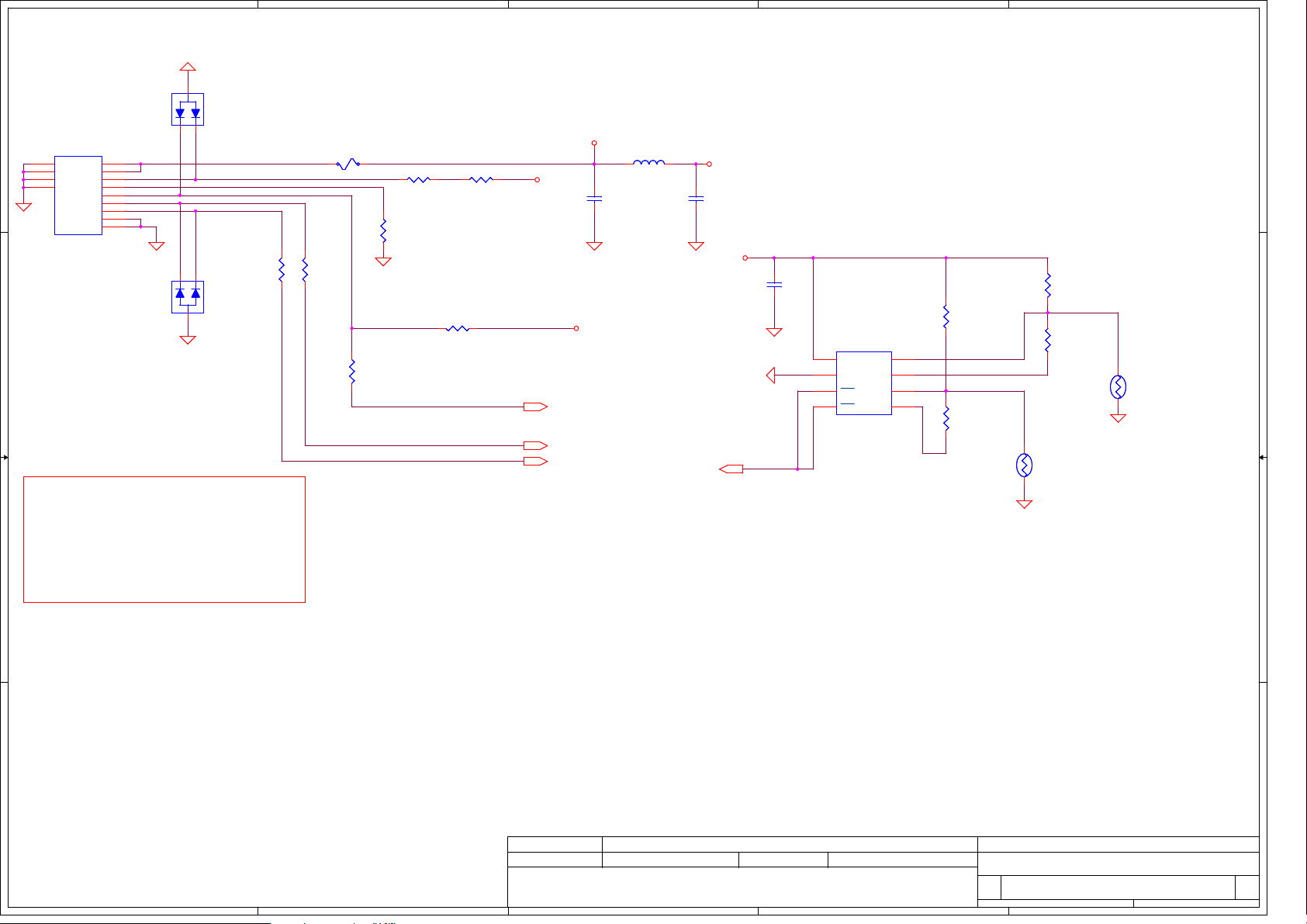

5

4

3

2

1

PH1 under CPU botten side :

1

PD8

PD8
PJSOT24 C_SOT23-3

PJSOT24 C_SOT23-3

D D

@

@

SUYIN_200045 MR009G171ZR

SUYIN_200045 MR009G171ZR

13

GND

12

GND

11

GND

10

GND

PJP3

PJP3

C C

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

2

3

2

3

1

BATT_S1

BATT_P3
BATT_P4
BATT_P5
EC_SMDA
EC_SMCA

PR10

PR10

100_040 2_1%

100_040 2_1%

PD18

PD18

PJSOT24 C_SOT23-3

PJSOT24 C_SOT23-3

7A_24VD C_429007.W RML

7A_24VD C_429007.W RML

PR11

PR11
100_040 2_1%

100_040 2_1%

1 2

1 2

PF2

PF2

21

12

PR16

PR16
1K_0402 _1%

1K_0402 _1%

1 2

12

PR9

PR9
1K_0402 _1%

1K_0402 _1%

PR7

PR7

1K_0402 _1%

1K_0402 _1%

6.49K_04 02_1%

6.49K_04 02_1%

1 2

47K_040 2_1%

47K_040 2_1%

PR14

PR14

PR8

PR8

VMB

+3VALW P

12

+3VALW P

BATT_TE MPA 19

SMB3025 500YA_2P

SMB3025 500YA_2P

1 2

12

PC7

PC7
1000P_0 402_50V7K

1000P_0 402_50V7K

PL2

PL2

BATT+

12

PC8

PC8

0.01U_04 02_25V7K

0.01U_04 02_25V7K

VL

12

PC9

PC9

0.1U_060 3_25V7K

0.1U_060 3_25V7K

CPU thermal protection at 92 degree C
Recovery at 57 degree C

PH2 near main Battery CONN :

BAT. thermal protection at 80 degree C
Recovery at 57 degree C

12

PR12

PR12
22K_040 2_1%

22K_040 2_1%

PR13

PR13
33K_040 2_1%

33K_040 2_1%

PR15

PR15

10.2K_04 02_1%

10.2K_04 02_1%

1 2

PU1

PU1

1

VCC

TMSNS1

2

GND

RHYST1

3

OT1

TMSNS2

4

RHYST2

OT2

G718TM1 U_SOT23-8

G718TM1 U_SOT23-8

1 2

8

7

6

5

12

PR17

PR17

19.1K_04 02_1%

19.1K_04 02_1%

12

PH1

PH1
100K_04 02_1%_NCP15W F104F03R C

100K_04 02_1%_NCP15W F104F03R C

EC_SMB_ DA1 19

EC_SMB_ CK1 19

Pin9 BATT+ (Battery Positive Terminal)
Pin8 BATT+ (Battery Positive Terminal)
Pin7 ID (Identify Pin)
Pin6 B/I (Battery-In Pin)
Pin5 TS (Connect to thermister)
Pin4 SMD (SMBus data interface I/O pin)
Pin3 SMC (SMBus clock interface I/O pin)
Pin2 GND (Battery Negative Terminal)

B B

Pin1 GND (Battery Negative Terminal)

A A

Security Class ification

Security Class ification

Security Class ification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2005/10/ 17 2006/10/ 17

2005/10/ 17 2006/10/ 17

2005/10/ 17 2006/10/ 17

3

VS_ON

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

12

PH2

PH2
100K_04 02_1%_NCP15W F104F03R C

100K_04 02_1%_NCP15W F104F03R C

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Docu ment Number Rev

Size Docu ment Number Rev

Size Docu ment Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

BATTERY CONN.

BATTERY CONN.

BATTERY CONN.

T20 schematic

T20 schematic

T20 schematic

23 33Wednesday, July 21, 2010

23 33Wednesday, July 21, 2010

23 33Wednesday, July 21, 2010

1

0.1

0.1

0.1

5

4

3

2

1

P2

PD3

12

DTA144EUA _SC70-3

DTA144EUA _SC70-3

PR19

PR19
47K_040 2_1%

47K_040 2_1%

2

13

D

D

PQ6

PQ6

S

S

SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

ACOFF

PD3

12

B340A_S MA2

B340A_S MA2

PQ3

PQ3

2

13

DTC115EUA_ SC70-3

DTC115EUA_ SC70-3

PR35

PR35

22K_040 2_1%

22K_040 2_1%

PACIN

1 2

DTC115EUA_ SC70-3

DTC115EUA_ SC70-3

ACOFF

PQ5

PQ5

PQ11

PQ11

PC15

PC15

12

0.1U_060 3_25V7K

0.1U_060 3_25V7K

12

1 3

12

13

2

G

G

13

2

change 110 k-oohm
chose 107 k-ohm??
Ki-->2.09
Ichg-->1.575A

VIN

D D

2

G

G

C C

Iada=0~1.579A(30W)
CP= 92%*Iada; CP=1.4526A

CP mode
Vaclim=2.39*(20K//152K/(24.9K//152K+20K//152K))=1.0812V
Iinput=(1/0.05)((0.05*Vaclm)/2.39+0.05)=1.4524

CC = 0.25A~1.575A

B B

Ichg = 0.165/0.05 * Vchlim/3.3
Vchlim = IREF*100/(110+100)
IREF = 2.09*Icharge = 0.5223V~3.296
Ki = 2.09

ICHG=(240m/50m)*(VISET/4.2)
PR39 = 137k-ohm
IREF = 3.296V => ICHG = 1.569A
IREF = 0.5223V => ICHG = 0.249A
Ki = 2.09

MAXIM:
VIINP=Iin*Rcs_in*2.8m*PR97
Intersil:
ICM=19.9*Iin*Rcs_in
=>PR97=19.9/2.8m=7.107k-ohm
so if ADP_I=1V
=>for Intersil

A A

Iin=1.005A
=>for MAXIM
Iin=0.999A
T%=(1.005-0.999)/1.005*100=0.6%

PQ2

PQ2
AON7403 L_DFN8-5

AON7403 L_DFN8-5

1

3

4

PR20

PR20
200K_04 02_1%

200K_04 02_1%

PR28

PR28
150K_04 02_1%

150K_04 02_1%

ISL@ PC22

ISL@

0.01U_04 02_25V7K

0.01U_04 02_25V7K

D

D

PQ10

PQ10

SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

S

S

ADP_I

IREF

PR41

24.9K_0 402_1%

24.9K_0 402_1%

1 2

PR43

ISL@ PR43

ISL@

20K_040 2_1%

20K_040 2_1%

CHGVADJ=(Vcell-4)*9.45

Vcell

4V

4.2V 1.9V

4.35V

CHGVADJ

0V

3.3V

52

PC10

PC10

P3

1 2

5600P_0402_25V7K

5600P_0402_25V7K

FSTCHG

2S: Float
3S: GND

PC21 6800P _0402_25 V7KISL @ PC21 68 00P_0402 _25V7KISL@

1 2

PC22

PR33 6.81K_ 0402_1%

PR33 6.81K_ 0402_1%

1 2

1 2

ISL@

ISL@

PR36

ISL@ PR36

ISL@

PC24

ISL@ PC24

ISL@

47K_040 2_1%

47K_040 2_1%

.1U_0402 _16V7K

.1U_0402 _16V7K

1 2

1 2

ADP_I 6 251VREF

PR39

ISL@PR39

ISL@

110K_04 02_1%

110K_04 02_1%

12

12

PR42

PR42

100K_04 02_1%

100K_04 02_1%

MAXIM@

MAXIM@

PR39

PR39
137K_04 02_1%

137K_04 02_1%

ISL@PR41

ISL@

6251aclim6251VREF

12

CHGVADJ

MAXIM@ PC103

MAXIM@

ADP_I

PR97

MAXIM@ PR97

MAXIM@

7.15K_0 402_1%

7.15K_0 402_1%

12

PR29

ISL@ PR29

ISL@

100K_0402_1%

100K_0402_1%

ICHG_SET

12

PC28

PC28

0.01U_0402_25V7K

0.01U_0402_25V7K

PC103

1U_0603 _25V6K

1U_0603 _25V6K

12

1 2

PR18 0.05_ 1206_1%PR18 0.0 5_1206_1 %

1

2

1SS355_ SOD323-2

1SS355_ SOD323-2

ISL@ PC16

ISL@

2.2U_060 3_6.3V6K

2.2U_060 3_6.3V6K

ISL@

ISL@

PU2

PU2

1

2

3

4

5

6

7

PR45

ISL@ PR45

ISL@

15.4K_0 402_1%

15.4K_0 402_1%

1 2

ISL@ PR46

ISL@

31.6K_0 402_1%

31.6K_0 402_1%

DCIN

12

CSOP_17 006

CSON_170 06

PC102

MAXIM@PC102

MAXIM@

.1U_0402 _16V7K

.1U_0402 _16V7K

4

3

PD4

PD4

PR24

PR24

10_1206 _5%

10_1206 _5%

PC16

12

ACSETIN

27NC28TP29

ACSET

EN

CELLS

ICOMP

ISL6251 AHRZ-T_QFN28_5 X5

ISL6251 AHRZ-T_QFN28_5 X5

VCOMP

ICM

VREF

CHLIM

ACLIM8VADJ9GND

12

PR46

VAA_170 06

MAXIM@

MAXIM@

PU8

PU8

1

DCIN

2

AGND

3

CSIP

4

CSIN

5

IINP

BATT+

B+

12

PC56

PC56

PC31

PC31

@

@

@

@

10U_1206_25V6M

10U_1206_25V6M

VIN

1 2

12

PR25

ISL@ PR25

ISL@

14.3K_0 402_1%

14.3K_0 402_1%

PC18

ISL@ PC18

ISL@

6251VDD

0.22U_06 03_25V7K

0.22U_06 03_25V7K

DCIN

12

CSON_IN CSO N

ACPRN

22

25NC24

23

26

VDD

DCIN

CSON

ACPRN

CSOP

CSIN

CSIP

PHASE

UGATE

PGND

LGATE12VDDP13BOOT

11

10

21

TP

MAX1700 6BETP+T_TQFN20_4 X4

MAX1700 6BETP+T_TQFN20_4 X4

MAXIM@PC60

MAXIM@

PC60

20

VCTL

BATT6ACOK#7CSSP

ACPRN

DL_CHG_6 251

12

0.01U_0402_25V7K

0.01U_0402_25V7K

19

CC

14

12

PC101

1U_0402_6.3V6K

1U_0402_6.3V6K

MAXIM@ PC101

MAXIM@

VAA_17006

18

VAA

8

CSIN_17006

CSIP_17006

12

10U_1206_25V6M

10U_1206_25V6M

12

PR21

PR21
191K_04 02_1%

191K_04 02_1%

12

NC

NC

6251VDDP

17

ACIN

CSSN

9

ACSETIN

12

PC17

PC17
1000P_0 402_50V7 K

1000P_0 402_50V7 K

CSOP_IN

CSOP_17 006

21

CSIN_IN

20

19

18

17

LX_CHG_6 251

16

DH_CHG_62 51

15

1 2

ACSETIN

LX_CHG_1 7006

16

LX

DHI

BST

LDO

DLO

PGND

ISET

10

ICHG_SET

PJ5

PJ5

2

JUMP_43X 118@

JUMP_43X 118@

MAXIM@

MAXIM@

PR25

PR25

24.9K_0 402_1%

24.9K_0 402_1%

CSON_170 06

ISL@ PR30

ISL@

PC19

ISL@PC19

ISL@

0.047U_0 402_16V7 K

0.047U_0 402_16V7 K

1 2

1 2

20_0402 _5%

20_0402 _5%

PR117

0_0402_ 5%

0_0402_ 5%

1 2

PC23

PC23

.1U_0402 _16V7K

.1U_0402 _16V7K

CSIP_IN

PR40

PR40

2.2_060 3_5%

2.2_060 3_5%

PC30

ISL@PC30

ISL@

4.7U_080 5_6.3V6K

4.7U_080 5_6.3V6K

DH_CHG_17 006

15

14

PC59 4.7U_08 05_6.3V6K

PC59 4.7U_08 05_6.3V6K

13

12

11

112

PR115

MAXIM@PR115

MAXIM@

0_0402_ 5%

0_0402_ 5%

1 2

PR30

20_0402 _5%

20_0402 _5%

1 2

PR31

ISL@PR31

ISL@

MAXIM@PR117

MAXIM@

PR32

20_0402 _5%

20_0402 _5%

1 2

1 2

PR34

2.2_040 2_5%

2.2_040 2_5%

0.1U_060 3_25V7K

0.1U_060 3_25V7K

BST_CHGABST_CHGABST_CHG

BST_CHGABST_CHGA

12

12

PD7
RB751V-4 0_SOD323-2

RB751V-4 0_SOD323-2

1 2

PR44

4.7_060 3_5%

4.7_060 3_5%

MAXIM@

MAXIM@

12

LDO_170 06

DL_CHG_1 7006

CSIN

CSIP

12

ISL@PR32

ISL@

ISL@PR34

ISL@

PC25

ISL@ PC25

ISL@

ISL@PD7

ISL@

6251VDD

ISL@PR44

ISL@

0_0603_ 5%

0_0603_ 5%
PR109

1 2

12

PC106

0.68U_06 03_10V6K

0.68U_06 03_10V6K

BST_CHGA_1 7006

PR47

2.2_060 3_5%

2.2_060 3_5%

1 2

BST_CHG_17 006

CSOP

12

MAXIM@PR109

MAXIM@

MAXIM@PC10 6

MAXIM@

MAXIM@PR47

MAXIM@

12

PC11

PC11

4.7U_0805_25V6-K

4.7U_0805_25V6-K

PR118

1K_0402 _1%

1K_0402 _1%

1 2

PR119

0_0402_ 5%

0_0402_ 5%

1 2

LX_CHG

PC12

PC12

4.7U_0805_25V6-K

4.7U_0805_25V6-K

MAXIM@PR1 18

MAXIM@

MAXIM@PR11 9

MAXIM@

FSTCHG

12

1 2

0_0603_ 5%

0_0603_ 5%
PR127

12

PC13

PC13

2200P_0402_50V7K

2200P_0402_50V7K

CSIN_170 06

CSIP_170 06

DH_CHG_17 006

DH_CHG_62 51

ISL@PR127

ISL@

DL_CHG_1 7006

DL_CHG_6 251

MAXIM@

MAXIM@

PR77

PR77
10K_040 2_1%

10K_040 2_1%

MAXIM@ PR51

MAXIM@

100K_04 02_1%

100K_04 02_1%

2

12

PC14

PC14

0.1U_0402_25V6

0.1U_0402_25V6

0_0603_ 5%

0_0603_ 5%
PR122

1 2

1 2

0_0603_ 5%

0_0603_ 5%
PR123

0_0603_ 5%

0_0603_ 5%
PR124

1 2

1 2

0_0603_ 5%

0_0603_ 5%
PR126

LDO_170 06

PR51

CHG_B+

MAXIM@PR122

MAXIM@

ISL@PR123

ISL@

LX_CHG

MAXIM@PR124

MAXIM@

ISL@PR126

ISL@

12

ISL@ PR48

ISL@

100K_04 02_1%

100K_04 02_1%

ACPRN

13

+3VALW

DH_CHG

3 5

DL_CHG

3 5

12

PR48

PQ13

PQ13

SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

12

2

PQ34

MAXIM@PQ34

MAXIM@

DTC115EUA_ SC70-3

DTC115EUA_ SC70-3

B+

PR23

PR23

10K_040 2_1%

10K_040 2_1%

PQ7

PQ7

DTC115EUA_ SC70-3

DTC115EUA_ SC70-3

PQ8

PQ8
AON7408 L_DFN8-5

AON7408 L_DFN8-5

PL3

PL3

10UH_FMJ-06 30T-100_3A_ 20%

10UH_FMJ-06 30T-100_3A_ 20%

241

1 2

12

PQ12

PQ12
AON7408 L_DFN8-5

AON7408 L_DFN8-5

PR38

PR38

4.7_120 6_5%@

4.7_120 6_5%@

12

PC29

PC29

241

680P_06 03_50V8J@

680P_06 03_50V8J@

6251VDD

MAXIM@

MAXIM@

PR76

PR76
10K_040 2_1%

10K_040 2_1%

12

PR50

ISL@PR50

ISL@

10K_040 2_1%

10K_040 2_1%

13

D

D

2

G

G

S

S

ICHG_SET

13

PQ33

DTC115EUA_ SC70-3

DTC115EUA_ SC70-3

1

3

1 2

13

4

PR22

PR22

1 2

47K_040 2_1%

47K_040 2_1%

2

0.1U_060 3_25V7K

0.1U_060 3_25V7K

12

MAXIM@PQ33

MAXIM@

AON7403 L_DFN8-5

AON7403 L_DFN8-5

PQ4

PQ4

PD5

PD5

1 2

1SS355_ SOD323-2

1SS355_ SOD323-2

PD6

PD6

1 2

1SS355_ SOD323-2

1SS355_ SOD323-2

PC20

PC20

PR37 0.05_ 1206_1%PR37 0.0 5_1206_1 %

CHG

1

2

PR49

PR49

10K_040 2_1%

10K_040 2_1%

1 2

12

PR53
20K_040 2_1%

20K_040 2_1%

MAXIM@

MAXIM@

PR53

PR53

16.9K_0 402_1%

16.9K_0 402_1%

52

VIN

ACOFF

PR27

PR27

200K_04 02_1%

200K_04 02_1%

1 2

VIN

13

D

D

ISL@PR53

ISL@

12

PACIN

2

G

G

PQ9

PQ9

S

S

SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

4

3

PC26

PC26

10U_1206_25V6M

10U_1206_25V6M

PACIN

12

PC27

PC27

ACIN 19

12

@

@

10U_1206_25V6M

10U_1206_25V6M

Vin Detector

18.089V

High
Low

17.44V

ACIN:
ACIN>2.1V => ACOK# --> Low
PR21 = 191k-ohm
PR25 = 24.9k-ohm
VIN = 18.2V

BATT+

PC107

PC107

10U_1206_25V6M

10U_1206_25V6M

12

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAWI NG IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONI CS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FR OM THE CUSTODY OF THE COMPETENT DI VISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER TH IS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIR D PARTY WITHOUT PRIOR WRITT EN CONSENT OF COMPAL ELECTRONICS, INC .

3

2008/12/19 2009/12/15

2008/12/19 2009/12/15

2008/12/19 2009/12/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Charger

Charger

Charger

Size Documen t Number Rev

Size Documen t Number Rev

Size Documen t Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

T20 schematic

T20 schematic

T20 schematic

1

24 33Wednesday, J uly 21, 2010

24 33Wednesday, J uly 21, 2010

24 33Wednesday, J uly 21, 2010

0.1

0.1

0.1

5

4

3

2

1

2VREF_8205

12

PC32

PC32

1U_0603_10V6K

1U_0603_10V6K

PR55

PR54

BST_3V

UG_3V

LX_3V

LG_3V

PR65

PR65

PR54

13K_040 2_1%

13K_040 2_1%

1 2

PR56

PR56

20K_040 2_1%

20K_040 2_1%

1 2

PR58

PR58

75K_040 2_1%

75K_040 2_1%

1 2

PU3

PU3

25

7

8

9

10

11

12

12

100K_0402_5%

100K_0402_5%

2VREF_8205

P PAD

VO2

VREG3

BOOT2

UGATE2

PHASE2

LGATE2

ENTRIP2

5

6

FB2

ENTRIP2

SKIPSEL

EN

14

13

1 2

PR66

PR66

0_0402_ 5%@

0_0402_ 5%@

B++

3

4

TONSEL

15

12

D D

B++

PJ4

PJ4
JUMP_43 X79@

JUMP_43 X79@

12

PC57

PC57

2

12

0.1U_0402_25V6

0.1U_0402_25V6

+3VALWP

112

12

PC33

PC33

2200P_0402_50V7K

2200P_0402_50V7K

12

PC40

PC40

.1U_0402_16V7K@

.1U_0402_16V7K@

PQ18

SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

PQ18

12

12

PC34

PC34

4.7UH_FM J-0630T-4R7 HF_ 5.5A_20%

4.7UH_FM J-0630T-4R7 HF_ 5.5A_20%

PC41

PC41

D

D

S

S

13

4.7U_0805_25V6-K

4.7U_0805_25V6-K

150U_B2_6.3VM_R35M

150U_B2_6.3VM_R35M

1

+

+

2

680P_06 03_50V8J@

680P_06 03_50V8J@

2

G

G

PC81

PC81

4.7U_0805_25V6-K

4.7U_0805_25V6-K

PL4

PL4

1 2

4.7_1206 _5%@

4.7_1206 _5%@

PC45

PC45

PR62

PR62

2

G

G

3 5

241

5

12

12

123

ENTRIP2ENTRIP1

13

D

D

PQ19

PQ19
SSM3K70 02FU_SC70-3

SSM3K70 02FU_SC70-3

S

S

4.7U_080 5_10V6K

4.7U_080 5_10V6K

PQ14

PQ14
AON7408 L_DFN8-5

AON7408 L_DFN8-5

PQ16

PQ16

AON7702 L_DFN8-5

AON7702 L_DFN8-5

4

PC37

PC37

.1U_0402 _16V7K

.1U_0402 _16V7K

B+

B+

PC58

PC58

68P_0402_50V8J

68P_0402_50V8J

C C

Ipeak = 2.72 A
Imax = 1.91 A
F = 375 KHz
Total Capacitor = 150 uF
ESR = 35m ohm

B B

12

PC38

PC38

1 2

499K_04 02_1%

499K_04 02_1%

1 2

+3VLP

BST3

PR64

PR64

PR60

PR60

2.2_0603 _5%

2.2_0603 _5%

1 2

PC46

PC46

1U_0402_6.3V6K

1U_0402_6.3V6K

1 2

30K_040 2_1%

30K_040 2_1%

1 2

19.6K_04 02_1%

19.6K_04 02_1%

1 2

ENTRIP1

1 2

2

1

FB1

REF

ENTRIP1

VO1

PGOOD

BOOT1

UGATE1

PHASE1

LGATE1

NC18VREG5

VIN16GND

17

12

PC47

PC47

4.7U_080 5_10V6K

4.7U_080 5_10V6K

PC48

PC48

0.1U_060 3_25V7K

0.1U_060 3_25V7K

PR55

PR57

PR57

PR59

PR59

75K_040 2_1%

75K_040 2_1%

24

23

22

21

20

19

RT8205E GQW_W QFN24_4X4

RT8205E GQW_W QFN24_4X4

BST_5VBST_ 5V

UG_5VUG_5V

LX_5VLX_5V

LG_5VLG_5V

2.2_0603 _5%

2.2_0603 _5%

1 2

VL

4.7U_0805_25V6-K

4.7U_0805_25V6-K

PR61

PR61

PC82

PC82

12

PGOOD

12

PC35

PC35

2200P_0402_50V7K

2200P_0402_50V7K

PC39

PC39
.1U_0402 _16V7K

.1U_0402 _16V7K

BST5

1 2

B++

12

12

PC36

PC36

PC105

PC105

4.7U_0805_25V6-K

4.7U_0805_25V6-K

68P_0402_50V8J

68P_0402_50V8J

PQ17

PQ17

AON7702 L_DFN8-5

AON7702 L_DFN8-5

12

PC104

PC104

0.1U_0402_25V6

0.1U_0402_25V6

4

PQ15

PQ15
AON7408 L_DFN8-5

AON7408 L_DFN8-5

3 5

241

4.7UH_FM J-0630T-4R7 HF_ 5.5A_20%

4.7UH_FM J-0630T-4R7 HF_ 5.5A_20%

5

123

Ipeak = 1.19 A
Imax = 0.84 A
F = 300k Hz
Total Capacitor = 150 uF
ESR = 35m ohm

12

12

1 2

PR63

PR63

4.7_1206 _5%@

4.7_1206 _5%@

PC43

PC43
680P_06 03_50V8J@

680P_06 03_50V8J@

PL5

PL5

+5VALWP

1

12

+

+

PC42

PC42

2

PC44

PC44

.1U_0402_16V7K

.1U_0402_16V7K

@

@

150U_B2_6.3VM_R35M

150U_B2_6.3VM_R35M

PR67

PR67

100K_04 02_1%

100K_04 02_1%

VL

VS_ON

1 2

VS

PR68

PR68

100K_04 02_1%

100K_04 02_1%

A A

5

12

PR69

PR69

40.2K_0402_1%

40.2K_0402_1%

12

13

2

DTC115E UA_SC70-3

PC49

@ PC49

@

0.01U_0402_16V7K

0.01U_0402_16V7K

DTC115E UA_SC70-3

12

PQ20

PQ20

Security Class ification

Security Class ification

Security Class ification

2008/12/ 19 2009/12/ 15

2008/12/ 19 2009/12/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2008/12/ 19 2009/12/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Docu ment Number Rev

Size Docu ment Number Rev

Size Docu ment Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

3VALW_MBP/5VALWP

3VALW_MBP/5VALWP

3VALW_MBP/5VALWP

T20 schematic

T20 schematic

T20 schematic

1

0.1

0.1

0.1

25 33Wednesday, July 21, 2010

25 33Wednesday, July 21, 2010

25 33Wednesday, July 21, 2010

A B C D E F G H

1

2

VO=0.6 (1+51/24.9)=1.83V

EN_VDD_1V8 +1.8VS

L OFF

H ON

PL6

PJ7

PJ7

2

112

JUMP_43X39@

JUMP_43X39@

22U_0805_6.3VAM

22U_0805_6.3VAM

EN_VDD_1V820

3

4

PC50

PC50

1 2

PR71

PR71

22K_0402_1%

22K_0402_1%

.047U_0402_16V K

.047U_0402_16V K

12

EN_SY8033B

12

12

PR73

PR73

0.47U_0402_10V4Z

0.47U_0402_10V4Z

4

PU4

PU4

10

9

PVIN

8

SVIN

5

EN

TP

11

PC55

PC55

LX2PVIN

PG

3

LX

6

FB

NC

NC

7

1

SY8033BDBC_DFN10_3X3

SY8033BDBC_DFN10_3X3

LX_SY8033B

FB_SY8033B

PR70

PR70

4.7_1206_5%

4.7_1206_5%

PC52

PC52

680P_0603_50V8J

680P_0603_50V8J

PL6

1UH_FMJ-0630T-1R0 HF_11A_20%

1UH_FMJ-0630T-1R0 HF_11A_20%

1 2

12

PR72

PR72

12

51K_0402_1%

51K_0402_1%

PR74

PR74

24.9K_0402_1%

24.9K_0402_1%

+1.8VSP+5VALW

12

12

PC51

PC51

12

68P_0402_50V8J

68P_0402_50V8J

12

12

PC53

PC53

PC54

PC54

22U_0805_6.3VAM

22U_0805_6.3VAM

22U_0805_6.3VAM

22U_0805_6.3VAM

5

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

2008/12/19 2009/12/15

2008/12/19 2009/12/15

2008/12/19 2009/12/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Docum ent Number Rev

Size Docum ent Number Rev

Size Docum ent Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

+1.8VS

+1.8VS

+1.8VS

T20 schematic

T20 schematic

T20 schematic

26 33Wednesday, July 21, 2010

26 33Wednesday, July 21, 2010

26 33Wednesday, July 21, 2010

0.1

0.1

0.1

A B C D E F G H

PU6D

+5VALW

1

PC61

PC61

2.2U_0603_10V6K

2.2U_0603_10V6K

1 2

USB1_VBUS_DET

TP1TP1

PU6D

AC_1

C12

AC_2

C13

AC_3

D11

AC_4

D12

AC_5

D13

USB_1

E13

USB_2

F11

USB_3

F12

USB_4

F13

BAT_1

G10

BAT_2

G11

BAT_3

G12

BAT_4

G13

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

SYS_1
SYS_2
SYS_3
SYS_4
SYS_5
SYS_6
SYS_7

A11
A12
A13
B11
B12
B13
C11

PC62

PC62

10U_0805_6.3V6M

10U_0805_6.3V6M

+5VS_SYS

12

12

PC63

PC63
10U_0805_6.3V6M

10U_0805_6.3V6M

+5VS_SYS

+VDD_SYS=5V
MAX current=1A

PU6H

PU6H

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

RED1

GREEN1

BLUE1

RED2

GREEN2

BLUE2

LED_PWM

PWM

DIG_PWM

DIG_PWM2

L9
M9
N9

K8
L8
M8

N10

K9

N11

F4

2

TPS658621_TNOPOWER

12

PC64

PC64

0.47U_0603_16V7K

0.47U_0603_16V7K

3

4

1

A3

PU6C

PU6C

TNOPOWER

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PU6B

PU6B

TS

J13

VIN_CHG_1

H11

VIN_CHG_2

H12

VIN_CHG_3

H13

ISET

K11

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PU6A

PU6A

SM3

L11

PGND3_2

L13

PGND3_1

L12

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

AVDD6

VREF1V25

V2V2

K13

J11

J12

VTSBIAS

CHG_STAT

SM3_SW

SM3IG

+5VS_AVDD6

+1.25VS_VREF

L3_1
L3_2

FB3

M10

L2

M13
N13

M12

N12

K12

+2.2VS

+1.25VS_VREF

12

PC71

PC71

1U_0402_6.3V6K

1U_0402_6.3V6K

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

BOOST Converter

+2.2VS

1 2

+5VS_AVDD6

12

PC65

PC65

PC67

PC67

10U_0805_6.3V6M

10U_0805_6.3V6M

+VDD_AVDD6 =5V
MAX current=0.01A

+VDD_V2V2 =2.2V
MAX current=0.025A

+VDD_VREF1V25 =1.25V
MAX current=0.01A

+5VS_SYS

10U_0805_6.3V6M

10U_0805_6.3V6M

+5VS_SYS

10U_0805_6.3V6M

10U_0805_6.3V6M

+5VS_SYS

10U_0805_6.3V6M

10U_0805_6.3V6M

12

PC66

PC66

12

PC72

PC72

12

PC78

PC78

12

PC68

PC68

10U_0805_6.3V6M

10U_0805_6.3V6M

12

PC73

PC73

10U_0805_6.3V6M

10U_0805_6.3V6M

12

PC79

PC79

10U_0805_6.3V6M

10U_0805_6.3V6M

PU6G

PU6G

VIN_SM0_1

A1

VIN_SM0_2

B1

VIN_SM0_3

C1

VIN_SM0_4

C2

VIN_SM0_5

C3

VIN_SM0_6

D3

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PU6F

PU6F

VIN_SM1_1

G3

VIN_SM1_2

H1

VIN_SM1_3

H2

VIN_SM1_4

H3

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PU6E

PU6E

VIN_SM2_1

A10

VIN_SM2_2

B10

VIN_SM2_3

C10

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PGND0_1
PGND0_2
PGND0_3

PGND1_1
PGND1_2
PGND1_3

PGND2_1
PGND2_2
PGND2_3

L0_1

+VDD_SM0_L

D1

L0_2

D2

SM0

TPS658621_SM0

C4

E1
E2
E3

L1_1

G1

L1_2

G2

SM1

TPS658621_SM1

C6

F1
F2
F3

L2_1

+3.7VS_SM2_L

A9

L2_2

B9

L2_3

C9

SM2

TPS658621_SM2

E12

A8
B8
C8

PL7

PL7

2.2UH_VLS252012T-2R2M1R3_1.8A_20%

2.2UH_VLS252012T-2R2M1R3_1.8A_20%

1 2

PR78

PR78

1

1 2

0_0402_5%

0_0402_5%

PL8

PL8

1.5UH_VLS252012T-1R5N1R4_1.5A_30%

1.5UH_VLS252012T-1R5N1R4_1.5A_30%

1 2

PR79

PR79

1

1 2

0_0402_5%

0_0402_5%

PL9

PL9

2.2UH_VLS252012T-2R2M1R3_1.8A_20%

2.2UH_VLS252012T-2R2M1R3_1.8A_20%

1 2

PR80

1 2

0_0402_5%

0_0402_5%

PR80

1

PC69

PC69

10U_0805_6.3V6M

10U_0805_6.3V6M

+1.0VS_SM1+1.0VS_SM 1_L

10U_0805_6.3V6M

10U_0805_6.3V6M

10U_0805_6.3V6M

10U_0805_6.3V6M

+1.2VS_SM0

12

PC74

PC74

+3.7VS_SM2

PC76

PC76

12

PC70

PC70
10U_0805_6.3V6M

10U_0805_6.3V6M

12

12

+1.2VS_SM0

12

PC75

PC75
10U_0805_6.3V6M

10U_0805_6.3V6M

+3.7VS_SM2

12

PC77

PC77
10U_0805_6.3V6M

10U_0805_6.3V6M

+1.0VS_SM1

+VDD_SM0=1.2V
MAX current=0.6A

+VDD_SM1=1V
MAX current=1.5A

+VDD_SM2=3.7V
MAX current=0.75A

PMU #1

5

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

2008/12/19 2009/12/15

2008/12/19 2009/12/15

2008/12/19 2009/12/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Docum ent Number Rev

Size Docum ent Number Rev

Size Docum ent Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

PMU#1

PMU#1

PMU#1

T20 schematic

T20 schematic

T20 schematic

27 33Wednesday, July 21, 2010

27 33Wednesday, July 21, 2010

27 33Wednesday, July 21, 2010

0.1

0.1

0.1

A B C D E F G H

PU6P

TPS658621_XTAL1

PU6L

PU6L

ANLG1

1

M1

ANLG2

L3

ANLG3

M2

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

ADC_REF

AGND2

K3

K4

0.01A

12

PC80

PC80

4.7U_0603_10V6K

4.7U_0603_10V6K

+2.6VS_ADC_REF

TPS658621_XTAL1 TPS658621_XTAL2

PU6P

XTAL1

M6

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

XTAL2

N6

TPS658621_XTAL2

1

2

3

4

5

PMU #2

+1.8VS_LDO4

CORE_PWR_REQ

CPU_PWR_REQ

PC83

PC83

0.1U_0402_25V6

0.1U_0402_25V6

PWR_I2C_SCL7
PWR_I2C_SDA7

1 2

PU6K

PU6K

V32K

D7

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PR84

PR84

12

100K_0402_1%

100K_0402_1%

PR85

PR85
100K_0402_1%

100K_0402_1%

1 2

+1.8VS_LDO4

PR88

PR88

0_0402_5%

0_0402_5%

12
12

PR87

PR87

0_0402_5%

0_0402_5%

NOPOWER*

EC_RESMUE19

PU6I

PU6I

SCLK

H4

SDAT

J2

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

If use RC filter, it must be changed 33ohm

PR91

PR91

0_0402_5%

0_0402_5%

12

close pin (EMI request)

OUT32K

C7

D4

M11

INT*

L10

PR86

PR86
100K_0402_1%

100K_0402_1%

@

@

TPS658621_NORTC*

+1.8VS_LDO4

SYSTEM_RESET#9,19

+2.2VS

PSCLK
PSDAT

PU6J

PU6J

RESUME

B2

LDO4EN

B3

SYNCEN

E10

SM0EN

F10

SM1EN

E11

HOT_RST*

A2

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

J3
J4

PR89

PR89

0_0402_5%

0_0402_5%

PR90

PR90

0_0402_5%

0_0402_5%

NORTC*

1 2

12

@

@

T4

PADT4PAD

PC100

PC100
10P_0402_25V8K

10P_0402_25V8K

50OHM1

12
12

CLK_32K_IN 7

+2.2VS
+2.2VS

SYS_RESET# 7,12,17

PWR_INT# 7

+1.8VS_LDO4

12

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

PR82

PR82
10K_0402_1%

10K_0402_1%

PC84

PC84

+3.7VS_SM2

12

PC89

PC89

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

LAYOUT

+3.7VS_SM2

12

PC90

PC90

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

元元元IC出

N8

+3.7VS_SM2

12

+3.7VS_SM2

12

PC94

PC94

PC95

PC95

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

PIN

+3.7VS_SM2

12

N1

PU6N

PU6N

VIN_LDO01

N5

VIN_LDO23

A6

VIN_LDO4

N7

VIN_LDO678

J1

VIN_LDO9

N8

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

A4
B5
C5

K6

D6

PU6O

PU6O

COMP

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

PU6M

PU6M

AGND3_1
AGND3_2
AGND3_3

DGND1

DGND2DT

TPS658621AZGUR_BGA169

TPS658621AZGUR_BGA169

Security Classification

Security Classification

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELE CTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETE NT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELE CTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSE NT OF COMPAL ELECTRONICS, INC.

RTCOUT

Issued Date

Issued Date

Issued Date

LDO4PG

PG_VDDIO_SYS

L1

SM0PG

B4

SM1PG

A5

GPIO1

M3

GPIO2

N3

GPIO3

M4

GPIO4

N4

H10

LDO0

M5

LDO1

L6

LDO2

B7

LDO3

B6

LDO4

L7

LDO5

A7

LDO6

G4

LDO7

K2

LDO8

K1

LDO9

M7

12

Imax=0.15A

PC93

PC93

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

AGND1

J10

HSK_1

D5

HSK_2

D8

HSK_3

D9

HSK_4

D10

HSK_5

E4

HSK_6

E5

HSK_7

E6

HSK_8

E7

HSK_9

E8

HSK_10

E9

HSK_11

F5

HSK_12

F6

HSK_13

F7

HSK_14

F8

HSK_15

F9

HSK_16

G5

HSK_17

G6

HSK_18

G7

HSK_19

G8

HSK_20

G9

HSK_21

H5

HSK_22

H6

HSK_23

H7

HSK_24

H8

HSK_25

H9

HSK_26

J5

HSK_27

J6

HSK_28

J7

HSK_29

J8

HSK_30

J9

HSK_31

K5

HSK_32

K7

HSK_33

K10

HSK_34

L4

HSK_35

L5

HSK_36

N2

2008/12/19 2009/12/15

2008/12/19 2009/12/15

2008/12/19 2009/12/15

+2.85VS_LDO5

T1PADT1PAD

T2PADT2PAD

T3PADT3PAD

+1.8VS_LDO4

12

Imax=0.01A

PC91

PC91

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

T6PADT6PAD

T5PADT5PAD

T7PADT7PAD

PG_VDDIO_SYS

12

Imax=0.1A

PC92

PC92

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

Imax=0.1A

12

PC99

PC99

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

+3.3VS_LDO3

+2.85VS_LDO9

+1.2VS_LDO2

12

Imax=0.01A

PC88

PC88

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

12

Imax=0.1A

PC97

PC97

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

+1.8VS_LDO8

+3.3VS_RTC

Imax=0.01A

12

+3.3VS_LDO0

12

+1.1VS_LDO1

12

Imax=0.04A

PC85

PC85

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

12

PC98

PC98

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

Title

Title

Title

Size Docum ent Number Rev

Size Docum ent Number Rev

Size Docum ent Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Imax=0.03A

PC87

PC87

2.2U_0402_6.3V6M

PC86

PC86

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

+3.3VS_LDO7

Imax=0.1A

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

2.2U_0402_6.3V6M

+2.85VS_LDO6

12

Imax=0.13A

PC96

PC96

2.2U_0402_6.3V6M

2.2U_0402_6.3V6M

PMU#2

PMU#2

PMU#2

T20 schematic

T20 schematic

T20 schematic

28 33Wednesday, July 21, 2010

28 33Wednesday, July 21, 2010

28 33Wednesday, July 21, 2010

2

3

0.1

0.1

0.1

5

4

3

2

1

Version change list (P.I.R. List)

Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem

0.1

1

D D

2

EMI request

3

4

Modify clock pr ecision

5

6

7

8

9

10

C C

11

12

Design change

Design change

Design change 0.2 change PR91 from 33 t o 0 ohm 4/20

ME height limit 0.2 change 1 0U 1206 to 4.7U 0805 X2 4/20

Thermal request 0.2

13

14

15

16

17

18

19

20

B B

21

22

23

24Change smaller MOS change PQ2 PQ4 from AO4435 to AON7403 3/28 DVT

24,25 change PR 40 PR47 R60 PR6 1 ot 2.2 ohm 3/28 DVT

0.1

28 change PC81 and PC82 from 22P to 15P 4/ 7

0.2

0.2

change PR74 fro m 61.9K to 24.9 K

26

change PC51 fro m 22P to 68P

26

28

25

23 change PR12 to 22K, P R13 to 33K

change PR15 to 10.2K, PR17 to 19.1K230. 2Thermal request

0.3Modify power sequen ce 26

change PR71 to 22KK
PC55 to 0.47U, PR73 to 0.47U

4/20Design change 0.2 26 change PR72 from 127 K to 51K

4/20

4/20

4/29

4/29

DVTDesign change 0.1 25 change PR58 PR59 fro m 120K ot 75K 3/28

DVT0.1

PVT4/200.2 28Remove them to HW circuit delet e PC81,PC82 and Y1

PVT

PVT

PVT

PVT

PVT

PVT

PVT

PreMP6/15

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTR ONICS, INC. AND CONTAINS CONF IDENTIAL
AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRANSFERED F ROM THE CUSTODY OF THE COMPETENT D IVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEITHER T HIS SHEET NOR THE INFORMATION I T CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

2009/10/09 2010/10/09

2009/10/09 2010/10/09

2009/10/09 2010/10/09

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

PIR-PWR

PIR-PWR

PIR-PWR

PAZ00

PAZ00

PAZ00

1

29 33Wednesday, July 21, 2010

29 33Wednesday, July 21, 2010

29 33Wednesday, July 21, 2010

0.1

0.1

0.1

5

4

3

2

1

Item (Reason for change)Fixed Issue PAGE Modify List Date

recovery button add R1238, remove R253, D15

recovery buttonrecovery button

1

T20 GPIO modify SDIO GPIO.

T20 GPIOT20 GPIO

2

T20/ KBC debug modify JP1 pin define

T20/ KBC debugT20/ KBC debug

3

D D

new USI WIFI/BT module modify JMINI1 pin define

new USI WIFI/BT modulenew USI WIFI/BT module

4

USB power switch over current detect pin

USB power switch over current detect pin modify JUSB1.3 from +3VS to USB_OC#

USB power switch over current detect pinUSB power switch over current detect pin

5

Sirius Spec. add WINBOND KBC

Sirius Spec.Sirius Spec.

6

EC common design

EC common design 17

EC common designEC common design

7

for S5 HDMI_IN detect

for S5 HDMI_IN detect 17,28

for S5 HDMI_IN detectfor S5 HDMI_IN detect

8

TP new module

TP new module 17,18

TP new moduleTP new module

9

SMSC 2514 to 2512

SMSC 2514 to 2512 14

SMSC 2514 to 2512SMSC 2514 to 2512

10

T20 CardReader power enable pin reverse

T20 CardReader power enable pin reverse 16

T20 CardReader power enable pin reverseT20 CardReader power enable pin reverse

11

C C

WWAN noise prevention

WWAN noise prevention

WWAN noise preventionWWAN noise prevention

12

DDR change from x16 to x8

DDR change from x16 to x8 5,8,9

DDR change from x16 to x8DDR change from x16 to x8

13

two EVENT_LED driving current

two EVENT_LED driving current 16,19,20

two EVENT_LED driving currenttwo EVENT_LED driving current

14

WWAN noise prevention

WWAN noise prevention 13

WWAN noise preventionWWAN noise prevention

15

HP_DET pull high add R186

HP_DET pull highHP_DET pull high

16

WW/WL LED control

WW/WL LED control 21

WW/WL LED controlWW/WL LED control

17

Keyboard LED

Keyboard LED 19.20

Keyboard LEDKeyboard LED

18

Thermal shutdown pin

Thermal shutdown pin 7,19,20

Thermal shutdown pinThermal shutdown pin

19

B B

0201 change to 0402.

0201 change to 0402. all

0201 change to 0402.0201 change to 0402.

20

Thermal sensor I2C level shift MOS can't turn on

Thermal sensor I2C level shift MOS can't turn on 7777 change to low voltage MOSFET Q20/ Q25

Thermal sensor I2C level shift MOS can't turn onThermal sensor I2C level shift MOS can't turn on

21

move SW2 to sub-board

move SW2 to sub-board 19,22

move SW2 to sub-boardmove SW2 to sub-board

22

PR/SI A/B type USB co-lay

PR/SI A/B type USB co-lay 16

PR/SI A/B type USB co-layPR/SI A/B type USB co-lay

23

EMI request

EMI request 8888 add R206,C277,C278,R207

EMI requestEMI request

24

Nvidia request

Nvidia request 16

Nvidia requestNvidia request

25

SW1 pin 1 floating.

SW1 pin 1 floating. 6666 remove pull high.

SW1 pin 1 floating.SW1 pin 1 floating.

26

cross talk

cross talk 19,22

cross talkcross talk

27

A A

AUDIO connector two types

AUDIO connector two types 17

AUDIO connector two typesAUDIO connector two types

28

4444recovery button

6666T20 GPIO

7777T20/ KBC debug

13

13new USI WIFI/BT module

1313

14,17

14,17

14,1714,17
28

28

2828
28

28Sirius Spec.

2828

17 add KSO1/KSO2 pull high, debug TX pull down, TP CLK/DAT pull high.

1717

17,28 add HDMI_HPD

17,2817,28

17,18 reserve both +5V and +3V for TP_PWR, change JTP1 from 6 pin to 4 pin.

17,1817,18

14 swap USB port for cost.

1414

16 add F1, change Q15 to Q22 and pull low.

1616

5,6,7,11,

5,6,7,11,

5,6,7,11,5,6,7,11,
13,14,16,17

13,14,16,17

13,14,16,1713,14,16,17

5,8,9 four 64x16 change to four 128x8.

5,8,95,8,9

16,19,20

16,19,2016,19,20
,21

,21

,21,21

13 add C263~C271

1313

17

17HP_DET pull high

1717

21 add Q21,R226,R268,R298

2121

19.20 add C272,R224

19.2019.20

7,19,20 add TEMP_THERM#

7,19,207,19,20

all capacitor x27, resister x27

allall

19,22 remove SW2, add R254,R255

19,2219,22

16 add R197~199,R204

1616

16 add R299

1616

19,22 add C281,C282,C283,C284

19,2219,22

17 follow iPhone pin define.

1717

add R1238, remove R253, D15 2010/03/15

add R1238, remove R253, D15add R1238, remove R253, D15

modify SDIO GPIO. 2010/03/15

modify SDIO GPIO.modify SDIO GPIO.

modify JP1 pin define 2010/03/15

modify JP1 pin definemodify JP1 pin define

modify JMINI1 pin define 2010/03/15

modify JMINI1 pin definemodify JMINI1 pin define

modify JUSB1.3 from +3VS to USB_OC# 2010/03/15

modify JUSB1.3 from +3VS to USB_OC#modify JUSB1.3 from +3VS to USB_OC#

add WINBOND KBC 2010/03/15

add WINBOND KBCadd WINBOND KBC

add KSO1/KSO2 pull high, debug TX pull down, TP CLK/DAT pull high. 2010/03/15

add KSO1/KSO2 pull high, debug TX pull down, TP CLK/DAT pull high.add KSO1/KSO2 pull high, debug TX pull down, TP CLK/DAT pull high.

add HDMI_HPD 2010/03/15

add HDMI_HPDadd HDMI_HPD

reserve both +5V and +3V for TP_PWR, change JTP1 from 6 pin to 4 pin. 2010/03/15

reserve both +5V and +3V for TP_PWR, change JTP1 from 6 pin to 4 pin.reserve both +5V and +3V for TP_PWR, change JTP1 from 6 pin to 4 pin.

swap USB port for cost. 2010/03/15

swap USB port for cost.swap USB port for cost.

add F1, change Q15 to Q22 and pull low. 2010/03/15

add F1, change Q15 to Q22 and pull low.add F1, change Q15 to Q22 and pull low.

add C39~C42, R90,R179,R181, C101~103,C107, C108,C147~C149, C183~C187,C192,C193,C208,R184,C225,R223,C274~C276

add C39~C42, R90,R179,R181, C101~103,C107, C108,C147~C149, C183~C187,C192,C193,C208,R184,C225,R223,C274~C276 2010/03/15

add C39~C42, R90,R179,R181, C101~103,C107, C108,C147~C149, C183~C187,C192,C193,C208,R184,C225,R223,C274~C276add C39~C42, R90,R179,R181, C101~103,C107, C108,C147~C149, C183~C187,C192,C193,C208,R184,C225,R223,C274~C276

four 64x16 change to four 128x8. 2010/03/16

four 64x16 change to four 128x8.four 64x16 change to four 128x8.

add Q23

add Q23 2010/03/16

add Q23add Q23

add C263~C271 2010/03/16

add C263~C271add C263~C271

add R186 2010/03/19

add R186add R186

add Q21,R226,R268,R298 2010/03/19

add Q21,R226,R268,R298add Q21,R226,R268,R298

add C272,R224 2010/03/19

add C272,R224add C272,R224

add TEMP_THERM# 2010/03/19

add TEMP_THERM#add TEMP_THERM#

capacitor x27, resister x27 2010/03/19

capacitor x27, resister x27capacitor x27, resister x27

change to low voltage MOSFET Q20/ Q25 2010/03/19

change to low voltage MOSFET Q20/ Q25change to low voltage MOSFET Q20/ Q25

remove SW2, add R254,R255 2010/03/19

remove SW2, add R254,R255remove SW2, add R254,R255

add R197~199,R204 2010/03/19

add R197~199,R204add R197~199,R204

add R206,C277,C278,R207 2010/03/19

add R206,C277,C278,R207add R206,C277,C278,R207

add R299 2010/03/19

add R299add R299

remove pull high. 2010/03/24

remove pull high.remove pull high.

add C281,C282,C283,C284 2010/03/24

add C281,C282,C283,C284add C281,C282,C283,C284

follow iPhone pin define. 2010/03/24

follow iPhone pin define.follow iPhone pin define.

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/15 01EVT

2010/03/152010/03/15

2010/03/16 01EVT

2010/03/162010/03/16

2010/03/16 01EVT

2010/03/162010/03/16

2010/03/16 01EVT

2010/03/162010/03/16

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/19 01EVT

2010/03/192010/03/19

2010/03/24 01EVT

2010/03/242010/03/24

2010/03/24 01EVT

2010/03/242010/03/24

2010/03/24 01EVT

2010/03/242010/03/24

Phase

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

01EVT

01EVT01EVT

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

PIR

PIR

PIR

LA-5952P

LA-5952P

LA-5952P

1

0.1

0.1

30 33Wednesday, July 21, 2010

30 33Wednesday, July 21, 2010

30 33Wednesday, July 21, 2010

0.1

5

4

3

2

1

Item (Reason for change)Fixed Issue PAGE Modify List Date

USB power soft start

USB power soft start 8888 add R79,R229,C279,C280

USB power soft startUSB power soft start

29

Speaker R/L reserve

Speaker R/L reserve 17

Speaker R/L reserveSpeaker R/L reserve

30

EVENT_LED control by PWM signal

EVENT_LED control by PWM signal 19

EVENT_LED control by PWM signalEVENT_LED control by PWM signal

31

D D

Y1 change to 9H03200413

Y1 change to 9H03200413 7777 Y1 change to 9H03200414 by sharing

Y1 change to 9H03200413Y1 change to 9H03200413

32

33

Card reader PWR issue

Card reader PWR issue

Card reader PWR issueCard reader PWR issue

HP issue 17

HP issueHP issue

34

EMI request

EMI request Change R187,R188,R189,R190 to L

EMI requestEMI request

35

eMMC trace 3.5mil issue

eMMC trace 3.5mil issue 12

eMMC trace 3.5mil issueeMMC trace 3.5mil issue

36

Follow Sirius design (WF_RST# )

Follow Sirius design (WF_RST# ) Change WF_RST# form U1.R25 to U1.T4

Follow Sirius design (WF_RST# )Follow Sirius design (WF_RST# )

37

EMI request

EMI request Add 33 ohm on LCD_PCLK.

EMI requestEMI request

38

ME request

ME request 9999 Change connector form ACES-87213 to ACES_87036 by ME 4/16,remove 5VS & 1.8VS

ME requestME request

39

C C

USB_ID1 folating issue 8888 PVT

USB_ID1 folating issueUSB_ID1 folating issue

40

Q4 Update

Q4 Update DVT reserve for MOS

Q4 UpdateQ4 Update

41

U21 Update

U21 Update For 2.2V to 3.3V levle shift

U21 UpdateU21 Update

42

R219 no need

R219 no need Bypass R219

R219 no needR219 no need

43

SD-Card detect issue

SD-Card detect issue Use PEX_RST0# to replace SDIO1_CD#,reserve SDIO1_CD#

SD-Card detect issueSD-Card detect issue

44

Vendor Suggest

Vendor Suggest C146 change to USB3315 Pin17 for vendor suggest(SMSC)

Vendor SuggestVendor Suggest

45

SMT Suggest

SMT Suggest Change R/ C 0201 to 0402

SMT SuggestSMT Suggest

46

SMT Suggest

SMT Suggest 6666

SMT SuggestSMT Suggest

47

B B

KBC LED issue

KBC LED issue 19

KBC LED issueKBC LED issue

48

WiFi / BT module issue

WiFi / BT module issue Exchange DAP4_DIN & DAP4_DOUT

WiFi / BT module issueWiFi / BT module issue

49

WiFi LED contorl issue

WiFi LED contorl issue Use GPIO (T20 SDIO3_DATA5) to control it.

WiFi LED contorl issueWiFi LED contorl issue

50

HDMI connector issue

HDMI connector issue Change DC232000M00 to DC232000O00 for HMDI ME issue

HDMI connector issueHDMI connector issue

51

change +3Vs enable pin to +5Vs

change +3Vs enable pin to +5Vs 21

change +3Vs enable pin to +5Vschange +3Vs enable pin to +5Vs

52

BK_OFF soft start

BK_OFF soft start

BK_OFF soft startBK_OFF soft start

53

USB leakage issue

USB leakage issue Uninstall R63 ,add R1262 and checge Voltage to +5Vs for USB leakage issue

USB leakage issueUSB leakage issue

54

NVIDIA suggest 15

NVIDIA suggestNVIDIA suggest

55

A A

Key board ON/OFFBTN batton on need

Key board ON/OFFBTN batton on need 19

Key board ON/OFFBTN batton on needKey board ON/OFFBTN batton on need

56

17 swap U14.36 and 37

1717

19 change from pin 93 to pin 21

1919

18

1818

17

1717

17

1717

12 Connector to NC pin for 3.5 mil trace issue

1212

14 2010/04/16

1414

21

2121

19

1919

18

1818

16

1616

18

1818

19 Change LED PER form +3VS to +5VS

1919

15

1515

208888

2020

19

1919

21 Change Q12 to Q8A

2121

13

1313

15

1515

19 remove ON/OFFBTN Pin on JKB1 site

1919

add R79,R229,C279,C280 2010/04/12

add R79,R229,C279,C280add R79,R229,C279,C280

swap U14.36 and 37 2010/04/12

swap U14.36 and 37swap U14.36 and 37

change from pin 93 to pin 21 2010/04/12

change from pin 93 to pin 21change from pin 93 to pin 21

Y1 change to 9H03200414 by sharing 2010/04/14

Y1 change to 9H03200414 by sharingY1 change to 9H03200414 by sharing

+V_SDIO_0 Enable circuit follow PAZ02

+V_SDIO_0 Enable circuit follow PAZ0218

+V_SDIO_0 Enable circuit follow PAZ02+V_SDIO_0 Enable circuit follow PAZ02

DVT reserve pin 3 and pin 4 for iPhone connector

DVT reserve pin 3 and pin 4 for iPhone connectorHP issue

DVT reserve pin 3 and pin 4 for iPhone connectorDVT reserve pin 3 and pin 4 for iPhone connector

Change R187,R188,R189,R190 to L17

Change R187,R188,R189,R190 to LChange R187,R188,R189,R190 to L

Connector to NC pin for 3.5 mil trace issue

Connector to NC pin for 3.5 mil trace issueConnector to NC pin for 3.5 mil trace issue

Change WF_RST# form U1.R25 to U1.T48888 2010/04/15

Change WF_RST# form U1.R25 to U1.T4Change WF_RST# form U1.R25 to U1.T4

Add 33 ohm on LCD_PCLK.6666 2010/04/15

Add 33 ohm on LCD_PCLK.Add 33 ohm on LCD_PCLK.

Change connector form ACES-87213 to ACES_87036 by ME 4/16,remove 5VS & 1.8VS PVT

Change connector form ACES-87213 to ACES_87036 by ME 4/16,remove 5VS & 1.8VSChange connector form ACES-87213 to ACES_87036 by ME 4/16,remove 5VS & 1.8VS

USB1_ID folating need add 100K pull-low

USB1_ID folating need add 100K pull-lowUSB_ID1 folating issue

USB1_ID folating need add 100K pull-lowUSB1_ID folating need add 100K pull-low

DVT reserve for MOS14

DVT reserve for MOSDVT reserve for MOS

For 2.2V to 3.3V levle shift21

For 2.2V to 3.3V levle shiftFor 2.2V to 3.3V levle shift

Bypass R21919

Bypass R219Bypass R219

Use PEX_RST0# to replace SDIO1_CD#,reserve SDIO1_CD#18

Use PEX_RST0# to replace SDIO1_CD#,reserve SDIO1_CD#Use PEX_RST0# to replace SDIO1_CD#,reserve SDIO1_CD#

C146 change to USB3315 Pin17 for vendor suggest(SMSC)16

C146 change to USB3315 Pin17 for vendor suggest(SMSC)C146 change to USB3315 Pin17 for vendor suggest(SMSC)

Change R/ C 0201 to 040218

Change R/ C 0201 to 0402Change R/ C 0201 to 0402

Change resister 0201 to 0402

Change resister 0201 to 0402

Change resister 0201 to 0402Change resister 0201 to 0402

Change LED PER form +3VS to +5VS

Change LED PER form +3VS to +5VS Change LED PER form +3VS to +5VS

Exchange DAP4_DIN & DAP4_DOUT15

Exchange DAP4_DIN & DAP4_DOUTExchange DAP4_DIN & DAP4_DOUT

Use GPIO (T20 SDIO3_DATA5) to control it.20

Use GPIO (T20 SDIO3_DATA5) to control it.Use GPIO (T20 SDIO3_DATA5) to control it.

Change DC232000M00 to DC232000O00 for HMDI ME issue19

Change DC232000M00 to DC232000O00 for HMDI ME issueChange DC232000M00 to DC232000O00 for HMDI ME issue

Change Q12 to Q8A 2010/04/17

Change Q12 to Q8AChange Q12 to Q8A

Add R1261 & C289

Add R1261 & C289 2010/04/17

Add R1261 & C289Add R1261 & C289

Uninstall R63 ,add R1262 and checge Voltage to +5Vs for USB leakage issue 2010/04/19

Uninstall R63 ,add R1262 and checge Voltage to +5Vs for USB leakage issueUninstall R63 ,add R1262 and checge Voltage to +5Vs for USB leakage issue

BT_WAKEUP pull low 100K.

BT_WAKEUP pull low 100K.NVIDIA suggest

BT_WAKEUP pull low 100K.BT_WAKEUP pull low 100K.

remove ON/OFFBTN Pin on JKB1 site

remove ON/OFFBTN Pin on JKB1 siteremove ON/OFFBTN Pin on JKB1 site

2010/04/12 PVT

2010/04/122010/04/12

2010/04/12 PVT

2010/04/122010/04/12

2010/04/12 PVT

2010/04/122010/04/12

2010/04/14 PVT

2010/04/142010/04/14

2010/04/14

2010/04/14

2010/04/142010/04/14

2010/04/14

2010/04/14

2010/04/142010/04/14

2010/04/14

2010/04/14

2010/04/142010/04/14

2010/04/15

2010/04/15

2010/04/152010/04/15

2010/04/15 PVT

2010/04/152010/04/15

2010/04/15 PVT

2010/04/152010/04/15

2010/04/16

2010/04/162010/04/16

2010/04/16

2010/04/162010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/16

2010/04/16 PVT

2010/04/162010/04/16

2010/04/17 PVT

2010/04/172010/04/17

2010/04/17 PVT

2010/04/172010/04/17

2010/04/19 PVT

2010/04/192010/04/19

2010/04/19

2010/04/192010/04/19

2010/04/19

2010/04/19 PVT

2010/04/192010/04/19

Phase

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVT

PVTPVT

PVT

PVT

PVTPVT

PVT

PVT

PVTPVT

PVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT2010/04/16

PVTPVT

PVT2010/04/16

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT13

PVTPVT

PVT8888

PVTPVT

PVT

PVT2010/04/19

PVTPVT

PVT

PVTPVT

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

PIR 2

PIR 2

PIR 2

LA-5952P

LA-5952P

LA-5952P

1

0.1

0.1

31 33Wednesday, July 21, 2010

31 33Wednesday, July 21, 2010

31 33Wednesday, July 21, 2010

0.1

5

4

3

2

1

Item (Reason for change)Fixed Issue PAGE Modify List Date

NV review result(EN_VDDIO_SD add pull down R1266, GPIO_PU3 add pull down R1265 100K ohm

NVIDIA suggest 2010/04/19

NVIDIA suggestNVIDIA suggest

57

WIFI /BT vendor suggest Swap DAP4_DIN and DAP4_DOUT UART3_TXD and UART3_RXD

WIFI /BT vendor suggestWIFI /BT vendor suggest

58

D13

D13 19

D13 D13

59

D D

NVIDIA suggest

NVIDIA suggest 14

NVIDIA suggestNVIDIA suggest

60

Crosstalk can't move

Crosstalk can't move Add C after crosstalk trace

Crosstalk can't moveCrosstalk can't move

61

WIFI /BT vendor suggest 15

WIFI /BT vendor suggestWIFI /BT vendor suggest

62

NVIDIA suggest

NVIDIA suggest Reverse T20.T25 to EN_VDD_PNL , T20.V25 to LVDS_SHTDN#

NVIDIA suggestNVIDIA suggest

63

EC PWR

EC PWR Reserve 3VL for EC

EC PWREC PWR

64

Microphone short current

Microphone short currentMicrophone short current

65

Codec status pin PVT

Codec status pinCodec status pin

66

S3 PWR modify PVT 2010/04/21

S3 PWR modify PVTS3 PWR modify PVT

67

C C

NVIDIA debug Pin

NVIDIA debug PinNVIDIA debug Pin

68

Reserve HSB2 to WiFi only trace Reserve HSB2 to WiFi only trace

Reserve HSB2 to WiFi only traceReserve HSB2 to WiFi only trace

69

NVIDIA suggest PVT

NVIDIA suggestNVIDIA suggest

70

NVIDIA suggest PVT

NVIDIA suggestNVIDIA suggest

71

SD PWR change SD PWR LDO change to SA00003AR00

SD PWR changeSD PWR change

72

EMI suggest Add R between HDMI CLK & Date.

EMI suggestEMI suggest

73

Thermal status on S3 PVT

Thermal status on S3Thermal status on S3

74

Add PWR to JP1 for debug PVT

Add PWR to JP1 for debugAdd PWR to JP1 for debug

75

B B

HDMI & LVDS have same I2C address. PVT

HDMI & LVDS have same I2C address.HDMI & LVDS have same I2C address.

76

WiFi PWR.

WiFi PWR.WiFi PWR.

77

ME LED issue PVT

ME LED issueME LED issue

78

EMI issue 2010/05/05

EMI issueEMI issue

79

Cost down 19

Cost downCost down

80

NV suggest C53 change to 100K ( SD028100380 ) ,remove R93

NV suggestNV suggest

81

EVENT_LED issue 2010/05/26

EVENT_LED issueEVENT_LED issue

82

ESD suggest PVT

ESD suggestESD suggest

83

A A

Carmera short to B+ issue

Carmera short to B+ issue 22

Carmera short to B+ issueCarmera short to B+ issue

84

18NVIDIA suggest

1818

15

15WIFI /BT vendor suggest

1515

19 D13 reserve resister

1919

14 C290 reserve for EMI

1414

19 PVT

1919

15

1515

06

0606

19

1919

17Microphone short current

1717

8 17Codec status pin

8 178 17

6 8 21

6 8 21S3 PWR modify PVT

6 8 216 8 21

20NVIDIA debug Pin

2020

16

16Reserve HSB2 to WiFi only trace

1616

19NVIDIA suggest

1919

14NVIDIA suggest

1414

16SD PWR change

1616

14

14EMI suggest

1414

13HDMI & LVDS have same I2C address.

1313

14WiFi PWR.

1414

20ME LED issue

2020

21EMI issue

2121

19 KBC_S3 change to KBC Pin6 (OC) for cost plan.

1919

09

09NV suggest

0909

20

20 EVENT_LED change PWR form +5Vs to +5Valw,R276 change to 100 ohm for EVENT_LED can't light on S3 issue.

2020

17ESD suggest

1717

22 PVT

2222

NV review result(EN_VDDIO_SD add pull down R1266, GPIO_PU3 add pull down R1265 100K ohm18

13

NV review result(EN_VDDIO_SD add pull down R1266, GPIO_PU3 add pull down R1265 100K ohmNV review result(EN_VDDIO_SD add pull down R1266, GPIO_PU3 add pull down R1265 100K ohm

1313

Swap DAP4_DIN and DAP4_DOUT UART3_TXD and UART3_RXD

Swap DAP4_DIN and DAP4_DOUT UART3_TXD and UART3_RXDSwap DAP4_DIN and DAP4_DOUT UART3_TXD and UART3_RXD

D13 reserve resister

D13 reserve resisterD13 reserve resister

C290 reserve for EMI PVT

C290 reserve for EMIC290 reserve for EMI

Add C after crosstalk trace19

Add C after crosstalk traceAdd C after crosstalk trace

exchange RTS / CTS for Wifi vendor suggest

exchange RTS / CTS for Wifi vendor suggestWIFI /BT vendor suggest

exchange RTS / CTS for Wifi vendor suggestexchange RTS / CTS for Wifi vendor suggest

Reverse T20.T25 to EN_VDD_PNL , T20.V25 to LVDS_SHTDN#06

Reverse T20.T25 to EN_VDD_PNL , T20.V25 to LVDS_SHTDN#Reverse T20.T25 to EN_VDD_PNL , T20.V25 to LVDS_SHTDN#

Reserve 3VL for EC19

Reserve 3VL for ECReserve 3VL for EC

MICBIAS add R1276 3.9K Microphone short current

MICBIAS add R1276 3.9K Microphone short current17

MICBIAS add R1276 3.9K Microphone short currentMICBIAS add R1276 3.9K Microphone short current

Add T20.R25 to codec T20_codec (R1277)

Add T20.R25 to codec T20_codec (R1277)8 17

Add T20.R25 to codec T20_codec (R1277)Add T20.R25 to codec T20_codec (R1277)

S3 PWR modify PVT PVT

S3 PWR modify PVTS3 PWR modify PVT

Add SYSTEM_RESET# to JP1 for NVIDIA debug

Add SYSTEM_RESET# to JP1 for NVIDIA debug20

Add SYSTEM_RESET# to JP1 for NVIDIA debugAdd SYSTEM_RESET# to JP1 for NVIDIA debug

Reserve HSB2 to WiFi only trace

Reserve HSB2 to WiFi only traceReserve HSB2 to WiFi only trace

Add D

Add D18

18、、、、reserve R

reserve R1295

1295、、、、RRRR1296

1296、、、、RRRR1297

Add DAdd D

1818

reserve Rreserve R

12951295

Change PWR for S3

Change PWR for S314

Change PWR for S3Change PWR for S3

SD PWR LDO change to SA00003AR00

SD PWR LDO change to SA00003AR00SD PWR LDO change to SA00003AR00

Add R between HDMI CLK & Date. PVT

Add R between HDMI CLK & Date.Add R between HDMI CLK & Date.

Tharmal TEMP_THERM# Pull to +3Valw

Tharmal TEMP_THERM# Pull to +3Valw7777Thermal status on S3

Tharmal TEMP_THERM# Pull to +3ValwTharmal TEMP_THERM# Pull to +3Valw

Add PWR to JP1 for debug

Add PWR to JP1 for debug9999 2010/05/03

Add PWR to JP1 for debugAdd PWR to JP1 for debug

Change LVDS I2C form DDC channel to GEN1 channel

Change LVDS I2C form DDC channel to GEN1 channel13

Change LVDS I2C form DDC channel to GEN1 channelChange LVDS I2C form DDC channel to GEN1 channel

Change SDIO PWR to +3VS_S3

Change SDIO PWR to +3VS_S3 PVT

Change SDIO PWR to +3VS_S3Change SDIO PWR to +3VS_S3

Change LED to SC500005O00

Change LED to SC500005O0020

Change LED to SC500005O00Change LED to SC500005O00

Add 680P on JPWR1 for EMI issue

Add 680P on JPWR1 for EMI issue21

Add 680P on JPWR1 for EMI issueAdd 680P on JPWR1 for EMI issue

KBC_S3 change to KBC Pin6 (OC) for cost plan.

KBC_S3 change to KBC Pin6 (OC) for cost plan.KBC_S3 change to KBC Pin6 (OC) for cost plan.

C53 change to 100K ( SD028100380 ) ,remove R93 PVT

C53 change to 100K ( SD028100380 ) ,remove R93C53 change to 100K ( SD028100380 ) ,remove R93

EVENT_LED change PWR form +5Vs to +5Valw,R276 change to 100 ohm for EVENT_LED can't light on S3 issue.EVENT_LED issue

EVENT_LED change PWR form +5Vs to +5Valw,R276 change to 100 ohm for EVENT_LED can't light on S3 issue.EVENT_LED change PWR form +5Vs to +5Valw,R276 change to 100 ohm for EVENT_LED can't light on S3 issue.

Add Diode on Audio jack Pin 4 for ESD issue

Add Diode on Audio jack Pin 4 for ESD issue17

Add Diode on Audio jack Pin 4 for ESD issueAdd Diode on Audio jack Pin 4 for ESD issue

Change JLVDS Pin24 to NC

Change JLVDS Pin24 to NCChange JLVDS Pin24 to NC

12961296

1297....19

12971297

2010/04/19 PVT

2010/04/192010/04/19

2010/04/19

2010/04/19 PVT

2010/04/192010/04/19

2010/04/19

2010/04/19 PVT

2010/04/192010/04/19

2010/04/19

2010/04/192010/04/19

2010/04/20

2010/04/202010/04/20

2010/04/20

2010/04/20 PVT

2010/04/202010/04/20

2010/04/20

2010/04/20 PVT

2010/04/202010/04/20

2010/04/20

2010/04/20 PVT

2010/04/202010/04/20

2010/04/21

2010/04/212010/04/21

2010/04/21

2010/04/212010/04/21

2010/04/21S3 PWR modify PVT

2010/04/212010/04/21

2010/04/22

2010/04/22 PVT

2010/04/222010/04/22

2010/04/26

2010/04/26 PVT

2010/04/262010/04/26

2010/04/27

2010/04/272010/04/27

2010/04/29

2010/04/292010/04/29

2010/04/3016

2010/04/302010/04/30

2010/04/30

2010/04/302010/04/30

2010/05/03

2010/05/032010/05/03

2010/05/03Add PWR to JP1 for debug

2010/05/032010/05/03

2010/05/04

2010/05/042010/05/04

2010/05/0414

2010/05/042010/05/04

2010/05/05

2010/05/052010/05/05

2010/05/05 PVT

2010/05/052010/05/05

2010/05/06Cost down

2010/05/062010/05/06

2010/05/26

2010/05/262010/05/26

2010/05/26 PVT

2010/05/262010/05/26

2010/05/26

2010/05/262010/05/26

2010/05/26Change JLVDS Pin24 to NC

2010/05/262010/05/26

Phase

PVT13

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT2010/04/19

PVTPVT

PVT2010/04/20

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVT2010/04/21

PVTPVT

PVT2010/04/21

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT2010/04/27

PVTPVT

PVT2010/04/29

PVTPVT

PVT

PVT2010/04/30

PVTPVT

PVT2010/04/30

PVTPVT

PVT2010/05/03

PVTPVT

PVT

PVTPVT

PVT2010/05/04

PVTPVT

PVT2010/05/04

PVTPVT

PVT2010/05/05

PVTPVT

PVT

PVTPVT

PVT

PVT2010/05/06

PVTPVT

PVT2010/05/26

PVTPVT

PVT

PVTPVT

PVT2010/05/26

PVTPVT

PVT2010/05/26

PVTPVT

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW PIR 3

HW PIR 3

HW PIR 3

LA-5952P

LA-5952P

LA-5952P

1

0.1

0.1

32 33Wednesday, July 21, 2010

32 33Wednesday, July 21, 2010

32 33Wednesday, July 21, 2010

0.1

5

4

3

2

1

Item (Reason for change)Fixed Issue PAGE Modify List Date

Cost down

Cost down 7777 PVT

85

86

87

D D

88

89

90

91

92

93

94

95

C C

96

97

98

99

100

101

102

103

B B

Cost downCost down

Toshiba eMMC vendor suggest

Toshiba eMMC vendor suggest PVT

Toshiba eMMC vendor suggestToshiba eMMC vendor suggest

Toshiba eMMC vendor suggest PVT

Toshiba eMMC vendor suggestToshiba eMMC vendor suggest

Add +3VS_S3 to eMMC

Add +3VS_S3 to eMMC 12

Add +3VS_S3 to eMMCAdd +3VS_S3 to eMMC

Audio reset Pin

Audio reset Pin Add level shift circuit to reset Pin for Audio reset.

Audio reset PinAudio reset Pin

eMMC clock overshut and undershut issue

eMMC clock overshut and undershut issueeMMC clock overshut and undershut issue

Power consumption 19

Power consumption Power consumption

Toshiba suggest 17

Toshiba suggestToshiba suggest

EMI issue

EMI issue 17

EMI issueEMI issue

3G W_DISABLE# issue Change C189 to 0 ohm

3G W_DISABLE# issue3G W_DISABLE# issue

eMMC cold boot hang issue

eMMC cold boot hang issue Change PWR to +3VS_S3 (remove R93, install R1313 )for eMMC cold boot issue (Pre-MP 7/8)

eMMC cold boot hang issueeMMC cold boot hang issue

Audio "bo" noise when system trun off

Audio "bo" noise when system trun off

Audio "bo" noise when system trun offAudio "bo" noise when system trun off
on battery mode.

on battery mode.

on battery mode.on battery mode.
ESD issue

ESD issue Change R50 to SM01000DI00

ESD issueESD issue

Mini USB change to client only.

Mini USB change to client only.

Mini USB change to client only.Mini USB change to client only.

power LED flash one time while unplug/plug AC

power LED flash one time while unplug/plug ACpower LED flash one time while unplug/plug AC

AC in event LED flash issue

AC in event LED flash issue

AC in event LED flash issueAC in event LED flash issue

LED lightness issue

LED lightness issue 20

LED lightness issueLED lightness issue

RF issue Pre-MP

RF issueRF issue

RoHS issue 21

RoHS issueRoHS issue

12

1212

12Toshiba eMMC vendor suggest

1212

12 Add +3VS_S3 to eMMC for current support back up solution

1212

17 2010/05/27

1717

12eMMC clock overshut and undershut issue

1212

19

1919

17

1717

17 Change D19 to SCA00001A00

1717

153G W_DISABLE# issue

1515

12

1212

17

17

1717

8888 Add R1303 and remove D1,D2,R1317,C311 ,change L23 to 0 ohm

20power LED flash one time while unplug/plug AC

2020

19

1919

20 Change R276 to 470 ohm for LED lightness issue

2020

21RF issue

2121

21 Pre-MP

2121

R238 & R239 change to 0402 part 2010/05/26

R238 & R239 change to 0402 partR238 & R239 change to 0402 part

Add reset Pin to reset eMMC. 12

Add reset Pin to reset eMMC. Add reset Pin to reset eMMC.

Signal Pin can't connect to NC Pin for eMMC 4.4 interface.

Signal Pin can't connect to NC Pin for eMMC 4.4 interface.12

Signal Pin can't connect to NC Pin for eMMC 4.4 interface.Signal Pin can't connect to NC Pin for eMMC 4.4 interface.

Add +3VS_S3 to eMMC for current support back up solution 2010/05/27

Add +3VS_S3 to eMMC for current support back up solutionAdd +3VS_S3 to eMMC for current support back up solution

Add level shift circuit to reset Pin for Audio reset. 17

Add level shift circuit to reset Pin for Audio reset. Add level shift circuit to reset Pin for Audio reset.

Change R100 to 63.4 ohm

Change R100 to 63.4 ohm12

Change R100 to 63.4 ohmChange R100 to 63.4 ohm

Reserve R1322 for +3VL PWR to KBC ROM.Power consumption

Reserve R1322 for +3VL PWR to KBC ROM.Reserve R1322 for +3VL PWR to KBC ROM.

Reserve 0 ohm resister on HP_OUT_L / R

Reserve 0 ohm resister on HP_OUT_L / RToshiba suggest

Reserve 0 ohm resister on HP_OUT_L / RReserve 0 ohm resister on HP_OUT_L / R

Change D19 to SCA00001A00

Change D19 to SCA00001A00Change D19 to SCA00001A00

Change C189 to 0 ohm

Change C189 to 0 ohmChange C189 to 0 ohm

Change PWR to +3VS_S3 (remove R93, install R1313 )for eMMC cold boot issue (Pre-MP 7/8)12

Change PWR to +3VS_S3 (remove R93, install R1313 )for eMMC cold boot issue (Pre-MP 7/8)Change PWR to +3VS_S3 (remove R93, install R1313 )for eMMC cold boot issue (Pre-MP 7/8)

Remove Q9, add C310(0.47uF)

Remove Q9, add C310(0.47uF)

Remove Q9, add C310(0.47uF) Remove Q9, add C310(0.47uF)

Change R50 to SM01000DI007777

Change R50 to SM01000DI00Change R50 to SM01000DI00

Add R1303 and remove D1,D2,R1317,C311 ,change L23 to 0 ohm

Add R1303 and remove D1,D2,R1317,C311 ,change L23 to 0 ohmAdd R1303 and remove D1,D2,R1317,C311 ,change L23 to 0 ohm

Add R230 and connect to 3V/5V PGOOD to discharge LED power.

Add R230 and connect to 3V/5V PGOOD to discharge LED power.20

Add R230 and connect to 3V/5V PGOOD to discharge LED power.Add R230 and connect to 3V/5V PGOOD to discharge LED power.

Add C312 on EVENT_LED_Q.

Add C312 on EVENT_LED_Q.19

Add C312 on EVENT_LED_Q.Add C312 on EVENT_LED_Q.

Change R276 to 470 ohm for LED lightness issue

Change R276 to 470 ohm for LED lightness issueChange R276 to 470 ohm for LED lightness issue

Change R

Change R121

121、、、、RRRR122

122 to SM

to SM01000

01000ER

ER00

Change RChange R

121121

122 122

to SMto SM

Change R1253 to SM01000ER01

Change R1253 to SM01000ER01RoHS issue

Change R1253 to SM01000ER01Change R1253 to SM01000ER01

0100001000

0021

ERER

0000

2010/05/26

2010/05/262010/05/26

2010/05/27Add reset Pin to reset eMMC.

2010/05/272010/05/27

2010/05/27

2010/05/272010/05/27

2010/05/27 PVT

2010/05/272010/05/27

2010/05/27 PVT

2010/05/272010/05/27

2010/05/27

2010/05/27 PVT

2010/05/272010/05/27

2010/06/04Reserve R1322 for +3VL PWR to KBC ROM.

2010/06/042010/06/04

2010/06/04

2010/06/042010/06/04

2010/06/04

2010/06/04 Pre-MP

2010/06/042010/06/04

2010/06/04

2010/06/04 Pre-MP

2010/06/042010/06/04

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/08 Pre-MP

2010/07/082010/07/08

2010/07/08

2010/07/082010/07/08

2010/07/15

2010/07/152010/07/15

2010/07/15

2010/07/152010/07/15

Phase

PVTR238 & R239 change to 0402 part

PVTPVT

PVT2010/05/27

PVTPVT

PVT2010/05/27

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

PVT

PVTPVT

Pre-MP

Pre-MP2010/06/04

Pre-MPPre-MP

Pre-MP

Pre-MP2010/06/04

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP15

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MPPre-MP

Pre-MP

Pre-MP2010/07/08

Pre-MPPre-MP

Pre-MP2010/07/15

Pre-MPPre-MP

Pre-MP2010/07/15

Pre-MPPre-MP

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECT RONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANS FERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSEN T OF COMPAL ELECTRONICS, INC.

3

2009/08/28 2010/08/28

2009/08/28 2010/08/28

2009/08/28 2010/08/28

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW PIR 3

HW PIR 3

HW PIR 3

LA-5952P

LA-5952P

LA-5952P

1

0.1

0.1

33 33Wednesday, July 21, 2010

33 33Wednesday, July 21, 2010

33 33Wednesday, July 21, 2010

0.1
