Compal LA-D591P Schematics Rev2.0

A

1 1

2 2

B

C

D

E

Compal Confidential

B3ZMS MB Schematic Document

LA-D591P

3 3

Rev: 2.0

2016.02.24

4 4

DAX1

Part Number

DAA000C2000 PCB 1JL LA-D591P REV0 MB 1

B3ZMS_PCB_REV01

Description

A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

C

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Cover Sheet

Size Document Number Rev

Custom

B3ZMS LA-D591P

Date: Sheet of

D

Date: Sheet of

1 45Wednesday, February 24, 2016

E

2.0

A

www.vinaﬁx.com

HDMI Conn.

B

eDP

C

D

E

page 21

1 1

HDMI PS8407A

page 22

DDI2 HDMI x 4 lanes

eDP

DDI

Intel Skylake U

Skylake U Skylake PCH-LP(MCP) (SKL-U_2+2)

NGFF

WLAN

2 2

USB port 5

page 26

PCIe 1.0

2.5GT/s

port 6

Flexible IO

PCIe 1.0

2.5GT/s

port 5

Card Reader

RTS5220

page 26

NGFF2280 SSD

SATA3.0

6.0 Gb/s

port 7 (SATA0)

page 23

Processor

Dual Core + GT2

15W 1356pin BGA

page 06~17

Memory Bus

1.2V lpddr3 1600MHz

USB 3.0 Type-C x1

USB port 3,4

page 25

USBx8

48MHz

HD Audio

SPI

3.3V 24MHz

CH_A CH_B

USB 3.0 conn x2

USB port 1,2

page 24

LPDDR3 Memory down

BlueTooth

USB port 5

page 26

HDA Codec

ALC255

page 26

P.18

P.19

CMOS Camera

USB port 7

page 21

Card Reader

2 in 1 (SD)

3 3

page 26

ENE KB9022/9032

LPC/eSPI BUS

CLK=24MHz

page 27

iTPM

SPI ROM x2

page 8

Int. Speaker UAJ

page 26

Int. MIC

page 26 page 26

on Sub/B

RTC CKT.

page 14

Power On/Off CKT.

page 39

DC/DC Interface CKT.

4 4

Power Circuit DC/DC

page 42

page 43~55

A

Sub Board

LS-D592P IO/B

page 26

Int.KBD

B

page 28

Touch Pad

PS2 (from EC) / I2C (from SOC)

Fan Control

page 28

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

C

Compal Secret Data

Deciphered Date

page 29

D

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

Compal Electronics, Inc.

Block Diagrams

B3ZMS LA-D591P

2 45Wednesday, February 24, 2016

E

2.0

A

B

C

D

E

Board ID Table for AD channel

Vcc 3.3V +/- 5%

Board ID

1 1

100K +/- 5%Ra

0 1 2 3 4 5 6 7

0 0 V 12K +/- 1% 0.347 V 0.345 V 0.360 V 15K +/- 1% 20K +/- 1% 27K +/- 1% 33K +/- 1% 43K +/- 1% 56K +/- 1%

Rb V min

BID

0.423 V 0.430 V 0.438 V

V typ

BID

0 V 0.300 V

V

BID

max

EC AD3

0x00 - 0x0B 0x0C - 0x1C 0x1D - 0x26 0x27 - 0x300.541 V 0.550 V 0.559 V 0x31 - 0x3B0.691 V 0.702 V 0.713 V 0x3C - 0x460.807 V 0.819 V 0.831 V 0x47 - 0x540.978 V 0.992 V 1.006 V 0x55 - 0x641.169 V 1.185 V 1.200 V

Power State

STATE

S0 (Full ON) ON ON ON ONHIGH HIGH HIGH

S3 (Suspend to RAM)

S4 (Suspend to Disk)

S5 (Soft OFF)

SIGNAL

SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock

LOW HIGH

LOWLOW

HIGH

ONONON

ON

OFF

OFFLOW LOW LOW

OFF

BOARD ID Table

Board ID

0 1 2 3 4 5 6 7

PCB Revision

0.1(Skylake)

0.2(Skylake)

1.0(Skylake)

2.0(Skylake)

2.0(Kabylake)

BOM Structure Table

BOM Option Table

Item BOM Structure

Unpop @

CONN@Connector

BOM Option Table

Item BOM Structure

CODEC(ALC255) 255@

CODEC(ALC283) 283@

EMC@EMC requirement @EMC@EMC requirement depop

LPC MODE for EC LPC@

ESPI@ESPI MODE for EC

For Acer IOAC IOAC@ No Acer IOAC NIOAC@

2 2

For Skylake-U SKL@ For Kabylake-U KBL@

8M_SINGLE@SPI ROM 8M*1

TPM TPM@ DMIC*1 1DMIC@ For ES Sampel Only ES@ Keyboard backlight KB@ Finger Print FP@

DRAM BOM Select X76@/X7601@ ~

X7614@

CPU Code

QS:QJ8Q@,QJKK@, QJKR@,QJKP@

MP:SR2EU@,SR2EY@

I2C Address Table

BUS

Device

Address(7 bit)

I2C_0 (+3VS) Reserved (Touch Panel)

0x2CTM-P2969-001 (TP)I2C_1 (+3VS)

3 3

DIMM1

SOC_SMBCLK +3VS DIMM2

0x15SB8787-1200 (TP-ELAN) 0xA0 0xA4

LIS3DHTR(G-Sensor) 0x30

0x9ESOC_SML1CLK +3VS N16S-GT (VGA)

PCH-LP (SOC) 0x90

EC_SMB_CK1 +3VLP

BQ24780 (Charger IC) BATTERY PACK

0x12 0x16

43 level BOM table

431A1MBOL06 431A1MBOL07 431A1MBOL08 431A1MBOL09 431A1MBOL10 431A1MBOL11

4 4

PCBA MB AD591 B3ZMS I36100U SR2EU 4G HDMI PCBA MB AD591 B3ZMS I56200U SR2EY 4GHDMI PCBA MB AD591 B3ZMS I56200U SR2EY 8GHDMI PCBA MB AD591 B3ZMS I76500U SR2EZ 4GHDMI PCBA MB AD591 B3ZMS I76500U SR2EZ 8GHDMI 8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EZ@ SMT MB AD591 B3ZMS PMD4405USR2EX 4G 8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EX@

Address(8bit)

Write Read

BOM Structure43 Level Description

8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EU@ 8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EY@ 8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EY@ 8M_SINGLE@/EMC@/SKL@/KB@/LPC@/IOAC@/SR2EZ@

Voltage Rails

Power Plane Description +19V_VIN +17.4V_BATT Battery power supply N/A +19VB +VCC_CORE +VCC_GT Processor Graphics Power Rails +VCC_SA System Agent power rail +0.6VS_VTT DDR +0.675VS power rail for DDR terminator . +1.0VALW_PRIM +1.0V Always power rail ON +1.0V_VCCSTU Sustain voltage for processor in Standby modes ON +VCCIO CPU IO power rail ON +1.0VS_VCCSTG +1.0VALW_PRIM Gated version of VCCST ON

+1.8VALW_PRIM +1.8V Always power rail +1.5VS System +1.8V power rail ON +3VLP +19VB to +3VLP power rail for suspend power ON +3VALW System +3VALW always on power rail ON +3VS ONSystem +3V power rail +5VALW ON +5VS System +5V power rail +RTCVCC RTC Battery Power ON

Note : ON*1 means power plane is ON only when WOL enable and RTC wake at BIOS setting, otherwise it is OFF.

Adapter power supply

AC or battery power rail for power circuit. Processor IA Cores Power Rail

DDRIIIL +1.35V Power Rail ON+1.2V_VDDQ

+5V Always power rail

S0 N/A

N/A ON ON ON ON

ON

S3

S4/S5

N/AN/A

N/A N/A

N/AN/A OFF OFF OFF

OFF OFF OFF

OFFOFF ON ON*1

OFFON OFF OFF

OFFOFF ON OFF ON

ON*1 OFF

OFF ON

ON ON

ON*1 OFF

OFF ON

ON

OFFOFF ON ON

Skylake CPU

UC1

PMD4405 QJ8Q D0 2.1G BGA

SR2EX@ SA000094270

Kabylake CPU

UC1

QKKQ G0 1.7G FCBGA

QKKQ@ SA00009QM10

UC1

i3-6100U SR2EU D1 2.3G BGA

SR2EU@ SA000092NB0

UC1

QKKS G0 2.4G BGA

QKKS@ SA00009PJ30

UC1

i5-6200U SR2EY D1 2.3G BGA

SR2EY@ SA000092OB0

UC1

i7-6500U SR2EZ D1 2.5G BGA

SR2EZ@ SA000092P90

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

D

Compal Electronics, Inc.

Title

Notes List

Size Document Number Rev

Custom

B3ZMS LA-D591P

Date: Sheet of

E

3 45Wednesday, February 24, 2016

2.0

5

D D

C C

4

3

2

1

B B

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING D RAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFID ENTIAL

THIS SHEET OF ENGINEERING D RAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFID ENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTODY OF THE COMPETENT DIV ISION OF R&D DEPARTMENT EXCEPT AS AUTHORI ZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORI ZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORI ZED BY COMPAL ELECTRONICS, IN C. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR D ISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELEC TRONICS, INC.

MAY BE USED BY OR D ISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELEC TRONICS, INC.

5

4

3

MAY BE USED BY OR D ISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELEC TRONICS, INC.

2

Compal Secret Data

2015/10/21 2016/06/21

Deciphered Date

Compal Electronics, Inc.

Title

Power Map

Size Document Number Rev

Custom

B3ZMS LA-D591P

Date: Sheet of

1

4 45Wednesday, February 24, 2016

2.0

A

B

C

D

E

PWR Sequence_SKL-U2+2_DDR3L_Value_NON CS

+RTCVCC SOC_RTCRST# +19VB

1 1

+3VLP EC_ON +5VALW/+3VALW(+3VALW_DSW...) SPOK tPCH06_Min : 200 us (+3VALW stable (@95% of full value) to +1.0VALW_PRIM starting to ramp) +1.8VALW_PRIM +1.8VALW_PG +VCCPRIM_CORE/+1.0VALW_PRIM EC_RSMRST# ON/OFF PBTN_OUT#

2 2

PM_SLP_S5# ESPI_RST# PM_SLP_S4# SYSON +1.0V_VCCSTU +1.2V_VDDQ PM_SLP_S3# SUSP# +1.0VS_VCCSTG +VCCIO

3 3

+5VS/+3VS/+1.5VS EC_VCCST_PG VR_ON SM_PG_CTRL +0.6VS_VTT +VCC_SA VR_PWRGD PCH_PWROK (SYS_PWROK) H_CPUPWRGD

4 4

PLT_RST# +VCC_CORE / +VCC_GT

tPCH01_Min : 9 ms

tPCH43_Min : 95 ms

tPCH04_Min : 9 ms

tPCH34_Max : 20 ms

tPCH03_Min : 10 ms

Minimum duration of PWRBTN# assertion = 16mS. PWRBTN# can assert before or after RSMRST#

tPCH18_Min : 90 us

tCPU04 Min : 100 ns

tCPU10 Min : 1 ms

tCPU00 Min : 1 ms

tCPU19 Max : 100 ns

tCPU18 Max : 35 us

tCPU09 Min : 1 ms

tCPU16 Min : 0 ns tPLT05 Min : Platform dependent

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

C

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Power Sequence

Size Document Number Rev

Custom

B3ZMS LA-D591P

Date: Sheet of

D

Date: Sheet of

5 45Wednesday, February 24, 2016

E

2.0

5

4

3

2

1

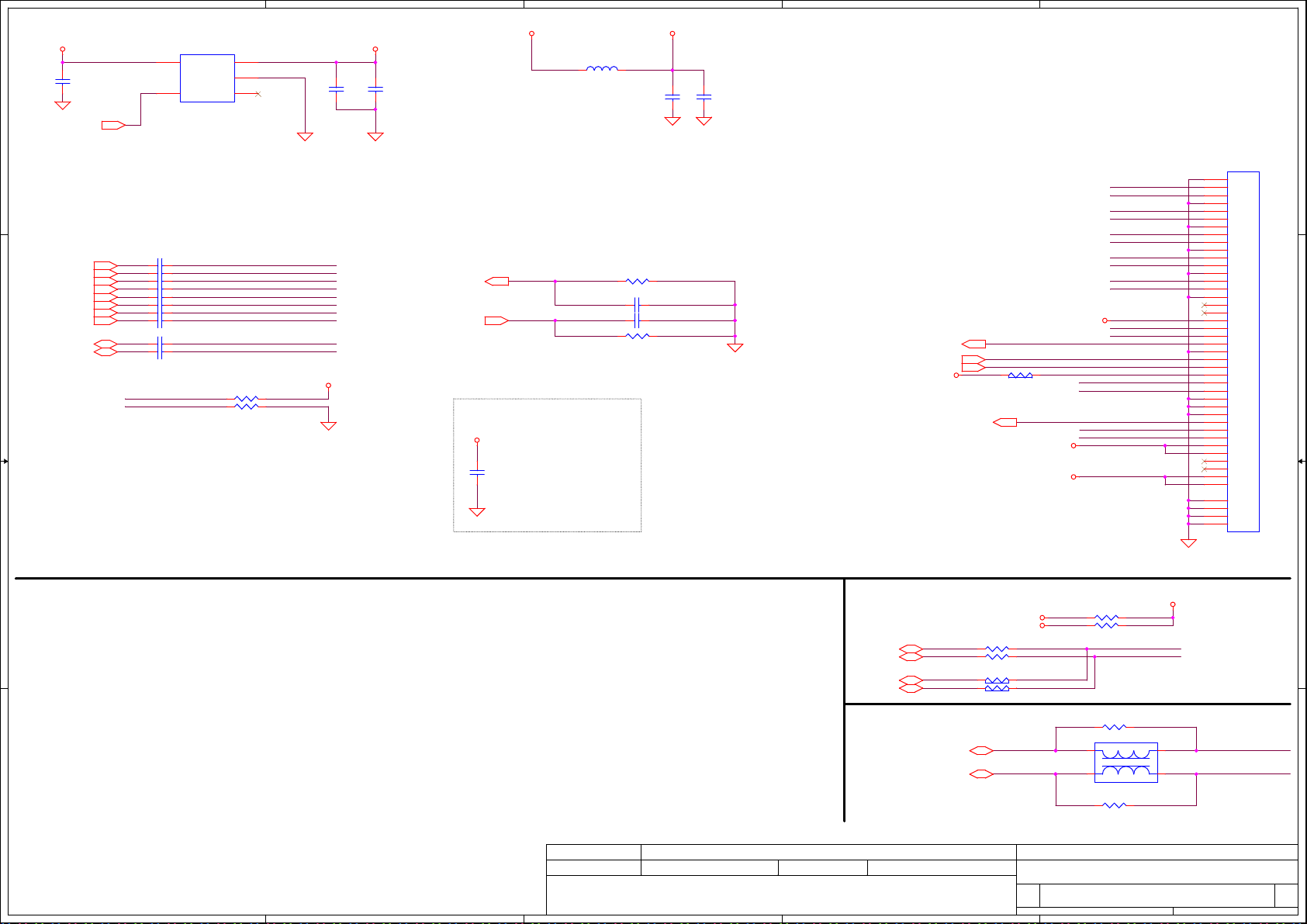

SOC_DP1_CTRL_DATA(Internal Pull Down): Display Port B Detected 0 = Port B is not detected. 1 = Port B is detected.

D D

SOC_DP2_CTRL_DATA(Internal Pull Down): Display Port C Detected 0 = Port C is not detected. 1 = Port C is detected.

<HDMI>

+1.0V_VCCST

1 2

RC1 1K_0402_5%

C C

H_THERMTRIP#

SOC_DP2_N0<22> SOC_DP2_P0<22> SOC_DP2_N1<22> SOC_DP2_P1<22> SOC_DP2_N2<22> SOC_DP2_P2<22> SOC_DP2_N3<22> SOC_DP2_P3<22>

SOC_DP2_CTRL_CLK<22>

SOC_DP2_CTRL_DATA<22>

SOC_DP2_N0 SOC_DP2_P0 SOC_DP2_N1 SOC_DP2_P1 SOC_DP2_N2 SOC_DP2_P2 SOC_DP2_N3 SOC_DP2_P3

SOC_DP2_CTRL_CLK SOC_DP2_CTRL_DATA

EDP_COMP

COMPENSATION PU FOR eDP

+1.0VS_VCCIO

1 2

RC3 24.9_0402_1%

CAD note: Trace width=20 mils,Spacing=25mil,Max length=100mils

+1.0VS_VCCSTG

RC6 51_0402_5%DCI@ RC7 51_0402_5%DCI@

B B

A A

RC8 100_0402_1%DCI@ RC10 1K_0402_5%@

+1.0V_PRIM

RC12 51_0402_5%@

RC13 1K_0402_5%@

RC18 51_0402_5%@

RC19 51_0402_1%DCI@

RC20 51_0402_5%@

RC21 0_0402_5%@

12 12 12 12

12

1 2

12

1 2

5

EDP_COMP

SOC_XDP_TMS SOC_XDP_TDI SOC_XDP_TDO CPU_XDP_TCK0

XDP_PREQ#

XDP_ITP_PMODE

SOC_XDP_TRST#

CPU_XDP_TCK0

PCH_JTAG_TCK1

CFG3

XDP_PREQ# <12>

XDP_ITP_PMODE <17>

CFG3 <17>

H_PROCHOT#<27>

+3VS

12

+3VS

12

EC_TP_INT#<27,28>

RC42 100K_0402_5%

I2C_TS_INT#

RC47 100K_0402_5%

TP_INT#

4

+1.0VS_VCCSTG

12

RC9 1K_0402_5%

H_PROCHOT# H_PROCHOT#_R

CC2 10P_0402_50V8J

@ESD@

D22 RB751V-40_SOD323-2

1 2

RC11 499_0402_1%

2

1

1 2

RC149 0_0402_5%@

RC14 49.9_0402_1% RC15 49.9_0402_1% RC16 49.9_0402_1% RC17 49.9_0402_1%

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

UC1A

E55

DDI1_TXN[0]

F55

DDI1_TXP[0]

E58

DDI1_TXN[1]

F58

DDI1_TXP[1]

F53

DDI1_TXN[2]

G53

DDI1_TXP[2]

F56

DDI1_TXN[3]

G56

DDI1_TXP[3]

C50

DDI2_TXN[0]

D50

DDI2_TXP[0]

C52

DDI2_TXN[1]

D52

DDI2_TXP[1]

A50

DDI2_TXN[2]

B50

DDI2_TXP[2]

D51

DDI2_TXN[3]

C51

DDI2_TXP[3]

L13

GPP_E18/DDPB_CTRLCLK

L12

GPP_E19/DDPB_CTRLDATA

N7

GPP_E20/DDPC_CTRLCLK

N8

GPP_E21/DDPC_CTRLDATA

N11

GPP_E22

N12

GPP_E23

E52

EDP_RCOMP

SKL-U_BGA1356

H_PECI<27>

I2C_TS_INT#<21>

12

12 12 12 12

H_PECI

DDI

DISPLAY SIDEBANDS

T3 TP@

T5 TP@ T6 TP@ T7 TP@ T8 TP@

T9 TP@

2

CC56 10P_0402_50V8J

@ESD@

1

2015/10/21 2016/06/21

3

CPU_POPIRCOMP PCH_OPIRCOMP EDRAM_OPIO_RCOMP EOPIO_RCOMP

ESD request

SKL-U

1 OF 20

H_PECI H_THERMTRIP#

XDP_BPM#0 XDP_BPM#1 XDP_BPM#2 XDP_BPM#3

I2C_TS_INT# TP_INT#

SOC_GPIOB4

Compal Secret Data

Deciphered Date

EDP

D63

CATERR#

A54

PECI

C65

PROCHOT#

C63

THERMTRIP#

A65

SKTOCC#

C55

BPM#[0]

D55

BPM#[1]

B54

BPM#[2]

C56

BPM#[3]

A6

GPP_E3/CPU_GP0

A7

GPP_E7/CPU_GP1

BA5

GPP_B3/CPU_GP2

AY5

GPP_B4/CPU_GP3

AT16

PROC_POPIRCOMP

AU16

PCH_OPIRCOMP

H66

OPCE_RCOMP

H65

OPC_RCOMP

EDP_DISP_UTIL

GPP_E13/DDPB_HPD0 GPP_E14/DDPC_HPD1 GPP_E15/DDPD_HPD2 GPP_E16/DDPE_HPD3

GPP_E17/EDP_HPD

EDP_BKLTEN

EDP_BKLTCTL

EDP_VDDEN

UC1D

CPU MISC

SKL-U_BGA1356

Rev_1.0

EDP_TXN[0] EDP_TXP[0] EDP_TXN[1] EDP_TXP[1] EDP_TXN[2] EDP_TXP[2] EDP_TXN[3] EDP_TXP[3]

EDP_AUXN

EDP_AUXP

DDI1_AUXN DDI1_AUXP DDI2_AUXN DDI2_AUXP

RSVD RSVD

2

SKL-U

4 OF 20

C47 C46 D46 C45 A45 B45 A47 B47

E45 F45

B52 G50

F50 E48 F48 G46 F46

L9 L7 L6 N9 L10

R12 R11 U13

EDP_TXN0 EDP_TXP0 EDP_TXN1 EDP_TXP1 EDP_TXN2 EDP_TXP2 EDP_TXN3 EDP_TXP3

EDP_AUXN EDP_AUXP

SOC_DP2_HPD EC_SCI#

EDP_HPD ENBKL

SOC_BKL_PWM SOC_ENVDD

JTAG

PROC_TCK

PROC_TDI PROC_TDO PROC_TMS

PROC_TRST#

PCH_JTAG_TCK

PCH_JTAG_TDI PCH_JTAG_TDO PCH_JTAG_TMS

PCH_TRST#

EDP_TXN0 <21> EDP_TXP0 <21> EDP_TXN1 <21> EDP_TXP1 <21> EDP_TXN2 <21> EDP_TXP2 <21> EDP_TXN3 <21> EDP_TXP3 <21>

EDP_AUXN <21> EDP_AUXP <21>

T1TP@

SOC_DP2_HPD <22> EC_SCI# <27>

EDP_HPD <21> ENBKL <27>

SOC_BKL_PWM <21> SOC_ENVDD <21>

RC159 10K_0402_5%@

1 2

@ESD@

1 2

1

EC_SCI#

RC2 100K_0402_5%

RC4 100K_0402_5%

RC5 100K_0402_5%

CC1 0.1U_0402_16V7K

Rev_1.0

B61

CPU_XDP_TCK0

D60

SOC_XDP_TDI

A61

SOC_XDP_TDO

C60

SOC_XDP_TMS

B59

SOC_XDP_TRST#

B56

PCH_JTAG_TCK1

D59

SOC_XDP_TDI

A56

SOC_XDP_TDO

C59

SOC_XDP_TMS

C61

SOC_XDP_TRST#

A59

JTAGX

Title

Size Document Number Rev

Custom

Date: Sheet of

CPU_XDP_TCK0

Compal Electronics, Inc.

SKL-U(1/12))DDI,MSIC,XDP,EDP

B3ZMS LA-D591P

<eDP>

From HDMI

From eDP

+3VS

SOC_ENVDD

ENBKL

EDP_HPD

SOC_XDP_TRST#

6 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

non-Interleaved non-Interleaved

D D

DDR_A_D[0..15]<18>

DDR_A_D[32..47]<18>

C C

DDR_B_D[0..15]<19>

DDR_B_D[32..47]<19>

B B

DDR_A_D0 DDR_A_D1 DDR_A_D2 DDR_A_D3 DDR_A_D4 DDR_A_D5 DDR_A_D6 DDR_A_D7 DDR_A_D8 DDR_A_D9 DDR_A_D10 DDR_A_D11 DDR_A_D12 DDR_A_D13 DDR_A_D14 DDR_A_D15

DDR_A_D32 DDR_A_D33 DDR_A_D34 DDR_A_D35 DDR_A_D36 DDR_A_D37 DDR_A_D38 DDR_A_D39 DDR_A_D40 DDR_A_D41 DDR_A_D42 DDR_A_D43 DDR_A_D44 DDR_A_D45 DDR_A_D46 DDR_A_D47 DDR_B_D0 DDR_B_D1 DDR_B_D2 DDR_B_D3 DDR_B_D4 DDR_B_D5 DDR_B_D6 DDR_B_D7 DDR_B_D8 DDR_B_D9 DDR_B_D10 DDR_B_D11 DDR_B_D12 DDR_B_D13 DDR_B_D14 DDR_B_D15 DDR_B_D32 DDR_B_D33 DDR_B_D34 DDR_B_D35 DDR_B_D36 DDR_B_D37 DDR_B_D38 DDR_B_D39 DDR_B_D40 DDR_B_D41 DDR_B_D42 DDR_B_D43 DDR_B_D44 DDR_B_D45 DDR_B_D46 DDR_B_D47

UC1B

AL71

DDR0_DQ[0]

AL68

DDR0_DQ[1]

AN68

DDR0_DQ[2]

AN69

DDR0_DQ[3]

AL70

DDR0_DQ[4]

AL69

DDR0_DQ[5]

AN70

DDR0_DQ[6]

AN71

DDR0_DQ[7]

AR70

DDR0_DQ[8]

AR68

DDR0_DQ[9]

AU71

DDR0_DQ[10]

AU68

DDR0_DQ[11]

AR71

DDR0_DQ[12]

AR69

DDR0_DQ[13]

AU70

DDR0_DQ[14]

AU69

DDR0_DQ[15]

Interleave / Non-Interleaved

BB65

DDR0_DQ[16]/DDR0_DQ[32]

AW65

DDR0_DQ[17]/DDR0_DQ[33]

AW63

DDR0_DQ[18]/DDR0_DQ[34]

AY63

DDR0_DQ[19]/DDR0_DQ[35]

BA65

DDR0_DQ[20]/DDR0_DQ[36]

AY65

DDR0_DQ[21]/DDR0_DQ[37]

BA63

DDR0_DQ[22]/DDR0_DQ[38]

BB63

DDR0_DQ[23]/DDR0_DQ[39]

BA61

DDR0_DQ[24]/DDR0_DQ[40]

AW61

DDR0_DQ[25]/DDR0_DQ[41]

BB59

DDR0_DQ[26]/DDR0_DQ[42]

AW59

DDR0_DQ[27]/DDR0_DQ[43]

BB61

DDR0_DQ[28]/DDR0_DQ[44]

AY61

DDR0_DQ[29]/DDR0_DQ[45]

BA59

DDR0_DQ[30]/DDR0_DQ[46]

AY59

DDR0_DQ[31]/DDR0_DQ[47]

AY39

DDR0_DQ[32]/DDR1_DQ[0]

AW39

DDR0_DQ[33]/DDR1_DQ[1]

AY37

DDR0_DQ[34]/DDR1_DQ[2]

AW37

DDR0_DQ[35]/DDR1_DQ[3]

BB39

DDR0_DQ[36]/DDR1_DQ[4]

BA39

DDR0_DQ[37]/DDR1_DQ[5]

BA37

DDR0_DQ[38]/DDR1_DQ[6]

BB37

DDR0_DQ[39]/DDR1_DQ[7]

AY35

DDR0_DQ[40]/DDR1_DQ[8]

AW35

DDR0_DQ[41]/DDR1_DQ[9]

AY33

DDR0_DQ[42]/DDR1_DQ[10]

AW33

DDR0_DQ[43]/DDR1_DQ[11]

BB35

DDR0_DQ[44]/DDR1_DQ[12]

BA35

DDR0_DQ[45]/DDR1_DQ[13]

BA33

DDR0_DQ[46]/DDR1_DQ[14]

BB33

DDR0_DQ[47]/DDR1_DQ[15]

AY31

DDR0_DQ[48]/DDR1_DQ[32]

AW31

DDR0_DQ[49]/DDR1_DQ[33]

AY29

DDR0_DQ[50]/DDR1_DQ[34]

AW29

DDR0_DQ[51]/DDR1_DQ[35]

BB31

DDR0_DQ[52]/DDR1_DQ[36]

BA31

DDR0_DQ[53]/DDR1_DQ[37]

BA29

DDR0_DQ[54]/DDR1_DQ[38]

BB29

DDR0_DQ[55]/DDR1_DQ[39]

AY27

DDR0_DQ[56]/DDR1_DQ[40]

AW27

DDR0_DQ[57]/DDR1_DQ[41]

AY25

DDR0_DQ[58]/DDR1_DQ[42]

AW25

DDR0_DQ[59]/DDR1_DQ[43]

BB27

DDR0_DQ[60]/DDR1_DQ[44]

BA27

DDR0_DQ[61]/DDR1_DQ[45]

BA25

DDR0_DQ[62]/DDR1_DQ[46]

BB25

DDR0_DQ[63]/DDR1_DQ[47]

SKL-U_BGA1356

SKL-U

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5] DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9] DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6] DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8] DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]

DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12] DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]

DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT# DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]

DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]

DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]

DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1] DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]

DDR3L / LPDDR3 / DDR4

DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0] DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]

DDR0_DQSN[0] DDR0_DQSP[0] DDR0_DQSN[1] DDR0_DQSP[1]

Interleave / Non-Interleaved

DDR0_DQSN[2]/DDR0_DQSN[4] DDR0_DQSP[2]/DDR0_DQSP[4] DDR0_DQSN[3]/DDR0_DQSN[5] DDR0_DQSP[3]/DDR0_DQSP[5] DDR0_DQSN[4]/DDR1_DQSN[0] DDR0_DQSP[4]/DDR1_DQSP[0] DDR0_DQSN[5]/DDR1_DQSN[1] DDR0_DQSP[5]/DDR1_DQSP[1] DDR0_DQSN[6]/DDR1_DQSN[4] DDR0_DQSP[6]/DDR1_DQSP[4] DDR0_DQSN[7]/DDR1_DQSN[5] DDR0_DQSP[7]/DDR1_DQSP[5]

DDR0_ALERT#

DDR CH - A

2 OF 20

DDR_VREF_CA DDR0_VREF_DQ DDR1_VREF_DQ

DDR_VTT_CNTL

Rev_1.0

DDR0_CKN[0] DDR0_CKP[0] DDR0_CKN[1] DDR0_CKP[1]

DDR0_CKE[0] DDR0_CKE[1] DDR0_CKE[2] DDR0_CKE[3]

DDR0_CS#[0] DDR0_CS#[1] DDR0_ODT[0] DDR0_ODT[1]

DDR0_MA[3] DDR0_MA[4]

DDR0_PAR

AU53

M_CLK_A_DDR#0

AT53

M_CLK_A_DDR0

AU55

M_CLK_A_DDR#1

AT55

M_CLK_A_DDR1

BA56

DDR_A_CKE0

BB56

DDR_A_CKE1

AW56

DDR_A_CKE2

AY56

DDR_A_CKE3

AU45

DDR_A_CS0#

AU43

DDR_A_CS1#

AT45

DDR_A_ODT0

AT43

BA51

DDR_A_CAA_0

BB54

DDR_A_CAA_1

BA52

DDR_A_CAA_2

AY52

DDR_A_CAA_3

AW52

DDR_A_CAA_4

AY55

DDR_A_CAA_5

AW54

DDR_A_CAA_6

BA54

DDR_A_CAA_7

BA55

DDR_A_CAA_8

AY54

DDR_A_CAA_9

AU46

DDR_A_CAB_0

AU48

DDR_A_CAB_1

AT46

DDR_A_CAB_2

AU50

DDR_A_CAB_3

AU52

DDR_A_CAB_4

AY51

DDR_A_CAB_5

AT48

DDR_A_CAB_6

AT50

DDR_A_CAB_7

BB50

DDR_A_CAB_8

AY50

DDR_A_CAB_9

BA50 BB52 AM70

DDR_A_DQS#0

AM69

DDR_A_DQS0

AT69

DDR_A_DQS#1

AT70

DDR_A_DQS1

BA64

DDR_A_DQS#4

AY64

DDR_A_DQS4

AY60

DDR_A_DQS#5

BA60

DDR_A_DQS5

BA38

DDR_B_DQS#0

AY38

DDR_B_DQS0

AY34

DDR_B_DQS#1

BA34

DDR_B_DQS1

BA30

DDR_B_DQS#4

AY30

DDR_B_DQS4

AY26

DDR_B_DQS#5

BA26

DDR_B_DQS5

AW50 AT52

AY67 AY68 BA67

AW67

+VREF_CA_C +V_DDR_REFA_C +V_DDR_REFB_C

DDR_PG_CTRL

T10TP@ T12TP@

Buffer with Open Drain output For VTT power control

RC25

100K_0402_5%

SM_PG_CTRL<36>

M_CLK_A_DDR#0 <18> M_CLK_A_DDR0 <18> M_CLK_A_DDR#1 <18> M_CLK_A_DDR1 <18>

DDR_A_CKE0 <18> DDR_A_CKE1 <18> DDR_A_CKE2 <18> DDR_A_CKE3 <18>

DDR_A_CS0# <18> DDR_A_CS1# <18> DDR_A_ODT0 <18>

DDR_A_CAA_0 <18> DDR_A_CAA_1 <18> DDR_A_CAA_2 <18> DDR_A_CAA_3 <18> DDR_A_CAA_4 <18> DDR_A_CAA_5 <18> DDR_A_CAA_6 <18> DDR_A_CAA_7 <18> DDR_A_CAA_8 <18> DDR_A_CAA_9 <18> DDR_A_CAB_0 <18> DDR_A_CAB_1 <18> DDR_A_CAB_2 <18> DDR_A_CAB_3 <18> DDR_A_CAB_4 <18> DDR_A_CAB_5 <18> DDR_A_CAB_6 <18> DDR_A_CAB_7 <18> DDR_A_CAB_8 <18> DDR_A_CAB_9 <18>

DDR_A_DQS#0 <18> DDR_A_DQS0 <18> DDR_A_DQS#1 <18> DDR_A_DQS1 <18>

DDR_A_DQS#4 <18> DDR_A_DQS4 <18> DDR_A_DQS#5 <18> DDR_A_DQS5 <18> DDR_B_DQS#0 <19> DDR_B_DQS0 <19> DDR_B_DQS#1 <19> DDR_B_DQS1 <19> DDR_B_DQS#4 <19> DDR_B_DQS4 <19> DDR_B_DQS#5 <19> DDR_B_DQS5 <19>

+VREF_CA_C +V_DDR_REFA_C +V_DDR_REFB_C

+1.2V_VDDQ

+3VS

12

SM_PG_CTRL

DDR_A_D[16..31]<18>

DDR_A_D[48..63]<18>

DDR_B_D[16..31]<19>

DDR_B_D[48..63]<19>

Trace width/Spacing >= 20mils

1 2

CC3 0.1U_0201_10V6K

UC2

5

VCC

4

Y

74AUP1G07GW_TSSOP5

SA00007UR00

GND

1

NC

2

DDR_PG_CTRL

A

3

DDR_A_D16 DDR_A_D17 DDR_A_D18 DDR_A_D19 DDR_A_D20 DDR_A_D21 DDR_A_D22 DDR_A_D23 DDR_A_D24 DDR_A_D25 DDR_A_D26 DDR_A_D27 DDR_A_D28 DDR_A_D29 DDR_A_D30 DDR_A_D31 DDR_A_D48 DDR_A_D49 DDR_A_D50 DDR_A_D51 DDR_A_D52 DDR_A_D53 DDR_A_D54 DDR_A_D55 DDR_A_D56 DDR_A_D57 DDR_A_D58 DDR_A_D59 DDR_A_D60 DDR_A_D61 DDR_A_D62 DDR_A_D63 DDR_B_D16 DDR_B_D17 DDR_B_D18 DDR_B_D19 DDR_B_D20 DDR_B_D21 DDR_B_D22 DDR_B_D23 DDR_B_D24 DDR_B_D25 DDR_B_D26 DDR_B_D27 DDR_B_D28 DDR_B_D29 DDR_B_D30 DDR_B_D31

DDR_B_D48 DDR_B_D49 DDR_B_D50 DDR_B_D51 DDR_B_D52 DDR_B_D53 DDR_B_D54 DDR_B_D55 DDR_B_D56 DDR_B_D57 DDR_B_D58 DDR_B_D59 DDR_B_D60 DDR_B_D61 DDR_B_D62 DDR_B_D63

UC1C

Interleave / Non-Interleaved

AF65

DDR1_DQ[0]/DDR0_DQ[16]

AF64

DDR1_DQ[1]/DDR0_DQ[17]

AK65

DDR1_DQ[2]/DDR0_DQ[18]

AK64

DDR1_DQ[3]/DDR0_DQ[19]

AF66

DDR1_DQ[4]/DDR0_DQ[20]

AF67

DDR1_DQ[5]/DDR0_DQ[21]

AK67

DDR1_DQ[6]/DDR0_DQ[22]

AK66

DDR1_DQ[7]/DDR0_DQ[23]

AF70

DDR1_DQ[8]/DDR0_DQ[24]

AF68

DDR1_DQ[9]/DDR0_DQ[25]

AH71

DDR1_DQ[10]/DDR0_DQ[26]

AH68

DDR1_DQ[11]/DDR0_DQ[27]

AF71

DDR1_DQ[12]/DDR0_DQ[28]

AF69

DDR1_DQ[13]/DDR0_DQ[29]

AH70

DDR1_DQ[14]/DDR0_DQ[30]

AH69

DDR1_DQ[15]/DDR0_DQ[31]

AT66

DDR1_DQ[16]/DDR0_DQ[48]

AU66

DDR1_DQ[17]/DDR0_DQ[49]

AP65

DDR1_DQ[18]/DDR0_DQ[50]

AN65

DDR1_DQ[19]/DDR0_DQ[51]

AN66

DDR1_DQ[20]/DDR0_DQ[52]

AP66

DDR1_DQ[21]/DDR0_DQ[53]

AT65

DDR1_DQ[22]/DDR0_DQ[54]

AU65

DDR1_DQ[23]/DDR0_DQ[55]

AT61

DDR1_DQ[24]/DDR0_DQ[56]

AU61

DDR1_DQ[25]/DDR0_DQ[57]

AP60

DDR1_DQ[26]/DDR0_DQ[58]

AN60

DDR1_DQ[27]/DDR0_DQ[59]

AN61

DDR1_DQ[28]/DDR0_DQ[60]

AP61

DDR1_DQ[29]/DDR0_DQ[61]

AT60

DDR1_DQ[30]/DDR0_DQ[62]

AU60

DDR1_DQ[31]/DDR0_DQ[63]

AU40

DDR1_DQ[32]/DDR1_DQ[16]

AT40

DDR1_DQ[33]/DDR1_DQ[17]

AT37

DDR1_DQ[34]/DDR1_DQ[18]

AU37

DDR1_DQ[35]/DDR1_DQ[19]

AR40

DDR1_DQ[36]/DDR1_DQ[20]

AP40

DDR1_DQ[37]/DDR1_DQ[21]

AP37

DDR1_DQ[38]/DDR1_DQ[22]

AR37

DDR1_DQ[39]/DDR1_DQ[23]

AT33

DDR1_DQ[40]/DDR1_DQ[24]

AU33

DDR1_DQ[41]/DDR1_DQ[25]

AU30

DDR1_DQ[42]/DDR1_DQ[26]

AT30

DDR1_DQ[43]/DDR1_DQ[27]

AR33

DDR1_DQ[44]/DDR1_DQ[28]

AP33

DDR1_DQ[45]/DDR1_DQ[29]

AR30

DDR1_DQ[46]/DDR1_DQ[30]

AP30

DDR1_DQ[47]/DDR1_DQ[31]

AU27

DDR1_DQ[48]

AT27

DDR1_DQ[49]

AT25

DDR1_DQ[50]

AU25

DDR1_DQ[51]

AP27

DDR1_DQ[52]

AN27

DDR1_DQ[53]

AN25

DDR1_DQ[54]

AP25

DDR1_DQ[55]

AT22

DDR1_DQ[56]

AU22

DDR1_DQ[57]

AU21

DDR1_DQ[58]

AT21

DDR1_DQ[59]

AN22

DDR1_DQ[60]

AP22

DDR1_DQ[61]

AP21

DDR1_DQ[62]

AN21

DDR1_DQ[63]

SKL-U_BGA1356

SKL-U

DDR3L / LPDDR3 / DDR4

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5] DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9] DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6] DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8] DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]

DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0] DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12] DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]

DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT# DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]

DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]

DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1] DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]

DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1] DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]

Interleave / Non-Interleaved

DDR1_DQSN[0]/DDR0_DQSN[2] DDR1_DQSP[0]/DDR0_DQSP[2] DDR1_DQSN[1]/DDR0_DQSN[3] DDR1_DQSP[1]/DDR0_DQSP[3] DDR1_DQSN[2]/DDR0_DQSN[6] DDR1_DQSP[2]/DDR0_DQSP[6] DDR1_DQSN[3]/DDR0_DQSN[7] DDR1_DQSP[3]/DDR0_DQSP[7] DDR1_DQSN[4]/DDR1_DQSN[2] DDR1_DQSP[4]/DDR1_DQSP[2] DDR1_DQSN[5]/DDR1_DQSN[3] DDR1_DQSP[5]/DDR1_DQSP[3]

DDR CH - B

3 OF 20

Rev_1.0

DDR1_CKN[0] DDR1_CKN[1]

DDR1_CKP[0] DDR1_CKP[1]

DDR1_CKE[0] DDR1_CKE[1] DDR1_CKE[2] DDR1_CKE[3]

DDR1_CS#[0]

DDR1_CS#[1] DDR1_ODT[0] DDR1_ODT[1]

DDR1_MA[3] DDR1_MA[4]

DDR1_DQSN[6] DDR1_DQSP[6] DDR1_DQSN[7] DDR1_DQSP[7] DDR1_ALERT#

DDR1_PAR DRAM_RESET# DDR_RCOMP[0] DDR_RCOMP[1] DDR_RCOMP[2]

AN45

M_CLK_B_DDR#0

AN46

M_CLK_B_DDR#1

AP45

M_CLK_B_DDR0

AP46

M_CLK_B_DDR1

AN56

DDR_B_CKE0

AP55

DDR_B_CKE1

AN55

DDR_B_CKE2

AP53

DDR_B_CKE3

BB42

DDR_B_CS0#

AY42

DDR_B_CS1#

BA42

DDR_B_ODT0

AW42

AY48

DDR_B_CAA_0

AP50

DDR_B_CAA_1

BA48

DDR_B_CAA_2

BB48

DDR_B_CAA_3

AP48

DDR_B_CAA_4

AP52

DDR_B_CAA_5

AN50

DDR_B_CAA_6

AN48

DDR_B_CAA_7

AN53

DDR_B_CAA_8

AN52

DDR_B_CAA_9

BA43

DDR_B_CAB_0

AY43

DDR_B_CAB_1

AY44

DDR_B_CAB_2

AW44

DDR_B_CAB_3

BB44

DDR_B_CAB_4

AY47

DDR_B_CAB_5

BA44

DDR_B_CAB_6

AW46

DDR_B_CAB_7

AY46

DDR_B_CAB_8

BA46

DDR_B_CAB_9

BB46 BA47

AH66

DDR_A_DQS#2

AH65

DDR_A_DQS2

AG69

DDR_A_DQS#3

AG70

DDR_A_DQS3

AR66

DDR_A_DQS#6

AR65

DDR_A_DQS6

AR61

DDR_A_DQS#7

AR60

DDR_A_DQS7

AT38

DDR_B_DQS#2

AR38

DDR_B_DQS2

AT32

DDR_B_DQS#3

AR32

DDR_B_DQS3

AR25

DDR_B_DQS#6

AR27

DDR_B_DQS6

AR22

DDR_B_DQS#7

AR21

DDR_B_DQS7

AN43 AP43 AT13

DDR3_DRAMRST#

AR18

SM_RCOMP0

AT18

SM_RCOMP1

AU18

SM_RCOMP2

@ESD@

12

CC4 0.1U_0402_16V7K

M_CLK_B_DDR#0 <19> M_CLK_B_DDR#1 <19> M_CLK_B_DDR0 <19> M_CLK_B_DDR1 <19>

DDR_B_CKE0 <19> DDR_B_CKE1 <19> DDR_B_CKE2 <19> DDR_B_CKE3 <19>

DDR_B_CS0# <19> DDR_B_CS1# <19> DDR_B_ODT0 <19>

DDR_B_CAA_0 <19> DDR_B_CAA_1 <19> DDR_B_CAA_2 <19> DDR_B_CAA_3 <19> DDR_B_CAA_4 <19> DDR_B_CAA_5 <19> DDR_B_CAA_6 <19> DDR_B_CAA_7 <19> DDR_B_CAA_8 <19> DDR_B_CAA_9 <19> DDR_B_CAB_0 <19> DDR_B_CAB_1 <19> DDR_B_CAB_2 <19> DDR_B_CAB_3 <19> DDR_B_CAB_4 <19> DDR_B_CAB_5 <19> DDR_B_CAB_6 <19> DDR_B_CAB_7 <19> DDR_B_CAB_8 <19> DDR_B_CAB_9 <19>

DDR_A_DQS#2 <18> DDR_A_DQS2 <18> DDR_A_DQS#3 <18> DDR_A_DQS3 <18> DDR_A_DQS#6 <18> DDR_A_DQS6 <18> DDR_A_DQS#7 <18> DDR_A_DQS7 <18> DDR_B_DQS#2 <19> DDR_B_DQS2 <19> DDR_B_DQS#3 <19> DDR_B_DQS3 <19>

DDR_B_DQS#6 <19> DDR_B_DQS6 <19> DDR_B_DQS#7 <19> DDR_B_DQS7 <19>

T11TP@ T13TP@ T14TP@

1 2

RC22 200_0402_1%

1 2

RC23 80.6_0402_1%

1 2

RC24 162_0402_1%

DDR3_DRAMRST#

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

SLK-U(2/12)LPDDR3

B3ZMS LA-D591P

1

7 45Wednesday, February 24, 2016

2.0

5

www.vinaﬁx.com

UC1E

SOC_SPI_CLK SOC_SPI_SO

D D

EC_KBRST#_R<27>

To TPM

C C

EC_SERIRQ<27,28>

SOC_SPI_SI SOC_SPI_IO2 SOC_SPI_IO3

EC_KBRST#_R EC_SERIRQ

LPC Mode

AV2

AW3

AV3

AW2

AU4 AU3 AU2 AU1

AW13

AY11

M2 M3

J4 V1 V2

M1

G3 G2 G1

SPI0_CLK SPI0_MISO SPI0_MOSI SPI0_IO2 SPI0_IO3 SPI0_CS0# SPI0_CS1# SPI0_CS2#

GPP_D1/SPI1_CLK GPP_D2/SPI1_MISO GPP_D3/SPI1_MOSI GPP_D21/SPI1_IO2 GPP_D22/SPI1_IO3 GPP_D0/SPI1_CS#

CL_CLK CL_DATA CL_RST#

GPP_A0/RCIN# GPP_A6/SERIRQ

SKL-U_BGA1356

2015MOW06 no need PU1K on SPI_IO2/IO3

MOW36 add PD 1K depop PH 1K only for SKL U ES sample

SPI - FLASH

SPI - TOUCH

C LINK

SOC_SPI_IO2

SOC_SPI_IO3

4

1 2

RC37 1K_0402_1%@

1 2

RC39 1K_0402_1%@

1 2

RC40 1K_0402_1%ES@

SKL-U

LPC

SMBUS, SMLINK

GPP_B23/SML1ALERT#/PCHHOT#

GPP_A14/SUS_STAT#/ESPI_RESET#

GPP_A9/CLKOUT_LPC0/ESPI_CLK

5 OF 20

+3VALW _SPI

3

Rev_1.0

GPP_C0/SMBCLK

GPP_C1/SMBDATA

GPP_C2/SMBALERT#

GPP_C3/SML0CLK

GPP_C4/SML0DATA

GPP_C5/SML0ALERT#

GPP_C6/SML1CLK

GPP_C7/SML1DATA

GPP_A1/LAD0/ESPI_IO0 GPP_A2/LAD1/ESPI_IO1 GPP_A3/LAD2/ESPI_IO2 GPP_A4/LAD3/ESPI_IO3

GPP_A5/LFRAME#/ESPI_CS#

GPP_A10/CLKOUT_LPC1

GPP_A8/CLKRUN#

R7 R8 R10

R9 W2 W1

W3 V3 AM7

AY13 BA13 BB13 AY12 BA12 BA11

AW9 AY9 AW11

SMBCLK SMBDATA SMBALERT#

SML0CLK SML0DATA SML0ALERT#

SOC_SML1CLK SOC_SML1DATA SML1ALERT#

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# ESPI_RST#

ESPI_CLK CLK_PCI1 PM_CLKRUN#

2

SML0ALERT# (Internal Pull Down): eSPI or LPC 0 = LPC is selected for EC --> For KB9022/9032 Use 1 = eSPI is selected for EC --> For KB9032 Only.

SMB

(Link to XDP, DDR, TP)

SML1

(Link to EC, Thermal Sensor)

ESPI_CLK_R <27> CK_LPC_TPM <28>

1

@RF@

CC6

22P_0201_25V8

2

1 2

RC31 22_0402_5%LPC@

1 2

RC32 22_0402_5%TPM@

PM_CLKRUN# <28>

T15TP@

SOC_SML1CLK <27> SOC_SML1DATA <27>

T16TP@

LPC_AD0 <27,28> LPC_AD1 <27,28> LPC_AD2 <27,28> LPC_AD3 <27,28> LPC_FRAME# <27,28> ESPI_RST# <27>

@RF@

CC5

22P_0201_25V8

1

SMBALERT# SML1ALERT# SML0ALERT#SOC_SPI_CS#0

EC_KBRST#_R

SML0CLK SML0DATA

SOC_SML1CLK SOC_SML1DATA SMBDATA SMBCLK

PM_CLKRUN#

EC_SERIRQ

1 2

RC26 10K_0402_5%@

1 2

RC27 150K_0402_1%@

1 2

RC28 10K_0402_5%@

1 2

RC29 1K_0402_5%

1 2

RC30 10K_0402_5%@

1 2

RC33 499_0402_1%

1 2

RC34 499_0402_1%

RPC1

1 8 2 7 3 6 4 5

2.2K_0804_8P4R_5%

1 2

RC36 8.2K_0402_5%

1 2

RC38 8.2K_0402_5%

Follow 543016_SKL_U_Y_PDG_0_9

+3VS

+3V_PRIM

+3VS

+3V_PRIM

+3VS

B B

A A

5

Single SPI ROM_CS0#

To SPI ROM

RPC3 and RC41 are close UC4

SPI ROM ( 8MByte )

SOC_SPI_CS#0

SOC_SPI_IO2_0_R

RPC3

1 8 2 7 3 6 4 5

1 2

RC41 15_0402_5%

8M_SINGLE@

UC4

1

/CS

2

DO(IO1)

3

/WP(IO2)

4

GND

W25Q64FVSSIQ_SO8

8M_SINGLE@

4

SOC_SPI_IO3SOC_SPI_IO3_0_R SOC_SPI_SISOC_SPI_SI_0_R SOC_SPI_CLKSOC_SPI_CLK_0_R SOC_SPI_SOSOC_SPI_SO_0_R

15_0804_8P4R_5%

8M_SINGLE@

SOC_SPI_IO2SOC_SPI_IO2_0_R

VCC

/HOLD(IO3)

CLK

DI(IO0)

+3VALW _SPI

8 7

SOC_SPI_IO3_0_RSOC_SPI_SO_0_R

6

SOC_SPI_CLK_0_R

5

SOC_SPI_SI_0_R

CC7

0.1U_0201_10V6K

1 2

RC43

SOC_SPI_CLK_0_R

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

1 2

2015/10/21 2016/06/21

3

1 2

0_0402_5%@EMC@

CC9

@EMC@

10P_0402_50V8J

Compal Secret Data

Deciphered Date

SOC_SML1CLK

DMN66D0LDW-7_SOT363-6

SOC_SML1DATA

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

2

6 1

QC1A

DMN66D0LDW-7_SOT363-6

Compal Electronics, Inc.

SKL-U(3/12)SPI,ESPI,SMB,LPC

5

3 4

QC1B

B3ZMS LA-D591P

1

EC_SMB_CK2 <29>

EC_SMB_DA2 <29>

8 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

UC1G

HDA_SYNC HDA_BIT_CLK HDA_SDOUT

HDA_SDIN0<26>

D D

T17 TP@

T18 TP@ T19 TP@

SPKR<11,26>

HDA_SDIN0 HDA_RST#

SOC_GPIOF1 SOC_GPIOF0

SPKR

BA22 AY22 BB22 BA21 AY21

AW22

AY20

AW20

AK7 AK6 AK9

AK10

AW5

J5

H5 D7

D8 C8

AUDIO

HDA_SYNC/I2S0_SFRM HDA_BLK/I2S0_SCLK HDA_SDO/I2S0_TXD HDA_SDI0/I2S0_RXD HDA_SDI1/I2S1_RXD HDA_RST#/I2S1_SCLK GPP_D23/I2S_MCLK I2S1_SFRM I2S1_TXD

GPP_F1/I2S2_SFRM GPP_F0/I2S2_SCLK GPP_F2/I2S2_TXD GPP_F3/I2S2_RXD

GPP_D19/DMIC_CLK0 GPP_D20/DMIC_DATA0

GPP_D17/DMIC_CLK1 GPP_D18/DMIC_DATA1

GPP_B14/SPKR

SKL-U_BGA1356

SKL-U

7 OF 20

Rev_1.0

SDIO / SDXC

GPP_G0/SD_CMD GPP_G1/SD_DATA0 GPP_G2/SD_DATA1 GPP_G3/SD_DATA2 GPP_G4/SD_DATA3

GPP_G5/SD_CD#

GPP_G6/SD_CLK

GPP_G7/SD_WP

GPP_A17/SD_PWR_EN#/ISH_GP7

GPP_A16/SD_1P8_SEL

SD_RCOMP

GPP_F23

AB11 AB13 AB12 W12 W11 W10 W8 W7

BA9 BB9

AB7

AF13

SD_RCOMP

RC44 200_0402_1%

12

T20 TP@

HDA for AUDIO

C C

HDA_SYNC_R<26> HDA_SDOUT_R<26> HDA_RST#_R<26>

HDA_BIT_CLK_R<26>

RC54

RPC5

1 8 2 7 3 6 4 5

33_0804_8P4R_5%

1 2

EMC@

33_0402_5%

HDA_SYNC HDA_SDOUT HDA_RST#

HDA_BIT_CLK

ME_EN<27>

ME_EN HDA_SDOUT

1 2

RC49 0_0402_5%@

UC1I

CSI-2

A36

CSI2_DN0

B36

CSI2_DP0

C38

CSI2_DN1

D38

B B

A A

5

C36 D36 A38 B38

C31 D31 C33 D33 A31 B31 A33 B33

A29 B29 C28 D28 A27 B27 C27 D27

CSI2_DP1 CSI2_DN2 CSI2_DP2 CSI2_DN3 CSI2_DP3

CSI2_DN4 CSI2_DP4 CSI2_DN5 CSI2_DP5 CSI2_DN6 CSI2_DP6 CSI2_DN7 CSI2_DP7

CSI2_DN8 CSI2_DP8 CSI2_DN9 CSI2_DP9 CSI2_DN10 CSI2_DP10 CSI2_DN11 CSI2_DP11

SKL-U_BGA1356

4

SKL-U

GPP_D4/FLASHTRIG

EMMC

GPP_F13/EMMC_DATA0 GPP_F14/EMMC_DATA1 GPP_F15/EMMC_DATA2 GPP_F16/EMMC_DATA3 GPP_F17/EMMC_DATA4 GPP_F18/EMMC_DATA5 GPP_F19/EMMC_DATA6 GPP_F20/EMMC_DATA7

GPP_F21/EMMC_RCLK

GPP_F22/EMMC_CLK

9 OF 20

GPP_F12/EMMC_CMD

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

CSI2_CLKN0

CSI2_CLKP0

CSI2_CLKN1

CSI2_CLKP1

CSI2_CLKN2

CSI2_CLKP2

CSI2_CLKN3

CSI2_CLKP3 CSI2_COMP

EMMC_RCOMP

Issued Date

Rev_1.0

C37 D37 C32 D32 C29 D29 B26 A26

E13 B7

AP2 AP1 AP3 AN3 AN1 AN2 AM4 AM1

AM2 AM3 AP4

AT1

CSI2_COMP

EMMC_RCOMP

3

RC63 100_0402_1%

T21 TP@

RC64 200_0402_1%

2015/10/21 2016/06/21

12

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

SKL-U(4/12)HDA,EMMC,SD

B3ZMS LA-D591P

9 45Wednesday, February 24, 2016

1

2.0

5

4

3

2

1

+RTCVCC

1 2

RC66 20K_0402_5%

1 2

CC11 1U_0402_6.3V6K

1 2

RC65 20K_0402_5%

1 2

D D

+3VALW_DSW

+3V_PRIM

C C

+3VALW_DSW

B B

+3V_PRIM

+3VALW_DSW

CC12 1U_0402_6.3V6K

1 2

CC120 10U_0603_6.3V6M@

1 2

RC67 1M_0402_5%

+3VS

From 545659_SKL_PCH_U_Y_EDS_R0_7

1 2 1 2

RPC6

RPC7

@ESD@

1 2

@ESD@

12

@

1 2 1 2 1 2

1 2

18 27 36 45

12

CLKREQ_PCIE#4 CLKREQ_PCIE#5

NGFF_CLKREQ# WLAN_CLKREQ# CLKREQ_PCIE#1 Card_CLKREQ#

PCH_PWROK LAN_WAKE# EC_RSMRST# SYS_RESET#

0.1U_0402_16V7K

RC69 10K_0402_5% RC70 10K_0402_5%

10K_0804_8P4R_5%

CC21 0.1U_0402_16V7K

CC22 0.1U_0402_16V7K

1 2

RC74 1K_0402_5% RC75 100K_0402_5%

RC77 8.2K_0402_5% RC78 1K_0402_5% RC79 10K_0402_5%@

RC80 10K_0402_5%@

RC82 100K_0402_5%@

From EC(open-drain)

A A

EC_VCCST_PG_R<27,30>

PCH_SRTCRST#

PCH_RTCRST#

SM_INTRUDER#

1

CC14

2

@ESD@

SYS_PWROK

SYS_RESET#

SUSCLK PCH_DPWROK

PM_BATLOW# WAKE#

AC_PRESENT_R

SOC_VRALERT#

PBTN_OUT#_R

+1.0V_VCCST

12

RC86 1K_0402_5%

RC87 60.4_0402_1%

CLR CMOS

1

CC15

0.047U_0402_16V7K

2

@ESD@

1 2

PCH PLTRST Buffer

0.1U_0402_16V7K

Only For Power Sequence Debug

@ESD@

12

CC23 0.1U_0402_16V7K

EC_VCCST_PG

NGFF SSD

WLAN

CardReader

PLT_RST#

CC20

@ESD@

H_CPUPWRGD

RC71 0_0402_5%@

1

2

T23 TP@

1

IN1

2

IN2

1 2

+3VS

5

P

G

3

RC76 1K_0402_5%@

CLK_PCIE_NGFF#<23> CLK_PCIE_NGFF<23>

NGFF_CLKREQ#<23>

CLK_PCIE_WLAN#<26> CLK_PCIE_WLAN<26>

WLAN_CLKREQ#<26>

CLK_PCIE_Card#<26>

CLK_PCIE_Card<26>

Card_CLKREQ#<26>

CC13

1 2

0.1U_0201_10V6K

4

O

UC6 SN74AHC1G08DCKR_SC70-5

PLT_RST#<27,28>

EC_RSMRST#<27>

1 2

SYS_PWROK<27,30> PCH_PWROK<27,30>

SUSPWRDNACK<27>

T28 TP@

PLT_RST_BUF#

12

CLK_PCIE_NGFF# CLK_PCIE_NGFF NGFF_CLKREQ#

CLKREQ_PCIE#1 CLK_PCIE_WLAN#

CLK_PCIE_WLAN WLAN_CLKREQ#

CLK_PCIE_Card# CLK_PCIE_Card Card_CLKREQ#

CLKREQ_PCIE#4

CLKREQ_PCIE#5

RC53 100K_0402_5%

PLT_RST# SYS_RESET# EC_RSMRST#

H_CPUPWRGD EC_VCCST_PG

SYS_PWROK PCH_PWROK PCH_DPWROK

SUSPWRDNACK SUSACK#_R

WAKE# LAN_WAKE#

PBTN_OUT#<27>

AC_PRESENT<27>

SUSACK#<27>

UC1J

D42

CLKOUT_PCIE_N0

C42

CLKOUT_PCIE_P0

AR10

GPP_B5/SRCCLKREQ0#

B42

CLKOUT_PCIE_N1

A42

CLKOUT_PCIE_P1

AT7

GPP_B6/SRCCLKREQ1#

D41

CLKOUT_PCIE_N2

C41

CLKOUT_PCIE_P2

AT8

GPP_B7/SRCCLKREQ2#

D40

CLKOUT_PCIE_N3

C40

CLKOUT_PCIE_P3

AT10

GPP_B8/SRCCLKREQ3#

B40

CLKOUT_PCIE_N4

A40

CLKOUT_PCIE_P4

AU8

GPP_B9/SRCCLKREQ4#

E40

CLKOUT_PCIE_N5

E38

CLKOUT_PCIE_P5

AU7

GPP_B10/SRCCLKREQ5#

SKL-U_BGA1356

PLT_RST_BUF# <23,26>

UC1K

SYSTEM POWER MANAGEMENT

AN10

GPP_B13/PLTRST#

B5

SYS_RESET#

AY17

RSMRST#

A68

PROCPWRGD

B65

VCCST_PWRGD

B6

SYS_PWROK

BA20

PCH_PWROK

BB20

DSW_PWROK

AR13

GPP_A13/SUSWARN#/SUSPWRDNACK

AP11

GPP_A15/SUSACK#

BB15

WAKE#

AM15

GPD2/LAN_WAKE#

AW17

GPD11/LANPHYPC

AT15

GPD7/RSVD

SKL-U_BGA1356

PBTN_OUT# PBTN_OUT#_R

SUSACK# SUSACK#_R

SYS_PWROK

SKL-U

CLOCK SIGNALS

RC81 0_0402_5%@

RC83 0_0402_5%@

RC84 0_0402_5%@

RC85 0_0402_5%@

1 2

RC88 10K_0402_5%@

Rev_1.0

CLKOUT_ITPXDP_N CLKOUT_ITPXDP_P

GPD8/SUSCLK

XCLK_BIASREF

10 OF 20

PCH_XTAL24_IN

PCH_XTAL24_OUT PCH_RTCX1

SKL-U

GPP_B12/SLP_S0#

GPD9/SLP_WLAN#

GPD3/PWRBTN#

GPD1/ACPRESENT

GPP_B11/EXT_PWR_GATE#

11 OF 20

GPP_B2/VRALERT#

12

PCH_DPWROKEC_RSMRST#

AC_PRESENT_RAC_PRESENT

F43 E43

BA17

SUSCLK

E37

XTAL24_IN

XTAL24_OUT

RTCX1 RTCX2

SRTCRST#

RTCRST#

CC16

15P_0402_50V8J

<Cocoa_1020> 32M use these part (SJ10000NM00, SJ10000MH00) just can meet <50k ohm spec 24M: SJ10000DI00, SJ10000CS00

GPD4/SLP_S3# GPD5/SLP_S4#

GPD10/SLP_S5#

SLP_SUS# SLP_LAN#

GPD6/SLP_A#

GPD0/BATLOW#

GPP_A11/PME#

INTRUDER#

PCH_XTAL24_IN

E35

PCH_XTAL24_OUT

E42

XCLK_BIASREF

AM18

PCH_RTCX1

AM20

PCH_RTCX2

AN18

PCH_SRTCRST#

AM16

PCH_RTCRST#

1 2

RC72 1M_0402_5%

YC1 24MHZ_12PF_7V24000020

3

GND

4

SJ10000DI00

Rev_1.0

AT11

PM_SLP_S0#

AP15

PM_SLP_S3#

BA16

PM_SLP_S4#

AY16

PM_SLP_S5#

AN15

PM_SLP_SUS#

AW15

SLP_LAN#

BB17

SLP_WLAN#

AN16

PM_SLP_A#

BA15

PBTN_OUT#_R

AY15

AC_PRESENT_R

AU13

PM_BATLOW#

AU11 AP16

SM_INTRUDER#

AM10

EXT_PWR_GATE#

AM11

SOC_VRALERT#

GND

1

2

SUSCLK <23>

1 2

RC68 2.7K_0402_1%

1 2

@

RC158 60.4_0402_1%

PCH_RTCX2

1

CC17

15P_0402_50V8J

PM_SLP_S0# <27> PM_SLP_S3# <27,30> PM_SLP_S4# <13,27,30>

T22TP@

PM_SLP_SUS# <14>

T24TP@ T25TP@ T113TP@

T26TP@

T27TP@

+1.0V_CLK5_F24NS

1 2

RC73 10M_0402_5%

YC2

1 2

32.768KHZ_9PF_CM7V-T1A9.0PF20PPM

SJ10000L000

1

CC18

8.2P_0402_50V

2

1

CC19

8.2P_0402_50V

2

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

SLK-U(5/12)CLK,GPIO

B3ZMS LA-D591P

1

10 45Wednesday, February 24, 2016

2.0

5

D D

TS_EN<21,27>

T29 TP@

T30 TP@

UART_2_CRXD_DTXD<26> UART_2_CTXD_DRXD<26>

C C

I2C_0_SDA<21> I2C_0_SCL<21>

I2C_1_SDA<28> I2C_1_SCL<28>

Functional Strap Definitions

4

TS_EN GC6_FB_EN

GSPI0_MOSI

EC_LID_OUT# GSPI1_MOSI

GPU_EVENT#

UART_2_CRXD_DTXD UART_2_CTXD_DRXD UART_2_CRTS_DCTS UART_2_CCTS_DRTS

I2C_0_SDA I2C_0_SCL

I2C_1_SDA I2C_1_SCL

UC1F

AN8

GPP_B15/GSPI0_CS#

AP7

GPP_B16/GSPI0_CLK

AP8

GPP_B17/GSPI0_MISO

AR7

GPP_B18/GSPI0_MOSI

AM5

GPP_B19/GSPI1_CS#

AN7

GPP_B20/GSPI1_CLK

AP5

GPP_B21/GSPI1_MISO

AN5

GPP_B22/GSPI1_MOSI

AB1

GPP_C8/UART0_RXD

AB2

GPP_C9/UART0_TXD

W4

GPP_C10/UART0_RTS#

AB3

GPP_C11/UART0_CTS#

AD1

GPP_C20/UART2_RXD

AD2

GPP_C21/UART2_TXD

AD3

GPP_C22/UART2_RTS#

AD4

GPP_C23/UART2_CTS#

U7

GPP_C16/I2C0_SDA

U6

GPP_C17/I2C0_SCL

U8

GPP_C18/I2C1_SDA

U9

GPP_C19/I2C1_SCL

AH9

GPP_F4/I2C2_SDA

AH10

GPP_F5/I2C2_SCL

AH11

GPP_F6/I2C3_SDA

AH12

GPP_F7/I2C3_SCL

AF11

GPP_F8/I2C4_SDA

AF12

GPP_F9/I2C4_SCL

SKL-U_BGA1356

3

LPSS ISH

SKL-U

GPP_F10/I2C5_SDA/ISH_I2C2_SDA

GPP_F11/I2C5_SCL/ISH_I2C2_SCL

GPP_D13/ISH_UART0_RXD/SML0BDATA/I2C4B_SDA

GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C4B_SCL

GPP_D16/ISH_UART0_CTS#/SML0BALERT#

GPP_C12/UART1_RXD/ISH_UART1_RXD

GPP_C13/UART1_TXD/ISH_UART1_TXD GPP_C14/UART1_RTS#/ISH_UART1_RTS# GPP_C15/UART1_CTS#/ISH_UART1_CTS#

Sx_EXIT_HOLDOFF# / GPP_A12 / BM_BUSY# / ISH_GP6

6 OF 20

GPP_D15/ISH_UART0_RTS#

Rev_1.0

GPP_D9 GPP_D10 GPP_D11 GPP_D12

GPP_D5/ISH_I2C0_SDA GPP_D6/ISH_I2C0_SCL

GPP_D7/ISH_I2C1_SDA GPP_D8/ISH_I2C1_SCL

GPP_A18/ISH_GP0 GPP_A19/ISH_GP1 GPP_A20/ISH_GP2 GPP_A21/ISH_GP3 GPP_A22/ISH_GP4 GPP_A23/ISH_GP5

X76669BOL01

X76669BOL03

X76669BOL02

X76669BOL04

P2 P3 P4 P1

M4 N3

N1 N2

AD11 AD12

U1 U2 U3 U4

AC1 AC2 AC3 AB4

AY8 BA8 BB7 BA7 AY7 AW7 AP13

PLATFORM_ID PROJECT_ID0 PROJECT_ID1

RAM_ID0 RAM_ID1 RAM_ID2 RAM_ID3

DGPU_PWR_EN HDDHALT_LED#

ACCEL_INT#

SSD_DET#

SOC_GPIOA12

SAM 4GB

SAM 8GB

HYN 4GB

HYN 8GB

RAM_ID0

X

2

PROJECT_ID0 0 1

PROJECT_ID1 0 1

PLATFORM_ID

SSD_DET# <23>

T31 TP@

RAM_ID1

X

SKL-U KBL-U

0 1

RAM_ID2 RAM_ID3

0 0

0 1

1

+3V_PRIM +3V_PRIM +3V_PRIM

12

RC45 10K_0402_5%

PROJECT_ID0 PROJECT_ID1 PLATFORM_ID

+3V_PRIM +3V_PRIM +3V_PRIM +3V_PRIM

12

RC151 10K_0402_5%

RAM_ID0 RAM_ID1 RAM_ID2 RAM_ID3

X76@

12

RC155 10K_0402_5%

X76@

@

12

RC50 10K_0402_5%

@

12

RC150 10K_0402_5%

X76@

12

RC154 10K_0402_5%

X76@

PartNumber - Description

SA00005WX60 - S IC D3 8G/1600 K4E8E304EE-EGCE ABO!

SA00005ZQ50 - S IC D3 512M32/1600 K4E6E304EE-EGCE ABO!

SA00009GZ10 - S IC D3 8G/1866 H9CCNNN8JTBLAR-NUD ABO!1 0

SA00009H210 - S IC D3 16G/1866 H9CCNNNBLTBLAR-NUD ABO!1 1

12

RC46 10K_0402_5%

@

12

RC51 10K_0402_5%

@

12

RC153 10K_0402_5%

X76@

12

RC156 10K_0402_5%

X76@

12

KBL@

RC48 10K_0402_5%

12

SKL@

RC52 10K_0402_5%

12

RC152 10K_0402_5%

X76@

12

RC157 10K_0402_5%

X76@

SPKR (Internal Pull Down): TOP Swap Override 0 = Disable TOP Swap mode.---> AAX05 Use 1 = Enable TOP Swap Mode.

B B

GSPI0_MOSI (Internal Pull Down): No Reboot

Strap Pin

+3VS

RC100 100K_0402_5%

RC101 4.7K_0402_5%

RC102 150K_0402_1%

@

1 2

@

1 2

@

1 2

SPKR

GSPI0_MOSI

GSPI1_MOSI

SPKR <9,26>

DGPU_PWR_EN HDDHALT_LED# GPU_EVENT#

RPC8

1 8 2 7 3 6 4 5

10K_0804_8P4R_5%

+3VS

0 = Disable No Reboot mode. --> AAX05 Use 1 = Enable No Reboot Mode. (PCH will disable the TCO

Timer system reboot feature). This function is useful when running ITP/XDP.

ACCEL_INT#

1 2

RC91 10K_0402_5%

GSPI1_MOSI (Internal Pull Down): Boot BIOS Strap Bit 0 = SPI Mode --> AAX05 Use 1 = LPC Mode

<Cocoa_1027> Follow #544669 GPIO I/O setting

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

2

I2C_0_SDA I2C_0_SCL

I2C_1_SDA I2C_1_SCL

UART_2_CRXD_DTXD UART_2_CTXD_DRXD UART_2_CRTS_DCTS UART_2_CCTS_DRTS

1 2

RC92 1K_0402_5%@

1 2

RC93 1K_0402_5%@

1 2

RC94 2.2K_0402_5%

1 2

RC95 2.2K_0402_5%

1 2

RC96 49.9K_0402_1%

1 2

RC97 49.9K_0402_1%

1 2

@

RC98 49.9K_0402_1%

1 2

@

RC99 49.9K_0402_1%

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

Compal Electronics, Inc.

SKL-U(6/12)GPIO

+3V_PRIM

+3V_PGPPC

+3VS

B3ZMS LA-D591P

1

2.0

11 45Wednesday, February 24, 2016

2.0

5

PCIE_CRX_DTX_N1<23>

PCIE_CRX_DTX_P1<23>

PCIE_CTX_C_DRX_N1<23>

PCIE_CTX_C_DRX_P1<23>

D D

WLAN

SATA SSD

C C

CardReader

When PCIE8/SATA1A is used as SATA Port 1 (ODD), then PCIE11/SATA1B (M.2 SSD) cannot be used as SATA Port 1.

B B

A A

PCIE_CRX_DTX_N2<23>

PCIE_CRX_DTX_P2<23>

PCIE_CTX_C_DRX_N2<23>

PCIE_CTX_C_DRX_P2<23>

PCIE_CRX_DTX_N3<23>

PCIE_CRX_DTX_P3<23>

PCIE_CTX_C_DRX_N3<23>

PCIE_CTX_C_DRX_P3<23>

PCIE_CRX_DTX_N4<23>

PCIE_CRX_DTX_P4<23>

PCIE_CTX_C_DRX_N4<23>

PCIE_CTX_C_DRX_P4<23>

PCIE_CRX_DTX_N6<26>

PCIE_CRX_DTX_P6<26>

PCIE_CTX_C_DRX_N6<26>

PCIE_CTX_C_DRX_P6<26>

SATA_CRX_DTX_N0<23> SATA_CRX_DTX_P0<23> SATA_CTX_DRX_N0<23> SATA_CTX_DRX_P0<23>

PCIE_CRX_DTX_N9<26>

PCIE_CRX_DTX_P9<26>

PCIE_CTX_C_DRX_N9<26>

PCIE_CTX_C_DRX_P9<26>

RC105 100_0402_1%

XDP_PREQ#<6>

4

1 2

12 12

XDP_PRDY# XDP_PREQ# SOC_GPIOA7

CC24 0.1U_0201_10V6K@ CC25 0.1U_0201_10V6K@

CC26 0.1U_0201_10V6K@ CC27 0.1U_0201_10V6K@

CC28 0.1U_0201_10V6K@ CC29 0.1U_0201_10V6K@

CC30 0.1U_0201_10V6K@ CC31 0.1U_0201_10V6K@

CC32 0.1U_0201_10V6K CC33 0.1U_0201_10V6K

CC34 0.1U_0201_10V6K CC35 0.1U_0201_10V6K

T32 TP@

PCIE_CRX_DTX_N1 PCIE_CRX_DTX_P1 PCIE_CTX_DRX_N1 PCIE_CTX_DRX_P1

PCIE_CRX_DTX_N2 PCIE_CRX_DTX_P2 PCIE_CTX_DRX_N2 PCIE_CTX_DRX_P2

PCIE_CRX_DTX_N3 PCIE_CRX_DTX_P3 PCIE_CTX_DRX_N3 PCIE_CTX_DRX_P3

PCIE_CRX_DTX_N4 PCIE_CRX_DTX_P4 PCIE_CTX_DRX_N4 PCIE_CTX_DRX_P4

PCIE_CRX_DTX_N6 PCIE_CRX_DTX_P6 PCIE_CTX_DRX_N6 PCIE_CTX_DRX_P6

SATA_CRX_DTX_N0 SATA_CRX_DTX_P0 SATA_CTX_DRX_N0 SATA_CTX_DRX_P0

PCIE_CRX_DTX_N9 PCIE_CRX_DTX_P9 PCIE_CTX_DRX_N9 PCIE_CTX_DRX_P9

PCIE_RCOMPN PCIE_RCOMPP

UC1H

PCIE / USB3 / SATA

H13

PCIE1_RXN/USB3_5_RXN

G13

PCIE1_RXP/USB3_5_RXP

B17

PCIE1_TXN/USB3_5_TXN

A17

PCIE1_TXP/USB3_5_TXP

G11

PCIE2_RXN/USB3_6_RXN

F11

PCIE2_RXP/USB3_6_RXP

D16

PCIE2_TXN/USB3_6_TXN

C16

PCIE2_TXP/USB3_6_TXP

H16

PCIE3_RXN

G16

PCIE3_RXP

D17

PCIE3_TXN

C17

PCIE3_TXP

G15

PCIE4_RXN

F15

PCIE4_RXP

B19

PCIE4_TXN

A19

PCIE4_TXP

F16

PCIE5_RXN

E16

PCIE5_RXP

C19

PCIE5_TXN

D19

PCIE5_TXP

G18

PCIE6_RXN

F18

PCIE6_RXP

D20

PCIE6_TXN

C20

PCIE6_TXP

F20

PCIE7_RXN/SATA0_RXN

E20

PCIE7_RXP/SATA0_RXP

B21

PCIE7_TXN/SATA0_TXN

A21

PCIE7_TXP/SATA0_TXP

G21

PCIE8_RXN/SATA1A_RXN

F21

PCIE8_RXP/SATA1A_RXP

D21

PCIE8_TXN/SATA1A_TXN

C21

PCIE8_TXP/SATA1A_TXP

E22

PCIE9_RXN

E23

PCIE9_RXP

B23

PCIE9_TXN

A23

PCIE9_TXP

F25

PCIE10_RXN

E25

PCIE10_RXP

D23

PCIE10_TXN

C23

PCIE10_TXP

F5

PCIE_RCOMPN

E5

PCIE_RCOMPP

D56

PROC_PRDY#

D61

PROC_PREQ#

BB11

GPP_A7/PIRQA#

E28

PCIE11_RXN/SATA1B_RXN

E27

PCIE11_RXP/SATA1B_RXP

D24

PCIE11_TXN/SATA1B_TXN

C24

PCIE11_TXP/SATA1B_TXP

E30

PCIE12_RXN/SATA2_RXN

F30

PCIE12_RXP/SATA2_RXP

A25

PCIE12_TXN/SATA2_TXN

B25

PCIE12_TXP/SATA2_TXP

SKL-U_BGA1356

3

GPIO

USB_OC0# USB_OC1# USB_OC2# USB_OC3#

DEVSLP0 DEVSLP1

DEVSLP2

SATA_GP0

SATA_GP1 SATA_GP2

SKL-U

8 OF 20

DEVICE CONTROL

USB2 Port 1&2 USB2 Port 3

NA NA

NGFF SSD KEY B NA

NA NA

NA

SSIC / USB3

USB3_2_RXN / SSIC_RXN USB3_2_RXP / SSIC_RXP

USB3_2_TXN / SSIC_TXN USB3_2_TXP / SSIC_TXP

USB2

USB2_VBUSSENSE

GPP_E9/USB2_OC0# GPP_E10/USB2_OC1# GPP_E11/USB2_OC2# GPP_E12/USB2_OC3#

GPP_E4/DEVSLP0 GPP_E5/DEVSLP1 GPP_E6/DEVSLP2

GPP_E0/SATAXPCIE0/SATAGP0 GPP_E1/SATAXPCIE1/SATAGP1 GPP_E2/SATAXPCIE2/SATAGP2

GPP_E8/SATALED#

Rev_1.0

USB3_1_RXN USB3_1_RXP USB3_1_TXN USB3_1_TXP

USB3_3_RXN USB3_3_RXP USB3_3_TXN USB3_3_TXP

USB3_4_RXN USB3_4_RXP USB3_4_TXN USB3_4_TXP

USB2N_1 USB2P_1

USB2N_2 USB2P_2

USB2N_3 USB2P_3

USB2N_4 USB2P_4

USB2N_5 USB2P_5

USB2N_6 USB2P_6

USB2N_7 USB2P_7

USB2N_8 USB2P_8

USB2N_9 USB2P_9

USB2N_10 USB2P_10

USB2_COMP

USB2_ID

2

H8 G8 C13 D13

J6 H6 B13 A13

J10 H10 B15 A15

E10 F10 C15 D15

AB9 AB10

AD6 AD7

AH3 AJ3

AD9 AD10

AJ1 AJ2

AF6 AF7

AH1 AH2

AF8 AF9

AG1 AG2

AH7 AH8

AB6 AG3 AG4

A9 C9 D9 B9

J1 J2 J3

H2 H3 G4

H1

USB3_CRX_DTX_N1 USB3_CRX_DTX_P1 USB3_CTX_DRX_N1 USB3_CTX_DRX_P1

USB3_CRX_DTX_N2 USB3_CRX_DTX_P2 USB3_CTX_DRX_N2 USB3_CTX_DRX_P2

USB3_CRX_DTX_N3 USB3_CRX_DTX_P3 USB3_CTX_DRX_N3 USB3_CTX_DRX_P3

USB3_CRX_DTX_N4 USB3_CRX_DTX_P4 USB3_CTX_DRX_N4 USB3_CTX_DRX_P4

USB20_N1 USB20_P1

USB20_N2 USB20_P2

USB20_N3 USB20_P3

USB20_N4 USB20_P4

USB20_N5 USB20_P5

USB20_N6 USB20_P6

USB20_N7 USB20_P7

USB20_N8 USB20_P8

USB2_COMP USB2_ID USB2_VBUSSENSE

USB_OC0# USB_OC1# USB_OC2# USB_OC3#

DEVSLP0 DEVSLP1 DEVSLP2

SATA_GP0 SATA_GP1 SATA_GP2

SATA_LED#

USB3_CRX_DTX_N1 <26> USB3_CRX_DTX_P1 <26> USB3_CTX_DRX_N1 <26> USB3_CTX_DRX_P1 <26>

USB3_CRX_DTX_N2 <24> USB3_CRX_DTX_P2 <24> USB3_CTX_DRX_N2 <24> USB3_CTX_DRX_P2 <24>

USB3_CRX_DTX_N3 <25> USB3_CRX_DTX_P3 <25> USB3_CTX_DRX_N3 <25> USB3_CTX_DRX_P3 <25>

USB3_CRX_DTX_N4 <25> USB3_CRX_DTX_P4 <25> USB3_CTX_DRX_N4 <25> USB3_CTX_DRX_P4 <25>

USB20_N1 <26> USB20_P1 <26>

USB20_N2 <24> USB20_P2 <24>

USB20_N3 <25> USB20_P3 <25>

USB20_N4 <25> USB20_P4 <25>

USB20_N5 <26> USB20_P5 <26>

USB20_N6 <21> USB20_P6 <21>

USB20_N7 <21> USB20_P7 <21>

USB20_N8 <29> USB20_P8 <29>

1 2

RC103 113_0402_1%

1 2

RC104 0_0402_5%@

1 2

RC106 0_0402_5%@

USB_OC1# <24>

DEVSLP0 <23>

T33 TP@ T34 TP@

SOC_GPIOA7

SATA_LED# SATA_GP1 SATA_GP2 SATA_GP0

USB_OC2# USB_OC1# USB_OC0# USB_OC3#

1 2

RC107 10K_0402_5%

RPC9

1 8 2 7 3 6 4 5

10K_0804_8P4R_5%

RPC10

1 8 2 7 3 6 4 5

10K_0804_8P4R_5%

1

USB2/3 Right

USB2/3 Left (Charger)

USB3 Type-C

USB2/3 Right USB2/3 Left (Charger)

USB3 Type-C

WLAN/BT TouchScreen Camera Finger Print

+3VS

+3V_PRIM

Security Classification

2015/10/21 2016/06/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

3

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

SKL-U(7/12)PCIE,USB,SATA

B3ZMS LA-D591P

12 45Wednesday, February 24, 2016

1

2.0

5

4

3

2

1

+5VALW +1.0V_VCCSTU+1.0V_PRIM

1U_0402_6.3V6K

CC37

D D

1 2

SYSON<27,30,36>

PM_SLP_S4#<10,27,30>

For Power consumption Measurement

+1.0V_PRIM +1.0V_PRIM_JP

C C

1 2

RC110 0_0805_5%@

Imax : 2.77 A

RC108 0_0402_5%

1 2

RC109 0_0402_5%@

RC35 0_0402_5%

1 2

@

1 2

CC8

1

2

+1.8V_MEM_ONSYSON

.1U_0402_16V7K@

+1.8V_PRIM +1.8V_MEM

1U_0402_6.3V6K

CC38

1

@

2

EN_1.0V_VCCSTU

UC7

1 2

3 4 5 6

7

VOUT1

VIN1

VOUT1

VIN1 ON1 VBIAS ON2 VIN2

VOUT2

VIN2

VOUT2

EM5209VF_DFN14_2X3

CT1

GND

CT2

1000P_0402_50V7K

GPAD

14 13

12 11 10 9

8 15

1 2

CC39 470P_0402_50V7K

1 2

CC40

+1.8V_MEM_OUT

0.1U_0201_10V6K

CC36

1

2

Follow 543977 _SKL_PDDG_Rev0_91 CC95 10pf -> 22us (Spec:<= 65us)

J16

@

112

0.1U_0201_10V6K JUMP_43X118

CC51

1

2

+1.0VS_VCCSTG

BSC Side

1

2

1U_0402_6.3V6K

CC41

+1.0V_PRIM TO +1.0VS_VCCSTG / +1.0VS_VCCIO

+5VALW

+1.0V_PRIM_JP

+1.0V_PRIM TO +1.0V_VCCSTU

0.1U_0201_10V6K

CC46

1

2

@

B B

SUSP#<27,30,36,38>

EC_S0IX_EN<27>

For Verify S0IX

SUSP#

1 2

RC116 0_0402_5%

1 2

RC117 0_0402_5%@

1U_0402_6.3V6K

CC47

1

2

UC9

1

VIN1

2

VIN2

7

VIN thermal

3

VBIAS

4

ON

TPS22961DNYR_WSON8

VOUT

GND

6

+1.0VS_VCCSTG_IO

5

RC208 Follow 544669_SKL_U__DDR3L_RVP7_Schematic_Rev0_53 CC47,CC54 Follow 549914_SKL_U_LPDDR3_RVP5

1 2

RC113 0_0402_5%@

1 2

RC114 0_0805_5%@

+1.0VS_VCCSTG

+1.0VS_VCCIO

Imax : 2.73 A

@

12

CC44 0.1U_0201_10V6K

@

12

CC48 0.1U_0201_10V6K

+1.2V_VDDQ

+1.2V_VDDQC

+1.0V_VCCST

+1.0VS_VCCSTG

+1.0VS_VCCSTG_OC

+1.0V_VCCSFR

+1.0V_VCCSTU +1.0V_VCCST

RC111

1 2

@

0_0402_5%

RC115

1 2

@

0_0402_5%

PSC Side

1

2

+1.0V_VCCSFR

PSC Side

1

2

1U_0402_6.3V6K

120

UC1N

SKL-U

AU23

VDDQ_AU23

AU28

VDDQ_AU28

AU35

VDDQ_AU35

AU42

VDDQ_AU42

BB23

VDDQ_BB23

BB32

VDDQ_BB32

BB41

VDDQ_BB41

BB47

VDDQ_BB47

BB51

VDDQ_BB51

AM40

VDDQC

A18

VCCST

A22

VCCSTG_A22

AL23

VCCPLL_OC

K20

VCCPLL_K20

K21

VCCPLL_K21

SKL-U_BGA1356

CC42

CC50

CPU POWER 3 OF 4

14 OF 20

+5VALW

CC49

1

2

VCCIO_SENSE

VSSIO_SENSE

VSSSA_SENSE

VCCSA_SENSE

+1.2V_VDDQ

SUSP#

1U_0402_6.3V6K

VCCIO VCCIO VCCIO VCCIO VCCIO VCCIO VCCIO

VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA

Rev_1.0

AK28 AK30 AL30 AL42 AM28 AM30 AM42

AK23 AK25 G23 G25 G27 G28 J22 J23 J27 K23 K25 K27 K28 K30

AM23 AM22

H21 H20

1 2

RC112 0_0402_5%@

UC8

@

1

VIN

2

VIN

3

ON

4

VBIAS

SA00006U600

AOZ1336_DFN8_2X2

+1.0VS_VCCIO

VCCIO_SENSE VSSIO_SENSE

VSSSA_SENSE VCCSA_SENSE

VOUT VOUT

CT

GND GND

3.1A

+VCC_SA

4.5A

+1.0VS_VCCSTG_OC

7 8

6

@

5 9

1

2

CC43

T35 TP@ T36 TP@

1000P_0402_50V7K

VSSSA_SENSE <39> VCCSA_SENSE <39>

BSC Side

0.1U_0201_10V6K CC45

1

2

+1.0VS_VCCIO

22U_0603_6.3V6M

CC52

1

@

2

A A

2.2U_0402_6.3V6M CC54

1

2

5

PSC SideBSC Side

1U_0402_6.3V6K

1

CC58

2

2.2U_0402_6.3V6M

1U_0402_6.3V6K

CC60

1

CC59

2

4

+1.2V_VDDQC

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

BSC Side BSC SidePSC Side

1 2

RC118 0_0603_5%@

1U_0402_6.3V6K

1

2

10U_0603_6.3V6M

1

CC62

CC63

2

2015/10/21 2016/06/21

3

+1.2V_VDDQ

10U_0603_6.3V6M

1

CC64

2

Compal Secret Data

22U_0603_6.3V6M

1

CC65

2

+1.2V_VDDQ : 10UF/6.3V/0603 *9 1UF/6.3V/0402 * 4

Deciphered Date

10U_0603_6.3V6M

1

CC67

2

1

2

22U_0603_6.3V6M

1U_0402_6.3V6K

CC69

1

CC70

2

Title

Size Document Number Rev

Custom

Date: Sheet of

1U_0402_6.3V6K

1

CC73

2

Compal Electronics, Inc.

SKL-U(8/12)POWER

B3ZMS LA-D591P

22U_0603_6.3V6M

CC74

1

2

1

10U_0603_6.3V6M

1

CC76

2

2.0

13 45Wednesday, February 24, 2016

5

+1.0V_PRIM

Follow 543016_SKL_U_Y_PDG_1_0

1 2

RC119 0_0603_5%@

D D

Follow 543016_SKL_U_Y_PDG_1_0

1 2

RC123 0_0603_5%@

Follow 543016_SKL_U_Y_PDG_1_0

1 2

RC126 0_0603_5%@

C C

Imax : 2.57A

1 2

RC131 0_0402_5%@

B B

Follow 543016_SKL_U_Y_PDG_1_0

1 2

RC133 0_0603_5%@

1 2

RC136 0_0402_5%@

1U_0402_6.3V6K

1

@

2

+1.0V_APLL

1

@

2

+1.0V_CLK5_F24NS

1

@

2

+1.0V_CLK4_F100OC

1

@

2

+1.0V_PRIM

1

@

2

+1.0V_MPHYAON

1

2

+1.0V_CLK6_24TBT

CC103

+1.0V_DTS

22U_0603_6.3V6M

CC79

22U_0603_6.3V6M

CC84

22U_0603_6.3V6M

CC93

1U_0402_6.3V6K

CC98

1U_0402_6.3V6K

CC100

10U_0603_6.3V6M

1

CC106

@

2

+3V_PRIM

RC122 0_0402_5%@

1

CC80 1U_0402_6.3V6K

2

RC124 0_0402_5%@

RC125 0_0402_5%@

RC127 0_0402_5%@

RC128 0_0402_5%@

RC129 0_0402_5%@

RC132 0_0402_5%@

RC134 0_0402_5%@

Follow 543016_SKL_U_Y_PDG_0_9

+3V_PRIM +1.8V_PRIM

A A

22U_0603_6.3V6M

CC115

1

@

2

5

22U_0603_6.3V6M

CC117

1

@

2

+3VALW

4

+3V_HDA

1 2

RC140 0_0603_5%@

+3V_1.8V_PGPPD

1 2

1

CC81 1U_0402_6.3V6K

2

+3V_PGPPA

+3VALW_SPI

+3V_PGPPB

1U_0402_6.3V6K

1

2

+3V_PGPPC

1U_0402_6.3V6K

1

2

RC130 0_0402_5%@

1U_0402_6.3V6K

1

2

+3V_PGPPE

1U_0402_6.3V6K

1

2

+3V_PRIM_RTC

1U_0402_6.3V6K

1

2

CC94

CC97

CC99

CC102

CC107

Follow 543016_SKL_U_Y_PDG_0_9

4

1 2

0.1U_0201_10V6K

CC108

1

2

+3VALW_DSW

+1.8V_PRIM

3

+1.0V_PRIM

1U_0402_6.3V6K

1

CC77

2

696

1U_0402_6.3V6K

1

2

+1.0V_PRIM

1U_0402_6.3V6K

CC91

1

2

1U_0402_6.3V6K

1

2

+1.0V_PRIM

+1.0V_MPHYAON

+1.0V_APLL +1.0V_PRIM

+3VALW_DSW

+3V_HDA

+3VALW_SPI

+3V_PRIM

+1.0V_PRIM

2.574A

22

836

88

26

118

68

11

642

33

+1.0VO_DSW

CC82

+1.0V_PRIM

22U_0603_6.3V6M

1U_0402_6.3V6K

1

2

CC89

CC88

1

CC87

2

@

+1.0V_PRIM

1U_0402_6.3V6K

CC95

1

2

+1.0V_PRIM

CC96

UC1O

AB19

VCCPRIM_1P0

AB20

VCCPRIM_1P0

P18

VCCPRIM_1P0

AF18

VCCPRIM_CORE

AF19

VCCPRIM_CORE

V20

VCCPRIM_CORE

V21

VCCPRIM_CORE

AL1

DCPDSW_1P0

K17

VCCMPHYAON_1P0

L1

VCCMPHYAON_1P0

N15

VCCMPHYGT_1P0_N15

N16

VCCMPHYGT_1P0_N16

N17

VCCMPHYGT_1P0_N17

P15

VCCMPHYGT_1P0_P15

P16

VCCMPHYGT_1P0_P16

K15

VCCAMPHYPLL_1P0

L15

VCCAMPHYPLL_1P0

V15

VCCAPLL_1P0

AB17

VCCPRIM_1P0_AB17

Y18

VCCPRIM_1P0_Y18

AD17

VCCDSW_3P3_AD17

AD18

VCCDSW_3P3_AD18

AJ17

VCCDSW_3P3_AJ17

AJ19

VCCHDA

AJ16

VCCSPI

AF20

VCCSRAM_1P0

AF21

VCCSRAM_1P0

T19

VCCSRAM_1P0

T20

VCCSRAM_1P0

AJ21

VCCPRIM_3P3_AJ21

AK20

VCCPRIM_1P0_AK20

N18

VCCAPLLEBB_1P0

SKL-U_BGA1356

2

SKL-U

CPU POWER 4 OF 4

VCCPGPPA VCCPGPPB VCCPGPPC VCCPGPPD VCCPGPPE VCCPGPPF VCCPGPPG

VCCPRIM_3P3_V19

VCCPRIM_1P0_T1

VCCATS_1P8

VCCRTCPRIM_3P3

VCCRTC_AK19 VCCRTC_BB14

GPP_B0/CORE_VID0 GPP_B1/CORE_VID1

15 OF 20

Per 543016_SKL_U_Y_PDG_0_9 VCCRTC does not exceed 3.2 V From PDG

Power Rail Voltage

+CHGRTC

BAT54C(VF)

+3VL_RTC

3.383V(MAX)

240 mV

3.143V

Result : Pass

Rev_1.0

DCPRTC VCCCLK1 VCCCLK2 VCCCLK3 VCCCLK4 VCCCLK5 VCCCLK6

+RTCBATT

W=20mils

AK15 AG15 Y16 Y15 T16 AF16 AD15

V19 T1 AA1 AK17 AK19

BB14 BB10 A14 K19 L21 N20 L19 A10 AN11

AN13

+3V_PGPPA +3V_PGPPB +3V_PGPPC +3V_1.8V_PGPPD +3V_PGPPE +1.8V_PRIM +3V_PRIM

+1.0V_DTS

1

+3V_PRIM_RTC

1

+RTCVCC

1 2

CC90 0.1U_0201_10V6K

64

+1.0V_CLK6_24TBT

24

+1.0V_APLL

33

+1.0V_CLK4_F100OC

4

+1.0V_CLK5_F24NS

10

+1.0V_CLK6_24TBT

PRIMCORE_VID0 PRIMCORE_VID1

RTC Battery

+CHGRTC

DC1

2

W=10mil

1

3

BAS40-04_SOT23-3

cap Place close AK19.

T37 TP@ T38 TP@

W=20mils

+RTCVCC

1

EC LPC/ESPI

20 4 6 8 6 33 41

75

+1.8V_PRIM

6

1

CC101

0.1U_0201_10V6K

2

+3V_PRIM

+1.8V_PRIM+3VALW_1.8VALW_PGPPA

12

RC1200_0402_5% ESPI@

12

RC1210_0402_5%

+3V_PRIM

1U_0402_6.3V6K

1

CC83

@

1U_0402_6.3V6K

2

1

CC85

2

+3VALW TO +3V_PRIM

+3VALW+5VALW

1U_0402_6.3V6K

CC110

1

@

2

1 2

PCH_PWR_EN<27>

PM_SLP_SUS#<10>

1U_0402_6.3V6K

1

CC86

2

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

RC138 0_0402_5%@

1 2

RC139 0_0402_5%@

Compal Secret Data

2015/10/21 2016/06/21

Compal Secret Data

1U_0402_6.3V6K

CC109

1

@

2

EN_3V_PRIM

Deciphered Date

2

UC10

@

1

VIN

2

VIN

3

ON

4

VBIAS

SA00006U600

AOZ1336_DFN8_2X2

VOUT VOUT

GND GND

7 8

6

CT

5 9

+3VALW

1 2

RC135 0_0805_5%@

For NON-DS3

+3V_PRIMJP

1 2

RC137 0_0805_5%@

For DS3

1 2

CC112

@

1000P_0402_50V7K

Title

Size Document Number Rev

Custom

Date: Sheet of

+3V_PRIM

0.1U_0201_10V6K

CC111

1

2

Compal Electronics, Inc.

SKL-U(9/12)Power

B3ZMS LA-D591P

1

14 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

Rev_1.0

(To VR)

+VCC_CORE

G32 G33 G35 G37 G38 G40 G42 J30 J33 J37 J40 K33 K35 K37 K38 K40 K42 K43

E32 E33

B63 A63 D64

G20

VCCSENSE VSSSENSE

SOC_SVID_ALERT# SOC_SVID_CLK SOC_SVID_DAT

Trace Length < 25 mils

VCCSENSE <39> VSSSENSE <39>

SOC_SVID_CLK <39>

+1.0VS_VCCSTG

VCCGT_SENSE<39>

VSSGT_SENSE<39>

Trace Length < 25 mils

VCCGT_SENSE VSSGT_SENSE

AA63 AA64 AA66 AA67 AA69 AA70 AA71 AC64 AC65 AC66 AC67 AC68 AC69 AC70 AC71

M62 N63 N64 N66 N67 N69

A48 A53 A58 A62 A66

K48 K50 K52 K53 K55 K56 K58 K60 L62 L63 L64 L65 L66 L67 L68 L69 L70 L71

J43 J45 J46 J48 J50 J52 J53 J55 J56 J58 J60

J70 J69

UC1M

VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT

VCCGT_SENSE VSSGT_SENSE

SKL-U_BGA1356

SKL-U

CPU POWER 2 OF 4

13 OF 20

Rev_1.0

VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT

VCCGTX_AK42 VCCGTX_AK43 VCCGTX_AK45 VCCGTX_AK46 VCCGTX_AK48 VCCGTX_AK50 VCCGTX_AK52 VCCGTX_AK53 VCCGTX_AK55 VCCGTX_AK56 VCCGTX_AK58 VCCGTX_AK60 VCCGTX_AK70

VCCGTX_AL43 VCCGTX_AL46 VCCGTX_AL50 VCCGTX_AL53 VCCGTX_AL56

VCCGTX_AL60 VCCGTX_AM48 VCCGTX_AM50 VCCGTX_AM52 VCCGTX_AM53 VCCGTX_AM56 VCCGTX_AM58

VCCGTX_AU58 VCCGTX_AU63 VCCGTX_BB57 VCCGTX_BB66

VCCGTX_SENSE VSSGTX_SENSE

+VCC_CORE

UC1L

A30

VCC_A30

+1.0V_VCCST

12

A34 A39

A44 AK33 AK35 AK37 AK38 AK40

AL33 AL37

AL40 AM32 AM33 AM35 AM37 AM38

G30

K32 AK32 AB62

P62

V62

H63

G61 AC63

AE63 AE62

AG62

AL63 AJ62

RC141 56_0402_5%

VCC_A34 VCC_A39 VCC_A44 VCC_AK33 VCC_AK35 VCC_AK37 VCC_AK38 VCC_AK40 VCC_AL33 VCC_AL37 VCC_AL40 VCC_AM32 VCC_AM33 VCC_AM35 VCC_AM37 VCC_AM38 VCC_G30

RSVD RSVD VCCOPC_AB62

VCCOPC_P62 VCCOPC_V62

VCC_OPC_1P8_H63 VCC_OPC_1P8_G61 VCCOPC_SENSE

VSSOPC_SENSE VCCEOPIO

VCCEOPIO VCCEOPIO_SENSE

VSSEOPIO_SENSE

SKL-U_BGA1356

Place the PU resistors close to CPU

D D

C C

For CPU2+3e SKU

SVID ALERT

B B

SOC_SVID_ALERT#

1 2

RC142 220_0402_5%

SKL-U

CPU POWER 1 OF 4

12 OF 20

SOC_SVID_ALERT#_R <39>

VCC_G32 VCC_G33 VCC_G35 VCC_G37 VCC_G38 VCC_G40 VCC_G42

VCC_J30 VCC_J33 VCC_J37

VCC_J40 VCC_K33 VCC_K35 VCC_K37 VCC_K38 VCC_K40 VCC_K42 VCC_K43

VCC_SENSE

VSS_SENSE

VIDALERT#

VIDSCK

VIDSOUT

VCCSTG_G20

N70 N71 R63 R64 R65 R66 R67 R68 R69 R70 R71 T62 U65 U68 U71 W63 W64 W65 W66 W67 W68 W69 W70 W71 Y62

AK42 AK43 AK45 AK46 AK48 AK50 AK52 AK53 AK55 AK56 AK58 AK60 AK70 AL43 AL46 AL50 AL53 AL56 AL60 AM48 AM50 AM52 AM53 AM56 AM58 AU58 AU63 BB57 BB66

AK62 AL61

+VCC_GT+VCC_GT

VCCGTX_SENSE VSSGTX_SENSE

T39 TP@ T40 TP@

+1.0V_VCCST

SVID DATA

SOC_SVID_DAT

A A

5

12

RC143 100_0402_1%

Place the PU resistors close to CPU

SOC_SVID_DAT <39>

4

(To VR)

Security Classification

2015/10/21 2016/06/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

3

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Compal Electronics, Inc.

SKL-U(10/12)POWER,SVID

B3ZMS LA-D591P

15 45Wednesday, February 24, 2016

1

2.0

5

4

3

2

1

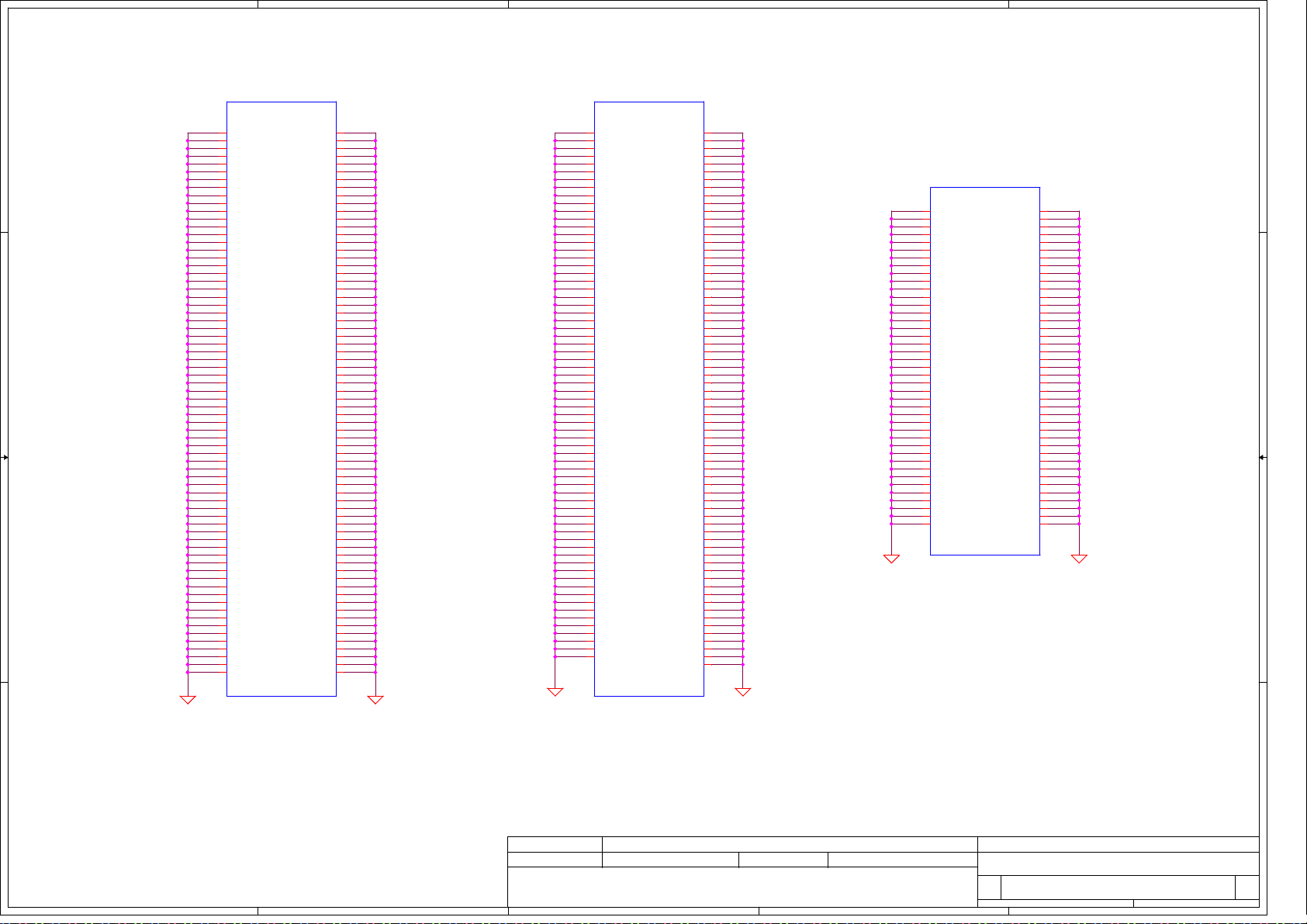

SKL-U

UC1P

D D

C C

B B

A67 A70 AA2

AA4 AA65 AA68 AB15 AB16 AB18 AB21

AB8 AD13 AD16 AD19 AD20 AD21 AD62

AD8 AE64 AE65 AE66 AE67 AE68 AE69

AF1 AF10 AF15 AF17

AF2

AF4 AF63 AG16 AG17 AG18 AG19 AG20 AG21 AG71 AH13

AH6 AH63 AH64 AH67

AJ15 AJ18 AJ20

AJ4 AK11 AK16 AK18 AK21 AK22 AK27 AK63 AK68 AK69

AK8

AL2

AL28 AL32 AL35 AL38

AL4

AL45 AL48 AL52 AL55 AL58 AL64

A5

GND 1 OF 3

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

SKL-U_BGA1356

16 OF 20

Rev_1.0

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

AL65 AL66 AM13 AM21 AM25 AM27 AM43 AM45 AM46 AM55 AM60 AM61 AM68 AM71 AM8 AN20 AN23 AN28 AN30 AN32 AN33 AN35 AN37 AN38 AN40 AN42 AN58 AN63 AP10 AP18 AP20 AP23 AP28 AP32 AP35 AP38 AP42 AP58 AP63 AP68 AP70 AR11 AR15 AR16 AR20 AR23 AR28 AR35 AR42 AR43 AR45 AR46 AR48 AR5 AR50 AR52 AR53 AR55 AR58 AR63 AR8 AT2 AT20 AT23 AT28 AT35 AT4 AT42 AT56 AT58

AT63 AT68

AT71 AU10 AU15 AU20 AU32 AU38

AV1 AV68 AV69 AV70 AV71

AW10 AW12 AW14 AW16 AW18 AW21 AW23 AW26 AW28 AW30 AW32 AW34 AW36 AW38 AW41 AW43 AW45 AW47 AW49 AW51 AW53 AW55 AW57

AW6 AW60 AW62 AW64 AW66

AW8

AY66

B10 B14 B18 B22 B30 B34 B39 B44 B48 B53 B58 B62 B66 B71

BA1 BA10 BA14 BA18

BA2 BA23 BA28 BA32 BA36

F68

BA45

UC1Q

GND 2 OF 3

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

SKL-U_BGA1356

SKL-U

17 OF 20

Rev_1.0

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

BA49 BA53 BA57 BA6 BA62 BA66 BA71 BB18 BB26 BB30 BB34 BB38 BB43 BB55 BB6 BB60 BB64 BB67 BB70 C1 C25 C5 D10 D11 D14 D18 D22 D25 D26 D30 D34 D39 D44 D45 D47 D48 D53 D58 D6 D62 D66 D69 E11 E15 E18 E21 E46 E50 E53 E56 E6 E65 E71 F1 F13 F2 F22 F23 F27 F28 F32 F33 F35 F37 F38 F4 F40 F42 BA41

G10 G22 G43 G45 G48

G52 G55 G58

G60 G63 G66

H15 H18 H71

K16 K18 K22 K61 K63 K64 K65 K66 K67 K68 K70 K71

F8

G5

G6

J11 J13 J25 J28 J32 J35 J38 J42

J8

L11 L16 L17

UC1R

GND 3 OF 3

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

18 OF 20

SKL-U_BGA1356

SKL-U

Rev_1.0

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

L18 L2 L20 L4 L8 N10 N13 N19 N21 N6 N65 N68 P17 P19 P20 P21 R13 R6 T15 T17 T18 T2 T21 T4 U10 U63 U64 U66 U67 U69 U70 V16 V17 V18 W13 W6 W9 Y17 Y19 Y20 Y21

A A

Security Classification

2015/10/21 2016/06/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

3

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

SKL-U(11/12)GND

B3ZMS LA-D591P

16 45Wednesday, February 24, 2016

1

2.0

5

4

3

2

1

UC1S

D D

C C

B B

T43 TP@ T45 TP@ T47 TP@

CFG3<6>

T41 TP@ T50 TP@ T52 TP@ T54 TP@ T55 TP@

T66 TP@ T68 TP@

T70 TP@ T72 TP@

XDP_ITP_PMODE<6>

T100 TP@

T105 TP@ T107 TP@

CFG0 CFG1 CFG2 CFG3 CFG4 CFG5 CFG6 CFG7 CFG8 CFG9

CFG16 CFG17

CFG18 CFG19

CFG_RCOMP XDP_ITP_PMODE

E68 B67 D65 D67 E70 C68 D68 C67 F71

G69

F70

G68

H70

G71

H69

G70

E63 F63

E66 F66

E60

AY2 AY1

K46 K45

AL25 AL27

C71 B70

F60 A52

BA70 BA68

F65

G65

F61 E61

E8

D1 D3

J71 J68

CFG[0] CFG[1] CFG[2] CFG[3] CFG[4] CFG[5] CFG[6] CFG[7] CFG[8] CFG[9] CFG[10] CFG[11] CFG[12] CFG[13] CFG[14] CFG[15]

CFG[16] CFG[17]

CFG[18] CFG[19]

CFG_RCOMP ITP_PMODE RSVD_AY2

RSVD_AY1 RSVD_D1

RSVD_D3 RSVD_K46

RSVD_K45 RSVD_AL25

RSVD_AL27 RSVD_C71

RSVD_B70 RSVD_F60 RSVD_A52 RSVD_TP_BA70

RSVD_TP_BA68 RSVD_J71

RSVD_J68 VSS_F65

VSS_G65 RSVD_F61

RSVD_E61

SKL-U_BGA1356

SKL-U

RESERVED SIGNALS-1

19 OF 20

Rev_1.0

RSVD_TP_BB68 RSVD_TP_BB69

RSVD_TP_AK13 RSVD_TP_AK12

RSVD_BB2 RSVD_BA3

RSVD_D5

RSVD_D4

RSVD_B2

RSVD_C2

RSVD_B3

RSVD_A3

RSVD_AW1

RSVD_E1

RSVD_E2

RSVD_BA4 RSVD_BB4

RSVD_A4

RSVD_C4

RSVD_A69 RSVD_B69

RSVD_AY3 RSVD_D71

RSVD_C70 RSVD_C54

RSVD_D54

VSS_AY71

ZVM#

RSVD_TP

MSM#

PROC_SELECT#

TP5 TP6

TP4

TP1 TP2

BB68 BB69

AK13 AK12

BB2 BA3

AU5 AT5

D5 D4 B2 C2

B3 A3

AW1 E1

E2 BA4

BB4 A4

C4 BB5 A69

B69 AY3 D71

C70 C54

D54 AY4

BB3 AY71

AR56 AW71

AW70 AP56

C64

RC144 0_0402_5%@

RC145 0_0402_5%@

PM_ZVM#

PM_MSM# SLK_CNL#

T48 TP@ T49 TP@

T57 TP@ T59 TP@

T86 TP@

1 2

T99 TP@ T101 TP@

1 2

T104 TP@ T106 TP@

T108 TP@ T110 TP@

For 2+3e Solution PM_ZVM# PM_MSM#

1 2

@

RC146 100K_0402_5%

+1.0V_VCCST

Follow 544669_SKL_U_DDR3L_RVP7_schematic_rev1.0

AW69 AW68

AU56

AW48

U12 U11 H11

C7

RSVD_AW69 RSVD_AW68 RSVD_AU56 RSVD_AW48 RSVD_C7 RSVD_U12 RSVD_U11 RSVD_H11

UC1T

SKL-U_BGA1356

SKL-U

SPARE

20 OF 20

Rev_1.0

RSVD_F6

RSVD_E3 RSVD_C11 RSVD_B11 RSVD_A11 RSVD_D12 RSVD_C12 RSVD_F52

F6 E3 C11 B11 A11 D12 C12 F52

T82 TP@

RC147 49.9_0402_1%

RC148 1K_0402_1%

12

CFG_RCOMP

CFG4

Display Port Presence Strap

CFG4

A A

1 : Disabled; No Physical Display Port attached to Embedded Display Port

0 : Enabled; An external Display Port device is connected to the Embedded Display Port

5

4

Security Classification

2015/10/21 2016/06/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

3

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Compal Electronics, Inc.

SKL-U(12/12)RSVD

B3ZMS LA-D591P

17 45Wednesday, February 24, 2016

1

2.0

5

4

3

2

1

+1.8V_MEM

D D

C C

B B

+1.2V_VDDQ

+1.2V_VDDQ +1.2V_VDDQ

UV1

X76@

A3

VDD1

A4

VDD1

A5

VDD1

A6

VDD1

A10

VDD1

U3

VDD1

U4

VDD1

U5

VDD1

U6

VDD1

U10

VDD1

A8

VDD2

A9

VDD2

D4

VDD2

D5

VDD2

D6

VDD2

G5

VDD2

H5

VDD2

H6

VDD2

H12

VDD2

J5

VDD2

J6

VDD2

K5

VDD2

K6

VDD2

K12

VDD2

L5

VDD2

P4

VDD2

P5

VDD2

P6

VDD2

U8

VDD2

U9

VDD2

A11

VDDQ

C12

VDDQ

E8

VDDQ

E12

VDDQ

G12

VDDQ

H8

VDDQ

H9

VDDQ

H11

VDDQ

J9

VDDQ

J10

VDDQ

K8

VDDQ

K11

VDDQ

L12

VDDQ

N8

VDDQ

N12

VDDQ

R12

VDDQ

U11

VDDQ

F2

VDDCA

G2

VDDCA

H3

VDDCA

L2

VDDCA

M2

VDDCA

A1

NC

A2

NC

A12

NC

A13

NC

B1

NC

B13

NC

C4

NC

K9

NC

R3

NC

T1

NC

T13

NC

U1

NC

U2

NC

U12

NC

U13

NC

P3

VSSCA

M4

VSSCA

J4

VSSCA

G4

VSSCA

G3

VSSCA

F4

VSSCA

D3

VSSCA

C3

VSSCA

T12

VSSQ

T6

VSSQ

R6

VSSQ

P12

VSSQ

N6

VSSQ

M12

VSSQ

M6

VSSQ

L9

VSSQ

K10

VSSQ

H10

VSSQ

G9

VSSQ

G6

VSSQ

F12

VSSQ

F6

VSSQ

E6

VSSQ

D12

VSSQ

C6

VSSQ

B12

VSSQ

B6

VSSQ

H9CCNNN8JTMLAR-NTM_FBGA178~D

DQ10 DQ11 DQ12 DQ13 DQ14

DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23

DQ24

DQ25

DQ26

DQ27

DQ28

DQ29

DQ30

DQ31

DQS0 DQS1 DQS2 DQS3

DQS0# DQS1# DQS2# DQS3#

CKE0 CKE1

CS0#

CS1#

Vref_DQ Vref_CA

P9

DQ0

N9

DQ1

N10

DQ2

N11

DQ3

M8

DQ4

M9

DQ5

M10

DQ6

M11

DQ7

F11

DQ8

F10

DQ9

F9 F8 E11 E10 E9 D9 T8 T9 T10 T11 R8 R9 R10 R11 C11 C10 C9 C8 B11 B10 B9 B8

R2

CA0

P2

CA1

N2

CA2

N3

CA3

M3

CA4

F3

CA5

E3

CA6

E2

CA7

D2

CA8

C2

CA9

L10 G10 P10 D10

L11 G11 P11 D11

L8

DM0

G8

DM1

P8

DM2

D8

DM3

B3

ZQ0

B4

ZQ1

K3 K4

L3 L4

J3

CK

J2

CK#

J8

ODT

J11 H4

B2

VSS

B5

VSS

C5

VSS

E4

VSS

E5

VSS

F5

VSS

H2

VSS

J12

VSS

K2

VSS

L6

VSS

M5

VSS

N4

VSS

N5

VSS

R4

VSS

R5

VSS

T2

VSS

T3

VSS

T4

VSS

T5

VSS

DDR_A_D33 DDR_A_D36 DDR_A_D39 DDR_A_D38 DDR_A_D37 DDR_A_D32 DDR_A_D34

DDR_A_D35 DDR_A_D57 DDR_A_D56 DDR_A_D62 DDR_A_D59 DDR_A_D61 DDR_A_D60 DDR_A_D63 DDR_A_D58

DDR_A_D51

DDR_A_D50

DDR_A_D48

DDR_A_D53

DDR_A_D54

DDR_A_D55

DDR_A_D49

DDR_A_D52 DDR_A_D43 DDR_A_D46 DDR_A_D44 DDR_A_D40 DDR_A_D47 DDR_A_D42 DDR_A_D45 DDR_A_D41

DDR_A_CAB_0 DDR_A_CAB_1 DDR_A_CAB_2 DDR_A_CAB_3 DDR_A_CAB_4 DDR_A_CAB_5 DDR_A_CAB_6 DDR_A_CAB_7 DDR_A_CAB_8 DDR_A_CAB_9

DDR_A_DQS4 DDR_A_DQS7 DDR_A_DQS6 DDR_A_DQS5

DDR_A_DQS#4 DDR_A_DQS#7 DDR_A_DQS#6 DDR_A_DQS#5

1 2

RD29 243_0402_1%

1 2

RD31 243_0402_1%

DDR_A_CKE2 DDR_A_CKE3

DDR_A_CS0# DDR_A_CS1#

M_CLK_A_DDR#1

DDR_A_ODT0

+VREFDQ_A +VREFCA

+VREFCA +VREFDQ_A

DDR_A_D33 <7> DDR_A_D36 <7> DDR_A_D39 <7> DDR_A_D38 <7> DDR_A_D37 <7> DDR_A_D32 <7> DDR_A_D34 <7> DDR_A_D35 <7> DDR_A_D57 <7> DDR_A_D56 <7> DDR_A_D62 <7> DDR_A_D59 <7> DDR_A_D61 <7> DDR_A_D60 <7> DDR_A_D63 <7> DDR_A_D58 <7> DDR_A_D51 <7> DDR_A_D50 <7> DDR_A_D48 <7> DDR_A_D53 <7> DDR_A_D54 <7> DDR_A_D55 <7> DDR_A_D49 <7> DDR_A_D52 <7> DDR_A_D43 <7> DDR_A_D46 <7> DDR_A_D44 <7> DDR_A_D40 <7> DDR_A_D47 <7> DDR_A_D42 <7> DDR_A_D45 <7> DDR_A_D41 <7>

DDR_A_CAB_0 <7> DDR_A_CAB_1 <7> DDR_A_CAB_2 <7> DDR_A_CAB_3 <7> DDR_A_CAB_4 <7> DDR_A_CAB_5 <7> DDR_A_CAB_6 <7> DDR_A_CAB_7 <7> DDR_A_CAB_8 <7> DDR_A_CAB_9 <7>

DDR_A_DQS4 <7> DDR_A_DQS7 <7> DDR_A_DQS6 <7> DDR_A_DQS5 <7>

DDR_A_DQS#4 <7> DDR_A_DQS#7 <7> DDR_A_DQS#6 <7> DDR_A_DQS#5 <7>

DDR_A_CKE2 <7> DDR_A_CKE3 <7>

DDR_A_CS0# <7>

DDR_A_CS1# <7>

M_CLK_A_DDR1 <7>

DDR_A_ODT0 <7>

0.047U_0402_16V7K

1

CD1

2

0.047U_0402_16V7K

1

CD3

2

+1.2V_VDDQ

+1.8V_MEM

UV2

X76@

A3

VDD1

A4

VDD1

A5

VDD1

A6

VDD1

A10

VDD1

U3

VDD1

U4

VDD1

U5

VDD1

U6

VDD1

U10

VDD1

A8

VDD2

A9

VDD2

D4

VDD2

D5

VDD2

D6

VDD2

G5

VDD2

H5

VDD2

H6

VDD2

H12

VDD2

J5

VDD2

J6

VDD2

K5

VDD2

K6

VDD2

K12

VDD2

L5

VDD2

P4

VDD2

P5

VDD2

P6

VDD2

U8

VDD2

U9

VDD2

A11

VDDQ

C12

VDDQ

E8

VDDQ

E12

VDDQ

G12

VDDQ

H8

VDDQ

H9

VDDQ

H11

VDDQ

J9

VDDQ

J10

VDDQ

K8

VDDQ

K11

VDDQ

L12

VDDQ

N8

VDDQ

N12

VDDQ

R12

VDDQ

U11

VDDQ

F2

VDDCA

G2

VDDCA

H3

VDDCA

L2

VDDCA

M2

VDDCA

A1

NC

A2

NC

A12

NC

A13

NC

B1

NC

B13

NC

C4

NC

K9

NC

R3

NC

T1

NC

T13

NC

U1

NC

U2

NC

U12

NC

U13

NC

P3

VSSCA

M4

VSSCA

J4

VSSCA

G4

VSSCA

G3

VSSCA

F4

VSSCA

D3

VSSCA

C3

VSSCA

T12

VSSQ

T6

VSSQ

R6

VSSQ

P12

VSSQ

N6

VSSQ

M12

VSSQ

M6

VSSQ

L9

VSSQ

K10

VSSQ

H10

VSSQ

G9

VSSQ

G6

VSSQ

F12

VSSQ

F6

VSSQ

E6

VSSQ

D12

VSSQ

C6

VSSQ

B12

VSSQ

B6

VSSQ

H9CCNNN8JTMLAR-NTM_FBGA178~D

DQ10 DQ11 DQ12 DQ13 DQ14

DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23

DQ24

DQ25

DQ26

DQ27

DQ28

DQ29

DQ30

DQ31

DQS0 DQS1 DQS2 DQS3

DQS0# DQS1# DQS2# DQS3#

CKE0 CKE1

CS0#

CS1#

Vref_DQ

Vref_CA

P9

DQ0

N9

DQ1

N10

DQ2

N11

DQ3

M8

DQ4

M9

DQ5

M10

DQ6

M11

DQ7

F11

DQ8

F10

DQ9

F9 F8 E11 E10 E9 D9 T8 T9 T10 T11 R8 R9 R10 R11 C11 C10 C9 C8 B11 B10 B9 B8

R2

CA0

P2

CA1

N2

CA2

N3

CA3

M3

CA4

F3

CA5

E3

CA6

E2

CA7

D2

CA8

C2

CA9

L10 G10 P10 D10

L11 G11 P11 D11

L8

DM0

G8

DM1

P8

DM2

D8

DM3

B3

ZQ0

B4

ZQ1

K3 K4

L3 L4

J3

CK

J2

CK#

J8

ODT

J11 H4

B2

VSS

B5

VSS

C5

VSS

E4

VSS

E5

VSS

F5

VSS

H2

VSS

J12

VSS

K2

VSS

L6

VSS

M5

VSS

N4

VSS

N5

VSS

R4

VSS

R5

VSS

T2

VSS

T3

VSS

T4

VSS

T5

VSS

DDR_A_D28 DDR_A_D29 DDR_A_D30 DDR_A_D27 DDR_A_D24 DDR_A_D25 DDR_A_D31

DDR_A_D26 DDR_A_D11 DDR_A_D14 DDR_A_D8 DDR_A_D12 DDR_A_D15 DDR_A_D10 DDR_A_D13 DDR_A_D9

DDR_A_D1

DDR_A_D4

DDR_A_D7

DDR_A_D3

DDR_A_D5

DDR_A_D0

DDR_A_D2

DDR_A_D6 DDR_A_D21 DDR_A_D16 DDR_A_D18 DDR_A_D23 DDR_A_D20 DDR_A_D17 DDR_A_D19 DDR_A_D22

DDR_A_CAA_0 DDR_A_CAA_1 DDR_A_CAA_2 DDR_A_CAA_3 DDR_A_CAA_4 DDR_A_CAA_5 DDR_A_CAA_6 DDR_A_CAA_7 DDR_A_CAA_8 DDR_A_CAA_9

DDR_A_DQS3 DDR_A_DQS1 DDR_A_DQS0 DDR_A_DQS2

DDR_A_DQS#3 DDR_A_DQS#1 DDR_A_DQS#0 DDR_A_DQS#2

1 2

RD30 243_0402_1%

1 2

RD32 243_0402_1%

DDR_A_CKE0 DDR_A_CKE1

DDR_A_CS0# DDR_A_CS1#

M_CLK_A_DDR0M_CLK_A_DDR1 M_CLK_A_DDR#0

DDR_A_ODT0

+VREFDQ_A +VREFCA

+VREFCA +VREFDQ_A

DDR_A_CAA_0 <7> DDR_A_CAA_1 <7> DDR_A_CAA_2 <7> DDR_A_CAA_3 <7> DDR_A_CAA_4 <7> DDR_A_CAA_5 <7> DDR_A_CAA_6 <7> DDR_A_CAA_7 <7> DDR_A_CAA_8 <7> DDR_A_CAA_9 <7>

DDR_A_DQS3 <7> DDR_A_DQS1 <7> DDR_A_DQS0 <7> DDR_A_DQS2 <7>

DDR_A_DQS#3 <7> DDR_A_DQS#1 <7> DDR_A_DQS#0 <7> DDR_A_DQS#2 <7>

DDR_A_CKE0 <7> DDR_A_CKE1 <7>

M_CLK_A_DDR0 <7> M_CLK_A_DDR#0 <7>M_CLK_A_DDR#1 <7>

DDR_A_D28 <7> DDR_A_D29 <7> DDR_A_D30 <7> DDR_A_D27 <7> DDR_A_D24 <7> DDR_A_D25 <7> DDR_A_D31 <7> DDR_A_D26 <7> DDR_A_D11 <7> DDR_A_D14 <7> DDR_A_D8 <7> DDR_A_D12 <7> DDR_A_D15 <7> DDR_A_D10 <7> DDR_A_D13 <7> DDR_A_D9 <7> DDR_A_D1 <7> DDR_A_D4 <7> DDR_A_D7 <7> DDR_A_D3 <7> DDR_A_D5 <7> DDR_A_D0 <7> DDR_A_D2 <7> DDR_A_D6 <7> DDR_A_D21 <7> DDR_A_D16 <7> DDR_A_D18 <7> DDR_A_D23 <7> DDR_A_D20 <7> DDR_A_D17 <7> DDR_A_D19 <7> DDR_A_D22 <7>

+0.6VS_VTT

DDR_A_CAA_0 DDR_A_CAA_1 DDR_A_CAA_2 DDR_A_CAA_3 DDR_A_CAA_4 DDR_A_CAA_5 DDR_A_CAA_6 DDR_A_CAA_7 DDR_A_CAA_8 DDR_A_CAA_9 DDR_A_CAB_0 DDR_A_CAB_1 DDR_A_CAB_2 DDR_A_CAB_3 DDR_A_CAB_4 DDR_A_CAB_5 DDR_A_CAB_6 DDR_A_CAB_7 DDR_A_CAB_8 DDR_A_CAB_9

M_CLK_A_DDR0

M_CLK_A_DDR#1

M_CLK_A_DDR1

RD21 80.6_0402_1% RD22 80.6_0402_1% RD23 80.6_0402_1% RD24 80.6_0402_1% RD25 80.6_0402_1% RD26 80.6_0402_1% RD27 80.6_0402_1%

1 2

DDR_A_CS0# DDR_A_CS1# DDR_A_ODT0 DDR_A_CKE0 DDR_A_CKE1 DDR_A_CKE2 DDR_A_CKE3

M_CLK_A_DDR#0

0.047U_0402_16V7K

1

CD2

2

0.047U_0402_16V7K

1

CD4

2

12

RD1 68_0402_1%

12

RD2 68_0402_1%

12

RD3 68_0402_1%

12

RD4 68_0402_1%

12

RD5 68_0402_1%

12

RD6 68_0402_1%

12

RD7 68_0402_1%

12

RD8 68_0402_1%

12

RD9 68_0402_1%

12

RD10 68_0402_1%

12

RD11 68_0402_1%

12

RD12 68_0402_1%

12

RD13 68_0402_1%

12

RD14 68_0402_1%

12

RD15 68_0402_1%

12

RD16 68_0402_1%

12

RD17 68_0402_1%

12

RD18 68_0402_1%

12

RD19 68_0402_1%

12

RD20 68_0402_1%

1 2 1 2 1 2 1 2 1 2 1 2 1 2

RD28

37.4_0402_1%

RD33

37.4_0402_1%

RD34

37.4_0402_1%

RD35

37.4_0402_1%

+0.6VS_VTT

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

Size Document Number Rev

C

Date: Sheet of

Compal Electronics, Inc.

LPDDR3_A

B3ZMS LA-D591P

1

18 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

+1.8V_MEM +1.8V_MEM

D D

+1.2V_VDDQ

C C

+1.2V_VDDQ +1.2V_VDDQ

B B

UV3

X76@

A3

VDD1

A4

VDD1

A5

VDD1

A6

VDD1

A10

VDD1

U3

VDD1

U4

VDD1

U5

VDD1

U6

VDD1

U10

VDD1

A8

VDD2

A9

VDD2

D4

VDD2

D5

VDD2

D6

VDD2

G5

VDD2

H5

VDD2

H6

VDD2

H12

VDD2

J5

VDD2

J6

VDD2

K5

VDD2

K6

VDD2

K12

VDD2

L5

VDD2

P4

VDD2

P5

VDD2

P6

VDD2

U8

VDD2

U9

VDD2

A11

VDDQ

C12

VDDQ

E8

VDDQ

E12

VDDQ

G12

VDDQ

H8

VDDQ

H9

VDDQ

H11

VDDQ

J9

VDDQ

J10

VDDQ

K8

VDDQ

K11

VDDQ

L12

VDDQ

N8

VDDQ

N12

VDDQ

R12

VDDQ

U11

VDDQ

F2

VDDCA

G2

VDDCA

H3

VDDCA

L2

VDDCA

M2

VDDCA

A1

NC

A2

NC

A12

NC

A13

NC

B1

NC

B13

NC

C4

NC

K9

NC

R3

NC

T1

NC

T13

NC

U1

NC

U2

NC

U12

NC

U13

NC

P3

VSSCA

M4

VSSCA

J4

VSSCA

G4

VSSCA

G3

VSSCA

F4

VSSCA

D3

VSSCA

C3

VSSCA

T12

VSSQ

T6

VSSQ

R6

VSSQ

P12

VSSQ

N6

VSSQ

M12

VSSQ

M6

VSSQ

L9

VSSQ

K10

VSSQ

H10

VSSQ

G9

VSSQ

G6

VSSQ

F12

VSSQ

F6

VSSQ

E6

VSSQ

D12

VSSQ

C6

VSSQ

B12

VSSQ

B6

VSSQ

H9CCNNN8JTMLAR-NTM_FBGA178~D

DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31

DQS0 DQS1 DQS2 DQS3

DQS0# DQS1# DQS2# DQS3#

CKE0 CKE1

CS0# CS1#

Vref_DQ Vref_CA

P9

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9

CA0 CA1 CA2 CA3 CA4 CA5 CA6 CA7 CA8 CA9

DM0 DM1 DM2 DM3

ZQ0 ZQ1

CK

CK#

ODT

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

DDR_B_D52

N9

DDR_B_D49

N10

DDR_B_D51

N11

DDR_B_D55

M8

DDR_B_D48

M9

DDR_B_D53

M10

DDR_B_D50

M11

DDR_B_D54

F11

DDR_B_D47

F10

DDR_B_D45

F9

DDR_B_D43

F8

DDR_B_D40

E11

DDR_B_D46

E10

DDR_B_D44

E9

DDR_B_D42

D9

DDR_B_D41

T8

DDR_B_D33

T9

DDR_B_D32

T10

DDR_B_D35

T11

DDR_B_D39

R8

DDR_B_D36

R9

DDR_B_D37

R10

DDR_B_D34

R11

DDR_B_D38

C11

DDR_B_D59

C10

DDR_B_D58

C9

DDR_B_D57

C8

DDR_B_D61

B11

DDR_B_D63

B10

DDR_B_D62

B9

DDR_B_D56

B8

DDR_B_D60

R2

DDR_B_CAB_0

P2

DDR_B_CAB_1

N2

DDR_B_CAB_2

N3

DDR_B_CAB_3

M3

DDR_B_CAB_4

F3

DDR_B_CAB_5

E3

DDR_B_CAB_6

E2

DDR_B_CAB_7

D2

DDR_B_CAB_8

C2

DDR_B_CAB_9

L10

DDR_B_DQS6

G10

DDR_B_DQS5

P10

DDR_B_DQS4

D10

DDR_B_DQS7

L11

DDR_B_DQS#6

G11

DDR_B_DQS#5

P11

DDR_B_DQS#4

D11

DDR_B_DQS#7

L8 G8 P8 D8

1 2

B3

RD63 243_0402_1%

1 2

B4

RD65 243_0402_1%

K3

DDR_B_CKE2

K4

DDR_B_CKE3

L3

DDR_B_CS0#

L4

DDR_B_CS1#

J3

M_CLK_B_DDR1

J2

M_CLK_B_DDR#1 M_CLK_B_DDR#0

J8

DDR_B_ODT0

J11 H4

B2 B5 C5 E4 E5 F5 H2 J12 K2 L6 M5 N4 N5 R4 R5 T2 T3 T4 T5

DDR_B_D52 <7> DDR_B_D49 <7> DDR_B_D51 <7> DDR_B_D55 <7> DDR_B_D48 <7> DDR_B_D53 <7> DDR_B_D50 <7> DDR_B_D54 <7> DDR_B_D47 <7> DDR_B_D45 <7> DDR_B_D43 <7> DDR_B_D40 <7> DDR_B_D46 <7> DDR_B_D44 <7> DDR_B_D42 <7> DDR_B_D41 <7> DDR_B_D33 <7> DDR_B_D32 <7> DDR_B_D35 <7> DDR_B_D39 <7> DDR_B_D36 <7> DDR_B_D37 <7> DDR_B_D34 <7> DDR_B_D38 <7> DDR_B_D59 <7> DDR_B_D58 <7> DDR_B_D57 <7> DDR_B_D61 <7> DDR_B_D63 <7> DDR_B_D62 <7> DDR_B_D56 <7> DDR_B_D60 <7>

DDR_B_CAB_0 <7> DDR_B_CAB_1 <7> DDR_B_CAB_2 <7> DDR_B_CAB_3 <7> DDR_B_CAB_4 <7> DDR_B_CAB_5 <7> DDR_B_CAB_6 <7> DDR_B_CAB_7 <7> DDR_B_CAB_8 <7> DDR_B_CAB_9 <7>

DDR_B_DQS6 <7> DDR_B_DQS5 <7> DDR_B_DQS4 <7> DDR_B_DQS7 <7>

DDR_B_DQS#6 <7> DDR_B_DQS#5 <7> DDR_B_DQS#4 <7> DDR_B_DQS#7 <7>

DDR_B_CKE2 <7> DDR_B_CKE3 <7>

DDR_B_CS0# <7> DDR_B_CS1# <7>

M_CLK_B_DDR1 <7> M_CLK_B_DDR0 <7> M_CLK_B_DDR#1 <7>

DDR_B_ODT0 <7>

+VREFDQ_B +VREFCA

0.047U_0402_16V7K

1

CD5

+VREFCA +VREFDQ_B

2

0.047U_0402_16V7K

1

CD7

2

+1.2V_VDDQ+1.2V_VDDQ

+1.2V_VDDQ

UV4

X76@

A3

VDD1

A4

VDD1

A5

VDD1

A6

VDD1

A10

VDD1

U3

VDD1

U4

VDD1

U5

VDD1

U6

VDD1

U10

VDD1

A8

VDD2

A9

VDD2

D4

VDD2

D5

VDD2

D6

VDD2

G5

VDD2

H5

VDD2

H6

VDD2

H12

VDD2

J5

VDD2

J6

VDD2

K5

VDD2

K6

VDD2

K12

VDD2

L5

VDD2

P4

VDD2

P5

VDD2

P6

VDD2

U8

VDD2

U9

VDD2

A11

VDDQ

C12

VDDQ

E8

VDDQ

E12

VDDQ

G12

VDDQ

H8

VDDQ

H9

VDDQ

H11

VDDQ

J9

VDDQ

J10

VDDQ

K8

VDDQ

K11

VDDQ

L12

VDDQ

N8

VDDQ

N12

VDDQ

R12

VDDQ

U11

VDDQ

F2

VDDCA

G2

VDDCA

H3

VDDCA

L2

VDDCA

M2

VDDCA

A1

NC

A2

NC

A12

NC

A13

NC

B1

NC

B13

NC

C4

NC

K9

NC

R3

NC

T1

NC

T13

NC

U1

NC

U2

NC

U12

NC

U13

NC

P3

VSSCA

M4

VSSCA

J4

VSSCA

G4

VSSCA

G3

VSSCA

F4

VSSCA

D3

VSSCA

C3

VSSCA

T12

VSSQ

T6

VSSQ

R6

VSSQ

P12

VSSQ

N6

VSSQ

M12

VSSQ

M6

VSSQ

L9

VSSQ

K10

VSSQ

H10

VSSQ

G9

VSSQ

G6

VSSQ

F12

VSSQ

F6

VSSQ

E6

VSSQ

D12

VSSQ

C6

VSSQ

B12

VSSQ

B6

VSSQ

H9CCNNN8JTMLAR-NTM_FBGA178~D

DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31

DQS0 DQS1 DQS2 DQS3

DQS0# DQS1# DQS2# DQS3#

CKE0 CKE1

CS0# CS1#

Vref_DQ

Vref_CA

P9

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7

DQ8 DQ9

CA0 CA1 CA2 CA3 CA4 CA5 CA6 CA7 CA8 CA9

DM0

DM1

DM2

DM3

ZQ0 ZQ1

CK

CK#

ODT

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

DDR_B_D23

N9

DDR_B_D22

N10

DDR_B_D21

N11

DDR_B_D17

M8

DDR_B_D18

M9

DDR_B_D19

M10

DDR_B_D20

M11

DDR_B_D16

F11

DDR_B_D10

F10

DDR_B_D11

F9

DDR_B_D9

F8

DDR_B_D8

E11

DDR_B_D15

E10

DDR_B_D14

E9

DDR_B_D12

D9

DDR_B_D13

T8

DDR_B_D1

T9

DDR_B_D5

T10

DDR_B_D3

T11

DDR_B_D7

R8

DDR_B_D4

R9

DDR_B_D0

R10

DDR_B_D2

R11

DDR_B_D6

C11

DDR_B_D28

C10

DDR_B_D29

C9

DDR_B_D30

C8

DDR_B_D31

B11

DDR_B_D24

B10

DDR_B_D25

B9

DDR_B_D26

B8

DDR_B_D27

R2

DDR_B_CAA_0

P2

DDR_B_CAA_1

N2

DDR_B_CAA_2

N3

DDR_B_CAA_3

M3

DDR_B_CAA_4

F3

DDR_B_CAA_5

E3

DDR_B_CAA_6

E2

DDR_B_CAA_7

D2

DDR_B_CAA_8

C2

DDR_B_CAA_9

L10

DDR_B_DQS2

G10

DDR_B_DQS1

P10

DDR_B_DQS0

D10

DDR_B_DQS3

L11

DDR_B_DQS#2

G11

DDR_B_DQS#1

P11

DDR_B_DQS#0

D11

DDR_B_DQS#3

L8 G8 P8 D8

B3

RD64 243_0402_1%

B4

RD66 243_0402_1%

K3

DDR_B_CKE0

K4

DDR_B_CKE1

L3

DDR_B_CS0#

L4

DDR_B_CS1#

J3

M_CLK_B_DDR0

J2

J8

DDR_B_ODT0

J11 H4

B2 B5 C5 E4 E5 F5 H2 J12 K2 L6 M5 N4 N5 R4 R5 T2 T3 T4 T5

1 2 1 2

+VREFDQ_B +VREFCA

DDR_B_D23 <7> DDR_B_D22 <7> DDR_B_D21 <7> DDR_B_D17 <7> DDR_B_D18 <7> DDR_B_D19 <7> DDR_B_D20 <7> DDR_B_D16 <7> DDR_B_D10 <7> DDR_B_D11 <7> DDR_B_D9 <7> DDR_B_D8 <7> DDR_B_D15 <7> DDR_B_D14 <7> DDR_B_D12 <7> DDR_B_D13 <7> DDR_B_D1 <7> DDR_B_D5 <7> DDR_B_D3 <7> DDR_B_D7 <7> DDR_B_D4 <7> DDR_B_D0 <7> DDR_B_D2 <7> DDR_B_D6 <7> DDR_B_D28 <7> DDR_B_D29 <7> DDR_B_D30 <7> DDR_B_D31 <7> DDR_B_D24 <7> DDR_B_D25 <7> DDR_B_D26 <7> DDR_B_D27 <7>

DDR_B_CAA_0 <7> DDR_B_CAA_1 <7> DDR_B_CAA_2 <7> DDR_B_CAA_3 <7> DDR_B_CAA_4 <7> DDR_B_CAA_5 <7> DDR_B_CAA_6 <7> DDR_B_CAA_7 <7> DDR_B_CAA_8 <7> DDR_B_CAA_9 <7>

DDR_B_DQS2 <7> DDR_B_DQS1 <7> DDR_B_DQS0 <7> DDR_B_DQS3 <7>

DDR_B_DQS#2 <7> DDR_B_DQS#1 <7> DDR_B_DQS#0 <7> DDR_B_DQS#3 <7>

DDR_B_CKE0 <7> DDR_B_CKE1 <7>

M_CLK_B_DDR#0 <7>

+VREFCA +VREFDQ_B

+0.6VS_VTT

DDR_B_CAA_0 DDR_B_CAA_1 DDR_B_CAA_2 DDR_B_CAA_3 DDR_B_CAA_4 DDR_B_CAA_5 DDR_B_CAA_6 DDR_B_CAA_7 DDR_B_CAA_8 DDR_B_CAA_9 DDR_B_CAB_0 DDR_B_CAB_1 DDR_B_CAB_2 DDR_B_CAB_3 DDR_B_CAB_4 DDR_B_CAB_5 DDR_B_CAB_6 DDR_B_CAB_7 DDR_B_CAB_8 DDR_B_CAB_9

M_CLK_B_DDR#0

M_CLK_B_DDR0

M_CLK_B_DDR#1

M_CLK_B_DDR1

RD56 80.6_0402_1% RD57 80.6_0402_1% RD58 80.6_0402_1% RD59 80.6_0402_1% RD60 80.6_0402_1% RD61 80.6_0402_1% RD62 80.6_0402_1%

DDR_B_CS0# DDR_B_CS1# DDR_B_ODT0 DDR_B_CKE0 DDR_B_CKE1 DDR_B_CKE2 DDR_B_CKE3

0.047U_0402_16V7K

1

CD6

2

0.047U_0402_16V7K

1

CD8

2

12

RD36 68_0402_1%

12

RD37 68_0402_1%

12

RD38 68_0402_1%

12

RD39 68_0402_1%

12

RD40 68_0402_1%

12

RD41 68_0402_1%

12

RD42 68_0402_1%

12

RD43 68_0402_1%

12

RD44 68_0402_1%

12

RD45 68_0402_1%

12

RD46 68_0402_1%

12

RD47 68_0402_1%

12

RD48 68_0402_1%

12

RD49 68_0402_1%

12

RD50 68_0402_1%

12

RD51 68_0402_1%

12

RD52 68_0402_1%

12

RD53 68_0402_1%

12

RD54 68_0402_1%

12

RD55 68_0402_1%

1 2 1 2 1 2 1 2 1 2 1 2 1 2

RD67

37.4_0402_1%

1 2

RD68

37.4_0402_1%

1 2

RD69

37.4_0402_1%

1 2

RD70

37.4_0402_1%

1 2

+0.6VS_VTT

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Compal Electronics, Inc.

LPDDR3_B

B3ZMS LA-D591P

1

19 45Wednesday, February 24, 2016

2.0

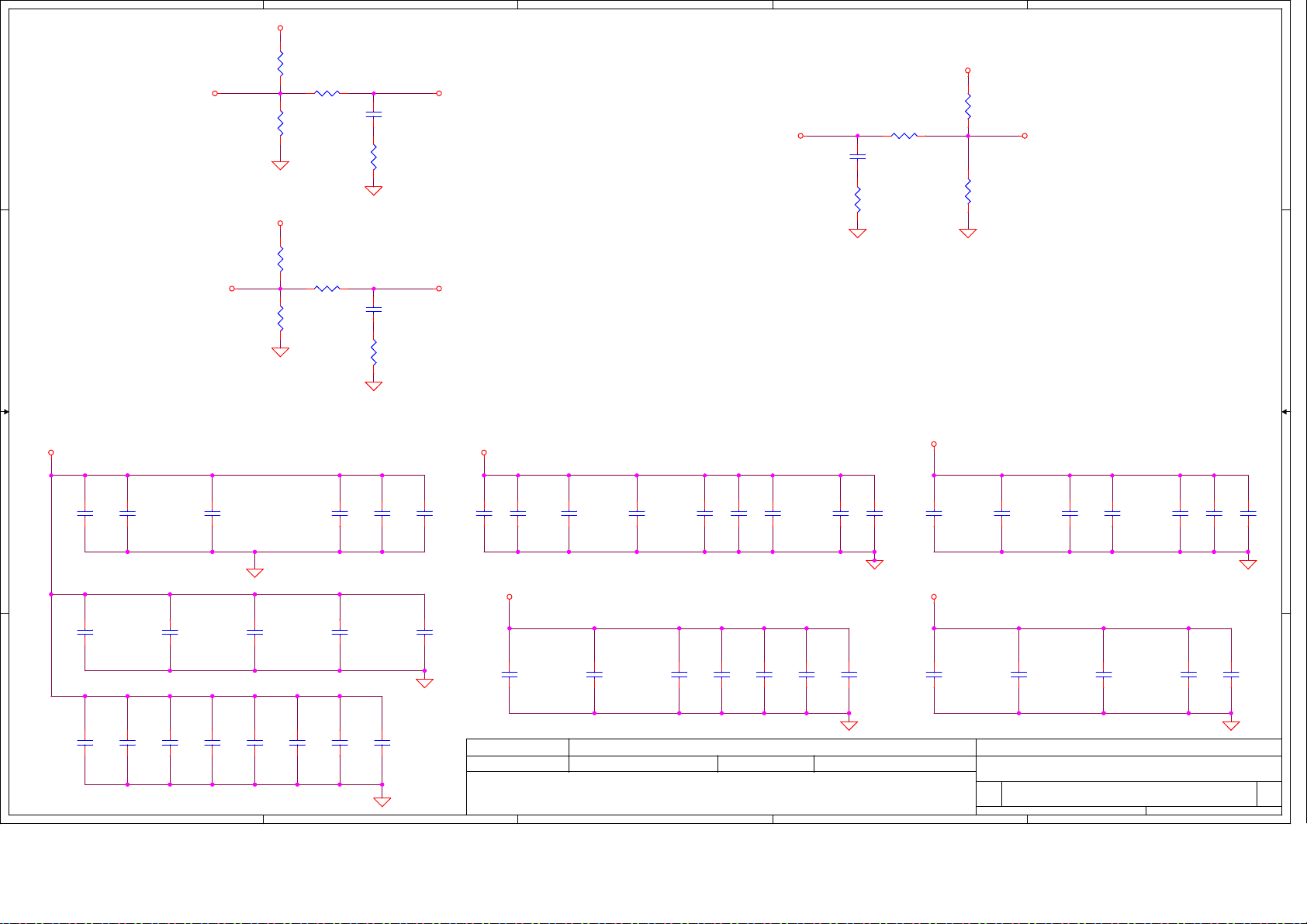

5

+1.2V_VDDQ

12

RD71

8.2K_0402_1%

RD72

<LPDDR3_A_DQ> <CPU>

D D

<LPDDR3_B_DQ>

C C

+VREFDQ_A

+VREFDQ_B

RD74

8.2K_0402_1%

+1.2V_VDDQ

RD79

8.2K_0402_1%

RD81

8.2K_0402_1%

12

1 2

10_0402_1%

RD80

1 2

10_0402_1%

4

1

CD9

0.022U_0402_25V7K

2

12

RD76

24.9_0402_1%

1

CD11

0.022U_0402_25V7K

2

12

RD82

24.9_0402_1%

+V_DDR_REFA_C

+V_DDR_REFB_C

<CPU>

3

<CPU>

+VREF_CA_C

0.022U_0402_25V7K

CD10

RD77

24.9_0402_1%

1

2

12

2

RD75

1 2

5.11_0402_1%

+1.2V_VDDQ

12

RD73

8.2K_0402_1%

12

RD78

8.2K_0402_1%

+VREFCA

1

<LPDDR3_A_CA> <LPDDR3_B_CA>

+1.2V_VDDQ

B B

A A

VDDQ DECAPS (10UF * 5 / 1UF *12 / 0.1UF *8)

CD12

10U_0603_6.3V6M

CD13

22U_0603_6.3V6M

1

2

CD42

2.2U_0402_6.3V6M

1

2

CD68

0.1U_0201_10V6K

1

2

CD69

0.1U_0201_10V6K

1

2

5

CD15

22U_0603_6.3V6M

1

2

CD46

CD44

2.2U_0402_6.3V6M

1

2

CD71

CD70

0.1U_0201_10V6K

1

2

2.2U_0402_6.3V6M

1

2

CD72

0.1U_0201_10V6K

1

2

CD73

0.1U_0201_10V6K

1

2

CD17

1U_0402_6.3V6K

CD18

1U_0402_6.3V6K

1

2

CD48

2.2U_0402_6.3V6M

1

2

CD75

CD74

1

2

0.1U_0201_10V6K

1

2

4

+0.6VS_VTT

CD30

CD21

CD19

1

2

CD50

1

2

CD20

1U_0402_6.3V6K

Security Classification

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

10U_0603_6.3V6M

1

2

+1.2V_VDDQ

CD51

1

2

Issued Date

10U_0603_6.3V6M

CD22

2.2U_0402_6.3V6M

1

2

1

2

VDD2 DECAPS 1UF * 9

2.2U_0402_6.3V6M

CD53

2.2U_0402_6.3V6M

1

2

2015/10/21

CD24

2.2U_0402_6.3V6M

1

2

CD55

1

2

3

CD27

CD26

1U_0402_6.3V6K

1

2

CD56

1U_0402_6.3V6K

Compal Secret Data

CD28

1U_0402_6.3V6K

1

2

CD57

1U_0402_6.3V6K

1

2

Deciphered Date

1

2

1U_0402_6.3V6K

2.2U_0402_6.3V6M

CD58

1U_0402_6.3V6K

1

2

CD59

1U_0402_6.3V6K

1

@

2

2016/06/21

+1.8V_MEM

VDD1 DECAPS (10UF * 5 / 1UF * 5)VTT DECAPS (10UF * 2 / 1UF * 10)

CD32

1

2

+1.2V_VDDQ

22U_0603_6.3V6M

CD34

22U_0603_6.3V6M

1

2

CD31

1U_0402_6.3V6K

1

2

CD36

10U_0603_6.3V6M

CD37

2.2U_0402_6.3V6M

1

2

CD39

1U_0402_6.3V6K

1

2

CD41

CD40

1U_0402_6.3V6K

1

2

VDDCA DECAPS 10UF * 8

22U_0603_6.3V6M

CD60

1

2

Title

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

22U_0603_6.3V6M

CD62

1

2

Compal Electronics, Inc.

B3ZMS LA-D591P

Wednesday, February 24, 2016

22U_0603_6.3V6M

CD64

1

2

LPDDR3 VREF

1

CD66

1

2

10U_0603_6.3V6M

CD67

1

@

2

2.0

4520

A

STARC_300E40-1010RA-G3

LCD POWER CIRCUIT

CX1

1U_0402_6.3V6K

1

2

1 1

2 2

3 3

SOC_ENVDD<6>

EDP_TXP0<6> EDP_TXN0<6> EDP_TXP1<6> EDP_TXN1<6> EDP_TXP2<6> EDP_TXN2<6> EDP_TXP3<6> EDP_TXN3<6>

EDP_AUXP<6>

EDP_AUXN<6>

CX8 0.1U_0201_10V6K CX9 0.1U_0201_10V6K CX10 0.1U_0201_10V6K CX11 0.1U_0201_10V6K CX12 0.1U_0201_10V6K CX13 0.1U_0201_10V6K CX15 0.1U_0201_10V6K CX16 0.1U_0201_10V6K

CX18 0.1U_0201_10V6K CX19 0.1U_0201_10V6K

5

4

1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2

1 2 1 2

EDP_AUXN_C EDP_AUXP_C

UX1

IN

EN

SY6288C20AAC_SOT23-5

OUT

GND

OC

RX5 100K_0402_5%@ RX6 100K_0402_5%@

1 2 3

EDP_TXP0_C EDP_TXN0_C EDP_TXP1_C EDP_TXN1_C EDP_TXP2_C EDP_TXN2_C EDP_TXP3_C EDP_TXN3_C

EDP_AUXP_C EDP_AUXN_C

12 12

W=60mils

1

2

CX3

4.7U_0603_6.3V6K

+3VS

+LCDVDD+3VS

B

1

CX4

0.1U_0201_10V6K

2

@

W=60mils W=60mils

SM01000EJ00 3000ma 220ohm@100mhz DCR 0.04

SOC_BKL_PWM<6>

BKOFF#<27>

Place closed to JEDP1

+3VS

1

CX20

0.1U_0201_10V6K

2

SOC_BKL_PWM

BKOFF#

C

+INVPWR_B++19VB

LX1

HCB2012KF-221T30_0805

1 2

EMC@

CX2

68P_0402_50V8J

@EMC@

1 2

RX1 100K_0402_5%@

@EMC@

1 2

CX14 220P_0402_50V7K CX17 220P_0402_50V7K RX3 10K_0402_5%@

1 2

@EMC@

D

CX5

1000P_0402_50V7K

1

2

@EMC@

2

I2C_TS_INT#<6>

I2C_TS_RST#<27>

TS_EN<11,27>

+3VS

EDP_HPD<6>

I2C_TS_RST# TS_EN

1 2

RX4 0_0603_5%

LCD/LED PANEL Conn.

EDP_AUXP_C EDP_AUXN_C

EDP_TXP0_C EDP_TXN0_C

EDP_TXP1_C EDP_TXN1_C

EDP_TXP2_C EDP_TXN2_C

EDP_TXP3_C EDP_TXN3_C

+TS_PW R

@

+LCDVDD

+INVPWR_B+

I2C_0_SDA_TS I2C_0_SCL_TS

+3VS_CAMERA USB20_P7_CAMERA USB20_N7_CAMERA

BKOFF# SOC_BKL_PWM

I2C Touch Screen

1 2

RX8 0_0603_5%@

+3VS +5VS

1 2

I2C_0_SDA<11> I2C_0_SCL<11>

USB20_N6<12>

USB20_P6<12>

RX10 0_0402_5%@

1 2

RX11 0_0402_5%@

1 2

RX12 0_0402_5%@

1 2

RX13 0_0402_5%@

1 2

RX9 0_0603_5%

I2C_0_SDA_TS I2C_0_SCL_TS

E

+TS_PW R

JEDP1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

GND

42

GND

43

GND

44

GND

CONN@ SP010022J00

Camera

USB20_N7<12>

USB20_P7<12>

4 4

Security Classification

2015/10/21 2016/06/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

C

Compal Secret Data

Deciphered Date

D

USB20_P7

Title

Size Document Number Rev

Custom

Date: Sheet of

1 2

RX14 0_0402_5%@EMC@

LX2

EMC@

3 4

MCM1012B900F06BP_4P

SM070003Z00

1 2

RX15 0_0402_5%@EMC@

Compal Electronics, Inc.

eDP Connector

B3ZMS LA-D591P

12

E

USB20_N7_CAMERAUSB20_N7

USB20_P7_CAMERA

21 45Wednesday, February 24, 2016

2.0

A

W=40mils

+5VS +HDMI_5V_OUT

UY1

3

IN

1 2

1 2 1 2

OUT

GND

2

1

1 1

AP2330W-7_SC59-3

+3VS +3VS_ALS

RY5 0_0603_5%@

+3VS_ALS

RY8 4.7K_0402_5%@ RY9 4.7K_0402_5%@

2 2

1

CY3

0.1U_0201_10V6K

2

HDMI_DCIN_EN HDMI_CFG

SOC_DP2_P0<6> SOC_DP2_N0<6>

SOC_DP2_P1<6> SOC_DP2_N1<6>

SOC_DP2_P2<6> SOC_DP2_N2<6>

SOC_DP2_P3<6> SOC_DP2_N3<6>

+1.5VS

W=40mils

CY4

1

2

0.1U_0201_10V6K

CY8 0.1U_0201_10V6K CY9 0.1U_0201_10V6K

CY10 0.1U_0201_10V6K CY11 0.1U_0201_10V6K

CY12 0.1U_0201_10V6K CY13 0.1U_0201_10V6K

CY14 0.1U_0201_10V6K CY15 0.1U_0201_10V6K

HPD_SNK with Internal PD 150K

RY11

4.75K_0402_1%

B

0.01U_0402_16V7K

CY5

CY6

1

2

0.1U_0201_10V6K

12 12

T112@ RY2 0_0402_5%@

12

2

HDMI_BUF HDMI_DCIN_EN HDMI_EQ

HDMI_HPD

HDMI_CFG HDMI_PRE

CY7

HDMI_C_TX2+ HDMI_C_TX2-

HDMI_C_TX1+ HDMI_C_TX1-

HDMI_C_TX0+ HDMI_C_TX0-

HDMI_C_CLK+ HDMI_C_CLK-

UY2

19

VDD15_1

20

VDD15_2

31

VDD15_3

40

VDD15_4

1

IN_D2+

2

IN_D2-

4

IN_D1+

5

IN_D1-

6

IN_D0+

7

IN_D0-

9

IN_CLK+

10

IN_CLK-

14

DDCBUF/SDA_CTL

13

DCIN_EN/SCL_CTL

17

EQ/I2C_ADDR

8

I2C_CTL_EN

28

HPD_SNK

18

REXT

36

PD#

23

CFG

16

PRE

PS8201ATQFN40GTR2A0_TQFN40_5X5

OUT_D2+

OUT_D2-

OUT_D1+

OUT_D1-

OUT_D0+

OUT_D0-

OUT_CLK+

OUT_CLK-

SDA_SRC SCL_SRC SDA_SNK SCL_SNK

HPD_SRC

PS8407A --- SA000077R30

VDD33

NC_1 NC_2 NC_3 NC_4

GND

EPAD

C

11 30

29 27

26 25

24 22

21 39

SOC_DP2_CTRL_DATA

38

SOC_DP2_CTRL_CLK

33

HDMI_SDATA

32

HDMI_SCLK

3

12 15 34

HDMI_ISET

37

35 41

+3VS_ALS

0.01U_0402_16V7K CY1

1

SOC_DP2_HPD

RY7 100K_0402_5%

1

2

ALS_TX2+ ALS_TX2-

ALS_TX1+ ALS_TX1-

ALS_TX0+ ALS_TX0-

ALS_CLK+ ALS_CLK-

1 2

+3VS_ALS

0.01U_0402_16V7K CY16

2

1

2

close pin12,37

CY2

0.1U_0201_10V6K

+1.5VS

0.01U_0402_16V7K CY17

+HDMI_5V_OUT

+3VS

45

SOC_DP2_HPD <6>

182736

RPY1

2.2K_0804_8P4R_5%

D

SOC_DP2_CTRL_DATA <6> SOC_DP2_CTRL_CLK <6>

ALS_CLK+ HDMI_R_CK+ ALS_CLKALS_TX0+ HDMI_R_D0+ ALS_TX0- HDMI_R_D0ALS_TX1+ HDMI_R_D1+ ALS_TX1ALS_TX2+ HDMI_R_D2+ ALS_TX2- HDMI_R_D2-

1 2

RY1 0_0402_5%@

1 2 1 2

RY3 0_0402_5%@

1 2

RY4 0_0402_5%@

1 2

RY6 0_0402_5%@

1 2

RY10 0_0402_5%@

1 2

RY12 0_0402_5%@

1 2

RY13 0_0402_5%@

E

HDMI_R_CK-

HDMI_R_D1-

Intel Sugesstion

1 2

RY14 20K_0402_5%@

HDMI_SDATA HDMI_SCLK

DY1

@EMC@

HDMI_HPD

2

3

1

HDMI_R_CKHDMI_R_CK+

HDMI_R_D0HDMI_R_D0+

HDMI_R_D1HDMI_R_D1+

HDMI_R_D2HDMI_R_D2+

+3VS_ALS +3VS_ALS

12

RY15

@

4.7K_0402_5%

HDMI_BUF

3 3

Enable active DDC buffer; Internal pull down at ~150KΩ, 3.3V I/O L: default, passive DDC pass-through H: active DDC buffer with internal pull up2.36K resistor M: active DDC buffer without internal pull up resistor

12

RY19

@

4.7K_0402_5%

12

RY16

@

4.7K_0402_5%

HDMI_PRE

12

RY20

@

4.7K_0402_5%

Output pre-emphasis setting; Internal pull down at ~150kΩ,

3.3V I/O. L: no pre-emphasis H: 1.6dB pre-emphasis M: 3.0dB pre-emphasis

+3VS_ALS

12

RY17

@

4.7K_0402_5%

HDMI_EQ

12

RY21

@

4.7K_0402_5%

Receiver equalization setting; Internal pull down at ~150kΩ, 3.3V I/O. L: programmable EQ for channel loss up to 5.3dB H: programmable EQ for channel loss up to 10dB M: programmable EQ for channel loss up to 14dB

+3VS_ALS

12

@

12

@

RY18

4.7K_0402_5%

HDMI_ISET

RY22

4.7K_0402_5%

+HDMI_5V_OUT

MESC5V02BD03_SOT23-3

HDMI connector

JHDMI1

19

HP_DET

18

+5V

17

DDC/CEC_GND

16

SDA

15

SCL

14

Reserved

13

CEC

12

CK-

11

CK_shield

10

CK+

9

D0-

8

D0_shield

7

D0+

6

D1-

5

D1_shield

4

D1+

3 2 1

GND

D2-

GND

D2_shield

GND

D2+

GND

CCM_C100042GR019M298ZL

CONN@ DC232003500

20 21 22 23

4 4

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

D

Date: Sheet of

Compal Electronics, Inc.

HDMI CONN.

B3ZMS LA-D591P

2.0

22 45Wednesday, February 24, 2016

E

2.0

5

4

3

2

1

JSSD1

1

GND

3

GND

PCIE_CRX_DTX_N4<12> PCIE_CRX_DTX_P4<12>

PCIE_CTX_C_DRX_N4<12>

D D

SATA_CRX_DTX_P0<12> SATA_CRX_DTX_N0<12>

SATA_CTX_DRX_N0<12> SATA_CTX_DRX_P0<12>

C C

PCIE_CTX_C_DRX_P4<12> PCIE_CRX_DTX_N3<12>

PCIE_CRX_DTX_P3<12> PCIE_CTX_C_DRX_N3<12>

PCIE_CTX_C_DRX_P3<12> PCIE_CRX_DTX_N2<12>

PCIE_CRX_DTX_P2<12> PCIE_CTX_C_DRX_N2<12>

PCIE_CTX_C_DRX_P2<12>

PCIE_CRX_DTX_N1<12> PCIE_CRX_DTX_P1<12>

PCIE_CTX_C_DRX_N1<12> PCIE_CTX_C_DRX_P1<12>

SATA_CRX_DTX_P0 SATA_CRX_DTX_N0

SATA_CTX_DRX_N0 SATA_CTX_DRX_P0

1 2

CM7 0.01U_0201_6.3V7K

1 2

CM8 0.01U_0201_6.3V7K

1 2

CM9 0.01U_0201_6.3V7K

1 2

CM10 0.01U_0201_6.3V7K

1 2

RM12 0_0402_5%@

1 2

RM13 0_0402_5%@

1 2

RM16 0_0402_5%@

1 2

RM17 0_0402_5%@

CLK_PCIE_NGFF#<10> CLK_PCIE_NGFF<10>

PCIE_CRX_R_DTX_N1 PCIE_CRX_R_DTX_P1

PCIE_CTX_R_DRX_N1 PCIE_CTX_R_DRX_P1

SSD_DET#<11>

5

PERn3

7

PERp3

9

GND

11

PETp3

13

PETn3

15

GND

17

PERn2

19

PERp2

21

GND

23

PETp2

25

PETn2

27

GND

29

PERn1

31

PERp1

33

GND

35

PETn1

37

PETp1

39

GND

41

PERn0/SATA B+

43

PERp0/SATA B-

45

GND

47

PETn0/SATA A-

49

PETp0/SATA A+

51

GND

53

REFCLKn

55

REFCLKp

57

GND

59

N/C

61

PEDET

63

GND

65

GND

67

GND

69

MTG77

LTCX005V800 BELLW_80159-3221_67P-T

3.3VAUX

DAS/DSS#

3.3VAUX

DEVSLP

PERST# CLKREQ# PEWake#

SUSCLK

3.3VAUX

MTG76

N/C N/C

N/C N/C N/C N/C N/C N/C N/C N/C N/C

N/C N/C N/C N/C N/C

N/C N/C

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

NGFF_SSD_RST#_R

52

NGFF_CLKREQ#_R

54 56 58

60 62 64 66

68

+3VS_SSD_NGFF

SUSCLK_SSD

1 2

RM8 0_0402_5%@

1 2

RM9 0_0402_5%

1 2

RM10 0_0402_5%@

1 2

RM11 0_0402_5%@

RM14

1 2

0_0402_5%@

+3VS_SSD_NGFF

DEVSLP0 <12>

PLT_RST_BUF# <10,26> NGFF_CLKREQ# <10>

SUSCLK <10>

1 2

RM2 0_0805_5%@

+3VS_SSD_NGFF+3VS

1

2

CM5 10U_0603_6.3V6M

1

CM6

0.1U_0201_10V6K

2

B B

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

mSATA & NFC

B3ZMS LA-D591P

1

2.0

23 45Wednesday, February 24, 2016

2.0

A

1 1

2 2

B

C

D

E

USB3.0 (Port 2)

1 2

A

USB3_CTX_C_DRX_N2

0.1U_0201_10V6K

USB3_CTX_C_DRX_P2

0.1U_0201_10V6K

@

1

CS14

2

U2DN2 USB20_N2_L

8

CB

7

TDM

6

TDP

5

VDD

Thermal Pad

SLG55594AVTR_TDFN8_2X2

SA00006L600

USB3_CTX_DRX_N2<12>

USB3_CTX_DRX_P2<12>

USB3_CRX_DTX_N2<12>

USB3_CRX_DTX_P2<12>

3 3

USB Host Charger

SELCDPCB X

0

1 1

4 4

1

USB20_N2<12> USB20_P2<12>

USB_CB<27>

+5VALW

CS7

CS10

DCP(Dedicated Charging Port) autodetect with mouse/keyboard wakeup

S0 charging with SDP(Standard Downstream Port) only S0 charging with CDP(Charging Downstream Port) or

SDP only

RS12 0_0402_5%

0.1U_0201_10V6K

For RF request

1 2

RS6 0_0402_5%@EMC@

1 2

RS7 0_0402_5%@EMC@

3 4

LS4

EMC@

SM070003V00

HCM1012GH900BP_4P

1 2

RS9 0_0402_5%@EMC@

1 2

RS10 0_0402_5%@EMC@

3 4

LS5

EMC@

SM070003V00

HCM1012GH900BP_4P

Note: (A4WAS PVT) Delete 0 ohm path for DFX request Avoid Common Mode Choke Shift

LS6

EMC@

3 4

MCM1012B900F06BP_4P

SM070003Z00

+3VLP

12

US3

1

CEN

SELCDP

USB_CEN

2

U2DN2

DM

3

U2DP2

DP

4 9

12

RS11 10K_0402_5%

1 2

RS13 10K_0402_5%

USB_SELCDP <27>

B

USB3_CTX_L_DRX_N2

USB3_CRX_L_DTX_N2

USB3_CRX_L_DTX_P2

USB20_P2_LU2DP2

USB_CEN <27>

@

+5VALW

For ESD request

DS3

EMC@

USB3_CTX_L_DRX_P2 USB3_CTX_L_DRX_P2

USB3_CRX_L_DTX_P2 USB3_CRX_L_DTX_P2USB3_CTX_L_DRX_P2 USB3_CRX_L_DTX_N2 USB3_CRX_L_DTX_N2

1

2

4

5 3

3

8

L05ESDL5V0NA-4 SLP2510P8

9

10

8

USB3_CTX_L_DRX_N2USB3_CTX_L_DRX_N2

9

7

6

65

1 2

USB_CHARGE_2A<27>

+5VALW

CS9

@

1U_0402_6.3V6K

W=100mils

DS4

EMC@

6

I/O4

+USB3_VCCB

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

VDD

4

I/O3

AZC099-04S.R7G_SOT23-6

C

3

I/O2

GND

I/O1

2015/10/21 2016/06/21

USB20_P2_L

2

1

USB20_N2_L

Compal Secret Data

Deciphered Date

150U_B2_6.3VM_R35M

D

CS12

SGA00009M00

USB20_N2_L USB20_P2_L

USB3_CRX_L_DTX_N2 USB3_CRX_L_DTX_P2

USB3_CTX_L_DRX_N2 USB3_CTX_L_DRX_P2

+USB3_VCCB

US2

5

IN

4

EN

SY6288C20AAC_SOT23-5

+USB3_VCCB

1

+

CS13

0.1U_0201_10V6K

2

Title

Size Document Number Rev

Custom

Date: Sheet of

OUT GND

1 2 3

OC

1 2

RS8 0_0402_5%@

W=60mils

1

2

USB3.0 Conn

JUSB2

1

VBUS

2

D-

3

D+

4

GND

5

SSRX-

6

SSRX+

7

GND

8

SSTX-

9

SSTX+

ACON_TARAG-9R1391

CONN@ DC23300DK00

Compal Electronics, Inc.

USB3.0 Conn/USB_B

B3ZMS LA-D591P

GND GND GND GND

10 11 12 13

E

CS11

0.1U_0201_10V6K

@

24 45Wednesday, February 24, 2016

USB_OC1# <12>

2.0

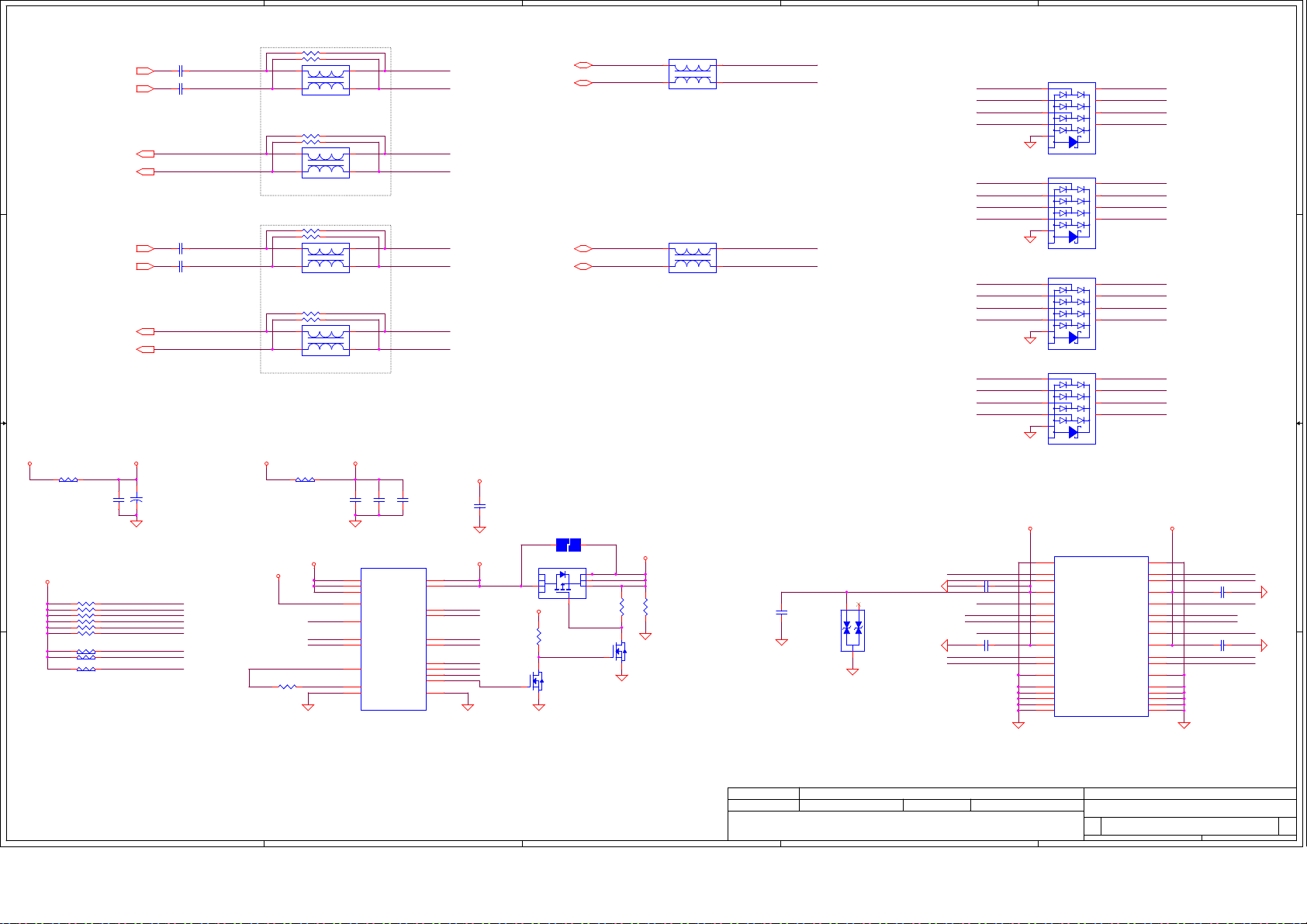

5

For RF request

1 2

USB3.0 (Port 3)

1 2

USB3_CTX_C_DRX_N3 USB3_CTX_L_DRX_N3

USB3_CTX_DRX_N3<12>

USB3_CTX_DRX_P3<12>

D D

USB3_CRX_DTX_N3<12>

USB3_CRX_DTX_P3<12>

CS15

0.1U_020 1_10V6 K

1 2

USB3_CTX_C_DRX_P3 USB3_CTX_ L_DRX_P3

CS16

0.1U_020 1_10V6 K

USB3_CRX_DTX_N3

USB3_CRX_DTX_P3

USB3.0 (Port 4)

1 2

USB3_CTX_C_DRX_N4 USB3_CTX_L_DRX_N4

USB3_CTX_DRX_N4<12>

USB3_CTX_DRX_P4<12>

C C

RS22 0_0805_5 %@

B B

+3VALW _CC

A A

USB3_CRX_DTX_N4<12>

USB3_CRX_DTX_P4<12>

120mils 3A

1 2

CS19

10U_0603_6.3V6 M

1 2

RS24 100K_0402_5%

1 2

RS25 100K_0402_5%

1 2

RS26 100K_0402_5%

1 2

RS27 100K_0402_5%

1 2

RS28 100K_0402_5%

1 2

RS29 100K_0402_5%

1 2

RS30 0_0402_5%@

1 2

RS31 0_0402_5%@

1 2

RS32 0_0402_5%@

CS17

0.1U_020 1_10V6 K

1 2

USB3_CTX_C_DRX_P4 USB3_CTX_ L_DRX_P4

CS18

0.1U_020 1_10V6 K

USB3_CRX_DTX_N4

USB3_CRX_DTX_P4

+5VALW _CC+5VALW

1

+

CS25 150U_B2_6.3VM_R35M

SGA0000 9M00

@

2

CC_FAULT# CC_LD_DET# CC_UFP# CC_POL# CC_EN CC_AUDIO# CC_DEBUG#

CC_CHG CC_CHG_HI

CC_EN

RS14 0_0402_5%@EMC@

1 2

RS15 0_0402_5%@EMC@

3 4

LS7

EMC@ SM07 0003V0 0

HCM1012GH900BP_4P

1 2

RS16 0_0402_5%@EMC@

1 2

RS17 0_0402_5%@EMC@

3 4

LS9

EMC@

HCM1012GH900BP_4P

For RF request

1 2

RS18 0_0402_5%@EMC@

1 2

RS19 0_0402_5%@EMC@

3 4

LS10

EMC@ SM07 0003V0 0

HCM1012GH900BP_4P

1 2

RS20 0_0402_5%@EMC@

1 2

RS21 0_0402_5%@EMC@

3 4

LS12

EMC@

HCM1012GH900BP_4P

1 2

RS23 0_0603_5 %@

+5VALW _CC

+3VALW _CC

CC_CHG CC_CHG_HI

CC_REF

1 2

RS33 100K_040 2_1%

SM070003V00

+3VALW _CC+3VALW

4

12

USB3_CRX_L_DTX_N3

USB3_CRX_L_DTX_P3

12

USB3_CRX_L_DTX_N4

USB3_CRX_L_DTX_P4

0.1U_0201_10V6K

10U_0603_6.3V6M

1

CS21

CS20

2

US4

2

IN1

3

IN1

4

IN2

5

AUX

LD_DETb

6

EN

7

CHG

8

CHG_HI

10

REF

9

GND1

12

GND2

powerpad

TPS25810RVCR_QFN20_4X3

USB20_P3<12>

USB20_N3<12>

USB20_P4<12>

USB20_N4<12>

1

2

FAULTb

DEBUGb

AUDIOb

POLb UFPb

0.01U_0402_16V7K CS22

OUT OUT

CC1 CC2

+5VALW _CC_VOUT

1

CS37 10U_0603_6.3V6 M

2

+5VALW _CC_VOUT

120mils 3A120mils 3A 120mils 3A

14 15

1 20

11 13

16 17 18 19

21

CC_FAULT# CC_LD_DET#

CC1_VCONN CC2_VCONN

CC_DEBUG# CC_AUDIO# CC_POL# CC_UFP#

30V 10mOhm

10K_040 2_5% @

QS1 AON6405L 1P DFN@

+3VALW _CC

12

RS56

61

@

QS2A

2

DMN66D0LDW -7_SOT363-6

USB20_N3 USB20_N3_L

USB20_N4 USB20_N4_L

J17

@

2

112

JUMP_43X118

1 2 35

4

100K_04 02_5%@

12

RS34

34

@

QS2B

5

DMN66D0LDW -7_SOT363-6

3

3 4

+USB3_VCCC

12

RS35 1M_0402_5%@

LS8

EMC@

MCM1012B900F06BP_4P

SM070003Z00

LS11

EMC@

MCM1012B900F06BP_4P

SM070003Z00

12

0.1U_040 2_25V6

CS29

2

USB20_P3_LUSB20_P3

USB20_P4_LUSB20_P4

1

2

3

EMC@

DS12

1

MESC5V02 BD03_SO T23-3

For ESD request

DS5

EMC@

L05ESDL5V0NA-4 S LP2510 P8

+USB3_VCCC

CS230.47U_04 02_25V 6K

CS270.47U_04 02_25V 6K

1

2

4

5 3

3

8

DS6

EMC@

1

2

4

5 3

3

8

DS8

EMC@

1

2

4

5 3

3

8

DS10

EMC@

1

2

4

5 3

3

8

JUSB3

A1

GND

A2

SSTXP1

A3

SSTXN1

A4

VBUS

A5

CC1

A6

DP1

A7

DN1

A8

SBU1

A9

VBUS

A10

SSRXN2

A11

SSRXP2

A12

GND

1

GND

2

GND

3

GND

4

GND

5

GND

LOTES_AUS B0164-P008A

CONN@ DC231508 211

10

9

7

65

10

9

7

65

10

9

7

65

10

9

7

65

TBTA_SBU1 CC1_VCONN USB3_CTX_L_DRX_N3 USB3_CTX_L_DRX_P3

USB3_CTX_L_DRX_P4 USB3_CTX_L_DRX_P4

USB20_P4_L USB20_P4_L USB20_N4 _L USB20_N4 _L

CC2_VCONN TBTA_SBU2

USB3_CRX_L_DTX_P3 USB3_CRX_L_DTX_P3

USB20_P3_L USB20_P3_L

USB3_CRX_L_DTX_N4 USB3_CRX_L_DTX_P4

USB3_CTX_L_DRX_P3 USB3_CTX_L_DRX_N3

12

CC1_VCONN

USB20_P3_L USB20_N3 _L

TBTA_SBU1

12

USB3_CRX_L_DTX_N4 USB3_CRX_L_DTX_P4

9

TBTA_SBU1

8

CC1_VCONN

7

USB3_CTX_L_DRX_N3

6

USB3_CTX_L_DRX_P3

9 8

USB3_CTX_L_DRX_N4USB3_CTX_L_DRX_N4

7 6

9

CC2_VCONN

8

TBTA_SBU2

7

USB3_CRX_L_DTX_N3USB3_CRX_L_DTX_N3

6

9 8

USB20_N3 _LUSB20_N3_L

7

USB3_CRX_L_DTX_N4

6

USB3_CRX_L_DTX_P4

SSTXP2 SSTXN2

VBUS

SBU2 VBUS

SSRXN1 SSRXP1

GND

CC2

DN2

GND GND

GND GND GND GND

DP2

1

+USB3_VCCC

B1 B2

B3 B4

CS28 0.47U_0402_25V6K

B5

CC2_VCONN

B6

USB20_P4_L

B7

USB20_N4 _L

B8

TBTA_SBU2

B9

CS24 0.47U_0402_25V6K

B10

USB3_CRX_L_DTX_N3

B11

USB3_CRX_L_DTX_P3

B12 6

7 8 9 10

USB3_CTX_L_DRX_P4 USB3_CTX_L_DRX_N4

1 2

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

5

4

3

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

NV(3/5)-POWER

Size Document Number Rev

Custom

Custom Date: Sheet of

Date: Sheet of

B3ZMS LA-D591P

1

25

45Wednesday, February 24, 2016

2.0

5

4

3

2

1

Audio

D D

Digital MIC Singal-MIC

MIC BOM upload by Audio Team

C C

B B

+5VS +VDDA

40mil 40mil

1 2

@

RA2 0_0805_5%

CA36

.1U_0402_16V7K

1

(output = 300 mA)

2

@EMC@

GND

Reserved for ESD

DMIC_CLK_1 DMIC_DATA_1 DMIC_DATA

RA11 0_0402_5%@ RA12 0_0402_5%@

1 2 1 2

4.75V

BEEP#<27>

SPKR<9,11>

DMIC_CLK

RA30 22K_0402_5%

RA31 22K_0402_5%

12

MIC1

GND1VDD

2

CS

3

GND

NSM0408DT_6P

CY000002W00

1

@EMC@

CA29

100P_0402_50V8J

4.7K_0402_5%

2

1 2

GND

@

6 5

DMIC_DATA

DATA

4

DMIC_CLK

CLK

MESC5V02BD03_SOT23-3

DA3

@EMC@

1U_0402_6.3V6K

RA32

2

1

CA28

1 2

3

+3VS

MONO_INBEEP#_R

1

CA14

0.1U_0201_10V6K

@

2

60pin BTB Conn.

JSB1

USB3_CRX_DTX_P1<12> USB3_CRX_DTX_N1<12> USB3_CTX_DRX_P1<12> USB3_CTX_DRX_N1<12>

USB20_P1<12>

USB20_N1<12> USB20_P5<12> USB20_N5<12>

PCIE_CRX_DTX_P6<12>

PCIE_CRX_DTX_N6<12> PCIE_CTX_C_DRX_P6<12> PCIE_CTX_C_DRX_N6<12>

PCIE_CRX_DTX_P9<12> PCIE_CRX_DTX_N9<12> PCIE_CTX_C_DRX_P9<12> PCIE_CTX_C_DRX_N9<12>

CLK_PCIE_WLAN<10> CLK_PCIE_WLAN#<10>

CLK_PCIE_Card<10> CLK_PCIE_Card#<10>

USB3_CRX_DTX_P1 USB3_CRX_DTX_N1 USB3_CTX_DRX_P1 USB3_CTX_DRX_N1 HDA_BIT_CLK_R USB20_P1 USB20_N1 USB20_P5 USB20_N5

PCIE_CRX_DTX_P6 PCIE_CRX_DTX_N6 PCIE_CTX_C_DRX_P6 PCIE_CTX_C_DRX_N6 PCIE_CRX_DTX_P9 PCIE_CRX_DTX_N9 PCIE_CTX_C_DRX_P9 PCIE_CTX_C_DRX_N9

CLK_PCIE_WLAN CLK_PCIE_WLAN# CLK_PCIE_Card CLK_PCIE_Card#

+1.5VS

+5VALW

1 3 5 7

9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49

Wireless LAN

+3VS

WLAN_ON<27>

2

1

2

4

3

4

6

5

6

8

7

8

10

9

10

12

11

12

14

13

14

16

15

16

18

17

18

20

19

20

22

22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60

61 62

MONO_IN Card_CLKREQ# USB_EN BT_ON PLT_RST_BUF# WL_OFF# WLAN_CLKREQ# UART_2_CRXD_DTXD UART_2_CTXD_DRXD WLAN_PME# HDA_RST#_R EC_MUTE# HDA_SYNC_R HDA_SDOUT_R HDA_SDIN0 E51TXD_P80DATA E51RXD_P80CLK DMIC_CLK_1 DMIC_DATA_1

21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 515152 535354 555556 575758 595960

GND GND

60mil

RM15

1 2

0_0805_5%NIOAC@

+3VALW

+3VS_WLAN +3VS

+VDDA

+3VALW

+3VS_WLAN

1

CM12

4.7U_0603_6.3V6K

2

UM2

5

IN

4

EN

SY6288C20AAC_SOT23-5

IOAC@

HDA_BIT_CLK_R <9>

Card_CLKREQ# <10>

USB_EN <27>

BT_ON <27>

PLT_RST_BUF# <10,23> WL_OFF# <27>

WLAN_CLKREQ# <10>

UART_2_CRXD_DTXD <11> UART_2_CTXD_DRXD <11>

WLAN_PME# <27>

HDA_RST#_R <9>

EC_MUTE# <27>

HDA_SYNC_R <9>

HDA_SDOUT_R <9>

HDA_SDIN0 <9> E51TXD_P80DATA <27> E51RXD_P80CLK <27>

1

CM14

0.1U_0201_10V6K

2

+3VS_WLAN

W=60mils

1

OUT

2

GND

3

OC

+3VS_WLAN

12

RM6 10K_0402_5%

WLAN_PME#

E-T_1001K-F60C-01L

SP011212251 CONN@

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

3

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

P29-CardRead/RTS5229

Size Document Number Rev

Custom

Date: Sheet of

1

26 45Wednesday, February 24, 2016

2.0

A

+3VLP

JP1

112

JUMP_43X39

@

For Power consumption Measurement

1 1

RB5

ESPI@

ESPI Bus Pin : 1~5.7.8.10.12.14

47K_0402_5%

SD028470280

For turn off internal LPC module of KB9032

ESPI@

1 2

RB4 47K_0402_5%

1 2

LPC@

RB5 100K_0402_5%

1 2

CB5 100P_0402_50V8J@EMC@

ESPI_RST#

PLT_RST#

LPC Bus Pin : 3~5.7.8.10.12.13

Combine w/ SMI

SUSPWRDNACK<10>

EC_SERIRQ<8,28> LPC_FRAME#<8,28>

LPC_AD3<8,28> LPC_AD2<8,28> LPC_AD1<8,28> LPC_AD0<8,28>

ESPI_CLK_R<8> PLT_RST#<10,28> EC_RST#<29>

EC_SCI#<6>

WLAN_ON<26>

Reserved for ESD 2014/9/17

1 2

CB6 100P_0402_50V8J

EC_KBRST#_R<8>

+3VLP_EC

@EMC@

CB7 22P_0402_50V8J

1 2

RB12 2.2K_0402_5%

1 2

RB13 2.2K_0402_5%

12

RB9 33_0402_5%

2 2

3 3

@EMC@

AC_IN

12

ESPI_CLK_R

RB11 0_0402_5%

1 2

@

EC_KBRST#

EC_SMB_CK1 EC_SMB_DA1

KSO[0..17]<28>

EC_SMB_CK1<33,34> EC_SMB_DA1<33,34>

PU at CPU side For Thermal Portect Shutdown

SOC_SML1CLK<8> SOC_SML1DATA<8>

PM_SLP_S3#<10,30> ESPI_RST#<8>

WL_OFF#<26> AC_PRESENT<10>

FAN_SPEED1<29>

VR_ON<30,39>

E51TXD_P80DATA<26>

E51RXD_P80CLK<26>

PCH_PWROK<10,30>

PWR_SUSP_LED#<28>

VR_PWRGD<39>

PBTN_OUT#<10>

PM_SLP_S4#<10,13,30>

For abnormal shutdown

DB2 RB751V-40_SOD323-2

SPOK

4 4

1 2

DB3 RB751V-40_SOD323-2

1 2

DB4 RB751V-40_SOD323-2

1 2

A

EC_RSMRST#

PCH_PWROK

EC_VCCST_PG_R

B

2

0.1U_0201_10V6K

+3VALW_1.8VALW_PGPPA

CB1

CB2

1

2

SUSPWRDNACK EC_KBRST# EC_SERIRQ LPC_FRAME# LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0

ESPI_CLK_R PLT_RST# EC_RST# EC_SCI# WLAN_ON

KSI[0..7]<28>

SPOK<35,38>

TP_EN<28>

TS_EN<11,21>

KBL_EN<28>

KSI0 KSI1 KSI2 KSI3 KSI4 KSI5 KSI6 KSI7 KSO0 KSO1 KSO2 KSO3 KSO4 KSO5 KSO6 KSO7 KSO8 KSO9 KSO10 KSO11 KSO12 KSO13 KSO14 KSO15 KSO16 KSO17

EC_SMB_CK1 EC_SMB_DA1 SOC_SML1CLK SOC_SML1DATA

PM_SLP_S3# ESPI_RST# SPOK TP_EN TS_EN WL_OFF# AC_PRESENT KBL_EN FAN_SPEED1 VR_ON E51TXD_P80DATA E51RXD_P80CLK

PWR_SUSP_LED# VR_PWRGD

PBTN_OUT# PM_SLP_S4#

CO-LAY with KB9032QA (SA000080J00)

B

12

RB3 0_0402_5%

@

+3VCC_LPC

UB1

1

GATEA20/GPIO00

2

KBRST#/GPIO01

3

SERIRQ

4

LPC_FRAME#

5

LPC_AD3

7

LPC_AD2

8

LPC_AD1

10

LPC_AD0

12

CLK_PCI_EC

13

PCIRST#/GPIO05

37

EC_RST#

20

EC_SCI#/GPIO0E

38

CLKRUN#/GPIO1D

55

KSI0/GPIO30

56

KSI1/GPIO31

57

KSI2/GPIO32

58

KSI3/GPIO33

59

KSI4/GPIO34

60

KSI5/GPIO35

61

KSI6/GPIO36

62

KSI7/GPIO37

39

KSO0/GPIO20

40

KSO1/GPIO21

41

KSO2/GPIO22

42

KSO3/GPIO23

43

KSO4/GPIO24

44

KSO5/GPIO25

45

KSO6/GPIO26

46

KSO7/GPIO27

47

KSO8/GPIO28

48

KSO9/GPIO29

49

KSO10/GPIO2A

50

KSO11/GPIO2B

51

KSO12/GPIO2C

52

KSO13/GPIO2D

53

KSO14/GPIO2E

54

KSO15/GPIO2F

81

KSO16/GPIO48

82

KSO17/GPIO49

77

EC_SMB_CLK1/GPIO44

78

EC_SMB_DAT1/GPIO45

79

EC_SMB_CLK2/GPIO46

80

EC_SMB_DAT2/GPIO47

6

PM_SLP_S3#/GPIO04

14

GPIO07

15

GPIO08

16

GPIO0A

17

GPIO0B

18

GPIO0C

19

AC_PRESENT/GPIO0D

25

PWM2/GPIO11

28

FAN_SPEED1/GPIO14

29

FANFB1/GPIO15

30

EC_TX/GPIO16

31

EC_RX/GPIO17

32

PCH_PWROK/GPIO18

34

SUSP_LED#/GPIO19

36

NUM_LED#/GPIO1A

122

PBTN_OUT#/GPIO5D

123

PM_SLP_S4#/GPIO5E

+3VLP_EC

12

RB2

@

LPC & MISC

Int. K/B Matrix

SM Bus

LB1 FBMA-L11-160808-800LMT_0603

1 2

0_0402_5%

9

22

33

67

96

111

125

VCC

VCC0

VCC_LPC

AVCC

EC_VCCST_PG/GPIO0F

PWM Output

VCIN1_BATT_TEMP/AD0/GPIO38

VCIN1_BATT_DROP/AD1/GPIO39

AD Input

DA Output

EN_DFAN1/DA1/GPIO3D

EC_MUTE#/PSCLK1/GPIO4A

PS2 Interface

USB_EN#/PSDAT1/GPIO4B

SPI Device Interface

SPI Flash ROM

EC_CIR_RX/AD6/GPIO40

SYS_PWROK/AD7/GPIO41

BATT_CHG_LED#/GPIO52

GPIO

BATT_LOW_LED#/GPIO55

EC_RSMRST#/GPXIOA03

VCIN1_ADP_PROCHOT/GPXIOA05

VCOUT1_PROCHOT#/GPXIOA06

VCOUT0_MAIN_PW R_ON/GPXIOA07

GPIO

GPO

PCH_PWR_EN/GPXIOA10

PWR_VCCST_PG/GPXIOA11

VCIN1_AC_IN/GPXIOD01

GPI

GND

AGND

GND

11

24

35

69

94

113

ECAGND

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

+3VLP_ECA

1

CB3

0.1U_0201_10V6K

2

ECAGND

21

GPIO50

GPXIOA04

GPXIOA09

GPXIOD06

BATT_TEMP

100P_0402_50V8J

23 26 27

63 64 65 66 75 76

68 70 71 72

83 84 85 86 87 88

97 98 99 109

119 120 126 128

73 74 89 90 91 92 93 95 121 127

100 101 102 103 104 105 106 107 108

110 112 114 115 116 117 118

124

12

BEEP#/GPIO10

EC_FAN_PWM/GPIO12

AC_OFF/GPIO13

ADP_I/AD2/GPIO3A

AD_BID/AD3/GPIO3B

AD4/GPIO42 AD5/GPIO43

DA0/GPIO3C

DA2/GPIO3E DA3/GPIO3F

PSCLK2/GPIO4C PSDAT2/GPIO4D

TP_CLK/GPIO4E

TP_DATA/GPIO4F

ENKBL/GPXIOA00

WOL_EN/GPXIOA01

ME_EN/GPXIOA02

VCIN0_PH1/GPXIOD00

MISO/GPIO5B MOSI/GPIO5C

SPICLK/GPIO58

SPICS#/GPIO5A

CAPS_LED#/GPIO53

PWR_LED#/GPIO54

SYSON/GPIO56 VR_ON/GPIO57

DPWROK_EC/GPIO59

BKOFF#/GPXIOA08

EC_ON/GPXIOD02 ON/OFF#/GPXIOD03 LID_SW#/GPXIOD04

SUSP#/GPXIOD05

PECI/GPXIOD07

V18R/VCC_IO2

KB9022QD_LQFP128_14X14

20mil

1 2

CB8 LB2

FBMA-L11-160808-800LMT_0603

C

D

ECAGND <29,33>

EC_VCCST_PG_R BEEP# EC_FAN_PWM1 POA_EN#

BATT_TEMP POA_POWERREQ ADP_I AD_BID DDR_TEMP SOC_TEMP

PWR_INT# USB_CB WLAN_PME# I2C_TS_RST#

EC_MUTE# USB_EN USB_CEN PM_SLP_S0# TP_CLK TP_DATA

TP_CLK/DATA PU at PTP side

ENBKL TP_PWR_EN ME_EN VCIN0_PH

USB_SELCDP BT_ON USB_SW_EN# FP_PWR_EN

THERMAL_ALERT# SYS_PWROK_R EC_S0IX_EN BATT_BLUE_LED# KB_LED# PWR_LED BATT_AMB_LED# SYSON EC_TP_INT# USB_CHARGE_2A

EC_RSMRST# AUTH_ERR VCIN1_ADP_PROCHOT VCOUT1_PROCHOT MAINPWON BKOFF# SUSACK# 3V_EN_R PCH_PWR_EN

AC_IN EC_ONPCH_PWROK ON/OFFBTN# LID_SW# SUSP# SW_PROCHOT# H_PECI_R

RB18 43_0402_1%

2015/10/21 2016/06/21

EC_VCCST_PG_R <10,30>

BEEP# <26>

EC_FAN_PWM1 <29>

POA_EN# <29>

BATT_TEMP <33>

POA_POWERREQ <29>

ADP_I <33,34>

DDR_TEMP <29> SOC_TEMP <29>

PWR_INT# <29> USB_CB <24>

WLAN_PME# <26>

I2C_TS_RST# <21> EC_MUTE# <26>

USB_EN <26>

USB_CEN <24>

PM_SLP_S0# <10>

ENBKL <6>

TP_PWR_EN <28>

ME_EN <9> VCIN0_PH <33>

USB_SELCDP <24> BT_ON <26>

USB_SW_EN# <29>

FP_PWR_EN <29>

THERMAL_ALERT# <29>

EC_S0IX_EN <13> BATT_BLUE_LED# <28> KB_LED# <28> PWR_LED <28> BATT_AMB_LED# <28>

SYSON <13,30,36> EC_TP_INT# <6,28>

USB_CHARGE_2A <24>

EC_RSMRST# <10>

AUTH_ERR <29>

VCIN1_ADP_PROCHOT <33> MAINPWON <29,33,35>

BKOFF# <21> SUSACK# <10>

PCH_PWR_EN <14>

1 2

Compal Secret Data

Deciphered Date

+3VLP_EC

TP_CLK <28> TP_DATA <28>

AC_IN <34>

EC_ON <35>

ON/OFFBTN# <28> LID_SW# <28> SUSP# <13,30,36,38>

H_PECI <6>

H_PROCHOT#<6>

D

E

Board ID

+3VLP_EC

RB1 100K_0402_1%

Ra

1 2

AD_BID

RB6

56K_0402_1%

SD034560280

I2C_TS_RST#

USB_CB

KBL@

@

12

SKL@

RB6

Rb

20K_0402_1%

Analog Board ID definition, Please see page 3.

12

RB7100K_0402_5%

12

RB84.7K_0402_5%

1

CB4

0.1U_0201_10V6K

@

2

R4943 for 9032 only

OPMODE(PIN70 Internal Pull High) : Pull Up : Intel eSPI Master Attached Flash Sharing Topology

--> For KB9032 Only. Pull Down : Intel Legacy Wire-OR share ROM.

--> For KB9022/9032 Use

SYS_PWROK_R

VCOUT1_PROCHOT VCOUT1_PROCHOT

DMN66D0LDW-7_SOT363-6

2015/1/9 acer require: reserved protect circuit when adaptor 107% happen

RB19 0_0402_5%@

RB20 0_0402_5%@

Size Document Number Rev

Custom

Date: Sheet of

1 2

@

RB10 0_0402_5%

DB1 RB751V-40_SOD323-2

1 2

3V_EN_R

1 2

Title

RB15 1K_0402_5%

2

QB1A

Compal Electronics, Inc.

EC ENE KB9022

B3ZMS LA-D591P

LID_SW#

61

@

VR_HOT#

SW_PROCHOT#H_PROCHOT#

1 2

RB14 100K_0402_1%

3V_ENMAINPWON

RB16 1M_0402_5%

RB17 0_0402_5%

1 2

@

SW_PROCHOT#

34

5

QB1B DMN66D0LDW-7_SOT363-6

@

E

SYS_PWROK <10,30>

1 2

+3VLP_EC

3V_EN <35>

VCOUT1_PROCHOT

VR_HOT# <39>

27 45Wednesday, February 24, 2016

2.0

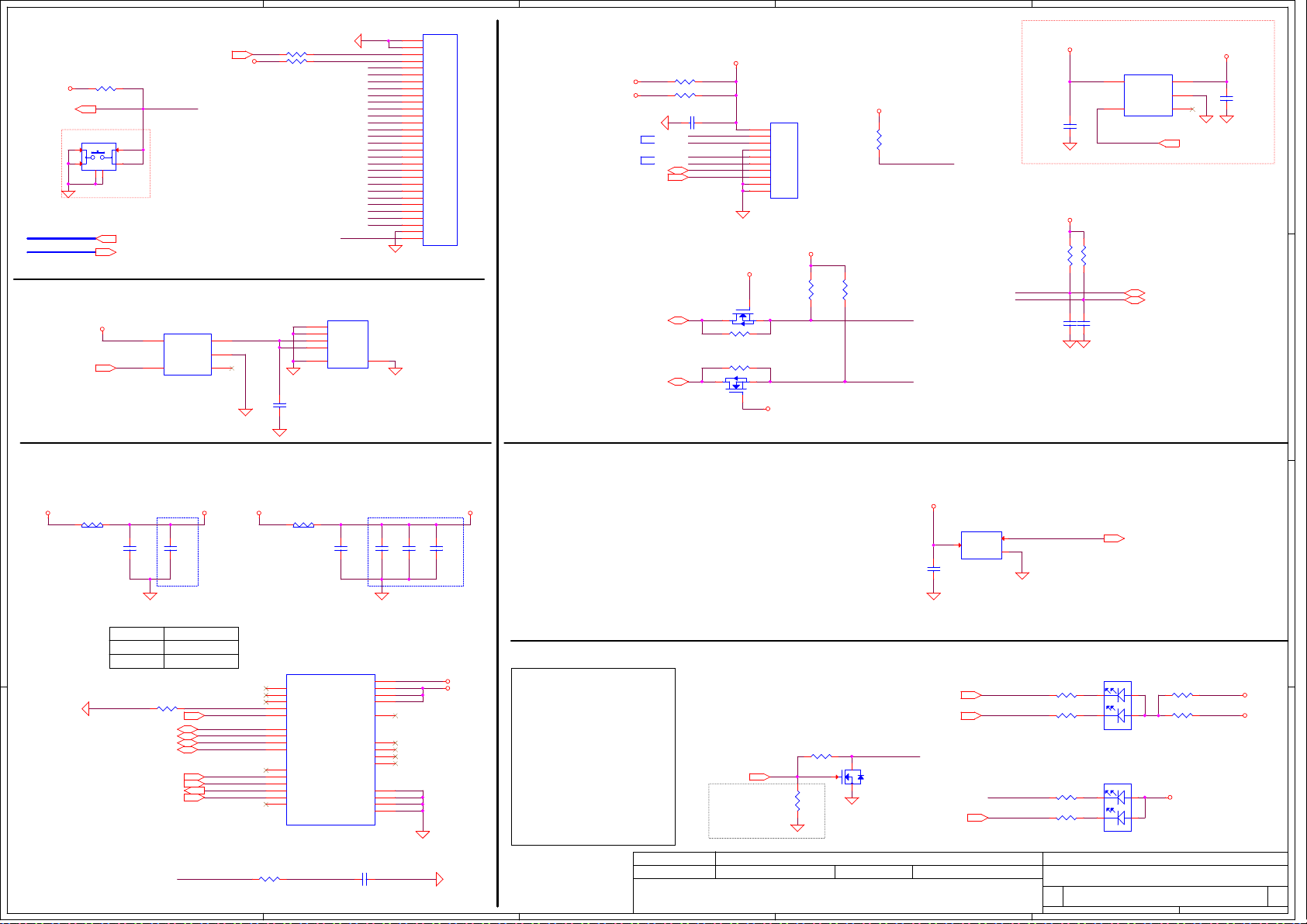

A

KB Conn.

1 2

ON/OFF BTN

R2 100K_0402_5%

12

+3VLP

ON/OFFBTN#<27>

1 1

Test Only

BOT

KSI[0..7] KSO[0..17]

SW1

EVQPLDA15_4P

1 2

5

6

ON/OFFBTN#

3 4

@

KSI[0..7] <27> KSO[0..17] <27>

KB_LED#<27>

RK14 1K_0402_5% RK1 0_0402_5%

+3VALW

1 2

KB BackLight Conn. Reserve

1

CK6

0.1U_0201_10V6K

2

@

JBL1

1

2

3

4

4 GND5GND

ACES_87151-0405N

CONN@

SP01000F500

+5VS

2 2

KBL_EN<27>

UK2

5

OUT

IN

GND

4

OC

EN

SY6288C20AAC_SOT23-5

KB@

1

+5VS_BL

2 3

ON/OFFBTN#

KSO0 KSO1 KSO2 KSO3 KSO4 KSO5 KSO6 KSO7 KSO8

KSO9 KSO10 KSO11 KSO12 KSO13 KSO14 KSO15

KSI0

KSI1

KSI2

KSI3

KSI4

KSI5

KSI6

KSI7

6

B

JKB1

30

GND2

29

GND1

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ACES_85201-2805

SP01000GO00

CONN@

TP/B Conn.

+3VALW

EC PS2

PCH I2C

+3VS

EC_TP_INT#<6,27>

TP_EN<27>

I2C_1_SCL<11>

I2C_1_SDA<11>

C

@

12

RK20_0402_5%

@

12

RK30_0402_5%

CK2

@

0.1U_0201_10V6K

12

TP_CLK TP_DATA

I2C_1_SDA_R I2C_1_SCL_R

EC_TP_INT#

DMN66D0LDW-7_SOT363-6

RK9 0_0402_5%

RK11 0_0402_5%@

+3V_PTP

TP_EN

+3V_PTP

QK1A

6 1

@

1 2

3 4

5

JTP1

1

2

3

4

5

6

7

8

9

GND

10

GND

ACES_51524-00801-001

CONN@

SP01001A910

+3V_PTP

12

RK7

2.2K_0402_5%

2

QK1B DMN66D0LDW-7_SOT363-6

+3V_PTP

12

RK8

2.2K_0402_5%

I2C_1_SCL_R

I2C_1_SDA_R

+3V_PTP

1 2

D

RK4 10K_0402_5%

EC_TP_INT#

+3VALW +3V_PTP

5

OUT

IN

GND

4

EN

SY6288C20AAC_SOT23-5

CK3

1U_0402_6.3V6K

2

1

TP_PWR_EN follow SYSON behavior

+3V_PTP

12

RK5

4.7K_0402_5%

TP_CLK TP_DATA

@EMC@

RK6

4.7K_0402_5%

TP_CLK <27>

1

CK5

CK4

2

100P_0402_50V8J

TP_DATA <27>

@EMC@

100P_0402_50V8J

E

UK1

1 2 3

OC

TP_PWR_EN <27>

4.7U_0603_6.3V6K

CK1

1

2

TPM Board for 2015

+3VALW +3VALW_TPM +3VS +3VS_TPM

RW1 0_0603_5%

@

1 2

3 3

10U_0603_6.3V6M

1

2

CW1

TPM@

CW2

0.1U_0201_10V6K

1

near pin5

2

TPM@

RW2 0_0603_5%

@

1 2

10U_0603_6.3V6M

1

2

CW3

TPM@

CW4

0.1U_0201_10V6K

CW5

0.1U_0201_10V6K

CW6

1

2

TPM@

0.1U_0201_10V6K

1

2

TPM@

@

0.1U_0201_10V6K

near pin10, 19, 24

+3VLP

CG1

SA00008K800, S IC APX8132AI-TRG SOT-23 3P HALL SENSOR

Lid Switch

(Hall Effect Switch)

UG1

OUT

2

VDD

1

2

GND

APX8132AI_TSOT-23-3

3 1

LID_SW#

LID_SW# <27>

BADD SELECTION

0

1

*

GPIO3/BADD with Internal PH (default)

CLKRUN PH 10K to +3VS at PCH side

LPCPD# had internal PH

4 4

SERIRQ PH 10K to +3VS at PCH side

PM_CLKRUN#<8>

LPC_AD0<8,27> LPC_AD1<8,27> LPC_AD2<8,27> LPC_AD3<8,27>

CK_LPC_TPM<8> LPC_FRAME#<8,27> PLT_RST#<10,27>

A

1 2

EC_SERIRQ<8,27>

EEh - EFh

7Eh - 7Fh

RW30_0402_5% @

CK_LPC_TPM

TPM_BADD PM_CLKRUN#

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

CK_LPC_TPM

LPC_FRAME#

PLT_RST#

EC_SERIRQ

RW4 33_0402_5%

1 2

@EMC@

UW1

1

GPIO0/XOR_OUT

2

GPIO1

6

GPIO2/GPX

9

GPIO3/BADD

15

GPIO4/CLKRUN#

26

LAD0/MISO

23

LAD1/MOSI

20

LAD2/SPI_IRQ#

17

LAD3

28

LPCPD#

21

LCLK/SCLK

22

LRFAME#/SCS#

16

LRSET#/SPI_RST#

27

SERIRQ

7

PP

NPCT650AA0WX_TSSOP28

SA00007IO10

TPM@

5

VSB

10

VDD

19

VDD

24

VDD

8

TEST

3

NC

12

NC

13

NC

14

NC

4

GND

11

GND

18

GND

25

GND

CW7 22P_0402_50V8J

1 2

@EMC@

B

+3VALW_TPM +3VS_TPM

Dual Amber+Blue LTST-S115TBKF-CA (SC50000C500)

-----------------------------------Vf @ 5 mA :

----------------------------------UD5: 1.7 ~ 2.3V (3.3-1.7)/300=5.71 mA (3.3-2.3)/300=3.57 mA R min: 100 ohm R max 700 ohm

----------------------------------------CB5: 2.65~3.05V (3.3-2.65)/50=13.00 mA (3.3-3.05)/100=5.0 mA R min: 50 ohm R max:475 ohm

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

100 1% :SD034100080 150 1% :SD034150080 301 1% :SD034301080 680 1% :SD034680080

120 5% :SD028120080 560 5% :SD028560080 200 5% :SD028200080

PWR_LED<27>

100K_0402_5% @

avoid flash issue when abnormall shutdown

2015/10/21 2016/06/21

Battery LED

RG4

LED

RG5 0_0402_5%

1 2

12

RG6

13

D

2

G

S

Compal Secret Data

Deciphered Date

BATT_BLUE_LED#<27>

BATT_AMB_LED#<27>

PWR_LED#

@

QG1 L2N7002WT1G_SC-70-3

PWR_SUSP_LED#<27>

D

BATT_BLUE_LED#

BATT_AMB_LED#

PWR_LED#

PWR_SUSP_LED#

1K_0402_5%

RG1

1.6K_0402_1%

Power LED

RG8 220_0402_5%

RG7 680_0402_1%

Title

Size Document Number Rev

Custom

Date: Sheet of

LED1

12

KB & TP & TPM Connector & LED

B3ZMS LA-D591P

21

B

43

A

HT-297UD5-CB5_AMBER-BLUE

SC500009H10

LED2

21

B

43

A

HT-297UD5-CB5_AMBER-BLUE

SC500009H10

Compal Electronics, Inc.

1 2

+3VALW

E

RG2 0_0402_5%

RG3 0_0402_5%@

28 45Wednesday, February 24, 2016

+5VALW

+3VLP

2.0

A

B

C

D

E

FAN

FAN Conn1

1 1

+3VS

+5VS_FAN1

1 2

@

RF1 0_0603_5%

40mil

1

12

RF2

10K_0402_5%

FAN_SPEED1<27>

EC_FAN_PWM1<27>

2 2

+3VS

0.1U_0201_10V6K CF4

1

2

H_THERMDA

CF5

1 2

+3VS

RF4 33K_0402_5%

H_THERMDC

2200P_0402_50V7K

CPU_THERM#

1

CF3

0.01U_0402_16V7K

2

THERMAL SENSOR

Thermal sensor SMBus address -->100-1_100xb : 0x4C (x=0)Write Address(0x98h) (x=1)Read Address(0x99h)

SA000067P00

UF1

1

VDD

2

D+

3

DTHERM#4GND

NCT7718W_MSOP8

SCLK

SDATA

ALERT#

EC_FAN_PWM1

8 7 6 5

1

CF1

10U_0603_6.3V6M

2

EC_SMB_CK2 EC_SMB_DA2 THERMAL_ALERT#

CF2

0.1U_0201_10V6K

2

JFAN1

1

2

3

4

5

GND1

6

GND2

E-T_3806K-F04N-03R

CONN@ SP02000RX00

Close to SOC Close to DDR

3 3

+3VLP_ECA

+5VS

THERMAL_ALERT# EC_SMB_DA2

EC_SMB_CK2

EC_SMB_CK2 <8> EC_SMB_DA2 <8>

THERMAL_ALERT# <27>

RPF1

1 8 2 7 3 6 4 5

10K_0804_8P4R_5%

+3VS

Screw Hole

CLIP

CLIP1 HOLEA

CLIP11 HOLEA

Reset Circuit

Reset Button

SW2 EVQPLDA15_4P

1 2

3

BI_GATE

4

5

6

H1

H_2P8

1

@

H24

H_2P8

@

CLIP2 HOLEA

1

CLIP12 HOLEA

1

H3

H2

H_2P8

1

@

H25

H_3P2

@

1

CLIP4

CLIP3

HOLEA

1

CLIP13

CLIP14

HOLEA

1

BI_GATE PH to +RTCVCC at PWR side

BI_GATE<33>

1

H26

@

1

H_3P2

1

H4

1

@

H27

H_5P2X5P7N

@

CLIP5 HOLEA

1

CLIP15 HOLEA

1

H6

H5

H_4P8

H_4P2

1

@

1

CLIP6

CLIP7

HOLEA

1

CLIP16

CLIP17

HOLEA

1

BI_GATE

DMN66D0LDW-7_SOT363-6

QG2A

H_4P9

5

H21

@

1

CLIP8 HOLEA

1

CLIP18 HOLEA

1

G

H22

H23

H_4P9

@

1

FD1

@

1

FIDUCIAL_C40M80

FD3

@

1

FIDUCIAL_C40M80

CLIP9

CLIP10

HOLEA

1

+3VLP

RG10 10K_0402_5%

1 2

BI_GATE#

34

1

D

CG3

S

0.1U_0201_10V6K

2

1 2

RG9 0_0402_5%@

1 2

RG11 0_0402_5%@

61

D

G

S

QG2B DMN66D0LDW-7_SOT363-6

FD2

@

1

FIDUCIAL_C40M80

FD4

@

1

FIDUCIAL_C40M80

MAINPWON <27,33,35>

EC_RST# <27>

12

16.5K_0402_1% RF6

SOC_TEMP<27> DDR_TEMP<27>

12

RH1 100K_0402_1%_TSM0B104F4251RZ

SL200002H00

ECAGND ECAGND

Finger Print GPIO table

4 4

A

12

16.5K_0402_1% RF7

12

RH2 100K_0402_1%_TSM0B104F4251RZ

SL200002H00

B

Finger Print

+3VALW

USB20_N8<12> USB20_P8<12>

USB_SW_EN#<27>

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

CK91U_0402_6.3V6K

2 1

TS3USB31RSER_QFN8_1P5X1P5

FP@

USB20_N8 USB20_P8

USB20_N8_R USB20_N8_L

USB20_P8_R USB20_P8_L

C

1 2

RK13 0_0402_5%@

1 2

RK15 0_0402_5%@

LK1

FP@

3 4

MCM1012B900F06BP_4P

SM070003Z00

2015/10/21 2016/06/21

UK4

8

12

@

VCC HSD-6DHSD+

GND

OE#

7

NC

5

USB20_N8_R

3

USB20_P8_R

D+

4

USB20_N8_R USB20_P8_R

12

Compal Secret Data

Deciphered Date

+3VLP

+3V_FP

VL

D

RK10 0_0603_5%FP@ RK12 0_0603_5%@

1 2 1 2

1U_0402_6.3V6K

DK1

FP@

6

I/O4

5

VDD

4

I/O3

AZC099-04S.R7G_SOT23-6

I/O2

GND

I/O1

3

2

1

FP@

CK7

+3V_FP

UK3

5

IN

4

2

1

Title

Size Document Number Rev

Custom

Date: Sheet of

EN

SY6288C20AAC_SOT23-5

FP@

USB20_P8_L

USB20_N8_L

Compal Electronics, Inc.

FAN & Screw Hole & G-Sensor

B3ZMS LA-D591P

POA_POWERREQ<27>

OUT

GND

OC

POA_EN#<27> PWR_INT#<27> AUTH_ERR<27>

1 2 3

FP_PWR_EN <27>

+3V_FP

USB20_P8_L USB20_N8_L

E

1

FP@

CK8

4.7U_0603_6.3V6K

2

JFP1

1 2 3 4 5 6 7 8

E-T_6712K-F08N-02L

CONN@ SP01001AD00

29 45Wednesday, February 24, 2016

1 2 3 4 5

9

6

G1

10

7

G2

8

2.0

A

B

C

D

E

DC Interface

UQ1

RQ1 0_0402_5%

SUSP#

1 1

2 2

1 2

CQ3

RQ2 0_0402_5%@

CQ4

@

1 2

12

1 2

+3VALW

3VS_ON

.1U_0402_16V7K@

+5VALW

5VS_ON

+5VALW

1

VIN1

2

VIN1

3

ON1

4

VBIAS

5

ON2

6

VIN2

7

VIN2

EM5209VF_DFN14_2X3

VOUT1 VOUT1

GND

VOUT2 VOUT2

GPAD

14 13

12

CT1

11 10

CT2

9 8

15

1 2

CQ1 1000P_0402_50V7K

1 2

CQ2 1000P_0402_50V7K

+3VS_OUT

+5VS_OUT

J14

@

112

JUMP_43X118

J15

@

112

JUMP_43X118

2

+3VS

+3VS_OUT +5VS_OUT

0.1U_0201_10V6K

CQ5

1

2

+5VS

2

0.1U_0201_10V6K

CQ6

1

2

For Power ON/Off Sequence

+3VALW

12

100K_0402_5%

DMN66D0LDW-7_SOT363-6

PM_SLP_S3#<10,27>

DMN66D0LDW-7_SOT363-6

PM_SLP_S4#<10,13,27>

Q2A

100K_0402_5%

Q4A

R4

2

R5

2

61

+3VALW

12

PM_SLP_S4

61

DMN66D0LDW-7_SOT363-6

PM_SLP_S3

Q1A DMN66D0LDW-7_SOT363-6

Q1B DMN66D0LDW-7_SOT363-6

Q2B DMN66D0LDW-7_SOT363-6

Q3A DMN66D0LDW-7_SOT363-6

Q3B DMN66D0LDW-7_SOT363-6

61

2 5

34

5

34

61

@

2 5

34

@

5

34

Q4B

MOW14, For tPLT15 200us(max) SLP_S4# to VDDQ ramp down

EC_VCCST_PG_R <10,27>

MOW14, For tCPU28 200us(max) SLP_S3# to VCCST_PWRGD deassertion

VR_ON <27,39>

MOW14, For tPLT17 200us(max) SLP_S3# to IMVP VR_ON deassertion

SUSP#

MOW14, For tPLT18 200us(max) SLP_S3# to VCCIO VR disable

SYS_PWROK <10,27>

PCH_PWROK <10,27>

SYSON

3 3

+0.6VS_VTT+5VALW

12

R6

100K_0402_5% @

SUSP

SUSP#<13,27,36,38>

R10

10K_0402_5%

@

4 4

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

1 2

61

2

12

Q5A

@

DMN66D0LDW-7_SOT363-6

2015/10/21 2016/06/21

R7 470_0603_5%@

+0.6VS_VTT_R

34

5

SUSP

Q5B

@

DMN66D0LDW-7_SOT363-6

Compal Secret Data

Deciphered Date

DMN66D0LDW-7_SOT363-6

D

+1.2V_VDDQ +5VALW

R8

470_0603_5%

@

2

SYSON# SYSON

Q6A

@

Custom

R9 100K_0402_5%

@

1 2

SYSON#+1.2V_VDDQ_R

34

61

5

Q6B DMN66D0LDW-7_SOT363-6

@

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Compal Electronics, Inc.

DC Interface

B3ZMS LA-D591P

E

SYSON <13,27,36>

30 45Wednesday, February 24, 2016

2.0

5

ACDRV

4

3

2

1

DC-IN

D D

ACFET RBFET

Charger ISL95520H

BATDRV

Battery

C C

RBFET

+12.6VB

EC_ON

SYSON

SM_PG_CTRL

+1.8V_PG

VR_ON

RT7290A

EN

RT7291A

EN

RT8207P

EN_VDDQ

+1.2V_VDDQ

EN_VTT

+0.6VS_VTT

RT6220A

EN

NCP81208

+VCC_CORE Imax=21A Ipeak=28A Iocp=35A

+GT_GT Imax=18A Ipeak=31A Iocp=40A

+VCC_SA

EN

Imax=4A Ipeak=5A Iocp=9.5A

TDC 6A current limit 10A(min)

TDC 6A current limit 8A(min)

OCP 7.16A

TDC 0.7A Peak Current 1A

TDC 6A current limit 8A(min)

VDDQ

VTT

+3VALWP

+1.2VP

+VCC_CORE

+VCC_GT

+VCC_SA

Jumper

+3VALW

+5VALW+5VALWP

+1.2V_VDDQ

+0.6VS_VTT+0.6VSP

+1.0V_PRIM+1.0VP

PCH_PWR_EN

SYSON

SY8032

EN

SY8032

EN

continuous 2A Ipeak= 3A

Jumper

+1.8V_PRIM+1.8VSP

+1.8V_MEM+1.8V_MEMP

B B

A A

Security Classification

2015/10/21

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/10/21

3

Compal Secret Data

Deciphered Date

2016/06/21

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Power Block Diagram

B3ZMS LA-D591P

Wednesday, February 24, 2016

B3ZMS LA-D591P

4531

1

4531

2.0

5

D D

PJP101

1

2

3

4

5

6

GND1

7

GND2

@

ACES_88266-05001

C C

+3VLP

4

ADAPDET <34>

PR101

@

0_0402_5%

1 2

HCB2012KF-121T50_0805

12

PC101

EMC@

100P_0603_50V8

PH101 Common part SM01000P200

PL101

EMC@

1 2

+CHGRTC

+19V_ADPIN

12

PC102

EMC@

1000P_0603_50V7K

3

2

1

+19V_VIN+19V_ADPIN

PBJ101 @

- +

ML1220T13RE

B B

A A

5

12

PR102

560_0603_5%

1 2

PR103

560_0603_5%

1 2

4

+RTCBATT

Security Classification

2015/1/15

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/1/15

3

Compal Secret Data

Deciphered Date

2017/10/09

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

DC Conn

LA-C482P

Wednesday, February 24, 2016

4332

1

4332

2.0

5

PJP201

@

1

2

3

D D

GND GND

CVILU_CI9908M2HR0-NH

EC_SMB_DA1-1

3

4

EC_SMB_CK1-1

4

5

BATT_TS

5

6

BATT_B/I

6

7

8

9 10

+12.6V_BATT++

12

C C

EMC@

1000P_0603_50V7K

4

PR202 100_0402_1%

1 2

PR203 100_0402_1%

1 2

PR204

6.49K_0402_1%

1 2

PR205 1K_0402_1%

EMC@

HCB2012KF-121T50_0805

1 2

EMC@

HCB2012KF-121T50_0805

1 2

PC201

PL202

BI_GATE<29>

PL201

+3VLP

BATT_TEMP <27>

PH101 Common part SM01000P200

+12.6V_BATT+

12

PC203

@EMC@

1000P_0603_50V7K

+RTCVCC

12

PR201 100K_0402_5%

2

G

EC_SMB_DA1 <27,34> EC_SMB_CK1 <27,34>

13

D

PQ201 BSS138LT1G_SOT23-3

S

3

2

1

+3VLP

12

PC202

MAINPWON<27,29,35>

For KB9022 OTP

<45,47>

PR208

@

100K_0402_1%

MAINPWON

@

0.1U_0603_25V7K

10K_0402_1%

12

PU201

@

1

VCC

TMSNS1

2

GND

RHYST1

3

OT1

TMSNS2

4

RHYST2

OT2

G718TM1U_SOT23-8

8 7 6 5

RecoveryActive

12

PR206

@

For KB9022 sense 20mΩ

PR209

@

47K_0402_1%

12

PR207

@

10K_0402_1%

12

PH201

@

100K_0402_1%_NCP15W F104F03RC

Update PH201 change to Common Part SL200002H00

RecoveryActive

0.47V(45W)

---Battery_pin define--PIN1 GND PIN2 GND PIN3 SMD PIN4 SMC PIN5 TS PIN6 B/I PIN7 Batt+ PIN8 Batt+

---Battery Con_pin define--PIN8 GND PIN7 GND PIN6 SMD PIN5 SMC PIN4 TS PIN3 B/I PIN2 Batt+ PIN1 Batt+

92C, 1V 56C, 2.VVCIN0_PH(V)

PH202(ohm) 7.3K 26.11K

PH202 under CPU botten side : CPU thermal protection at 92 degree C ( shutdown )

Recovery at 56 degree C

45W PR211=10K ohm

0.61V(58.5W)

+3VLP_ECA

ADP_I <27,34>

B B

VCIN0_PH<27>

12

PR210

16.9K_0402_1%

12

PR211 10K_0402_1%

VCIN1_ADP_PROCHOT <27>

12

100K_0402_1%_NCP15W F104F03RC

B value:4250K±1%

Update PH202 chang Common part SL200002H00

A A

PH202

@

T280

@

T281

12

PR215 10K_0402_1%

ECAGND<27,29>

Security Classification

2015/1/15

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/1/15

3

Compal Secret Data

Deciphered Date

2017/10/09

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Wednesday, February 24, 2016

Date: Sheet of

Wednesday, February 24, 2016

Date: Sheet of

Wednesday, February 24, 2016

BATT Conn

LA-C482P

4333

1

4333

2.0

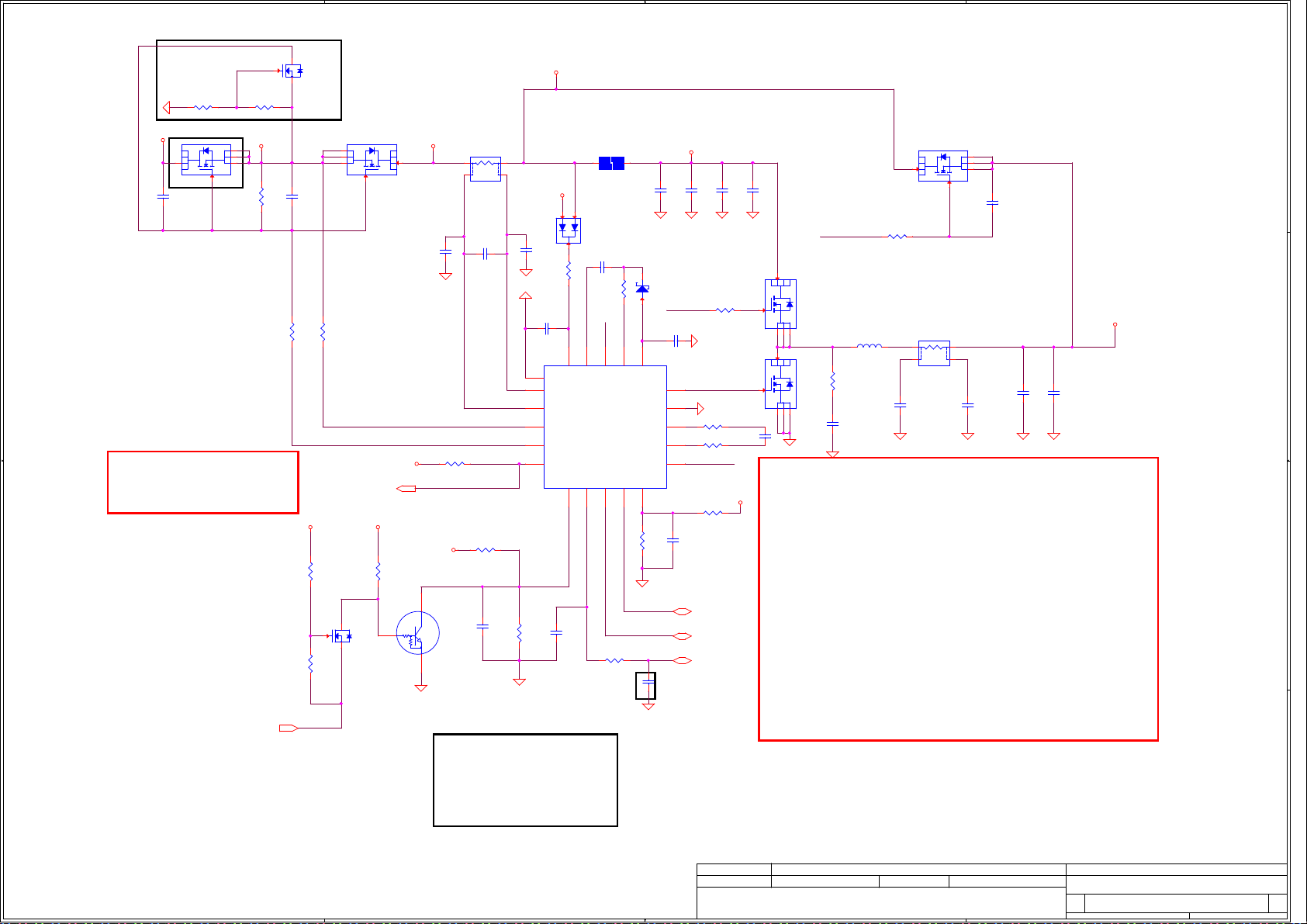

A

B

C

D

Protection for reverse input

PR302

1 2

1 1

2 2

1M_0402_5%

Need check the SOA for inrush

+19V_VIN

PQ302

5

12

MDU1512RH_POWERDFN56-8-5

PC301

2200P_0402_50V7K

1 2

3M_0402_5%

1 2 3

4

BQ24725A_ACDRV_1

PR303

Module model information

BQ24735A_V1.mdd BQ24735A_V2.mdd

3 3

ADAPDET<32>

4 4

Vgs = 20V Vds = 60V

13

D

Id = 115mA

2

PQ301

G

L2N7002WT1G_SC-70-3

S

12

PR304@

PC302

0_0402_5%

0.1U_0402_25V6

12

PR309

4.12K_0603_1%

+19V_VIN +19V_VIN

12

PR319

200K_0402_5%

12

PR322

200K_0402_5%

Rds(on) typ = 35mohm max Vgs = 20V Vds = 30V ID = 7.7A (Ta=70C)

PQ303 AON7506_DFN33-8-5

1 2 3 5

4

12

PR310

4.12K_0603_1%

AC_IN<27>

12

PR320 200K_0402_5%

13

D

2

G

S

2

PQ308

L2N7002WT1G_SC-70-3

PDTC115EU_SOT323-3 SB301150200-->X1 Can use SB000011K00 LMUN5236T1G NPN SOT323-3

SB00000RM00 LTC015EUBFS8TL_UMT3F

2015/09/21 PR303 10m ohm chang -->20m ohm SD00000S120

max Power loss 0.22W for 90W;0.12W for 65W system CSR rating: 1W VACP-VACN spec < 80.64mV

PR301 Common part

+19V_P2+19V_P1

SD00000S120

PR301

0.02_1206_1%

1

4 3

2

+19V_VIN

BQ24725A_ACN

BQ24725A_CMSRC

BQ24725A_ACDRV

12

PR321

66.5K_0402_1%

Vin Dectector

12

PC310

1 2

1U_0603_25V6K

21

1

2

3

4

5

12

PC312

0.1U_0402_25V6

PU301

PAD ACN

ACP

CMSRC

ACDRV

ACOK

PC322

100P_0402_50V8J

12

PC308

+3VLP

PR315 100K_0402_1%

+19V_VIN

13

PQ307 LTC015EUBFS8TL_UMT3F

1 2

PC309

0.1U_0402_25V6

BQ24725A_ACP

1 2

PR318

422K_0402_1%

1 2

PC321

2200P_0402_50V7K

Min. Typ Max. L-->H 17.16V 17.63V 18.12V H-->L 16.76V 17.22V 17.70V

VILIM = 20*ILIM*Rsr ILIM = 3.3*100/(100+107)/20/0.02 = 3.986 A

+19VB

@

JUMP_43X79

VF = 0.5V

2

3

PD302 BAS40CW_SOT323-3

1

PC311

12

0.047U_0402_25V7K

1 2

PR306

10_1206_1%

BQ24725A_VCC

BQ24725A_LX

19

20

VCC

PHASE

ACDET6IOUT7SDA8SCL9ILIM

BQ24725A_IOUT

BQ24725A_ACDET

12

PR323 0_0402_5%

1 2

112

DH_CHG

18

Isat: 4A DCR: 27mohm

PJ301

2

12

PR307

2.2_0603_5%

BQ24725A_REGN

BQ24725A_BST

16

17

BTST

HIDRV

10

12

CHG_B+

12

PC303

10U_0805_25V6K

VF = 0.37V

PD301 RB751V-40_SOD323-2

DH_CHG

1 2

PC313

1U_0603_25V6K

REGN

15

DL_CHG

LODRV

14

GND

13

SRP

12

SRN

11

BQ24725A_BATDRV

BATDRV

BQ24735RGRR_QFN20_3P5X3P5

BQ24725A_ILIM

12

PC320

PR317

100K_0402_1%

12

PC323

@

100P_0402_50V8J

Close EC chip

12

PC304

PC305

10U_0805_25V6K

EMI@

AON7506_DFN33-8-5

PR308

0_0402_5%

1 2

AON7506_DFN33-8-5

PR313

10_0603_1%

1 2

PR314

6.8_0603_1%

1 2

PR316

316K_0402_1%

0.01U_0402_25V7K

EC_SMB_CK1 <27,33>

EC_SMB_DA1 <27,33>

ADP_I <27,33>

12

PC306

0.1U_0402_25V6

2200P_0402_25V7K

@EMI@

BQ24725A_BATDRV

PQ305

7*7*1.8 DCR=120~138m ohm SH00000MH00 (6.8uH)

3 5

241

PQ306

CSOP1SRP

CSON1

+3VLP

BQ24725A_LX

3 5

241

12

PC319

0.1U_0603_16V7K

**Design Notes** #For 65 /90W system, 3S1P/3S2P battery Maximum Charging current 3.5A Battery discharge power 55W. #Register Setting

1. 0X12 bit8 set 0 (default 1) to disable IFAULT HI if add ISN choke

2. 0X12 bit3 set 1 (default 0) to enable turbo boost function

3. Disable turbo when AC only #Circuit Design

1. ACOK,ILIM pull high voltage need base on 3/5V enable control

2. Use 10X10 choke and 3X3 H/L side MOSFET Charge current 3.5A Power loss : 1.82W Power density : 0.81 (15X15)

3. If use 4S per cell 4.35V battery, need additional circuit for ACDET(PR218/PR220/PR222 change to 0.1%, parallel resistors with PR222 for ACDET setting)

4. PC223 2200p is for quick response when AC plug out.

5. For hybrid design, need double check PQ202,PQ203,PQ204,PQ205 component rating #Protect function

1. ACOVP : ACDET voltage > 3.14V

2. Charger timeout : No communication within 175s(default)

3. ACOC : 3.33 X Input current DAC setting(default)

4. CHGOCP : 3/4.5/6A based on current current setting

5. BATOVP : 103-106%

6. BATLOWV : 2.5V

7. TSHUT : 155C

8. IFAULT HI : 750mV (default)

9. IFAULT LOW : 110mV (default)

PL302

6.8UH_MMD-06AH-6R8M-S2L_2.5A_20%

1 2

12

PR312

@EMI@

4.7_1206_5%

12

PC318

@EMI@

680P_0402_50V7K

AON7506_DFN33-8-5 PQ304

1 2

BQ24725A_BATDRV_1

PR305

4.12K_0603_1%

Support max charge 3.5A Power loss: 0.245W CSR rating: 1W VSRP-VSRN spec < 81.28mV

PR311

0.01_1206_1%

1

CHG

2

CSOP1

12

PC316

0.1U_0402_25V6

1 2 35

4

PR311 Common part SD00000K820

4 3

CSON1

12

PC307

0.01U_0402_50V7K

+12.6V_BATT+

12

PC315

PC317

0.1U_0402_25V6

PC314

10U_0805_25V6K

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2015/1/15 2017/10/09

C

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

CHARGER

Size Document Number Rev

Custom

Date: Sheet of

LA-C482P

D

34 43

2.0

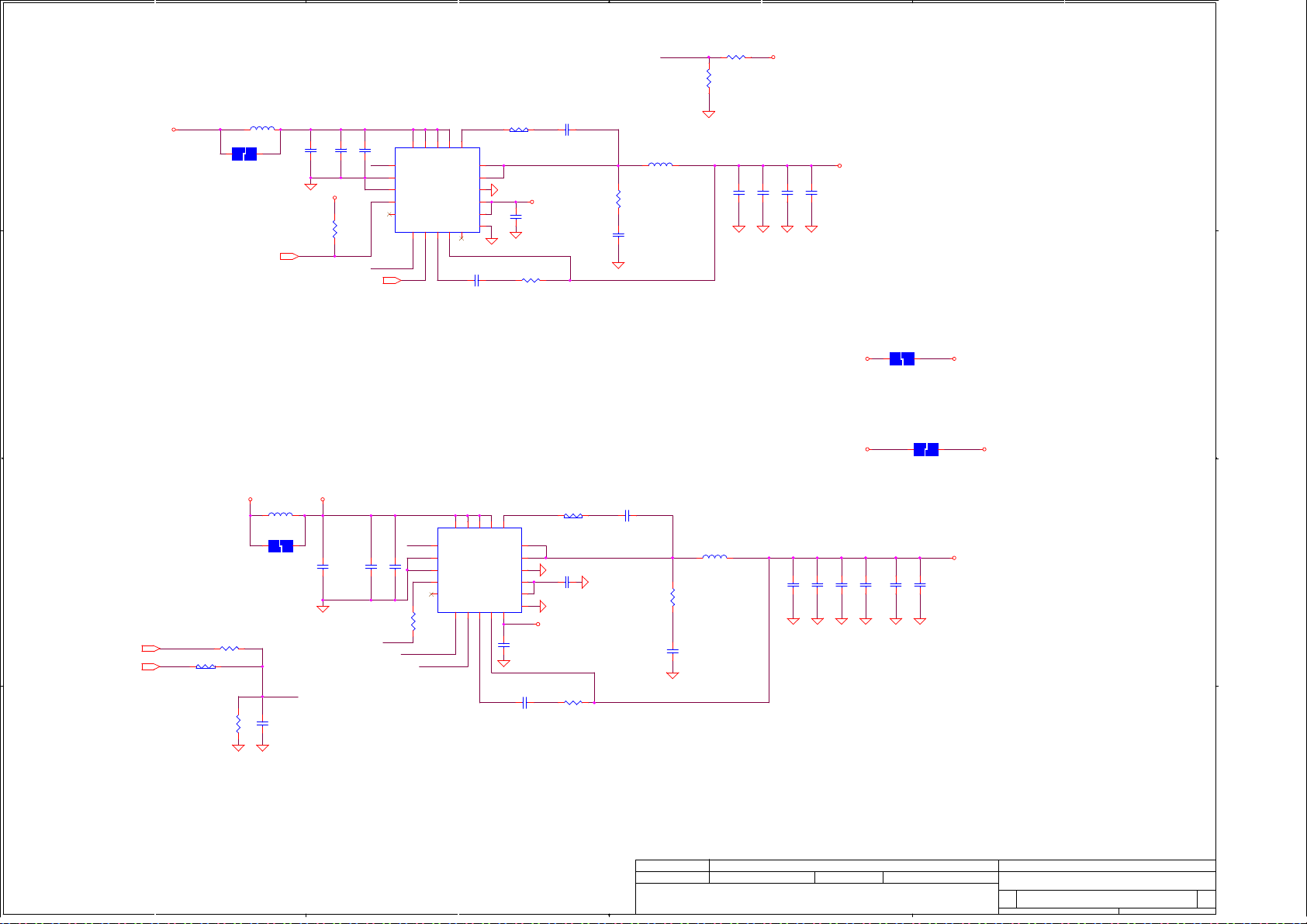

A

12

LX_3V

ENLDO_3V5V

PU401 SY8286BRAC_QFN20_3X3

6

LX

7

GND

8

GND

9

PG

10

NC

PL401

1 1

+19VB

@EMI@

HCB2012KF-121T50_0805

1 2

PJ403

@

112

JUMP_43X39

+19VB_3V

12

2

12

PC404

PC403

0.1U_0402_25V6

@EMI@

PC405

2200P_0402_50V7K

EMI@

10U_0805_25V6K

+3VALWP

12

PR405

100K_0402_5%

SPOK<27,38>

3V_EN<27>

2 2

B

ENLDO_3V5V

12

EN1 and EN2 dont't floating

PR401

@

0_0603_5%

1 2

BST_3V

2

EN112EN2

IN3IN4IN

FF13OUT14NC

3V_FB

1

IN

15

BS

20

LX

19

LX

18

GND

17

LDO

16

NC

21

GND

3.3V LDO 150mA~300mA

PC412 1000P_0402_25V8J

1 2

1K_0402_5%

5

11

+3VLP

12

PC410

4.7U_0603_6.3V6M

PR406

1 2

PC401

1 2

0.1U_0603_25V7K

2.2UH_PCMB061H-2R2MS_6A_20%

LX_3V

12

PR404

@EMI@

3V_SN

12

PC411

@EMI@

7*7*1.8 DCR=31~35m ohm SH00000A900

1 2

4.7_1206_5%

680P_0603_50V7K

PR403

150K_0402_1%

PL402

C

PR402 499K_0402_1%

1 2

+19VB

12

PC407

PC406

PC408

@

22U_0603_6.3V6M

Vout is 3.234V~3.366V

PC409

22U_0603_6.3V6M

+3VALWP

PJ401

@

JUMP_43X79

112

2

PJ402

@

112

JUMP_43X118

2

D

+3VALW

+5VALW+5VALWP

+19VB

@EMI@

HCB2012KF-121T50_0805

3 3

PR410

2.2K_0402_5%

EC_ON<27>

MAINPWON<27,29,33>

4 4

A

PR411

@

0_0402_5%

1 2

12

PR413

1M_0402_1%

PL403

1 2

PJ404

@

JUMP_43X79

112

5V_EN

12

PC428

4.7U_0402_6.3V6M

+19VB_5V

2

PC414

PR407

PU402 SY8286CRAC_QFN20_3X3

6

LX_5V

LX

12

10U_0805_25V6K

12

PC416

PC417

2200P_0402_50V7K

EMI@

@EMI@

0_0402_5%

SPOK

12

0.1U_0402_25V6

PR409

SPOK_R

12

@

ENLDO_3V5V

5V_EN

7

GND

8

GND

9

PG

10

NC

2

5

11

1

IN

IN3IN4IN

BS

GND VCC

GND

EN112EN2

FF13OUT14LDO

15

12

PC427

1000P_0402_25V8J

5V_FB

B

BST_5V

20

LX

19

LX

18

PC418 4.7U_0603_6.3V6M

17 16

NC

21

VL

5V LDO 150mA~300mA

PC425

4.7U_0603_6.3V6M

1K_0402_5%

1 2

@

0_0603_5%

1 2

LX_5V

1 2

PR412

1 2

PC413

1 2

0.1U_0603_25V7K

7*7*1.8 DCR=31~35m ohm SH00000A900 (2.2uH)

PL404

2.2UH_PCMB061H-2R2MS_6A_20%

1 2

12

PR408

@EMI@

4.7_1206_5%

5V_SN

12

PC426

@EMI@

680P_0603_50V7K

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

2015/1/15 2017/10/09

Vout is 4.998V~5.202V

C

12

PC419

PC420

PC421

22U_0603_6.3V6M

Compal Secret Data

Deciphered Date

@

12

22U_0603_6.3V6M

12

PC423

PC422

22U_0603_6.3V6M

+5VALWP

PC424

22U_0603_6.3V6M

Compal Electronics, Inc.

Title

3VALW/5VALW

Size Document Number Rev

C

Date: Sheet of

LA-C482P

D

35 43

2.0

5

PL501

@EMI@

5A_Z120_25M_0805_2P

+19VB

D D

1 2

PJ503

@

JUMP_43X79

112

2

+1.2VP

12

PC510

PC509

22U_0603_6.3V6M

C C

+1.2VP

+0.6VSP

PC511

22U_0603_6.3V6M

12

PC502

0.1U_0402_25V6

@EMI@

12

PC512

22U_0603_6.3V6M

PJ501

@

112

JUMP_43X118

PJ502

@

112

JUMP_43X39

+19VB_DDR

12

PC503

2200P_0402_50V7K

@EMI@

12

PC513

22U_0603_6.3V6M

2

12

PC504

10U_0805_25V6K

7*7*1.8 DCR=14.5~17m ohm SH00000AA00

12

PC514

22U_0603_6.3V6M

+1.2V_VDDQ

+0.6VS_VTT

PC505

1 2

Switching Frequency:540kHz

B B

Iocp : 7.16A OVP : 113%~120%

+0.6VS_VTT TDC 0.7A Peak Current 1A

4

10U_0805_25V6K

4 3 2 1

UG_DDR LG_DDR

PL502 1UH_PCMB061H-1R0MS_7A_20%

10

D1

D1 D1 G1

D2/S1

9

12

SNB_DDR

12

PQ501

AON7934_DFN3X3A8-10

S2 S2 S2 G2

@EMI@

4.7_1206_5%

@EMI@

680P_0402_50V7K

5 6 7 8

PR503

PC515

+5VALW

3

PR505

5.1_0603_5%

1 2

PC518

1U_0402_6.3V6K

0.1U_0603_25V7K

PR504

7.32K_0402_1%

1 2

+5VALW

12

SUSP#<13,27,30,38>

SM_PG_CTRL<7>

PC506

1 2

BST_DDR_R

CS_DDR

PC516

1U_0402_6.3V6K

1 2

VDDP_DDR

VDD_DDR

1 2

PR506

5.1_0603_5%

+19VB_DDR

SYSON<13,27,30>

UG_DDR

LX_DDR

LG_DDR

@

PR502

2.2_0603_5%

1 2

15

LGATE

14

PGND

13

CS

12

VDDP

11

VDD

PR508

470K_0402_1%

1 2

PR501

0_0402_5%

1 2

0.1U_0402_10V7K

PR510

0_0402_5%

1 2

PR511

0_0402_5%

1 2

2

BST_DDR

16

18

17

PHASE

PU501 RT8207PGQW_WQFN20_3X3

PGOOD

9

10

TON_DDR

PC501

@

0.1U_0402_10V7K

19

BOOT

UGATE

TON

@

8

EN_DDR

12

PC519

VLDOIN

S5

S3

7

EN_0.675VSP

12

20

VTT

PAD

VTTGND

VTTSNS

GND

VTTREF

VDDQ

FB

6

FB_DDR

21 1

2

3

4

VTTREF_DDR

5

1 2

12

PR509 10K_0402_1%

PR507

6.19K_0402_1%

+1.2VP

12

PC507

+1.2VP

1

+0.6VSP

12

PC508

10U_0603_6.3V6M

12

PC517

0.033U_0402_16V7K

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/1/15

Compal Secret Data

Deciphered Date

2017/10/09

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Compal Electronics, Inc.

1.2V/0.6VS

LA-C482P

Wednesday, February 24, 2016

1

36 43

2.0Custom

5

4

3

2

1

Module model information

SYX196D_V3.mdd

EN pin don't floating

D D

@EMI@

+19VB

HCB2012KF-121T50_0805

LDO_3V

12

PR604

@

0_0402_5%

ILMT_1VALW LDO_3V

12

PR606

@

0_0402_5%

The current limit is set to 6A, 8A or 12A when this pin is pull low, floating or pull high

C C

change PL601 SM01000C000 to comm part SM01000P200

If have pull down resistor at HW side, pls delete PR702

+19VB_1VALW

PL601

1 2

PJ602

@

JUMP_43X79

112

+19VB_1VALW

12

2

PC603

EMI@

2200P_0402_50V7K

12

PC605

PC604

0.1U_0402_25V6

10U_0805_25V6K

@EMI@

EN_1VALW ILMT_1VALW

+3VALW

EN_1VALW

12

PC614

PR610

1M_0402_1%

@

0.22U_0402_10V6K

@

0_0402_5%

1 2

PR609

@

10K_0402_1%

1 2

12

PC613 1U_0402_6.3V6K

PR608

2 3 4 5 7

8 18 11 13 15

PU601

IN IN IN IN GND GND GND EN ILMT BYP

SY8288RAC_QFN20_3X3

9

PG

1

BS

6

LX

19

LX

20

LX

14

FB

17

VCC

10

NC

12

NC

16

NC

21

PAD

+1.8VALW_PG <38>

+3VALW

LX_1VALW

FB_1VALW

PR601

@

0_0603_5%

1 2

BST_1VALW_RBST_1VALW

12

PC612

2.2U_0402_6.3V6M

Pin 7 BYP is for CS. Common NB can delete +3VALW and PC15

PC601

0.1U_0603_25V7K

1 2

5*5*1.8 DCR=15~17m ohm SH000014Y00

PR603

@EMI@

4.7_1206_5%

1 2

PL602 1UH_PCMB051H-1R0MS_8A_20%

1 2

FB = 0.6V

PC602

@EMI@

680P_0603_50V7K

SNUB_1VALW

1 2

12

PR605

Rup

12

PR607

Rdown

20K_0402_1%

Vout=0.6V* (1+Rup/Rdown) =0.6*(1+(13.7/20)) Vout=1.011V

12

PC606

14.3K_0402_1%

PC607

330P_0402_50V7K

PJ601

@

JUMP_43X79

+1.0VALWP

112

2

+1.0V_PRIM

+1.0VALWP

12

PC608

22U_0603_6.3V6M

12

PC609

22U_0603_6.3V6M

12

PC610

PC611

@

22U_0603_6.3V6M

12

PC616

PC615

@

22U_0603_6.3V6M

B B

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

2015/1/15

Compal Secret Data

Deciphered Date

2

2017/10/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

1.0V_PRIM

LA-C482P

Wednesday, February 24, 2016

4337

1

4337

2.0

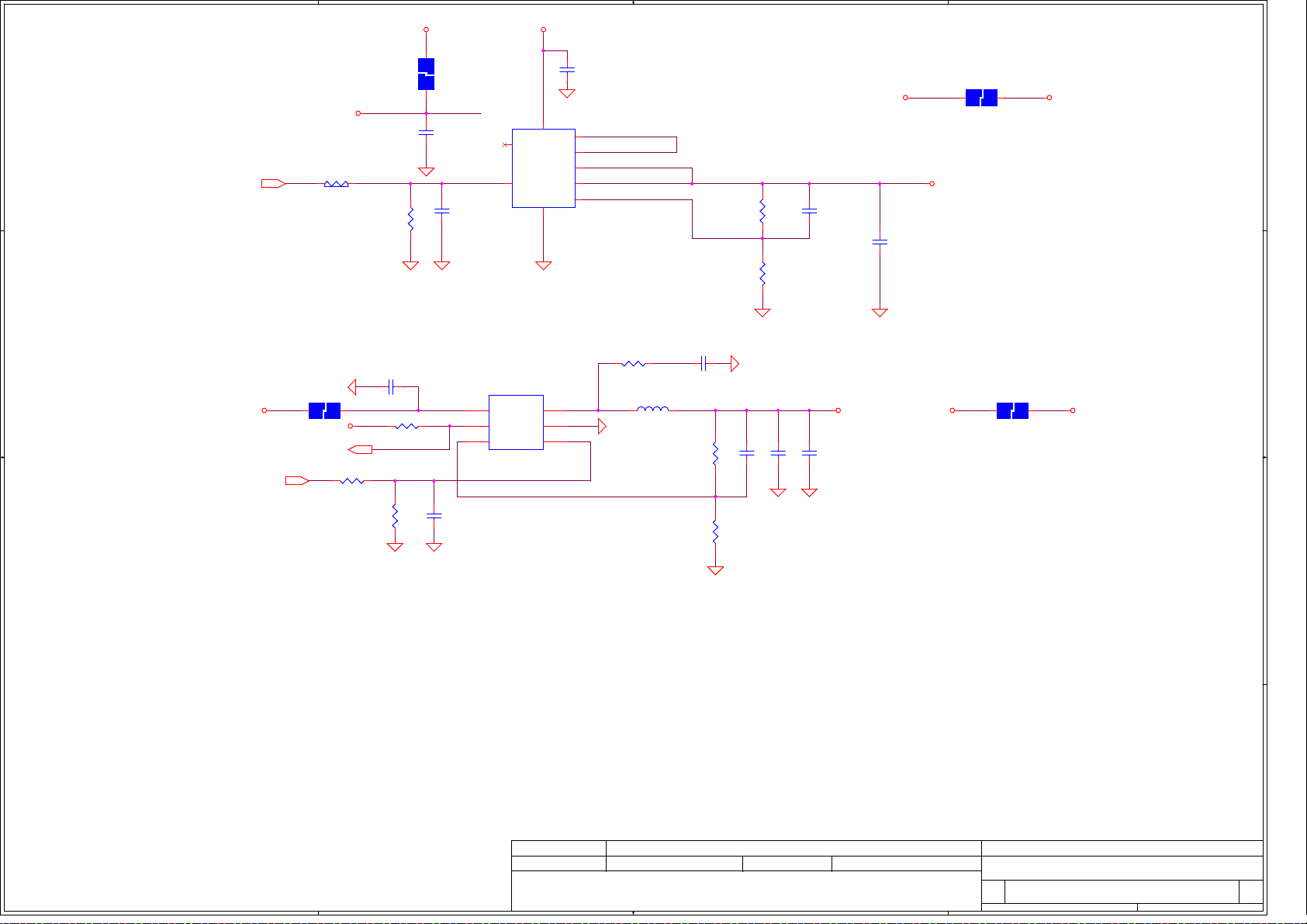

A

+3VALW

1

2

1 1

SUSP#<13,27,30,36>

2 2

+3VALW

SPOK<27,35>

3 3

VIN_1.5VS

1 2

PJ703

112

JUMP_43X39

+3VALW

@

+1.8VALW_PG<37>

PR710

@

0_0402_5%

PR707

0_0402_5%

1 2

2

12

PC702

4.7U_0603_6.3V6K

12

PR701

1M_0402_5%

PC707 22U_0603_6.3V6M

1 2

PR705 100K_0402_5%

EN_1.8V

12

PC711

PR708

@

1M_0402_1%

0.1U_0402_16V7K

PJ701 JUMP_43X39

@

VIN_1.5VS

EN_1.5VS

12

PC703

@

0.1U_0402_16V7K

12

B

PU701

7

POK

8

VEN

PU702

SY8032ABC_SOT23-6

4

IN

5

PG

GND

FB6EN

+3VALW

6

VPP

TPAD

GND

1

3

LX

2 1

ADJ

12

PC701 1U_0402_6.3V6K

5

VIN

9 3

VO

4

VO

2

G971ADJF11U_SO8

@EMI@

LX_1.8V

PR704

4.7_0603_5%

1 2

PL701 1UH_2.3A_+-20%

1 2

FB_1.8V

C

Note: When design Vin=5V, please stuff snubber to prevent Vin damage

+1.5VSP +1.5VS

VIN_1.5VS

@EMI@

680P_0402_50V7K

SNB_1.8V

12

Rup

FB_1.5VS

12

Rdown

PC706

1 2

12

PR702

1K_0402_1%

PR703

1.13K_0402_1%

PC704

0.01U_0402_25V7K

12

PC705 22U_0603_6.3V6M

2.5*2*1.2 DCR=45~59m ohm SH00001100S00 common part

12

PC708

PR706

20K_0402_1%

68P_0402_50V8J

12

PR709

10K_0402_1%

12

PC710

PC709

22U_0603_6.3V6M

+1.8VALWP

D

PJ702

2

112

JUMP_43X39

@

Current limit = 4.7A(min)

0.4%

+1.5VSP

continuous 0.5A Ipeak= 0.75A

PJ704

2

112

JUMP_43X39

@

continuous 0.3A Ipeak= 0.4A

+1.8V_PRIM+1.8VALWP

4 4

Security Classification

2015/1/15

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

B

2015/1/15

Compal Secret Data

Deciphered Date

C

2017/10/09

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Wednesday, February 24, 2016

Date: Sheet of

Wednesday, February 24, 2016

Date: Sheet of

Wednesday, February 24, 2016

1.8V_PRIM / 1.8V_MEM

LA-C482P

D

4338

2.0

5

4

3

2

1

VCORE Imax=21A Ipeak=29A Iocp=35A LL=2.4mV/A

GT Imax=18A Ipeak=31A Iocp=40A LL=3.1mV/A

PC8102

D D

PC8101

1000P_0402_50V7K

VSPP_1b

VSNN_1b

1 2

VSNN_2ph

PR8121

499_0402_1%

PR8123

1

PC8116 2200P_0402_25V7K

2

1 2

PR8141 1K_0402_1%

PR8149

@

1 2

2_0402_1%

PR8163

1 2

2_0402_1%

1U_0603_10V6K

1 2

PR8104

1.43K_0402_1%

1 2

PR8106499_0402_1%

1 2

PC8108

2200P_0402_50V7K

VSP_2ph

PR8117

1K_0402_1%

1 2 1 2

PC8111

1000P_0402_50V7K

12

24K_0402_1%

1 2

PC8113

PR8122

1 2 3 4 5 6 7 8

9 10 11 12

12

PC8126

0.01U_0402_50V7K

12

PC8131

VSP_1b

VSN_1b

VSN_2ph

49

470P_0402_50V7K

IOUT_2ph DIFFOUT_2ph FB_2ph COMP_2ph ILIM_2ph CSCOMP_2ph CSSUM_2ph CSREF_2ph CSP2_2ph CSP1_2ph TSENSE_2ph VRMP

12

PR8150

33.2K_0402_1%

PR8102 100_0402_1%

+VCC_SA

VCCSA_SENSE<13>

VSSSA_SENSE<13>

+VCC_GT

VCCGT_SENSE<15>

VSSGT_SENSE<15>

C C

Rcs2

PR8144

1 2

PC8122

PR8133

165K_0402_1%

1 2

12

PR8130 309K_0603_1%

SWN_GT1 SCLK

CSN_GT1<40>

OCP@GT Imax=18A Ipeak=31A Iocp=40A LL=3.1mV/A

Rlim=Ioutlimit*Loadline/10

-> PR8135=12.4K

B B

Iccmax@GT=31A RICCMAX2PH=48.7-->PR8158 RIccMAX2ph= (IccMAX2Ph+32)*200K ohm/ 127 =100K??

Iout@GT= 31A RIOUT@GT=26.1K --->PR8122 RIOUT= 2* RLIM /(10 *IOUTICCMAX * Load line) =25K??

Load line@GT= 3.1m RPH@GT=280K --->PR8130 Load line= (RCS2+(RCS1*Rth/(RCS1+Rth))) *IOUTTOTAL * DCR/RPH=92.95??

1 2

0.33U_0402_10V6K

SWN_GT1<40>

2.26K_0402_1%

1 2

PR8108 100_0402_1%

PR8110 100_0402_1%

1 2

100_0402_1%

place

PH803

close

Common part

to L2

SL200002I00

Rth

PH803

THERM_ 220K 5% 0402

1 2

Rcs1

PR8131 75K_0402_1%

1 2

PC8117

330P_0402_50V7K

+5VS

PR8139 0_0402_5%@

PC8123

0.022U_0402_16V7K

PH805 Common part SL200002H00

1 2

PR8118

1000P_0402_50V7K

12

1 2

@

12

PH805

PR8162 0_0402_5%@

PC8118

100K_0402_1%_NCP15WF104F03RC

100 place close to U2

@

0_0402_5%

1 2

1000P_0402_50V7K

1 2

0_0402_5%

@

1 2

0_0402_5%

@

680P_0402_50V7K

15P_0402_50V8J

12



PR8103

PR8113

PR8116

PR8119

49.9_0402_1%

PC8112

PC8115

PR8135

12.4K_0402_1%

1 2

0_0402_5%

12

PR8140

@

61.9K_0402_1%

PR8142

+5VALW

PC8105

12

+5VS

12

PR8111 20K_0402_1%

PC8109 1000P_0402_50V7K

12

4.75K_0402_1%

+19VB

12

PC8124 1000P_0402_50V7K

8200P_0402_25VX7R

1 2

12

PR8105

19.6K_0402_1%

40

41

42

43

44

45

46

47

48

TAB

VSN_2ph

13

PR8151

24K_0402_1%

39

PSYS

ILIM_1b

VSP_1b

CSP_1b

VSN_1b

CSN_1b

VSP_2ph

COMP_1b

PU8101

ADDR_VBOOT21ICCMAX_1b20ICCMAX_1a19ICCMAX_2ph18RSOC_SAUS15ROSC_COREGT14VCC

PWM2_2ph17PWM1_2ph

16

12

PR8158 48.7K_0402_1%

PR8159 90.9K_0402_1%

1 2

15P_0402_50V8J

1 2

PC8104

1000P_0402_50V7K

PR8114

54.9K_0402_1%

1 2

PC8110 470P_0402_50V7K

1 2

PR8120

@

0_0402_5%

37

38

EN

36

IOUT_1b

VR_RDY

PWM_1b

35

DRVON

34

SCLK

33

ALERT#

32

SDIO

31

VR_HOT#

30

IOUT_1a

29

CSP_1a

28

CSN_1a

27

ILIM_1a

26

COMP_1a

25

VSN_1a

NCP81208-MNTXG_QFN48_6X6

PWM_1a22TSENSE_1ph

VSP_1a

23

24

VSP_1a

PC8132

1000P_0402_50V7K

12

ADDR_VBOOT 10K VCC:0V VCCGT:0V VCCSA:1.05V

PR8161 10K_0402_1%

PR8160 15.8K_0402_1%

PR8101

1.5K_0402_1%

PC8103

12

PC8107

@

4700P_0402_25V7K

PR8129

49.9_0402_1%

1 2

PR8136

ALERT#

10_0402_1%

1 2

SDIO

PC81272200P_0402_50V7K

1 2 1 2

VSN_1a

PR8145

499_0402_1%

PR8152

576_0402_1%

1 2

PR8154 576_0402_1%

PWM_1a <40>

PWM1_2ph <40>

12

PH802 100K_0402_1%_NCP15WF104F03RC

place close

12

PC8106

PWM_1b <40> DRVON <40>

@

0_0402_5%

to L4

PR8109 15K_0402_1%

0.01U_0402_25VX7R

1 2

PR8112

8.25K_0603_1%

VR_ON <27,30>

12

PR8134

PR8124 45.3_0402_1%

1 2

PR8138 100_0402_1%

0_0402_5%

1 2

12

PC8130 1000P_0402_50V7K

1 2

PR8156

@

0_0402_5%

1 2

12

PC8133

1000P_0402_50V7K

VCCSA Imax=4A Ipeak=4.5A Iocp=9.5A LL=10.3mV/A

CSN_1b <40>

PH802 Common part SL200002H00

SW_1b <40>

+1.0V_VCCST

close to the longer distance phase(81208 or 81210) Alert,Data,Clk.

12

@

PR8146

@

PR8153

@

0_0402_5%

12

PR8157

PR8126 100_0402_1%

PR8125 110_0402_1%

SOC_SVID_CLK <15> SOC_SVID_ALERT#_R <15> SOC_SVID_DAT <15>

PR8147

100_0402_1%

1 2

PR8155 100_0402_1%

12

PH801 100K_0402_1%_NCP15WF104F03RC

61.9K_0402_1%

12

PH801 Common part SL200002H00

place close to U1

12

PC8114

.1U_0402_16V7K

12

+3VS

PR8115 10K_0402_1%

PR8127

110_0402_1%

1 2

PR8137 15.8K_0402_1%

PC8129

15P_0402_50V8J

VSSSENSE <15>

VCCSENSE <15>

+VCC_CORE

VR_PWRGD <27>

VR_HOT# <27>

PC8119 470P_0402_50V7K

1 2

12

Imax=4A Ipeak=4.5A Iocp=9.5A LL=10.3mV/A IccMAX@SA= 5A

RIccMAX@SA= 15.8K --->PR8160 RIccMAX@SA= IccMAX*2V/10uA/64A

IOUTSP@SA= 5A RIOUTSP@SA=69.8K ?? --->PR8114 RIOUTSP= 2V/(gm*(Rth+RCSSP)*ICCMAX*DCR /(RPHSP+Rth+RCSSP))

OCP@SA= 9.5A RLIMSP@SA=19.6K?? --->PR8105 RLIMSP= 1.3V/(gm*(Rth+RCSSP)*IoutLIMIT*DCR /(RPHSP+Rth+RCSSP))

Load line@SA= 10.3m RDRPSP@SA=1.5K?? --->PR8104 RDRPSP= Load line*(RPHSP+Rth+RCSSP) /(gm * DCR) /(Rth+RCSSP)

PR8128

8.25K_0603_1%

12

PC8128

12

PR8148

2.49K_0402_1%

1 2

PR8132

15K_0402_1%

1 2

12

PC8120

4700P_0402_16V7K

PC8121

1000P_0402_50V7K

12

PR8143

8.66K_0402_1%

1500P_0402_50V7K

Imax=21A Ipeak=29A Iocp=35A LL=2.4mV/A RDRPSP@VCORE=590?? --->PR8152 RDRPSP= Load line*(RPHSP+Rth+RCSSP) /(gm * DCR) /(Rth+RCSSP)

IccMAX@VCORE= 28A RIccMAX@VCORE= 90.9K??(󲄒󴦻󲕸87.6K) --->PR8159 RIccMAX@VCORE= IccMAX*2V/10uA/64A

IOUTSP@VCORE= 28A RIOUTSP@VCORE=17.8K?? --->PR8137 RIOUTSP= 2V/(gm*(Rth+RCSSP)*ICCMAX*DCR /(RPHSP+Rth+RCSSP))

OCP@VCORE= 35A RLIMSP@VCORE=8.66K?? --->PR8143 RLIMSP= 1.3V/(gm*(Rth+RCSSP)*IoutLIMIT*DCR /(RPHSP+Rth+RCSSP))

SW_1a <40>

PH804 Common part

place

SL200002H00

close

12

to L1

PH804 100K_0402_1%_NCP15WF104F03RC

CSN_1a <40>

PC8125 1000P_0402_50V7K

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

Compal Secret Data

Deciphered Date

2

Compal Electronics, Inc.

Title

2017/10/092015/1/15

Title

Size Document Number Rev

Date: Sheet of

CPU Power rail

LA-C482P

Wednesday, February 24, 2016

LA-C482P

4339

1

4339

2.0

1

A A

PR8202

9

PAD

DRVH

DRVL

GND

SW

PC8202

0.22U_0603_16V7K

1 2

8

UG_VCORE

7

LX_VCORE

6 5

LG_VCORE

2.2_0603_5%

1 2

PU8201 NCP81253MNTBG_DFN8_2X2

1

BST

PWM_1a<39> DRVON<39>

+5VS

B B

C C

2

PWM

3

EN

4

VCC

12

PC8209

4.7U_0603_6.3V6K

+19VB_CPU

PQ8202

1

2

AON6992_DFN5X6D-8-7

D1

G1

7

D2/S1

S24S2

G2

5

3

6

AON6992 L/S Rds(on)=2.5mΩ (max)

2

H=1.9

12

PC8203

10U_0805_25V6K

LX_VCORE

S2

12

PC8204

PC8208

10U_0805_25V6K

0.1U_0402_25V6

@EMI@

PL8203

1 2

12

PR8203

4.7_1206_5%

@EMI@

12

Choke Size󶁪7*7*1.8

PC8210

DCR=4.3m ohm +-5% SH000012200

680P_0603_50V7K

@EMI@

PC8205

@EMI@

1

12

+

PC8226 33U_D2_25VM_R60M

2

2200P_0402_50V7K

4 3

0.22UH_PCMB061H-R22MS4R305_14A_20%

+VCC_CORE

CSN_1a <39>

SW_1a <39>

+19VB_CPU

3

PJ8201

@

JUMP_43X79

112

PL8202

@EMI@

5A_Z120_25M_0805_2P

1 2

PWM1_2ph<39>

+5VS

2

NCP81151MNTBG_DFN8_2X2

DRVON

12

2.2_0603_5%

1 2

PU8202

1

BST

2

PWM

3

EN

4

VCC

PC8218

4.7U_0603_6.3V6K

+19VB

PR8201

0.22U_0603_16V7K

FLAG

DRVH

SW

GND

DRVL

PC8211

1 2

9 8 7 6 5

VCORE Imax=21A Ipeak=29A Iocp=35A LL=2.4mV/A

GT Imax=18A Ipeak=31A Iocp=40A LL=3.1mV/A

VCCSA Imax=4A Ipeak=4.5A Iocp=9.5A LL=10.3mV/A

1

UG_GT SW_GT

LG_GT

G1

7

D2/S1

G2

6

5

2

PQ8201

D1

AON6992_DFN5X6D-8-7

S24S2

S2

3

4

5

+19VB

PJ8202

@

JUMP_43X79

2

1

+

PC8216 33U_D2_25VM_R60M

2

+VCC_GT

CSN_GT1 <39>

SWN_GT1 <39>

112

+19VB_GT

12

PC8227

SW_GT

12

PC8228

4.7U_0603_25V6K

1 2

12

PR8205

4.7_1206_5%

@EMI@

Choke Size󶁪7*7*1.8 DCR=4.3m ohm +-5%

12

SH000012200

PC8201

12

PC8213

2200P_0402_50V7K

@EMI@

PL8204

4 3

0.22UH_PCMB061H-R22MS4R305_14A_20%

PR8204 10_0402_1%

12

PC8214

10U_0805_25V6K

1 2

12

PC8215

10U_0805_25V6K

680P_0603_50V7K

@EMI@

1

PC8223

PR8206

0.22U_0603_16V7K

2.2_0603_5%

1 2

PU8203 NCP81253MNTBG_DFN8_2X2

1

BST

DRVON

2

PWM

3

EN

4

VCC

12

PC8224

4.7U_0603_6.3V6K

1

PWM_1b<39>

+5VS

D D

1 2

HG_SA

PQ8203

4

1

3

2

AON7934_DFN3X3A8-10

D1

D110D2/S1

S2

6

7

5

G1

9

G2

8

DRVH

7

SW

6

GND

5

DRVL

PAD

9

SW_SA

LG_SA

AON7934 L/S Rds(on)=11.6mΩ (max)

PC8220

PC8219

2

4.7U_0603_25V6K

SW_SA

12

PR8207

4.7_1206_5%

@EMI@

12

PC8225

680P_0603_50V7K

@EMI@

2

12

PC8222

PC8221

2200P_0402_50V7K

@EMI@

0.1U_0402_25V6

@EMI@

PL8205

0.47U_PCMB061H-R47MS_11A_20%

1

4 3

2

Choke Size󶁪7*7*1.8 DCR=7.3 ~8.4mohm SH00000PX00 (0.47uH)

+VCC_SA

CSN_1b <39>

SW_1b <39>

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

AON6992 L/S Rds(on)=2.5mΩ (max)

Compal Secret Data

Deciphered Date

4

Compal Electronics, Inc.

Title

2017/10/092015/1/15

Title

Size Document Number Rev

Date: Sheet of

CPU Poer Stages

LA-C482P

Wednesday, February 24, 2016

LA-C482P

4340

5

4340

2.0

5

1

PC9102

2

@

1

PC9103

2

22U_0603_6.3V6M

1

PC9104

PC9105

2

@

22U_0603_6.3V6M

1

PC9107

PC9106

2

22U_0603_6.3V6M

1

PC9108

2

@

22U_0603_6.3V6M

1

PC9109

PC9110

2

@

22U_0603_6.3V6M

4

+VCC_CORE+VCC_CORE

1

PC9111

2

@

22U_0603_6.3V6M

12

PC9113

PC9112

PC9114

1U_0402_6.3V6K

12

PC9115

1U_0402_6.3V6K

12

PC9117

PC9116

PC9118

1U_0402_6.3V6K

3

2

1

+VCC_CORE

H=1.9

12

PC9120

PC9119

PC9121

1U_0402_6.3V6K

1

+

PC9101 220U_D2_2V_Y

2

D D

C C

+VCC_GT

B B

1

PC9123

PC9122

2

22U_0603_6.3V6M

@

1

PC9137

PC9138

2

22U_0603_6.3V6M

1

PC9148

PC9147

2

22U_0603_6.3V6M

1

PC9155

PC9156

2

22U_0603_6.3V6M

1

PC9176

PC9177

2

22U_0603_6.3V6M

1

PC9189

PC9188

2

22U_0603_6.3V6M

1

PC9125

PC9124

2

22U_0603_6.3V6M

1

PC9140

PC9139

2

@

22U_0603_6.3V6M

1

PC9149

PC9150

2

@

22U_0603_6.3V6M

1

PC9157

PC9158

2

22U_0603_6.3V6M

1

PC9178

PC9179

2

22U_0603_6.3V6M

1

PC9190

PC9191

2

@

22U_0603_6.3V6M

1

PC9126

2

22U_0603_6.3V6M

1

PC9141

2

22U_0603_6.3V6M

1

PC9151

2

22U_0603_6.3V6M

1

PC9159

2

22U_0603_6.3V6M

1

PC9180

2

22U_0603_6.3V6M

1

PC9192

2

22U_0603_6.3V6M

1

PC9127

PC9128

2

22U_0603_6.3V6M

1

PC9143

PC9142

2

22U_0603_6.3V6M

1

PC9153

PC9152

2

@

22U_0603_6.3V6M

1

PC9161

PC9160

2

22U_0603_6.3V6M

1

PC9181

PC9182

2

22U_0603_6.3V6M

1

PC9193

PC9194

2

22U_0603_6.3V6M

1

PC9129

2

22U_0603_6.3V6M

1

PC9144

2

22U_0603_6.3V6M

1

PC9154

2

22U_0603_6.3V6M

1

PC9162

2

22U_0603_6.3V6M

1

PC9183

2

22U_0603_6.3V6M

1

PC9195

2

22U_0603_6.3V6M

1

PC9130

PC9131

2

22U_0603_6.3V6M

1

PC9146

PC9145

2

@

22U_0603_6.3V6M

1

PC9163

PC9164

2

@

22U_0603_6.3V6M

1

PC9184

PC9185

2

@

22U_0603_6.3V6M

1

PC9197

PC9196

2

22U_0603_6.3V6M

12

+VCC_GT

12

PC9186

0.47U_0402_6.3V6K

12

PC9133

PC9132

1U_0402_6.3V6K

12

PC9134

PC9136

PC9135

1U_0402_6.3V6K

+VCC_GT

PC9175 220U_D2_2V_Y

1

12

PC9165

1U_0402_6.3V6K

12

PC9166

PC9167

1U_0402_6.3V6K

PC9187

1U_0402_6.3V6K

12

PC9168

1U_0402_6.3V6K

12

PC9170

PC9169

0.47U_0402_6.3V6K

12

PC9171

1U_0402_6.3V6K

12

PC9173

PC9172

PC9174

1U_0402_6.3V6K

H=1.9

+

2

1

PC9198

PC9199

2

22U_0603_6.3V6M

+VCC_SA

1

PC9205

PC9204

2

22U_0603_6.3V6M

1

A A

1

PC9221

PC9222

2

@

22U_0603_6.3V6M

1

PC9201

PC9200

2

22U_0603_6.3V6M

1

PC9206

2

22U_0603_6.3V6M

1

PC9223

2

@

22U_0603_6.3V6M

5

1

PC9203

PC9202

2

22U_0603_6.3V6M

+VCC_SA

1

PC9209

PC9208

2

@

22U_0603_6.3V6M

1

PC9210

2

22U_0603_6.3V6M

1

PC9211

PC9212

2

22U_0603_6.3V6M

PC9213

2

@

22U_0603_6.3V6M

12

4

12

PC9214

1U_0402_6.3V6K

12

PC9216

PC9215

PC9217

1U_0402_6.3V6K

12

PC9219

PC9218

1U_0402_6.3V6K

330U_D3_2.5VY_R6M-->H=1.4 SGA00006A00

330U_D2_2V_Y-->H=1.9 SGA00009S00

2015/09/15 2015/10/21

VCORE Output Cap󶁪 22U 6.3V X5R 0603 * 38 1U 6.3V X5R 0402 * 15 330U 2.5V D2 ESR6M * 1

PC9220

VCCGT Output Cap󶁪

1U_0402_6.3V6K

22U 6.3V X5R 0603 * 36 1U 6.3V X5R 0402 * 12 330U 2.5V D2 ESR6M * 1

VCCSA Output Cap󶁪 22U 6.3V X5R 0603 * 13 1U 6.3V X5R 0402 * 7

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAW ING IS THE PROPRIETARY PROPERTY OF C OMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATI ON. THIS SHEET MAY NOT BE TRAN SFERED FROM THE CUSTODY OF T HE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY C OMPAL ELECTRONICS, INC. NEIT HER THIS SHEET NOR THE IN FORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTR ONICS, INC.

3

VCORE Output Cap󶁪 Backside 22U 6.3V X5R 0603 * 13 1U 6.3V X5R 0402 * 15

VCCGT Output Cap󶁪 Backside 22U 6.3V X5R 0603 * 13 1U 6.3V X5R 0402 * 9

0.47U 6.3V X5R 0402 * 3

VCCSA Output Cap󶁪 Backside 22U 6.3V X5R 0603 * 4 1U 6.3V X5R 0402 * 7

Compal Secret Data

Deciphered Date

Primary 22U 6.3V X5R 0603 * 16

Primary 22U 6.3V X5R 0603 * 20 220U 2V D2 * 1

Primary 22U 6.3V X5R 0603 * 3

2017/10/092015/1/15

2

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

CPU DECOULPING

LA-C482P

Wednesday, February 24, 2016

LA-C482P

4341

1

4341

2.0

5

Version Change List ( P. I. R. List )

Item

P36

1

P36

2

D D

P37

3

4

P41 POP 11/19 Jims_Liu for CPU trancient

5

P41 non-POP 11/19 Jims_Liu for CPU trancient

6

P41

7

8

9

P39

10

11

P39

C C

12

P39

13

P39

14

P39

15

P39

change

change 11/19 Jims_Liu

change

non-POP PR8130 change from SD014280380_280Kohm to SD014309380_309KohmP39

change

16

17

P34 change

18

P39

19

P37

change

Request

Date

Owner

11/19

Jims_Liu

11/19 Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_Liu

11/19

Jims_LiuchangeP38

11/19

Jims_Liu

11/24 PR605 change from SD034137280_13.7K to SD00000QM80_14.3Kfor HW require

Jims_Liu

20

21

B B

22

P39 change 11/27

23

P35 12/08

24

25

change

Jims_Liu co-lay

11/30 Jims_LiuchangeP37

Jims_Liu

12/08

Jims_Liu

Issue Description

avoid material shortage avoid material shortage

for power efficient

for CPU trancient

Save production time

for efficiency

for efficiency PL8205 change from SH000018B00_.47uH_H1.5 to SH00000PX00_.47uH_H1.8P40

4

3

Page 1

Solution Description

PL502 change SH000015N00 to SH00000AA00

PU501 change SA000096O00 to SA00007IH00

PL602 change SH00000TV00 to SH000014Y00

22uF (PC9107PC9131PC9140PC9198PC9199 PC9200) change unpop to SMT

22uF (PC9190PC9164PC9185PC9111,PC9145, PC9104,PC9108,PC9122,PC9123) change SMT to unpop

PC9101 change from SGA00009S00_330uF to SGA20221D40_220uF and SMTfor CPU trancientJims_Liu

PR8122 change form SD034261280_26.1Kohm to SD034240280_24KohmJims_Liu11/19P39

PR8123 change from SD034523180_5.23Kohm to SD034475180_4.75Kohm

PC8116 change from SE075472K80_4700pF to SE075222K80_2200pF

PR8114 change from SD034590280_59Kohm to SD00000H880_54.9Kohm

PC8106 change from SE000000680_8200pF to SE068103K80_0.01uF

PR8137 change from SD034178280_17.8Kohm to SD034158280_15.8Kohm

PR8152 change from SD00000CO80_590ohm to SD034576080_576ohm

PR8154 change from SD00000JJ00_665ohm to SD034576080_576ohm

PL701 change from SH00000XB00 to SH000011S00change to common part

PQ301PQ308 change from SB000009Q80 to SB00000ST00follow HW 2nd source

PR8139PR8120 change from 0 ohm to R_short11/24

PC8219, PC8220 change from SE00000QK00_10uF to SE000013880_4.7uFfor audio noiseJims_Liu11/24changeP37

PR701 change from SD028470280_47Kohm to SD028100480_1Mohmfor PU701 pull highJims_Liu11/25changeP38

add PR8163_SD000005V00 co-lay 5Valw PR8194_SD000005V00 change to unpop

PJ601 change from JUMP_43X118 to JUMP_43X79more place for CPU_GT

PL402 change from SH00000LT00_2.2uH_H1.5 to SH00000A900_2.2uH_H1.8change

Rev.Page# Title

2

1

P3426change 01/11 Jims_Liu for EMI request remove unpop PL301(SH00000PB00) & PJ301

P3427change 01/13 Jims_Liu for power debug add PJ301

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

3

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2

Compal Secret Data

2015/1/15 2017/10/09

Deciphered Date

Compal Electronics, Inc.

Title

PWR-PIR

Size Document Num ber Rev

LA-C482P

Date: Sheet of

1

42 43Wednes day, February 24, 2 016

2.0D

5

4

3

2

1

Version Change List ( P. I. R. List )

Item Issue

Date

PWR1 ALL 9/14 combine power schematic 0914 combine power schematic 0914

2 P.20 HW 9/14 remove DDR cap remove CD150,CD151

D D

Request Owner

Description

Page 1/3 for HW

Solution Description

Rev.Page# Function

3 ALL HW 9/14 Compare connector list Compare connector list 4 P.24,25 HW 9/30 USB cap change to B2 CS12,CS25 chagne to SGA00009M00 5 P.29 HW 9/30 remove for assembly change Remove SW3,SW4 6 P.23,26 HW 10/1 JUMP change to R-short for placemant J1,J17 change to RM2,RA2 7 P.23 HW 10/1 SATA cap chagne size for placement CM7,CM8,CM9,CM10 change from 0402 to 0201 8 ALL HW 10/1 swap pin for layout routing Swap LY1,LY2,LY3 LY4 ,LS5,LS4,LS12,RPC5 9 P.26 HW 10/2 USB3 re-driver update P/N for new version US5 change from SA00005OR00 to SA00005OR30 10 P.28 HW 10/5 For KB/B debug Add RK15,RK16 11 P.26 HW 10/5 update FPC pin define update JSB1 pin define 12 P.9,11 HW 10/5 change Project_ID&RAM_ID pin pin_U1-4 for RAM_ID , pin_P1-4 for Project_ID 13 P.9,11 HW 10/5 Change USB30 ESD part for ESD request Add DS5,DS6,DS8,DS10 14 P.8 HW 10/7 EC schematic checklist RPC1 chagne from 1k to 2.2k 15 P.12 HW 10/7 for layout request Swap RPC9,RPC10 16 ALL HW 10/7 For DFX/EMI request Change LX2,LS4-LS12 from 0805 to 0504 17 P.23 HW 10/7 For layout co-lay Add RM16,RM17

C C

18 P.10 HW 10/7 Remove ME reset pad Remove CC119,CLRP3 19 P.10 HW 10/7 Add 60.4 PD for XTAL_BIASREF Reserve RC158 20 P.10 HW 10/7 update Crystal P/N update YC1,YC2 21 P.11 HW 10/7 Combine net to RPC8 Combine DGPU_PWR_EN to RPC8 22 P.13 HW 10/7 Add Cap for load switch output Add CC51 23 P.14 HW 10/7 Non-DS3 sequence Pop RC135 ; unpop RC137 24 P.21 HW 10/7 Reduce 0ohm part count Remove RX2,RX7 25 P.23 HW 10/7 Change SSD power cap value CM5 change from 4.7uF to 10uF 26 P.8 HW 10/7 Combine parts QC1 change to SB00000DH00 27 P.25,28 HW 10/7 Combine parts QG1,QS2 change to SB00000S700 (SOT323) 28 P.28 HW 10/7 modify KB schematic RK14 change to 1K , remove RK12,RK13 29 P.29 HW 10/7 modify FAN schematic Remove RF3 30 P.30 HW 10/7 Add Cap for load switch output Add CC53,CC55 31 ALL PWR 10/8 Combine power schematic 1008 Combine power schematic 1008

Combine parts10/8HWP.25,2832 QG1,QS2 change to SB00000ST00 33 P.29 HW 10/12 update screw hole H24,H25,H26 change to PTH 34 P.25 HW 10/13 combine USB into ESD diode delete DS7,DS9 , USB into DS5,DS6,DS8,DS10

B B

35 P.25 HW 10/13 Change Type-C cap volt (6.3V&16V -> 25V) Change CS26,CS29 to 25V 36 P.27 HW 10/14 Add BT_ON on EC pin120 Add BT_ON on EC pin120 37 ALL HW 10/15 For EMI request Remove CC10,CG2,CS8,LY1,LY2,LY3,LY4 38 P.26 HW 10/15 update JSB1 pin define USB_OC0# change to BT_ON 39 ALL PWR 10/15 Combine power schematic 1015 Combine power schematic 1015 40 P.25 HW 10/15 update Type-C schematic Remove CS26 , update JUSB2 pin define 41 ALL PWR 10/15 Combine power schematic 1015B Combine power schematic 1015B 42 P.27 HW 10/16 update EC pin define for KB backlight pin27 <-> pin72 43 P.26 HW 10/16 update JSB1 pin define delete one GND pin , add +3VS_WLAN 44 ALL HW 10/19 remove test point CFG10-15,T30,T6 45 P.14 HW 10/19 add cap to +3VALW_DSW Add CC86 46 P.28 HW 10/19 remove 0ohm remove RK10 47 ALL HW 10/19 Change 0-ohm to R-short for part count RM11,RC122,RC124,RS12,RQ1,RQ2,RC49,RC81,RC83,RC111,RC115,

RC113,RC114,RC125,RC127,RC128,RC131,RC132,RC134,RC136,RC144, RC145,RC118,RC119,RC123,RC126,RC133

A A

48 ALL PWR 10/19 Combine power schematic 1019 Combine power schematic 1019 49 ALL PWR 10/20 Combine power schematic 1020 Combine power schematic 1020 50 P.13 PWR 10/21 BOM update pop RC112 , unpop UC8,CC49,CC43,CC45 51 P.14 PWR 10/21 BOM update pop RC129 , unpop RC130

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW P.I.R (1/3)

B3ZMS LA-D591P

1

2.0

43 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

Version Change List ( P. I. R. List )

Item Issue

Date

PWR52 ALL 10/22 combine power schematic 1021C combine power schematic 1021C

53 P.10 HW 10/22 part count unpop RC85

D D

Request Owner

Description

Page 2/3 for HW

Solution Description

Rev.Page# Function

54 P.13 HW 10/22 power source cap added pop CC45,CC49 55 P.21 HW 10/22 use USB interface touchscreen unpop RX10,RX11 56 P.28 HW 10/22 LED interface update pop RG5 ; unpop RG6,QG1 57 P.8,9 HW 10/22 update BOM config RC31 -> LPC@ , RC32 -> TPM@ , RC54 -> EMC@ 58 P.11,18,19 HW 10/22 update BOM config -> X76@ UV1-4,RC150-157 59 P.3 HW 10/22 update BOM config -> CPU QJ8Q@,SR2EU@,SR2EY@,QJKK@ 60 P.27 HW 10/22 update Board ID RB6 change to 0ohm 61 ALL HW 10/23 2.2uF change Part Number to SD000008880 CC54,CC60,CD28,CD53,CD51,CD22,CD48,CD37,CD46,CD24,CD44,CD42 62 P.11,12 HW 10/23 Part count reduce unpop RC50,RC51,RC92,RC93,CC24,CC25,CC26,CC27,CC28,CC29,CC30,CC31 63 P.25 HW 10/23 Part count reduce unpop CS19,CW6,CC109,CC110

10/21 A gerber 10/21 A gerber 10/21 A gerber 10/21 A gerber 10/21 A gerber 10/21 A gerber

64 P.7 HW 11/11 UC2 X1 code UC2 change from SA00005U600 to SA00007UR00 65 P.26 HW 11/11 US5 change symbol to TI (small thermal pad) US5 change symbol to TI (small thermal pad) 66 P.28 HW 11/11 LED pin error swap LED1,LED2 67 P.25 HW 11/11 Type-C schematic update for CC_UFP# QS2 change from singal-N to dual-N

C C

68 P.25 HW 11/12 Type-C schematic update for VCC CS29 change from 10uF to 0.1uF 69 P.26 HW 11/16 move U3 redriver to S/B remove US5 from M/B 70 P.26 HW 11/16 Change BTB CONN. for cost JSB1 vendor change to ENTERY 71 P.26 HW 11/16 WLAN_PME# PU at M/B side RM6 desgin in M/B side 72 P.26 HW 11/17 update JSB1 pin define reduce +5VALW*1 , add +VDDA*1 73 P.25 HW 11/17 Combine BOM DS12 change to SCA00002M00 (same as S/B) 74 P.8,28 HW 11/17 Remove TPM schematic Remove TPM schematic 75 P.25 HW 11/17 update Type-C schematic Replace RS36 by J17 ; unpop QS1,QS2,RS34,RS56 76 P.11 HW 11/17 remove SCI Pull-up Remove RPC8 pin1 77 P.6 HW 11/17 SOC_OCC# connect to GND SOC_OCC# connect to GND 78 ALL HW 11/18 part count reduce RC129,RB17,RC112,RA11,RA12,RC35,RS30,RS31,RS32,RG3,RG11,RC84,

RC104,RC106,RX4,RC140,RS22,RS23,RF1,RC110,RC135,RX12,RX13 RA13 remove11/18HWP.2679 part count reduce unpop SW1HW 11/1880 P.28 unpop test power button

HW RB6 change from 0-ohm to 12KOhm81 P.27 11/18 Board ID update 82 P.27 HW KBL_EN change from pin27 to pin2511/18 update EC GPIO table 83 P.27 HW 11/18 remove EC_LID_OUT#update EC GPIO table

B B

84 P.7 HW 11/19 change net[SM_PG_CTRL] PU power RC25 PU change from +3VALW to +3VS 85 P.8 HW 11/19 part count reduce unpop RC26,RC27,RC30 86 P.9,26 HW 11/19 remove PCH DMIC signal remove RA7,RA8,net[PCH_DMIC_CLK],net[PCH_DMIC_DATA] 87 P.30 HW 11/19 change to correct location by naming rule CC53,CC55 change to CQ5,CQ6 88 P.13 HW 11/19 combine parts -> 0.1uF 0201 CC46 change from 0402 to 0201 89 ALL HW 11/19 combine parts -> 10uF 0603 CC106,CS19,CS20,CS37 90 P.26 HW 11/25 Use dual U3 re-driver for U3 issue US5 group on M/B 91 P.26 HW 11/26 Add AC cap between 1st 8713 & 2nd 8713 Add CS33,CS34 92 ALL PWR 11/26 Combine power schematic Combine power schematic 93 P.6 HW 11/26 Intel Debug RC6,RC7,RC8,RC19 change t DCI@ (unpop) 94 P.26 HW 11/26 update JSB1 pin define for EMI request pin8 <-> pin60 95 P.6 HW 11/26 reserve PU +3VS for EC_SCI# (for kabylake?) Reserve RC159 96 P.26 HW 11/27 Vendor recomment : update REXT PD value RS53 change from 3.83k-ohm to 4.99k-ohm 97 ALL PWR 11/30 Combine power schematic Combine power schematic 1130 98 P.10 HW 12/1 Add PD for PLT_RST_BUF# Add RC53

A A

99 P.26 HW 12/2 Remove U3 re-driver Remove US5 group 100 P.29 HW 12/2 Add PU for Thermal sensor SMBus Add RPF1 , remove RF5 101 P.27 HW 12/2 Add BOM config for ENE request (PLT_RST# PD) RB5 100K for LPC@ , 47K for ESPI@ 102 P.28 HW 12/2 remove debug KB pin remove RK15,RK16

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW P.I.R (2/3)

B3ZMS LA-D591P

1

2.0

44 45Wednesday, February 24, 2016

2.0

5

4

3

2

1

Version Change List ( P. I. R. List )

Item Issue

Date

HW103 P.13 12/3 change load switch CT value CC39 change from 10pF to 470pF

104 ALL PWR 12/8 Combine power schematic 1208 Combine power schematic 1208

D D

Request Owner

Description

Page 2/3 for HW

Solution Description

Rev.Page# Function

105 P.26 HW 12/31 Add PME PU on M/B Add RM6 106 P.14 HW 12/31 Cost reduce unpop UC10,CC112 107 P.29 HW 1/5 Add POA schematic Add POA schematic 108 P.28 HW 1/11 Change Battery LED power source to +5VALW unpop RG3 ; pop RG2 109 ALL PWR 1/13 Combine power schematic 0111 Combine power schematic 0111 110 P.13 HW 1/13 Factory issue unpop CC52 111 P.28 HW 1/18 LED R-value change RG7->680ohm ; RG8->220ohm 112 P.3 HW 1/19 Add Kabylake CPU P/N Add SA00009QM10,SA00009PJ30 113 P.27 HW 1/19 update project ID RB6 change from 12K-ohm to 15K-ohm 114 P.29 HW 2/15 update screw hole H4 change from 2P8 to 3P2 115 P.27 HW 2/15 update project ID RB6 change from 15K-ohm to 20K-ohm 116 P.29 HW 2/17 reserve 0-ohm for FP USB signal reserve RK13,RK15 117 P.28 HW 2/18 Combine Part Number RG8 change from SD034220080 to SD028220080 118 P.28 HW 2/19 LED value change RG1 1.1k -> 1.6k ; RG4 1.6k -> 1k 119 P.28 HW 2/19 HDMI/HDCP test result RY11 change from 4.99k-ohm to 4.75k-ohm

C C

P.29120 HW 2/19 update BOM config RK10 change to FP@

121 P.27 HW 2/19 update BOM config Add RB6=56K for Kabylake

B B

A A

Security Classification

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2015/10/21 2016/06/21

Compal Secret Data

Deciphered Date

Compal Electronics, Inc.

Title

Size Document Number Rev

Custom

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW P.I.R (2/3)

B3ZMS LA-D591P

1

2.0

45 45Wednesday, February 24, 2016

2.0

Compal LA-D591P Schematics Rev2.0

Specifications and Main Features

Frequently Asked Questions

User Manual
