Compal LA-5051P KBYF0, EasyNote LG61, EasyNote LG71 Schematic

A
1 1
B
C
D
E

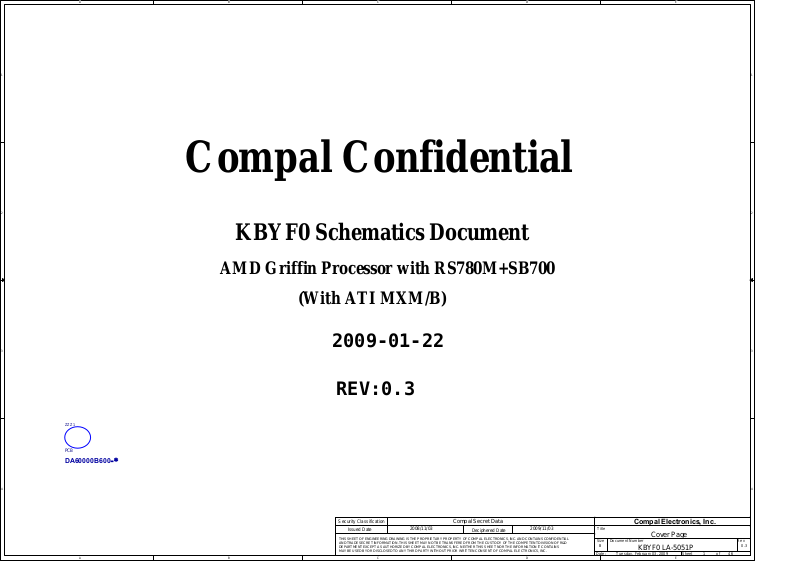

Compal Confidential
2 2
KBYF0 Schematics Document
AMD Griffin Processor with RS780M+SB700
(With ATI MXM/B)
3 3
2009-01-22
REV:0.3
ZZZ1
PCB
DA60000B600-*
4 4
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Deciphered Date
Title
Size Document Number Rev
B
D
Date: Sheet
Compal Electronics, Inc.
Cover Page
KBYF0 LA-5051P
146Tuesday, Fe b r u a r y 03, 2009
E
0.3
of
A
Compal Confidential
B
C
D
E
Model Name : KBYF0 File Name: LA-5051P
1 1
HDMI Conn.
page 17
LCD Conn.
Clock Generator
ICS9LPRS488B
page 16
page 15
CRT Conn.
page 18
Thermal Sensor
ADM1032
page 5
Fan Control
page 36
AMD S1G2 Processor
uPGA-638 Package
page 4,5,6,7
Hyper Transport Link 16 x 16
Memory BUS(DDRII)
Dual Channel
1.8V DDRII 667/800
200pin DDRII-SO-DIMM X2
BANK 0, 1, 2, 3
page 8,9
ATI RS780M
MXM III VGA/B
page 14
2 2
MINI Card x2
TV-Tuner WLAN
page 28
LAN(GbE) B5784M
page 26
PCI-Express 16x
PCI-Express 1x
port 3port 1,2
BGA-528
page 10,11,12,13
A link Express2
3.3V 48MHz
USB Conn x4
page 29 page 16 page 29
USB port 0,1,2,6
CMOS Camera
USB port 3 USB port 12 USB port4
Bluetooth Conn
USB
Card Reader RTS5159
page 25
5 in 1 Socket
page 25
ATI SB700
RJ45
page 27
SPI
RTC CKT.
3 3
page 19
BTN/B Conn.
page 31
BIOS ROM
page 21
BGA-528
page 19,20,21,22,23
LPC BUS
Power On/Off CKT.
page 32
LED/B Conn.
page 31
ENE KB926
page 30
3.3V 24MHz
S-ATA
SATA HDD Conn.
page 24
port 0
DC/DC Int erface CKT.
page 37
Media/B Conn.
page 31
Touch Pad
page 31
Int.KBD
page 31
HD Audio
Second SATA HDD Conn.
page 24
port1
SATA ODD Conn.
page 24
port 2
MDC 1.5 Conn
page 32
HDA Codec ALC272
page 33
Audio AMP TPA6017
page 34
Phone Jack x2
page 34
Int. MIC
page 33
Digital/Analog MIC.
Mono AMP (for Woofer)
page 34
FUN/B Conn.
page 31
4 4
Power Circuit DC/DC
page 39,40,41 42,43,44,45
A
USB/B Conn.
USB port 0,1,2,6
page 28
B
CIR
page 32
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
EC ROM
page 31
2008/11/03 2009/11/03
Deciphered Date
Title
Size Document Number Rev
B
D
Date: Sheet
Compal Electronics, Inc.
Block Diagrams
KBKC0 LA-5051P
0.3
of
246Tuesday, Fe b r u a r y 03, 2009
E
A
Voltage Rails
Power Pl ane Description
VIN
B+
1 1
2 2
+CPU_CORE_0
+CPU_CORE_1 Core voltage for CPU ON OFF OFF
+CPU_CORE_NB Core voltage for CPU
+0.9V 0.9V switched power rail for DDR terminator
+1.1VS
+1.2V_HT 1.25V switched power rail ON OFF OFF
+NB_CORE
+1.5VS
+1.8V
+1.8VS 1.8V switched power rail
+2.5VS
+3VALW
+3V_LAN 3.3V power rail for LAN ON ON ON
+3VS
+5VALW
+5VS
+VSB VSB always on power rail ON ON*
+RTCVCC RTC power
Note : ON* means that this power plane is ON only with AC power available, otherwise i t is OFF.
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU
1.05V switched power rail
1.5V power rail for PCIE Card
1.8V power rail for CPU VDDIO and DDR
2.5V for CPU_VDDA and MXM/B
3.3V always on power rail
3.3V switched power r ail
5V always on power rail
5V switched power rail
External PCI Devices
Device IDSEL# REQ#/GNT# Interrupt s
No PCI device
B
S1 S3 S5
N/A N/A N/A
ON OFF
ON OFF OFF
ON
ON OFF OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
N/AN/AN/A
OFF
OFF
ON
OFFOFFON1.0V~1.1V switched power rail for NB VDDC
OFF OF F
ON
OFF
OFF
OFF
OFF
OFF
ON ON *
OFF
OFF
ON*
ON
OFFON
OFF
ONON
C
STATE
Full ON
S1(Power On Suspend)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft OFF)
SIGNAL
SLP_S1# SLP_S3#
HIGH HIGH HIGH HIGH
LOW
LOW
LOW LOW LOW LOW
SLP_S4# SLP_S5# +VALW +V +VS Clock
LOW
HIGH
LOWLOWLOW
D
HIGHHIGHHIGH
HIGH
HIGH
ON
ON
ON
ON
ON
ONONON ON
ON
OFF
ON
OFF
OFF
OFF
OFF
Board ID / SKU ID Table for AD channel
Vcc 3.3V +/- 5%
Board ID
0 1 2 3 4 5 6 7 NC
100K +/- 5%Ra/Rc/Re
Rb / Rd / Rf V min
0
8.2K +/- 5% 18K +/- 5% 33K +/- 5% 56K +/- 5% 100K +/- 5% 200K +/- 5%
AD_BID
0 V
0.216 V 0.250 V 0.289 V
0.436 V
0.712 V
1.036 V
1.453 V 1.650 V 1.759 V
1.935 V
2.500 V
Vtyp
AD_BID
V
AD_BID
0 V 0 V
0.503 V
0.819 V
0.538 V
0.875 V
1.185 V 1.264 V
2.200 V
3.300 V
2.341 V
3.300 V
max
BOARD ID Table BTO Option Table
Board ID
0 1 2
PCB Revision
0.1
0.2
0.3 0.4 1.0*
BTO Item BOM Structure
Discrete
UMA
VGA@ UMA@
E
LOW
OFF
OFF
OFF
3 4 5 6 7
EC SM Bus1 address
3 3
Device
Smart Battery EEPROM(24C16/02) MXM GMT G781-1
Address Address
1010 000X b
1001 101X b
EC SM Bus2 address
Device
ADI ADM1032
CPU SB
1001 100X b0001 011X b
1001 101X b
PROJECT ID Table
Board ID
0 1 2
PROJECT
KBKC0 (SJM70) KBYF0 (SJV70)
3
SB700 SM Bus 0 address
Device
Clock Generator (ICS9LPRS365)
DDR DIMM0 DDR DIMM2
Minicard
4 4
Minicard
A
Address
1101 001Xb
1001 000Xb
1001 010Xb
SB700 SM Bus 1 address
Device Address
Lan
B
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
4 5 6 7
2008/11/03 2009/11/03
C
Deciphered Date
D
Title
Size Document Number Rev
B
Date: Sheet
Compal Electronics, Inc.
Notes List
KBYF0 LA-5051P
346Tuesday, Fe b r u a r y 03, 2009
E
0.3
of
A
1 1
B
C
D
E
+1.2V_HT
250 mil
1
H_CADIP[0..15]<10> H_CADIN[0..15]<10>
H_CADIP[0..15] H_CADIN[0..15]
H_CADOP[0..15] H_CADON[0..15]
H_CADOP[0..15] <10> H_CADON[0..15] <10>
C535
4.7U_0805_10V4Z
2
1
C534
4.7U_0805_10V4Z
2
VLDT CAP.
1
C520
0.22U_0603_16V4Z
2
1
2
C518
0.22U_0603_16V4Z
1
C516 180P_0402_50V8J
2
1
C517 180P_0402_50V8J
2
Near CPU Socket
+1.2V_HT
2 2
3 3
H_CLKIP0<10> H_CLKIN0<10> H_CLKIP1<10> H_CLKIN1<10>
H_CTLIP0<10> H_CTLIN0<10> H_CTLIP1<10> H_CTLIN1<10>
VLDT=500mA
H_CADIP0 H_CADIN0 H_CADIP1 H_CADIN1 H_CADIP2 H_CADIN2 H_CADIP3 H_CADIN3 H_CADIP4 H_CADIN4 H_CADIP5 H_CADIN5 H_CADIP6 H_CADIN6 H_CADIP7 H_CADIN7 H_CADIP8 H_CADIN8 H_CADIP9 H_CADIN9 H_CADIP10 H_CADIN10 H_CADIP11 H_CADIN11 H_CADIP12 H_CADIN12 H_CADIP13 H_CADIN13 H_CADIP14 H_CADIN14 H_CADIP15 H_CADIN15
H_CLKIP0 H_CLKIN0 H_CLKIP1 H_CLKIN1
H_CTLIN0 H_CTLIP1
D1 D2 D3 D4
E3 E2 E1 F1 G3 G2 G1 H1
J1 K1 L3 L2 L1 M1 N3 N2 E5 F5 F3 F4 G5 H5 H3 H4 K3 K4 L5 M5 M3 M4 N5 P5
J3
J2
J5 K5
N1 P1 P3 P4
VLDT_A0 VLDT_A1 VLDT_A2 VLDT_A3
L0_CADIN_H0 L0_CADIN_L0 L0_CADIN_H1 L0_CADIN_L1 L0_CADIN_H2 L0_CADIN_L2 L0_CADIN_H3 L0_CADIN_L3 L0_CADIN_H4 L0_CADIN_L4 L0_CADIN_H5 L0_CADIN_L5 L0_CADIN_H6 L0_CADIN_L6 L0_CADIN_H7 L0_CADIN_L7 L0_CADIN_H8 L0_CADIN_L8 L0_CADIN_H9 L0_CADIN_L9 L0_CADIN_H10 L0_CADIN_L10 L0_CADIN_H11 L0_CADIN_L11 L0_CADIN_H12 L0_CADIN_L12 L0_CADIN_H13 L0_CADIN_L13 L0_CADIN_H14 L0_CADIN_L14 L0_CADIN_H15 L0_CADIN_L15
L0_CLKIN_H0 L0_CLKIN_L0 L0_CLKIN_H1 L0_CLKIN_L1
L0_CTLIN_H0 L0_CTLIN_L0 L0_CTLIN_H1 L0_CTLIN_L1
6090022100G_B
Athlon 64 S1 Processor Socket
CONN@
JCPU1A
HT LINK
VLDT_B0 VLDT_B1 VLDT_B2 VLDT_B3
L0_CADOUT_H0 L0_CADOUT_L0 L0_CADOUT_H1 L0_CADOUT_L1 L0_CADOUT_H2 L0_CADOUT_L2 L0_CADOUT_H3 L0_CADOUT_L3 L0_CADOUT_H4 L0_CADOUT_L4 L0_CADOUT_H5 L0_CADOUT_L5 L0_CADOUT_H6 L0_CADOUT_L6 L0_CADOUT_H7 L0_CADOUT_L7 L0_CADOUT_H8 L0_CADOUT_L8 L0_CADOUT_H9 L0_CADOUT_L9
L0_CADOUT_H10
L0_CADOUT_L10
L0_CADOUT_H11
L0_CADOUT_L11
L0_CADOUT_H12
L0_CADOUT_L12
L0_CADOUT_H13
L0_CADOUT_L13
L0_CADOUT_H14
L0_CADOUT_L14
L0_CADOUT_H15
L0_CADOUT_L15
L0_CLKOUT_H0
L0_CLKOUT_L0
L0_CLKOUT_H1
L0_CLKOUT_L1 L0_CTLOUT_H0
L0_CTLOUT_L0 L0_CTLOUT_H1 L0_CTLOUT_L1
+1.2V_HT
AE2 AE3 AE4 AE5
AD1 AC1 AC2 AC3 AB1 AA1 AA2 AA3 W2 W3 V1 U1 U2 U3 T1 R1 AD4 AD3 AD5 AC5 AB4 AB3 AB5 AA5 Y5 W5 V4 V3 V5 U5 T4 T3
Y1 W1 Y4 Y3
R2 R3 T5 R5
1 2
C533 4.7U_0805_10V4Z
H_CADOP0 H_CADON0 H_CADOP1 H_CADON1 H_CADOP2 H_CADON2 H_CADOP3 H_CADON3 H_CADOP4 H_CADON4 H_CADOP5 H_CADON5 H_CADOP6 H_CADON6 H_CADOP7 H_CADON7 H_CADOP8 H_CADON8 H_CADOP9 H_CADON9 H_CADOP10 H_CADON10 H_CADOP11 H_CADON11 H_CADOP12 H_CADON12 H_CADOP13 H_CADON13 H_CADOP14 H_CADON14 H_CADOP15 H_CADON15
H_CLKOP0 H_CLKON0 H_CLKOP1 H_CLKON1
H_CTLOP0H_CTLIP0 H_CTLON0 H_CTLOP1 H_CTLON1H_CTLIN1
H_CLKOP0 <10> H_CLKON0 <10> H_CLKOP1 <10> H_CLKON1 <10>
H_CTLOP0 <10> H_CTLON0 <10> H_CTLOP1 <10> H_CTLON1 <10>
4 4
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
Title
Size Document Number Rev
Custom
D
Date: Sheet
Compal Electronics, Inc.
AMD CPU S1G2 HT I/F
KBYF0 LA-5051P
446Tuesday, F e b r u a r y 03, 2009
E
0.3
of
A
B
C
D
E
PLACE CLOSE TO PROCESSOR
Processor DDR2 Memory Interface
WITHIN 1.5 INCH
AD10 AF10
AE10
AA16
D10 C10 B10
H16 T19
V22 U21 V19
T20 U19 U20 V20
J22 J20
N19 N20 E16 F16 Y16
P19 P20
N21 M20 N22 M19 M22 L20 M24 L21 L19 K22 R21 L22 K20 V24 K24 K19
R20 R23
J21
R19 T22 T24
DDRA_CLK0
DDRA_CLK0# DDRA_CLK1
DDRA_CLK1#
DDRB_CLK0
DDRB_CLK0# DDRB_CLK1
DDRB_CLK1#
VTT1
MEM:CMD/CTRL/CLK
VTT2 VTT3 VTT4
MEMZP MEMZN
RSVD_M1 MA0_ODT0
MA0_ODT1 MA1_ODT0 MA1_ODT1
MA0_CS_L0 MA0_CS_L1 MA1_CS_L0 MA1_CS_L1
MA_CKE0 MA_CKE1
MA_CLK_H0 MA_CLK_L0 MA_CLK_H1 MA_CLK_L1 MA_CLK_H2 MA_CLK_L2 MA_CLK_H3 MA_CLK_L3
MA_ADD0 MA_ADD1 MA_ADD2 MA_ADD3 MA_ADD4 MA_ADD5 MA_ADD6 MA_ADD7 MA_ADD8 MA_ADD9 MA_ADD10 MA_ADD11 MA_ADD12 MA_ADD13 MA_ADD14 MA_ADD15
MA_BANK0 MA_BANK1 MA_BANK2
MA_RAS_L MA_CAS_L MA_WE_L
Athlon 64 S1 Processor Socket
CONN@
JCPU1B
1
2
1
2
1
2
1
2
VTT5 VTT6 VTT7 VTT8 VTT9
VTT_SENSE
MEMVREF
RSVD_M2
MB0_ODT0 MB0_ODT1 MB1_ODT0
MB0_CS_L0 MB0_CS_L1 MB1_CS_L0
MB_CKE0 MB_CKE1
MB_CLK_H0
MB_CLK_L0
MB_CLK_H1
MB_CLK_L1
MB_CLK_H2
MB_CLK_L2
MB_CLK_H3
MB_CLK_L3
MB_ADD0 MB_ADD1 MB_ADD2 MB_ADD3 MB_ADD4 MB_ADD5 MB_ADD6 MB_ADD7 MB_ADD8
MB_ADD9 MB_ADD10 MB_ADD11 MB_ADD12 MB_ADD13 MB_ADD14 MB_ADD15
MB_BANK0 MB_BANK1 MB_BANK2
MB_RAS_L MB_CAS_L
MB_WE_L
C244
1.5P_0402_50V9C
C178
1.5P_0402_50V9C
C509
1.5P_0402_50V9C
C447
1.5P_0402_50V9C
W10 AC10 AB10 AA10 A10
Y10 W17 B18 W26
W23 Y26
V26 W25 U22
J25 H26
P22 R22 A17 A18 AF18 AF17 R26 R25
P24 N24 P26 N23 N26 L23 N25 L24 M26 K26 T26 L26 L25 W24 J23 J24
R24 U26 J26
U25 U24 U23
+0.9V+0.9V
+MCH_REF
DDRB_ODT0 DDRB_ODT1
DDRB_SCS1#
DDRB_CKE0 DDRB_CKE1
DDRB_CLK0 DDRB_CLK0# DDRB_CLK1 DDRB_CLK1#DDRA_CLK1#
DDRB_SMA0 DDRB_SMA1 DDRB_SMA2 DDRB_SMA3 DDRB_SMA4 DDRB_SMA5 DDRB_SMA6 DDRB_SMA7 DDRB_SMA8 DDRB_SMA9 DDRB_SMA10 DDRB_SMA11 DDRB_SMA12 DDRB_SMA13 DDRB_SMA14 DDRB_SMA15
DDRB_SBS0# DDRB_SBS1# DDRB_SBS2#
DDRB_SRAS# DDRB_SCAS# DDRB_SWE#
@
@
DDRB_SBS0# <9> DDRB_SBS1# <9> DDRB_SBS2# <9>
DDRB_SRAS# <9> DDRB_SCAS# <9> DDRB_SWE# <9>
T2PAD
T17PAD
DDRB_ODT0 <9> DDRB_ODT1 <9>
DDRB_SCS0# <9> DDRB_SCS1# <9>
DDRB_CKE0 <9> DDRB_CKE1 <9>
DDRB_CLK0 <9> DDRB_CLK0# <9> DDRB_CLK1 <9> DDRB_CLK1# <9>
DDRB_SMA[15..0] <9>
1 1
2 2
R79
1K_0402_1%
R78
1K_0402_1%
+1.8V
1 2
1 2
+MCH_REF
1
C181
2
1
C189
2
0.1U_0402_16V4Z 1000P_0402_50V7K
Place them close to CPU within 1"
R343 39.2_0402_1%
1 2
+1.8V
DDRA_ODT0<8> DDRA_ODT1<8>
DDRA_SCS0#<8> DDRA_SCS1#<8>
DDRA_CKE0<8> DDRA_CKE1<8>
DDRA_CLK0<8> DDRA_CLK0#<8> DDRA_CLK1<8> DDRA_CLK1#<8>
3 3
4 4
DDRA_SMA[15..0]<8>
DDRA_SBS0#<8> DDRA_SBS1#<8> DDRA_SBS2#<8>
DDRA_SRAS#<8> DDRA_SCAS#<8> DDRA_SWE#<8>
1 2
R352 39.2_0402_1%
T5 PA D
DDRA_SCS0# DDRA_SCS1# DDRB_SCS0#
DDRA_CKE0 DDRA_CKE1
DDRA_CLK0 DDRA_CLK0# DDRA_CLK1
MBMZP MBMZN VTT_SENSE
@
DDRA_ODT0 DDRA_ODT1
DDRA_SMA0 DDRA_SMA1 DDRA_SMA2 DDRA_SMA3 DDRA_SMA4 DDRA_SMA5 DDRA_SMA6 DDRA_SMA7 DDRA_SMA8 DDRA_SMA9 DDRA_SMA10 DDRA_SMA11 DDRA_SMA12 DDRA_SMA13 DDRA_SMA14 DDRA_SMA15
DDRA_SBS0# DDRA_SBS1# DDRA_SBS2#
DDRA_SRAS# DDRA_SCAS# DDRA_SWE#
DDRB_SDQ[63..0]<9>
DDRB_SDM[7..0]<9>
DDRB_SDQS0<9> DDRB_SDQS0#<9> DDRB_SDQS1<9> DDRB_SDQS1#<9> DDRB_SDQS2<9> DDRB_SDQS2#<9> DDRB_SDQS3<9> DDRB_SDQS3#<9> DDRB_SDQS4<9> DDRB_SDQS4#<9> DDRB_SDQS5<9> DDRB_SDQS5#<9> DDRB_SDQS6<9> DDRB_SDQS6#<9> DDRB_SDQS7<9> DDRB_SDQS7#<9>
DDRB_SDQ0 DDRB_SDQ1 DDRB_SDQ2 DDRB_SDQ3 DDRB_SDQ4 DDRB_SDQ5 DDRB_SDQ6 DDRB_SDQ7 DDRB_SDQ8 DDRB_SDQ9 DDRB_SDQ10 DDRB_SDQ11 DDRB_SDQ12 DDRB_SDQ13 DDRB_SDQ14 DDRB_SDQ15 DDRB_SDQ16 DDRB_SDQ17 DDRB_SDQ18 DDRB_SDQ19 DDRB_SDQ20 DDRB_SDQ21 DDRB_SDQ22 DDRB_SDQ23 DDRB_SDQ24 DDRB_SDQ25 DDRB_SDQ26 DDRB_SDQ27 DDRB_SDQ28 DDRB_SDQ29 DDRB_SDQ30 DDRB_SDQ31 DDRB_SDQ32 DDRB_SDQ33 DDRB_SDQ34 DDRB_SDQ35 DDRB_SDQ36 DDRB_SDQ37 DDRB_SDQ38 DDRB_SDQ39 DDRB_SDQ40 DDRB_SDQ41 DDRB_SDQ42 DDRB_SDQ43 DDRB_SDQ44 DDRB_SDQ45 DDRB_SDQ46 DDRB_SDQ47 DDRB_SDQ48 DDRB_SDQ49 DDRB_SDQ50 DDRB_SDQ51 DDRB_SDQ52 DDRB_SDQ53 DDRB_SDQ54 DDRB_SDQ55 DDRB_SDQ56 DDRB_SDQ57 DDRB_SDQ58 DDRB_SDQ59 DDRB_SDQ60 DDRB_SDQ61 DDRB_SDQ62 DDRB_SDQ63
DDRB_SDM0 DDRB_SDM1 DDRB_SDM2 DDRB_SDM3 DDRB_SDM4 DDRB_SDM5 DDRB_SDM6 DDRB_SDM7
DDRB_SDQS0 DDRB_SDQS0# DDRB_SDQS1 DDRB_SDQS1# DDRB_SDQS2 DDRB_SDQS2# DDRB_SDQS3 DDRB_SDQS3# DDRB_SDQS4 DDRB_SDQS4# DDRB_SDQS5 DDRB_SDQS5# DDRB_SDQS6 DDRB_SDQS6# DDRB_SDQS7 DDRB_SDQS7#
AA24 AA23 AD24 AE24 AA26 AA25 AD26 AE25 AC22 AD22 AE20 AF20 AF24 AF23 AC20 AD20 AD18 AE18 AC14 AD14 AF19 AC18 AF16 AF15 AF13 AC12 AB11
AE14 AF14 AF11 AD11
AB26 AE22 AC16 AD12
AC25 AC26 AF21 AF22 AE16 AD16 AF12 AE12
C11 A11 A14 B14 G11 E11 D12 A13 A15 A16 A19 A20 C14 D14 C18 D18 D20 A21 D24 C25 B20 C20 B24 C24 E23 E24 G25 G26 C26 D26 G23 G24
Y11
A12 B16 A22 E25
C12 B12 D16 C16 A24 A23 F26 E26
JCPU1C
MB_DATA0 MB_DATA1 MB_DATA2 MB_DATA3 MB_DATA4 MB_DATA5 MB_DATA6 MB_DATA7 MB_DATA8 MB_DATA9 MB_DATA10 MB_DATA11 MB_DATA12 MB_DATA13 MB_DATA14 MB_DATA15 MB_DATA16 MB_DATA17 MB_DATA18 MB_DATA19 MB_DATA20 MB_DATA21 MB_DATA22 MB_DATA23 MB_DATA24 MB_DATA25 MB_DATA26 MB_DATA27 MB_DATA28 MB_DATA29 MB_DATA30 MB_DATA31 MB_DATA32 MB_DATA33 MB_DATA34 MB_DATA35 MB_DATA36 MB_DATA37 MB_DATA38 MB_DATA39 MB_DATA40 MB_DATA41 MB_DATA42 MB_DATA43 MB_DATA44 MB_DATA45 MB_DATA46 MB_DATA47 MB_DATA48 MB_DATA49 MB_DATA50 MB_DATA51 MB_DATA52 MB_DATA53 MB_DATA54 MB_DATA55 MB_DATA56 MB_DATA57 MB_DATA58 MB_DATA59 MB_DATA60 MB_DATA61 MB_DATA62 MB_DATA63
MB_DM0 MB_DM1 MB_DM2 MB_DM3 MB_DM4 MB_DM5 MB_DM6 MB_DM7
MB_DQS_H0 MB_DQS_L0 MB_DQS_H1 MB_DQS_L1 MB_DQS_H2 MB_DQS_L2 MB_DQS_H3 MB_DQS_L3 MB_DQS_H4 MB_DQS_L4 MB_DQS_H5 MB_DQS_L5 MB_DQS_H6 MB_DQS_L6 MB_DQS_H7 MB_DQS_L7
6090022100G_B
CONN@
MEM:DATA
MA_DATA0 MA_DATA1 MA_DATA2 MA_DATA3 MA_DATA4 MA_DATA5 MA_DATA6 MA_DATA7 MA_DATA8
MA_DATA9 MA_DATA10 MA_DATA11 MA_DATA12 MA_DATA13 MA_DATA14 MA_DATA15 MA_DATA16 MA_DATA17 MA_DATA18 MA_DATA19 MA_DATA20 MA_DATA21 MA_DATA22 MA_DATA23 MA_DATA24 MA_DATA25 MA_DATA26 MA_DATA27 MA_DATA28 MA_DATA29 MA_DATA30 MA_DATA31 MA_DATA32 MA_DATA33 MA_DATA34 MA_DATA35 MA_DATA36 MA_DATA37 MA_DATA38 MA_DATA39 MA_DATA40 MA_DATA41 MA_DATA42 MA_DATA43 MA_DATA44 MA_DATA45 MA_DATA46 MA_DATA47 MA_DATA48 MA_DATA49 MA_DATA50 MA_DATA51 MA_DATA52 MA_DATA53 MA_DATA54 MA_DATA55 MA_DATA56 MA_DATA57 MA_DATA58 MA_DATA59 MA_DATA60 MA_DATA61 MA_DATA62 MA_DATA63
MA_DM0 MA_DM1 MA_DM2 MA_DM3 MA_DM4 MA_DM5 MA_DM6 MA_DM7
MA_DQS_H0
MA_DQS_L0
MA_DQS_H1
MA_DQS_L1
MA_DQS_H2
MA_DQS_L2
MA_DQS_H3
MA_DQS_L3
MA_DQS_H4
MA_DQS_L4
MA_DQS_H5
MA_DQS_L5
MA_DQS_H6
MA_DQS_L6
MA_DQS_H7
MA_DQS_L7

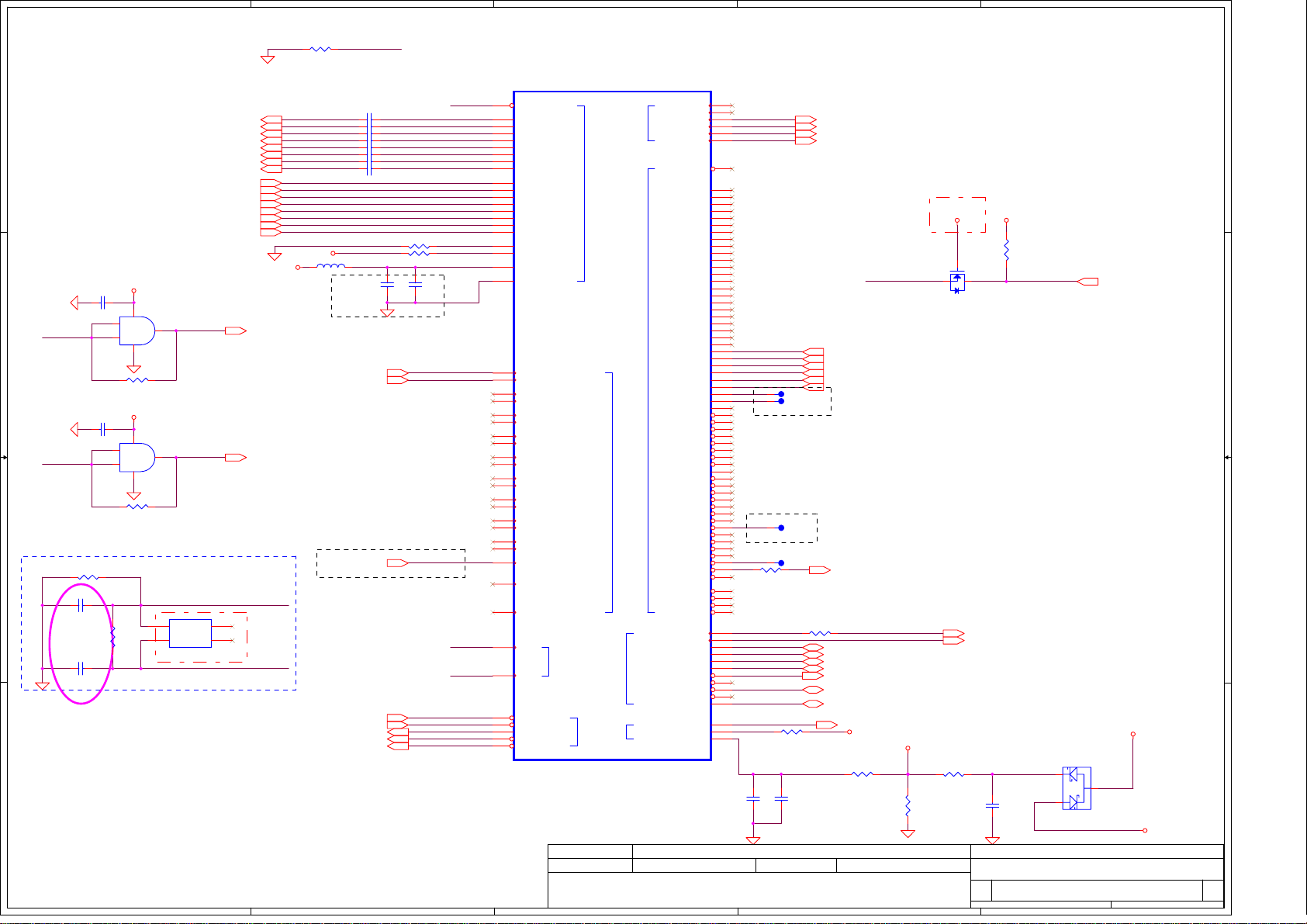

Athlon 64 S1 Processor Socket
G12 F12 H14 G14 H11 H12 C13 E13 H15 E15 E17 H17 E14 F14 C17 G17 G18 C19 D22 E20 E18 F18 B22 C23 F20 F22 H24 J19 E21 E22 H20 H22 Y24 AB24 AB22 AA21 W22 W21 Y22 AA22 Y20 AA20 AA18 AB18 AB21 AD21 AD19 Y18 AD17 W16 W14 Y14 Y17 AB17 AB15 AD15 AB13 AD13 Y12 W11 AB14 AA14 AB12 AA12
E12 C15 E19 F24 AC24 Y19 AB16 Y13
G13 H13 G16 G15 C22 C21 G22 G21 AD23 AC23 AB19 AB20 Y15 W15 W12 W13
DDRA_SDQ0 DDRA_SDQ1 DDRA_SDQ2 DDRA_SDQ3 DDRA_SDQ4 DDRA_SDQ5 DDRA_SDQ6 DDRA_SDQ7 DDRA_SDQ8 DDRA_SDQ9 DDRA_SDQ10 DDRA_SDQ11 DDRA_SDQ12 DDRA_SDQ13 DDRA_SDQ14 DDRA_SDQ15 DDRA_SDQ16 DDRA_SDQ17 DDRA_SDQ18 DDRA_SDQ19 DDRA_SDQ20 DDRA_SDQ21 DDRA_SDQ22 DDRA_SDQ23 DDRA_SDQ24 DDRA_SDQ25 DDRA_SDQ26 DDRA_SDQ27 DDRA_SDQ28 DDRA_SDQ29 DDRA_SDQ30 DDRA_SDQ31 DDRA_SDQ32 DDRA_SDQ33 DDRA_SDQ34 DDRA_SDQ35 DDRA_SDQ36 DDRA_SDQ37 DDRA_SDQ38 DDRA_SDQ39 DDRA_SDQ40 DDRA_SDQ41 DDRA_SDQ42 DDRA_SDQ43 DDRA_SDQ44 DDRA_SDQ45 DDRA_SDQ46 DDRA_SDQ47 DDRA_SDQ48 DDRA_SDQ49 DDRA_SDQ50 DDRA_SDQ51 DDRA_SDQ52 DDRA_SDQ53 DDRA_SDQ54 DDRA_SDQ55 DDRA_SDQ56 DDRA_SDQ57 DDRA_SDQ58 DDRA_SDQ59 DDRA_SDQ60 DDRA_SDQ61 DDRA_SDQ62 DDRA_SDQ63
DDRA_SDM0 DDRA_SDM1 DDRA_SDM2 DDRA_SDM3 DDRA_SDM4 DDRA_SDM5 DDRA_SDM6 DDRA_SDM7
DDRA_SDQS0 DDRA_SDQS0# DDRA_SDQS1 DDRA_SDQS1# DDRA_SDQS2 DDRA_SDQS2# DDRA_SDQS3 DDRA_SDQS3# DDRA_SDQS4 DDRA_SDQS4# DDRA_SDQS5 DDRA_SDQS5# DDRA_SDQS6 DDRA_SDQS6# DDRA_SDQS7 DDRA_SDQS7#
DDRA_SDQ[63..0] <8>
DDRA_SDM[7..0] <8>
DDRA_SDQS0 <8> DDRA_SDQS0# <8> DDRA_SDQS1 <8> DDRA_SDQS1# <8> DDRA_SDQS2 <8> DDRA_SDQS2# <8> DDRA_SDQS3 <8> DDRA_SDQS3# <8> DDRA_SDQS4 <8> DDRA_SDQS4# <8> DDRA_SDQS5 <8> DDRA_SDQS5# <8> DDRA_SDQS6 <8> DDRA_SDQS6# <8> DDRA_SDQS7 <8> DDRA_SDQS7# <8>
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
Title
Size Document Number Rev
Custom
D
Date: Sheet
Compal Electronics, Inc.
AMD CPU S1G2 DDRII I/F
KBYF0 LA-5051P
546Tuesday, F e b r u a r y 03, 2009
E
0.3
of
A
B
C
D
E
+2.5VDDA
L33
1 2
FBM_L11_201209_300L_0805
3900P_0402_50V7K
12
R409 169_0402_1%
CPU_VDD0_FB_H
1 2
CPU_VDD0_FB_L
1 2
Close to CPU
CPU_VDD1_FB_H
1 2
CPU_VDD1_FB_L
1 2
R107
@
300_0402_5%
1 2
R105
@
300_0402_5%
1 2
R351
@
20K_0402_5%
R361
12
390_0402_5%
CPU_SID
390_0402_5%
CPU_SIC
8 7 6 5
R365
12
EC_SMB_CK2 EC_SMB_DA2
Q31 FDV301N_NL_SOT23-3@
12
G
S
G
S
Q30
CLK_CPU_BCLK<15>
CLK_CPU_BCLK#<15>
R420 300_0402_5%
1 2
LDT_RST#
1
C554
0.01U_0402_16V7K
@
2
R419 300_0402_5%
1 2
H_PWRGD
1
C553
0.01U_0402_16V7K
@
2
+1.8VS
R113 300_0402_5%
1 2
LDT_STOP#
1
C245
0.01U_0402_16V7K
@
2
1
C446
2
THERMDA_CPU THERMDC_CPU
+2.5VS
1
+
C282 150U_D2_6.3VM
2
1 2
C531
1 2
C532 3900P_0402_50V7K
Place close to CPU wihtin 1.5"
+CPU_CORE_0
R92 10_0402_5%
R95 10_0402_5%
+CPU_CORE_1
R80 10_0402_5%
R81 10_0402_5%
+1.8VS +1.8VS
R108 300_0402_5% @
1 2
TEST25_H TEST25_L
R98 300_0402_5%@
1 2
+3VS
+1.8V
CPU_SID_SB<20>
CPU_SIC_SB<20>
Address:100_1101
1 2
R564 0_0402_5%@
+1.8V
1 2
R565 0_0402_5%@
U27
1
VDD
2 3
SCLK
D+
SDATA
ALERT#
D­THERM#4GND
ADM1032ARMZ_MSOP8
EC is PU to 5VALW
A:Need to re-Link "SGN00000200"
1 1
+1.8VS
LDT_RST#<19>
2 2
H_PWRGD<19>
LDT_STOP#<11,19>
3 3
4 4
C449 3300p for tigris
2200p change to 1000p for ADT7421
+1.8VS
+3VS
0.1U_0402_16V4Z
C449
1 2
2200P_0402_50V7K
A
VDDA=300mA
3300P_0402_50V7K
1
1
C2644.7U_0805_10V4Z
C255
2
2
<BOM Structure>
CPU_CLKIN_SC_P
CPU_CLKIN_SC_N
CPU_LDT_REQ#<11>
Address:100_1100
+1.2V_HT
C436 0.1U_0402_16V4Z
34.8K_0402_1%~N
2
2
FDV301N_NL_SOT23-3@
B
+1.8V
R82 44.2_0402_1%
1 2
R86 44.2_0402_1%
1 2
CPU_VDD0_FB_H<44> CPU_VDD0_FB_L<44>
CPU_VDD1_FB_H<44> CPU_VDD1_FB_L<44>
T10 PAD @
T27 PAD T28 PAD
T21 PAD T22 PAD T23 PAD T24 PAD T25 PAD T26 PAD
@
1 2
R360
@
12
13
D
R567 0_0402_5%@
13
D
R569 0_0402_5%@
FDV301N, the Vgs is: min = 0.65V Typ = 0.85V Max = 1.5V
EC_SMB_CK2 <30> EC_SMB_DA2 <30>
1
C261
0.22U_0603_16V4Z
2
LDT_RST# H_PWRGD LDT_STOP# CPU_LDT_REQ#
CPU_SIC CPU_SID
@
1 2
R356 1K_0402_5%
CPU_TEST23_TSTUPD
@ @
CPU_TEST21_SCANEN
@
CPU_TEST20_SCANCLK2
@
CPU_TEST24_SCANCLK1
@
CPU_TEST22_SCANSHIFTEN
@
CPU_TEST12_SCANSHIFTENB
@
CPU_TEST27_SINGLECHAIN
@
1 2
CPU_HTREF0 CPU_HTREF1
CPU_VDD0_FB_H CPU_VDD0_FB_L
CPU_VDD1_FB_H CPU_VDD1_FB_L
CPU_DBRDY CPU_TMS CPU_TCK CPU_TRST# CPU_TDI
CPU_TEST18_PLLTEST1 CPU_TEST19_PLLTEST0
TEST25_H TEST25_L
R418 0_0402_5%
CPU intern al thermal sensor
2.09V for Gate
1 2
1 2
JCPU1D
F8
VDDA1
F9
VDDA2
A9
CLKIN_H
A8
CLKIN_L
B7
RESET_L
A7
PWROK
F10
LDTSTOP_L
C6
LDTREQ_L
AF4
SIC
AF5
SID
AE6
ALERT_L
R6
HT_REF0
P6
HT_REF1
F6
VDD0_FB_H
E6
VDD0_FB_L
Y6
VDD1_FB_H
AB6
VDD1_FB_L
G10
DBRDY
AA9
TMS
AC9
TCK
AD9
TRST_L
AF9
TDI
AD7
TEST23
H10
TEST18
G9
TEST19
E9
TEST25_H
E8
TEST25_L
AB8
TEST21
AF7
TEST20
AE7
TEST24
AE8
TEST22
AC8
TEST12
AF8
TEST27
C2
TEST9
AA6
TEST6
A3
RSVD1
A5
RSVD2
B3
RSVD3
B5
RSVD4
C1
RSVD5
6090022100G_B
CPU_TEST18_PLLTEST1 CPU_TEST19_PLLTEST0
CPU_TEST22_SCANSHIFTEN
EC_SMB_DA1 <14,30,38>
EC_SMB_CK1 <14,30,38>
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
KEY1 KEY2
SVC SVD
THERMTRIP_L
PROCHOT_L
MEMHOT_L
THERMDC THERMDA
VDDIO_FB_H VDDIO_FB_L
VDDNB_FB_H VDDNB_FB_L
DBREQ_L
TDO
TEST28_H
TEST28_L
TEST17 TEST16 TEST15 TEST14
TEST7
TEST10
TEST8
TEST29_H
TEST29_L
RSVD10
RSVD9 RSVD8 RSVD7 RSVD6
1 2
R531 300_0402_5% @
1 2
R532 300_0402_5% @
1 2
R533 300_0402_5% @
2008/11/03 2009/11/03
+1.8V
M11 W18
CPU_SVC
A6
CPU_SVD
A4
CPU_THERMTRIP#_R
AF6
H_PROCHOT#
AC7
CPU_MEMHOT#_1.8V
AA8
THERMDC_CPU
W7
THERMDA_CPU
W8
T30
+1.8V sense no support
T29
PAD@
W9
PAD@
Y9
CPU_VDDNB_FB_H
H6
CPU_VDDNB_FB_L
G6
CPU_DBREQ#
E10
CPU_TDO
AE9
CPU_TEST28_H_PLLCHRZ_P
J7
CPU_TEST28_L_PLLCHRZ_N
H8
CPU_TEST17_BP3
D7
CPU_TEST16_BP2
E7
CPU_TEST15_BP1
F7
CPU_TEST14_BP0
C7 C3
CPU_TEST10
K8 C4
CPU_TEST29_H_FBCLKOUT_P
C9
CPU_TEST29_L_FBCLKOUT_N
C8
H18 H19 AA7 D5 C5
CPU_DBREQ# CPU_DBRDY CPU_TCK CPU_TMS CPU_TDI CPU_TRST# CPU_TDO
NOTE: HDT TERMINATION IS REQUIRED FOR REV. Ax SILICON ONLY.
1 2
R364 10K_0402_5%
1 2
R358 300_0402_5%
CPU_SVC <44> CPU_SVD <44>
@ @ @ @
CPU_DBREQ# CPU_DBRDY CPU_TCK CPU_TMS CPU_TDI CPU_TRST# CPU_TDO
HDT_RST#
+1.8V
R118220_0402_5%
R112220_0402_5%
R115220_0402_5%
R119220_0402_5%
12
12
12
12
@
@
@
@
Compal Secret Data
Deciphered Date
B
E
3 1
MMBT3904_NL_SOT23-3
R353
12
300_0402_5%
CPU_VDDNB_FB_H <44> CPU_VDDNB_FB_L <44>
@ @
@ @
R129300_0402_5%
12
+1.8V
T3PAD T4PAD
T16PAD T7PAD T6PAD T9PAD
T8PAD T15PAD
D
2
Q32
C
1 2 1 2
+1.8V
CPU_VDDNB_FB_H CPU_VDDNB_FB_L
R335 R334
1 2
R357 300_0402_5%
H_PROCHOT#
Close to CPU
route as differential as short as possible
testpoint under package
CPU_SVC CPU_SVD
CPU_TEST23_TSTUPD
JP29
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
GND
12
GND
ACES_85201-1005N
@
HDT Connector
JP1
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
19
22
21
2423 26
SAMTEC_ASP-68200-07
@
MAINPWON
0_0402_5%@
H_THERMTRIP#CPU_THERMTRIP#_R
0_0402_5%
1 2
+CPU_CORE_NB
R101 10_0402_5%
1 2 1 2
R106 10_0402_5%
0718 AMD --> 1K ohm
1 2
R415 1K_0402_5%
1 2
R416 1K_0402_5%
CPU_TEST20_SCANCLK2 CPU_TEST21_SCANEN CPU_TEST24_SCANCLK1
HDT_RST#
Title
Size Document Number Rev
Custom
Date: Sheet of
R537 300_0402_5% R538 300_0402_5% R539 300_0402_5% R535 300_0402_5%
1 2
U8
4
Y
Compal Electronics, Inc.
AMD CPU S1G2 CTRL
MAINPWON <38,39> H_THERMTRIP# <20>
R370
0_0402_5%
CPU_TEST10
+1.8V
@ 1 2 1 2 1 2 1 2
@
R93
0_0402_5%
+3VS
5
2
P
B
1
A
G
NC7SZ08P5X_NL_SC70-5@
3
KBYF0 LA-5051P
E
H_PROCHOT# <19>
+1.2V_HT
SB_PWRGD <20,32>
646Tuesday, F e b r u a r y 03, 2009
12
R337 0_0402_5%
@
LDT_RST#
0.3
A
VDD(+CPU_CORE) decoupling.
+CPU_CORE_0
1
C221 22U_0805_6.3V6M
2
1
2
1
+
C79 330U_X_2VM_R6M
2
C219 180P_0402_50V8J
Near CPU Socket
1
C224 22U_0805_6.3V6M
2
Under CPU Socket
1
+
1 1
+CPU_CORE_0
1
C214 22U_0805_6.3V6M
2
+CPU_CORE_0
1
C220
0.22U_0603_16V4Z
2
2 2
C80
330U_X_2VM_R6M
2
1
C225 22U_0805_6.3V6M
2
1
C217
0.01U_0402_25V4Z
2
VDDIO decoupling.
+1.8V
1
C206 22U_0805_6.3V6M
2
1
C226 22U_0805_6.3V6M
2
Under CPU Socket
1
C216
0.22U_0603_16V4Z
2
1
C230
0.22U_0603_16V4Z
2
B
+CPU_CORE_1
1
C191
180P_0402_50V8J
2
+CPU_CORE_1
1
+
2
1
C196 22U_0805_6.3V6M
2
1
2
C77
330U_X_2VM_R6M
1
2
+CPU_CORE_1
1
C195
0.22U_0603_16V4Z
2
C182 180P_0402_50V8J
C
+CPU_CORE_0
1
+
C78 330U_X_2VM_R6M
2
+CPU_CORE_NB
C200 22U_0805_6.3V6M
1
C186 22U_0805_6.3V6M
2
1
C184
0.01U_0402_25V4Z
2
1
C201 22U_0805_6.3V6M
2
1
C179 180P_0402_50V8J
2
+1.8V
+CPU_CORE_NB decoupling.
+CPU_CORE_NB
1
C198 22U_0805_6.3V6M
2
1
C207 22U_0805_6.3V6M
2
1
C223 22U_0805_6.3V6M
2
G4 H2
J9 J11 J13 J15
K6 K10 K12 K14
L4
L7
L9 L11 L13 L15
M2 M6 M8
M10
N7 N9
N11
K16
M16
P16 T16 V16
H25
J17 K18 K21 K23 K25 L17
M18 M21 M23 M25 N17
6090022100G_B
Athlon 64 S1 Processor Socket
JCPU1E
VDD0_1 VDD0_2 VDD0_3 VDD0_4 VDD0_5 VDD0_6 VDD0_7 VDD0_8 VDD0_9 VDD0_10 VDD0_11 VDD0_12 VDD0_13 VDD0_14 VDD0_15 VDD0_16 VDD0_17 VDD0_18 VDD0_19 VDD0_20 VDD0_21 VDD0_22 VDD0_23
VDDNB_1 VDDNB_2 VDDNB_3 VDDNB_4 VDDNB_5
VDDIO1 VDDIO2 VDDIO3 VDDIO4 VDDIO5 VDDIO6 VDDIO7 VDDIO8 VDDIO9 VDDIO10 VDDIO11 VDDIO12
VDD1_1 VDD1_2 VDD1_3 VDD1_4 VDD1_5 VDD1_6 VDD1_7 VDD1_8
VDD1_9 VDD1_10 VDD1_11 VDD1_12 VDD1_13 VDD1_14 VDD1_15 VDD1_16 VDD1_17 VDD1_18 VDD1_19 VDD1_20 VDD1_21 VDD1_22 VDD1_23 VDD1_24 VDD1_25 VDD1_26
VDDIO27 VDDIO26 VDDIO25 VDDIO24 VDDIO23 VDDIO22 VDDIO21 VDDIO20 VDDIO19 VDDIO18 VDDIO17 VDDIO16 VDDIO15 VDDIO14 VDDIO13
D
JCPU1F
AA4
P8 P10 R4 R7 R9 R11 T2 T6 T8 T10 T12 T14 U7 U9 U11 U13 U15 V6 V8 V10 V12 V14 W4 Y2 AC4 AD2
Y25 V25 V23 V21 V18 U17 T25 T23 T21 T18 R17 P25 P23 P21 P18
+CPU_CORE_1
+1.8V
AA11 AA13 AA15 AA17 AA19
AB23 AB25 AC11 AC13 AC15 AC17 AC19 AC21
AD25 AE11 AE13 AE15 AE17 AE19 AE21 AE23
AB2 AB7 AB9
AD6 AD8
B4 B6 B8
B9 B11 B13 B15 B17 B19 B21 B23 B25
D6 D8
D9 D11 D13 D15 D17 D19 D21 D23 D25
E4
F2 F11 F13 F15 F17 F19 F21 F23 F25
H7
H9 H21 H23
J4
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8 VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65
6090022100G_B
Athlon 64 S1 Processor Socket
VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74 VSS75 VSS76 VSS77 VSS78 VSS79 VSS80 VSS81 VSS82 VSS83 VSS84 VSS85 VSS86 VSS87 VSS88 VSS89 VSS90 VSS91 VSS92 VSS93 VSS94 VSS95 VSS96 VSS97 VSS98
VSS99 VSS100 VSS101 VSS102 VSS103 VSS104 VSS105 VSS106 VSS107 VSS108 VSS109 VSS110 VSS111 VSS112 VSS113 VSS114 VSS115 VSS116 VSS117 VSS118 VSS119 VSS120 VSS121 VSS122 VSS123 VSS124 VSS125 VSS126 VSS127 VSS128 VSS129
E
J6 J8 J10 J12 J14 J16 J18 K2 K7 K9 K11 K13 K15 K17 L6 L8 L10 L12 L14 L16 L18 M7 M9 AC6 M17 N4 N8 N10 N16 N18 P2 P7 P9 P11 P17 R8 R10 R16 R18 T7 T9 T11 T13 T15 T17 U4 U6 U8 U10 U12 U14 U16 U18 V2 V7 V9 V11 V13 V15 V17 W6 Y21 Y23 N6
3 3
4 4
+1.8V
1
C235
0.22U_0603_16V4Z
2
+1.8V +1.8V
1
C162
0.01U_0402_25V4Z
2
+1.8V
1
2
Between CPU Socket and DIMM
1
C165
0.22U_0603_16V4Z
2
180PF Qt'y follow the distance between CPU socket and DIMM0. <2.5inch>
1
C164 180P_0402_50V8J
2
1
C169
4.7U_0805_10V4Z
2
C167
4.7U_0805_10V4Z
1
C234
0.22U_0603_16V4Z
2
1
C163
0.01U_0402_25V4Z
2
1
C168
4.7U_0805_10V4Z
2
1
C166
0.22U_0603_16V4Z
2
1
C237 180P_0402_50V8J
2
A: Add C165 and C176 to follow AMD Layout review recommand for EMI
1
C170
4.7U_0805_10V4Z
2
1
C238 180P_0402_50V8J
2
1
+
C233
220U_D2_4VM_R15
2
1
2
1
+
C218
220U_D2_4VM_R15
2
@
C: Change to NBO CAP
C239 180P_0402_50V8J
VTT decoupling.
+0.9V
1
C141
4.7U_0805_10V4Z
2
+0.9V
1
C541
4.7U_0805_10V4Z
2
1
C146
4.7U_0805_10V4Z
2
Near CPU Socket Right side.
1
C530
4.7U_0805_10V4Z
2
1
C144
0.22U_0603_16V4Z
2
1
C514
0.22U_0603_16V4Z
2
+0.9V
Near Power Supply
1
C: Change to NBO CAP
+
C281 220U_D2_4VM_R15
2
1
C148
0.22U_0603_16V4Z
2
1
C515
0.22U_0603_16V4Z
2
1
C273 22U_0805_6.3V6M
2
1
C174 1000P_0402_50V7K
2
1
C528 1000P_0402_50V7K
2
1
C173 1000P_0402_50V7K
2
1
C537 1000P_0402_50V7K
2
1
C172 180P_0402_50V8J
2
1
C540 180P_0402_50V8J
2
1
C175 180P_0402_50V8J
2
1
C543 180P_0402_50V8J
2
Near CPU Socket Left side.
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
Title
Size Document Number Rev
Custom
D
Date: Sheet
Compal Electronics, Inc.
AMD CPU S1G2 PWR & GND
KBYF0 LA-5051P
E
of
746Tuesday, F e b r u a r y 03, 2009
0.3
A
B
C
D
E
+1.8V +1.8V
JDIMM1
+V_DDR_MCH_REF
DDRA_SDQS0#<5>
1 1
2 2
3 3
4 4
DDRA_SDQS0<5>
DDRA_SDQS1#<5> DDRA_SDQS1<5>
DDRA_SDQS2#<5> DDRA_SDQS2<5>
DDRA_CKE0<5>
DDRA_SBS2#<5>
DDRA_SBS0#<5> DDRA_SWE#<5>
DDRA_SCAS#<5> DDRA_SCS1#<5>
DDRA_ODT1<5>
DDRA_SDQS4#<5> DDRA_SDQS4<5>
DDRA_SDQS6#<5> DDRA_SDQS6<5>
ICH_SMBDATA0<9,15,20,28> ICH_SMBCLK0<9,15,20,28>
DDRA_SDQ0 DDRA_SDQ1
DDRA_SDQS0# DDRA_SDQS0
DDRA_SDQ2 DDRA_SDQ3
DDRA_SDQ8 DDRA_SDQ9
DDRA_SDQS1# DDRA_SDQS1
DDRA_SDQ10 DDRA_SDQ11
DDRA_SDQ16 DDRA_SDQ17
DDRA_SDQS2# DDRA_SDQS2
DDRA_SDQ18 DDRA_SDQ19
DDRA_SDQ24 DDRA_SDQ25 DDRA_SDQ29
DDRA_SDM3
DDRA_SDQ26 DDRA_SDQ27
DDRA_SBS2# DDRA_SMA12
DDRA_SMA9 DDRA_SMA8
DDRA_SMA5 DDRA_SMA3 DDRA_SMA1
DDRA_SMA10 DDRA_SBS0# DDRA_SWE#
DDRA_SCAS# DDRA_SCS1#
DDRA_ODT1 DDRA_SDQ32
DDRA_SDQ33 DDRA_SDQS4#
DDRA_SDQS4 DDRA_SDQ34
DDRA_SDQ35 DDRA_SDQ40
DDRA_SDQ41 DDRA_SDM5 DDRA_SDQ42
DDRA_SDQ43 DDRA_SDQ48
DDRA_SDQ49
DDRA_SDQS6# DDRA_SDQS6
DDRA_SDQ50 DDRA_SDQ51
DDRA_SDQ56 DDRA_SDQ57
DDRA_SDM7 DDRA_SDQ58
DDRA_SDQ59 ICH_SMBDATA0
ICH_SMBCLK0
+3VS
+3VS
1
VREF
3
VSS
5
DQ0
7
DQ1
9
VSS
11
DQS0#
13
DQS0
15
VSS
17
DQ2
19
DQ3
21
VSS
23
DQ8
25
DQ9
27
VSS
29
DQS1#
31
DQS1
33
VSS
35
DQ10
37
DQ11
39
VSS
41
VSS
43
DQ16
45
DQ17
47
VSS
49
DQS2#
51
DQS2
53
VSS
55
DQ18
57
DQ19
59
VSS
61
DQ24
63
DQ25
65
VSS
67
DM3
69
NC
71
VSS
73
DQ26
75
DQ27
77
VSS
79
CKE0
81
VDD
83
NC
85
BA2
87
VDD
89
A12
91
A9
93
A8
95
VDD
97
A5
99
A3
101
A1
103
VDD
105
A10/AP
107
BA0
109
WE#
111
VDD
113
CAS#
115
NC/S1#
117
VDD
119
NC/ODT1
121
VSS
123
DQ32
125
DQ33
127
VSS
129
DQS4#
131
DQS4
133
VSS
135
DQ34
137
DQ35
139
VSS
141
DQ40
143
DQ41
145
VSS
147
DM5
149
VSS
151
DQ42
153
DQ43
155
VSS
157
DQ48
159
DQ49
161
VSS
163
NC,TEST
165
VSS
167
DQS6#
169
DQS6
171
VSS
173
DQ50
175
DQ51
177
VSS
179
DQ56
181
DQ57
183
VSS
185
DM7
187
VSS
189
DQ58
191
DQ59
193
VSS
195
SDA
197
SCL
199
VDDSPD
203
GND
FOX_AS0A426-M2RN-7F
CONN@
DQ12 DQ13
CK0#
DQ14 DQ15
DQ20 DQ21
DQ22 DQ23
DQ28 DQ29
DQS3#
DQS3 DQ30
DQ31
NC/CKE1
NC/A15 NC/A14
RAS#
ODT0
NC/A13
DQ36 DQ37
DQ38 DQ39
DQ44 DQ45
DQS5#
DQS5 DQ46
DQ47 DQ52
DQ53
CK1#
DQ54 DQ55
DQ60 DQ61
DQS7#
DQS7 DQ62
DQ63
GND
VSS DQ4 DQ5 VSS DM0 VSS DQ6 DQ7 VSS
VSS DM1 VSS CK0
VSS
VSS
VSS
VSS DM2
VSS
VSS
VSS
VSS
VSS VDD
VDD
VDD
VDD BA1
VDD
VDD VSS
VSS DM4 VSS
VSS
VSS
VSS
VSS
VSS CK1
VSS DM6 VSS
VSS
VSS
VSS
VSS SAO SA1
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
42 44 46 48 50
NC
52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90
A11
92
A7
94
A6
96 98
A4
100
A2
102
A0
104 106 108 110
S0#
112 114 116 118 120
NC
122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198 200 204
DDRA_SDQ4 DDRA_SDQ5
DDRA_SDM0 DDRA_SDQ6
DDRA_SDQ7 DDRA_SDQ12
DDRA_SDQ13 DDRA_SDM1 DDRA_CLK0
DDRA_CLK0# DDRA_SDQ14
DDRA_SDQ15
DDRA_SDQ20 DDRA_SDQ21
DDRA_SDM2 DDRA_SDQ22
DDRA_SDQ23 DDRA_SDQ28
DDRA_SDQS3# DDRA_SDQS3
DDRA_SDQ30 DDRA_SDQ31
DDRA_CKE1DDRA_CKE0 DDRA_SMA15
DDRA_SMA14 DDRA_SMA11
DDRA_SMA7 DDRA_SMA6
DDRA_SMA4 DDRA_SMA2 DDRA_SMA0
DDRA_SBS1# DDRA_SRAS# DDRA_SCS0#
DDRA_ODT0 DDRA_SMA13
DDRA_SDQ36 DDRA_SDQ37
DDRA_SDM4 DDRA_SDQ38
DDRA_SDQ39 DDRA_SDQ44
DDRA_SDQ45 DDRA_SDQS5#
DDRA_SDQS5 DDRA_SDQ46
DDRA_SDQ47 DDRA_SDQ52
DDRA_SDQ53 DDRA_CLK1
DDRA_CLK1# DDRA_SDM6 DDRA_SDQ54
DDRA_SDQ55 DDRA_SDQ60
DDRA_SDQ61 DDRA_SDQS7#
DDRA_SDQS7 DDRA_SDQ62
DDRA_SDQ63
R314 10K_0402_5%
1 2
R315 10K_0402_5%
1 2
DDRA_CLK0 <5> DDRA_CLK0# <5>
DDRA_SDQS3# <5> DDRA_SDQS3 <5>
DDRA_CKE1 <5>
DDRA_SBS1# <5> DDRA_SRAS# <5> DDRA_SCS0# <5>
DDRA_ODT0 <5>
DDRA_SDQS5# <5> DDRA_SDQS5 <5>
DDRA_CLK1 <5> DDRA_CLK1# <5>
DDRA_SDQS7# <5> DDRA_SDQS7 <5>
DDRA_SDQ[63..0]
DDRA_SDM[7..0]
DDRA_SMA[15..0]
+V_DDR_MCH_REF
1
C256
2
1000P_0402_50V7K
0.1U_0402_16V4Z
+1.8V
1 2
1
C257
2
1 2
1U_0402_6.3V4Z
+1.8V
0.1U_0402_16V4Z
1
C155
2
0.1U_0402_16V4Z
1
C113
2
0.1U_0402_16V4Z
DDRA_SDQ[63..0] <5>
DDRA_SDM[7..0] <5>
DDRA_SMA[15..0] <5>
R148 1K_0402_1%
R141 1K_0402_1%
1
1
C128
C151
2
2
0.1U_0402_16V4Z
+0.9V
1
1
C119
2
2
0.1U_0402_16V4Z
+V_DDR_MCH_REF
0.1U_0402_16V4Z
1
C124
2
0.1U_0402_16V4Z
1
C55
C197
2
RESERVE +V_DDR_MCH_REF BUFFER CIRCUIT
+0.9V
DDRA_SMA6 DDRA_SMA7 DDRA_SMA11 DDRA_SMA15
DDRA_CKE0 DDRA_SBS2# DDRA_SMA14 DDRA_CKE1
DDRA_SBS1# DDRA_SMA0 DDRA_SMA2 DDRA_SMA4
DDRA_SMA5 DDRA_SMA8 DDRA_SMA9 DDRA_SMA12
DDRA_SBS0# DDRA_SMA10 DDRA_SMA1 DDRA_SMA3
DDRA_SCS1# DDRA_ODT1 DDRA_SWE# DDRA_SCAS#
DDRA_SMA13 DDRA_ODT0 DDRA_SCS0# DDRA_SRAS#
RP20
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
RP23
47_0804_8P4R_5%
RP17
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
RP18
47_0804_8P4R_5%
RP15
47_0804_8P4R_5%
RP9
47_0804_8P4R_5%
RP12
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
1 2
C187 0.1U_0402_16V4Z
1 2
C213 0.1U_0402_16V4Z
1 2
18
C194 0.1U_0402_16V4Z
27
1 2
36
C222 0.1U_0402_16V4Z
45
1 2
C157 0.1U_0402_16V4Z
1 2
C152 0.1U_0402_16V4Z
18
1 2
C190 0.1U_0402_16V4Z
27 36
1 2
C211 0.1U_0402_16V4Z
45
1 2
18
C180 0.1U_0402_16V4Z
27
1 2
36
C199 0.1U_0402_16V4Z
45
1 2
18
C161 0.1U_0402_16V4Z
27 36
1 2
C156 0.1U_0402_16V4Z
45
1 2
C159 0.1U_0402_16V4Z
1 2
C154 0.1U_0402_16V4Z
+1.8V
1
C413
0.1U_0402_16V4Z
2
4.7U_0805_10V4Z
A
C414
1
2
DIMM1 REV H:5.2mm (BOT)
B
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
D
Title
Size Document Number Rev
Custom
Date: Sheet
Compal Electronics, Inc.
DDRII SO-DIMM 0
KBYF0 LA-5051P
846Tuesday, F e b r u a r y 03, 2009
E
of
0.3
A
B
C
D
E
+1.8V +1.8V
JDIMM2
+V_DDR_MCH_REF
1 1
2 2
3 3
4 4
DDRB_SDQS0#<5> DDRB_SDQS0<5>
DDRB_SDQS1#<5> DDRB_SDQS1<5>
DDRB_SDQS2#<5> DDRB_SDQS2<5>
DDRB_CKE0<5>
DDRB_SBS2#<5>
DDRB_SBS0#<5> DDRB_SWE#<5>
DDRB_SCAS#<5> DDRB_SCS1#<5>
DDRB_ODT1<5>
DDRB_SDQS4#<5> DDRB_SDQS4<5>
DDRB_SDQS6#<5> DDRB_SDQS6<5>
ICH_SMBDATA0<8,15,20,28> ICH_SMBCLK0<8,15,20,28>
DDRB_SDQ0 DDRB_SDQ1
DDRB_SDQS0# DDRB_SDQS0
DDRB_SDQ2 DDRB_SDQ3
DDRB_SDQ8 DDRB_SDQ9
DDRB_SDQS1# DDRB_SDQS1
DDRB_SDQ10 DDRB_SDQ11
DDRB_SDQ16 DDRB_SDQ17
DDRB_SDQS2# DDRB_SDQS2
DDRB_SDQ18 DDRB_SDQ19
DDRB_SDQ24 DDRB_SDQ25
DDRB_SDM3
DDRB_SDQ26 DDRB_SDQ30 DDRB_SDQ27
DDRB_CKE0
DDRB_SBS2# DDRB_SMA12
DDRB_SMA9 DDRB_SMA8
DDRB_SMA5 DDRB_SMA3 DDRB_SMA1
DDRB_SMA10 DDRB_SBS0# DDRB_SWE#
DDRB_SCAS# DDRB_SCS1#
DDRB_ODT1 DDRB_SDQ32
DDRB_SDQ33 DDRB_SDQS4#
DDRB_SDQS4 DDRB_SDQ34
DDRB_SDQ35 DDRB_SDQ40
DDRB_SDQ41 DDRB_SDM5 DDRB_SDQ42
DDRB_SDQ43 DDRB_SDQ48
DDRB_SDQ49
DDRB_SDQS6# DDRB_SDQS6
DDRB_SDQ50 DDRB_SDQ51
DDRB_SDQ56 DDRB_SDQ57
DDRB_SDM7 DDRB_SDQ58
DDRB_SDQ59 ICH_SMBDATA0
ICH_SMBCLK0
+3VS
1
VREF
3
VSS
5
DQ0
7
DQ1
9
VSS
11
DQS0#
13
DQS0
15
VSS
17
DQ2
19
DQ3
21
VSS
23
DQ8
25
DQ9
27
VSS
29
DQS1#
31
DQS1
33
VSS
35
DQ10
37
DQ11
39
VSS
41
VSS
43
DQ16
45
DQ17
47
VSS
49
DQS2#
51
DQS2
53
VSS
55
DQ18
57
DQ19
59
VSS
61
DQ24
63
DQ25
65
VSS
67
DM3
69
NC
71
VSS
73
DQ26
75
DQ27
77
VSS
79
CKE0
81
VDD
83
NC
85
BA2
87
VDD
89
A12
91
A9
93
A8
95
VDD
97
A5
99
A3
101
A1
103
VDD
105
A10/AP
107
BA0
109
WE#
111
VDD
113
CAS#
115
NC/S1#
117
VDD
119
NC/ODT1
121
VSS
123
DQ32
125
DQ33
127
VSS
129
DQS4#
131
DQS4
133
VSS
135
DQ34
137
DQ35
139
VSS
141
DQ40
143
DQ41
145
VSS
147
DM5
149
VSS
151
DQ42
153
DQ43
155
VSS
157
DQ48
159
DQ49
161
VSS
163
NC,TEST
165
VSS
167
DQS6#
169
DQS6
171
VSS
173
DQ50
175
DQ51
177
VSS
179
DQ56
181
DQ57
183
VSS
185
DM7
187
VSS
189
DQ58
191
DQ59
193
VSS
195
SDA
197
SCL
199
VDDSPD
201
GND
FOX_AS0A426-MARG-7F
CONN@
DIMM1 REV H:9.2mm (BOT)
VSS DQ4 DQ5 VSS DM0 VSS DQ6 DQ7
VSS DQ12 DQ13
VSS
DM1
VSS
CK0#
VSS DQ14 DQ15
VSS
VSS DQ20 DQ21
VSS
DM2
VSS DQ22 DQ23
VSS DQ28 DQ29
VSS
DQS3#
DQS3
VSS DQ30 DQ31
VSS
NC/CKE1
VDD
NC/A15 NC/A14
VDD
VDD
VDD
RAS#
VDD ODT0
NC/A13
VDD
VSS DQ36 DQ37
VSS
DM4
VSS DQ38 DQ39
VSS DQ44 DQ45
VSS
DQS5#
DQS5
VSS DQ46 DQ47
VSS DQ52 DQ53
VSS
CK1#
VSS
DM6
VSS DQ54 DQ55
VSS DQ60 DQ61
VSS
DQS7#
DQS7
VSS DQ62 DQ63
VSS
SAO
GND
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
CK0
32 34 36 38 40
42 44 46 48 50
NC
52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90
A11
92
A7
94
A6
96 98
A4
100
A2
102
A0
104 106
BA1
108 110
S0#
112 114 116 118 120
NC
122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164
CK1
166 168 170 172 174 176 178 180 182 184 186 188 190 192 194 196 198 200
SA1
202
DDRB_SDQ4 DDRB_SDQ5
DDRB_SDM0 DDRB_SDQ6
DDRB_SDQ7 DDRB_SDQ12
DDRB_SDQ13 DDRB_SDM1 DDRB_CLK0
DDRB_CLK0# DDRB_SDQ14
DDRB_SDQ15
DDRB_SDQ20 DDRB_SDQ21
DDRB_SDM2 DDRB_SDQ22
DDRB_SDQ23 DDRB_SDQ28
DDRB_SDQ29 DDRB_SDQS3#
DDRB_SDQS3
DDRB_SDQ31 DDRB_CKE1 DDRB_SMA15
DDRB_SMA14 DDRB_SMA11
DDRB_SMA7 DDRB_SMA6
DDRB_SMA4 DDRB_SMA2 DDRB_SMA0
DDRB_SBS1# DDRB_SRAS# DDRB_SCS0#
DDRB_ODT0 DDRB_SMA13
DDRB_SDQ36 DDRB_SDQ37
DDRB_SDM4 DDRB_SDQ38
DDRB_SDQ39 DDRB_SDQ44
DDRB_SDQ45 DDRB_SDQS5#
DDRB_SDQS5 DDRB_SDQ46
DDRB_SDQ47 DDRB_SDQ52
DDRB_SDQ53 DDRB_CLK1
DDRB_CLK1# DDRB_SDM6 DDRB_SDQ54
DDRB_SDQ55 DDRB_SDQ60
DDRB_SDQ61 DDRB_SDQS7#
DDRB_SDQS7 DDRB_SDQ62
DDRB_SDQ63
R331 10K_0402_5%
1 2
R327 10K_0402_5%
1 2
DDRB_SDQS3# <5> DDRB_SDQS3 <5>
DDRB_SDQS5# <5> DDRB_SDQS5 <5>
DDRB_SDQS7# <5> DDRB_SDQS7 <5>
DDRB_CLK0 <5> DDRB_CLK0# <5>
DDRB_CKE1 <5>
DDRB_SBS1# <5> DDRB_SRAS# <5> DDRB_SCS0# <5>
DDRB_ODT0 <5>
DDRB_CLK1 <5> DDRB_CLK1# <5>
+3VS
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
DDRB_SDQ[63..0] DDRB_SDM[7..0]
DDRB_SMA[15..0]
+V_DDR_MCH_REF
1
1
C202
2
2
1000P_0402_25V8J
2008/11/03 2009/11/03
DDRB_SDQ[63..0] <5>
DDRB_SDM[7..0] <5> DDRB_SMA[15..0] <5>
+V_DDR_MCH_REF
1
C3388 22U_0805_6.3V6M
C292
@
2
0.1U_0402_16V4Z
Compal Secret Data
Deciphered Date
D
DDRB_SRAS# DDRB_SMA0 DDRB_SMA2 DDRB_SMA4
DDRB_SMA6 DDRB_SMA7 DDRB_SMA11 DDRB_SMA14
DDRB_CKE0 DDRB_SBS2# DDRB_SMA15 DDRB_CKE1
DDRB_SMA8 DDRB_SMA5 DDRB_SMA12 DDRB_SMA9
DDRB_SBS0# DDRB_SMA10 DDRB_SMA3 DDRB_SMA1
DDRB_ODT1 DDRB_SCS1# DDRB_SWE# DDRB_SCAS#
DDRB_SMA13 DDRB_ODT0 DDRB_SCS0# DDRB_SBS1#
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
RP19
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
RP22
18 27 36 45
47_0804_8P4R_5%
RP21
18 27 36
47_0804_8P4R_5%
47_0804_8P4R_5%
47_0804_8P4R_5%
45
RP16
18 27 36 45
RP10
18 27 36 45
RP11
1 8 2 7 3 6 4 5
47_0804_8P4R_5%
Title
Size Document Number Rev
Custom
Date: Sheet
12
C185 0.1U_0402_16V4Z
1 2
C176 0.1U_0402_16V4Z
12
C188 0.1U_0402_16V4Z
1 2
C193 0.1U_0402_16V4Z
12
C203 0.1U_0402_16V4Z
1 2
C215 0.1U_0402_16V4Z
12
C205 0.1U_0402_16V4Z
1 2
C210 0.1U_0402_16V4Z
12
C204 0.1U_0402_16V4Z
1 2
C209 0.1U_0402_16V4Z
12
C171 0.1U_0402_16V4Z
1 2
C153 0.1U_0402_16V4Z
12
C158 0.1U_0402_16V4Z
1 2
C160 0.1U_0402_16V4Z
Compal Electronics, Inc.
DDRII SO-DIMM 1
KBYF0 LA-5051P
+0.9V
RP14
+1.8V
E
0.3
of
946Tuesday, F e b r u a r y 03, 2009
A
B
C
D
E
PCIE_GTX_C_MRX_P[0..15]<14> PCIE_GTX_C_MRX_N[0..15]<14>
PCIE_GTX_C_MRX_P0 PCIE_GTX_C_MRX_N0 PCIE_GTX_C_MRX_P1 PCIE_GTX_C_MRX_N1 PCIE_GTX_C_MRX_P2
1 1
2 2
PCIE_GTX_C_MRX_N2 PCIE_GTX_C_MRX_P3 PCIE_GTX_C_MRX_N3 PCIE_GTX_MRX_N3 PCIE_GTX_C_MRX_P4 PCIE_GTX_C_MRX_N4 PCIE_GTX_C_MRX_P5 PCIE_GTX_C_MRX_N5 PCIE_GTX_C_MRX_P6 PCIE_GTX_MRX_P6 PCIE_GTX_C_MRX_N6 PCIE_GTX_C_MRX_P7 PCIE_GTX_C_MRX_N7 PCIE_GTX_MRX_N7 PCIE_GTX_C_MRX_P8 PCIE_GTX_C_MRX_N8 PCIE_GTX_C_MRX_P9 PCIE_GTX_C_MRX_N9 PCIE_GTX_MRX_N9 PCIE_GTX_C_MRX_P10 PCIE_GTX_C_MRX_N10 PCIE_GTX_C_MRX_P11 PCIE_GTX_C_MRX_N11 PCIE_GTX_MRX_N11 PCIE_GTX_C_MRX_P12 PCIE_GTX_C_MRX_N12 PCIE_GTX_C_MRX_P13 PCIE_GTX_C_MRX_N13 PCIE_GTX_C_MRX_P14 PCIE_GTX_MRX_P14 PCIE_GTX_C_MRX_N14 PCIE_GTX_C_MRX_P15 PCIE_GTX_MRX_P15 PCIE_GTX_C_MRX_N15
C681 0.1U_0402_16V7K VGA@
1 2
C683 0.1U_0402_16V7K VGA@
1 2
C685 0.1U_0402_16V7K VGA@
1 2
C687 0.1U_0402_16V7K VGA@
1 2
C689 0.1U_0402_16V7K VGA@
1 2
C691 0.1U_0402_16V7K VGA@
1 2
C693 0.1U_0402_16V7K VGA@
1 2
C695 0.1U_0402_16V7K VGA@
1 2
C697 0.1U_0402_16V7K VGA@
1 2
C699 0.1U_0402_16V7K VGA@
1 2
C701 0.1U_0402_16V7K VGA@
1 2
C703 0.1U_0402_16V7K VGA@
1 2
C705 0.1U_0402_16V7K VGA@
1 2
C707 0.1U_0402_16V7K VGA@
1 2
C709 0.1U_0402_16V7K VGA@
1 2
C711 0.1U_0402_16V7K VGA@
1 2
C680 0.1U_0402_16V7K VGA@
1 2
C682 0.1U_0402_16V7K VGA@
1 2
C684 0.1U_0402_16V7K VGA@
1 2
C686 0.1U_0402_16V7K VGA@
1 2
C688 0.1U_0402_16V7K VGA@
1 2
C690 0.1U_0402_16V7K VGA@
1 2
C692 0.1U_0402_16V7K VGA@
1 2
C694 0.1U_0402_16V7K VGA@
1 2
C696 0.1U_0402_16V7K VGA@
1 2
C698 0.1U_0402_16V7K VGA@
1 2
C700 0.1U_0402_16V7K VGA@
1 2
C702 0.1U_0402_16V7K VGA@
1 2
C704 0.1U_0402_16V7K VGA@
1 2
C706 0.1U_0402_16V7K VGA@
1 2
C708 0.1U_0402_16V7K VGA@
1 2
C710 0.1U_0402_16V7K VGA@
1 2
PCIE_PTX_C_IRX_P1<28> PCIE_PTX_C_IRX_N1<28> PCIE_PTX_C_IRX_P2<28> PCIE_PTX_C_IRX_N2<28> PCIE_PTX_C_IRX_P3<26> PCIE_PTX_C_IRX_N3<26>
SB_RX0P<19> SB_RX0N<19> SB_RX1P<19> SB_RX1N<19> SB_RX2P<19> SB_RX2N<19> SB_RX3P<19> SB_RX3N<19>
PCIE_GTX_MRX_P0 PCIE_GTX_MRX_N0 PCIE_GTX_MRX_P1 PCIE_GTX_MRX_N1 PCIE_GTX_MRX_P2 PCIE_GTX_MRX_N2 PCIE_GTX_MRX_P3
PCIE_GTX_MRX_P4 PCIE_GTX_MRX_N4 PCIE_GTX_MRX_P5 PCIE_GTX_MRX_N5
PCIE_GTX_MRX_N6 PCIE_GTX_MRX_P7
PCIE_GTX_MRX_P8 PCIE_GTX_MRX_N8 PCIE_GTX_MRX_P9
PCIE_GTX_MRX_P10 PCIE_GTX_MRX_N10 PCIE_GTX_MRX_P11
PCIE_GTX_MRX_P12 PCIE_GTX_MRX_N12 PCIE_GTX_MRX_P13 PCIE_GTX_MRX_N13
PCIE_GTX_MRX_N14 PCIE_GTX_MRX_N15
PCIE_PTX_C_IRX_P1 PCIE_PTX_C_IRX_N1 PCIE_PTX_C_IRX_P2 PCIE_PTX_C_IRX_N2 PCIE_PTX_C_IRX_P3 PCIE_PTX_C_IRX_N3
SB_RX0P SB_RX0N SB_RX1P SB_RX1N SB_RX2P SB_RX2N SB_RX3P SB_RX3N
RS780M Display Port Support (muxed on GFX)
DP0
3 3
PCIE_MTX_GRX_P0 PCIE_MTX_GRX_N0 PCIE_MTX_GRX_P1 PCIE_MTX_GRX_N1 PCIE_MTX_GRX_P2 PCIE_MTX_GRX_N2 PCIE_MTX_GRX_P3 HDMI_CLK+_UMA PCIE_MTX_GRX_N3
4 4
DP1
C897 0.1U_0402_10V7KUMA@
1 2
C898 0.1U_0402_10V7KUMA@
1 2
C899 0.1U_0402_10V7KUMA@
1 2
C900 0.1U_0402_10V7KUMA@
1 2
C901 0.1U_0402_10V7KUMA@
1 2
C902 0.1U_0402_10V7KUMA@
1 2
C903 0.1U_0402_10V7KUMA@
1 2
C904 0.1U_0402_10V7KUMA@
1 2
GFX_TX0,TX1,TX2 and TX3 AUX0 and HPD0
GFX_TX4,TX5,TX6 and TX7 AUX1 and HPD1
HDMI_TX2+_UMA HDMI_TX2-_UMA HDMI_TX1+_UMA HDMI_TX1-_UMA HDMI_TX0+_UMA HDMI_TX0-_UMA
HDMI_CLK-_UMA
U25B
D4
GFX_RX0P
C4
GFX_RX0N
A3
GFX_RX1P
B3
GFX_RX1N
C2
GFX_RX2P
C1
GFX_RX2N
E5
GFX_RX3P
F5
GFX_RX3N
G5
GFX_RX4P
G6
GFX_RX4N
H5
GFX_RX5P
H6
GFX_RX5N
J6
GFX_RX6P
J5
GFX_RX6N
J7
GFX_RX7P
J8
GFX_RX7N
L5
GFX_RX8P
L6
GFX_RX8N
M8
GFX_RX9P
L8
GFX_RX9N
P7
GFX_RX10P
M7
GFX_RX10N
P5
GFX_RX11P
M5
GFX_RX11N
R8
GFX_RX12P
P8
GFX_RX12N
R6
GFX_RX13P
R5
GFX_RX13N
P4
GFX_RX14P
P3
GFX_RX14N
T4
GFX_RX15P
T3
GFX_RX15N
AE3
GPP_RX0P
AD4
GPP_RX0N
AE2
GPP_RX1P
AD3
GPP_RX1N
AD1
GPP_RX2P
AD2
GPP_RX2N
V5
GPP_RX3P
W6
GPP_RX3N
U5
GPP_RX4P
U6
GPP_RX4N
U8
GPP_RX5P
U7
GPP_RX5N
AA8
SB_RX0P
Y8
SB_RX0N
AA7
SB_RX1P
Y7
SB_RX1N
AA5
SB_RX2P
AA6
SB_RX2N
W5
SB_RX3P
Y5
SB_RX3N
RS780M_FCBGA528
HDMI_TX2+_UMA <17> HDMI_TX2-_UMA <17> HDMI_TX1+_UMA <17> HDMI_TX1-_UMA <17> HDMI_TX0+_UMA <17> HDMI_TX0-_UMA <17> HDMI_CLK+_UMA <17> HDMI_CLK-_UMA <17>
PART 2 OF 6
GFX_TX10P GFX_TX10N GFX_TX11P GFX_TX11N GFX_TX12P GFX_TX12N GFX_TX13P GFX_TX13N GFX_TX14P GFX_TX14N GFX_TX15P GFX_TX15N
PCIE I/F GFX
PCIE I/F GPP
PCIE I/F SB
PCE_CALRP(PCE_BCALRP)
PCE_CALRN(PCE_BCALRN)
GFX_TX0P GFX_TX0N GFX_TX1P GFX_TX1N GFX_TX2P GFX_TX2N GFX_TX3P GFX_TX3N GFX_TX4P GFX_TX4N GFX_TX5P GFX_TX5N GFX_TX6P GFX_TX6N GFX_TX7P GFX_TX7N GFX_TX8P GFX_TX8N GFX_TX9P GFX_TX9N
GPP_TX0P GPP_TX0N GPP_TX1P GPP_TX1N GPP_TX2P GPP_TX2N GPP_TX3P GPP_TX3N GPP_TX4P GPP_TX4N GPP_TX5P GPP_TX5N
SB_TX0P SB_TX0N SB_TX1P SB_TX1N SB_TX2P SB_TX2N SB_TX3P SB_TX3N
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
PCIE_GTX_C_MRX_P[0..15] PCIE_GTX_C_MRX_N[0..15]
A5
PCIE_MTX_GRX_N0
B5
PCIE_MTX_GRX_P1
A4 B4
PCIE_MTX_GRX_P2
C3
PCIE_MTX_GRX_N2
B2
PCIE_MTX_GRX_P3
D1 D2
PCIE_MTX_GRX_P4
E2
PCIE_MTX_GRX_N4
E1
PCIE_MTX_GRX_P5
F4 F3
PCIE_MTX_GRX_P6
F1 F2
PCIE_MTX_GRX_P7
H4 H3
PCIE_MTX_GRX_P8
H1 H2
PCIE_MTX_GRX_P9
J2
PCIE_MTX_GRX_N9
J1 K4
PCIE_MTX_GRX_N10
K3
PCIE_MTX_GRX_P11
K1
PCIE_MTX_GRX_N11
K2
PCIE_MTX_GRX_P12
M4
PCIE_MTX_GRX_N12
M3
PCIE_MTX_GRX_P13
M1 M2
PCIE_MTX_GRX_P14
N2
PCIE_MTX_GRX_N14
N1
PCIE_MTX_GRX_P15
P1 P2
AC1 AC2
PCIE_ITX_PRX_P1
AB4
PCIE_ITX_PRX_N1
AB3
PCIE_ITX_PRX_P2
AA2
PCIE_ITX_PRX_N2
AA1
PCIE_ITX_PRX_P3
Y1
PCIE_ITX_PRX_N3
Y2 Y4 Y3 V1 V2
SB_TX0P_C
AD7
SB_TX0N_C
AE7
SB_TX1P_C
AE6
SB_TX1N_C
AD6
SB_TX2P_C
AB6
SB_TX2N_C
AC6
SB_TX3P_C
AD5
SB_TX3N_C
AE5 AC8
AB8
C
C451 0.1U_0402_16V7K VGA@
C450 0.1U_0402_16V7K VGA@
1 2
C466 0.1U_0402_16V7K VGA@
1 2
C452 0.1U_0402_16V7K VGA@
1 2
C468 0.1U_0402_16V7K VGA@
1 2
C454 0.1U_0402_16V7KVGA@
1 2
C470 0.1U_0402_16V7KVGA@
1 2
C456 0.1U_0402_16V7KVGA@
1 2
C472 0.1U_0402_16V7KVGA@
1 2
C458 0.1U_0402_16V7KVGA@
1 2
C474 0.1U_0402_16V7KVGA@
1 2
C460 0.1U_0402_16V7KVGA@
1 2
C476 0.1U_0402_16V7KVGA@
1 2
C462 0.1U_0402_16V7KVGA@
1 2
C478 0.1U_0402_16V7KVGA@
1 2
C464 0.1U_0402_16V7KVGA@
1 2
C480 0.1U_0402_16V7KVGA@
1 2
C31 0.1U_0402_16V7K
1 2
C30 0.1U_0402_16V7K
1 2
C21 0.1U_0402_16V7K
1 2
C20 0.1U_0402_16V7K
1 2
C23 0.1U_0402_16V7K
1 2
C22 0.1U_0402_16V7K
1 2
C271 0.1U_0402_16V7K
1 2
C268 0.1U_0402_16V7K
1 2
C290 0.1U_0402_16V7K
1 2
C295 0.1U_0402_16V7K
1 2
C263 0.1U_0402_16V7K
1 2
C265 0.1U_0402_16V7K
1 2
C262 0.1U_0402_16V7K
1 2
C260 0.1U_0402_16V7K
1 2
R33 1.27K_0402_1% R31 2K_0402_1%
1 2 1 2
0718 Place within 1" layout 1:2
2008/11/03 2009/11/03
Compal Secret Data
C467 0.1U_0402_16V7K VGA@ C453 0.1U_0402_16V7K VGA@ C469 0.1U_0402_16V7K VGA@ C455 0.1U_0402_16V7KVGA@ C471 0.1U_0402_16V7KVGA@ C457 0.1U_0402_16V7KVGA@ C473 0.1U_0402_16V7KVGA@ C459 0.1U_0402_16V7KVGA@ C475 0.1U_0402_16V7KVGA@ C461 0.1U_0402_16V7KVGA@ C477 0.1U_0402_16V7KVGA@ C463 0.1U_0402_16V7KVGA@ C479 0.1U_0402_16V7KVGA@ C465 0.1U_0402_16V7KVGA@ C481 0.1U_0402_16V7KVGA@
+1.1VS
H_CLKOP0<4> H_CLKON0<4> H_CLKOP1<4> H_CLKON1<4>
H_CTLOP0<4> H_CTLON0<4> H_CTLOP1<4> H_CTLON1<4>
Deciphered Date
1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2
R75
1 2
301_0402_1%
H_CADOP0 H_CADON0 H_CADOP1 H_CADON1 H_CADOP2 H_CADON2 H_CADOP3 H_CADON3 H_CADOP4 H_CADON4 H_CADOP5 H_CADON5 H_CADOP6 H_CADON6 H_CADOP7 H_CADON7
H_CADOP8 H_CADON8 H_CADOP9 H_CADON9
H_CADOP10
H_CADON10
H_CADOP11
H_CADON11
H_CADOP12
H_CADON12
H_CADOP13
H_CADON13
H_CADOP14
H_CADON14
H_CADOP15
H_CADON15 H_CLKOP0
H_CLKON0 H_CLKOP1 H_CLKON1
H_CTLOP0 H_CTLON0 H_CTLOP1 H_CTLON1
PCIE_ITX_C_PRX_P1 <28> PCIE_ITX_C_PRX_N1 <28> PCIE_ITX_C_PRX_P2 <28> PCIE_ITX_C_PRX_N2 <28> PCIE_ITX_C_PRX_P3 <26> PCIE_ITX_C_PRX_N3 <26>
SB_TX0P <19> SB_TX0N <19> SB_TX1P <19> SB_TX1N <19> SB_TX2P <19> SB_TX2N <19> SB_TX3P <19> SB_TX3N <19>
Y25 Y24 V22 V23 V25 V24 U24 U25 T25 T24 P22 P23 P25 P24 N24 N25
AC24 AC25 AB25 AB24 AA24 AA25
Y22
Y23 W21 W20
V21
V20
U20
U21
U19
U18
T22
T23
AB23 AA22
M22 M23
R21
R20
C23
A24
D
PCIE_MTX_C_GRX_P[0..15]
PCIE_MTX_C_GRX_N[0..15]
PCIE_MTX_C_GRX_P0PCIE_MTX_GRX_P0 PCIE_MTX_C_GRX_N0 PCIE_MTX_C_GRX_P1 PCIE_MTX_C_GRX_N1PCIE_MTX_GRX_N1 PCIE_MTX_C_GRX_P2 PCIE_MTX_C_GRX_N2 PCIE_MTX_C_GRX_P3 PCIE_MTX_C_GRX_N3PCIE_MTX_GRX_N3 PCIE_MTX_C_GRX_P4 PCIE_MTX_C_GRX_N4 PCIE_MTX_C_GRX_P5 PCIE_MTX_C_GRX_N5PCIE_MTX_GRX_N5 PCIE_MTX_C_GRX_P6 PCIE_MTX_C_GRX_N6PCIE_MTX_GRX_N6 PCIE_MTX_C_GRX_P7 PCIE_MTX_C_GRX_N7PCIE_MTX_GRX_N7 PCIE_MTX_C_GRX_P8 PCIE_MTX_C_GRX_N8PCIE_MTX_GRX_N8 PCIE_MTX_C_GRX_P9 PCIE_MTX_C_GRX_N9 PCIE_MTX_C_GRX_P10PCIE_MTX_GRX_P10 PCIE_MTX_C_GRX_N10 PCIE_MTX_C_GRX_P11 PCIE_MTX_C_GRX_N11 PCIE_MTX_C_GRX_P12 PCIE_MTX_C_GRX_N12 PCIE_MTX_C_GRX_P13 PCIE_MTX_C_GRX_N13PCIE_MTX_GRX_N13 PCIE_MTX_C_GRX_P14 PCIE_MTX_C_GRX_N14 PCIE_MTX_C_GRX_P15 PCIE_MTX_C_GRX_N15PCIE_MTX_GRX_N15
TV Tuner WLAN GLAN
U25A
HT_RXCAD0P
PART 1 OF 6
HT_RXCAD0N HT_RXCAD1P HT_RXCAD1N HT_RXCAD2P HT_RXCAD2N HT_RXCAD3P HT_RXCAD3N HT_RXCAD4P HT_RXCAD4N HT_RXCAD5P HT_RXCAD5N HT_RXCAD6P HT_RXCAD6N HT_RXCAD7P HT_RXCAD7N
HT_RXCAD8P HT_RXCAD8N HT_RXCAD9P HT_RXCAD9N HT_RXCAD10P HT_RXCAD10N HT_RXCAD11P HT_RXCAD11N HT_RXCAD12P HT_RXCAD12N HT_RXCAD13P HT_RXCAD13N HT_RXCAD14P HT_RXCAD14N HT_RXCAD15P HT_RXCAD15N
HT_RXCLK0P HT_RXCLK0N HT_RXCLK1P HT_RXCLK1N
HT_RXCTL0P HT_RXCTL0N HT_RXCTL1P HT_RXCTL1N
HT_RXCALP HT_RXCALN
RS780M_FCBGA528
PCIE_MTX_C_GRX_P[0..15] <14> PCIE_MTX_C_GRX_N[0..15] <14>
H_CADIP0
H_CADIN0
H_CADIP1
H_CADIN1
H_CADIP2
H_CADIN2
H_CADIP3
H_CADIN3
H_CADIP4
H_CADIN4
H_CADIP5
H_CADIN5
H_CADIP6
H_CADIN6
H_CADIP7
H_CADIN7
H_CADIP8 H_CADIN8 H_CADIP9 H_CADIN9 H_CADIP10 H_CADIN10 H_CADIP11
H_CADIN11 H_CADIP12 H_CADIN12 H_CADIP13 H_CADIN13 H_CADIP14 H_CADIN14 H_CADIP15 H_CADIN15
H_CLKIP0 H_CLKIN0 H_CLKIP1 H_CLKIN1
H_CTLIP0 H_CTLIN0 H_CTLIP1 H_CTLIN1
E
H_CADOP[0..15] H_CADON[0..15]
H_CADIP[0..15] <4> H_CADIN[0..15] <4>
R76
1 2
301_0402_1%
10 46Tuesday, Fe b r u a r y 03, 2009
H_CLKIP0 <4> H_CLKIN0 <4> H_CLKIP1 <4> H_CLKIN1 <4>
H_CTLIP0 <4> H_CTLIN0 <4> H_CTLIP1 <4> H_CTLIN1 <4>
of
H_CADOP[0..15]<4> H_CADON[0..15]<4>
H_CADIP[0..15] H_CADIN[0..15]
HT_TXCAD0P HT_TXCAD0N HT_TXCAD1P HT_TXCAD1N HT_TXCAD2P HT_TXCAD2N HT_TXCAD3P HT_TXCAD3N HT_TXCAD4P HT_TXCAD4N HT_TXCAD5P HT_TXCAD5N HT_TXCAD6P HT_TXCAD6N HT_TXCAD7P HT_TXCAD7N
HT_TXCAD8P HT_TXCAD8N HT_TXCAD9P
HT_TXCAD9N HT_TXCAD10P HT_TXCAD10N HT_TXCAD11P HT_TXCAD11N HT_TXCAD12P HT_TXCAD12N HT_TXCAD13P HT_TXCAD13N HT_TXCAD14P HT_TXCAD14N HT_TXCAD15P HT_TXCAD15N
HT_TXCLK0P HT_TXCLK0N HT_TXCLK1P HT_TXCLK1N
HYPER TRANSPORT CPU I/F
HT_TXCTL0P HT_TXCTL0N HT_TXCTL1P HT_TXCTL1N
Title
Size Document Number Rev
Custom
Date: Sheet
D24 D25 E24 E25 F24 F25 F23 F22 H23 H22 J25 J24 K24 K25 K23 K22
F21 G21 G20 H21 J20 J21 J18 K17 L19 J19 M19 L18 M21 P21 P18 M18
H24 H25 L21 L20
M24 M25 P19 R18
B24
HT_TXCALP
B25
HT_TXCALN
0718 Place within 1" layout 1:2
Compal Electronics, Inc.
RS780-HT/PCIE
KBYF0 LA-5051P
0.3
A
B
C
D
E
140
For RS780M A13
1 2
R64 133_0402_1%
1 2
+NB_HTPVDD+1.8VS
+1.1VS
GMCH_LCD_CLK GMCH_LCD_DATA
GMCH_DDC_CLK GMCH_DDC_DATA
1 2
R511 4.7K_0402_5%
1 2
R512 4.7K_0402_5%
+1.8VS
G
2
S
Q29
@
R332
1 2
0_0402_5%
LDT_STOP#<6,19>
R63 150_0402_1%
1 2
R71 150_0402_1%
+1.1VS
13
D
FDV301N_NL_SOT23-3
1 1
L10
1 2
MBK2012221YZF 0805
2.2U_0603_6.3V4Z
+1.8VS
1 2
MBK2012221YZF 0805
2.2U_0603_6.3V4Z
2 2
+1.8VS
1 2
MBK2012221YZF 0805
2.2U_0603_6.3V4Z
+3VS
1 2
R325 4.7K_0402_5%
1 2
+5VS
+3VS
1 2
R846 0_0402_5% @
NB_PWRGD<20>
R329 4.7K_0402_5%
R318 4.7K_0402_5%@ R323 4.7K_0402_5%@
1 2
R847 0_0402_5%
1 2 1 2
3 3
4 4
L17
L6
C84
+VDDA18HTPLL
C118
C69
A
1
2
1
2
+VDDA18PCIEPLL
1
2
GMCH_CRT_R GMCH_CRT_G GMCH_CRT_B
+1.8VS
1 2
2.2U_0603_6.3V4Z
1 2
MBK2012221YZF 0805
2.2U_0603_6.3V4Z
1 2
R40
4.7K_0402_5%
L41
FBM-L11-201209-300LMA30T_0805
+NB_PLLVDD
1
C433
2
1 2
R34
4.7K_0402_5%
Strap pin
POWER_SEL<41>
GMCH_CRT_CLK GMCH_CRT_DATA
+1.8VS +3VS+1.8VS
R333 300_0402_5%
1 2
NB_PWRGD_R
S
Q28
1 2
+1.8VS
G
2
D
@
R570
0_0402_5%
13
+3VS
@
1 2
FDV301N_NL_SOT23-3
+3VS
+1.8VS
FBM-L11-201209-300LMA30T_0805
L12
C99
GMCH_CRT_HSYNC<13,18> GMCH_CRT_VSYNC<13,18>
PLT_RST#<13,19,26,28,30>
+3VS
12
R530
@
2.2K_0402_5%
R324
4.7K_0402_5%
NB_LDTSTOP#
B
L7
1 2
FBM-L11-201209-300LMA30T_0805
22U_0805_6.3V6M
L14
1 2
C106
2.2U_0603_6.3V4Z
+AVDDQ
1
2
GMCH_CRT_R<18> GMCH_CRT_G<18> GMCH_CRT_B<18>
GMCH_CRT_CLK<18> GMCH_CRT_DATA<18>
R59 715_0402_1%
CLK_NBHT<15> CLK_NBHT#<15>
NB_OSC_14.318M<15>
CLK_NBGFX<15> CLK_NBGFX#<15>
CLK_SBLINK_BCLK<15> CLK_SBLINK_BCLK#<15>
GMCH_LCD_CLK<16>
GMCH_LCD_DATA<16>
GMCH_DDC_DATA<17>
GMCH_DDC_CLK<17>
POWER_SEL
1 2
+NB_PLLVDD
+NB_HTPVDD
+VDDA18HTPLL
+VDDA18PCIEPLL
R319
1 2
0_0402_5%
R41 10K_0402_5%
AUX_CAL<13>
Strap pin
R540 1k for RS880M
CPU_LDT_REQ#<6>
ALLOW_LDTSTOP<19>
+AVDD1
1
C65
2
+AVDD2
1
2
GMCH_CRT_R GMCH_CRT_G GMCH_CRT_B
GMCH_CRT_HSYNC GMCH_CRT_VSYNC GMCH_CRT_CLK GMCH_CRT_DATA
DAC_RSET
+NB_PLLVDD +NB_HTPVDD
NB_RESET#PLT_RST# NB_PWRGD_R NB_LDTSTOP#
NB_ALLOW_LDTSTOP
CLK_NBHT CLK_NBHT#
NB_OSC_14.318M
CLK_NBGFX CLK_NBGFX#
CLK_SBLINK_BCLK CLK_SBLINK_BCLK#
GMCH_LCD_CLK GMCH_LCD_DATA GMCH_DDC_DATA GMCH_DDC_CLK
12
AUX_CAL
AVDD=100mA
1
C75
22U_0805_6.3V6M
2
U25C
F12
AVDD1(NC)
E12
AVDD2(NC)
F14
AVDDDI(NC)
G15
AVSSDI(NC)
H15
AVDDQ(NC)
H14
AVSSQ(NC)
E17
C_Pr(DFT_GPIO5)
F17
Y(DFT_GPIO2)
F15
COMP_Pb(DFT_GPIO4)
G18
RED(DFT_GPIO0)
G17
REDb(NC)
E18
GREEN(DFT_GPIO1)
F18
GREENb(NC)
E19
BLUE(DFT_GPIO3)
F19
BLUEb(NC)
A11
DAC_HSYNC(PWM_GPIO4)
B11
DAC_VSYNC(PWM_GPIO6)
F8
DAC_SCL(PCE_RCALRN)
E8
DAC_SDA(PCE_TCALRN)
G14
DAC_RSET(PWM_GPIO1)
A12
PLLVDD(NC)
D14
PLLVDD18(NC)
B12
PLLVSS(NC)
H17
VDDA18HTPLL
D7
VDDA18PCIEPLL1
E7
VDDA18PCIEPLL2
D8
SYSRESETb
A10
POWERGOOD
C10
LDTSTOPb
C12
ALLOW_LDTSTOP
C25
HT_REFCLKP
C24
HT_REFCLKN
E11
REFCLK_P/OSCIN(OSCIN)
F11
REFCLK_N(PWM_GPIO3)
T2
GFX_REFCLKP
T1
GFX_REFCLKN
U1
GPP_REFCLKP
U2
GPP_REFCLKN
V4
GPPSB_REFCLKP(SB_REFCLKP)
V3
GPPSB_REFCLKN(SB_REFCLKN)
B9
I2C_CLK
A9
I2C_DATA
B8
DDC_DATA0/AUX0N(NC)
A8
DDC_CLK0/AUX0P(NC)
B7
DDC_CLK1/AUX1P(NC)
A7
DDC_DATA1/AUX1N(NC)
B10
STRP_DATA
G11
RSVD
C8
AUX_CAL(NC)
RS780M_FCBGA528
R540
0_0402_5%
1 2
R414
300_0402_5%
1 2
Q56
1 2
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
PART 3 OF 6
TXOUT_U1P(PCIE_RESET_GPIO3) TXOUT_U1N(PCIE_RESET_GPIO2)
TXOUT_U3P(PCIE_RESET_GPIO5)
CRT/TVOUT
TXCLK_UP(PCIE_RESET_GPIO4)
TXCLK_UN(PCIE_RESET_GPIO1)
LVTM
PM
CLOCKs PLL PWR
MIS.
+1.8VS
R338
@
300_0402_5%
@
G
1 2
2
S
@
R571
0_0402_5%
13
D
1 2
FDV301N_NL_SOT23-3
2008/11/03 2009/11/03
TXOUT_L0P(NC) TXOUT_L0N(NC) TXOUT_L1P(NC) TXOUT_L1N(NC) TXOUT_L2P(NC)
TXOUT_L2N(DBG_GPIO0)
TXOUT_L3P(NC)
TXOUT_L3N(DBG_GPIO2)
TXOUT_U0P(NC) TXOUT_U0N(NC)
TXOUT_U2P(NC) TXOUT_U2N(NC)
TXOUT_U3N(NC)
TXCLK_LP(DBG_GPIO1)
TXCLK_LN(DBG_GPIO3)
VDDLTP18(NC) VSSLTP18(NC)
VDDLT18_1(NC) VDDLT18_2(NC) VDDLT33_1(NC) VDDLT33_2(NC)
VSSLT1(VSS) VSSLT2(VSS) VSSLT3(VSS) VSSLT4(VSS) VSSLT5(VSS) VSSLT6(VSS) VSSLT7(VSS)
LVDS_DIGON(PCE_TCALRP)
LVDS_BLON(PCE_RCALRP)
LVDS_ENA_BL(PWM_GPIO2)
TMDS_HPD(NC)
SUS_STAT#(PWM_GPIO5)
R534
4.7K_0402_5%
NB_ALLOW_LDTSTOP
HPD(NC)
THERMALDIODE_P THERMALDIODE_N
TESTMODE
Deciphered Date
A22 B22 A21 B21 B20 A20 A19 B19
B18 A18 A17 B17 D20 D21 D18 D19
B16 A16 D16 D17
A13 B13
A15 B15 A14 B14
C14 D15 C16 C18 C20 E20 C22
E9 F7 G12
1.27K_0402_1%
UMA@
D9 D10
D12 AE8
AD8 D13
GMCH_TXOUT0+ GMCH_TXOUT0­GMCH_TXOUT1+ GMCH_TXOUT1­GMCH_TXOUT2+ GMCH_TXOUT2-
GMCH_TZOUT0+ GMCH_TZOUT0­GMCH_TZOUT1+ GMCH_TZOUT1­GMCH_TZOUT2+ GMCH_TZOUT2-
GMCH_TXCLK+ GMCH_TXCLK­GMCH_TZCLK+ GMCH_TZCLK-
+VDDLTP18
+VDDLT18
R328
1 2
R26 10K_0402_5%@
1 2
R316 0_0402_5%
1 2
1 2
R359
1.8K_0402_5%
D
R313
1.27K_0402_1%
UMA@
1 2
SUS_STAT# SUS_STAT_R# NB_THERMAL_DA NB_THERMAL_DC
GMCH_TXOUT0+ <16> GMCH_TXOUT0- <16> GMCH_TXOUT1+ <16> GMCH_TXOUT1- <16> GMCH_TXOUT2+ <16> GMCH_TXOUT2- <16>
GMCH_TZOUT0+ <16> GMCH_TZOUT0- <16> GMCH_TZOUT1+ <16> GMCH_TZOUT1- <16> GMCH_TZOUT2+ <16> GMCH_TZOUT2- <16>
GMCH_TXCLK+ <16> GMCH_TXCLK- <16> GMCH_TZCLK+ <16> GMCH_TZCLK- <16>
1 2
R347 0_0402_5%@
R350 0_0402_5%@
UMA_HPD
+VDDLTP18
+VDDLT18
0.1U_0402_16V4Z
R330 0_0402_5%
UMA@
1 2 1 2
1 2
UMA_HPD <17>
SUS_STAT# <20> SUS_STAT_R# <13> NB_THERMAL_DA <21> NB_THERMAL_DC <21>
Title
Size Document Number Rev
Custom Date: Sheet
Compal Electronics, Inc.
RS780 VEDIO/CLK GEN
1
2
1
C442
2
GMCH_ENVDD ENBKL
R317 0_0402_5%UMA@
KBYF0 LA-5051P
L42
1 2
MBC1608121YZF_0603 C439
2.2U_0603_6.3V4Z
L46
1 2
MBC1608121YZF_0603
1
C443
4.7U_0805_10V4Z
2
UMA_PNL_PWM <16>
Strap pin NB temp to SB
E
+1.8VS
+1.8VS
GMCH_ENVDD <16> ENBKL <14,30> BKOFF# <16,30>
of
11 46Tuesday, Feb ru ar y 03, 2009
0.3
A
1 1
2 2
+1.8VS
3 3
4 4
+1.1VS
FBMA-L11-201209-221LMA30T_0805
FBMA-L11-201209-221LMA30T_0805
+1.2V_HT
FBMA-L11-201209-221LMA30T_0805
L21
FBMA-L11-201209-221LMA30T_0805
1
C72 22U_0805_6.3V6M
2
2A
L25
12
C33
L9
22U_0805_6.3V6M
L16
12
22U_0805_6.3V6M
330U_D2E_2.5VM
1
+
2
12
C88
0.1U_0402_16V4Z
12
1
C109
2
22U_0805_6.3V6M
0.1U_0402_16V4Z
2A
1
C131
C150
2
0.1U_0402_16V4Z
2A
1
C130
2
22U_0805_6.3V6M
2A
0.1U_0402_16V4Z
1
1
C92
2
2
22U_0805_6.3V6M
1
C116
C117
2
0.1U_0402_16V4Z
1
1
C127
2
2
0.1U_0402_16V4Z
1
C134
C123
2
0.1U_0402_16V4Z
1
C87
C91
2
0.1U_0402_16V4Z
+1.8VS
C432
1U_0402_6.3V4Z
0.1U_0402_16V4Z
1
1
C121
2
2
0.1U_0402_16V4Z
1
C139
C147
2
0.1U_0402_16V4Z
0.1U_0402_16V4Z
1
1
C136
2
2
0.1U_0402_16V4Z
1
1
C93
2
2
1
2
C114
0.1U_0402_16V4Z
+VDDHTRX
1
2
C135
0.1U_0402_16V4Z
C89
0.1U_0402_16V4Z
+VDDHT
0.68A
1
2
0.68A
+VDDHTTX
1
2
+VDDA18PCIE
0.6A
1
2
0.64A
B
K16 M16
P16 R16 T16
H18 G19 F20 E21 D22 B23 A23
AE25 AD24 AC23 AB22 AA21
Y20
W19
V18 U17 T17 R17 P17
M17
P10 K10
M10
T10 R10
AA9 AB9 AD9 AE9 U10
AE11 AD11
1
C431 1U_0402_6.3V4Z
2
@
U25E
J17
VDDHT_1 VDDHT_2
L16
VDDHT_3 VDDHT_4 VDDHT_5 VDDHT_6 VDDHT_7
VDDHTRX_1 VDDHTRX_2 VDDHTRX_3 VDDHTRX_4 VDDHTRX_5 VDDHTRX_6 VDDHTRX_7
VDDHTTX_1 VDDHTTX_2 VDDHTTX_3 VDDHTTX_4 VDDHTTX_5 VDDHTTX_6 VDDHTTX_7 VDDHTTX_8 VDDHTTX_9 VDDHTTX_10 VDDHTTX_11 VDDHTTX_12 VDDHTTX_13
J10
VDDA18PCIE_1 VDDA18PCIE_2 VDDA18PCIE_3 VDDA18PCIE_4
L10
VDDA18PCIE_5
W9
VDDA18PCIE_6
H9
VDDA18PCIE_7 VDDA18PCIE_8 VDDA18PCIE_9
Y9
VDDA18PCIE_10 VDDA18PCIE_11 VDDA18PCIE_12 VDDA18PCIE_13 VDDA18PCIE_14 VDDA18PCIE_15
F9
VDD18_1
G9
VDD18_2 VDD18_MEM1(NC) VDD18_MEM2(NC)
RS780M_FCBGA528
PART 5/6
VDDPCIE_1 VDDPCIE_2 VDDPCIE_3 VDDPCIE_4 VDDPCIE_5 VDDPCIE_6 VDDPCIE_7 VDDPCIE_8
VDDPCIE_9 VDDPCIE_10 VDDPCIE_11 VDDPCIE_12 VDDPCIE_13 VDDPCIE_14 VDDPCIE_15 VDDPCIE_16 VDDPCIE_17
VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8
VDDC_9 VDDC_10 VDDC_11 VDDC_12
POWER
VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22
VDD_MEM1(NC) VDD_MEM2(NC) VDD_MEM3(NC) VDD_MEM4(NC) VDD_MEM5(NC) VDD_MEM6(NC)
VDD33_1(NC) VDD33_2(NC)
C
shape add
VDDA_12=2.5A
A6 B6 C6 D6 E6 F6 G7 H8 J9 K9 M9 L9 P9 R9 T9 V9 U9
K12 J14 U16 J11 K15 M12 L14 L11 M13 M15 N12 N14 P11 P13 P14 R12 R15 T11 T15 U12 T14 J16
AE10 AA11 Y11 AD10 AB10 AC10
H11 H12
+VDDA11PCIE
1.1A
7.6A
C1010.1U_0402_16V4Z
0.1U_0402_16V4Z
1
2
C95
1 2
L5 0_0805_5%
C35 C34
C74 1U_0402_6.3V4Z C85 1U_0402_6.3V4Z C81 1U_0402_6.3V4Z C86 1U_0402_6.3V4Z
C73 0.1U_0402_16V4Z C82 0.1U_0402_16V4Z
+1.1VS
C940.1U_0402_16V4Z
1
1
1
1
C1120.1U_0402_16V4Z
C1040.1U_0402_16V4Z
C1070.1U_0402_16V4Z
2
2
2
2
1
1
C96
2
2
22U_0805_6.3V6M 22U_0805_6.3V6M
1 2 1 2 1 2 1 2
1 2 1 2
1 2
L3 0_0805_5%
1 2
L4 0_0805_5%
VDD_CORE=5A
C970.1U_0402_16V4Z
1
1
1
1
C1030.1U_0402_16V4Z
C1020.1U_0402_16V4Z
C1100.1U_0402_16V4Z
2
2
2
2
+3VS+1.8VS
0.1U_0402_16V4Z
D
U25F
A25
VSSAHT1
D23
VSSAHT2
E22
VSSAHT3
G22
VSSAHT4
G24
VSSAHT5
G25
VSSAHT6
H19
VSSAHT7
J22
VSSAHT8
L17
VSSAHT9
L22
VSSAHT10
L24
VSSAHT11
+1.1VS
+NB_CORE
C32 330U_D2E_2.5VM
330U_D2E_2.5VM
1
1
C3822U_0805_6.3V6M
C3622U_0805_6.3V6M
C29
1
1
2
+
+
2
2
2
L25
VSSAHT12
M20
VSSAHT13
N22
VSSAHT14
P20
VSSAHT15
R19
VSSAHT16
R22
VSSAHT17
R24
VSSAHT18
R25
VSSAHT19
H20
VSSAHT20
U22
VSSAHT21
V19
VSSAHT22
W22
VSSAHT23
W24
VSSAHT24
W25
VSSAHT25
Y21
VSSAHT26
AD25
VSSAHT27
L12
VSS11
M14
VSS12
N13
VSS13
P12
VSS14
P15
VSS15
R11
VSS16
R14
VSS17
T12
VSS18
U14
VSS19
U11
VSS20
U15
VSS21
V12
VSS22
W11
VSS23
W15
VSS24
AC12
VSS25
AA14
VSS26
Y18
VSS27
AB11
VSS28
AB15
VSS29
AB17
VSS30
AB19
VSS31
AE20
VSS32
AB21
VSS33
K11
VSS34
RS780M_FCBGA528
U25D
AB12
MEM_A0(NC)
AE16
MEM_A1(NC)
V11
MEM_A2(NC)
AE15
MEM_A3(NC)
AA12
MEM_A4(NC)
AB16
MEM_A5(NC)
AB14
MEM_A6(NC)
AD14
MEM_A7(NC)
AD13
MEM_A8(NC)
AD15
MEM_A9(NC)
AC16
MEM_A10(NC)
AE13
MEM_A11(NC)
AC14
MEM_A12(NC)
Y14
MEM_A13(NC)
AD16
MEM_BA0(NC)
AE17
MEM_BA1(NC)
AD17
MEM_BA2(NC)
W12
MEM_RASb(NC)
Y12
MEM_CASb(NC)
AD18
MEM_WEb(NC)
AB13
MEM_CSb(NC)
AB18
MEM_CKE(NC)
V14
MEM_ODT(NC)
V15
MEM_CKP(NC)
W14
MEM_CKN(NC)
AE12
MEM_COMPP(NC)
AD12
MEM_COMPN(NC)
RS780M_FCBGA528
VSSAPCIE1
PART 6/6
VSSAPCIE2 VSSAPCIE3 VSSAPCIE4 VSSAPCIE5 VSSAPCIE6 VSSAPCIE7 VSSAPCIE8
VSSAPCIE9 VSSAPCIE10 VSSAPCIE11 VSSAPCIE12 VSSAPCIE13 VSSAPCIE14 VSSAPCIE15 VSSAPCIE16 VSSAPCIE17 VSSAPCIE18 VSSAPCIE19 VSSAPCIE20 VSSAPCIE21 VSSAPCIE22 VSSAPCIE23 VSSAPCIE24 VSSAPCIE25 VSSAPCIE26 VSSAPCIE27 VSSAPCIE28 VSSAPCIE29 VSSAPCIE30
GROUND
VSSAPCIE31 VSSAPCIE32 VSSAPCIE33 VSSAPCIE34 VSSAPCIE35 VSSAPCIE36 VSSAPCIE37 VSSAPCIE38 VSSAPCIE39 VSSAPCIE40
PAR 4 OF 6
MEM_DQ0/DVO_VSYNC(NC) MEM_DQ1/DVO_HSYNC(NC)
MEM_DQ2/DVO_DE(NC) MEM_DQ3/DVO_D0(NC)
MEM_DQ5/DVO_D1(NC) MEM_DQ6/DVO_D2(NC) MEM_DQ7/DVO_D4(NC) MEM_DQ8/DVO_D3(NC)
MEM_DQ9/DVO_D5(NC) MEM_DQ10/DVO_D6(NC) MEM_DQ11/DVO_D7(NC)
MEM_DQ13/DVO_D9(NC)
MEM_DQ14/DVO_D10(NC) MEM_DQ15/DVO_D11(NC)
MEM_DQS0P/DVO_IDCKP(NC) MEM_DQS0N/DVO_IDCKN(NC)
MEM_DM1/DVO_D8(NC)
SBD_MEM/DVO_I/F
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8 VSS9
VSS10
MEM_DQ4(NC)
MEM_DQ12(NC)
MEM_DQS1P(NC) MEM_DQS1N(NC)
MEM_DM0(NC)
IOPLLVDD18(NC)
IOPLLVDD(NC)
IOPLLVSS(NC)
MEM_VREF(NC)
A2 B1 D3 D5 E4 G1 G2 G4 H7 J4 R7 L1 L2 L4 L7 M6 N4 P6 R1 R2 R4 V7 U4 V8 V6 W1 W2 W4 W7 W8 Y6 AA4 AB5 AB1 AB7 AC3 AC4 AE1 AE4 AB2
AE14 D11 G8 E14 E15 J15 J12 K14 M11 L15
E
AA18 AA20 AA19 Y19 V17 AA17 AA15 Y15 AC20 AD19 AE22 AC18 AB20 AD22 AC22 AD21
Y17 W18 AD20 AE21
W17 AE19
AE23 AE24
AD23 AE18
+1.8VS
+1.1VS
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
Title
Size Document Number Rev
Custom
D
Date: Sheet
Compal Electronics, Inc.
RS780 PWR/GND
KBYF0 LA-5051P
12 46Tuesday, Fe b r u a r y 03, 2009
E
0.3
of
A
B
C
D
E
DFT_GPIO5:STRAP_DEBUG_BUS_GPIO_ ENABLEb
GMCH_CRT_VSYNC<11,18>
1 1
12
R46 3K_0402_5%
12
R45 3K_0402_5%@
+3VS
Enables the Test Debug Bus using GPIO. (VSYNC) 1 : Disable (RS780) 0 : Enable (Rs780)
DFT_GPIO1: LOAD_EEPROM_STRAPS
AUX_CAL<11>
RS780 DFT_GPIO1
2 2
1 2
R320 150_0402_1%@
D17 CH751H-40_SC76@
2 1
PLT_RST# <11,19,26,28,30>SUS_STAT_R#<11>
Selects Loading of STRAPS from EPROM 1 : Bypass the loading of EEPROM straps and use Hardware Default Values 0 : I2C Master can load strap values from EEPROM if connected, or use default values if not connected RS740/RX780: DFT_GPIO1 RS780:SUS_STAT
RS780 use HSYNC to enable SIDE PORT
RS780 use HSYNC to enable SIDE PORT
GMCH_CRT_HSYNC<11,18>
12
R340 3K_0402_5%
@
12
R339 3K_0402_5%
+3VS
RS740/RS780: Enables Side port memory ( RS780 use HSYNC#)
0. Enable (RS780) 1 : Disable(RS780)
3 3
4 4
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
A
B
MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
C
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
Title
Size Document Number Rev
Custom
D
Date: Sheet
Compal Electronics, Inc.
RS780 STRAPS
KBYF0 LA-5051P
13 46Tuesday, Fe b r u a r y 03, 2009
E
0.3
of
5
R245
+5VS
R305 0_0402_5%
@
VGA_DISABLE#
ENVDD
VGA_HDMI_CEC I2CC_SDA
I2CC_SCL
5
PCIE_MTX_C_GRX_N[0..15] PCIE_MTX_C_GRX_P[0..15] PCIE_GTX_C_MRX_N[0..15] PCIE_GTX_C_MRX_P[0..15]
+3VS
EC_ACIN <30>
JMXM2A
1
PWR_SRC
3
PWR_SRC
5
PWR_SRC
7
PWR_SRC
9
PWR_SRC
11
PWR_SRC
13
PWR_SRC
15
PWR_SRC
17
PWR_SRC
19
PWR_SRC
21
GND
23
GND
25
GND
27
GND
29
GND
31
GND
33
GND
35
GND
37
GND
39
GND
41
5V
43
5V
45
5V
47
5V
49
5V
51
GND
53
GND
55
GND
57
GND
59
PEX_STD_SW#
61
VGA_DISABLE#
63
PNL_PWR_EN
65
PNL_BL_EN
67
PNL_BL_PWM
69
HDMI_CEC
71
DVI_HPD
73
LVDS_DDC_DAT
75
LVDS_DDC_CLK
77
GND
79
OEM
81
OEM
83
OEM
85
OEM
87
GND
89
PEX_RX15#
91
PEX_RX15
93
GND
95
PEX_RX14#
97
PEX_RX14
99
GND
101
PEX_RX13#
103
PEX_RX13
105
GND
107
PEX_RX12#
109
PEX_RX12
111
GND
113
PEX_RX11#
115
PEX_RX11
117
GND
119
PEX_RX10#
121
PEX_RX10
123
GND
125
PEX_RX9#
127
PEX_RX9
129
GND
131
PEX_RX8#
133
PEX_RX8
135
GND
137
PEX_RX7#
139
PEX_RX7
141
GND
143
PEX_RX6#
145
PEX_RX6
147
GND
149
PEX_RX5#
151
PEX_RX5
153
GND
155
PEX_RX4#
157
PEX_RX4
159
GND
161
PEX_RX3#
163
PEX_RX3
165
GND
JAE_MM70-314-310B1-1
160mil(4A)
E1 E2
E3 E4
C910
VGA@
680P_0603_50V7K
PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC PWR_SRC
PRSNT_R#
PWR_GOOD
PWR_EN
PWR_LEVEL
TH_OVERT#
TH_ALERT#
TH_PWM
SMB_DAT SMB_CLK
PEX_TX15#
PEX_TX15
PEX_TX14#
PEX_TX14
PEX_TX13#
PEX_TX13
PEX_TX12#
PEX_TX12
PEX_TX11#
PEX_TX11
PEX_TX10#
PEX_TX10 PEX_TX9#
PEX_TX9
PEX_TX8#
PEX_TX8
PEX_TX7#
PEX_TX7
PEX_TX6#
PEX_TX6
PEX_TX5#
PEX_TX5
PEX_TX4#
PEX_TX4
PEX_TX3#
PEX_TX3
PCIE_MTX_C_GRX_N[0..15]<10> PCIE_MTX_C_GRX_P[0..15]<10> PCIE_GTX_C_MRX_N[0..15]<10> PCIE_GTX_C_MRX_P[0..15]<10>
VGA@
12
D D
AC_BATT#
D27 CH751H-40PT_SOD323-2
C C
VGA_PNL_PWM<16>
I2CC_SDA<16> I2CC_SCL<16>
LVDS DDC Module have 4.7K Pull-UP
B B
A A
1K_0402_5%
2 1
VGA@
12
R292
0_0402_5%
@
100mil(2.5A, 5VIA)
1 2
ENVDD<16> ENBKL<11,30>
PCIE_GTX_C_MRX_N0 PCIE_GTX_C_MRX_P0
PCIE_GTX_C_MRX_N1 PCIE_GTX_C_MRX_P1
PCIE_GTX_C_MRX_N2 PCIE_GTX_C_MRX_P2
PCIE_GTX_C_MRX_N3 PCIE_GTX_C_MRX_P3
PCIE_GTX_C_MRX_N4 PCIE_GTX_C_MRX_P4
PCIE_GTX_C_MRX_N5 PCIE_GTX_C_MRX_P5
PCIE_GTX_C_MRX_N6 PCIE_GTX_C_MRX_P6
PCIE_GTX_C_MRX_N7 PCIE_GTX_C_MRX_P7
PCIE_GTX_C_MRX_N8 PCIE_GTX_C_MRX_P8
PCIE_GTX_C_MRX_N9 PCIE_GTX_C_MRX_P9
PCIE_GTX_C_MRX_N10 PCIE_GTX_C_MRX_P10
PCIE_GTX_C_MRX_N11 PCIE_GTX_C_MRX_P11
PCIE_GTX_C_MRX_N12 PCIE_GTX_C_MRX_P12
GND GND GND GND GND GND GND GND GND GND
WAKE#
RSVD RSVD RSVD RSVD
GPIO0 GPIO1 GPIO2
GND OEM OEM OEM OEM GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
1
2
4
+MXM_B+
VGA@
1 2
FBMA-L11-201209-221LMA30T_0805
VGA@
1 2
FBMA-L11-201209-221LMA30T_0805
1
C911
VGA@
68P_0402_50V8J
2
+MXM_B++MXM_B+
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
VGA_PRSNT_R
42
VGA_WAKE#
44
VGA_PWRGD
46
VGA_ON
48 50 52 54 56
AC_BATT#
58
TH_OVERT#
60
R291
62
0_0402_5% VGA@
64 66 68 70
D_EC_SMB_DA1
72
D_EC_SMB_CK1
74 76 78 80 82 84 86 88 90 92 94 96 98 100 102 104 106 108 110 112 114 116 118 120 122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164
4
PCIE_MTX_C_GRX_N0 PCIE_MTX_C_GRX_P0
PCIE_MTX_C_GRX_N1 PCIE_MTX_C_GRX_P1
PCIE_MTX_C_GRX_N2 PCIE_MTX_C_GRX_P2
PCIE_MTX_C_GRX_N3 PCIE_MTX_C_GRX_P3
PCIE_MTX_C_GRX_N4 PCIE_MTX_C_GRX_P4
PCIE_MTX_C_GRX_N5 PCIE_MTX_C_GRX_P5
PCIE_MTX_C_GRX_N6 PCIE_MTX_C_GRX_P6
PCIE_MTX_C_GRX_N7 PCIE_MTX_C_GRX_P7
PCIE_MTX_C_GRX_N8 PCIE_MTX_C_GRX_P8
PCIE_MTX_C_GRX_N9 PCIE_MTX_C_GRX_P9
PCIE_MTX_C_GRX_N10 PCIE_MTX_C_GRX_P10
PCIE_MTX_C_GRX_N11 PCIE_MTX_C_GRX_P11
PCIE_MTX_C_GRX_N12 PCIE_MTX_C_GRX_P12
L75
L74
160mil(4A)
2
C909
1
0.1U_0603_25V7K
0.1U_0402_16V4Z
VGA_PRSNT_R <21> VGA_PWRGD <30>
VGA_ON <32>
B+
VGA@
C912
@
+5VS
1
2
VGA_PWRGD/TH_OVERT# Connect to EC
1 2
TH_OVERT# <30>
+3VS
SYSTEM
EC_SMB_DA1<6,30,38>
EC_SMB_CK1<6,30,38>
Security Classification
Issued Date
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
3
R23 4.3K_0402_5%VGA@
I2CC_SDA<16> I2CC_SCL<16>
TH_OVERT# VGA_PWRGD VGA_HDMI_CEC VGA_DISABLE# VGA_WAKE#
+3VS
1 3
D
Q69 2N7002_SOT23
VGA@
CLK_PCIE_VGA#<15> CLK_PCIE_VGA<15>
2
G
S
Q70 2N7002_SOT23
VGA@
HDMI_TX2-_VGA<17> HDMI_TX2+_VGA<17>
HDMI_TX1-_VGA<17> HDMI_TX1+_VGA<17>
HDMI_TX0-_VGA<17> HDMI_TX0+_VGA<17>
HDMI_CLK-_VGA<17> HDMI_CLK+_VGA<17>
VGA_HDMI_SDATA<17> VGA_HDMI_SCLK<17>
VGA_PRSNT_L<21>
R114 10K_0402_5%VGA@
1 2
R96 10K_0402_5%VGA@
1 2
R128 10K_0402_5%@
1 2
R97 10K_0402_5%@
1 2
R142 10K_0402_5%@
1 2
VGA_TZCLK-<16> VGA_TZCLK+<16>
VGA_TZOUT2-<16> VGA_TZOUT2+<16>
VGA_TZOUT1-<16> VGA_TZOUT1+<16>
VGA_TZOUT0-<16> VGA_TZOUT0+<16>
4.7K_0402_5%
2
1 3
D
G
4.7K_0402_5%
2008/11/03 2009/11/03
3
1 2
R22 4.3K_0402_5% VGA@
1 2
Increase the rise time Ps. Module have 4.7K Pull-UP
+3VS
(Reserved) (Reserved) (Reserved)
PCIE_GTX_C_MRX_N13 PCIE_GTX_C_MRX_P13
PCIE_GTX_C_MRX_N14 PCIE_GTX_C_MRX_P14
PCIE_GTX_C_MRX_N15 PCIE_GTX_C_MRX_P15
CLK_PCIE_VGA# CLK_PCIE_VGA
VGA_TZCLK­VGA_TZCLK+
VGA_TZOUT2­VGA_TZOUT2+
VGA_TZOUT1­VGA_TZOUT1+
VGA_TZOUT0­VGA_TZOUT0+
+3VS
12
R322
@
D_EC_SMB_DA1
+3VS
12
R336
@
S
D_EC_SMB_CK1
HDMI_TX2-_VGA HDMI_TX2+_VGA
HDMI_TX1-_VGA HDMI_TX1+_VGA
HDMI_TX0-_VGA HDMI_TX0+_VGA
HDMI_CLK-_VGA HDMI_CLK+_VGA
VGA_HDMI_SDATA VGA_HDMI_SCLK VGA_PRSNT_L
(Pull-UP 10K at PCH)
Compal Secret Data
Deciphered Date
2
+3VS
167 169 171 173 175 177 179 181 183 185 187 189 191 193 195 197 199 201 203 205 207 209 211 213 215 217 219 221 223 225 227 229 231 233 235 237 239 241 243 245 247 249 251 253 255 257 259 261 263 265 267 269 271 273 275 277 279 281 283 285 287 289 291 293 295 297 299 301 303 305 307 309 311 313 314
315
JAE_MM70-314-310B1-1
2
JMXM2B
GND PEX_RX2# PEX_RX2 GND PEX_RX1# PEX_RX1 GND PEX_RX0# PEX_RX0 GND PEX_REFCLK# PEX_REFCLK GND RSVD RSVD RSVD RSVD RSVD LVDS_UCLK# LVDS_UCLK GND LVDS_UTX3# LVDS_UTX3 GND LVDS_UTX2# LVDS_UTX2 GND LVDS_UTX1# LVDS_UTX1 GND LVDS_UTX0# LVDS_UTX0 GND DP_C_L0# DP_C_L0 GND DP_C_L1# DP_C_L1 GND DP_C_L2# DP_C_L2 GND DP_C_L3# DP_C_L3 GND DP_C_AUX# DP_C_AUX RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD GND DP_A_L0# DP_A_L0 GND DP_A_L1# DP_A_L1 GND DP_A_L2# DP_A_L2 GND DP_A_L3# DP_A_L3 GND DP_A_AUX# DP_A_AUX PRSNT_L#
GND
C399
VGA@
10U_0805_6.3V6M
+3VS
1
1
2
VGA_RST# <19> VGA_DDC_DATA <18> VGA_DDC_CLK <18> VGA_CRT_VSYNC <18> VGA_CRT_HSYNC <18>
VGA_CRT_R <18> VGA_CRT_G <18> VGA_CRT_B <18>
VGA_TXCLK- <16> VGA_TXCLK+ <16>
VGA_TXOUT2- <16> VGA_TXOUT2+ <16>
VGA_TXOUT1- <16> VGA_TXOUT1+ <16>
VGA_TXOUT0- <16> VGA_TXOUT0+ <16>
VGA_HPD <17>
14 46Tuesday, February 03, 2009
1
+3VS +5VS
1
C418
VGA@
4.7U_0805_10V4Z
2
166
GND
168
PEX_TX2#
170
PEX_TX2
172
GND
174
PEX_TX1#
176
PEX_TX1
178
GND
180
PEX_TX0#
182
PEX_TX0
184
GND
PEX_CLK_REQ#
VGA_DDC_DAT
VGA_DDC_CLK
VGA_VSYNC VGA_HSYNC
VGA_GREEN
LVDS_LCLK#
LVDS_LCLK
LVDS_LTX3#
LVDS_LTX3
LVDS_LTX2#
LVDS_LTX2
LVDS_LTX1#
LVDS_LTX1
LVDS_LTX0#
LVDS_LTX0
DP_D_AUX#
DP_B_AUX#
186 188
PEX_RST#
190 192 194 196 198
GND
200
VGA_RED
202 204
VGA_BLUE
206
GND
208 210 212
GND
214 216 218
GND
220 222 224
GND
226 228 230
GND
232 234 236
GND
238
DP_D_L0#
240
DP_D_L0
242
GND
244
DP_D_L1#
246
DP_D_L1
248
GND
250
DP_D_L2#
252
DP_D_L2
254
GND
256
DP_D_L3#
258
DP_D_L3
260
GND
262 264
DP_D_AUX
266
DP_C_HPD
268
DP_D_HPD
270
RSVD
272
RSVD
274
RSVD
276
GND
278
DP_B_L0#
280
DP_B_L0
282
GND
284
DP_B_L1#
286
DP_B_L1
288
GND
290
DP_B_L2#
292
DP_B_L2
294
GND
296
DP_B_L3#
298
DP_B_L3
300
GND
302 304
DP_B_AUX
306
DP_B_HPD
308
DP_A_HPD
310
3V3
312
3V3
316
GND
Title
Size Document Number Rev
B
KBYF0 LA-5051P
Date: Sheet of
PCIE_MTX_C_GRX_N13 PCIE_MTX_C_GRX_P13
PCIE_MTX_C_GRX_N14 PCIE_MTX_C_GRX_P14
PCIE_MTX_C_GRX_N15 PCIE_MTX_C_GRX_P15
VGA_RST# VGA_DDC_DATA VGA_DDC_CLK VGA_CRT_VSYNC VGA_CRT_HSYNC
VGA_CRT_R VGA_CRT_G VGA_CRT_B
VGA_TXCLK­VGA_TXCLK+
VGA_TXOUT2­VGA_TXOUT2+
VGA_TXOUT1­VGA_TXOUT1+
VGA_TXOUT0­VGA_TXOUT0+
VGA_HPD
40mil(1A)
Compal Electronics, Inc.
MXM Connector
1
C183
VGA@
0.1U_0402_16V4Z
2
0.3
5
+1.2V_HT
FBMA-L11-201209-601LMT 0805
D D
C368
22P_0402_50V8J
C C
REQ0# FOR SRC1
REQ2# FOR SRC2
REQ3# FOR SRC3
External 14MHz CLK for SB710
B B
+3VS_CLK
R234
8.2K_0402_5% @
1 2
R235
8.2K_0402_5%
A A
1 2
+VDDCLK_IO
R192
1 2
1
2
1
C313
2
22U_0805_10V4Z
CLK_XTAL_OUT CLK_XTAL_IN
Y4
12
14.31818MHZ_20P_6X1430004201
1
C360 22P_0402_50V8J
2
NB_OSC_14.318M<11> CLK_14M_SIO<30> SB_14M_OSC<19>
R237
@
8.2K_0402_5%
1 2
SEL_SATA
SEL_HT66
R238
8.2K_0402_5%
1 2
0.1U_0402_16V4Z
1
C316
2
MINI1_CLKREQ#<28> MINI2_CLKREQ#<28>
CLK_SD_48M<25> CLK_48M_USB<20>
0.1U_0402_16V4Z
1
C361
2
0.1U_0402_16V4Z
+3VS_CLK
FBMA-L11-201209-601LMT 0805
+3VS_CLK
+3VS_CLK
1 2
R231 100_0402_5%
CLK_14M_SIO SB_14M_OSC SEL_HT66
NB_OSC_14.318M
R522 33_0402_5% R251 33_0402_5%
CLK_48M_USB CLK_48M_USB_R
1
C365
2
0.1U_0402_16V4Z
R190
1 2
22U_0805_10V4Z
C343 0.1U_0402_16V4Z
+3VS_CLK
1 2
1 2
R201 8.2K_0402_5%
R205 8.2K_0402_5%
@
R244 33_0402_5% R243 33_0402_5%
1
2
12 12
0.1U_0402_16V4Z
C346
+VDDCLK_IO
R232 200_0402_1%
SEL_SATA
4
0.1U_0402_16V4Z
1
1
C323
C322
2
2
+CLK_VDDA
1
1
C311
C321
0.1U_0402_16V4Z
2
2
12
R503
1 2
FBMA-L11-160808-601LMT 0603
MINI1_CLKREQ# MINI2_CLKREQ#
SEL_27
1 2
CLK_SD_48M_RCLK_SD_48M
12 12
CLK_XTAL_IN CLK_XTAL_OUT
+3VS
FBMA-L11-201209-601LMT 0805
U20
49 48
62 66
12 18 28 37 53
17 29 38 44 54 61 69
24 51 50 43 42
63 64 65
71 70
67 68
11 19 27 36 47 52 58 72 73
ICS 9LPRS488
VDDA GNDA
VDDREF GNDREF
VDDSRC_IO VDDSRC_IO VDDATIG_IO VDDSB_SRC_IO VDDCPU_IO
3
VDDDOT VDDSRC VDDATIG VDDSB_SRC VDDSATA VDDCPU VDDHTT VDD48
CLKREQ0 # CLKREQ1# CLKREQ2# CLKREQ3# CLKREQ4#
REF2/SEL_27 REF1/SEL_SATA REF0/SEL_HTT66
48MHz_0 48MHz_1
X1 X2
6
GNDDOT GNDSRC GNDSRC GNDATIG GNDSB_SRC GNDSATA GNDCPU GNDHTT GND48 GNDPAD
ICS9LPRS488AKLFT_MLF72_10x10
+3VS_CLK
R230
1 2
SMBCLK SMBDAT
SB_SRC_SLOW#
CPUKG0T_LPRS
CPUKG0C_LPRS
HTT0T_LPRS / 66 M HTT0C_LPRS / 66 M
SB_SRC0T_LPRS
SB_SRC0C_LPRS
SB_SRC1T_LPRS
SB_SRC1C_LPRS
ATIG0T_LPRS ATIG0C_LPRS
ATIG1T_LPRS ATIG1C_LPRS
ATIG2T_LPRS ATIG2C_LPRS
SRC0T_LPRS
SRC0C_LPRS
SRC1T_LPRS
SRC1C_LPRS
SRC2T_LPRS
SRC2C_LPRS
SRC3T_LPRS
SRC3C_LPRS
SRC4T_LPRS
SRC4C_LPRS
SRC5T_LPRS
SRC5C_LPRS
SRC6T/SATAT_LPRS
SRC6C/SATAC_LPRS
SRC7T_LPRS/27MHz_SS
SRC7C_LPRS/27MHz_NS
1
C348 22U_0805_10V4Z
2
1 2
41
56 55
60 59
40 39
35 34
33 32
31 30
26 25
23 22
21 20
16 15
14 13
10 9
8 7
46 45
5 4
57
PD#
3
0.1U_0402_16V4Z
1
C324
2
0.1U_0402_16V4Z
ICH_SMBCLK0 ICH_SMBDATA0
SRC_SLOW
CLK_CPU CLK_CPU#
CLK_HTT CLK_HTT#
CLK_ATIG0 CLK_ATIG0#
CLK_ATIG1 CLK_ATIG1#
CLK_SRC0 CLK_SRC0#
CLK_SRC2 CLK_SRC2#
CLK_SRC3 CLK_SRC3#
CLK_SB_SRC0#
CLK_SB_SRC1#
R220 8.2K_0402_5%
1
C669
@
2
1U_0603_10V6K
R215 0_0402_5% R206 0_0402_5%
12
1
2
1 2 1 2
1 2
R225 0_0402_5%
1 2
R222 0_0402_5%
1 2
R223 0_0402_5%
1 2
R226 0_0402_5%
1 2
R227 0_0402_5%
1 2
R229 0_0402_5%VGA@
1 2
R239 0_0402_5%
1 2
R240 0_0402_5%
1 2
R256 0_0402_5%
1 2
R255 0_0402_5%
1 2
R263 0_0402_5%
1 2
R262 0_0402_5%
1 2
R199 0_0402_5%
1 2
R200 0_0402_5%
1 2
R213 0_0402_5%
1 2
R218 0_0402_5%
1
C344
VGA@
C364
2
0.1U_0402_16V4Z
ICH_SMBCLK0 <8,9,20,28> ICH_SMBDATA0 <8,9,20,28>
+3VS_CLK
0.1U_0402_16V4Z
1
C363
2
CLK_CPU_BCLK
12
R214 261_0402_1%@
CLK_CPU_BCLK#
CLK_NBHT CLK_NBHT#
CLK_NBGFX CLK_NBGFX#
CLK_PCIE_VGA CLK_PCIE_VGA#
CLK_PCIE_LAN CLK_PCIE_LAN#
CLK_PCIE_MINI1 CLK_PCIE_MINI1#
CLK_PCIE_MINI2 CLK_PCIE_MINI2#
CLK_SBLINK_BCLKCLK_SB_SRC0 CLK_SBLINK_BCLK#
CLK_SBSRC_BCLKCLK_SB_SRC1 CLK_SBSRC_BCLK#
2
1
C339
2
0.1U_0402_16V4Z
0.1U_0402_16V4Z
1
C319
2
0.1U_0402_16V4Z
SRC 0
SRC 1
SRC 2
SRC 3
CLK_CPU_BCLK <6>
1
C326
2
LAN
NEW CARD
MINI2
MINI1
0.1U_0402_16V4Z
1
2
CPU
CLK_CPU_BCLK# <6>
CLK_NBHT <11> CLK_NBHT# <11>
CLK_NBGFX <11> CLK_NBGFX# <11>
CLK_PCIE_VGA <14> CLK_PCIE_VGA# <14>
CLK_PCIE_LAN <26> CLK_PCIE_LAN# <26>
CLK_PCIE_MINI1 <28> CLK_PCIE_MINI1# <28>
CLK_PCIE_MINI2 <28> CLK_PCIE_MINI2# <28>
CLK_SBLINK_BCLK <11> CLK_SBLINK_BCLK# <11>
CLK_SBSRC_BCLK <19> CLK_SBSRC_BCLK# <19>
NB CLOCK INPUT TABLE
NB CLOCKS HT_REFCLKP HT_REFCLKN REFCLK_P REFCLK_N GFX_REFCLK GPP_REFCLK GPPSB_REFCLK 100M DIFF 100M DIFF
RS740 RX780 RS780
66M SE(SIN GLE END)
NC
14M SE (3.3V) 1 4 M S E (1.8V) 14M S E (1.1V) NC NC vref
100M DIFF NC 100M DIFF
NB GFX
VGA chip(Dis)
GLAN
MiniCard_1
MiniCard_2
NB A LINK
SB RCLK
100M DIFF 100M DIFF
100M DIFF 100M DIFF
C325
1
C362
2
0.1U_0402_16V4Z
100M DIFF 100M DIFF
100M DIFF(IN/OUT)*
NC
1
1
C350 1U_0402_6.3V4Z
2
1U CLOSE PIN 69
+3VS_CLK
12
SRC_SLOW
12
@
R197
8.2K_0402_5%
R210
8.2K_0402_5%
SEL_HTT66
SEL_SATA
* default
configure as single-ended 66MHz output
1
configure as dif fe r en tial 100MHz output
*0
100M SATA SRC6 output
1* 0
SPREAD 100M SATA SRC6 output
5
NB_OSC_14.318M
configure as 27M and 27M_SS output
1
configure as SRC_7 output
*0
4
Security Classification
Issued Date
THIS SHEET OF EN GINEER ING DR AWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED B Y OR D ISCLOS ED T O ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
3
2008/11/03 2009/11/03
Compal Secret Data
Deciphered Date
2
Title
Size Document Number Rev
Custom
Date: Sheet
Compal Electronics, Inc.
Clock generator
KBYF0 LA-5051P
15 46Tuesday, Fe b r u a r y 03, 2009
1
of
0.3
Loading...
+ 32 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
