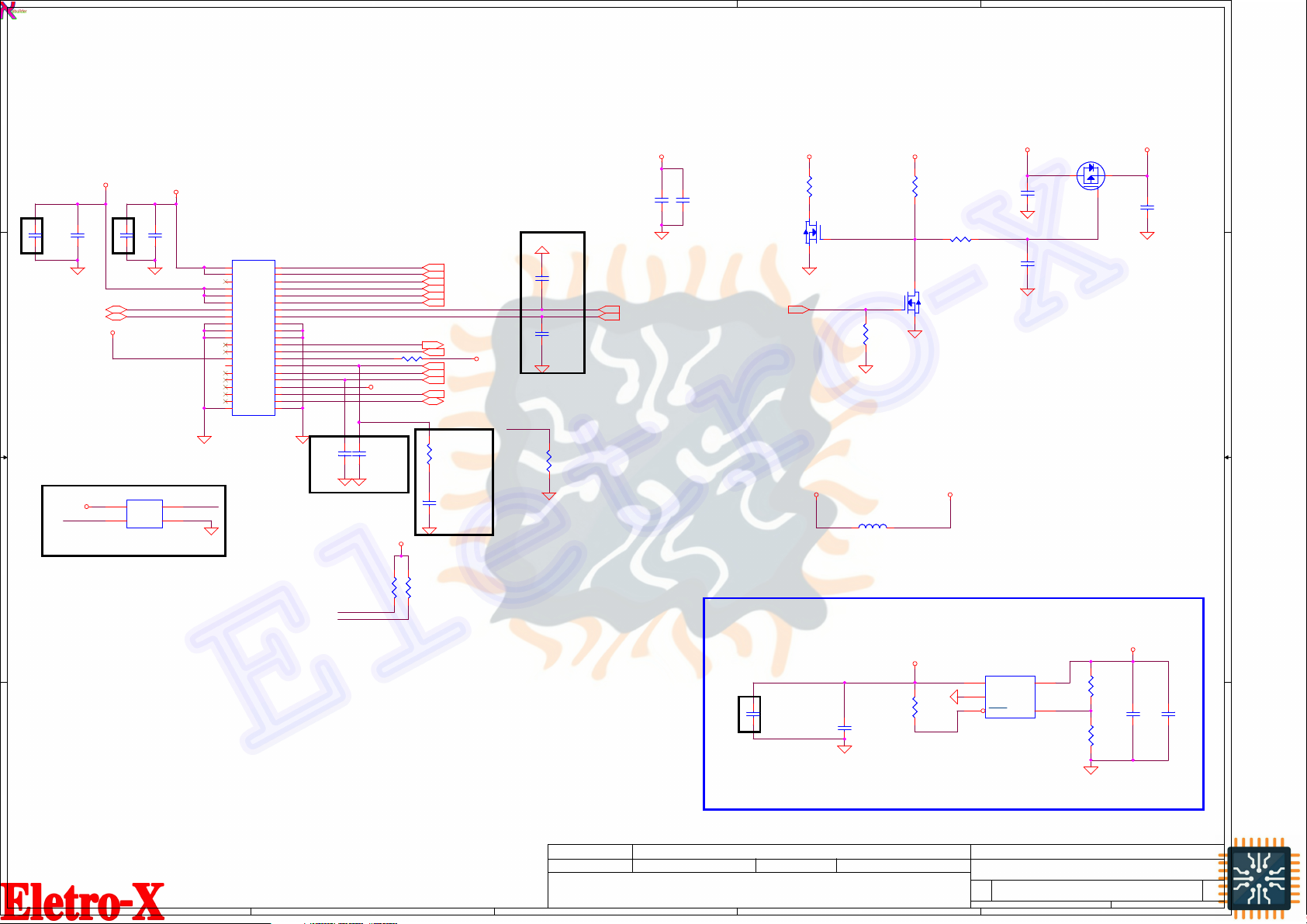

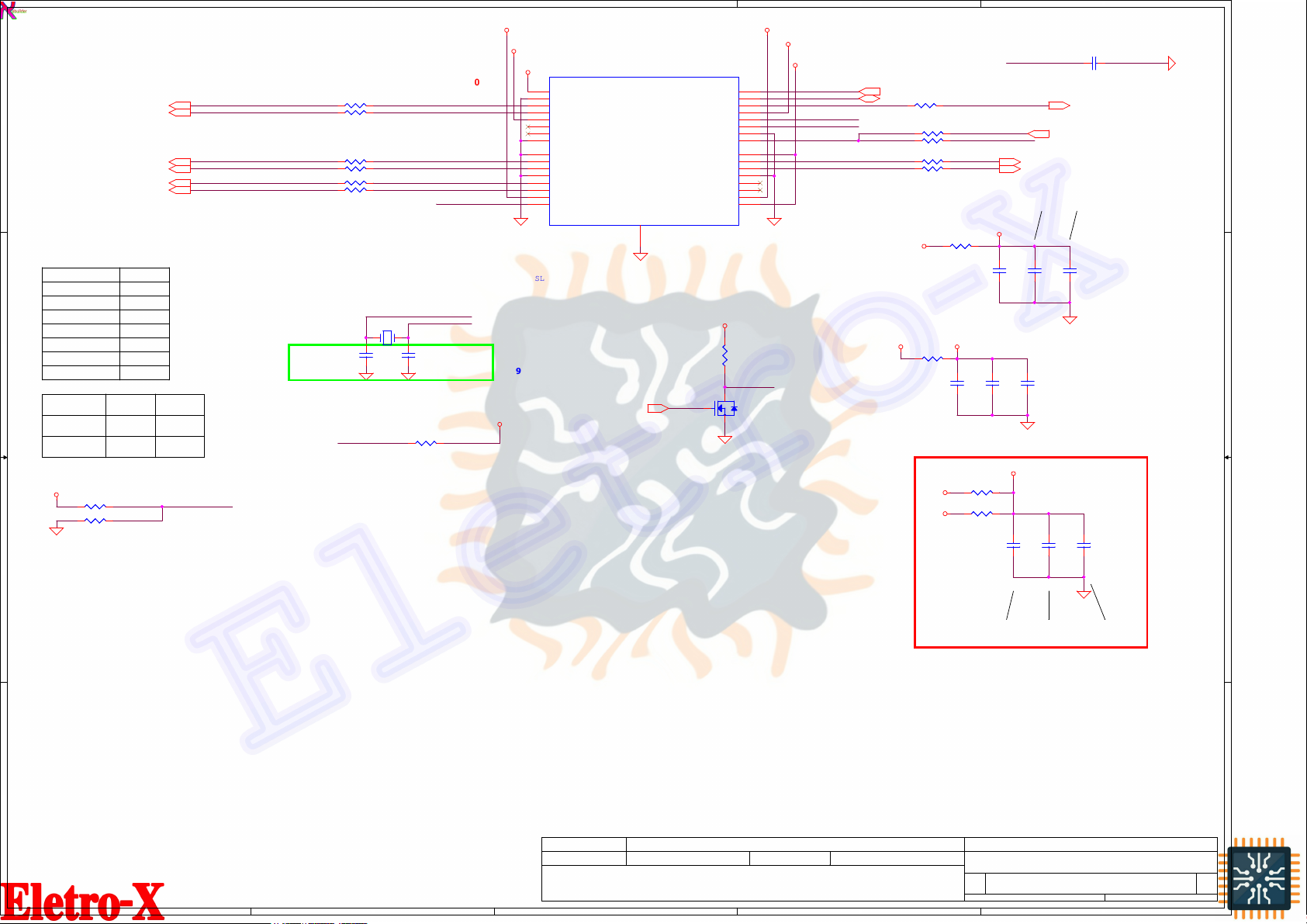

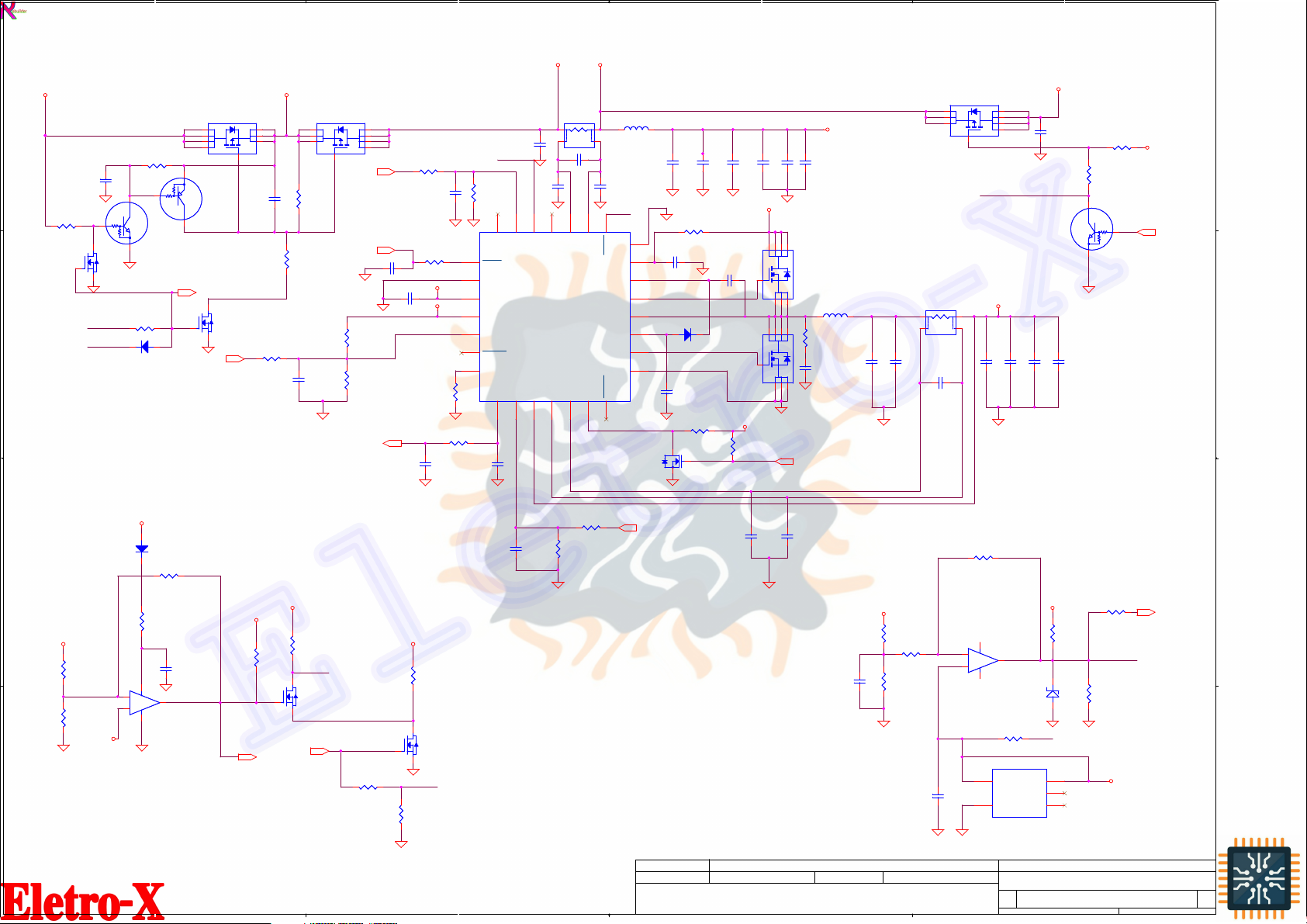

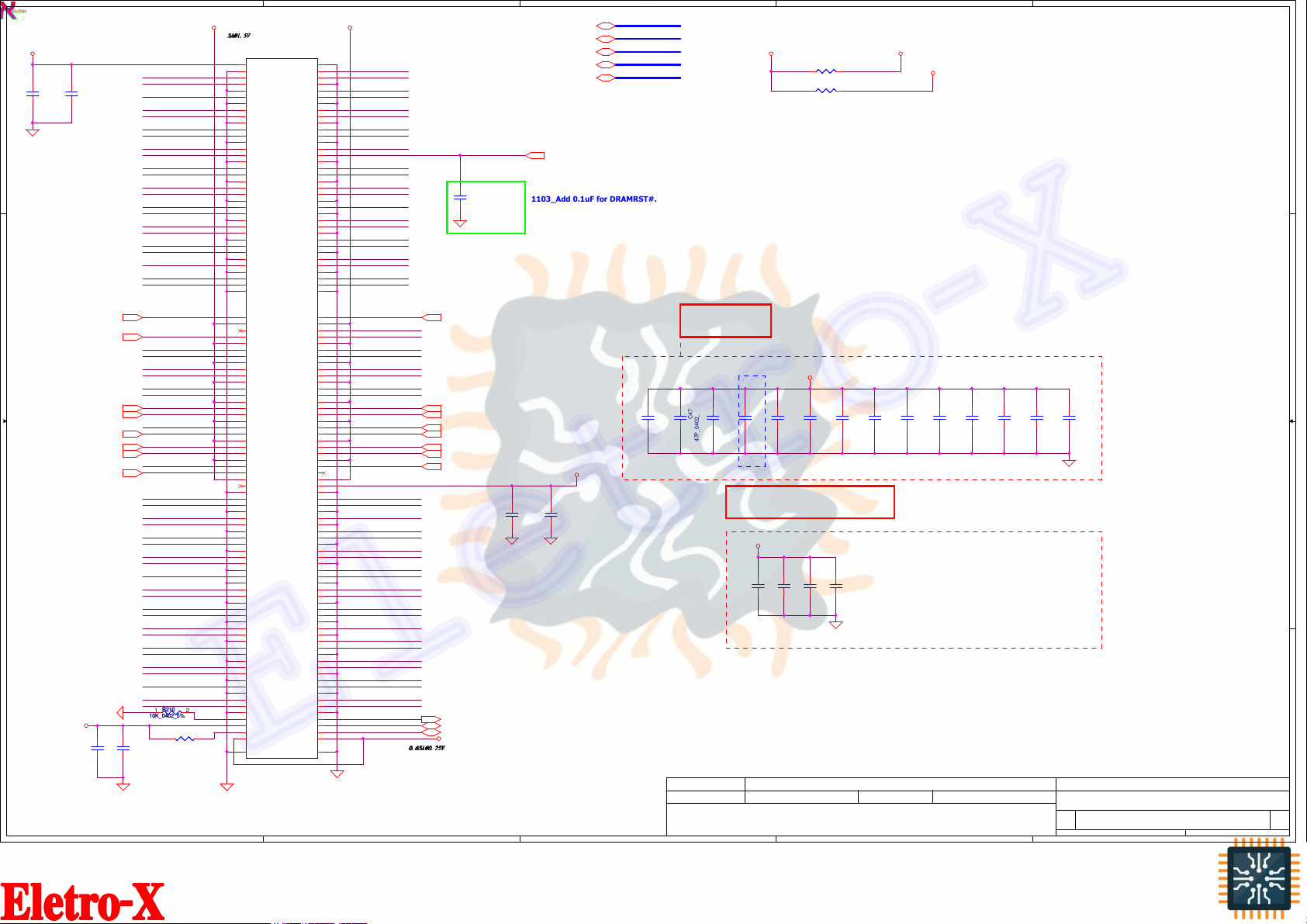

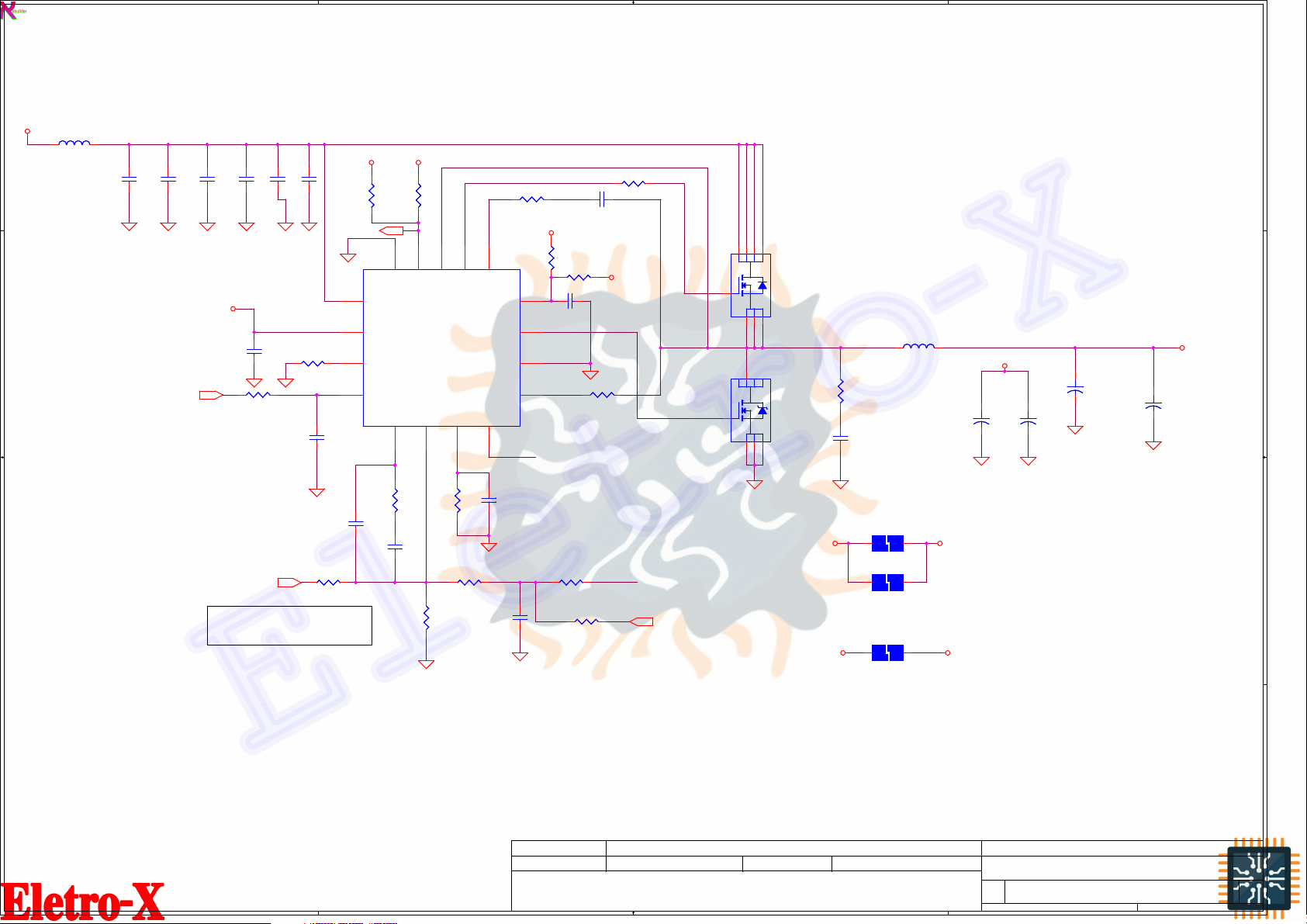

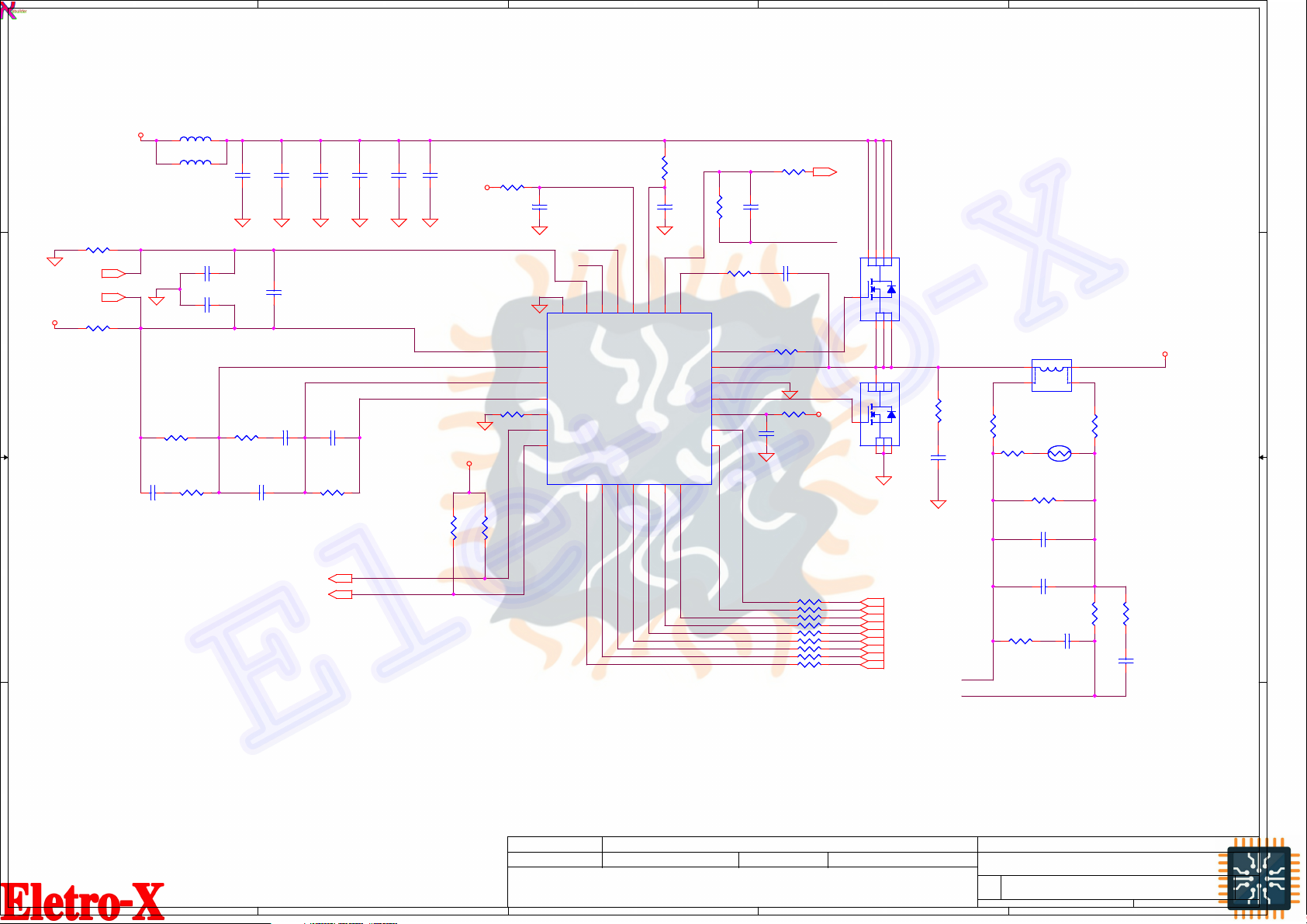

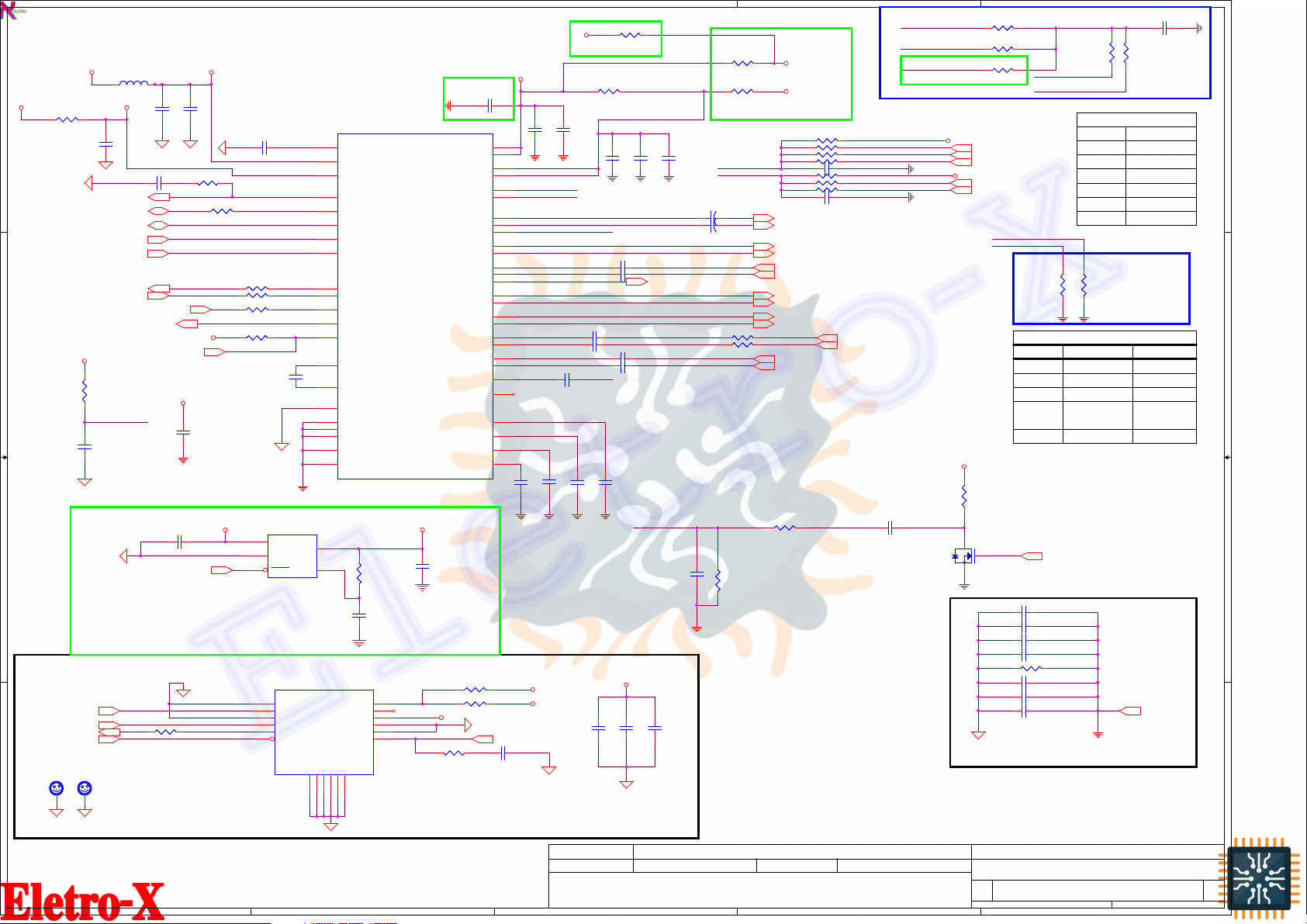

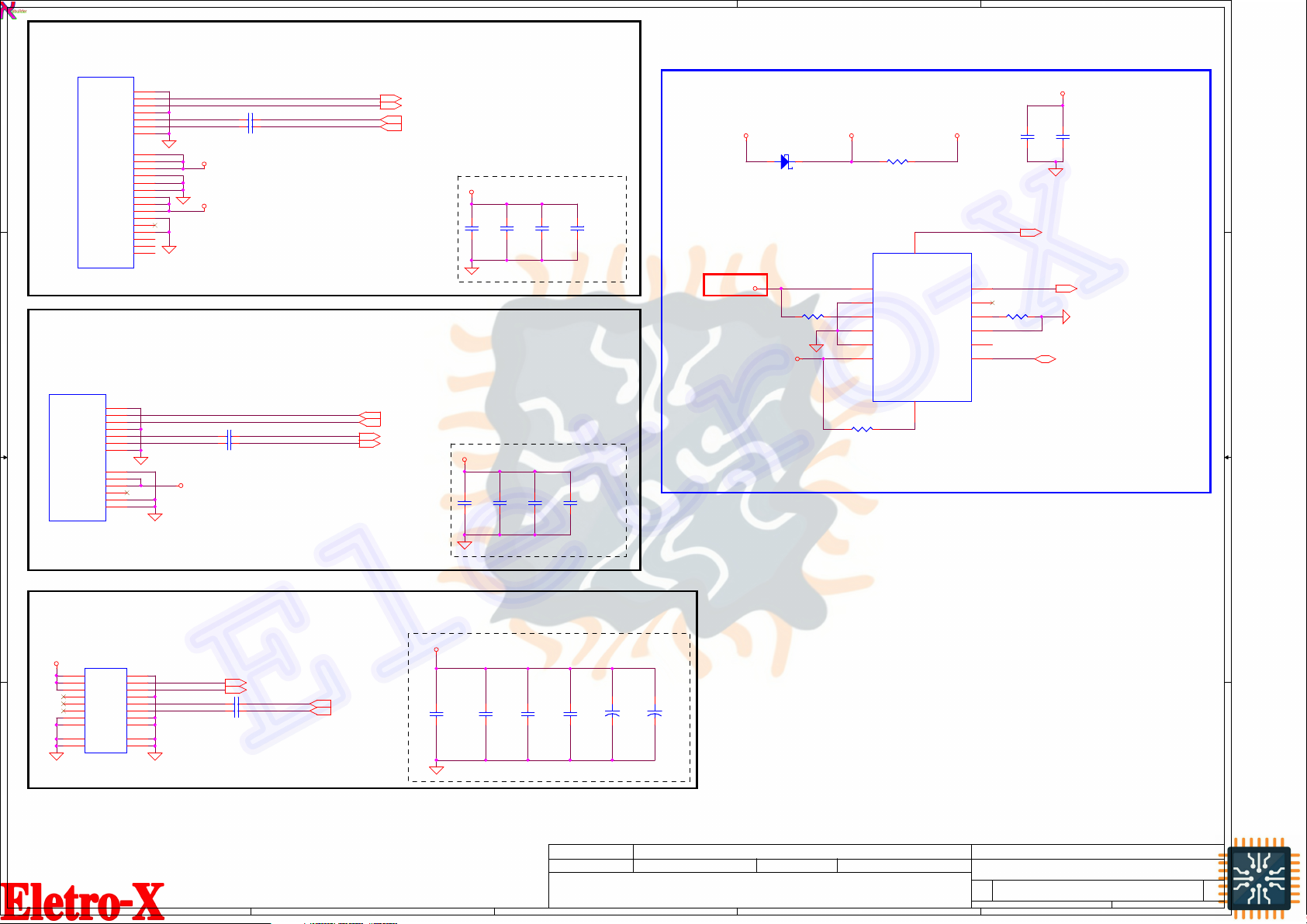

Compal LA-4106P Schematic

A

test1

1 1

2 2

B

C

D

E

Compal confidential

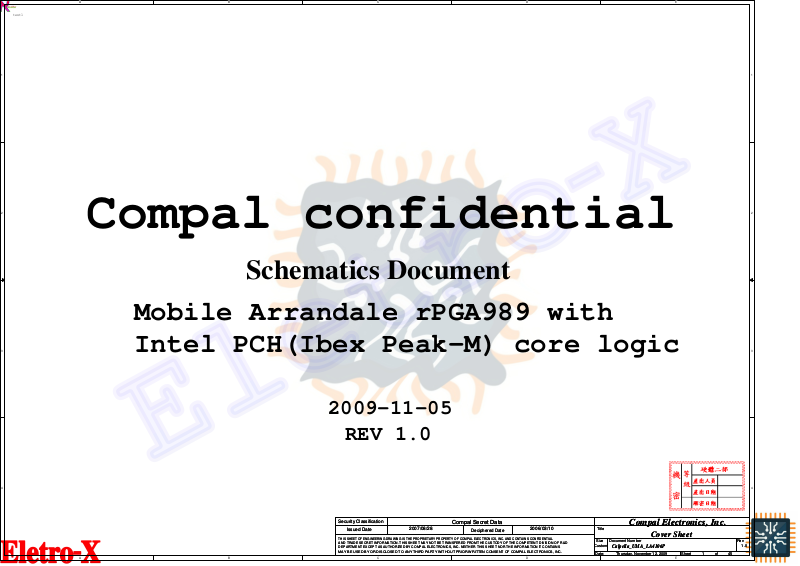

Schematics Document

Mobile Arrandale rPGA989 with

3 3

4 4

A

Intel PCH(Ibex Peak-M) core logic

2009-11-05

REV 1.0

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

2007/08/28 2006/03/10

2007/08/28 2006/03/10

2007/08/28 2006/03/10

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

D

Date: Sheet of

Compal Electronics, Inc.

Cover Sheet

Cover Sheet

Cover Sheet

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

1.0

1.0

1 45Thursday, November 12, 2009

1 45Thursday, November 12, 2009

1 45Thursday, November 12, 2009

E

1.0

A

B

C

D

E

Compal confidential

1 1

Fan conn

Calpella Consumer 14" UMA

Page 6

Mobile Arrandale

CK505

32QFN

Clock Generator
ICS9LRS3197AKLFT MLF

P19

2C CPU + GMCH

Socket-rPGA989

DDR3 1066 1.5V

LCD Conn.

page 21

CRT

page 20

2 2

HDMI Conn.

page 22

Level Shifter

page 22

UMA

UMA

UMA

DMI X4

Intel PCH

Ibex Peak-M

PCI-E BUS*4

FCBGA 951

Page 6,7,8,9,10

Dual Channel

FDI X4

USB2.0 X12

Azalia

SATA Master-1

SATA Slave

Page 11,12,13,14,15,16

DDR3 SO-DIMM X2

BANK 0, 1, 2, 3

USB conn x1

P29

Left side (ESATA)

USB conn x2
Right side

BT Conn

P29

P29

USB Camera
(LVDS Conn)

Finger print

Mini-Card

WWAN

P21

P29

P29

P17, 18

RTL8401 (LAN
+Card reader)

3 3

P25

Mini-Card

WLAN

RJ45 CONN

P25

RTC CKT.

ACCELEROMETER
ST

4 4

K/B backlight Conn

LED

P11 P32

P23

P32

Dock

USB2.0*1

RGB

RJ45

SPDIF

MIC*1

LINE-OUT*1

DC/DC Interface CKT.

P33

A

P26

Mini-Card

TV-tuner

B

New Card

P24P24

P24

Touch Pad CONN.

ENE

KB926

Version D2

P32

SPI ROM 2M
MX25L2005CMI-12G

EC code
256K Bytes

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

LPC BUS

P30

SPI ROM 32M
AT25DF321-SU

ME code + System BIOS
4M Bytes

P31

LPC Debug
Port

P30

2006/02/13 2006/03/10

2006/02/13 2006/03/10

2006/02/13 2006/03/10

C

SPI

Int.KBD

P30

P31

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Codec_IDT92HD80

SATA HDD Connector

SATA ODD Connector

D

Audio CKT

MDC

ESATA

Multi Bay

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

P27 P28

P27

P29

P23

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

Audio Jack

P23

P23

Capsense switch Conn

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Block Diagram

Block Diagram

Block Diagram

2 45Thursday, November 12, 2009

2 45Thursday, November 12, 2009

2 45Thursday, November 12, 2009

E

P32

1.0

1.0

1.0

A

Symbol Note :

Voltage Rails

power
plane

State

S0

S1

S3

S5 S4/AC

S5 S4/ Battery only

S5 S4/AC & Battery
don't exist

1 1

SMBUS Control Table

SOURCE

SMB_EC_CK1

SMB_EC_DA1

SMB_EC_CK2

SMB_EC_DA2

SMBCLK

SMBDATA

SML0CLK

SML0DATA

SML1CLK

SML1DATA

KB926

KB926

PCH

PCH

PCH

O MEANS ON

+B

VL

O

O

O

O

O

XDP BATT

X V

X

X

X

X

X

X

X MEANS OFF

+5VALW

+3VALW

O

O

O

O

X

XX

Thermal
Sensor

X

X

X

X

+1.5V

O

O

O

X

X

X

SODIMM

CLK GEN

X

X

X

X

V V V

X

X

+5VS

+3VS

+1.5VS

+0.75V

+VCCP

+CPU_CORE

+1.05VS

+1.5VS_CPU

O

O

X

X

X

X

WWAN

X

X

X

+3VS
@+3VALW

WLAN

X

X

V

X

X

+3VS
@+3VALW

: means Digital Ground

: means Analog Ground

@ : means just reserve , no build

45@ : means need be mounted when 45 level assy or rework stage.

BATT @ : means need be mounted when 45 level assy or rework stage.

CONN@ : means ME part

PA@ : Only For PA (With Capacitor sensor)

OPP@ : For POWER BUTTON (NO CAP SERSOR)

DEBUG@ : For DEBUG

M93
Thermal
Sensor

X

X

X

X

X

Cap sensor
board

NEW

G sensor

CARD

V

X

X

X

X X

X

V V

X

X XX X X X X X X

+3VS+3VS+3VSVCCP +3VS+3VL

+3VL

+3VALW

X

+3VS/+3VALW

X

+3VALW

CONNECTED

PCH I2C / SMBUS ADDRESSING

DEVICE

DDR SO-DIMM0

DDR SO-DIMM1

CLOCK GENERATOR (EXT.)

EC I2C / SMBUS1 ADDRESSING

DEVICE

Smart Battery

Cap Sensor board

USB assignment:

USB-0 Left side(with ESATA)

USB-1 Right side

USB-2 Right side

USB-3 Dock

USB-4 Camera

USB-5 MiniCard(WLAN)

USB-6 X

USB-7 X

USB-8 MiniCard(WWAN)

USB-9 New Card

USB-10 X

USB-11 Finger Printer

USB-12 Bluetooth

USB-13 X

(HM55 don't support)

(HM55 don't support)

PCIe assignment:

PCIe-1 WWAN

PCIe-2 WLAN

PCIe-3 RTL8401 Combo

PCIe-4 New card

PCIe-5 X

PCIe-6 X

PCIe-7 X

PCIe-8 X

(HM55 don't support)

(HM55 don't support)

SATA assignment:

SATA0 HDD

SATA1 ODD

SATA2 X

SATA3 X

SATA4 ESATA

SATA5 Multi Bay

(HM55 don't support)

(HM55 don't support)

HEX

A0

D2

1DG sensor 0 0 0 1 1 1 0 1

HEX

ADDRESS

1 0 1 0 0 0 0 0

1 0 1 0 0 1 0 0A4

1 1 0 1 0 0 1 0

ADDRESS

ZZZ

ZZZ

ZZZ

DAZ0BI00100

DAZ0BI00100

PA@

PA@

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAIN S CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTR ONICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

2007/08/28 2006/03/10

2007/08/28 2006/03/10

2007/08/28 2006/03/10

ZZZ

DAZ0BI00400

DAZ0BI00400

OPP@

OPP@

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

PCB: DA60000F400
PA@: DAZ0BI00600 (w/o SIM daoughter/B)
OPP@: DAZ0BI00400

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

Notes List

Notes List

Notes List

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

Calpella_UMA_LA4106P

3 45Thursday, November 12, 2009

3 45Thursday, November 12, 2009

3 45Thursday, November 12, 2009

1.0

1.0

1.0
