1. SAFETY MEASURES
NOTE: The manufacturer will not be held responsible for any damages resulting from
improper use of the equipment, or for not following the safety measures as outlined
below.
Safety measures incorporated into our grinders:
• Special screw to maintain the hopper xed in place.
• Access restrictor in the grind group.
Owners: Please pay careful attention with the following instructions:
• The grinder should be used exclusively for the function for which it was
designed: grinding whole bean coffee.
• Do not use this grinder to grind other types of food products such as dry fruit,
sugar or spices.
• Children should be supervised to ensure that they do not play with the
appliance.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Any other use of the machine will be considered improper and dangerous.
• Do not put liquids in contact with internal or external parts of this grinder while
ON or OFF, with the exception of parts expressly outlined in the “CLEANING”
section of this manual. If liquids do come in contact with the grinder,
immediately disconnect electrical connection and carefully clean the affected
areas. If it is necessary to access the interior parts of the grinder, contact your
local service professional.
• In case of any damage to parts or components, we recommend contacting your
local service professional to help with repair or replacement of such parts,
thereby guaranteeing the maintenance of the security standards of the grinder.
• If the supply cord is damaged, it must be repalced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
• Only an authorized distributor should replace the main power cable of the
grinder.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
1
SOUND DECIBEL LEVEL
The level of sound emitted in different models is:
Sound decibel level With coffee
K3 TOUCH
74,8 dBK3 PUSH
K3 TOUCH ADVANCED
2. DESCRIPTION
Your new grinder has been designed using the most sophisticated technologies in
existence. The result is a product of high quality that offers the assurance of the best
results possible. Our products are manufactured by hand, one by one, following
the strictest quality requirements. In the manufacturing process, we use only the
highest quality materials (aluminum, stainless steel, etc.) especially designated for
being in contact with food stuff.
For the optimum functionality of the grinder models described in this user manual,
the maximum work cycles are as follows:
Model
K3 TOUCH
K3 PUSH
K3 TOUCH ADVANCED
2
Working cycle
Function Stop
2 min. 10 min.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
3. INSTRUCTIONS
3.1. This manual is designed to provide the necessary information to correctly
install, use and maintain the grinder, as well as to highlight precautions for users to
keep in mind. To ensure the best operation of the coffee grinder, please follow the
instructions as outlined in this manual. This manual should be saved for the life of the
grinder, and should always be at the disposal of the operator.
3.2. This manual contains special terminology such as:
• Words in BOLD indicate important points or terminology.
• Numbers in parenthese after a word, indicate the location of this item in a parts
diagram.
Example: ( ) - Hopper lid
• Icons:
Information Atention
4. IDENTIFICATION
In the grinder information plaque is the following manufacturing/product information.
NOTE: The manufacturer reserves the right to change components/congurations of
any model, according to the different geographic market demands.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
3
5. TECHNICAL CHARACTERISTICS
5.1. Usage
The coffee grinders are intended for use on commercial premises and facilities where
ground coffee is required, or in small stores that sell coffee. The grinder must only be
used to grind coffee beans. Any use other than this will be considered improper and
dangerous.
NOTE: The manufacturer will not be held responsible for any damages resulting from
improper use of the equipment, or for not following the safety measures as outlined
below.
5.2. Technical data
Model
K3 TOUCH,
K3 PUSH,
K3 TOUCH
ADVANCED
100 V
50 Hz
Electrical
power
Spin speed 1,320 1,620 1,650 1,640 1,340 1,345 rpm
100 V
60 Hz
200 200 230 210 210 225 (W)
110 V
60 Hz
220 V
60 Hz
230 V
50 Hz
240 V
50 Hz
4
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
Model
K3 TOUCH
K3 PUSH
K3 TOUCH ADVANCED
Ø Burrs
Production 50Hz*
Production 60Hz*
Dose time 50Hz
(7 gr)*
Dose time 60Hz
(7 gr)*
Hopper capacity
Hopper capacity
with mini hopper
Net weight
2.3
58
8.16
3,71
9.54
4,33
6.79 Seconds
5.81 Seconds
1.76
800
0.6
275
13.7
6,1
in
mm
lb/h
Kg/h
lb/h
Kg/h
lb
gr
lb
gr
lb
Kg
Height x Width x Depth
Height x Width x Depth
(mini hopper)
* Production is based on a medium-roasted coffee and an Espresso grind.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
19.5 x 6.7 x 14.37
495 x 170 x 365
16.5 x 6.7 x 14.37
420 x 170 x 365
in
mm
in
mm
5
6. EXTERNAL COMPONENTS
6
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
7. INSTALLATION
7.1. General Warnings
The person installing the grinder should carefully read this instruction manual
before installation. The installation of this machine should be completed by
qualied and authorized personnel, and all norms of safety and sanitation should be
followed.
7.2. Important Warnings
The operator of the grinder should be a responsible adult, and a never a minor
or person incapable of safely using such equipment. When using the grinder,
the following precautions should be followed:
• No bare feet.
• No wet hands or feet.
• Do not submerge in water.
• Do not expose the grinder to sun or other atmospheric conditions.
• Do not place any type of object in the coffee entrance or exit while the grinder
is running. (It should be kept in mind that the cutting burrs continue turning for
a couple revolutions after the grinder is powered off).
• To disconnect the grinder, use the main power switch and never the power
cable, to avoid a possible short circuit.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
7
7.3. Where to Use
The grinder should be installed on a at, stable surface. The minimum
dimensions of the work space should be as follows:
Model
K3 TOUCH, K3 PUSH,
K3 TOUCH ADVANCED
(MINI HOPPER)
17.31
440
7.28
185
15.5
385
in
mm
in
mm
in
mm
Height
Width
Depth
K3 TOUCH, K3 PUSH,
K3 TOUCH ADVANCED
20.27
515
7.28
185
15.15
385
7.4. Grinder Installation
Before grinder installation, the following should be considered:
• The grinder information plaque data coincides with the electrical system on
site.
• The electrical outlet coincides with the grinder plug.
• The electric power at the location of installation should meet the minimum
required to properly run the grinder.
• The installation site should have the proper electrical overload protections.
• The grinder should be properly grounded as specied by local code.
NOTE: The grinder should be used in environments with mínimum temperature
of 77-86F and should not be installed in places (such as industrial kitchens) where
cleaning is done with direct water spray cleaning.
8
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
8. REGULATION
8.1. Grinder set up
Place the hopper ( ) on the grind regulator ( ) and make sure the bean trap ( )
is in the closed position. Lock the hopper ( ) in place using a at head screw driver
to gently tighten the hopper security screw making it match to the hole at the bean
hopper collar ( ) (Fig. 1).
Remove the hopper lid ( ), ll the Hopper with coffee ( ), and replace the lid on the
hopper ( ) (Fig. 2).
Plug in the grinder, and place the main power switch ( or ) to position I and open
the bean trap ( ) to allow coffee to pass into the grind chamber. In the TOUCH
ADVANCED model, place the main power switch ( ) ON-OFF in position ON and
place the mode switch ( ) on mode MANUAL (M).
In the PUSH / TOUCH models, the power switch I-0-II is situated on the right side
and on the TOUCH ADVANCED the main power switch is situated on the right side
while the MODE switch is on the left hand side
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
9
8.2. Grind adjustment system
8.2.1. Micrometrical system
Rotate the grind regulator ( ) until reaching the grind level desired.
Rotating the grind regulator clockwise will result in a courser grind; turning the
regulator counter clockwise will result in a ner grinder* (Fig. 3).
* It is recommended that the motor be running when adjusting to ner grind setting.
This helps to avoid jamming the burrs, which can occur when coffee beans are in the
grind chamber, and the grind regulator is adjusted towards ne.
8.2.2. Stepped Grind adjustment (optional)
In the stepped adjustment versions, the positions on the grind regulator are limited
by “steps” that are dened by the hole and pin points (Fig. 4).
The instructions detailed in section 8.2.1. on adjusting the regulator should be
followed, while at the same time, pulling the brake post ( ) (Fig. 4) up to release the
locking action of the post.
NOTE: If the output is very slow, it could mean that the coffee is being ground too
ne. If the output is very fast, it could mean that the coffee is being ground too
coarse. A perfect espresso grind is found when the grind point gives an infusion of
25 ml of coffee in 25 seconds using 7 grams of ground coffee.
10
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
8.3. Adjusting the dose of K3 TOUCH / K3 TOUCH ADVANCED
On the K3 TOUCH / K3 TOUCH ADVANCED models, the grind time is pre-set at the
factory to grind 7 grams of coffee in 6-7 seconds.
To adjust the grind time, simply turn the timer knob ( ) found on the front of the
grinder (Fig. 5 and 6). Turning clockwise will increase the grind time, and turning the
knob counter-clockwise decrease the grind time. The numbers on the dial correspond
with motor run time in seconds.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
11
8.4. Adjusting the portalter holder clip
It is possible to lower or raise the portalter holder clip ( ) using the Allen Key 2,
which will accommodate the vast majority of portalters found on the market (Fig. 7).
9. OPERATION

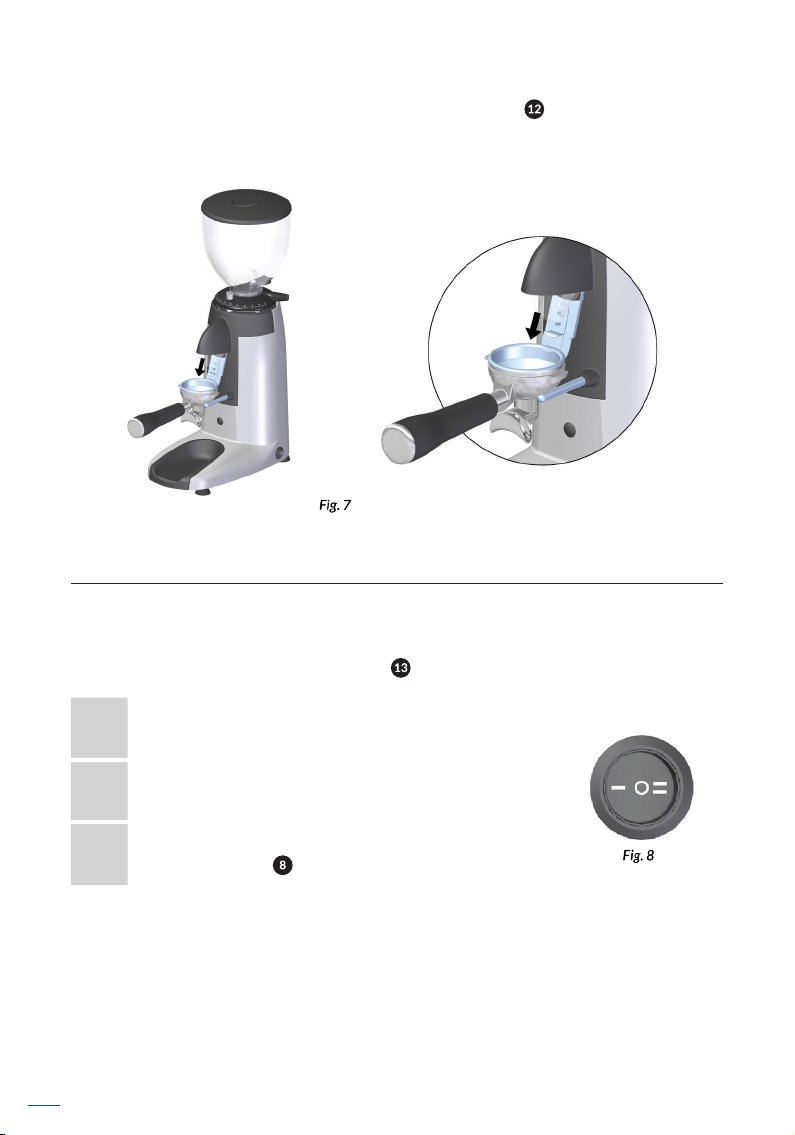

9.1. Using the K3 PUSH
The main power switch on the K3 PUSH ( ) has 3 positions, I - 0 - II (Fig. 8).
I
Continuous grind.
0 Off.
Push Mode which will grind while the front
II
activation panel ( ) is pushed in with the portalter.
12
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
9.2. Using the K3 TOUCH
The main power switch on the K3 TOUCH ( ) has 3 positions, I - 0 - II (Fig. 8).
I
Continuous grind.
0 Off.
Time grind.
II
Giving one gentle tap to the front activation panel ( ) will deliver one freshly ground
timed dose of coffee ( ). A double tap will deliver a freshly ground dose that is double
the pre-set grind time (Fig. 11). Using the portalter support ( ), it is possible to run
the timed grind cycle hands free.
9.3. Using the K3 TOUCH ADVANCED
The main power switch on the K3 TOUCH ADVANCED ( ) has 2 positions, ON - OFF
(Fig. 9).
ON
OFF
And a 2 position power button ( ) (Fig. 10):
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
13
Switch on MANUAL-PUSH:
The machine will grind while the front activation panel ( ) is pushed in.
Switch on AUTOMATIC-TOUCH:
Timed grind using the timer on the front of the grinder (see section 8.3.).
Giving one gentle tap to the front activation panel ( ) will deliver one freshly ground
timed dose of coffee ( ). A double tap will deliver a freshly ground dose that is double
the pre-set grind time (Fig. 11). Using the portalter support ( ), it is possible to run
the timed grind cycle hands free.
1 tap: 1 dose
2 taps: 2 doses
14
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
10. CLEANING
10.1. General cleaning
To ensure that the grinder functions properly, and produces the highest quality grind
possible, the parts that come into contact with coffee should cleaned periodically.
General cleaning guidelines as follows:
• Always turn the main power switch to the off position ( , and ).
• Unplug the machine from the power source.
• Do not submerge the grinder in water or use power washing devises.
• The appliance is not to be cleaned with a water jet.
10.2. Bean hopper cleaning
In order to properly clean the bean hopper ( ), rst empty out all remaining beans
and fragments.
To remove the hopper, rst close the bean trap ( ), and then loosen the hopper lock
screw ( ) and lift the hopper straight up.
Clean the hopper ( ) with a moist soft cloth or with a small amount of water and
soap to eliminate any oily residue from the beans.
Replace the bean hopper ( ) following the same steps as the removal process, but
in reverse.
10.3. Cleaning the grind chamber
It is recommended that the grind chamber be cleaned monthly with a cleaner as
recommended by Compak. This process will eliminate smelly residues from the
coffee remains, which can negatively affect the quality of the brewed coffee.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
15
The steps to follow are:
In order to properly clean the bean hopper ( ), rst empty out all remaining beans
and fragments.
• Close the bean trap on the hopper ( ) and grind out the remaining coffee in the
grind chamber.
• Remove any remaining coffee beans from the bean hopper ( ).
• Pour the recommended grinder cleaning product into the bean hopper ( ) and
open the bean trap ( ), allowing the cleaning product to pass into the grind
chamber.
• Grind the cleaning product at a medium course grind setting until the recommended
amount is passed through the system and nothing remains in the grind chamber.
• Clean the hopper ( ) and rell with coffee beans.
• Discard the rst 2-3 doses of coffee to assure that the residual cleaning product
is removed from the grind chamber and set the grind regulator to the desired
setting ( ).
Following these steps will ensure that the grinder is clean and ready for use.
We do not recommend the taking apart of the grind assembly unless changing burrs,
or removing a blockage/obstruction in the grind chamber. Removal of the grind
assembly should be performed by a qualied service technician.
10.4. Cleaning the outside of the grinder
To clean the exterior of the grinder, rst wipe with a dry soft cloth, and then gently
wipe with a damp soapy cloth.
16
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
11. MAINTENANCE
11.1. General warning
Before performing any type of maintenance you should:
• Always turn OFF the main power switch to the off position ( , and ).
• If the grinder is jammed, unplug it from the power source and contact an
authorized service technician.
Not following these warnings can compromise the safety of the grinder as well as
the user.
11.2. General maintenance of the grind chamber
To guarantee the efciency and correct operation of the grinder, it is essential to
follow manufacturer instructions and ensure that all maintenance work is carried
out by qualied staff.
Dull burrs will result in; a lower quality grind, greater heat generation in the coffee
and grinder, increased electrical consumption, and nally it puts additional stress on
the grinder motor.
NOTE: Based on extensive experience and a medium-hard coffee blend, we
recommend replacing the burrs after grinding 350 Kg/770 lb of coffee.
Burr change
K3 TOUCH, K3 PUSH, K3 TOUCH ADVANCED 350 Kg
11.3. Grinding group maintenance
Not following the recommended burr life guidelines can compromise the safety of
the grinder.
These operations should be done by a qualied service tecnician.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
17
To perform grind chamber maintenance please observe the following steps:
Turn off the grinder by making sure the main power switch ( , and ) is on
the OFF position. Disconnect the plug from the power source. Loosen the hopper
security screw ( ) using a flat head screw driver as seen in Fig.1 and remove the
hopper ( ) from the grind regulator ( ).
Loosen the screws on the grind regulator ( ) using an Allen key A3 series
following Fig.12.
Rotate the grind regulator clockwise until it is completely unscrewed. Clean the
grind chamber and threads of the housing using a soft cloth and vacuum cleaner until
all of the oils and residue has been removed.
Make sure to put new food grade lubricant on the clean threading of the housing and
upper assembly. Insert the upper burr assembly into the grind chamber, and turn
counter clockwise.
18
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 |v. 09/06/2016 | K01070
Position the regulator collar ( ) leaving about 45º between the grind point lock
screw ( ) and regulator limit stop (Fig. 14). In that position, tighten the regulator
( ) on the upper burr carrier and with an Allen key A3 series.
This process should be performed with extreme caution, making sure that there
are no coffee particles or debris in the housing threading. Also the placement of the
upper burr assembly should be done with caution, making sure it is perfectly level
and screwed in patiently. Failure to clean, lubricate or properly place the upper burr
assembly prior to screwing in, can result in blockage or locking of grind adjustment
system.
K01070 | v. 09/06/2016 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
19
13. EC CONFORMITY
In accordance with European commu-nity directives, quality certicates have been
applied. All materials have been adapted and technical reports are available at our
ofces.
04/108/EC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
06/42/EC amending Directive 89/392/EC on the approximation of the laws of the
Member States relating to machinery
REG. 1935/2004 amending Directive 89/109/CE on the approximation of the laws
of the Member States relating to material and objects destinated to make contact
with nutritional products.
03/108/EC amending Directive 2002/96/EC on waste electrical and electronic
equipment (WEEE).
06/95/EC of 12/12/2006 on the harmonization of the laws of Member States
relating to electrical equipment designed for use within certain voltage limits.
02/96/EC of 27/01/2003 on the approximation of the laws of the Member States on
waste electrical and electronic equipment (WEEE).
11/65/EU related to the restriction on the usage of certain dangerous
substances with electrical equipment and electronics.
Environment
Do not throw the applianceaway with the normal household waste; hand it in at
an ofcial recycling collection point. By doing this, you will help to preserve the
environment.
The Legal Representative
Jesús Ascaso
Compak Coffee Grinders, s.a.
20
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain
Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es
Loading...
