P110 Color Monitor (shown), all Compaq monitors
10. 9.1-GB Wide Ultra2 SCSI 10,000 rpm,
AT A G
LANCE
• Minitower form factor; rack-
mountable
• Supports up to two Intel
Pentium
III 550 or 500-MHz or
two Intel Pentium II 400- or 450MHz processors (100-MHz Front
Side Bus)
• Intel 440BX Chipset
• 512-KB writeback Level 2 cache
integrated on processor
• 64, 128 or 256 MB of Registered
ECC SDRAM, expandable to 1
GB
• High-performance 9.1-GB Wide
Ultra2 SCSI 10,000 rpm, 9.1-GB
Wide-Ultra SCSI 10,000 rpm, 4.3GB Wide-Ultra SCSI 10,000 rpm,
4.3-GB Wide-Ultra SCSI 7,200
rpm, 10-GB Ultra ATA 7200 rpm
or 6.4-GB Ultra ATA 5400 rpm
SMART hard drives
• Up to 90 GB of high-performance
internal storage (5 x 18.2 GB)
• Choice of Matrox Millennium II
(PCI), Matrox Millennium G200
(AGP), ELSA GLoria Synergy+
(AGP) or Compaq PowerStorm
300 (AGP) Graphics Controllers
• Compaq NC3161 Fast Ethernet
NIC Embedded 10/100 WOL
capable of operating in either
10Base-T or 100Base-TX
environments
• 32-bit, PCI-based system
• Six total slots (three PCI, one
shared PCI/ISA, one ISA, one
AGP)
• Seven bays (four user-accessible,
three internal)
• Internal 32X Max
(IDE) and PremierSound™ Audio
• Multiple display support
• Windows NT Workstation 4.0 and
Compaq support software preinstalled
• Protected by Compaq Services,
including a three-year limited
warranty
2
1
CD-ROM Drive
QUICKSPECS
Overview
1.
optional
2. Compaq 3-button Mouse
3. Compaq Keyboard
4. Cooling Fan with Plenum
5. Slot Guide
6. Accelerated Graphics Port (AGP) Graphics
Controller (pre-installed on selected models)
7. Expansion Slots (three PCI, one shared PCI/ISA,
one ISA)
8. 325-Watt Power Supply with Power Factor
Correction (PFC)
9. Slide-Out System Board
Compaq Professional
Workstation AP500
9.1-GB Wide-Ultra SCSI 10,000 rpm,
4.3-GB Wide-Ultra SCSI 10,000 rpm,
4.3-GB Wide-Ultra SCSI 7,200 rpm,
10-GB Ultra ATA 7,200 rpm, or
6.4-GB Ultra ATA 5,400 rpm
11. Drive Cage
12. Internal 32X Max1 CD-ROM Drive (IDE)
13. 5.25-in Drive Bay (available)
14. 5.25-in Drive Bay (available)
15. 1.44-MB Diskette Drive
16. Speaker with PremierSound and fixed
equalization
1 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
M
ODELS
550-MHz Models
Compaq Professional
Workstation AP500
AP5 550S1/128/9S/2
126967-xx1
AP5 550S1/128/9S/2+
126967-xx2
AP5 550S1/256/9L/3M
126967-xx3
500-MHz Models
Compaq Professional
Workstation AP500
AP5 500S1/64/10A/2
388018-xx1
AP5 500S1/128/4S/2+
388018-xx2
AP5 500S1/128/4S/2
388018-xx3
AP5 500S1/256/9L/3M
388018-xx4
AP5 500S1/128/9S/2+
388018-xx5
450-MHz Models
Compaq Professional
Workstation AP500
AP5 450S1/128/4S/2+
338500-xx2 NA/LA
338505-xx2 ROW
AP5 450S1/128/4S/3M
338500-xx3 NA/LA
338505-xx3 ROW
AP5 450S1/128/4S/2
(Millennium II)
338500-xx4 NA/LA
338505-xx4 ROW
AP5 450S1/128/4S/2 (G200)
338500-xx5 NA/LA
338505-xx5 ROW
QUICKSPECS
Standard Features
Processor
Intel Pentium III 550 MHz
AP5 550S1/128/9S/2
AP5 550S1/128/9S/2+
AP5 550S1/256/9L/3M
Intel Pentium III 500 MHz
AP5 500S1/64/10A/2
AP5 500S1/128/4S/2+
AP5 500S1/128/4S/2
AP5 500S1/128/9S/2+
AP5 500S1/256/9L/3M
Intel Pentium II 450 MHz
AP5 450S1/128/4S/2
AP5 450S1/128/4S/2
AP5 450S1/128/4S/3M
AP5 450S1/128/4S/2+
Intel Pentium II 400 MHz
AP5 400S1/64/6A/2+
Cache Memory
512-KB Level 2 cache per processor standard
Upgradeability
Upgradeable to dual processing
Memory
Standard 256 MB of 100-MHz Registered ECC SDRAM memory
Maximum 1 GB
AP5 550S1/256/9L/3M
AP5 500S1/256/9L/3M
Standard 128 MB of 100-MHz Registered ECC SDRAM memory
Maximum 1 GB
AP5 550S1/128/9S/2
AP5 550S1/128/9S/2+
AP5 500S1/128/4S/2+
AP5 500S1/128/4S/2
AP5 500S1/128/9S/2+
AP5 450S1/128/4S/2
AP5 450S1/128/4S/2
AP5 450S1/128/4S/3M
AP5 450S1/128/4S/2+
Standard 64 MB of 100-MHz Registered ECC SDRAM memory
Maximum 1 GB
AP5 500S1/64/10A/2
AP5 400S1/64/6A/2+
Network Controller
Compaq NC3161 Fast Ethernet NIC Embedded 10/100 WOL
Expansion Slots
I/O (Total/Available) 6, 4 (depending on model)
Shared PCI/ISA 1, 1
PCI 3, 3 or 2 (depending on model)
ISA 1, 1
AGP 1, 1 or 0 (depending on model)
Compaq Professional
Workstation AP500
2 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Pointing Device (PS/2 mouse)
M
ODELS
Standard Features
Compaq Professional
Workstation AP500
(continued)
400-MHz Models
Compaq Professional
Workstation AP500
AP5 400S1/64/6A/2+
338500-xx1 NA/LA
338505-xx1 ROW
Country Code Key:
xx=00 US English
xx=A2 Europe: English, French,
Italian, German
xx=A4 Europe: English, French,
Dutch, Spanish
xx=29 Japan
xx=39 Japan English
xx=37 APD English
NA/LA = North America & Latin
America
ROW = Rest of World
Storage Controller
Integrated Wide-Ultra SCSI and integrated EIDE on all models
Symbios Wide Ultra2 SCSI PCI
AP5 550S1/256/9L/3M
AP5 500S1/256/9L/3M
Storage
Diskette Drives 1.44 MB
CD-ROM 32X Max1 CD-ROM Drive IDE
Hard Drives
9.1-GB Wide Ultra2 SCSI (10,000 rpm)
AP5 550S1/256/9L/3M
AP5 500S1/256/9L/3M
9.1-GB Wide-Ultra SCSI (10,000 rpm)
AP5 550S1/128/9S/2+
AP5 550S1/128/9S/2
9.1-GB Wide-Ultra SCSI (7,200 rpm)
AP5 500S1/128/9S/2+
4.3-GB Wide-Ultra SCSI (10,000 rpm)
AP5 500S1/128/4S/2+
AP5 450S1/128/4S/3M
4.3-GB Wide-Ultra SCSI (7,200 rpm)
AP5 500S1/128/4S/2
AP5 450S1/128/4S/2+
AP5 450S1/128/4S/2
AP5 450S1/128/4S/2
10-GB Ultra ATA (7,200 rpm)
AP5 500S1/64/10A/2
6.4-GB Ultra ATA (5,400 rpm)
AP5 400S1/64/6A/2+
Interfaces
Parallel 1
USB 2
Serial 2
Wide-Ultra SCSI (68 pin)
Wide Ultra2 SCSI (68 pin)
Keyboard (PS/2)
Video
Microphone Jack
Headphone Jack
Line-In
Line-Out
RJ-45 1
1
1 (select models)
1
1
1
1
1
1
1
3 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Standard Features
Graphics
Compaq PowerStorm 300 (AGP) Graphics Controller
AP5 550S1/256/9L/3M
AP5 500S1/256/9L/3M
AP5 450S1/128/4S/3M
ELSA GLoria Synergy+ (AGP) Graphics Controller
AP5 550S1/128/9S/2+ (8-MB graphics controller)
AP5 500S1/128/4S/2+ (8-MB graphics controller)
AP5 500S1/128/9S/2+ (8-MB graphics controller)
AP5 450S1/128/4S/2+ (4-MB graphics controller)
AP5 400S1/64/6A/2+ (4-MB graphics controller)
Matrox Millennium G200 (AGP)Graphics Controller
AP5 500S1/128/9S/2
AP5 500S1/64/10A/2
AP5 500S1/128/4S/2
AP5 450S1/128/4S/2
Matrox Millennium II (PCI) Graphics Controller
AP5 450S1/128/4S/2
Compaq Professional
Workstation AP500
Audio
Integrated 16-bit PremierSound™ Audio
Integrated speaker
Integrated five stage equalizer
Software
Compaq Insight Manager
Compaq SmartStart
Compaq Management Agents for Workstations
Compaq PC Diagnostics and Setup for Workstations
Compaq support software
Microsoft Windows NT Workstation 4.0
Diagnostics for Windows NT
Microsoft Internet Explorer 4.01
Microsoft Service Pack 4A
Intelligent Manageability
AssetControl
Fault Management
Security Management
Remote Management
Remote Wakeup via Magic Packet Support
Remote ROM Flash
Remote Security
Remote Shut Down
Pre-Failure Warranty2 (processors, hard drives and memory)
Security
Diskette write and boot control
Flash ROM lock
Keyboard password
Keyboard QuickLock /QuickBlank
Network server mode
Parallel interface control
Power-on password
Serial interface control
Set-up password
Cable lock provision
4 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
Compaq Professional
Protected by Compaq Services including a three-year limited warranty
with three year parts coverage, one year
QUICKSPECS
Workstation AP500
Standard Features
Power Supply
325 Watt Power Supply
Service and Support
2
on-site service, and one year labor; 7 x 24 hardware technical phone support and on-line support through the
Internet; Pre-Failure Warranty2 coverage of hard drives, memory, and processors.
5 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
ELSA GLoria Synergy+ (AGP) (4 MB)
9.1-GB Wide-Ultra SCSI Hard Drive
Mylex AccelRAID 150 Array Controller
Options
Compaq Professional
Workstation AP500
Processor
Pentium III 550/512K processor
upgrade
Pentium III 500/512K processor
upgrade
Pentium II 450/512K processor
upgrade
Pentium II 400/512K processor
upgrade

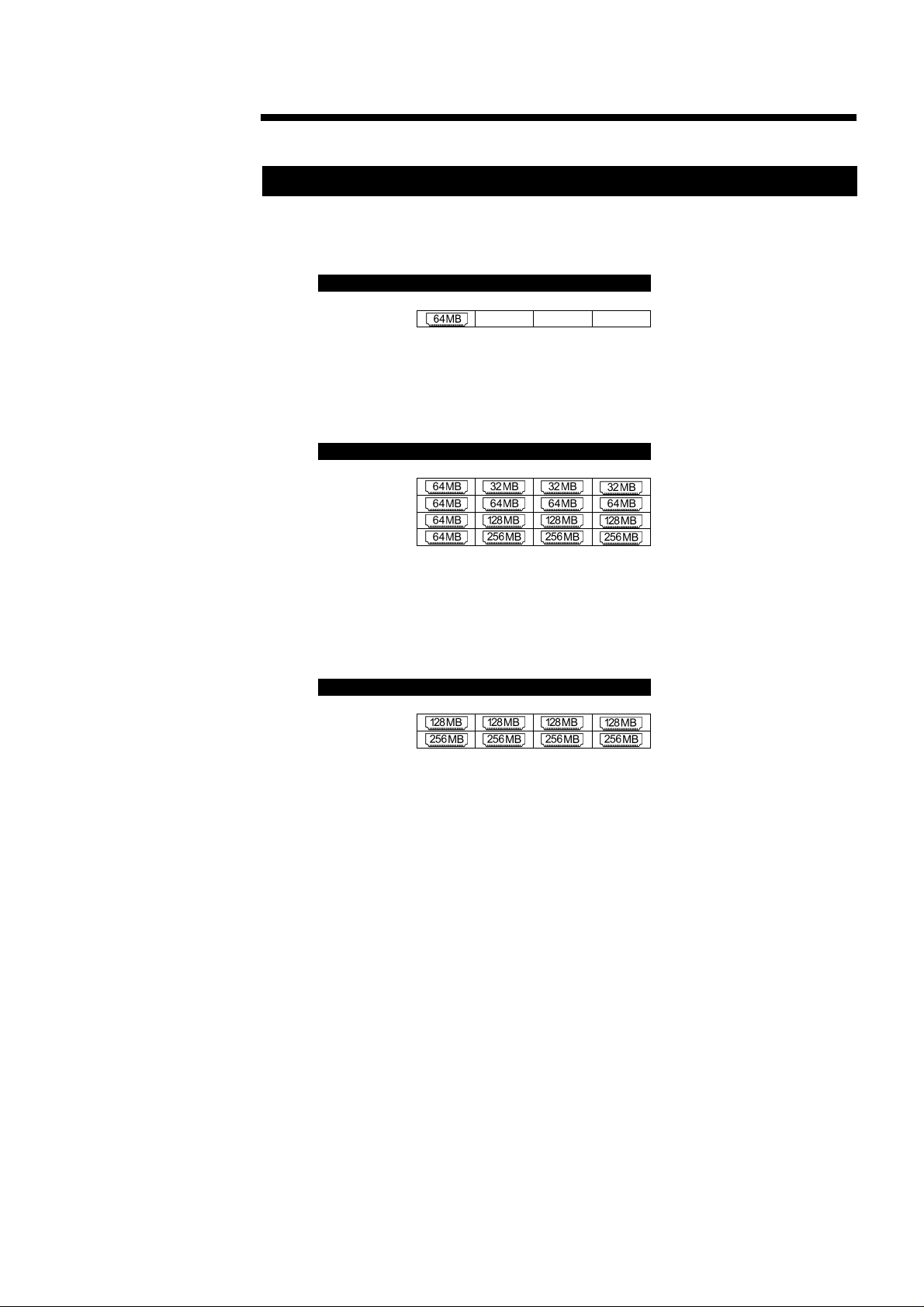

Memory (DIMMs)
256-MB Memory Module
(100-MHz Registered SDRAM)
128-MB Memory Module
(100-MHz Registered SDRAM)
64-MB Memory Module
(100-MHz Registered SDRAM)
32-MB Memory Module
(100-MHz Registered SDRAM)
Monitors
Graphics
3
TFT8000 Flat Panel Color
(opal, no protective cover)
TFT8000 Flat Panel Color
(carbon, no protective cover)
TFT8000 Flat Panel Color
(opal, with protective cover)
TFT8000 Flat Panel Color
(carbon, with protective cover)
TFT5000 Flat Panel Color
P1610 Color
P110 Color
P75 Color
V1000 Color
V900 Color
S900 Color
S700 Color
Matrox Productiva G100 Quad
Multi-Monitor Series (PCI)
Matrox Millennium II (PCI)
4-MB Memory Upgrade
(Matrox Millennium II)
12-MB Memory Upgrade
(Matrox Millennium II)
Matrox Millennium G200 (AGP)
8-MB Memory Upgrade
(Matrox Millennium G200 AGP)
Matrox Millennium G200 (PCI)
8-MB Memory Upgrade
(Matrox Millennium G200 PCI)
4-MB Memory upgrade
(ELSA GLoria Synergy+)
ELSA GLoria Synergy 8-MB (PCI)
Compaq PowerStorm 300 (AGP)
Compaq PowerStorm 300 (PCI)
3Dlabs Oxygen GMX (AGP)
136266-B21
101910-B21
354479-B21
317742-B21
317739-B21
317738-B21
317737-B21
317736-B21
307906-xxx
307932-xxx
307931-xxx
307935-xxx
325700-xxx
305708-xxx
352600-xxx
307806-xxx
351757-xxx
303500-xxx
360652-xxx
360512-xxx
101479-B21
270246-B21
270831-B21
270833-B21
294308-B21
294417-B21
402544-B21
294418-B21
327533-B21
352436-B21
269629-B21
328778-B21
317733-B21
123882-B21
Diskette Drives
100-MB ATAPI ZIP Drive
Hard Drives
Wide Ultra2 SCSI Drives
18.2-GB Wide Ultra2 SCSI 10,000
rpm5 Drive (1.6″)
18.2-GB Wide Ultra2 SCSI Drive
7,200 rpm(1″)
9.1-GB Wide Ultra2 SCSI 10,000
rpm5 (1”)
9.1-GB Wide Ultra2 SCSI Drive
7,200 rpm (1″)
Wide-Ultra SCSI Drives
18.2-GB Wide-Ultra SCSI 10,000
rpm5 (1.6”)
9.1-GB Wide-Ultra SCSI 10,000 rpm
(1”)
7,200 rpm (1”)
10K Drive Cooling Kit
Ultra ATA Drives
6.4-GB Ultra ATA Hard Drive 5,400
rpm
Storage Controllers
Symbios Wide Ultra2 SCSI PCI
Controller
5-device Wide Ultra2 SCSI Cable Kit
SMART-2SL Array Controller
External Storage
SCSI Storage Expander
Tape Drives
Travan-5 10/20-GB IDE Tape Drive
12/24-GB DDS-3 DAT Drive
4/8-GB SLR Drive
Biometrics
Compaq Fingerprint Identification
Technology
Multimedia
PremierSound PS110 Speaker
Osprey 100 Video Capture PCI Card
DVD-ROM
4
5
401475-B21
328943-B21
388143-B21
328942-B21
349526-B21
336370-B21
336369-B21
339509-B21
329294-B21
352435-B21
102196-B21
401707-B21
402381-B21
242776-B21
142185-001
294243-B21
295513-B21
295480-B21
294307-001
294372-001
388278-B21
402555-B21
6 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Compaq NC6132: 1000SX (1-Gb NIC)
Compaq Tower UPS Model T1500h
Compaq Tower UPS Model T1000h
Options
Communications
Compaq NC3120 Fast Ethernet NIC
PCI 10/100
Compaq NC3121 Fast Ethernet NIC
PCI 10/100 WOL
Compaq NC3131: 64 PCI, Dual Base
10/100
Upgrade Module for NC3131
Compaq NC1120 Ethernet NIC PCI
10Base-T
Compaq 4/16 TR PCI IBM UTP/STP
Compaq 4/16 TR PCI UTP/STP
Compaq NC4621 TR PCI 4/16 WOL
Compaq 100 FDDI PCI SAS
Fiber-SC
Compaq 100 FDDI PCI DAS
Fiber-UTP
Compaq 100 FDDI PCI SAS
Fiber-UTP
Compaq 100 FDDI PCI SAS
Fiber-MIC
Compaq 56K PCI Modem
Compaq 610 ISDN ISA Controller
Compaq Microcom 705 Corporate
Communicator
7
6
Compaq Professional
Workstation AP500
317600-B21
323551-B21
338456-B21
338456-B23
317356-B21
301206-B21
268009-001
379956-B21
242505-001
242511-001
242507-001
287728-001
321500-xx1
333056-B31
294700-001
Uninterruptible Power Systems
(high voltage)
Compaq Tower UPS Model T1500
(low voltage)
(high voltage)
Compaq Tower UPS Model T1000
(low voltage)
Compaq Tower UPS Model T700h
(high voltage)
Compaq Tower UPS Model T700
(low voltage)
Other
Rack Mount Conversion Kit
Compaq Spaceball 4000 3D Motion
Control Input Device
Compaq Spaceball 3003 3D Input
Device
Magellan/Space Mouse 3D Input
3 Button Mouse
External SCSI Adapter 68/50 pin
12/24-GB DAT Cartridge (10 pack)
DAT 4mm Cleaning Kit
4/8-GB SLR Cartridge (5 pack)
SLR Cleaning Cartridge
Warranty Extension ServicePAQ
Device
6
6
8
6
6
242688-004
242688-003
242688-002
242688-001
295372-B22
295372-B21
338544-B21
112138-B21
299391-B22
299390-B21
269192-B22
270187-B21
295515-B21
242781-001
295482-B21
295483-B21
269423-001
7 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Memory
Compaq Professional Workstation AP500 (64 MB)
STANDARD MEMORY
64-MB 100-MHz Registered ECC SCRAM Standard (Like pairs are not required.)
Standard Slot
1 2 3 4
64 MB
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 832 MB of 100-MHz Registered ECC SDRAM memory is available with the
installation of optional Memory Kits. (Example Configuration)
Up To Slot
1 2 3 4
160 MB
256 MB
448 MB
832 MB
Compaq Professional
Workstation AP500
Empty Empty Empty
STANDARD MEMORY REPLACED
WITH OPTIONAL MEMORY
Support for up to 1 GB of 100-MHz Registered ECC SDRAM memory is available with the
removal of the standard 64-MB SDRAM module and the installation of optional 100-MHz
Registered ECC SDRAM Memory Kits.
Up To Slot
512 MB
1024 MB
Note: This chart does not represent all possible memory configurations. The Compaq AP500
will support 1 GB of memory. If memory exceeds 1 GB, the unit will not boot.
• 256-MB 100-MHz Registered ECC SDRAM Memory Kit 317739-B21
• 128-MB 100-MHz Registered ECC SDRAM Memory Kit 317738-B21
• 64-MB 100-MHz Registered ECC SDRAM Memory Kit 317737-B21
• 32-MB 100-MHz Registered ECC SDRAM Memory Kit 317736-B21
1 2 3 4
8 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Memory
Compaq Professional Workstation AP500 (128 MB)
STANDARD MEMORY
128-MB 100-MHz Registered ECC SCRAM Standard (Like pairs are not required.)
Standard Slot
1 2 3 4
128 MB
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 896 MB of 100-MHz Registered ECC SDRAM memory is available with the
installation of optional Memory Kits. (Example Configuration)
Up To Slot
1 2 3 4
224 MB
320 MB
512 MB
896 MB
Compaq Professional
Workstation AP500
Empty Empty Empty
STANDARD MEMORY REPLACED
WITH OPTIONAL MEMORY
Support for up to 1 GB of 100-MHz Registered ECC SDRAM memory is available with the
removal of the standard 128-MB SDRAM module and the installation of optional 100-MHz
Registered ECC SDRAM Memory Kits.
Up To Slot
1024 MB
Note: This chart does not represent all possible memory configurations. The Compaq AP500
will support 1 GB of memory. If memory exceeds 1 GB, the unit will not boot.
• 256-MB 100-MHz Registered ECC SDRAM Memory Kit 317739-B21
• 128-MB 100-MHz Registered ECC SDRAM Memory Kit 317738-B21
• 64-MB 100-MHz Registered ECC SDRAM Memory Kit 317737-B21
• 32-MB 100-MHz Registered ECC SDRAM Memory Kit 317736-B21
1 2 3 4
9 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Memory
Compaq Professional Workstation AP500 (256 MB)
STANDARD MEMORY
256-MB 100-MHz Registered ECC SCRAM Standard (Like pairs are not required.)
Standard Slot
1 2 3 4
256 MB
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 1 GB of 100-MHz Registered ECC SDRAM memory is available with the
installation of optional Memory Kits. (Example Configuration)
Up To Slot
1 2 3 4
352 MB
448 MB
640 MB
1024 MB
Compaq Professional
Workstation AP500
Empty Empty Empty
Note: This chart does not represent all possible memory configurations. The Compaq AP500
will support 1 GB of memory. If memory exceeds 1 GB, the unit will not boot.
• 256-MB 100-MHz Registered ECC SDRAM Memory Kit 317739-B21
• 128-MB 100-MHz Registered ECC SDRAM Memory Kit 317738-B21
• 64-MB 100-MHz Registered ECC SDRAM Memory Kit 317737-B21
• 32-MB 100-MHz Registered ECC SDRAM Memory Kit 317736-B21
10 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
Compaq Professional
QUICKSPECS
Workstation AP500
Storage
DRIVE SUPPORT
Quantity
Supported
Removable Media
1.44-MB Diskette Drive Up to 1 7 Integrated
IDE CD-ROM Drive Up to 1 4 Integrated IDE
1
Hard Drives
Wide Ultra2 SCSI Drives
2
3
4
1-inch
18.2-GB 7,200 rpm
9.1-GB 10,000 rpm
9.1-GB 7,200 rpm
1.6-inch
18.2-GB 10,000 rpm
Up to 5 1, 2, 3, 5, 6 Symbios Wide Ultra2 SCSI PCI Controller
5
5
Up to 4 1, 3, 5, 6
Wide-Ultra SCSI Drives
1-inch
9.1-GB 10,000 rpm
9.1-GB 7,200 rpm
4.3-GB 10,000 rpm
4.3-GB 7,200 rpm
1.6-inch
18.2-GB 10,000 rpm
5
5
5
Up to 5 1, 2, 3, 5, 6
Up to 4 1, 3, 5, 6
Position
Supported Controller
Wide-Ultra SCSI
SMART-2SL Array
Symbios Wide Ultra2 SCSI PCI Controller
Wide-Ultra SCSI
SMART-2SL Array
Ultra ATA Drives
1-inch
10.0-GB 7,200 rpm
6.4-GB 5,400 rpm
Up to 3 1, 2, 3, 5, 6 Integrated IDE
Maximum Storage Capacity
Internal:
90 GB
Tape Drives
Travan-5 10/20-GB IDE Up to 2 5, 6 IDE
12/24-GB DDS-3 DAT Up to 2 5, 6 Wide-Ultra SCSI
4/8-GB SLR Up to 2 5, 6 Wide-Ultra SCSI
11 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Weight
(standard configuration)
54.5 lbs/24.72 kg
Power Supply
Temperature
Humidity
(non-condensing)
20% to 80%
Technical Specifications
Compaq Professional
Workstation AP500
System Unit
Compaq Keyboard
Dimensions (HxWxD)
Tower
Rack Mountable (5U)
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Rated Input Current
Maximum Rated Power
Physical Dimensions
Weight
9
Operating
Non-operating –22° to 140°F/–30° to 60°C
9
Operating
Non-operating
Maximum Altitude (unpressurized)
Operating
Non-operating
Dimensions (HxWxL) 1.3 x 6.4 x 18.3 in/3.3 x 16.26 x 46.48 cm
19.75 x 10 x 23.5 in/50.165 x 25.4 x 59.69 cm
8.05 x 17.7 x 20.5 in/20.45 x 44.96 x 52.07 cm
90 VAC – 264 VAC
100 VAC – 120 VAC; 200 VAC – 240 VAC
50 Hz – 60 Hz
7A @ 115 VAC; 4A @ 230 VAC
325 watt output; 540 watt input
6.5 x 5 x 6.9 in/16.51 x 12.7 x 17.53 cm
7 lbs/3.16 kg
50° to 86°F/10° to 35°C
5% to 90%
10,000 ft/3048 m
30,000 ft/9144 m
1.44-MB Diskette
Drive
Weight 3.0 lbs/1.4 kg
Cable Length 8 ft/2.4 m
Diskette Size 3.5 in
LED Indicators (front panel) Green
Read/Write Capacity per Diskette (high/low) 1.44 MB/720 KB
Drive Height One-third
Drive Rotation 300 rpm
Transfer Rate (high/low) 500/250 Kb/s
Bytes/Sector 512
Sectors/Track (high/low) 18/9
Tracks/Side (high/low) 80/80
Access Times
Track-to-Track (high/low)
Average (high/low)
Settling Time
Latency Average
Cylinders (high/low) 80/80
Read/Write Heads Two
3/6 ms
169/94 ms
15 ms
100 ms
12 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Wide Ultra2 SCSI
Hard Drives
4
18.2 GB
5
10K
18.2 GB
9.1 GB
5
10K
Capacity 18,209.3 MB
Height 1.6 in/40.6 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide Ultra2 SCSI Full-Stroke 12.2 ms
Transfer Rate Rotational Speed 10,000 rpm
80 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 18,209.3 MB
Height 1 in/25.4 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide Ultra2 SCSI Full-Stroke 15.0 ms
Transfer Rate Rotational Speed 7,200 rpm
80 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 9100.0 MB
Height 1 in/25.4 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide Ultra2 SCSI Full-Stroke 12.2 ms
Transfer Rate Rotational Speed 10,000 rpm
80 MB/s Physical ConfigurationSynchronous
(Maximum)
Seek Time (typical reads, including settling)
5.7 ms
Bytes/Sector 512
Logical Blocks 35,565,080
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
6.9 ms
Bytes/Sector 512
Logical Blocks 35,565,080
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
5.4 ms
Bytes/Sector 512
Logical Blocks 17,773,524
Operating Temperature 50° to 95°F/10° to 35°C
9.1 GB
Capacity 9100.0 MB
Height 1 in/25.4 mm Single Track 1.9 ms
Width 3.5 in/88.9 mm Average
Interface Wide Ultra2 SCSI Full-Stroke 15.0 ms
Transfer Rate Rotational Speed 7,200 rpm
80 MB/s Physical ConfigurationSynchronous
(Maximum)
Seek Time (typical reads, including settling)
7.5 ms
Bytes/Sector 512
Logical Blocks 17,773,524
Operating Temperature 50° to 95°F/10° to 35°C
13 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Wide-Ultra SCSI
Hard Drives
4
18.2 GB
5
10K
9.1 GB
5
10K
9.1 GB
Capacity 18209.8 MB
Height 1.6 in/40.6 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide-Ultra SCSI Full-Stroke 12.2 ms
Transfer Rate Rotational Speed 10,000 rpm
40 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 9100.0 MB
Height 1 in/25.4 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide-Ultra SCSI Full-Stroke 12.2 ms
Transfer Rate Rotational Speed 10,000 rpm
40 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 9100.0 MB
Height 1 in/25.4 mm Single Track 1.9 ms
Width 3.5 in/88.9 mm Average
Interface Wide-Ultra SCSI Full-Stroke 15.0 ms
Transfer Rate Rotational Speed 7,200 rpm
40 MB/s Physical ConfigurationSynchronous
(Maximum)
Seek Time (typical reads, including settling)
5.7 ms
Bytes/Sector 512
Logical Blocks 35,566,000
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
5.4 ms
Bytes/Sector 512
Logical Blocks 17,773,500
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
7.5 ms
Bytes/Sector 512
Logical Blocks 17,773,500
Operating Temperature 50° to 95°F/10° to 35°C
14 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Wide-Ultra SCSI
Hard Drives
Ultra ATA Hard Drives
4
(continued)
4.3 GB
5
10K
4.3 GB
10 GB
Capacity 4293.6 MB
Height 1 in/25.4 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide-Ultra SCSI Full-Stroke 12.2 ms
Transfer Rate Rotational Speed 10,000 rpm
40 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 4293.6 MB
Height 1 in/25.4 mm Single Track 0.8 ms
Width 3.5 in/88.9 mm Average
Interface Wide-Ultra SCSI Full-Stroke 17.0 ms
Transfer Rate Rotational Speed 7,200 rpm
40 MB/s Physical ConfigurationSynchronous
(Maximum)
Capacity 10,000 MB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Rotational Speed 7,200 rpm
33.3 MB/s Physical ConfigurationSynchronous
(Maximum)
Seek Time (typical reads, including settling)
5.4 ms
Bytes/Sector 512
Logical Blocks 8,386,000
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
8.8 ms
Bytes/Sector 512
Logical Blocks 8,386,000
Operating Temperature 50° to 95°F/10° to 35°C
Seek Time (typical reads, including settling)
8.5 ms
Bytes/Sector 512
Logical Blocks 19,541,088
Operating Temperature 41° to 131°F/5° to 55°C
6.4 GB
Capacity 6448.6 MB
Height 1 in/25.4 mm Single Track 2.0 ms
Width 3.5 in/88.9 mm Average
Interface Ultra ATA Full-Stroke 20.0 ms
Transfer Rate Rotational Speed 5,400 rpm
33.3 MB/s Physical ConfigurationSynchronous
(Maximum)
Seek Time (typical reads, including settling)
9.5 ms
Bytes/Sector 512
Logical Blocks 12,594,960
Operating Temperature 41° to 131°F/5° to 55°C
15 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
32X Max1 CD-ROM
Drive IDE
Disk
Applicable Disk
Capacity
Diameter
Rotational Speed
Center Hole
Thickness
Track Pitch
Block Size
Mode 1
Mode 2
CD-DA
CD-XA
Interface IDE (ATAPI)
Access Times (typical)
Random
Full Stroke
Audio Output Level
Line Out
Headphone
Data Transfer Rate
Sustained
Burst
Cache Buffer 128 KB
Start-Up Time (typical) < 7 seconds
Stop Time < 4 seconds
Laser Parameters
Type
Wave Length
Divergence Angle 53.5° ± 1.5°
Output Power
Operating Conditions
Temperature 41° to 113°F/5° to 45°C
Humidity
Dimensions
(HxWxD, maximum)
Weight 2.65 lbs/1.2 kg
CD-ROM (Mode 1 and 2)
CD-DA
Photo CD (single and multi-session)
Mixed Mode (audio and data combined)
CD-XA ready
CDi ready
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
4.7 in, 3.15 in/12 cm, 8 cm
7000 rpm maximum
0.6 in/15 mm diameter
0.05 in/1.2 mm
1.6 µm
2048 bytes
2340, 2336 bytes
2352 bytes
2328 bytes
< 100 ms
< 150 ms
0.7 VRMS at 47 kOhms
0.6 VRMS at 32 Ohms (maximum)
150 KB/s
2100 to 4800 KB/s (14X – 32X)
Semiconductor Laser GaA1As
780 ± 25 nm
0.14mW
10% to 80%
1.7 x 5.9 x 8.19 in/4.29 x 15.0 x 20.8 cm
16 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
PremierSoundTM Audio
Compaq Professional
QUICKSPECS
Workstation AP500
Technical Specifications
Type
Sound Quality 16-bit stereo (CD quality)
Sampling 4 kHz to 48 kHz
Audio Compression/Decompression
Speaker
Frequency Response
Equalizer
Design
Volume Control 16 software controlled levels for master volume and
Full Duplex Yes
Synthesizer High-quality, 20 voice ESFM music synthesizer
Connectors 4 stereo mini-jacks: line in, line out, headphone, and
Operating System Driver Support Windows NT 4.0 and 3.51, Windows 95 and
ESS 1869 AudioDrive
ESPCMand ADPCM compression
150 Hz to 15 kHz
5 stages of fixed equalization
High performance, long excursion, infinite baffle
loudspeaker
each audio input
single monolithic microphone jack
Windows 98
with Plug and Play support
Compaq NC3161 Fast
Ethernet NIC Embedded
10/100 WOL
Network Interface 10Base-T or 100Base-TX
Expansion Bus Architecture 32-bit PCI bus-master
Network Transfer Rate
10Base-T (Half-Duplex)
10Base-T (Full-Duplex)
Connectors
Ethernet
Standards Compliance
Ethernet
100 Mb/s Ethernet
I/O Address Auto-configured
Communication Processor Intel 82558
10 Mb/s
20 Mb/s
RJ-45 supports 10Base-T or 100Base-TX
IEEE 802.3
100Base-TX, IEEE 802.3u
17 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Matrox Millennium II
Graphics Controller
Dimensions (H x W) 7.25 x 4.75 in/18.4 x 12.1 cm
Standard 4-MB
WRAM, Maximum
Resolution
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1024
1600 x 1200
1920 x 1034
1920 x 1080
1920 x 1200
1800 x 1440
Acceleration 2D GUI
Memory 4-MB WRAM with upgrades to 8 and 16 MB available
Controller Matrox MGA-2164W
Bus Type PCI
RAMDAC TVP 3026 250 MHz
Memory Type WRAM
Memory Amount (standard) 4 MB
Memory Upgrade 4-MB or 12-MB upgrade
Maximum Memory 16 MB
Memory Speed 50 ns
Data Path 64 bit
Controller Clock Speed 66 MHz with 4 MB base
Maximum Possible Vertical Refresh Rate 200 Hz
Maximum Possible Horizontal Scan Rate
Maximum Pixel Rate
Engine Acceleration
Scaling
Color Space Conversion
BitBLT
Line Draw
Polygon
3D
Performance
Random 10-Pixel Solid Lines
Filled 25-Pixel Triangles
Operating Systems Windows NT 4.0 and 3.51, Windows 95, Windows 98
Colors Supported
16.7M
16.7M
16.7M
16.7M
16.7M
65,536
65,536
65,536
65,536
256
256
114 kHz
250 MHz
Yes
Yes
Yes
Yes
Yes
Yes
310 K/s
140 K/s
Requires 8-MB
WRAM, Maximum
Colors Supported
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
65,536
65,536
Requires 16-MB
WRAM, Maximum
Colors Supported
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
65,536
65,536
18 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Matrox Millennium G200
(AGP) Graphics
Controller
Dimensions (H x W) 6.13 x 3.55 in/15.57 x 9.02 cm
Resolution Maximum Colors
Supported/8 MB
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1800 x 1440
2D Controller MGA-G200A
VGA Controller Integrated
Bus Type AGP
RAMDAC Integrated 250 MHz
Memory Type SGRAM
Memory Amount 8-MB SGRAM (standard; upgradable to 16 MB)
Maximum Memory Speed 132 MHz
Data Path 128 bit
Controller Clock Speed 66 MHz
Maximum Pixel Clock 250 MHz
Performance
Primitives 1 million polygons/s (25 pixels/polygon) − perspective corrected,
Fill Rate 84 million pixels/s − perspective corrected, bilinear filtered, texture
Operating Systems Windows NT 4.0 and 3.51, Windows 95 and 98
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
65,536
Maximum Refresh
Rate/8 MB
200 Hz
180 Hz
140 Hz
120 Hz
100 Hz
75 Hz
70 Hz
65 Hz
70 Hz
bilinear filtered, texture mapped, Z-buffering
mapped
Maximum Colors
Supported/16 MB
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
16.7M
65,536
Maximum Refresh
Rate/16 MB
200 Hz
180 Hz
140 Hz
120 Hz
100 Hz
75 Hz
70 Hz
65 Hz
70 Hz
19 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
ELSA GLoria Synergy+
(AGP) Graphics
Controller
Dimensions (H x W) 7.75 x 5 in/19.68 x 15.24 cm
Maximum Colors
Resolution
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1536 x 1152
1600 x 1000
1600 x 1200
1600 x 1280
1920 x 1080
1920 x 1200
3D/2D Controller
VGA Controller
Bus Type
RAMDAC Integrated 250 MHz
Memory Type SGRAM
Memory Amount 4 or 8-MB SGRAM (depending on the model)
Memory Speed 8 ns
Data Path 64 bit
Controller Clock Speed 90 MHz
Maximum Pixel Clock 250 MHz at 8 bpp and 16 bpp/5:5:5
Performance
Primitives
Fill rate
Operating Systems Windows NT 4.0 and 3.51, Windows 95, Windows 98
Supported/4 MB
16.7M
16.7M
16.7M
16.7M
32,768
32,768
32,768
32,768
32,768
256
256
Maximum Refresh
Rate/4 MB
100 Hz
100 Hz
100 Hz
100 Hz
100 Hz
85 Hz
100 Hz
85 Hz
75 Hz
80 Hz
75 Hz
3Dlabs Permedia-2A
Integrated
AGP
145 MHz at 32 bpp/8:8:8
800K polygons/s – textured mapped
83 million pixels/s – perspective corrected, bilinear
filtered, texture mapped
Maximum Colors
Supported/8 MB
16.7M
16.7M
16.7M
16.7M
16.7M
32,768
32,768
32,768
32,768
32,768
32,768
Maximum Refresh
Rate/8 MB
100 Hz
100 Hz
100 Hz
100 Hz
80 Hz
85 Hz
100 Hz
85 Hz
85 Hz
80 Hz
75 Hz
20 2Q 1999 Division – Workstations
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Professional
Workstation AP500
Compaq PowerStorm
300 (AGP) Graphics
Controller
Dimensions (H x W) 3.25 x 12.28 in/ 8.26 x 31.19 cm
3D Acceleration with
Double Buffering,
Resolution
800 x 600
1024 x 768
1280 x 1024
Colors Supported Texture Memory Maximum Refresh Rate
16.7M
16.7M
16.7M
16 MB
16 MB
16 MB
3D/2D Controller Evans & Sutherland REALimage 2100
VGA Controller Integrated
Bus Type AGP (PCI Optional)
RAMDAC
Memory Type
Memory Amount
IBM RGB640
3D RAM and CDRAM
15-MB 3D RAM, 16-MB CDRAM
Memory Speed 10-ns 3D RAM, 10-ns CDRAM
Data Path 64-bit
Controller Clock Speed 100 MHz
Maximum Vertical Refresh Rate 85 Hz
Maximum Pixel Clock 220 MHz
Hardware Accelerated 3D
24-bit Z-buffering
Gouraud shading
Stencils
Texture mapping (bilinear and
Yes
Yes
Yes
Yes
trilinear)
Performance
Random 10-Pixel Solid Lines
Filled 25-Pixel Triangles
4 M/s
4 M/s
Pixel Fill Rate
Bilinear
Trilinear
90 M/s
45 M/s
Operating System Windows NT 4.0
75 Hz
85 Hz
85 Hz
1
Data transfer rates will vary from 150 KB/s to 4800 KB/s.
2
Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
3
AssetControl monitor. AssetControl features are accessible with Compaq Workstations featuring Intelligent Manageability.
4
For complete compatibility information, refer to the Compaq SCSI Hard Drive Compatibility table located at
http://www.compaq.com/products/servers/storage/index-drives.html. Using hard drives in unsupported configurations will result in
voiding of the warranty and could result in damage to the drive and/or loss of data.
5
10K rpm drives require 10K mounting/cooling kit if installed in bays 5 or 6.
6
Not available in North America.
7
Available in North America and Latin America.
8
ServicePAQ facilitates registration of a Workstation for two additional years of onsite service; extensions also available via PaqFax
number 1225. Not available in all countries.
9
Values are subject to change.
21 2Q 1999 Division – Workstations
Loading...
