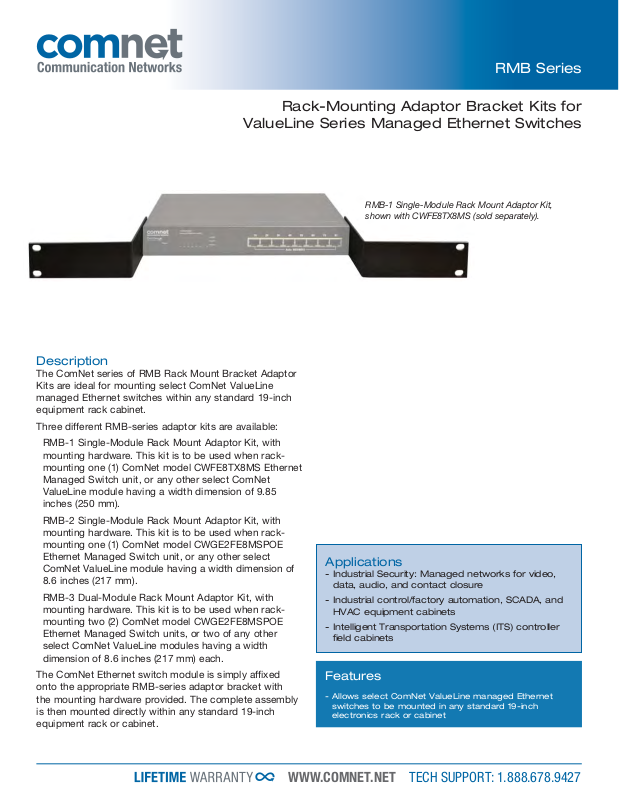

Comnet RMB2 Specsheet
Rack-Mounting Adaptor Bracket Kits for
ValueLine Series Managed Ethernet Switches
Description
The ComNet series of RMB Rack Mount Bracket Adaptor
Kits are ideal for mounting select ComNet ValueLine
managed Ethernet switches within any standard 19-inch
equipment rack cabinet.
Three different RMB-series adaptor kits are available:
RMB-1 Single-Module Rack Mount Adaptor Kit, with
mounting hardware. This kit is to be used when rackmounting one (1) ComNet model CWFE8TX8MS Ethernet
Managed Switch unit, or any other select ComNet
ValueLine module having a width dimension of 9.85
inches (250 mm).
RMB-2 Single-Module Rack Mount Adaptor Kit, with
mounting hardware. This kit is to be used when rackmounting one (1) ComNet model CWGE2FE8MSPOE
Ethernet Managed Switch unit, or any other select
ComNet ValueLine module having a width dimension of
8.6 inches (217 mm).
RMB-3 Dual-Module Rack Mount Adaptor Kit, with
mounting hardware. This kit is to be used when rackmounting two (2) ComNet model CWGE2FE8MSPOE
Ethernet Managed Switch units, or two of any other
select ComNet ValueLine modules having a width
dimension of 8.6 inches (217 mm) each.
The ComNet Ethernet switch module is simply affixed
onto the appropriate RMB-series adaptor bracket with
the mounting hardware provided. The complete assembly
is then mounted directly within any standard 19-inch
equipment rack or cabinet.
RMB Series
RMB-1 Single-Module Rack Mount Adaptor Kit,
shown with CWFE8TX8MS (sold separately).
Applications
- Industrial Security: Managed networks for video,
data, audio, and contact closure
- Industrial control/factory automation, SCADA, and
HVAC equipment cabinets
- Intelligent Transportation Systems (ITS) controller
field cabinets
Features
- Allows select ComNet ValueLine managed Ethernet
switches to be mounted in any standard 19-inch
electronics rack or cabinet
WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
typical installation examples
Rack-Mounting Adaptor Bracket Kits for
ValueLine Series Managed Ethernet SwitchesRMB Series
