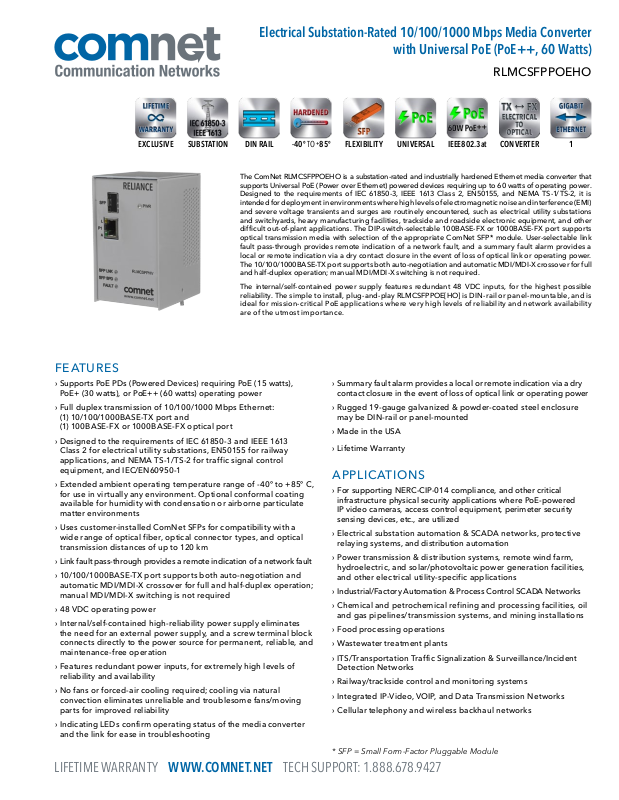

Comnet RLMCSFPPOEHO Specsheet

Electrical Substation-Rated 10/100/1000 Mbps Media Converter

with Universal PoE (PoE++, 60 Watts)

RLMCSFPPOEHO

SUBSTATIONEXCLUSIVE DIN RAIL -40º TO +85º

The ComNet RLMCSFPPOEHO is a substation-rated and industrially hardened Ethernet media converter that
supports Universal PoE (Power over Ethernet) powered devices requiring up to 60 watts of operating power.
Designed to the requirements of IEC 61850-3, IEEE 1613 Class 2, EN50155, and NEMA TS-1/TS-2, it is
intended for deployment in environments where high levels of electromagnetic noise and interference (EMI)
and severe voltage transients and surges are routinely encountered, such as electrical utility subs tations
and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and other
difficult out- of-plant applications. The DIP-switch-selectable 100BASE-FX or 1000BASE-FX port support s
optical transmission media with selec tion of the appropriate ComNet SFP* module. User-selectable link
fault pass-through provides remote indication of a net work fault, and a summar y fault alarm provides a
local or remote indication via a dr y contac t closure in the event of loss of optical link or operating power.
The 10/100/1000BASE-TX por t supports both auto-negotiation and automatic MDI/MDI-X crossover for full
and half-duplex operation; manual MDI/MDI-X switching is not required.

The internal/self-contained power supply features redundant 48 VDC inputs, for the highest possible
reliability. The simple to install, plug-and-play RLMCSFPPOE[HO] is DIN-rail or panel-mountable, and is
ideal for mission-critical PoE applications where very high levels of reliability and network availability
are of the utmost importance.

FEATURES

› Supports PoE PDs (Powered Devices) requiring PoE (15 watts),

PoE+ (30 watts), or PoE++ (60 watts) operating power

› Full duplex transmission of 10/100/1000 Mbps Ethernet:

(1) 10/10 0/1000 BAS E-TX por t an d
(1) 100BASE-FX or 1000BASE-FX optical port

› Designed to the requirements of IEC 61850-3 and IEEE 1613

Class 2 for elec trical utility substations, EN50155 for railway
applications, and NEMA TS-1/TS-2 for traffic signal control
equipment, and IEC/EN60950-1

› Extended ambient operating temperature range of -40º to +85º C,

for use in virtually any environment. Optional conformal coating
available for humidity with condensation or airborne particulate
matter environments

› Uses customer-installed ComNet SFPs for compatibilit y with a

wide range of optical fiber, optical connector types, and optical
transmission distances of up to 120 km

› Link fault pass-through provides a remote indication of a network fault

› 10/100/1000BASE-TX port supports both auto-negotiation and

automatic MDI/MDI-X crossover for full and half-duplex operation;
manual MDI/MDI-X switching is not required

› 48 VDC operating power

› Internal/self-contained high-reliability power supply eliminates

the need for an external power supply, and a screw terminal block
connec ts directly to the power source for permanent, reliable, and
maintenance-free operation

› Features redundant power inputs, for extremely high levels of

reliability and availability

› No fans or forced-air cooling required; cooling via natural

convection eliminates unreliable and troublesome fans/moving
parts for improved reliability

› Indicating LEDs confirm operating status of the media converter

and the link for ease in troubleshooting

IEEE802.3atUNIVERSAL

› Summar y fault alarm provides a local or remote indication via a dr y

contact closure in the event of loss of optical link or operating power

› Rugged 19-gauge galvanized & powder-coated steel enclosure

may be DIN-rail or panel-mounted

› Made in the USA

› Lifetime Warranty

1CONVERTERFLEXIBILIT Y

APPLICATIONS

› For supporting NERC-CIP-014 compliance, and other critical

infrastructure physical security applications where PoE-powered
IP video cameras, access control equipment, perimeter security
sensing devices, etc., are utilized

› Electrical substation automation & SCADA networks, protective

relaying systems, and distribution automation

› Power transmission & distribution systems, remote wind farm,

hydroelectric, and solar/photovoltaic power generation facilities,
and other electrical utility-specific applications

› Industrial/Factory Automation & Process Control SCADA Net works

› Chemical and petrochemical refining and processing facilities, oil

and gas pipelines/transmission systems, and mining installations

› Food processing operations

› Wastewater treatment plants

› ITS/Transportation Traffic Signalization & Surveillance/Incident

Detection Networks

› Railway/trackside control and monitoring systems

› Integrated IP-Video, VOIP, and Data Transmission Networks

› Cellular telephony and wireless backhaul networks

* SFP = Small Form-Factor Pluggable Module

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

RLMCSFPPOEHO

A

SPECIFICATIONS

Electrical Substation-Rated 10/100/1000 Mbps Media Converter

with Universal PoE (PoE++, 60 Watts)

Data

Compliance IEEE 802.3

IEEE 802.3ab
IEEE802.3z
IEEE 802.3u

Ethernet Data Interface Electrical: 10/100/1000BASE-TX, half or full-duplex.

Optical: 100BASE-FX or 1000BASE-FX, full-duplex

Fiber Connectors¹ Requires selection of sold-separately SFP

modules. See ComNet data sheet for number,
description, and compatibility of SFP modules

Connectors

Power 4-Position Screw Terminal Block
Ethernet RJ-45
Optical SFP pluggable optics

SFP Models require selection of sold-separately
SFP modules. See ComNet data sheet for number,
description, and compatibility of SFP modules.

Fault Relay 3-Position Screw Terminal Block

Summary Fault Alarm

Form C contacts for local or remote indication of loss of operating power, or loss

of optical link

Relay Contacts: Rated at 110 VDC @ 0.25A, non-induc tive load; or

125 VAC @ 0.3A, non-inductive load

Power

Power Consumption 5 W (max)
Operating Voltage Range 44 to 57 VDC (max)
Features redundant and floating DC inputs, for use in positive or negative

grounding arrangements

Current Protection Automatic Resettable Solid-State Current Limiters

Mechanical

Indicator LEDs - Operating Power

- SFP Throughput Rate: 100FX or 1000FX

- Fault

- Optical Link/Activity
Housing 19-Gauge galvanized steel, power-coated finish
Mounting Standard DIN-Rail or panel-mount. Panel-

mounting adapter included.
Ingress Protection IP-30 Rated
Housing Dimensions 4.3 × 2.3 × 3.7 in (10.9 × 5.8 × 9.4 cm)
Weight (unpacked) 1.5lbs (0.68kg)
Circuit Board Meets IPC standards

Environmental

MTBF >250,000 hours
Operating Temperature -40˚C to +85˚C
Storage Temperature -40˚C to +85˚C
Operating Humidity 5% to 95% (Non-condensing)²

Applicable EMI Immunity and Environmental Standards

IEC 61850-3 for Electrical Utility Substations
IEEE 1613, Class 2 for Electrical Utility Substations
EN50155 for Railway Applications
NEMA TS-1/TS-2 For Traffic Signal Control Equipment

[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.

Single mode fiber needs to meet or exceed fiber standard ITU-T G.652

GENCY COMPLIANCE

ORDERING INFORMATION – SFP MODELS

Part Number Description

RLMCSFPPOEHO Electrical Substation-Rated 10/100/1000 Mbps Media Converter, redundant 48 VDC input s, SFP Optical Por t, 60 W PoE++

Options User selection of ComNet SFP (Extra charge, see SFP Modules data sheet for product numbers and compatibility before ordering)

48 VDC DIN-Rail Power Supply (Extra charge, consult factory)
[2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to humidity-with-condensation and airborne particulate mat ter environments

conditions (Extra charge, consult factory)

Note: In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
