Comnet RLMC1005S2-48DC, RLMC1005S2-HV, RLMC1005M2-24DC, RLMC1005M2-48DC, RLMC1005M2-HV User Manual
...
INSTALLATION AND OPERATION MANUAL
RLMC1005 Series
Electrical Substation-Rated 10/100 Mbps Ethernet
Electrical To ST Optical Media Converter
This manual serves the following
ComNet Model Numbers:
RLMC1005M2/24DC
RLMC1005S2/24DC
RLMC1005M2/48DC
RLMC1005S2/48DC
RLMC1005M2/HV
RLMC1005S2/HV
The ComNet RLMC1005 is designed for deployment in environments where high
levels of electromagnetic noise and interference (EMI) and severe voltage transients
and surges are routinely encountered.
User-selectable link fault pass-through provides remote indication of a network fault,
and a summary fault alarm provides a local or remote indication via Form C dry
contact closure in the event of loss of optical link or operating power.
The 10/100BASE-TX port supports both auto-negotiation and automatic MDI/MDI-X
crossover for full and half-duplex operation; manual MDI/MDI-X switching is not
required.
LED indicators confirm operational status.
See Figures 1 – 6 for complete operation details.

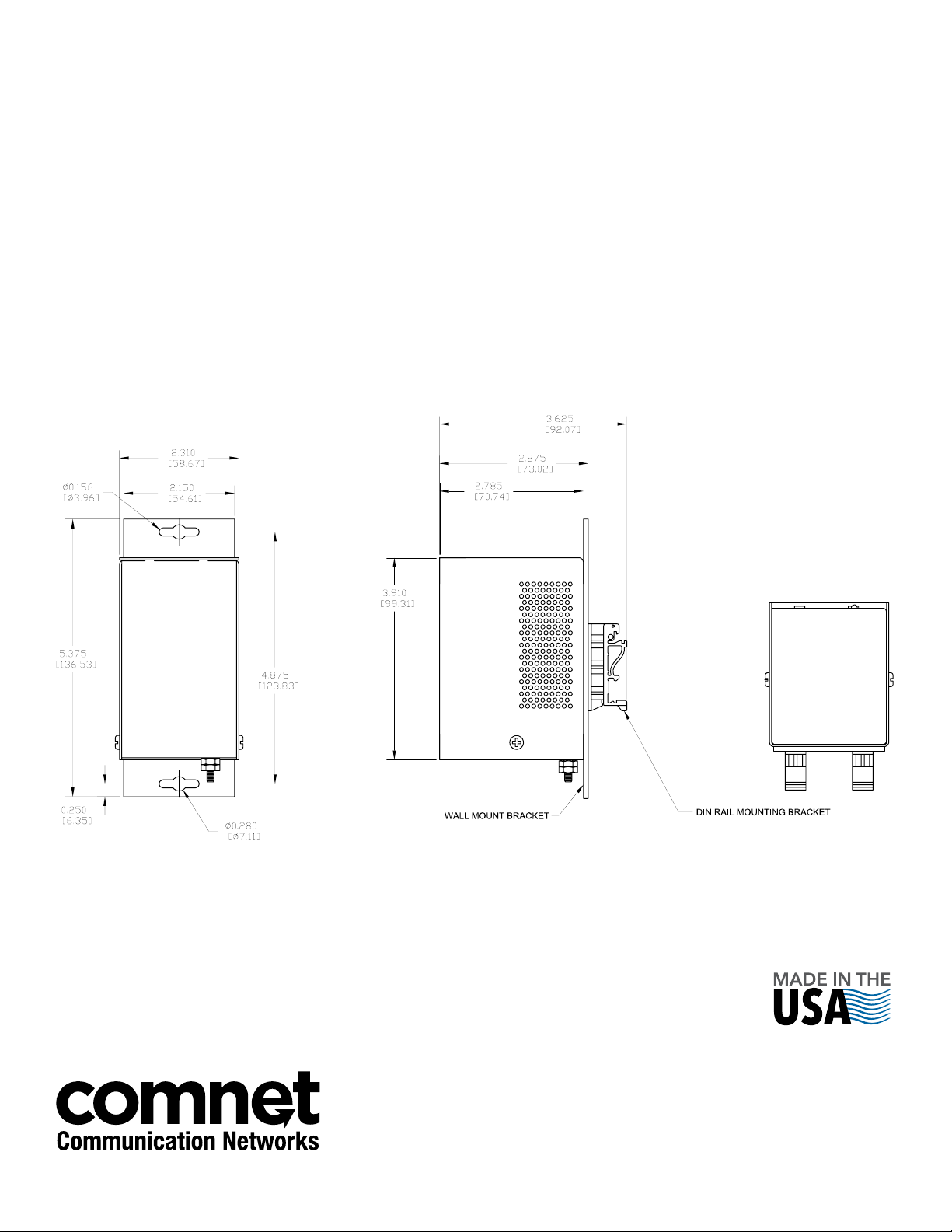

The RLMC1005 is DIN-rail or panel-mountable. See Figure A on the last page for
mounting instructions.
INS_RLMC1005_REV–
Rev. 27 Jun 2016
INSTALLATION AND OPERATION MANUAL RLMC1005 SERIES
INSTALLATION AND OPERATION MANUAL RLMC1005 SERIES
Figure 1 – RLMC1005(M,S)2 Series
Front Panel
2
3
4
Figure 2 – RLMC1005(M,S)2/24DC and
RLMC1005(M,S)2/48DC Bottom Panel
6
5
8
7
9 9
1
9
Figure 3 – RLMC1005(M,S)2/HV
Bottom Panel
6
8
7
Table 1 – RLMC100524DC Physical Feature Descriptions
Call-out Description Manual Reference
1
Unit Model Number (Be sure to refer to any specific instructions for your unit variation) –
2
10/100 Mbps Fiber Optic Port See Installation Instructions, Step
3
10/100 TX RJ-45 Port 1 and Port 1 Link/Activity (L/A) and Speed LED Indicators
4
Optical Port Link Status, Optical Port Link Speed, and Fault LED Indicators See Table 4 - Indicating LEDs
5
Power LED Indicator See Table 4 - Indicating LEDs
6
User-selectable DIP Switches
7
Fault Relay Connections
8
Power Connections
9
Chassis GND Lug See Installation Instructions, Step 2
See Installation Instructions, Step 7
See Table 5 - Indicating LEDs
See Installation Instructions, Step 1
See Table 2 - DIP Switch Settings

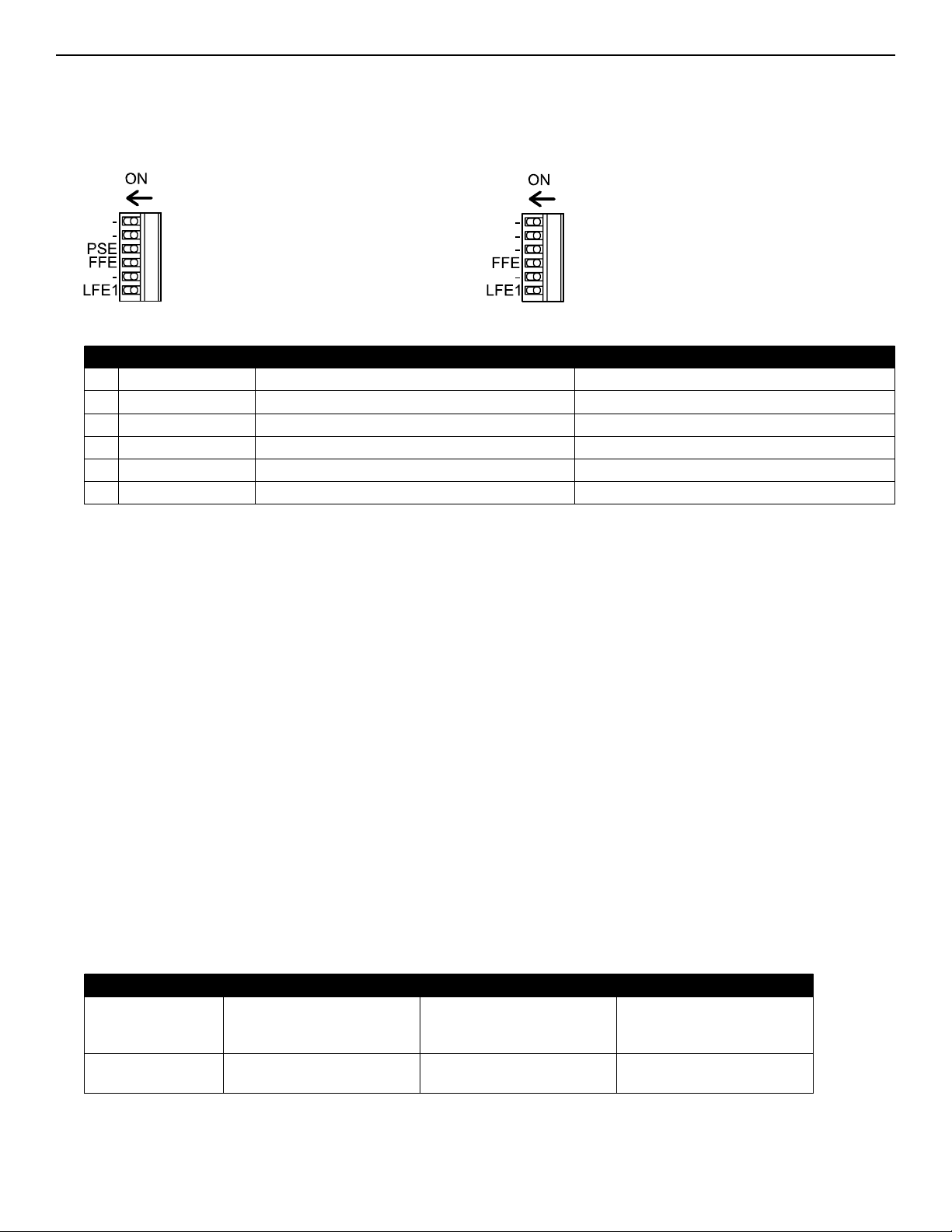

See Figure 4 - DIP Switches
See Installation Instructions, Step 3

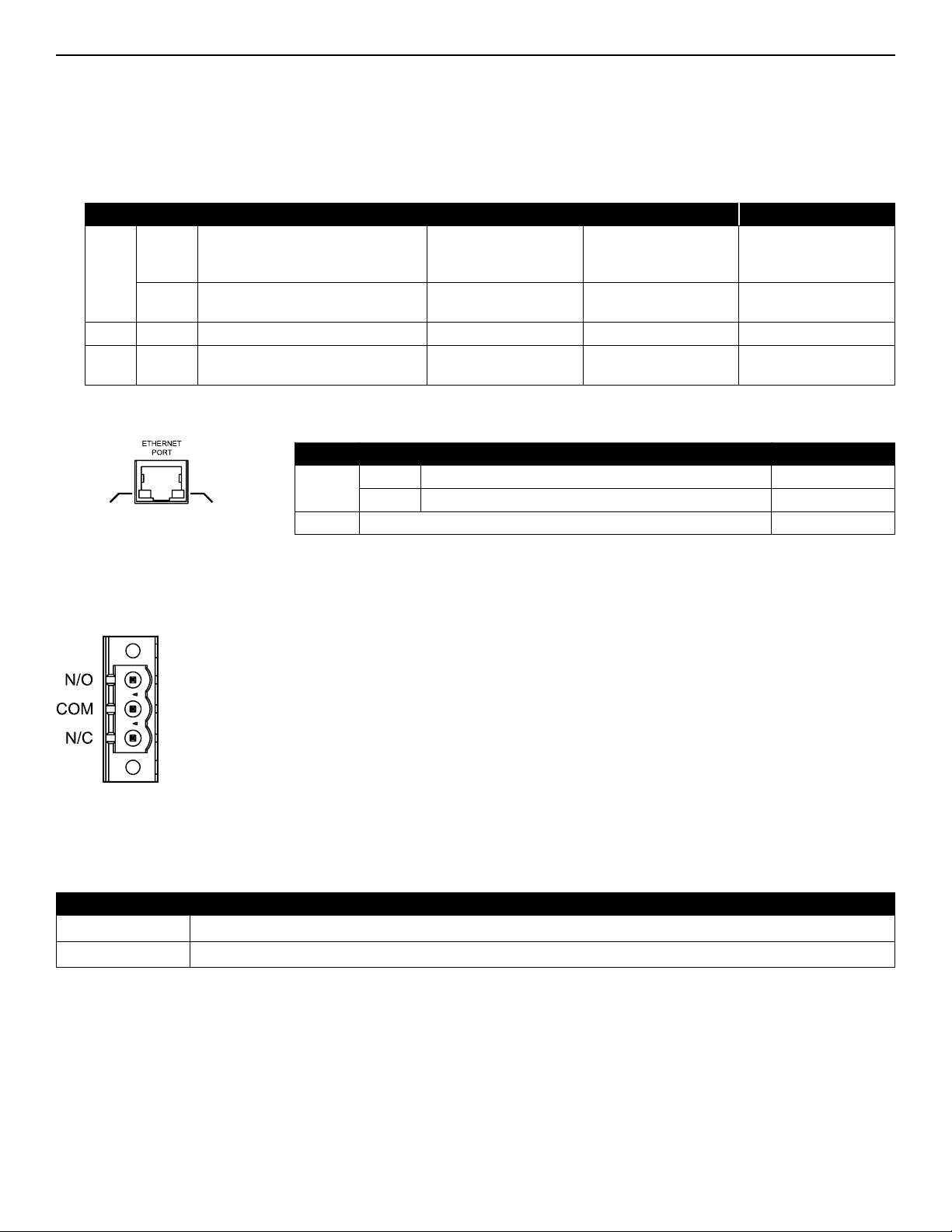

See Figure 6 - Fault Relay Operation
See Installation Instructions, Step 7
See Table 3 - Power Connections per Use Case
TECH SUPPORT: 1.888.678.9427
TECH SUPPORT: 1.888.678.9427
INS_RLMC1005_REV–
Rev. 27 Jun 2016 PAGE 2
