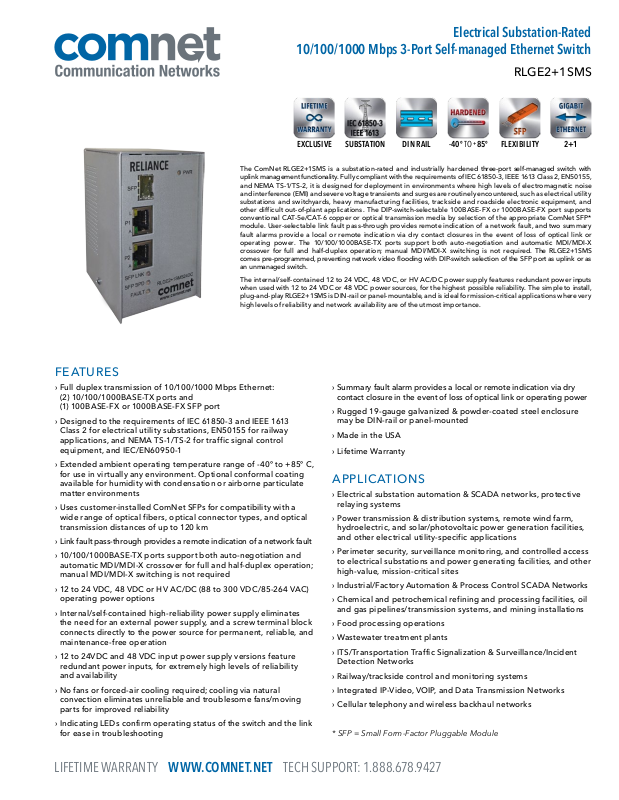

Comnet RLGE2+1SMS24DC, RLGE2+1SMS48DC Specsheet

Electrical Substation-Rated

10/100/1000 Mbps 3-Port Self-managed Ethernet Switch

RLGE2+1SMS

The ComNet RLGE2+1SMS is a substation-rated and industrially hardened three-port self-managed switch with
uplink management functionality. Fully co mpliant wit h the requirement s of IEC 61850-3, IEEE 1613 Class 2, EN50155,
and NEMA TS-1/TS-2, it is designed for deployment in environments where high levels of electromagnetic noise
and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility
substations and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and
other difficult out-of-plant applications. The DIP-switch-selec table 100BASE-FX or 1000BASE- FX port suppor ts
conventional CAT-5e/CAT-6 copper or optical transmission media by selection of the appropriate ComNet SFP*
module. User-selectable link fault pass-through provides remote indication of a network fault, and two summary
fault alarms provide a local or remote indication via dry contact closures in the event of loss of optical link or
operat in g power. T he 10/10 0/100 0B ASE-T X ports support both auto-negotiation and automatic MDI/MDI-X
crossover for full and half-duplex operation; manual MDI/MDI-X switching is not required. The RLGE2+1SMS
comes pre-programmed, preventing network video flooding with DIP-switch selection of the SFP port as uplink or as
an unmanaged switch.

The internal/self-contained 12 to 24 VDC , 48 VDC, or HV AC/DC power supply features redundant power inputs
when used with 12 to 24 VDC or 48 VDC power sources, for the highest possible reliability. The simple to install,
plug-and-play RLGE2+1SMS is DIN-rail or panel-mountable, and is ideal for mission-critical applications where very
high levels of reliability and network availability are of the utmost importance.

FEATURES

› Full duplex transmission of 10/100/1000 Mbps Ethernet:

(2) 10/10 0/1000 BASE-TX por ts and
(1) 100BASE-FX or 1000BASE-FX SFP port

› Designed to the requirements of IEC 61850-3 and IEEE 1613

Class 2 for elec trical utility substations, EN50155 for railway
applications, and NEMA TS-1/TS-2 for traffic signal control
equipment, and IEC/EN60950-1

› Extended ambient operating temperature range of -40º to +85º C,

for use in virtually any environment. Optional conformal coating
available for humidity with condensation or airborne particulate
matter environments

› Uses customer-installed ComNet SFPs for compatibility with a

wide range of optical fibers, optical connec tor types, and optical
transmission distances of up to 120 km

› Link fault pass-through provides a remote indication of a network fault

› 10/100/1000BASE-TX ports support both auto-negotiation and

automatic MDI/MDI-X crossover for full and half-duplex operation;
manual MDI/MDI-X switching is not required

› 12 to 24 VDC, 48 VDC or HV AC/DC (88 to 300 VDC/85-264 VAC)

operating power options

› Internal/self-contained high-reliability power supply eliminates

the need for an external power supply, and a screw terminal block
connec ts directly to the power source for permanent, reliable, and
maintenance-free operation

› 12 to 24VDC and 48 VDC input power supply versions feature

redundant power inputs, for extremely high levels of reliability
and availability

› No fans or forced-air cooling required; cooling via natural

convection eliminates unreliable and troublesome fans/moving
parts for improved reliability

› Indicating LEDs confirm operating status of the switch and the link

for ease in troubleshooting

SUBSTATION DIN RAIL -40º TO +85ºEXCLUSIVE

› Summary fault alarm provides a local or remote indication via dry

contact closure in the event of loss of optical link or operating power

› Rugged 19-gauge galvanized & powder-coated steel enclosure

may be DIN-rail or panel-mounted

› Made in the USA

› Lifetime Warranty

2+1FLEXIBILIT Y

APPLICATIONS

› Electrical substation automation & SCADA networks, protec tive

relaying systems

› Power transmission & distribution systems, remote wind farm,

hydroelectric, and solar/photovoltaic power generation facilities,
and other electrical utility-specific applications

› Perimeter security, surveillance monitoring, and controlled access

to electrical substations and power generating facilities, and other
high-value, mission-critical sites

› Industrial/Fac tor y Automation & Process Control SCADA Networks

› Chemical and petrochemical refining and processing facilities, oil

and gas pipelines/transmission systems, and mining installations

› Food processing operations

› Wastewater treatment plants

› ITS/Transportation Traffic Signalization & Surveillance/Incident

Detection Networks

› Railway/trackside control and monitoring systems

› Integrated IP-Video, VOIP, and Data Transmission Networks

› Cellular telephony and wireless backhaul networks

* SFP = Small Form-Factor Pluggable Module

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

RLGE2+1SMS

A

SPECIFICATIONS

Electrical Substation-Rated

10/100/1000 Mbps 3-Port Self-managed Ethernet Switch

Data

Compliance IEEE 802.3

IEEE 802.3ab
IEEE802.3z
IEEE 802.3u

Ethernet Data Interface Electrical: 10/100/1000BASE-TX, half or full-duplex.

Optical: 100BASE-FX or 1000BASE-FX, full-duplex

Fiber Connectors¹ Requires selection of sold-separately SFP

modules. See ComNet data sheet for number,
description, and compatibility of SFP modules

Connectors

Power 4-Position Screw Terminal Block
10/100/1000BA SE-TX 2 × RJ45
100/1000BASE-FX 1 × SFP¹ pluggable optics

Requires selection of sold-separately SFP
modules. See ComNet data sheet for number,
description, and compatibility of SFP modules

Fault Relay 3-Position Screw Terminal Block

Summary Fault Alarm

Form C contacts for local or remote indication of loss of operating power, or loss

of optical link

Relay Contacts: Rated at 110 VDC @ 0.25A, non-inductive load; or

125 VAC @ 0.3A, non-inductive load

Power

Power Consumption 5 W (max)
12 to 24 VDC models 9 to 36 VDC (max)
48 VDC models 36 to 59 VDC (max)
HV AC/DC models 88 to 300 VDC, or 85 to 264 VAC (max)
12 VDC to 24 VDC & 48 VDC versions feature redundant and floating DC inputs,

for use in positive or negative grounding arrangements

Current Protection Automatic Resettable Solid-State Current Limiters

Mechanical

Indicator LEDs - Operating Power

- SFP Throughput Rate: 100FX or 1000FX

- Fault

- Optical Link Activity
Housing 19-Gauge galvanized steel, power-coated finish
Ingress Protection IP-30 Rated
Mounting Standard DIN-Rail or panel-mount. Panel-

mounting adapter included.
Housing Dimensions 4.3 × 2.3 × 3.7 in (10.9 × 5.8 × 9.4 cm)
Weight (unpacked) 1.5lbs (0.68kg)
Circuit Board Meets IPC standards

Environmental

MTBF >250,000 hours
Operating Temperature -40˚C to +85˚C
CSA/UL 60950 approved for +85°C operation
Storage Temperature -40˚C to +85˚C
Operating Humidity 5% to 95% (Non-condensing)²

Applicable EMI Immunity and Environmental Standards

IEC 61850-3 for Electrical Utility Substations
IEEE 1613, Class 2 for Elec trical Utility Substations
EN50155 for Railway Applications
NEMA TS-1/TS-2 For Traffic Signal Control Equipment

[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.

Single mode fiber needs to meet or exceed fiber standard ITU-T G.652

GENCY COMPLIANCE

ORDERING INFORMATION

Part Number Description

RLGE2+1SMS24DC Electrical Substation-Rated 10/100/1000 Mbps 3-Port Self-managed Ethernet Switch, 1 SFP FX + 2TX, redundant 12 to 24 VDC inputs

RLGE2+1SMS48DC Electrical Substation-Rated 10/100/1000 Mbps 3-Port Self-managed Ethernet Switch, 1 SFP FX + 2TX, redundant 48 VDC inputs

RLGE2+1SMSHV Electrical Substation-Rated 10/100/1000 Mbps 3-Port Self-managed Ethernet Switch, 1 SFP FX + 2TX, 85 to 264 VAC / 88 to 300 VDC input

Included Accessories Panel Mounting Adaptor Plate Kit with Mounting Hardware

Options PS24-1A – 24VDC DIN Rail Power supply (sold separately)

Note: In a continuing effort to improve and advance technology, product specifications are subject to change without notice.

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

DIN Rail mounting Adaptor Clip Kit with Mounting Hardware

User selection of ComNet SFP (see SFP Modules data sheet for product numbers and compatibility before ordering)
[2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to humidity-with-condensation and airborne particulate matter environments

conditions (Extra charge, consult factory)
