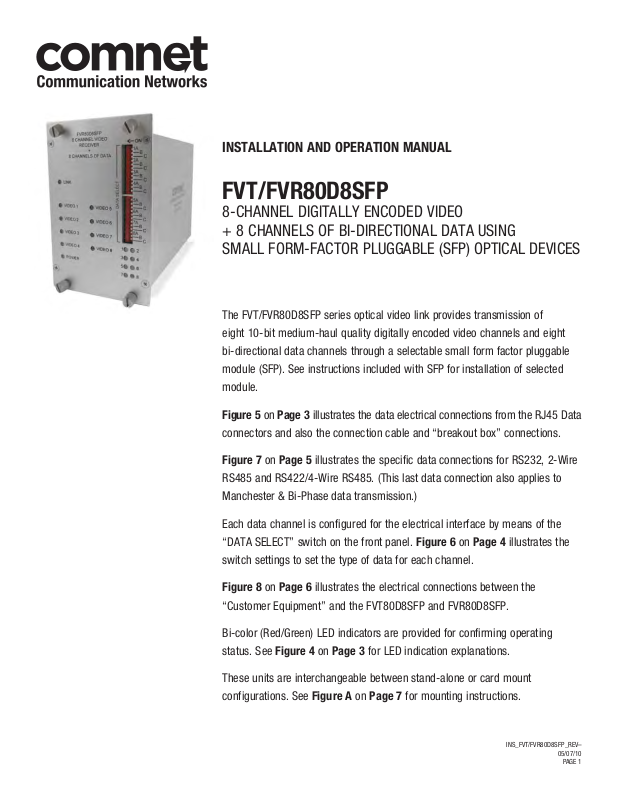

Comnet FVT80D8SFP User Manual

INSTALLATION AND OPERATION MANUAL

FVT/FVR80D8SFP

8-CHANNEL DIGITALLY ENCODED VIDEO
+ 8 CHANNELS OF BI-DIRECTIONAL DATA USING
SMALL FORM-FACTOR PLUGGABLE (SFP) OPTICAL DEVICES

The FVT/FVR80D8SFP series optical video link provides transmission of

eight 10-bit medium-haul quality digitally encoded video channels and eight

bi-directional data channels through a selectable small form factor pluggable

module (SFP). See instructions included with SFP for installation of selected

module.

Figure 5 on Page 3 illustrates the data electrical connections from the RJ45 Data

connectors and also the connection cable and “breakout box” connections.

Figure 7 on Page 5 illustrates the specific data connections for RS232, 2-Wire

RS485 and RS422/4-Wire RS485. (This last data connection also applies to

Manchester & Bi-Phase data transmission.)

Each data channel is configured for the electrical interface by means of the

“DATA SELECT” switch on the front panel. Figure 6 on Page 4 illustrates the

switch settings to set the type of data for each channel.

Figure 8 on Page 6 illustrates the electrical connections between the

“Customer Equipment” and the FVT80D8SFP and FVR80D8SFP.

Bi-color (Red/Green) LED indicators are provided for confirming operating

status. See Figure 4 on Page 3 for LED indication explanations.

These units are interchangeable between stand-alone or card mount

configurations. See Figure A on Page 7 for mounting instructions.

INS_FVT/FVR80D8SFP_REV–

05/07/10

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR80D8SFP

FIGURE 1 – FVT/FVR80D8SFP TRANSMITTER AND RECEIVER

OPTICAL FIBER DETERMINED BY
SELECTION OF SFP MODULE

BLACK

BLACK WITH WHITE STRIPE

FIGURE 2 – FVT80D8SFP TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

FIGURE 3 – FVR80D8SFP RECEIVER

NOTE: Remove Electrical Connector for Rack Mount Units

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR80D8SFP_REV–

05/07/10

PAGE 2

INSTALLATION AND OPERATION MANUAL FVT/FVR80D8SFP

FIGURE 4 – LED INDICATORS

LINK VIDEO DATA (IN/OUT) POWER

GREEN

RED

OFF

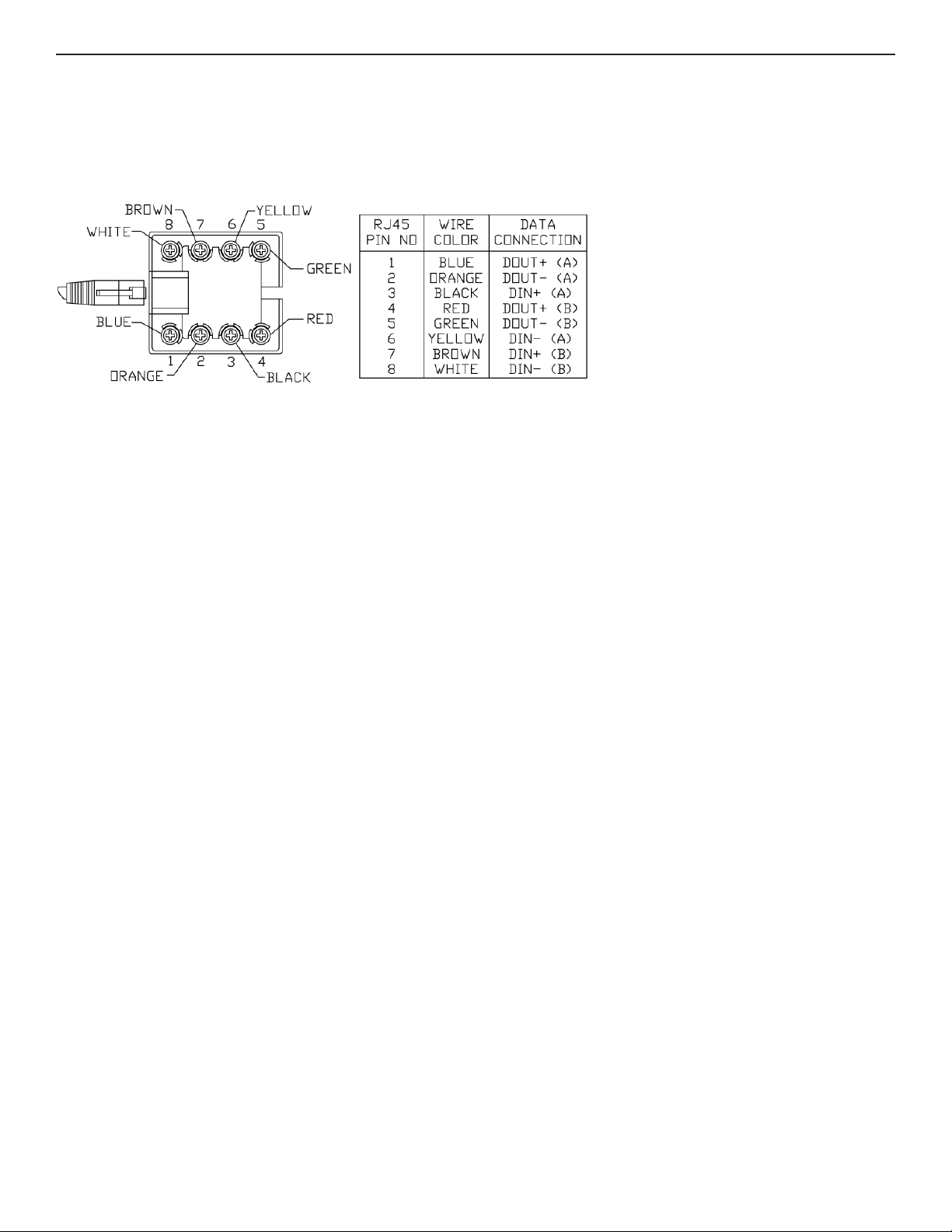

FIGURE 5 – RJ45 BREAK-OUT ASSEMBLY

5 pc. Factory Supplied

Communication link has been
established over optical fi ber

Communication link has not

An active video signal is present
on the BNC connector.

An active video signal is
present on the BNC connector.

No Video Signal – –

Unit powered up

been established.

Not powered up correctly – No Video Signal Unit powered down

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR80D8SFP_REV–

05/07/10

PAGE 3
