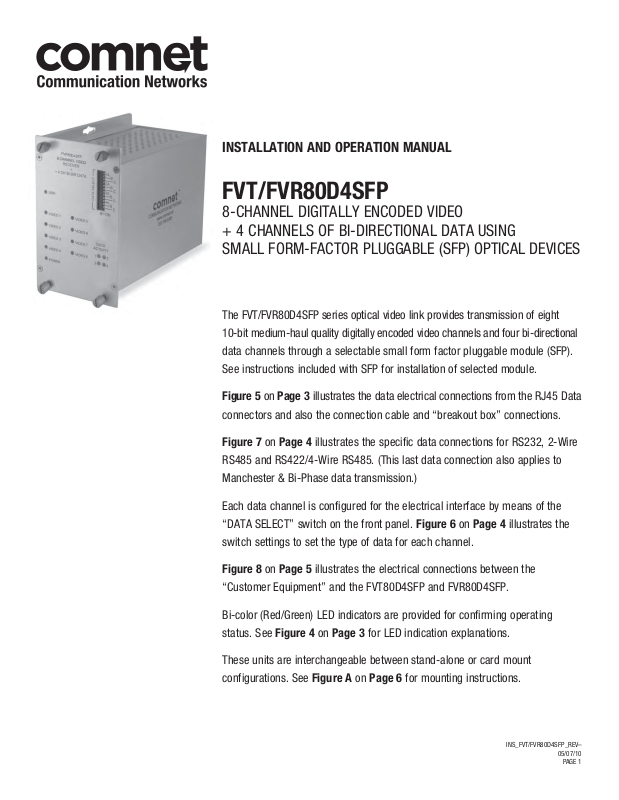

Comnet FVT80D4SFP User Manual

INSTALLATION AND OPERATION MANUAL

FVT/FVR80D4SFP

8-CHANNEL DIGITALLY ENCODED VIDEO
+ 4 CHANNELS OF BI-DIRECTIONAL DATA USING
SMALL FORM-FACTOR PLUGGABLE (SFP) OPTICAL DEVICES

The FVT/FVR80D4SFP series optical video link provides transmission of eight

10-bit medium-haul quality digitally encoded video channels and four bi-directional

data channels through a selectable small form factor pluggable module (SFP).

See instructions included with SFP for installation of selected module.

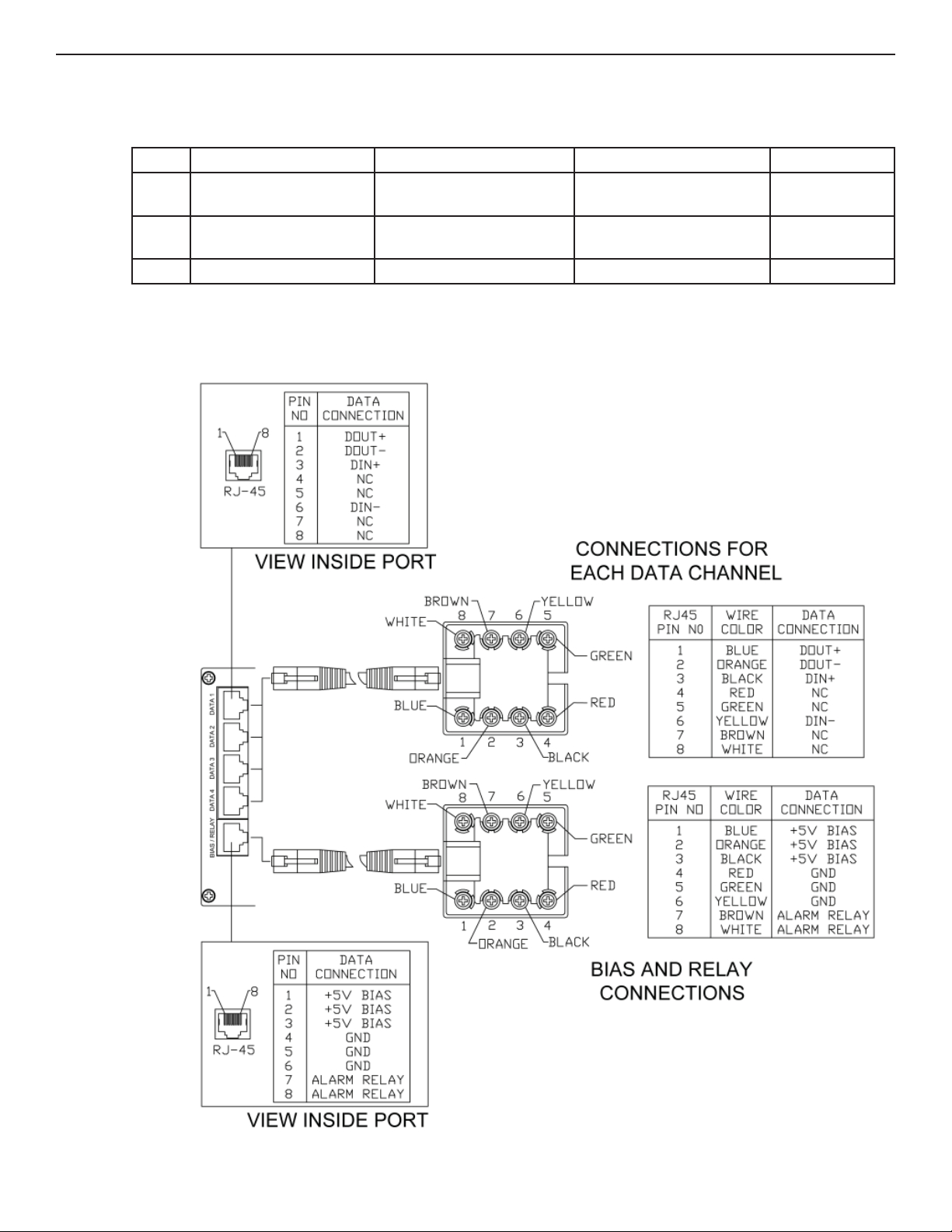

Figure 5 on Page 3 illustrates the data electrical connections from the RJ45 Data

connectors and also the connection cable and “breakout box” connections.

Figure 7 on Page 4 illustrates the specific data connections for RS232, 2-Wire

RS485 and RS422/4-Wire RS485. (This last data connection also applies to

Manchester & Bi-Phase data transmission.)

Each data channel is configured for the electrical interface by means of the

“DATA SELECT” switch on the front panel. Figure 6 on Page 4 illustrates the

switch settings to set the type of data for each channel.

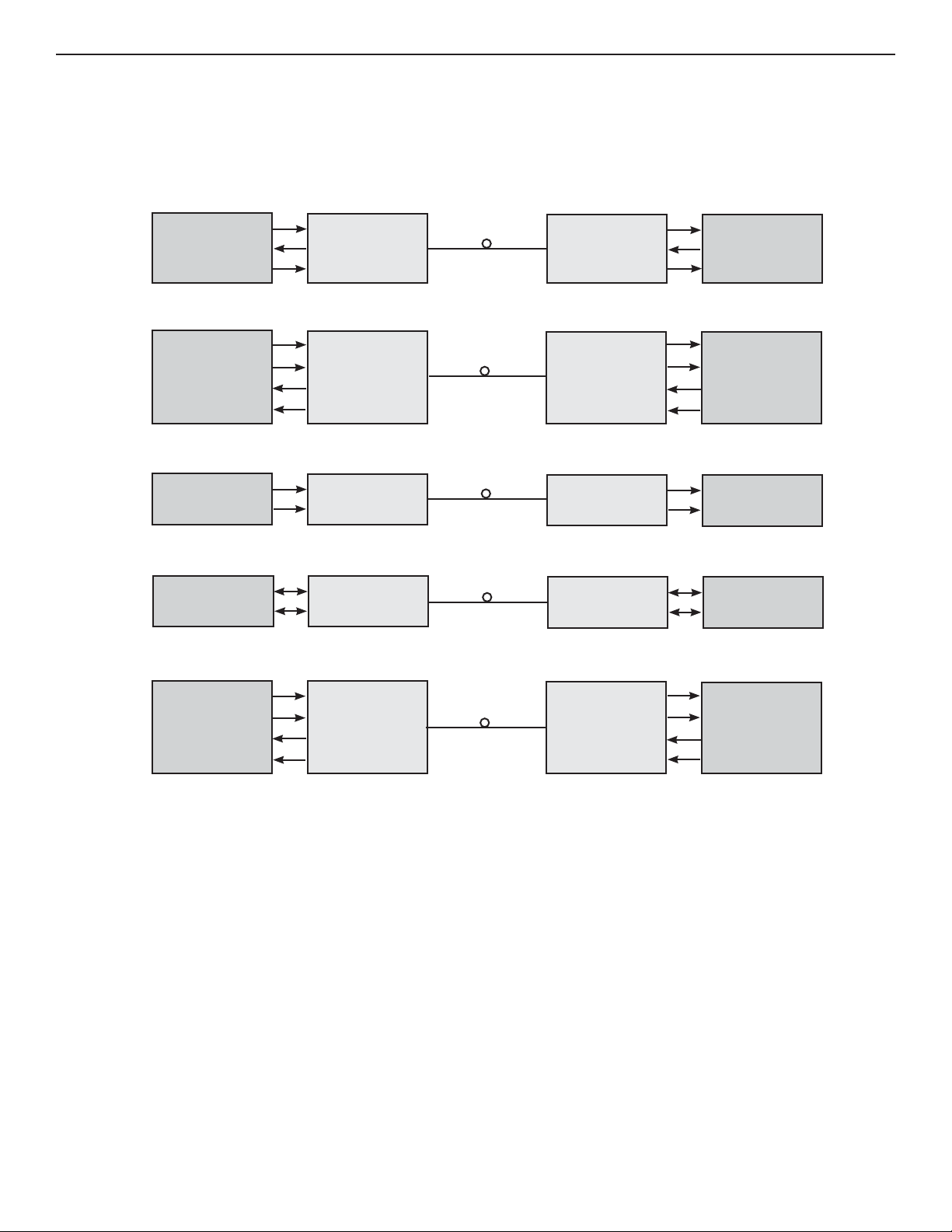

Figure 8 on Page 5 illustrates the electrical connections between the

“Customer Equipment” and the FVT80D4SFP and FVR80D4SFP.

Bi-color (Red/Green) LED indicators are provided for confirming operating

status. See Figure 4 on Page 3 for LED indication explanations.

These units are interchangeable between stand-alone or card mount

configurations. See Figure A on Page 6 for mounting instructions.

INS_FVT/FVR80D4SFP_REV–

05/07/10

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR80D4SFP

FIGURE 1 – FVT/FVR80D4SFP TRANSMITTER AND RECEIVER

OPTICAL FIBER DETERMINED BY
SELECTION OF SFP MODULE

BLACK

BLACK WITH WHITE STRIPE

FIGURE 2 – FVT80D4SFP TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

FIGURE 3 – FVR80D4SFP RECEIVER

NOTE: Remove Electrical Connector for Rack Mount Units

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR80D4SFP_REV–

05/07/10

PAGE 2
