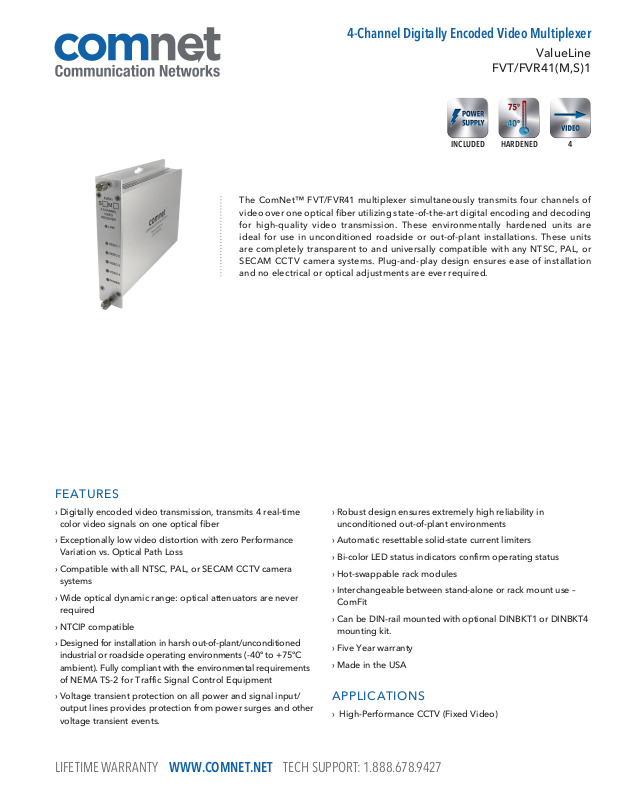

4-Channel Digitally Encoded Video Multiplexer
ValueLine
FVT/FVR41(M,S)1
HARDENEDINCLUDED

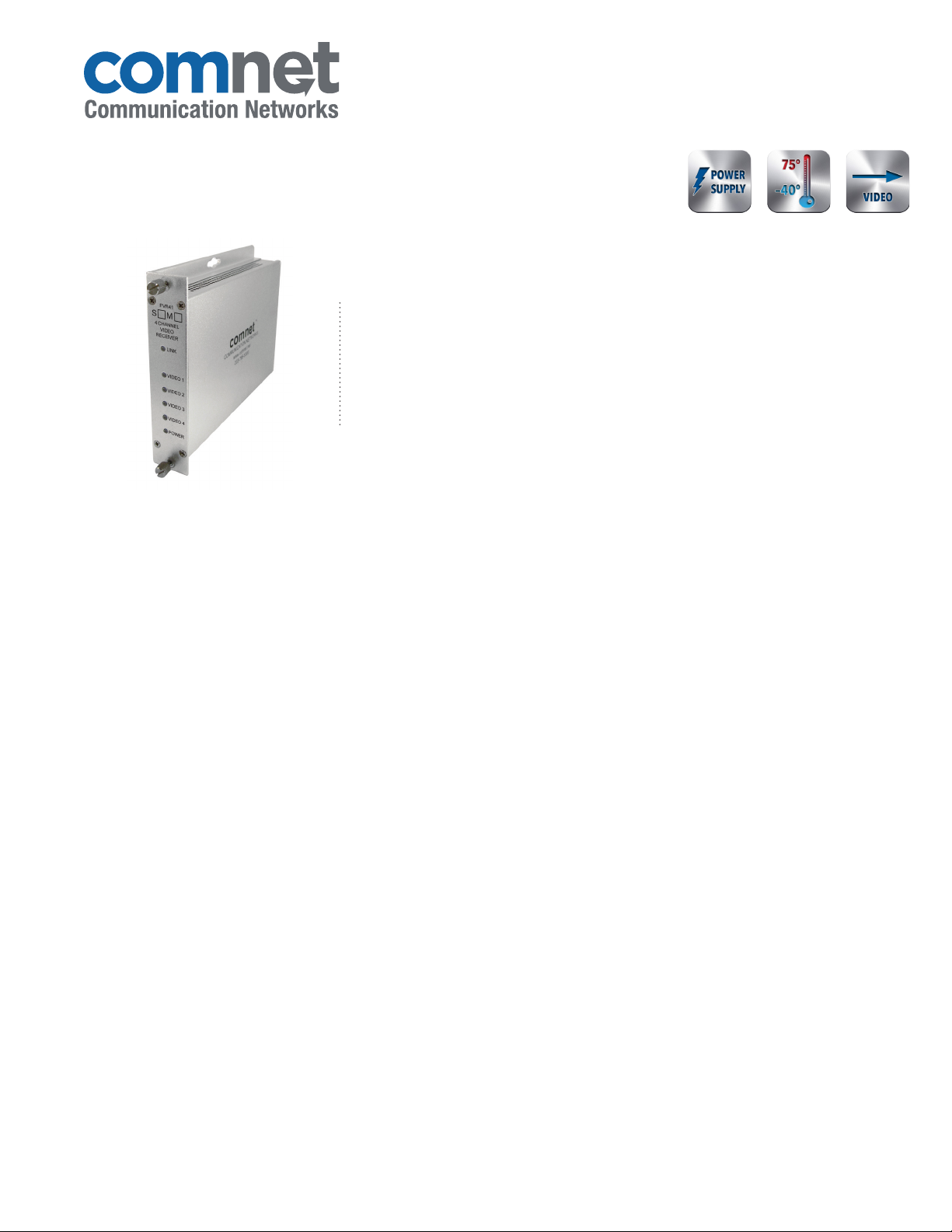

The ComNet™ FVT/FVR41 multiplexer simultaneously transmits four channels of
video over one optical fiber utilizing state-of-the-art digital encoding and decoding
for high-quality video transmission. These environmentally hardened units are
ideal for use in unconditioned roadside or out-of-plant installations. These units
are completely transparent to and universally compatible with any NTSC, PAL, or
SECAM CCTV camera systems. Plug-and-play design ensures ease of installation
and no electrical or optical adjustments are ever required.
4
FEATURES
› Digitally encoded video transmission, transmits 4 real-time
color video signals on one optical fiber
› Exceptionally low video distortion with zero Performance
Variation vs. Optical Path Loss
› Compatible with all NTSC, PAL, or SECAM CCTV camera
systems
› Wide optical dynamic range: optical attenuators are never
required
› NTCIP compatible
› Designed for installation in harsh out-of-plant/unconditioned
industrial or roadside operating environments (-40º to +75ºC
ambient). Fully compliant with the environmental requirements
of NEMA TS-2 for Traffic Signal Control Equipment
› Voltage transient protection on all power and signal input/
output lines provides protection from power surges and other
voltage transient events.
› Robust design ensures extremely high reliability in
unconditioned out-of-plant environments
› Automatic resettable solid-state current limiters
› Bi-color LED status indicators confirm operating status
› Hot-swappable rack modules
› Interchangeable between stand-alone or rack mount use –
ComFit
› Can be DIN-rail mounted with optional DINBKT1 or DINBKT4
mounting kit.
› Five Year warranty
› Made in the USA
APPLICATIONS
› High-Performance CCTV (Fixed Video)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
ValueLine
FVT/FVR41(M,S)1
SPECIFICATIONS
4-Channel Digitally Encoded Video Multiplexer
Video
Video Input 1 volt pk-pk (75 ohms)
Overload >1.5 V pk-pk
# Input/Output Channels 4
Bandwidth (minimum) 10 Hz - 6.5 MHz
Differential Gain <4%
Differen tial Phase <0.7˚
Tilt <1%
Signal-to-Noise Ratio (SNR) 57 dB Typical
Max. RG-59 COAX Distance 100m (300 ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
Wavelength 1310 nm, Multimode and Single Mode
Number of Fibers 1
Connectors
Optical ST
Power Terminal Block
Video BNC (Gold Plated Center-Pin)
Power
Surface Mount 8 to 15 VDC
Power Consumption 3 W
Rack Mount From Rack
Electrical & Mechanical
Number of Rack Slots 1
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm)
Shipping Weight 2 lb./0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)¹
LED Indicators › Video Present › Optical Carrier Detect › Power
ORDERING INFORMATION
Fibers
Part Number Description
FV T41M1 4-Channel Video Transmitter (1310 nm)
FV R41M1 4-Channel Video Receiver (1310 nm)
FV T41S1 4-Channel Video Transmitter (1310 nm)
FV R41S1 4-Channel Video Receiver (1310 nm)
Accessories DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Options [2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBKT4)
Required Fiber
1 Multimode 62.5/125µm 16 dB 2 km (1.2 miles) 1
1 Single Mode 9/125µm 23 dB 69 km (43 miles) 1
Optical PWR
Budget Max Distance²
# Rack
Slots
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
[2] Distance may be limited by optical dispersion.
TYPICAL APPLICATION
V V
4 4
FVT41S1
1 Fiber
3 CORPORATE DRIVE
8 TURNBERRY PARK ROAD
|
DANBURY, CONNECTICUT 06810
FVT41S1
|
GILDERSOME
|
MORLEY
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
OPTICAL FIBER
VIDEO (Coax)
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
|
