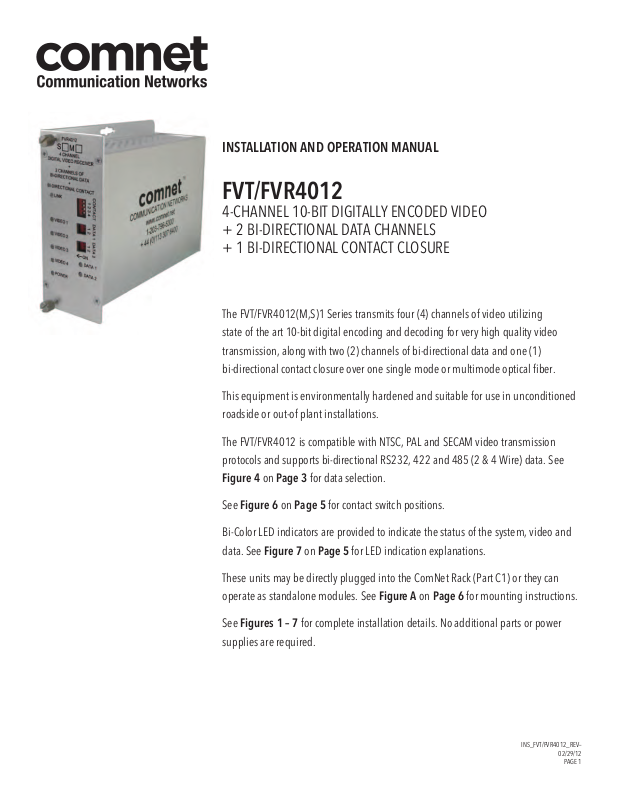

INSTALLATION AND OPERATION MANUAL

FVT/FVR4012

4-CHANNEL 10-BIT DIGITALLY ENCODED VIDEO
+ 2 BI-DIRECTIONAL DATA CHANNELS
+ 1 BI-DIRECTIONAL CONTACT CLOSURE

The FVT/FVR4012(M,S)1 Series transmits four (4) channels of video utilizing
state of the art 10-bit digital encoding and decoding for very high quality video
transmission, along with two (2) channels of bi-directional data and one (1)
bi-directional contact closure over one single mode or multimode optical fiber.

This equipment is environmentally hardened and suitable for use in unconditioned
roadside or out-of plant installations.

The FVT/FVR4012 is compatible with NTSC, PAL and SECAM video transmission

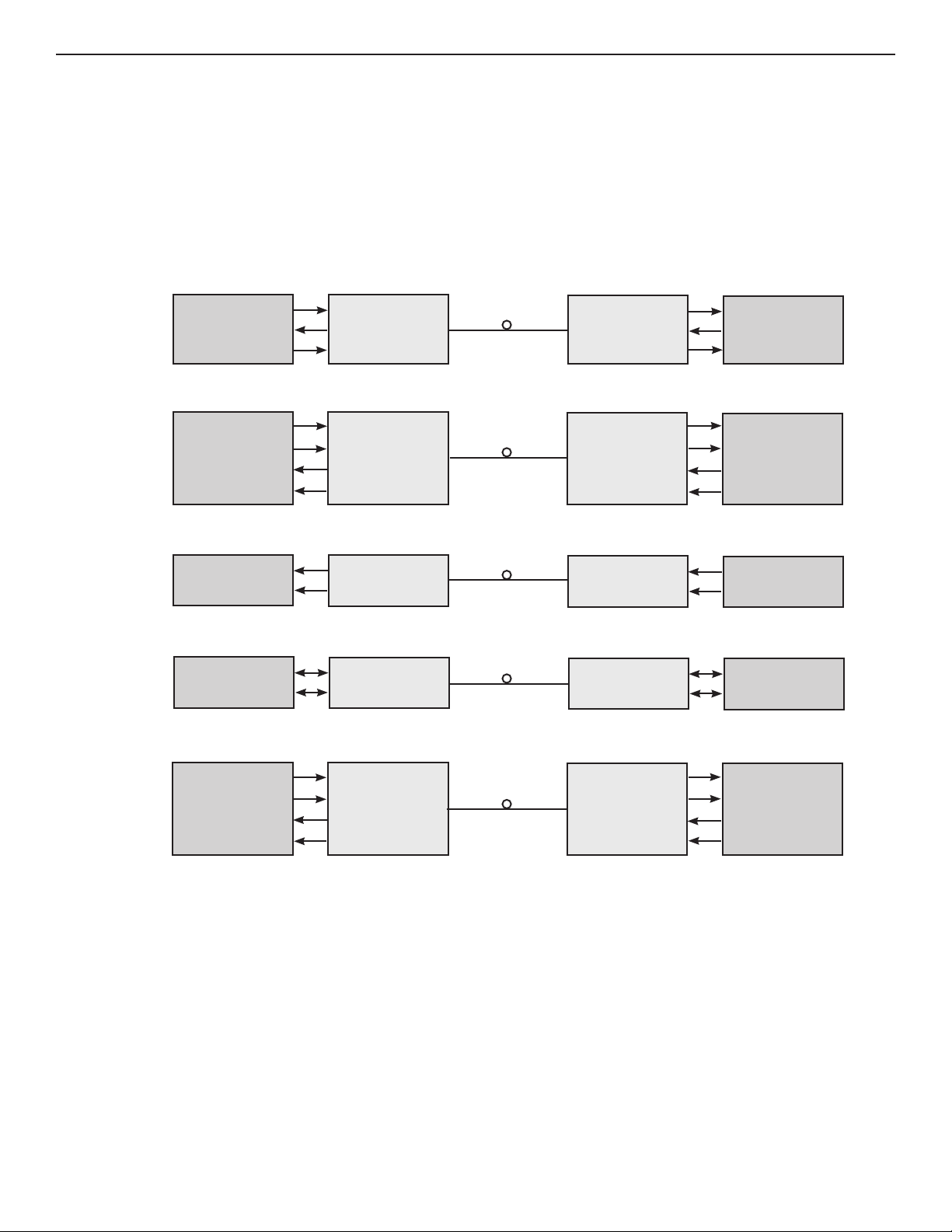

protocols and supports bi-directional RS232, 422 and 485 (2 & 4 Wire) data. See
Figure 4 on Page 3 for data selection.

See Figure 6 on Page 5 for contact switch positions.

Bi-Color LED indicators are provided to indicate the status of the system, video and
data. See Figure 7 on Page 5 for LED indication explanations.

These units may be directly plugged into the ComNet Rack (Part C1) or they can
operate as standalone modules. See Figure A on Page 6 for mounting instructions.

See Figures 1 – 7 for complete installation details. No additional parts or power
supplies are required.

INS_FVT/FVR4012_REV–

02/29/12

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR4012

FIGURE 1 – FVT/FVR4012 TRANSMITTER AND RECEIVER

MULTIMODE OR SINGLE MODE
OPTICAL FIBER

BLACK

BLACK WITH WHITE STRIPE
Power Supply:
Surface Mount: 9-12 VDC @ 1A.
Rack Mount: From Rack

FIGURE 2 – FVT4012 TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

NOTE: Remove Electrical
Connector for Rack Mount Units

FIGURE 3 – FVR4012 RECEIVER

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR4012_REV–

02/29/12

PAGE 2
