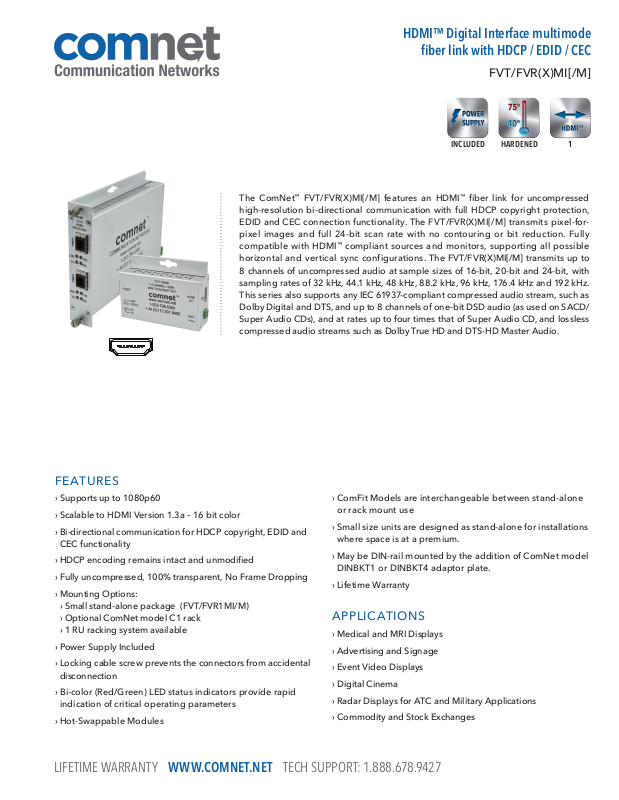

Comnet FVT2MI Specsheet

HDMI™ Digital Interface multimode

FIBER

HDMI

OUT

TM

FVT1MI/M

1CHANNEL HDMI

MINI TRANSMITTER

fiber link with HDCP / EDID / CEC

FVT/FVR(X)MI[/M]

HARDENEDINCLUDED

The ComNet™ FVT/FVR(X)MI[/M] features an HDMI™ fiber link for uncompressed
high-resolution bi-directional communication with full HDCP copyright protection,
EDID and CEC connection functionality. The FVT/FVR(X)MI[/M] transmits pixel-for­pixel images and full 24-bit scan rate with no contouring or bit reduction. Fully
compatible with HDMI™ compliant sources and monitors, supporting all possible
horizontal and vertical sync configurations. The FV T/FVR(X)MI[/M] transmits up to
8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with
sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz.
This series also supports any IEC 61937-compliant compressed audio stream, such as
Dolby Digital and DTS, and up to 8 channels of one-bit DSD audio (as used on SACD/
Super Audio CDs), and at rates up to four times that of Super Audio CD, and lossless
compressed audio streams such as Dolby True HD and DTS-HD Master Audio.

1

FEATURES

› Supports up to 1080p60

› Scalable to HDMI Version 1.3a – 16 bit color

› Bi-directional communication for HDCP copyright, EDID and

CEC functionality

› HDCP encoding remains intact and unmodified

› Fully uncompressed, 100% transparent, No Frame Dropping

› Mounting Options:

› Small stand-alone package (FVT/FVR1MI/M)
› Optional ComNet model C1 rack
› 1 RU racking system available

› Power Supply Included

› Locking cable screw prevents the connectors from accidental

disconnection

› Bi-color (Red/Green) LED status indicators provide rapid

indication of critical operating parameters

› Hot-Swappable Modules

› ComFit Models are interchangeable between stand-alone

or rack mount use

› Small size units are designed as stand-alone for installations

where space is at a premium.

› May be DIN-rail mounted by the addition of ComNet model

DINBKT1 or DINBKT4 adaptor plate.

› Lifetime Warranty

APPLICATIONS

› Medical and MRI Displays

› Advertising and Signage

› Event Video Displays

› Digital Cinema

› Radar Displays for ATC and Military Applications

› Commodity and Stock Exchanges

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

FVT/FVR(X)MI[/M]

SPECIFICATIONS

HDMI™ Digital Interface multimode fiber link with HDCP / EDID / CEC

HDMI™

Video Modes 3.5Gbps: 1920 × 1080p @ 60Hz up to 500m

1.65Gbps: 1920 × 1080p @ 30Hz up to 1000m
Scalable to HDMI Version 1.3a – 16 bit color

Connectors

Optical ST
Power Terminal Block
HDMI™ Type A

Optical

Fiber Multimode
Wavelengths 778, 800, 825, 850, 911, 980 nm
Power 0 dBm per lane typical
Distance
(assumes no skew limit) ≤ 1080p30 1080p60
OM1 (160 MHz/km) 200 m 100 m
OM2 (500 MHz/km) 400 m 200 m
OM3 (1000 MHz/km) 1000 m 500 m

Electrical & Mechanical

Mini Long
Surface Mount Power 8 to 15 VDC @ 0.125 A
Size (L×W×H) 4.08 × 3.74 × 1.1 in (10.36 × 9.5 × 2.8 cm)
Shipping Weight <1 lb./0.45 kg
ComFit
Power
Surface Mount Power 8 to 15 VDC @ 0.125 A (1CH) @ 0.250 A (2CH)
Rack Mount Power From Rack
Size (L×W×H) 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm)
Shipping Weight <2 lb / 0.9 kg
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard

Environmental

MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)¹

LED Indicators: › Link › Source Cable › Source ON › Sink ON

ORDERING INFORMATION

Fibers

Part Number Description

FVT1MI HDMI™ Transmitter - Single Channel 1 14 dB min., 16 dB typ. 1000m (3280 ft) 1

FV T2MI HDMI™ Transmitter - Dual Channel 2 14 dB min., 16 dB typ. 1000m (3280 ft) 11

FV R1MI HDMI™ Receiver - Single Channel 1 14 dB min., 16 dB typ. 1000m (3280 ft)

FVR 2MI HDMI™ Receiver - Dual Channel 2 14 dB min., 16 dB typ. 1000m (3280 ft) 1

FVTRMI HDMI™ Transceiver - 1 Channel Transmitter, 1 Channel Receiver 2 14 dB min., 16 dB typ. 1000m (3280 ft) 1

FVT1MI/M Mini HDMI™ Transmitter - Single Channel 1 14 dB min., 16 dB typ. 1000m (3280 ft) NA

FV R1MI/M Mini HDMI™ Receiver - Single Channel 1 14 dB min., 16 dB typ. 1000m (3280 ft) NA

Accessories
Options

DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
[1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)

Required

Optical Pwr
Budget

Maximum
Distance²

# Rack
Slots

[2] Maximum distance requires OM3 grade fiber running at resolutions of 1080p30 or lower at 1.65 Gbps.
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J. In a continuing effort to improve
and advance technology, product specifications are subject to change without notice.

RACK OPTIONS

C1

19 in wide × 4 RU high, 14 slot
with internal power supply

C3

19 in wide × 1 RU high, 3 slot,
for use with external power supply

TYPICAL APPLICATION

Hi Def

Video

Transmitter
