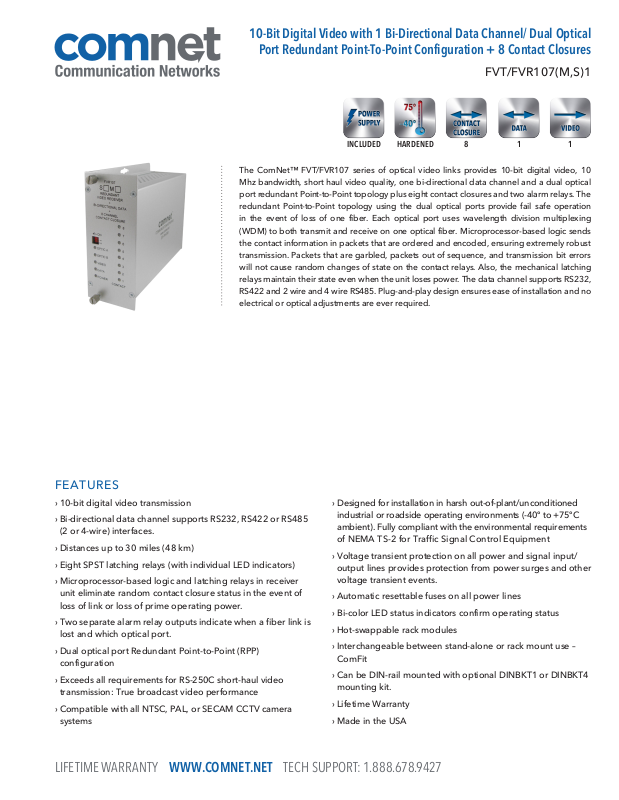

Comnet FVT107M1, FVT107S1 Specsheet
10-Bit Digital Video with 1 Bi-Directional Data Channel/ Dual Optical
Port Redundant Point-To-Point Configuration + 8 Contact Closures
FVT/FVR107(M,S)1
HARDENEDINCLUDED
The ComNet™ FVT/FVR107 series of optical video links provides 10-bit digital video, 10
Mhz bandwidth, short haul video quality, one bi-directional data channel and a dual optical
port redundant Point-to-Point topology plus eight contact closures and two alarm relays. The
redundant Point-to-Point topology using the dual optical ports provide fail safe operation
in the event of loss of one fiber. Each optical port uses wavelength division multiplexing
(WDM) to both transmit and receive on one optical fiber. Microprocessor-based logic sends
the contact information in packets that are ordered and encoded, ensuring extremely robust
transmission. Packets that are garbled, packets out of sequence, and transmission bit errors
will not cause random changes of state on the contact relays. Also, the mechanical latching
relays maintain their state even when the unit loses power. The data channel supports RS232,
RS422 and 2 wire and 4 wire RS485. Plug-and-play design ensures ease of installation and no
electrical or optical adjustments are ever required.
8 1 1
FEATURES
› 10-bit digital video transmission
› Bi-directional data channel supports RS232, RS422 or RS485
(2 or 4-wire) interfaces.
› Distances up to 30 miles (48 km)
› Eight SPST latching relays (with individual LED indicators)
› Microprocessor-based logic and latching relays in receiver
unit eliminate random contact closure status in the event of
loss of link or loss of prime operating power.
› Two separate alarm relay outputs indicate when a fiber link is
lost and which optical port.
› Dual optical port Redundant Point-to-Point (RPP)
configuration
› Exceeds all requirements for RS-250C short-haul video
transmission: True broadcast video performance
› Compatible with all NTSC, PAL, or SECAM CCTV camera
systems
› Designed for installation in harsh out-of-plant/unconditioned
industrial or roadside operating environments (-40º to +75ºC
ambient). Fully compliant with the environmental requirements
of NEMA TS-2 for Traffic Signal Control Equipment
› Voltage transient protection on all power and signal input/
output lines provides protection from power surges and other
voltage transient events.
› Automatic resettable fuses on all power lines
› Bi-color LED status indicators confirm operating status
› Hot-swappable rack modules
› Interchangeable between stand-alone or rack mount use –
ComFit
› Can be DIN-rail mounted with optional DINBKT1 or DINBKT4
mounting kit.
› Lifetime Warranty
› Made in the USA
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR107(M,S)1
SPECIFICATIONS
10-Bit Digital Video with 1 Bi-Directional Data Channel/ Dual Optical
Port Redundant Point-To-Point Configuration + 8 Contact Closures
Video
Video Input 1 volt pk-pk (75 ohms)
Overload >1.5V pk-pk
Bandwidth 5 Hz - 10 MHz
Differential Gain <2%
Differential Phase <0.7˚
Tilt <1%
Signal-to-Noise Ratio (SNR) 67 dB @ Maximum Optical Loss Budget
Max. RG-59 COAX Distance 100m (300ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
Data
Data Interface RS232, RS422 and RS485 (2W/4W), UTC (Up-the-
Coax)
Data Format NRZ, NRZI Manchester, Bi-phase and Sensornet
Data Rate DC-250 Kbps (NRZ)
Contact Closure
Input/Output Channels 8
Input Contacts Normally Open
Output Contacts 1.0A @ 30 VDC, Normally Open
Response Time 25 msec maximum
Fiber Alarm Relays
Contact Rating 0.10A @ 30VDC, Normally Closed
Fiber Loss Port A, Port B
Port A or Port B (System Fault FVR Only)
Wavelength 1310/1550 nm, MM and SM
Number of Fibers 2
Optical Emitter Laser Diode
LED Indicators › Link A and B › Video › Data › Power
› Contact Status (x8)
Connectors
Optical 2 ST connectors for the
Dual Port configuration
Power Terminal Block
Video BNC
Data Terminal Block
Contact Closure Terminal Block
Power
Operating Votlage Range 8 to 15 VDC
Power Consumption 3W
Rack Mount From Rack
Electrical & Mechanical
Number of Rack Slots 2
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size (in./cm) (L×W×H) 6.1 × 5.3 × 2.2 in (15.5 × 13.5 × 5.6 cm)
Shipping Weight <2 lb / 0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)¹
ORDERING INFORMATION
Fibers
Part Number Description
FV T107M1 Video Transmitter/Data Transceiver
FVR107M1 Video Receiver/Data Transceiver
FV T107S1 Video Transmitter/Data Transceiver
FVR107S1 Video Receiver/Data Transceiver
Accessories 9 Volt DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Options [1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)
NOTE: This product requires a fiber installation with a minimum 35 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice. [2] Distance may be limited
by optical dispersion.
Required Fiber
2
2
Multimode
62. 5/125µm
Single Mode
9/125µm
Optical PWR
Budget Max. Distance²
16 dB 3 km (2 mi) 2
16 dB 48 km (30 miles) 2
# Rack
Slots
TYPICAL APPLICATION
V
C
8 8
D D
FVT107S1
2 Fibers
FVR107S1
V
C
OPTICAL FIBER
VIDEO (Coax)
