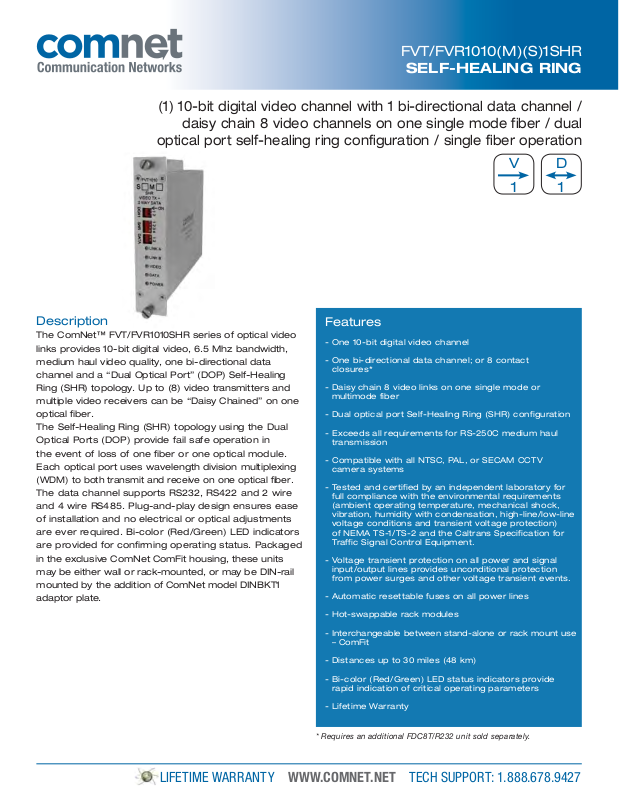

Comnet FVT1010S1SHR Specsheet
FVT/FVR1010(M)(S)1SHR
SELF-HEALING RING
(1) 10-bit digital video channel with 1 bi-directional data channel /
daisy chain 8 video channels on one single mode fiber / dual
optical port self-healing ring configuration / single fiber operation
Description
The ComNet™ FVT/FVR1010SHR series of optical video
links provides 10-bit digital video, 6.5 Mhz bandwidth,
medium haul video quality, one bi-directional data
channel and a “Dual Optical Port” (DOP) Self-Healing
Ring (SHR) topology. Up to (8) video transmitters and
multiple video receivers can be “Daisy Chained” on one
optical fiber.
The Self-Healing Ring (SHR) topology using the Dual
Optical Ports (DOP) provide fail safe operation in
the event of loss of one fiber or one optical module.
Each optical port uses wavelength division multiplexing
(WDM) to both transmit and receive on one optical fiber.
The data channel supports RS232, RS422 and 2 wire
and 4 wire RS485. Plug-and-play design ensures ease
of installation and no electrical or optical adjustments
are ever required. Bi-color (Red/Green) LED indicators
are provided for confirming operating status. Packaged
in the exclusive ComNet ComFit housing, these units
may be either wall or rack-mounted, or may be DIN-rail
mounted by the addition of ComNet model DINBKT1
adaptor plate.
V
1
D
1
Features
- One 10-bit digital video channel
- One bi-directional data channel; or 8 contact
closures*
- Daisy chain 8 video links on one single mode or
multimode fiber
- Dual optical port Self-Healing Ring (SHR) configuration
- Exceeds all requirements for RS-250C medium haul
transmission
- Compatible with all NTSC, PAL, or SECAM CCT V
camera systems
- Tested and certified by an independent laboratory for
full compliance with the environmental requirements
(ambient operating temperature, mechanical shock,
vibration, humidity with condensation, high-line/low-line
voltage conditions and transient voltage protection)
of NEMA TS-1/TS-2 and the Caltrans Specification for
Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal
input/output lines provides unconditional protection
from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use
– ComFit
- Distances up to 30 miles (48 km)
- Bi-color (Red/Green) LED status indicators provide
rapid indication of critical operating parameters
- Lifetime Warranty
* Requires an additional FDC8T/R232 unit sold separately.
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR1010(M)(S)1SHR
SELF-HEALING RING
specifications
(1) 10-bit digital video channel with 1 bi-directional data channel
/ daisy chain 8 video channels on one single mode fiber / dual
optical port self-healing ring configuration / single fiber operation
VIDEO
Video Input: 1 volt pk-pk (75 ohms)
Overload: >1.5V pk-pk
Bandwidth: 5 Hz - 6.5 MHz
Differential Gain: <2%
Differential Phase: < 0.7º
Tilt: <1%
Signal-to-Noise Ratio (SNR): 67 dB @ Maximum Optical Loss Budget
Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
DATA
Data Interface: RS232, RS422 and RS485 (2W/4W)
Data Format: NRZ, NRZI, Manchester, Bi-phase and Sensornet
Data Rate: DC-250 Kbps (NRZ)
WAVELENGTH 1310/1550 nm, MM and SM
NUMBER OF FIBERS 1 in/1 out
OPTICAL EMITTER Laser Diode
LED INDICATORS - Fiber Status - Video Sync Presence
- Received Data - Transmitted Data
- Power
CONNECTORS
Optical: 2 ST connectors for the Dual Port
configuration (Required for Daisy Chain
Self-Healing Ring operation)
Power: Terminal Block
Video: BNC (Gold Plated Center-Pin)
Data: Terminal Block
ELECTRICAL & MECHANICAL
Power:
Surface Mount: 8-15 VDC @ 3W
Rack Mount: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State
Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm) (L×W×H) 6.1 × 5.3 × 1.1 in.,
(15.5 × 13.5 × 2.8 cm)
Shipping Weight: <2 lb./0.9 kg
ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: -40˚ C to +75˚ C
Storage Temp: -40˚ C to +85˚ C
Relative Humidity: 0% to 95% (non-condensing)
† May be extended to condensation conditions by adding suffix ‘/C’
to model number for conformal coating.
†
PART
NUMBER
FVT1010M1SHR
FVR1010M1SHR
FVT1010S1SHR
FVR1010S1SHR
Accessories
Options
FIBERS
DESCRIPTION FIBER
Video Transmitter/Data Transceiver
Video Receiver/Data Transceiver
Video Transmitter/Data Transceiver
Video Receiver/Data Transceiver
9 Volt DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Add ‘/C’ for Conformally Coated Circuit Boards (Extra charge, consult factory)
REQUIRED
1 In/1 Out
1 In/1 Out 48 km (30 miles)16 dB
Multimode
62.5/125µm
Single Mode
9/125µm
OPTICAL
PWR BUDGET
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1)
NOTE: This product requires a fiber installation with a minimum 35 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
‡
Distance may be limited by optical dispersion.
MAX.
DISTANCE
2 km (1.2 miles)16 dB
MADE IN THE
USA
‡
