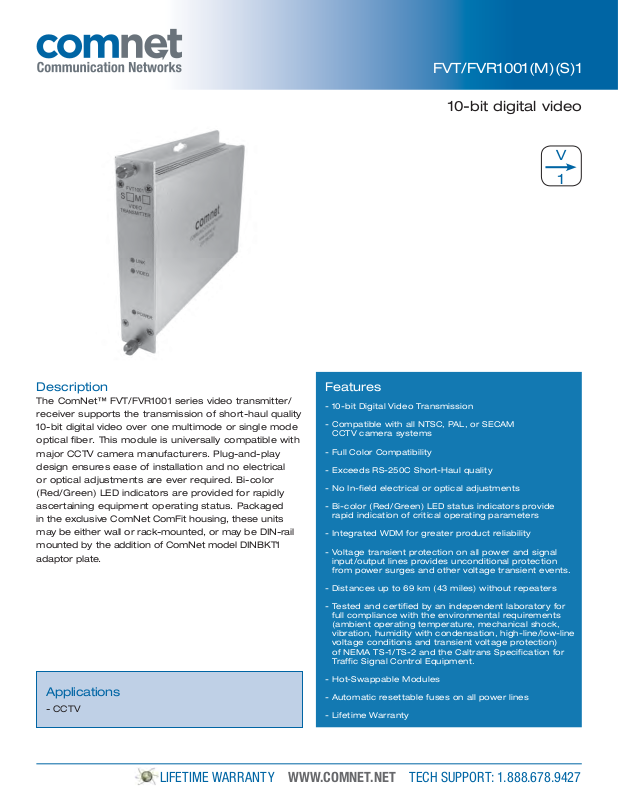

Comnet FVT1001S1 Specsheet
FVT/FVR1001(M)(S)1
10-bit digital video
V
1
Description
The ComNet™ FVT/FVR1001 series video transmitter/
receiver supports the transmission of short-haul quality
10-bit digital video over one multimode or single mode
optical fiber. This module is universally compatible with
major CCTV camera manufacturers. Plug-and-play
design ensures ease of installation and no electrical
or optical adjustments are ever required. Bi-color
(Red/Green) LED indicators are provided for rapidly
ascertaining equipment operating status. Packaged
in the exclusive ComNet ComFit housing, these units
may be either wall or rack-mounted, or may be DIN-rail
mounted by the addition of ComNet model DINBKT1
adaptor plate.
Applications
- CCTV
Features
- 10-bit Digital Video Transmission
- Compatible with all NTSC, PAL, or SECAM
CCTV camera systems
- Full Color Compatibility
- Exceeds RS-250C Short-Haul quality
- No In-field electrical or optical adjustments
- Bi-color (Red/Green) LED status indicators provide
rapid indication of critical operating parameters
- Integrated WDM for greater product reliability
- Voltage transient protection on all power and signal
input/output lines provides unconditional protection
from power surges and other voltage transient events.
- Distances up to 69 km (43 miles) without repeaters
- Tested and certified by an independent laboratory for
full compliance with the environmental requirements
(ambient operating temperature, mechanical shock,
vibration, humidity with condensation, high-line/low-line
voltage conditions and transient voltage protection)
of NEMA TS-1/TS-2 and the Caltrans Specification for
Traffic Signal Control Equipment.
- Hot-Swappable Modules
- Automatic resettable fuses on all power lines
- Lifetime Warranty
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR1001(M)(S)1
specifications
10-bit digital video
VIDEO
Video Input: 1V pk-pk (75 ohms)
Overload: >1.5V pk-pk
Bandwidth: 5 Hz - 10 MHz
Differential Gain: <2%
Differential Phase: <0.7˚
Tilt: <1%
Signal-to-Noise Ratio (SNR): >67 dB @ Maximum Optical Loss
Budget
Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic
Module to maintain 6Mhz Bandwidth
WAVELENGTH 1310 nm, Multimode and Single Mode
NUMBER OF FIBERS 1
LED INDICATORS - Optical - Video - Power
CONNECTORS
Optical: ST
Power: Terminal Block
Video: BNC (Gold Plated Center-Pin)
ELECTRICAL & MECHANICAL
Power:
Surface Mount: 8-15 VDC @ 2 W
Rack Mount: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State
Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm) (L×W×H) 6.1 × 5.3 × 1.1 in.,
(15.5 × 13.5 × 2.8 cm)
Shipping Weight: <2 lb./0.9 kg
ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: -40˚ C to +75˚ C
Storage Temp: -40˚ C to +85˚ C
Relative Humidity: 0% to 95% (non-condensing)†
† May be extended to condensation conditions by adding suffix ‘/C’ to model number
for conformal coating.
MADE IN THE
USA
PART
NUMBER
FVT1001M1
FVR1001M1
FVT1001S1
FVR1001S1
Accessories
Options
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
‡ Distance may be limited by optical dispersion.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
Video Transmitter (1310 nm)
Video Receiver (1310 nm)
Video Transmitter (1310 nm)
Video Receiver (1310 nm)
9 Volt DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Add ‘/C’ for Conformally Coated Circuit Boards (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1)
V V
FVT1001S1
FIBERS
REQUIREDDESCRIPTION FIBER
1
1
1 Fiber
9/125µm SM
Up to 69 km
(43 miles)
Multimode
62.5/125µm
Single Mode
9/125µm
FVR1001S1
OPTICAL
PWR BUDGET
23 dB
OPTICAL FIBER
VIDEO (Coax)
MAX.
DISTANCE
3 km (2 miles)16 dB
# RACK
‡
SLOTS
1
169 km (43 miles)
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET
06.15.10© 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
