INSTALLATION AND OPERATION MANUAL

FVT/FVRXA4C1(M)(S)

4-CHANNEL BI-DIRECTIONAL AUDIO WITH
1 BI-DIRECTIONAL CONTACT CLOSURE

The FVT/FVRXA4C1 series audio multiplexer provides the transmission of

four bi-directional audio signals and one bi-directional optical isolated output

contact closure over one multimode or single mode optical fiber. The modules

use 24-bit 96kHz sample rate digital encoding for superior transmission of

balanced line-level audio. Plug-and-play design ensures ease of installation

and no electrical or optical adjustments are required.

Bi-color (Red/Green) LED indicators confirm power and link operating status.

See Figure 6 on Page 3 for LED indicator explanations.

The FVT/FVRXA4C1(M)(S) may be directly plugged into the ComNet Rack (Part

C1) or operated as a standalone module powered by the 9 Volt DC Plug-in

Power Supply also provided with the module. See Figure A on Page 4 for

mounting instructions.

See Figures 1 – 6 for complete installation details.

INS_FVTFVRXA4C1_REV1

05/11/10

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVRXA4C1(M)(S)

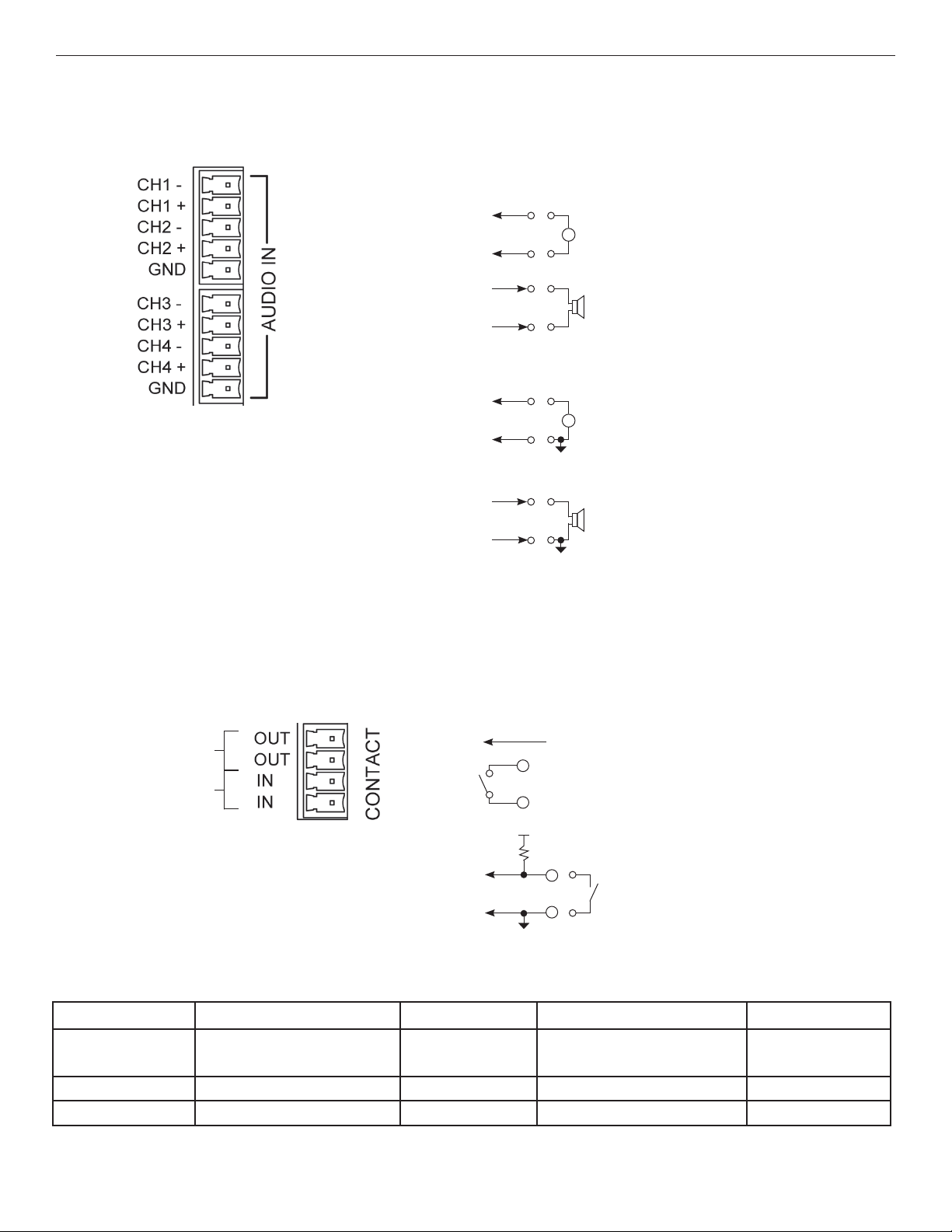

FIGURE 1 – FVT/FVRXA4C1(M)(S) TRANSMITTER and RECEIVER

MULTIMODE OR SINGLE MODE
OPTICAL FIBER

BLACK
BLACK WITH WHITE STRIPE

Power Supply:
Surface Mount: 8–15 VDC @ 2W
Rack Mount: From Rack

FIGURE 2 – FVTXA4C1 TRANSMITTER FIGURE 3 – FVRXA4C1 RECEIVER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

TECH SUPPORT: 1.888.678.9427

NOTE: Remove Electrical Connector for Rack Mount Units
