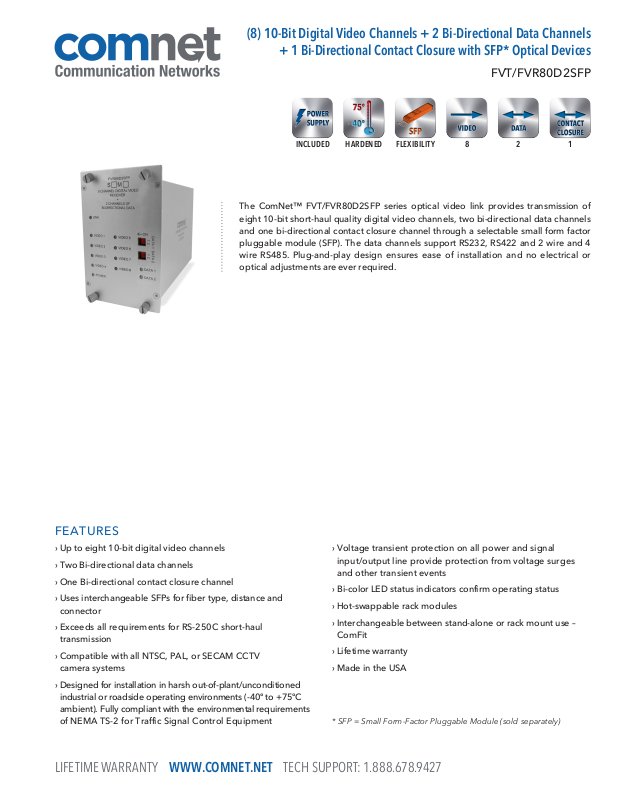

Comnet FVR80D2SFP Specsheet
(8) 10-Bit Digital Video Channels + 2 Bi-Directional Data Channels
+ 1 Bi-Directional Contact Closure with SFP* Optical Devices
FVT/FVR80D2SFP
HARDENEDINCLUDED 2 1
The ComNet™ FVT/FVR80D2SFP series optical video link provides transmission of
eight 10-bit short-haul quality digital video channels, two bi-directional data channels
and one bi-directional contact closure channel through a selectable small form factor
pluggable module (SFP). The data channels support RS232, RS422 and 2 wire and 4
wire RS485. Plug-and-play design ensures ease of installation and no electrical or
optical adjustments are ever required.
8FLEXIBILIT Y
FEATURES
› Up to eight 10-bit digital video channels
› Two Bi-directional data channels
› One Bi-directional contact closure channel
› Uses interchangeable SFPs for fiber type, distance and
connector
› Exceeds all requirements for RS-250C short-haul
transmission
› Compatible with all NTSC, PAL, or SECAM CCTV
camera systems
› Designed for installation in harsh out-of-plant/unconditioned
industrial or roadside operating environments (-40º to +75ºC
ambient). Fully compliant with the environmental requirements
of NEMA TS-2 for Traffic Signal Control Equipment
› Voltage transient protection on all power and signal
input/output line provide protection from voltage surges
and other transient events
› Bi-color LED status indicators confirm operating status
› Hot-swappable rack modules
› Interchangeable between stand-alone or rack mount use –
ComFit
› Lifetime warranty
› Made in the USA
* SFP = Small Form-Factor Pluggable Module (sold separately)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR80D2SFP
(8) 10-Bit Digital Video Channels + 2 Bi-Directional Data Channels
+ 1 Bi-Directional Contact Closure with SFP Optical Devices
SPECIFICATIONS
Video
Video Input 1 volt pk-pk (75 ohms)
Overload >1.5 V pk-pk
Bandwidth 5 Hz - 6.5 MHz
Differential Gain <2%
Differential Phase <0.7º
Tilt <1%
Signal-to-Noise Ratio (SNR) 67 dB @ Maximum Optical Loss Budget
Max. RG-59 COAX Distance 100 m (300 ft) Camera to Fiber Optic Module to
maintain 6 Mhz Bandwidth
Data
Data Interface RS232, RS422 and RS485 (2W/4W)
Data Format NRZ, NRZI, Manchester, Bi-Phase and Sensornet
Data Rate DC-250 Kbps (NRZ)
Contact Interface
Response Time 0.5 msec
Input Dry Contact Closure
Output SPST Relay, 0.5 A Contact Rating – normally open
Connectors
Optical SFP modules
Power Terminal Block
Video BNC
Data Terminal Block
Contact Closure Terminal Block
Wavelength SFP dependent
Number of Fibers¹ SFP dependent
Optical Emitter SFP dependent
Indicating LEDs › Fiber Status › Video Sync Presence
› Received Data › Transmit ted Data › Power
Power
Surface Mount 8 to 15 VDC
Power Consumption 5 W
Rack Mount From Rack
Electrical & Mechanical
Number of Rack Slots 3
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size (in./cm) (L×W×H) 6.1 × 5.3 × 2.2 in (15.5 × 13.5 × 5.6 cm)
Shipping Weight <2 lb / 0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)²
[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.
Single mode fiber needs to meet or exceed fiber standard ITU-T G.652
ORDERING INFORMATION
Part Number Description
FVT80D2SFP 8 Channel Video, 2 Channel Data / 1 Channel Contact
FVR80D2SFP 8 Channel Video, 2 Channel Data / 1 Channel Contact
Included Accessories DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Options [2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
User-selection of SFP modules (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
TYPICAL APPLICATION
V V
D
8
2
FVT80D2SFP
FVR80D2SFP
C
Optic Fiber Count and Type dependent on
user selection of SFP modules.
8
2
D
C
OPTICAL FIBER
COPPER CABLE
3 CORPORATE DRIVE
8 TURNBERRY PARK ROAD
|
DANBURY, CONNECTICUT 06810
|
GILDERSOME
|
MORLEY
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
|
INFO-EUROPE@COMNET.NET
|
INFO@COMNET.NET
09 Jan 2015© 2015 Communic ation Networ ks. All Right s Reserve d. “ComNet ” and the “ComNe t Logo” are regis tered tra demarks of Comm unication Net works.
