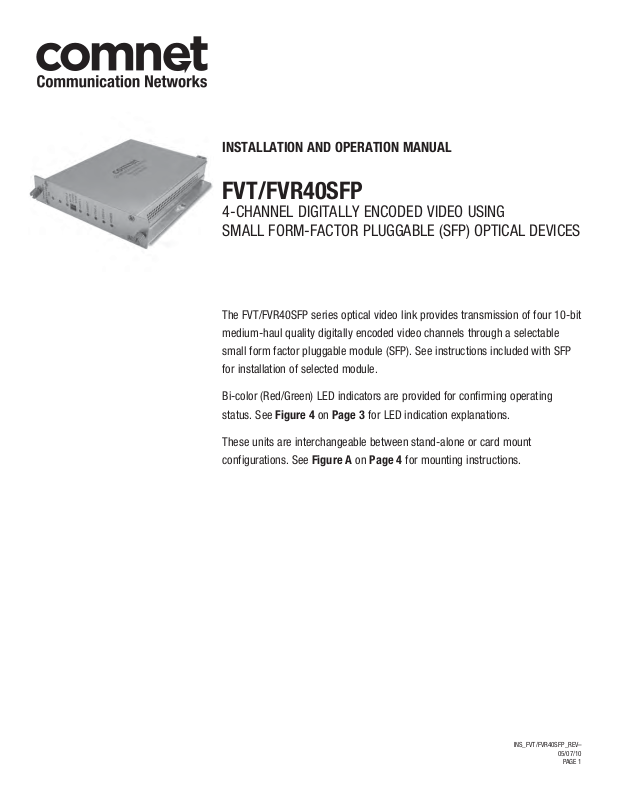

INSTALLATION AND OPERATION MANUAL

FVT/FVR40SFP

4-CHANNEL DIGITALLY ENCODED VIDEO USING
SMALL FORM-FACTOR PLUGGABLE (SFP) OPTICAL DEVICES

The FVT/FVR40SFP series optical video link provides transmission of four 10-bit

medium-haul quality digitally encoded video channels through a selectable

small form factor pluggable module (SFP). See instructions included with SFP

for installation of selected module.

Bi-color (Red/Green) LED indicators are provided for confirming operating

status. See Figure 4 on Page 3 for LED indication explanations.

These units are interchangeable between stand-alone or card mount

configurations. See Figure A on Page 4 for mounting instructions.

INS_FVT/FVR40SFP_REV–

05/07/10

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR40SFP

FIGURE 1 – FVT/FVR40SFP TRANSMITTER AND RECEIVER

OPTICAL FIBER DETERMINED BY
SELECTION OF SFP MODULE

BLACK

BLACK WITH WHITE STRIPE

FIGURE 2 – FVT40SFP TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

NOTE: Remove Electrical Connector for Rack Mount Units

FIGURE 3 – FVR40SFP RECEIVER

TECH SUPPORT: 1.888.678.9427
