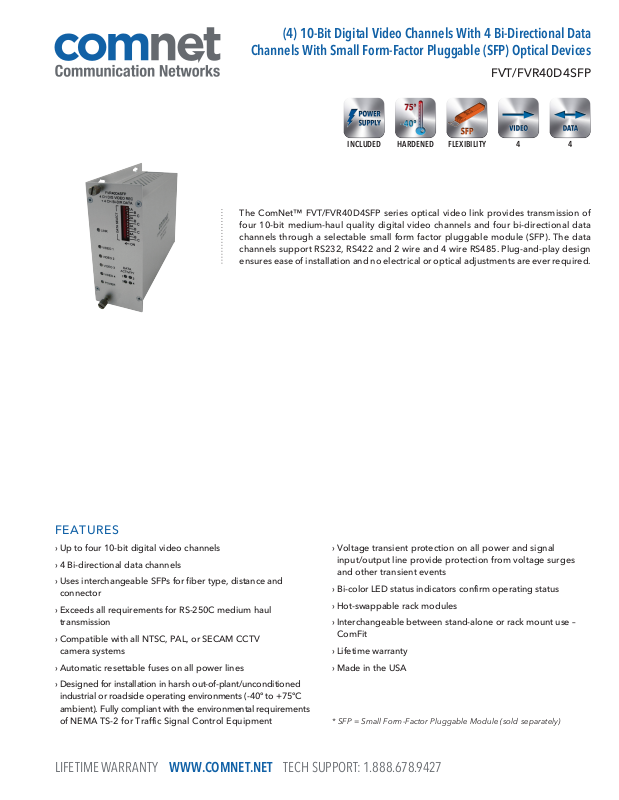

Comnet FVR40D4SFP Specsheet
(4) 10-Bit Digital Video Channels With 4 Bi-Directional Data
Channels With Small Form-Factor Pluggable (SFP) Optical Devices
FVT/FVR40D4SFP
HARDENEDINCLUDED 4
The ComNet™ FVT/FVR40D4SFP series optical video link provides transmission of
four 10-bit medium-haul quality digital video channels and four bi-directional data
channels through a selectable small form factor pluggable module (SFP). The data
channels support RS232, RS422 and 2 wire and 4 wire RS485. Plug-and-play design
ensures ease of installation and no electrical or optical adjustments are ever required.
4FLEXIBILIT Y
FEATURES
› Up to four 10-bit digital video channels
› 4 Bi-directional data channels
› Uses interchangeable SFPs for fiber type, distance and
connector
› Exceeds all requirements for RS-250C medium haul
transmission
› Compatible with all NTSC, PAL, or SECAM CCTV
camera systems
› Automatic resettable fuses on all power lines
› Designed for installation in harsh out-of-plant/unconditioned
industrial or roadside operating environments (-40º to +75ºC
ambient). Fully compliant with the environmental requirements
of NEMA TS-2 for Traffic Signal Control Equipment
› Voltage transient protection on all power and signal
input/output line provide protection from voltage surges
and other transient events
› Bi-color LED status indicators confirm operating status
› Hot-swappable rack modules
› Interchangeable between stand-alone or rack mount use –
ComFit
› Lifetime warranty
› Made in the USA
* SFP = Small Form-Factor Pluggable Module (sold separately)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR40D4SFP
SPECIFICATIONS
(4) 10-Bit Digital Video Channels With 4 Bi-Directional Data
Channels With Small Form-Factor Pluggable (SFP) Optical Devices
Video
Video Input 1 volt pk-pk (75 ohms)
Overload >1.5V pk-pk
Bandwidth (minimum) 5 Hz - 6.5 MHz
Differential Gain <2%
Differential Phase <0.7˚
Tilt <1%
Signal-to-Noise Ratio (SNR) 67 dB @ Maximum Optical Loss Budget
Max. RG-59 COAX Distance 100 m (300 ft) Camera to Fiber Optic Module to
maintain 6 Mhz Bandwidth
Data
Data Interface RS-232, RS-422 and RS-485 (2W/4W)
Data Format NRZ, NRZI, Manchester, Bi-phase and Sensornet
Data Rate DC-250 Kbps (NRZ)
Wavelength SFP dependent
Number of Fibers SFP dependent
Optical Emitter SFP dependent
LED Indicators › Fiber Status › Video Sync Presence
› Received Data › Transmitted Data › Power
Connectors
Optical ST
Power Terminal Block
Video BNC
Data RJ45 (5pc Included)
Power
Operating Voltage Range 8 to 15 VDC
Power Consumption 4 W
Rack Mount From Rack
Electrical & Mechanical
Number of Rack Slots 2
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size (L×W×H) 6.1 × 5.3 × 2.2 in (15.5 × 13.5 × 5.6 cm)
Shipping Weight <2 lb / 0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)²
[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.
Single mode fiber needs to meet or exceed fiber standard ITU-T G.652
ORDERING INFORMATION
Part Number Description
FV T40D4SFP 4 Channel Video / 4 Channel Data Transmitter
FVR40D4SFP 4 Channel Video / 4 Channel Data Receiver
Included Accessories DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
5 × RJ45 - RJ45 Breakout Wiring Kit (Includes cable and terminal block)
Options [2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
User-selection of SFP modules (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
TYPICAL APPLICATION
V V
D D
4
FVT40D4SFP
FVR40D4SFP
4
Optic Fiber Count and Type dependent
on user selection of SFP modules.
4
4
OPTICAL FIBER
COPPER CABLE
3 CORPORATE DRIVE
8 TURNBERRY PARK ROAD
|
DANBURY, CONNECTICUT 06810
|
GILDERSOME
|
MORLEY
|
|
USA
T: 203.796.5300
|
LEEDS, UK LS27 7LE
|
F: 203.796.5303
|
T: +44 (0)113 307 6400
|
TECH SUPPORT: 1.888.678.9427
|
F: +44 (0)113 253 7462
|
