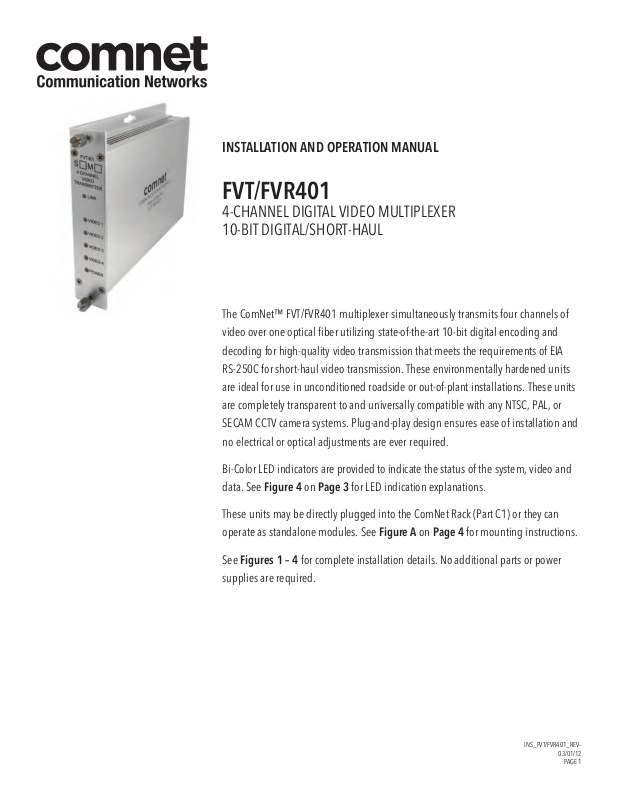

INSTALLATION AND OPERATION MANUAL

FVT/FVR401

4-CHANNEL DIGITAL VIDEO MULTIPLEXER
10-BIT DIGITAL/SHORT-HAUL

The ComNet™ FVT/FVR401 multiplexer simultaneously transmits four channels of
video over one optical fiber utilizing state-of-the-art 10-bit digital encoding and
decoding for high-quality video transmission that meets the requirements of EIA
RS-250C for short-haul video transmission. These environmentally hardened units
are ideal for use in unconditioned roadside or out-of-plant installations. These units
are completely transparent to and universally compatible with any NTSC, PAL, or
SECAM CCTV camera systems. Plug-and-play design ensures ease of installation and
no electrical or optical adjustments are ever required.

Bi-Color LED indicators are provided to indicate the status of the system, video and
data. See Figure 4 on Page 3 for LED indication explanations.

These units may be directly plugged into the ComNet Rack (Part C1) or they can
operate as standalone modules. See Figure A on Page 4 for mounting instructions.

See Figures 1 – 4 for complete installation details. No additional parts or power
supplies are required.

INS_FVT/FVR401_REV–

03/01/12

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR401

FIGURE 1 – FVT/FVR401 TRANSMITTER AND RECEIVER

MULTIMODE OR SINGLE MODE
OPTICAL FIBER

BLACK

BLACK WITH WHITE STRIPE
Power Supply:
Surface Mount: 9-12 VDC @ 1A.
Rack Mount: From Rack

FIGURE 2 – FVT401 TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

NOTE: Remove Electrical
Connector for Rack Mount Units

FIGURE 3 – FVR401 RECEIVER
