Comnet FVR401M1 Specsheet

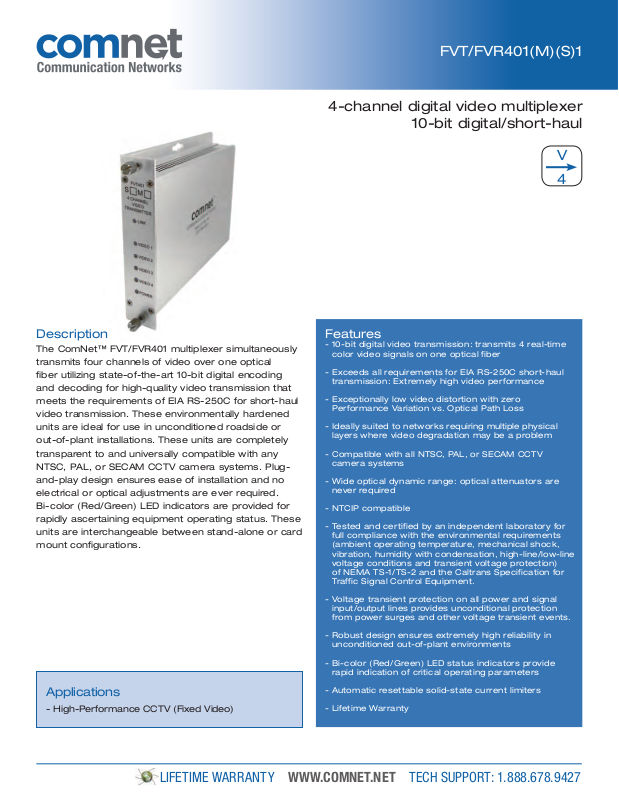

Page 1
FVT/FVR401(M)(S)1
4-channel digital video multiplexer
10-bit digital/short-haul
V
4
Description
The ComNet™ FVT/FVR401 multiplexer simultaneously transmits four channels of video over one optical fiber utilizing state-of-the-art 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plug­and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. These units are interchangeable between stand-alone or card mount configurations.
Features
- 10-bit digital video transmission: transmits 4 real-time color video signals on one optical fiber
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video per formance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Wide optical dynamic range: optical attenuators are never required
- NTCIP compatible
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
Applications
- High-Performance CCTV (Fixed Video)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
- Robust design ensures extremely high reliabilit y in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Automatic resettable solid-state current limiters
- Lifetime Warrant y
Page 2
FVT/FVR401(M)(S)1
specifications
4-channel digital video multiplexer
10-bit digital/short-haul
VIDEO
Video Input: 1V pk-pk (75 ohms) Overload: >1.5V pk-pk # Input/Output Channels: 4 Bandwidth (minimum): 10 Hz - 6.5 MHz Differential Gain: <2% Differential Phase: <0.7˚ Tilt: <1% Signal-to-Noise Ratio (SNR): 67 dB Typical Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
WAVELENGTH 1310 nm, Multimode and Single Mode
NUMBER OF FIBERS 1
LED INDICATORS - Video Sync Presence for Each Video Channel
- Power
CONNECTORS
Optical: ST Power: Terminal Block Video: BNC (Gold Plated Center-Pin)
ELECTRICAL & MECHANICAL
Power: Surface Mount: 8-15 VDC @ 3W Rack Mount: From Rack Number of Rack Slots: 1 Current Protection: Automatic Resettable Solid-State
Current Limiters Circuit Board: Meets IPC Standard Size (in./cm) (L×W×H) 6.1 x 5.3 x 1.1 in., (15.5 x 13.5 x 2.8 cm) Shipping Weight: <2 lb./0.9 kg
ENVIRONMENTAL
MTBF: >100,000 hours Operating Temp: -40˚ C to +75˚ C Storage Temp: -40˚ C to +85˚ C Relative Humidity: 0% to 95% (non-condensing)*
* May be extended to condensation conditions by adding suffix ‘/C’ to model number
for conformal coating.
PART NUMBER
FVT401M1
FVR401M1
FVT401S1
FVR401S1
Accessories
Options
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended. Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J In a continuing effort to improve and advance technology, product specifications are subject to change without notice. † Distance may be limited by optical dispersion.
DESCRIPTION FIBER
4-Channel Video Transmitter (1310 nm)
4-Channel Video Receiver (1310 nm)
4-Channel Video Transmitter (1310 nm)
4-Channel Video Receiver (1310 nm)
9 Volt DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Add ‘/C’ for Conformally Coated Circuit Boards (Extra charge, consult factory)
V V
4 4
FVT401S1
FIBERS REQUIRED
1
1 69 km (43 miles)23 dB
1 Fiber 9/125µm SM Up to 69 km
(43 miles)
Multimode
62.5/125µm
Single Mode
9/125µm
FVR401S1
OPTICAL PWR BUDGET
16 dB
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET
MAX. DISTANCE
2 km (1.2 miles)
OPTICAL FIBER VIDEO (Coax)
SLOTS
1
1
# RACK
02.16.12© 2012 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
