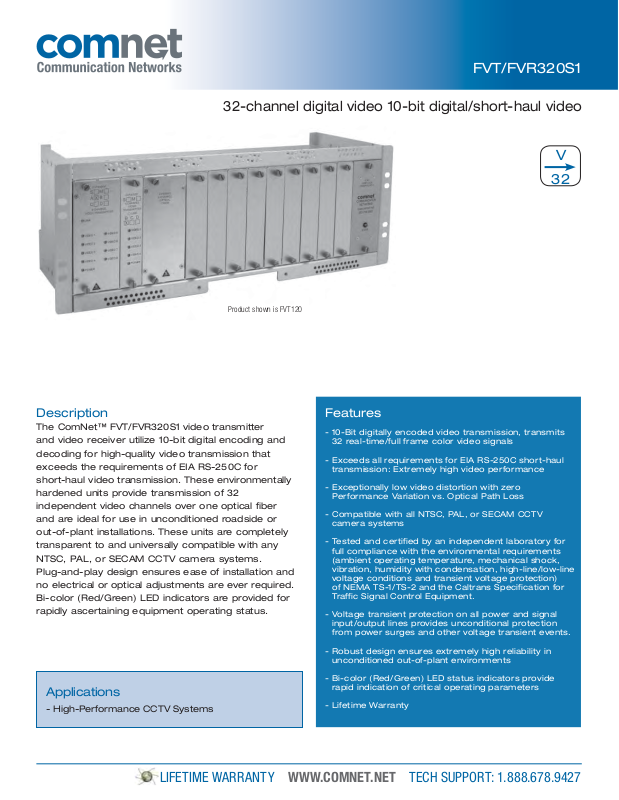

Comnet FVR320S1 Specsheet
FVT/FVR320S1
32-channel digital video 10-bit digital/short-haul video
V
32
Product shown is FVT120
Description
The ComNet™ FVT/FVR320S1 video transmitter
and video receiver utilize 10-bit digital encoding and
decoding for high-quality video transmission that
exceeds the requirements of EIA RS-250C for
short-haul video transmission. These environmentally
hardened units provide transmission of 32
independent video channels over one optical fiber
and are ideal for use in unconditioned roadside or
out-of-plant installations. These units are completely
transparent to and universally compatible with any
NTSC, PAL, or SECAM CCTV camera systems.
Plug-and-play design ensures ease of installation and
no electrical or optical adjustments are ever required.
Bi-color (Red/Green) LED indicators are provided for
rapidly ascertaining equipment operating status.
Applications
- High-Performance CCTV Systems
Features
- 10-Bit digitally encoded video transmission, transmits
32 real-time/full frame color video signals
- Exceeds all requirements for EIA RS-250C short-haul
transmission: Extremely high video performance
- Exceptionally low video distortion with zero
Performance Variation vs. Optical Path Loss
- Compatible with all NTSC, PAL, or SECAM CCT V
camera systems
- Tested and certified by an independent laboratory for
full compliance with the environmental requirements
(ambient operating temperature, mechanical shock,
vibration, humidity with condensation, high-line/low-line
voltage conditions and transient voltage protection)
of NEMA TS-1/TS-2 and the Caltrans Specification for
Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal
input/output lines provides unconditional protection
from power surges and other voltage transient events.
- Robust design ensures extremely high reliability in
unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide
rapid indication of critical operating parameters
- Lifetime Warranty
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
32
32
FVT/FVR320S1
specifications
32-channel digital video 10-bit digital/short-haul video
VIDEO
Video Input: 1 volt pk-pk (75 ohms)
Overload: >1.5V pk-pk
# Input/Output Channels: 32
Bandwidth (minimum): 10 Hz - 6.5 MHz per channel
Differential Gain: <2%
Differential Phase: <0.7˚
Tilt: <1%
Signal-to-Noise Ratio (SNR): 67 dB Typical
Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
WAVELENGTH Single Mode 9/125µm
NUMBER OF FIBERS 1
LED INDICATORS - Video Sync Presence for Each Video Channel
- Optical Carrier Detect - Power
OPTICAL EMITTER Laser Diode
CONNECTORS
Optical: ST
Power: Terminal Block
Video: BNC (Gold Plated Center-Pin)
ELECTRICAL & MECHANICAL
Power:
Input Voltage: 90-264 VAC @ 70 W Maximum
Output Voltage: 9 VDC +/- 5% @ 6.5 Amps @ 75˚C
FUSING 1.25 A slow blow (rack power supply)
(plug-in modules individually
electronically fused)
Current Protection: Automatic Resettable Solid-State
Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm) (L×W×H) 19 × 7.5 × 6 in.,
(48 × 19 × 15 cm)
Shipping Weight: <8 lbs./3.6 kg
ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: -40˚ C to +75˚ C
Storage Temp: -40˚ C to +85˚ C
Relative Humidity: 0% to 95% (non-condensing)*
* May be extended to condensation conditions by adding suffix ‘/C’
to model number for conformal coating.
MADE IN THE
PART
NUMBER
FVT320S1
FVR320S1
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice. † Distance may be limited by optical dispersion.
DESCRIPTION
Video Transmitter
Video Receiver
V V
32
FVT320S1
9/125µm SM
Up to 54 km
FIBERS
REQUIRED
1 54 km (35 miles)18 dB
FVR320S1
1 Fiber
(35 miles)
FIBER
Single Mode
9/125µm
OPTICAL
PWR BUDGET
32
OPTICAL FIBER
VIDEO (Coax)
USA
MAX.
DISTANCE
†
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET
11.19.10© 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
