Mechanical Installation Instructions

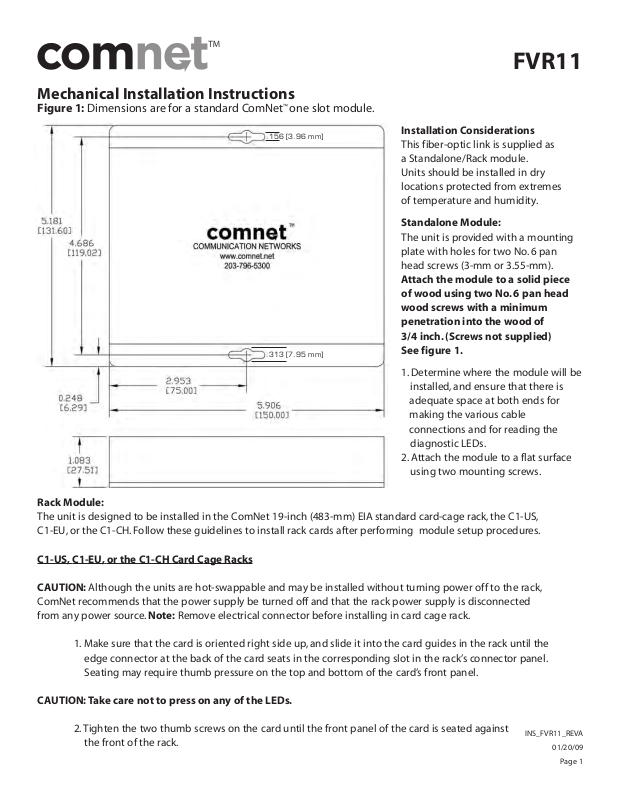

Figure 1: Dimensions are for a standard ComNet™one slot module.
FVR11
.156 [3.96 mm]
.313 [7.95 mm]
Installation Considerations
This fiber-optic link is supplied as
tandalone/Rack module.
a S
Units should be installed in dry
locations protected from extremes
of temperature and humidity.
Standalone Module:
The unit is provided with a mounting
e with holes for two No.6 pan
plat
head screws (3-mm or 3.55-mm).
Attach the module to a solid piece
od using two No. 6 pan head
of wo
wood screws with a minimum
penetration into the wood of
3/4 inch. (Screws not supplied)
See figure 1.
1. Determine where the module will be
installed
adequate space at both ends for
making the various cable
connections and for reading the
diagnostic LEDs.
2. Attach the module to a flat surface
using two mounting screws.
, and ensure that there is
Rack Module:
The unit is designed to be installed in the ComNet 19-inch (483-mm) EIA standard card-cage rack, the C1-US,
C1-EU,
C1-US,
CAUTION: Although the units are hot-swappable and may be installed without turning power off to the rack,
ComNet recommends that the power supply be turned off and that the rack power supply is disconnected
from any power source.Note: Remove electrical connector before installing in card cage rack.
CAUTION:Take care not to press on any of the LEDs.
or the C1-CH. Follow these guidelines to install rack cards after performing module setup procedures.
C1-EU, or the C1-CH Card Cage Racks
Make sure that the card is oriented right side up, and slide it into the card guides in the rack until the
1.
edge connector at the back of the card seats in the corresponding slot in the rack’s connector panel.
Seating may require thumb pressure on the top and bottom of the card’s front panel.
2. Tighten the two thumb screws on the card until the front panel of the card is seated against
the fr
ont of the rack.
INS_FVR11_REVA
01/20/09
Page 1
![](/html/b4/b4ca/b4cad30aa8af8e1fc4bf713f4520388bd3525b1bc97e810f9d630c7e9ff8615e/bg2.png)
FVR11
INSTALLATION INSTRUCTIONS
Communication Networks
3 Corporate Drive • Danbury, CT 06810 • USA
Tel:203-796-5300 • Toll Free: 1-888-678-9427
www.comnet.net
SINGLE MINI VIDEO RECEIVER WITH AGC
FROM: FVT11M, FVT20
MULTIMODE
OPTICAL
FIBER
LEDS: RED = “No Ac
GRN = “Activity”
tivity”
BLACK WITH WHITE STRIPE
NOTE: RED DOES NOT MEAN “Error”
NOTE: Remove Electrical Connector for Rack Mount Units
Power Sources - The product should only be operated from the recommended power source.
Use only a UL Class 2 indoor/dry or Class 3 outdoor/wet power supply.
WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.
WARNING: This unit should be installed in a restricted access location; available through the use
of a lock and key or other means of security. Access should be limited to service personnel who
have been instructed about the reasons for the restrictions to the location. Any and all
precautions should be taken and controlled by the authority responsible for the location.
BLACK
INS_FVR11_REVA
01/20/09
Page 2
