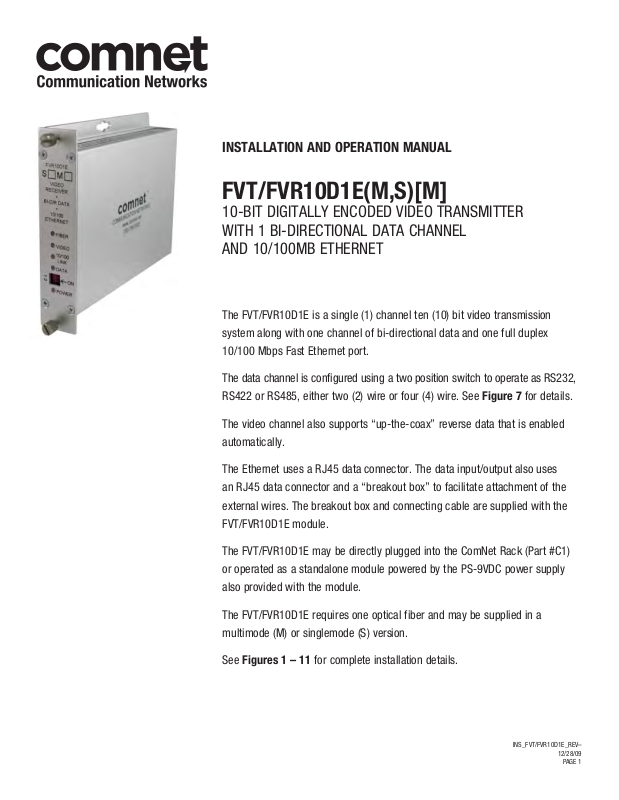

Page 1

INSTALLATION AND OPERATION MANUAL

FVT/FVR10D1E(M,S)[M]

10-BIT DIGITALLY ENCODED VIDEO TRANSMITTER WITH 1 BI-DIRECTIONAL DATA CHANNEL AND 10/100MB ETHERNET

The FVT/FVR10D1E is a single (1) channel ten (10) bit video transmission

system along with one channel of bi-directional data and one full duplex

10/100 Mbps Fast Ethernet port.

The data channel is configured using a two position switch to operate as RS232,

RS422 or RS485, either two (2) wire or four (4) wire. See Figure 7 for details.

The video channel also supports “up-the-coax” reverse data that is enabled

automatically.

The Ethernet uses a RJ45 data connector. The data input/output also uses

an RJ45 data connector and a “breakout box” to facilitate attachment of the

external wires. The breakout box and connecting cable are supplied with the

FVT/FVR10D1E module.

The FVT/FVR10D1E may be directly plugged into the ComNet Rack (Part #C1)

or operated as a standalone module powered by the PS-9VDC power supply

also provided with the module.

The FVT/FVR10D1E requires one optical fiber and may be supplied in a

multimode (M) or singlemode (S) version.

See Figures 1 – 11 for complete installation details.

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 1

Page 2

INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E

FIGURE 1 – FVT/FVR10D1E TRANSMITTER AND RECEIVER

MULTIMODE OR SINGLE MODE OPTICAL FIBER

BLACK

BLACK WITH WHITE STRIPE

FIGURE 2 – FVT10D1E TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

Power Supply: Surface Mount: 8–15 VDC @ 350mA Rack Mount: From Rack

FIGURE 3 – FVR10D1E RECEIVER

TECH SUPPORT: 1.888.678.9427

NOTE: Remove Electrical Connector for Rack Mount Units

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 2

Page 3

INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E

FIGURE 4 – FVT10D1EM MINI TRANSMITTER

MULTIMODE OR SINGLE MODE OPTICAL FIBER

BLACK

BLACK WITH WHITE STRIPE

Power Supply: Surface Mount: 8–15 VDC @ 350mA

FIGURE 5 – FVT10D1E TRANSMITTER

LEDs: POWER FIBER VIDEO DATA

DIN+ DIN– TERM DOUT+ DOUT– BIAS GND

ETHERNET

REAR PANELFRONT PANEL

OPTICAL

VIDEO IN

GND +Vin

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 3

Page 4

INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E

FIGURE 6 – RJ45 BREAK-OUT

Factory Supplied

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 4

Page 5

INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E

FIGURE 7 – SWITCH POSITIONS

The mode for each data channel is configured using a set of two switches on the front panel of the unit. The mode for the data on the FVT10D1E(M,S)M small size unit is set by the receiving unit it is connected to.

FIGURE 8 – SWITCH SETTINGS

RS232

1 NC 2 IN (-) 3 Ground 4 NC 5 OUT (-) 6 NC 7 NC 8 NC

RS485 (2W) & SENSORNET

1 IN/OUT (+) A 2 IN/OUT (-) B 3 Ground 4 NC 5 NC 6 NC 7 NC 8 NC

RS422, RS485 (4W), Manchester & Bi-Phase

1 IN (+) 2 IN (-) 3 Ground 4 OUT (+) 5 OUT (-) 6 NC 7 NC 8 NC

NC = No Connection

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 5

Page 6

INSTALLATION AND OPERATION MANUAL FVT/FVR10D1E

FIGURE 9 – DATA CONNECTIONS

See Page 5 for Switch Settings

RS-232*

RS-422*

Bi-phase or

Manchester*

2-Wire

RS-485,

Sensornet*

Customer

Equipment

Data Transmit

Data Receive

Signal Ground

Data Out (+)

Data Out (-)

Data In (+)

Data In (-)

Data In (+)

Data In (-)

Data (A)

Data (B)

FVT10D1E

DIN(-)

DOUT(-)

GND

DIN(+)

DIN(-)

DOUT(+)

DOUT(-)

DOUT(+)

DOUT(-)

DIN(+)

DIN(-)

FVR10D1E

DOUT(-)

DIN(-)

GND

DOUT(+)

DOUT(-)

DIN(+)

DIN(-)

DIN(+)

DIN(-)

DIN(+)

DIN(-)

Customer

Equipment

Data Receive

Data Transmit

Signal Ground

Data In (+)

Data In (-)

Data Out (+)

Data Out (-)

Data Out (+)

Data Out (-)

Data (A)

Data (B)

4-Wire

RS-485*

Data Out (A)

Data Out (B)

Data In (A)

Data In (B)

DIN(+)

DIN(-)

DOUT(+)

DOUT(-)

DOUT(+)

DOUT(-)

DIN(+)

DIN(-)

Data In (A)

Data In (B)

Data Out (A)

Data Out (B)

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 6

Page 7

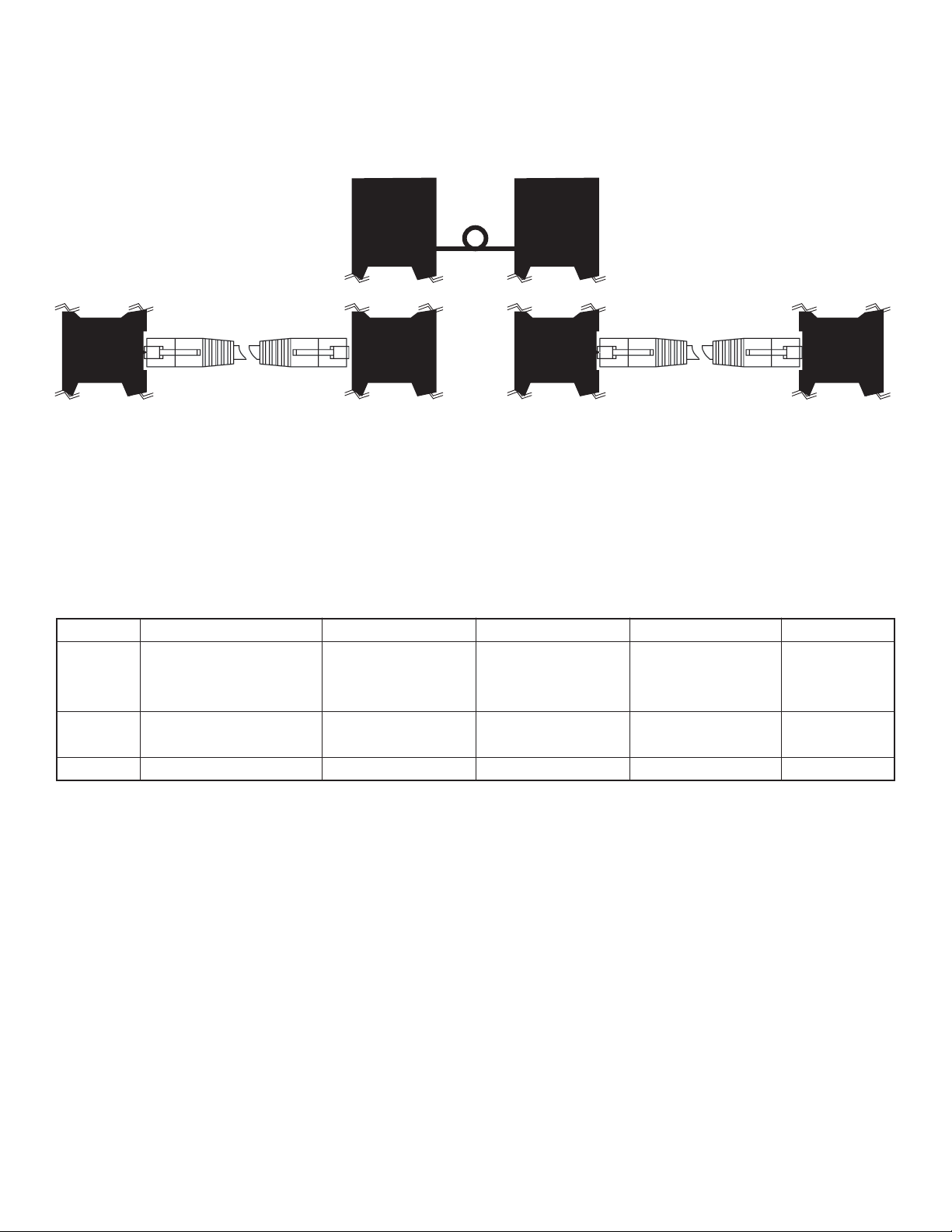

FIGURE 10 – ETHERNET CONFIGURATION

Ethernet IEEE 802.3 Network Element determined by user.

Optical Fiber

Ethernet IEEE 802.3

Network Element

RJ45 Connections

FVT10D1E FVR10D1ECAT5E/6 with

CAT5E/6 with

RJ45 Connections

Ethernet IEEE 802.3

Network Element

FIGURE 11 – LED INDICATORS

FIBER VIDEO 10/100 LINK DATA POWER

GREEN Communication link has An active video signal is Ethernet link has been An active data signal is Unit powered up

been established over present on the BNC established at the present on the input pins

optical fiber connector. RJ45 connector. of the data connector.

RED Communication link has No video signal – – –

not been established.

OFF Not powered up correctly – – No data signal Unit powered down

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 7

Page 8

MECHANICAL INSTALLATION INSTRUCTIONS

INSTALLATION CONSIDERATIONS

This fiber-optic link is supplied as a Standalone/Rack module. Units should be installed in dry locations protected from extremes of temperature and humidity.

C1-US, C1-EU, C1-AU OR C1-CH CARD CAGE RACKS

CAUTION: Although the units are hot-swappable and may be installed

without turning power off to the rack, ComNet recommends that the power supply be turned off and that the rack power supply is disconnected from any power source. Note: Remove electrical connector before installing in card cage rack.

1. Make sure that the card is oriented right side up, and slide it into the card guides in the rack until the edge connector at the back of the card seats in the corresponding slot in the rack’s connector panel. Seating may require thumb pressure on the top and bottom of the card’s front panel.

CAUTION: Take care not to press on any of the LEDs.

2. Tighten the two thumb screws on the card until the front panel of the card is seated against the front of the rack.

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.

FIGURE A

Dimensions are for a standard ComNet™ one slot module

.156 [3.96 mm]

.313 [7.95 mm]

IMPORTANT SAFEGUARDS: A) Elevated Operating Ambient - If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such

that the amount of air flow required for safe operation of the equipment is not compromised.

FVT/FVR10DIE(M,S)[M] Part Ordering Options:

(M,S): Fiber Type

M: Multimode

S: Singlemode

[M]: Mini Enclosure (optional)

INS_FVT/FVR10D1E_REV–

12/28/09

PAGE 8
