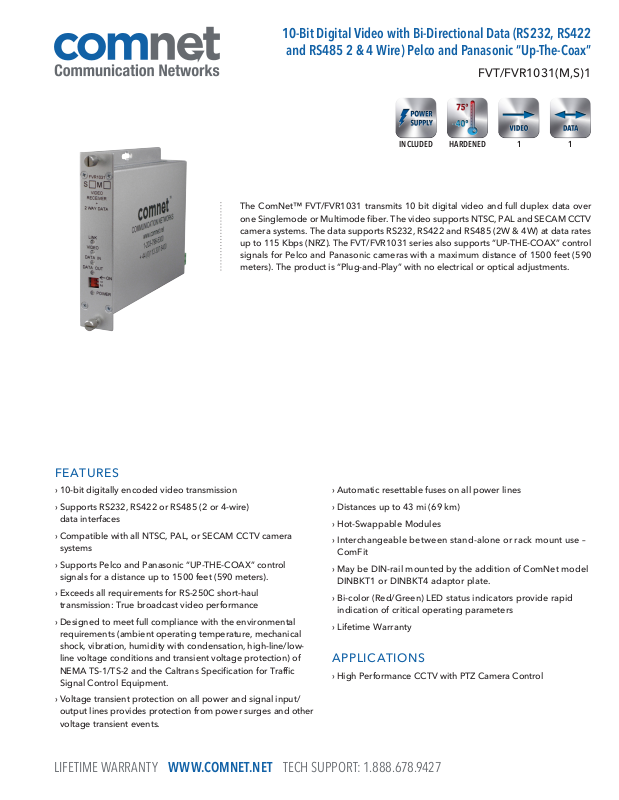

Comnet FVR1031S1, FVR1031M1 Specsheet
10-Bit Digital Video with Bi-Directional Data (RS232, RS422
and RS485 2 & 4 Wire) Pelco and Panasonic “Up-The-Coax”
FVT/FVR1031(M,S)1
HARDENEDINCLUDED
The ComNet™ FVT/FVR1031 transmits 10 bit digital video and full duplex data over
one Singlemode or Multimode fiber. The video supports NTSC, PAL and SECAM CCTV
camera systems. The data supports RS232, RS422 and RS485 (2W & 4W) at data rates
up to 115 Kbps (NRZ). The FVT/FVR1031 series also supports “UP-THE-COAX” control
signals for Pelco and Panasonic cameras with a maximum distance of 1500 feet (590
meters). The product is “Plug-and-Play” with no electrical or optical adjustments.
1 1
FEATURES
› 10-bit digitally encoded video transmission
› Supports RS232, RS422 or RS485 (2 or 4-wire)
data interfaces
› Compatible with all NTSC, PAL, or SECAM CCTV camera
systems
› Supports Pelco and Panasonic “UP-THE-COAX” control
signals for a distance up to 1500 feet (590 meters).
› Exceeds all requirements for RS-250C short-haul
transmission: True broadcast video performance
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of
NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
Signal Control Equipment.
› Voltage transient protection on all power and signal input/
output lines provides protection from power surges and other
voltage transient events.
› Automatic resettable fuses on all power lines
› Distances up to 43 mi (69 km)
› Hot-Swappable Modules
› Interchangeable between stand-alone or rack mount use –
ComFit
› May be DIN-rail mounted by the addition of ComNet model
DINBKT1 or DINBKT4 adaptor plate.
› Bi-color (Red/Green) LED status indicators provide rapid
indication of critical operating parameters
› Lifetime Warranty
APPLICATIONS
› High Performance CCTV with PTZ Camera Control
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
FVT/FVR1031(M,S)1
10-Bit Digital Video with Bi-Directional Data (RS232, RS422
and RS485 2 & 4 Wire) Pelco and Panasonic “Up-The-Coax”
SPECIFICATIONS
Video
Video Input 1 volt pk-pk (75 ohms)
Overload >1.5 V pk-pk
Bandwidth 5 Hz - 10 MHz
Differential Gain <2%
Differential Phase <0.7˚
Tilt <1%
Signal-to-Noise Ratio (SNR) 67 dB @ Maximum Optical Loss Budget
Max. RG-59 COAX Distance 100 m (300 ft) Camera to Fiber Optic Module to
maintain 6 Mhz Bandwidth
Data
Data Format RS-232, RS-422, 2 or 4-wire RS-485 w/Tri-State,
Manchester, bi-phase and up-the-coax data
Data Rate DC-115 Kbps (NRZ)
Wavelength 1310/1550 nm, MM and SM
Number of Fibers 1
Optical Emitter Laser Diode
LED Indicators › Video Sync Presence › Received Data
› Transmitted Data › Optical Carrier Detect
Connectors
Optical ST (Standard)
SC of FC (Optional)
Power Terminal Block
Video BNC (Gold Plated Center-Pin)
Data Terminal Block
Power
Operating Voltage Range 8 to 15 VDC (or from C1 Rack, sold separately)
Power Consumption 2 W
Electrical & Mechanical
Number of Rack Slots 1
Current Protection Automatic Resettable Solid-State Current Limiters
Circuit Board Meets IPC Standard
Size (in./cm) (L×W×H) 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm)
Shipping Weight <2 lb / 0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)¹
ORDERING INFORMATION
Optical PWR
Part Number Description Fiber
FV T1031M1 Video Transmitter/Data Transceiver Multimode 62.5/125µm 16 dB 3 km (2 mi) 1 km (0.6 mi)
FVR1031M1 Video Receiver/Data Transceiver Multimode 62.5/125µm 16 dB 3 km (2 mi) 1 km (0.6 mi)
FV T1031S1 Video Transmitter/Data Transceiver Single Mode 9/125µm 23 dB 69 km (43 mi) 1 km (0.6 mi)
FV R1031S1 Video Receiver/Data Transceiver Single Mode 9/125µm 23 dB 69 km (43 mi) 1 km (0.6 mi)
Accessories DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included)
Options [1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (extra charge, consult factory)
Add ‘/SC’ for SC Connectors
Add ‘/FC’ for FC Connectors
DIN-Rail Mounting Adaptor Plate Kit – With mounting hardware (Optional, order model DINBKT1 or DINBK T4)
NOTE: This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended.
[2] Distance may be limited by optical dispersion. Check with control system manufacturer for distance limits on up-the-coax systems.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
Budget Max. Distance²
Max. UTC
Distance²
TYPICAL APPLICATION
V V
FVT1031S1
D D
1 Fiber
FVR1031S1
OPTICAL FIBER
VIDEO (Coax)
