Comnet CNFE1RPT-M-PD, CNFE1RPT-M, CNFE1RPT-PD, CNFE1RPT Specsheet
10/100 Mbps Ethernet Repeater With 60 W Pass-Through PoE
CNFE1RPT[/PD][/M]
HARDENED

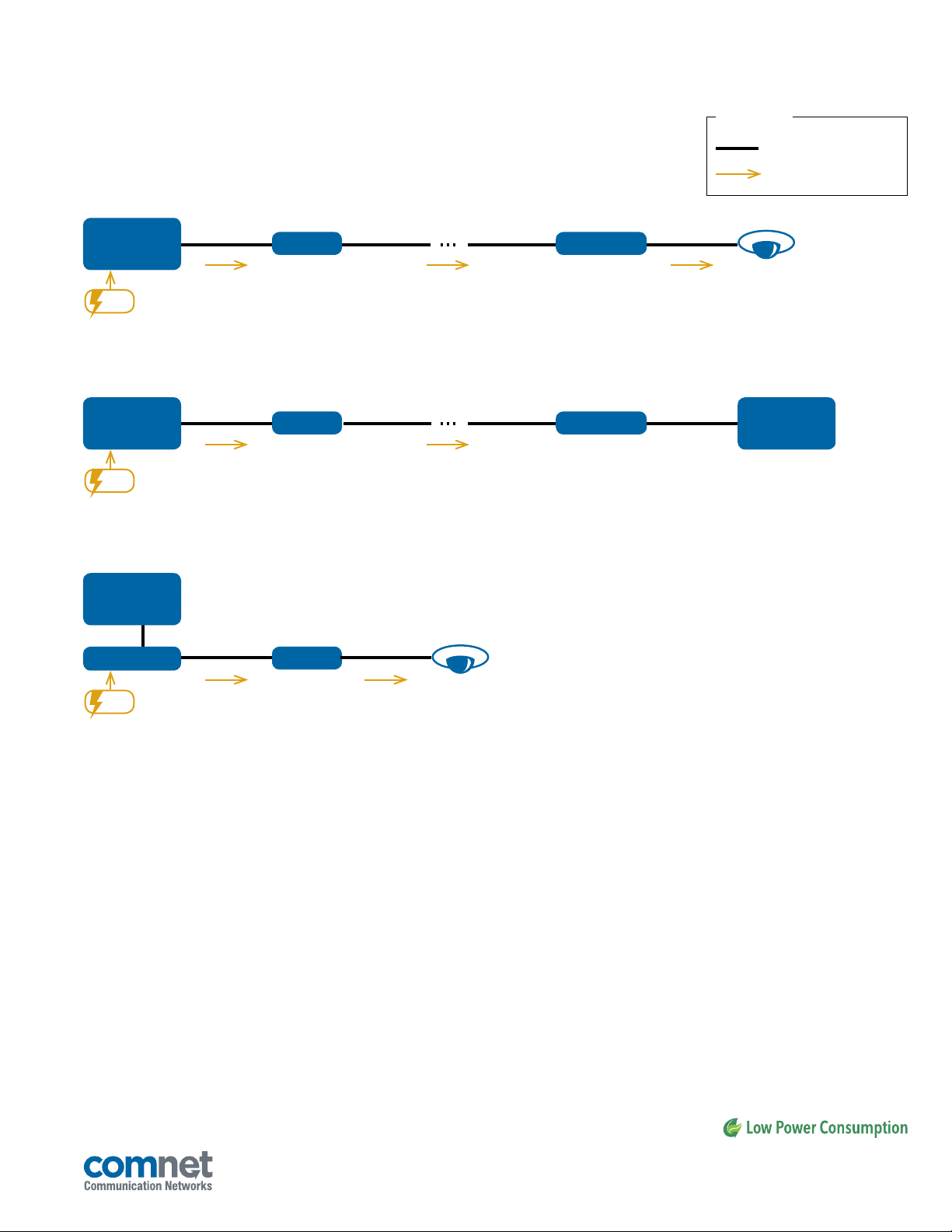

The ComNet™ CNFE1RPT is an Ethernet repeater supporting up to 60 watts of Passthrough PoE, providing a simple and cost-effective way to extend Ethernet signals
beyond the standard Ethernet 328 foot (100 meter) limit. The CNFE1RPT can be used to
double the distance to 656 feet (200 meters) or multiple units can be combined in series
with each unit providing an additional 328 feet (100 meters). The CNFE1RPT is powered
by pass-through PoE from a PoE switch or midspan injector, requiring no local power.
Low power consumption ensures that maximum power is made available to the remote
PD device. Available in standard configuration, which passes through the PoE to the next
device, or as a /PD model, which acts as the final PoE unit in the chain and does not pass
through the PoE, providing maximum flexibility for all design scenarios. The compact
tube design allows for direct installation within conduit or other small enclosures. A mini
size unit is also available for surface mounting, or DIN rail mounting with use of the soldseparately DINBKT4 adaptor.
PASS-THRUREPEATER
FEATURES
› Extends 10/100 Mbps Ethernet and PoE by 328 ft (100 m)
› Extended temperature operation from -40°C to +75°C
› Pass-through PoE meets the IEEE 802.3af/at standards for
Power over Ethernet
› Powered by PoE (no local power required)
› Supports PoE++ 60 W pass-through Power over Ethernet
› Full unrestricted 10/100 Mbps Bandwidth
› “Plug & Play” design requires no configuration
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/low-line
voltage conditions and transient voltage protection) of NEMA
TS-1/TS-2 and the Caltrans Specification for Traffic Signal
Control Equipment.
› LED status indicators confirm operating status
› Designed and manufactured in the USA
› Available in compact tube or small-size form factors
› Lifetime Warranty
APPLICATIONS
› Remote extension of IP devices
› CCTV systems for casinos, airports, school campuses
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNFE1RPT[/PD][/M]
SPECIFICATIONS
10/100 Mbps Ethernet Repeater With 60 W Pass-Through PoE
Ethernet
Data Interface 10/100BaseT(X) Ethernet
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Ports
Standards IEEE: 802.3af PoE, 802.3at PoE+
RFC: 768 UDP, 2068 HTTP, 793 TCP, 791 IP, 1783
TFTP, 894 IP over Ethernet, 2544 TCP/IP Packet
Transmission
Transmission Distances
1
See char t below
Connectors
Ethernet 2 × RJ-45
Indicating LEDs Ethernet Link and Activity
Mechanical
Protection High Impedance PoE Pass-Through with Start-up
Voltage Detection and Current Limiting
Circuit Board Meets IPC Standard
CNFE1RPT[/PD] Size 3.3 × 1.25 × 1.25 in (8.4 × 3.2 × 3.2 cm)
CNFE1RPT[/PD]/M Size 3.3× 2.5 × 1.1 in (8.4 × 6.4 × 2.8 cm)
Shipping Weight <1 lbs./0.5 kg
Environmental
MTBF >100,000 hours
Operating Temp – 40˚ C to +75˚ C
Storage Temp – 40˚ C to +80˚ C
Relative Humidit y 0% to 95% (non-condensing)
2
Power
Pass-Through Mode Operates on PoE Power
Power Consumption < 1 W
MAXIMUM TRANSMISSION DISTANCES
1
Maximum Range & Repeaters for PoE Power (Watts)
PoE Source
15 W PoE Switch
30 W PoE+ Switch
CNGE1IPS
35 W PoE+ Injector
[1] Distance figures are based on 48V PSE PoE power source for PoE switches, 50V PSE PoE power source for PoE+ switches and 56V PSE PoE power source for the CNGE1IPS injector as detailed in the
table. Distance figures are obtained using in-house testing mirroring installations. Factors such as cable quality, the number of connectors and splices in the cable run, the use of PoE, and environmental
conditions encountered within the installation might affect the actual transmission distance and should be taken into consideration.
[3] Non-PoE applications; using a CNFE1RPT/PD model at the end of the chain
[4] Extension is not possible at this PoE power level with this particular PoE power source
No PoE³ 5 W 10 W 15W 20 W 25 W
2,625 ft
800 m
(Using 7 CNFE1RPT)
2,625 ft
800 m
(Using 7 CNFE1RPT)
3,773 ft
1,15 0 m
(Using 11 CNFE1RPT)
1,476 f t
450 m
(Using 4 CNFE1RPT)
1,969 ft
600 m
(Using 5 CNFE1RPT)
2,625 ft
800 m
(Using 7 CNFE1RPT)
984 ft
300 m
(Using 2 CNFE1RPT)
1,316 ft
400 m
(Using 3 CNFE1RPT)
1,804 f t
550 m
(Using 5 CNFE1RPT)
328 ft4
100 m4
(No CNFE1RPT )
984 ft
300 m
(Using 2 CNFE1RPT)
1,316 ft
400 m
(Using 3 CNFE1RPT)
4
N/A
656 ft
200 m
(Using 1 CNFE1RPT)
984 ft
300 m
(Using 2 CNFE1RPT)
4
N/A
328 ft4
100 m4
(No CNFE1RPT )
656 ft
200 m
(Using 1 CNFE1RPT)
ORDERING INFORMATION
Part Number Description Form Factor
CNF E1RPT 1 Channel 10/100 Mbps Ethernet Repeater with 60 W PoE Pass-Through Tube
CNFE1RPT/PD 1 Channel 10/100 Mbps Ethernet Repeater Tube
CNFE1RPT/M 1 Channel 10/100 Mbps Ethernet Repeater with 60 W PoE Pass-Through Mini
CNFE1RPT/PD/M 1 Channel 10/100Mb Ethernet Repeater Mini
Options [2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult factory)
DIN-Rail Mounting Adaptor Kit for Mini-size units only - With Mounting Hardware (sold separately, order model DINBKT4)
35W PoE+ Injector (sold separately, order model CNGE1IPS)
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
