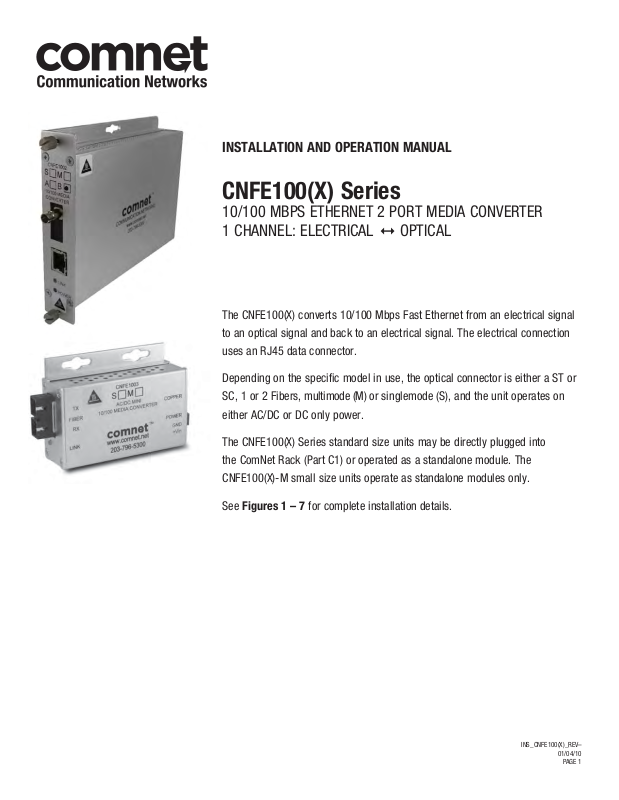

Comnet CNFE1004M1A User Manual

INSTALLATION AND OPERATION MANUAL

CNFE100(X) Series

10/100 MBPS ETHERNET 2 PORT MEDIA CONVERTER
1 CHANNEL: ELECTRICAL

The CNFE100(X) converts 10/100 Mbps Fast Ethernet from an electrical signal

to an optical signal and back to an electrical signal. The electrical connection

uses an RJ45 data connector.

Depending on the specific model in use, the optical connector is either a ST or

SC, 1 or 2 Fibers, multimode (M) or singlemode (S), and the unit operates on

either AC/DC or DC only power.

The CNFE100(X) Series standard size units may be directly plugged into

the ComNet Rack (Part C1) or operated as a standalone module. The

CNFE100(X)-M small size units operate as standalone modules only.

See Figures 1 – 7 for complete installation details.
