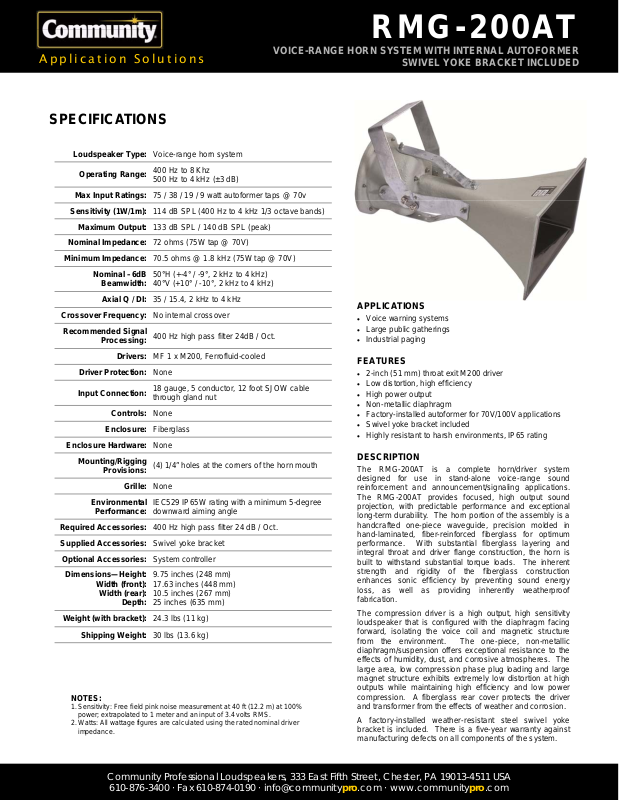

Community RMG-200AT User Manual

Application Solutions

SPECIFICATIONS

Loudspeaker Type: Voice-range horn system

Operating Range:

Max Input Ratings: 75 / 38 / 19 / 9 watt autoformer taps @ 70v

Sensitivity (1W/1m): 114 dB SPL (400 Hz to 4 kHz 1/3 octave bands)

Maximum Output: 133 dB SPL / 140 dB SPL (peak)

Nominal Impedance: 72 ohms (75W tap @ 70V)

Minimum Impedance: 70.5 ohms @ 1.8 kHz (75W tap @ 70V)

Nominal –6dB

Beamwidth:
Axial Q / DI: 35 / 15.4, 2 kHz to 4 kHz

Crossover Frequency: No internal crossover

Recommended Signal

Processing:

Drivers: MF 1 x M200, Ferrofluid-cooled

Driver Protection: None

Input Connection:

Controls: None

Enclosure: Fiberglass

Enclosure Hardware: None

Mounting/Rigging

Provisions:

Environmental

Performance:

Required Accessories: 400 Hz high pass filter 24 dB / Oct.

Supplied Accessories: Swivel yoke bracket

Optional Accessories: System controller

Dimensions—Height:

Width (front):

Width (rear):

Depth:

Weight (with bracket): 24.3 lbs (11 kg)

Shipping Weight: 30 lbs (13.6 kg)

NOTES:

1. Sensitivity: Free field pink noise measurement at 40 ft (12.2 m) at 100%
power; extrapolated to 1 meter and an input of 3.4 volts RMS.

2. Watts: All wattage figures are calculated using the rated nominal driver
impedance.

400 Hz to 8 Khz
500 Hz to 4 kHz (±3 dB)

50°H (+-4° / -9°, 2 kHz to 4 kHz)
40°V (+10° / -10°, 2 kHz to 4 kHz)

400 Hz high pass filter 24dB / Oct.

18 gauge, 5 conductor, 12 foot SJOW cable
through gland nut

(4) 1/4” holes at the corners of the horn mouth

Grille: None

IEC529 IP65W rating with a minimum 5-degree
downward aiming angle

9.75 inches (248 mm)

17.63 inches (448 mm)

10.5 inches (267 mm)
25 inches (635 mm)

RMG-200AT

VOICE-RANGE HORN SYSTEM WITH INTERNAL AUTOFORMER

SWIVEL YOKE BRACKET INCLUDED

APPLICATIONS

• Voice warning systems

• Large public gatherings

• Industrial paging

FEATURES

• 2-inch (51 mm) throat exit M200 driver

• Low distortion, high efficiency

• High power output

• Non-metallic diaphragm

• Factory-installed autoformer for 70V/100V applications

• Swivel yoke bracket included

• Highly resistant to harsh environments, IP65 rating

DESCRIPTION

The RMG-200AT is a complete horn/driver system
designed for use in stand-alone voice-range sound
reinforcement and announcement/signaling applications.
The RMG-200AT provides focused, high output sound
projection, with predictable performance and exceptional
long-term durability. The horn portion of the assembly is a
handcrafted one-piece waveguide, precision molded in
hand-laminated, fiber-reinforced fiberglass for optimum
performance. With substantial fiberglass layering and
integral throat and driver flange construction, the horn is
built to withstand substantial torque loads. The inherent
strength and rigidity of the fiberglass construction
enhances sonic efficiency by preventing sound energy
loss, as well as providing inherently weatherproof
fabrication.

The compression driver is a high output, high sensitivity
loudspeaker that is configured with the diaphragm facing
forward, isolating the voice coil and magnetic structure
from the environment. The one-piece, non-metallic
diaphragm/suspension offers exceptional resistance to the
effects of humidity, dust, and corrosive atmospheres. The
large area, low compression phase plug loading and large
magnet structure exhibits extremely low distortion at high
outputs while maintaining high efficiency and low power
compression. A fiberglass rear cover protects the driver
and transformer from the effects of weather and corrosion.

A factory-installed weather-resistant steel swivel yoke
bracket is included. There is a five-year warranty against
manufacturing defects on all components of the system.

Community Professional Loudspeakers, 333 East Fifth Street, Chester, PA 19013-4511 USA

610-876-3400 · Fax [phone] · [e-mail] · www.communitypro.com

True to Specification

RMG-200AT

VOICE-RANGE HORN SYSTEM WITH INTERNAL AUTOFORMER

SWIVEL YOKE BRACKET INCLUDED

FREQUENCY RESPONSE

110
100

90
80

dB SPL

70
60

100 1,000 10,000

10 Hz Resolution, 1/8 octave smoothing

BEAMWIDTH

1000

100

Degrees

10

100 1,000 10,000

DIMENSIONS

Frequency in Hertz

Horizontal Vertical

Frequency in Hertz

IMPEDANCE 75W

175
150
125

Ohms

100

75
50

100 1,000 10,000

Min Z 400 Hz - 8000 Hz = 70.5 Ohms @ 1790 Hz

Frequency in Hertz

AXIAL Q

100

Q

10

1

100 1,000 10,000

Frequency in Hertz

ARCHITECTURAL SPECIFICATIONS

The driver shall be a 2-inch (51 mm) exit compression type, specifically designed for midrange frequency response. The 2-inch (51 mm) driver shall be
mounted within a fiberglass exponential horn with an integral fiberglass weather resistant cover incorporating gland nut cable ingress. The horn and
driver combination shall have an amplitude response of 500 Hz to 4 kHz dB (+/- 3.0 dB), with an input capability of 24V RMS, 115 dB sensitivity at 1
meter / 3.4v, and a nominal impedance of 11 Ohms when the coupling autoformer is bypassed. The s ystem shall incorporate a high quality 75W
70V/100V autoformer with multiple power taps. The driver shall incorporate a large magnet structure, a one-piece, non-metallic diaphragm /
suspension, and a copper-clad aluminum edgewound voice coil on a Kapton former immersed in Ferrofluid. The compression ratio shall be 1.84 to 1.
The diaphragm assembly shall be field replaceable. The horn/driver system shall weigh 24.3 lbs (11 kg) with the bracket.

Community strives to improve its products on a continual basis. Specifications are therefore subject to change without notice.

communitypro.com

RMG-200A [24MAR2010]

Innovative design. Legendary sound.

RMG-200AT 20080608
