Community BalancePoint I Series, BalancePoint VSB-SBR54, I SERIES, HSB3-BFR22 Instructions Manual
I SERIES
BalancePoint™ Flyware
For Point Source and
Subwoofer loudspeakers
models IP8, IP6, IS8, and IS6
VSB-SBR54
Dual Vertical Splay with Extension Kit for 2-way Models
The BalancePoint™ Flyware Accessory Guide (a complete set of instructions for all
of the BalancePoint™ Flyware Kits) is available on the Community website.
Community Professional Loudspeakers
333 East Fifth Street, Chester, PA 19013-4511 USA
Phone (610) 876-3400 • Fax (610) 874-0190
communitypro.com • info@communitypro.com
CAUTION: Installation of loudspeakers should only be
performed by trained and qualified personnel. It is strongly
recommended that a licensed and certified professional
structural engineer approve the mounting design.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using or installing I SERIES loudspeakers and
accessories:
• Read these instructions prior to assembly.
• Keep these instructions for reference.
• Heed all warnings.
• Follow all instructions, particularly those pertaining to rigging, mounting, hanging and electrical
connections.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instruction.
• Do not install near any heat sources such as radiators, heat registers, stoves,light fixtures, or
other apparatus (including amplifiers) that produce heat.
• Only use attachments and accessories that are specified and approved by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The terms CAUTION, WARNING, and DANGER may be used in this manual to alert the reader to
important safety considerations. If you have any questions or do not understand the meaning
of these terms, do not proceed with installation. Contact your local dealer, distributor, or call
Community directly for assistance. These terms are defined as:
CAUTION: describes an operating condition or user action that may expose the
equipment or user to potential damage or danger.
WARNING: describes an operating condition or user action that will likely cause damage
to the equipment or injury to the user or to others in the vicinity.
DANGER: describes an operating condition or user action that will immediately damage
the equipment and/or be extremely dangerous or life threatening to the user or to others
in the vicinity.
These installation instructions are for use by qualified personnel only. To reduce the risk of fire or
electric shock do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
UNPACKING / INSPECTION
Community I SERIES loudspeakers are
engineered and manufactured to be rugged
and they are carefully packed in sturdy cartons.
However, it is recommended to thoroughly
inspect each unit after it has been removed from
the packaging, as damage could occur during
shipping.
Please note that once the shipment has left
your dealer or the Community factory, the
responsibility for damage is always borne by
the freight company. If damage has occurred
during shipping, you must file a claim directly
with the freight company. It’s very important to
contact the freight company as soon as possible
after receiving your shipment, as most freight
companies have a short time limit within which
they will investigate claims. Make sure to save
the carton and the packing material, as most
claims will be denied if these materials are
not retained. Your Community dealer and the
factory will try to help in any way they can, but
it is the responsibility of the party receiving the
shipment to file the damage claim.
It is always a good idea to retain the carton and
packing materials, if possible, in the event that
the unit may need to be returned to your dealer
or distributor for repair in the future.
CAUTION: Installation of
I SERIES loudspeakers should
only be performed by trained
and qualified personnel. It is strongly
recommended that a licensed and
certified professional structural
engineer approve the mounting. Severe
injury and/or loss of life may occur if
this product is improperly installed.
RIGGING SAFETY / IMPORTANT NOTES
There are three primary areas of responsibility
for rigging loudspeakers. The first is the
building structure. Always consult with the
building architect or structural engineer to
assure the ability of the structure to support
the loudspeaker system. The second area
of responsibility is the loudspeaker itself.
Community certifies its loudspeaker systems
and rigging accessories for suspension
when they are properly installed according
to our published guidelines. The third area
of responsibility is everything between the
loudspeaker and the building structure and the
actual process of installation. The installing
contractor assumes this responsibility.
Loudspeaker rigging should be performed only
by certified rigging professionals using certified
rigging hardware chosen for the specific
application. Prior to installation, the contractor
should present a rigging plan, with drawing
and detailed parts list, to a licensed structural
engineer (P.E.) or architect for written approval.
Page 2 BalancePoint™ Flyware I SERIES
IMPORTANT: I SERIES loudspeakers are designed and intended to be mounted to
diering building surfaces using a variety of rigging hardware, means and methods.
Installation of loudspeakers should only be performed by trained and qualified
personnel. All electrical connections must conform to applicable city, county, state, and
national (NEC) electrical codes.
DANGER: All rigging fittings must be fully tightened and secured. Any missing fasteners
or parts will compromise the structural integrity of the enclosure and constitute a safety
hazard. Over-tightening (crushing the wood) should be avoided as well. Do not suspend
the loudspeaker unless all fasteners are securely in place!
IMPORTANT: The flat head bolts that come installed in each enclosure must remain in
place or be replaced by a threaded fastener from an array bracket. The bolts attach to
internal metal brackets that are critical to the structural integrity and rated Safe Working
Load (SWL) of each point and each array assembly. Failure to include a fastener in every
location could lead to serious injury, or even death.
DANGER: I SERIES rigging fittings are rated at a Working Load Limit (WLL) of 150 lbs
(68 kg) with a 10:1 safety margin. No single rigging fitting should ever be subjected to a
load that is greater than this stated limit. Failure to heed this warning could result in
injury or death!
VERTICAL ARRAYS
VSB-SBR54 - Dual Vertical Splay with Extension Kit for 2-way Models
(Vertically array two 2-way loudspeakers with subwoofer(s) behind)
APPLICATION: Suspend and vertically array two full-range 2-way loudspeakers
(landscape orien tation) with a subwoofer b ehind; connected w ith BalancePoin t™
Fly Rails.
PREASSEMBLY:
Confirm that the 8mm hardware on the cabinet brackets is the correct position
(See bolt pattern diagram below).
ASSEMBLY:
The array should be assembled from the top down by attaching the brackets
and rails to what will be the top cabinet and then suspending it and adding
the lower cabinet. After the lower full-range loudspeaker is connected the
subwoofer can be lifted into position and attached to the rails.
Parts:
PR-3
PB-2
1
IP6/8-1122
1
IP6/8-1152
PB-3
PH
PP-1
PR-3: 54" BalancePoint™ Fly Rails (2)
PP-1: Universal Mounting Plates (4)
PB-2: Dual L Brackets (2)
PB-3: Cabinet Brackets (4)
PH: Hinge Brackets (4=2 preassemblies)
Hardware:
Qty
Code Description
4 HH6 6 x 25 mm Hex Hd Bolts
4 HN6 M6 Locknuts
8 HW6 6mm Flat Washers
2 HH8-3 8 x 30 mm Hex Hd Bolts
20 HF8-3 8 x 30 mm Flat Hd Bolts
24 HW8 8mm Flat Washers
22 HN8 M8 Locknuts
2 HH1-12 10 x 120 mm Hex Hd Bolts
12 HF 1-3 10 x 35 mm Flat Hd Bolts
4 HW1 10 mm Flat Washers
2 HN1 M10 Locknuts
Some hardware listed above will be
included in plate and hinge preassemblies.
Note: One additional full-range cabinet may be
added to the array by using one HVS kit, or an
additional sub can be added by using a TPK kit.
Kit Weight: 37.0 lb (16.8 kg)
PB-3
HF1 -3
PB-3
HF1 -3
Figure 1. After removing the applicable cabinet bolts, place upper cabinet brackets
(with flat head bolts inserted) on the cabinets as shown - note position of top bolts
2
IP6/8-1122
HN8
Left Right
PB-2
Upper Cabinet
HW8
2
HN8
IP6/8-1152
Left Right
PB-2
Upper Cabinet
HW8
Figure 2. Attach the L brackets to the cabinet brackets
- note which holes in the L bracket to use
I SERIES BalancePoint™ Flyware Page 3
VERTICAL ARRAYS
VSB-SBR54 (continued)
Best Practices:
For best aesthetics, the BalancePoint™ Fly Rails should not extend beyond the
front of the loudspeakers.
Attach safety cable(s) to the loudspeakers and/or assembly as advised by a
registered structural engineer.
3
HF1 -3
PP-1
Upper
Loudspeaker
Figure 3. Attach PP-1 to enclosure - with outside
edges parallel and fully tighten
4
PH
HW8
Figure 4. Attach hinges (2) to remaining
- use the holes closest to the hinge pivot
Important: Cabinet and rail
connections should be fully
tightened (as you proceed)
before suspending each
component.
HN8
PB-3
cabinet brackets
5
6
Use (inside) marked
mounting points
HN8
HW8
HW8
HN8
PH / Lowe r PB-3
assembly
Figure 5. Attach hinge/ bracket assembly to
PR-3
HW8
HN8
HH8-2
PB-2
Figure 6. Attach rails to upper cabinet
the upper cabinet
- use the holes closest to the hinge pivot
Page 4 BalancePoint™ Flyware I SERIES
VERTICAL ARRAYS
VSB-SBR54 (continued)
7
HF1 -3
Fi gure 7. Lift the lower full-range cabinet into place
and attach the cabinet brackets
Fully tighten those connections
9 10
8
PH
HH6
HW6
HN6
Figure 8. Adjust hinge to desired angle and
reinsert the 6mm hardware
Snug tighten the 6mm connections until
desired angle is confirmed, then fully tighten
Figure 10. Fully tighten all
connections
HN8
HW8
An additional subwoofer can be added
under the subwoofer by using a tight
pack kit (TPK). Attach the mounting
plates to the lower subwoofer and lift
into position then connect the two. They
must be placed horizontally (landscape
position). Do not exceed the Safe Working
Figure 9. Lift the subwoofer into place under the
rails and attach to the rails
Fully tighten the connections
Load of 500 lbs with the full assembly.
I SERIES BalancePoint™ Flyware Page 5

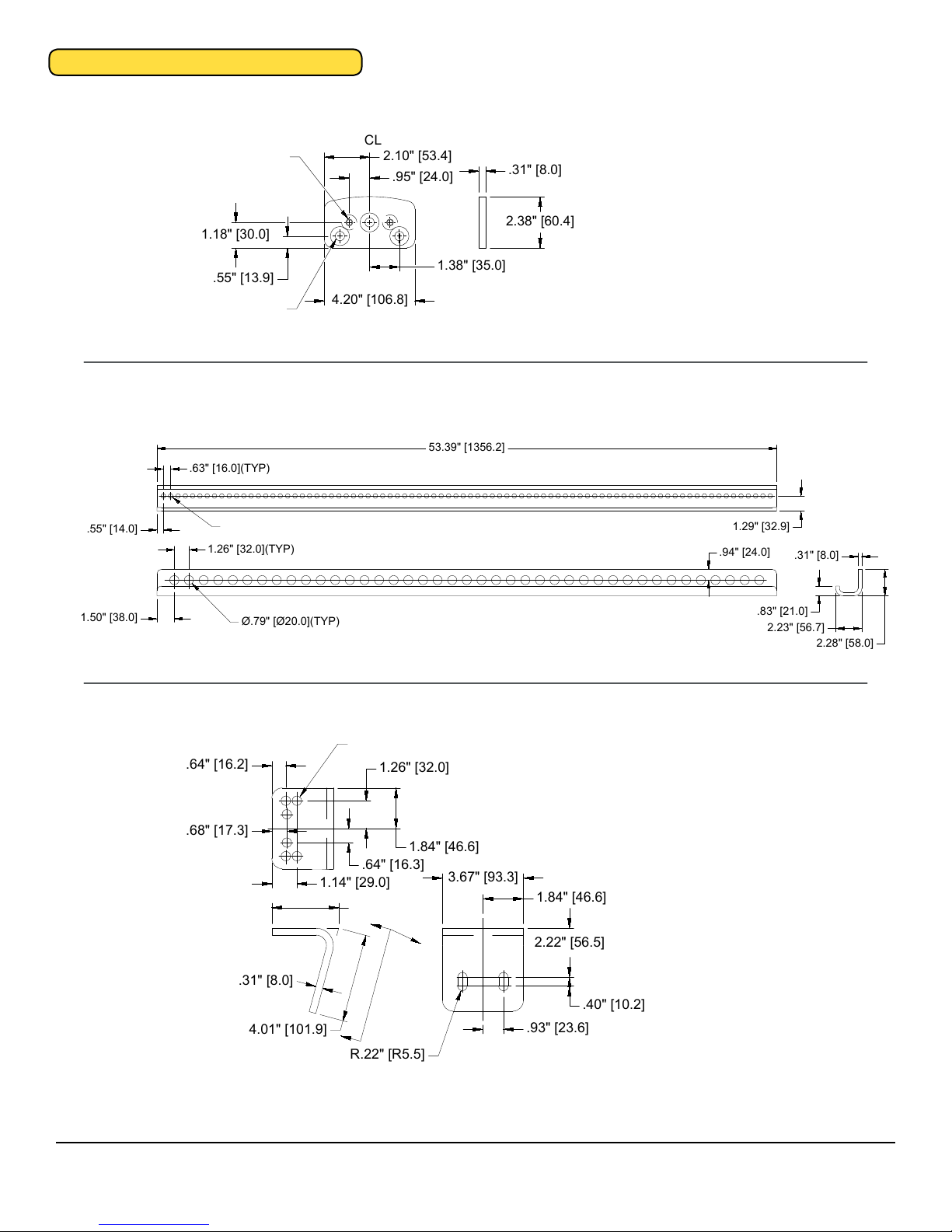

TECHNICAL DRAWINGS
4.20" [106.8]
2.38" [60.4]
.31" [8.0]
2.10" [53.4]
.95" [24.0]
1.38" [35.0]
.55" [13.9]
1.18" [30.0]
CL
DRILL & C'SK FOR
DRILL, TAP & C'SK FOR
M8 FLAT HEAD SCREW
(2 PLACES FAR SIDE)
HORIZONTAL BRACKET SINGLE-2PCS
1.14" [29.0]
4.01" [101.9]
3.67" [93.3]
1.84" [46.6]
.40" [10.2]
R.22" [R5.5]
1.26" [32.0]
1.84" [46.6]
.64" [16.3]
2.22" [56.5]
.64" [16.2]
.68" [17.3]
.93" [23.6]
1.14" [29.0]
.31" [8.0]
.31" [8.0]
2.28" [58.0]
2.23" [56.7]
.83" [21.0]
53.39" [1356.2]
.94" [24.0]
1.29" [32.9]
.55" [14.0]
.63" [16.0](TYP)
1.50" [38.0]
1.26" [32.0](TYP)
Ø.79" [Ø20.0](TYP)
UNIVERSAL MOUNTING PLATE [PP-1]
Tapped / countersunk for
8mm at head bolt
(far side) 2 places
Drilled / countersunk for
10mm at head bolt
(near side) 3 places
54" BALANCEPOINT™ FLY RAILS [PR-3]
Ø.39" [Ø10.0](TYP)
L BRACKET (DOUBLE) [PB-2]
Ø.43" [Ø11.0](TYP)
3.04" [77.2]
Drawings not to scale
Page 6 BalancePoint™ Flyware I SERIES

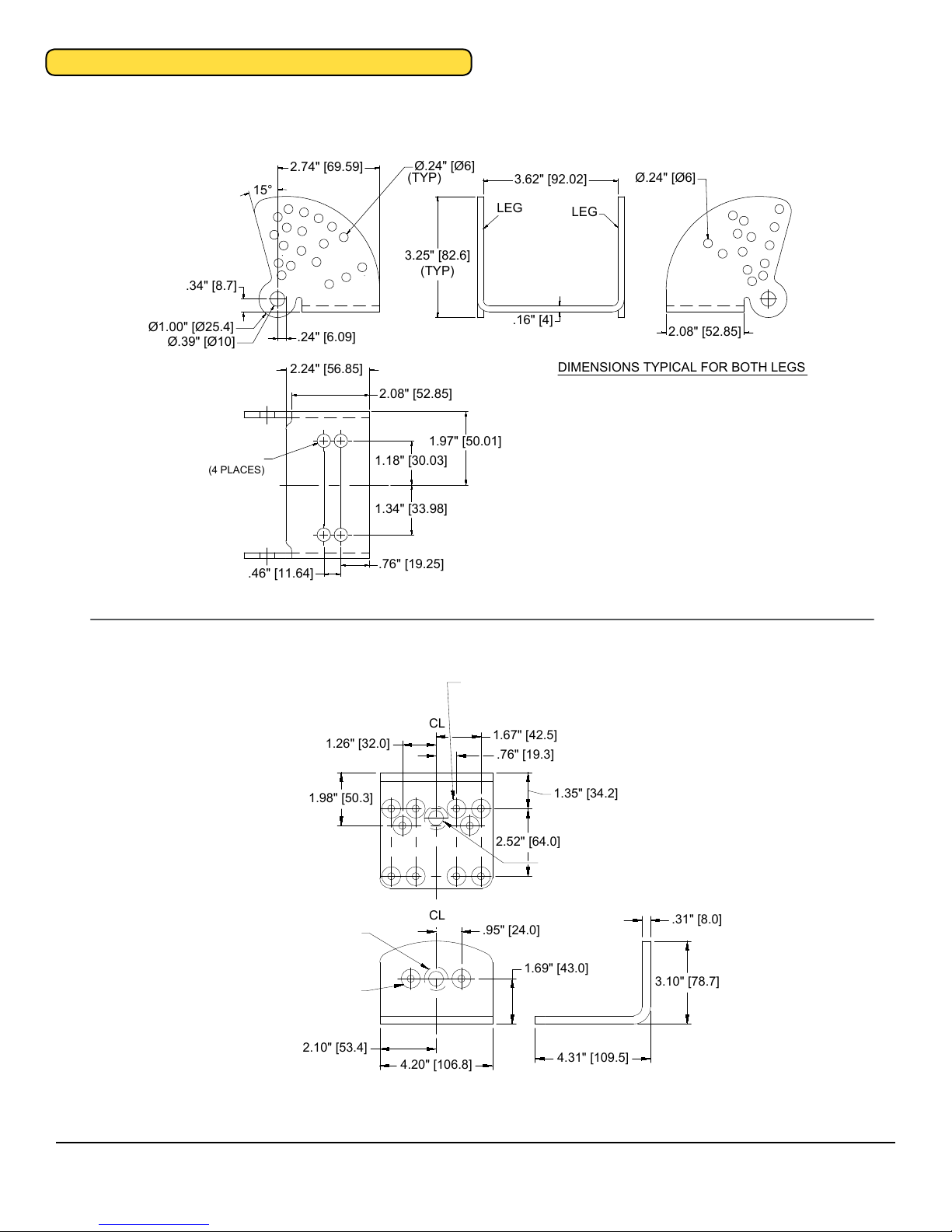

TECHNICAL DRAWINGS (continued)
3.10" [78.7]
4.31" [109.5]
.31" [8.0]
4.20" [106.8]
1.69" [43.0]
2.10" [53.4]
CL
DRILL & C'SK FOR
M10 FLAT HEAD SCREW
(FAR SIDE)
DRILL, TAP & C'SK FOR
M8 FLAT HEAD SCREW
(10 PLACES NEAR SIDE)
.95" [24.0]
CL
1.35" [34.2]
2.52" [64.0]
1.98" [50.3]
.76" [19.3]
1.67" [42.5]
1.26" [32.0]
3.25" [82.6]
(TYP)
3.62" [92.02]
2.08" [52.85]
2.24" [56.85]
1.18" [30.03]
1.34" [33.98]
1.97" [50.01]
.76" [19.25]
.46" [11.64]
(4 PLACES)
Ø1.00" [Ø25.4]
2.74" [69.59]
.34" [8.7]
15°
.24" [6.09]
LEG
2.08" [52.85]
DIMENSIONS TYPICAL FOR BOTH LEGS
(TYP)
.16" [4]
Ø.39" [Ø10]
Ø.24" [Ø6]
Ø.24" [Ø6]
LEG
HINGE (ROTATIONAL ARRAY) BRACKET [PH]
0
10
17.5
20
2.5
30
15
Ø.35" [Ø9]
12.5
5
7.5
27.5
22.5
40
35
25
45
32.5
37.5
42.5
CABINET CORNER BRACKET (2-WAY) [PB-3]
Drilled / countersunk for
DRILL & C'SK FOR
10mm at head bolt
M10 FLAT HEAD SCREW
DRILL, TAP & C'SK FOR
Drilled / tapped / countersunk
M8 FLAT HEAD SCREW
(2 PLACES NEAR SIDE)
(far side) 1 place
(FAR SIDE)
for 8mm at head bolt
(near side) 2 places
Drilled / tapped / countersunk
for 8mm at head bolt (far side) 10
places
Drilled / countersunk for
10mm at head bolt
(far side) 1 place
Drawings not to scale
I SERIES BalancePoint™ Flyware Page 7
ROTATIONAL (HINGE) BRACKET

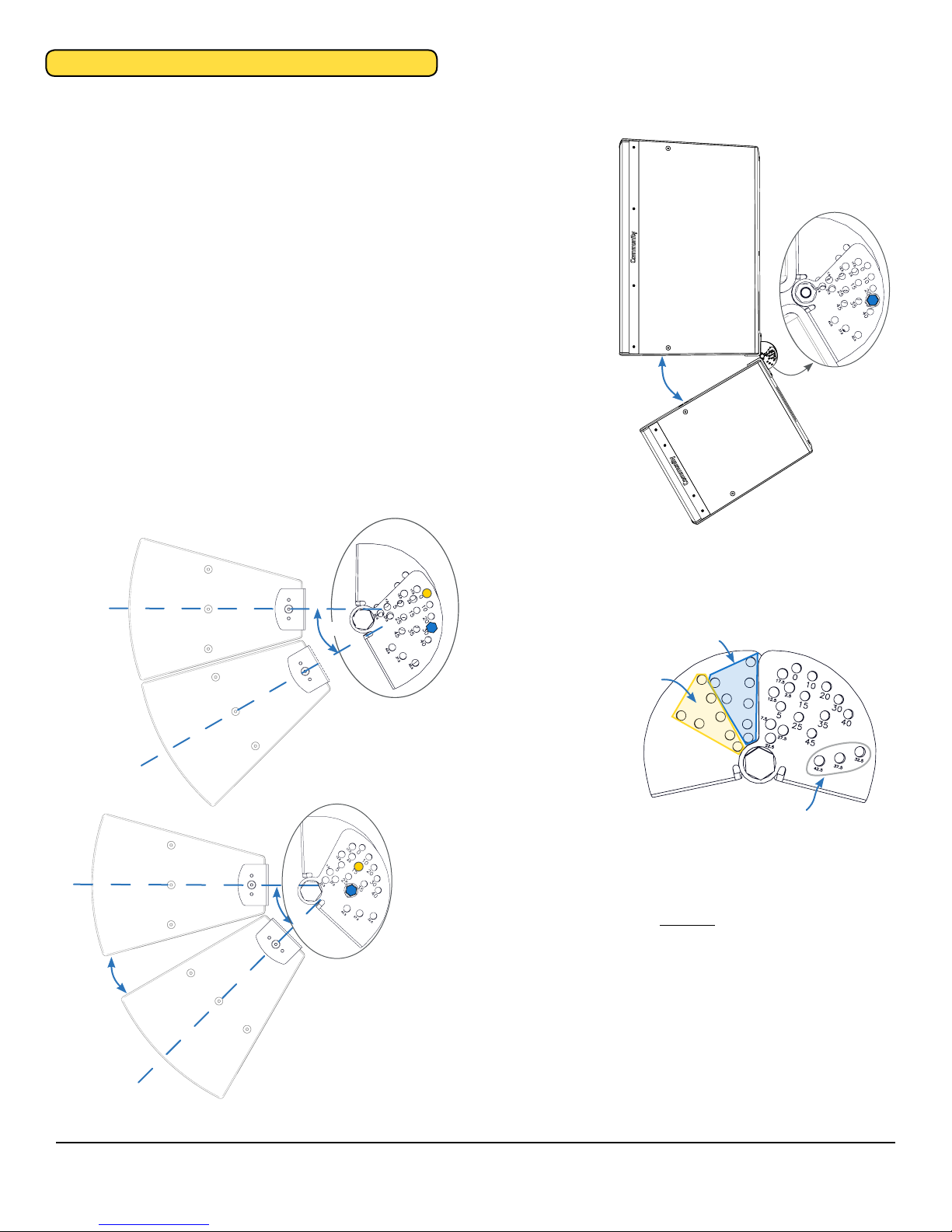

ROTATIONAL (HINGE) BRACKET ANGLE EXPLAINED
The I SERIES full-range loudspeakers are in trapezoidal enclosures. The hinge
bracket is used in many of the array kits to precisely set the angle between two
loudspeakers. The hinges are shipped preassembled with the 6mm fasteners
already in place. They will need to be removed to set your desired splay angle.
IMPO R TA N T: The splay angles printed on the rotational bracket indicate the
angle between adjacent enclosure surfaces, not (in most cases) the center-tocenter (C-C) loudspeaker aiming angles. For most horizontal and vertical arrays,
the long trapezoidal sides of the enclosures will be adjacent. The total included
trapezoidal cabinet angles are 30° therefore, the C-C loudspeaker aiming angles
will be 30° greater than the enclosure splay angle indicated on the rotational
bracket.
For example, if a C-C loudspeaker array angle of 45° is desired, the 6mm angle
selection fasteners should be placed in the “15°” angle selection holes on the
rotation brackets. 45° (C-C splay angle) – 30° (trapezoidal cabinet angles) = 15°
(splay between adjacent enclosure surfaces).
When using the DVS-BFR22 or DFS kits, the non-angled top and/or bottom
panels are adjacent, therefore, the loudspeaker aiming angle and adjacent
enclosure surface splay angles are identical. For these kits, the angle selected
on the rotational bracket is the same thing as the loudspeaker aiming angle.
30°
30° hole is a ligned wit h
the "dar ker" hole se t
15°
between
sides
45°
30°
0° hole i s aligned wi th
"lighter " hole set
= 0° bet ween cabin ets
30° hole is a ligned wit h
the "dar ker" hole se t
= 30° center-to-center splay
15° hol e is aligned wi th
"lighter " hole set
= 15° bet ween cabin ets
45° hole i s aligned wi th
the "dar ker" hole se t
= 45° center-to-center splay
DFS kit shown with IP8-1153 and IP8-1151
30° splay shown which also equals the
center-to-center measurement
= #
= # + 30°
Inner
Outer
= # + 30°
To set angle:
For most applications, and to achieve
center-to-center (C-C) angles greater than
45° you align the "lighter" set of holes with
the marked degree. This number equals the
angle between the loudspeakers, and you
should add 30 to get the C-C measurement.
To achieve 62.5°, 67.5°, or 72.5° (C-C) splay,
the circled outside holes only align with the
holes in the "darker" marked area.
Aligning the "darker" set of holes with the
marked degree hole equals that angle
between centers, and should be used for
downfill (DVS-BFR22, DFS) kits.
Basic cabinet geometry and aiming angles
Page 8 BalancePoint™ Flyware I SERIES
ROTATIONAL (HINGE) BRACKET (continued)
GENERAL ROTATIONAL (HINGE) BRACKET INFORMATION
Figures showing the basic assembly and how to secure the angles are
shown below.
IMPO R TA N T: Each hinge is shipped preassembled with a 10mm hinge
bolt and locknut fastened to allow some movement. Once the angle is
permanently set (and confirmed by commissioning the system), the locknut
should be tightened to prevent any movement. Do not remove the locknut
or hinge bolt for any reason.
Each hinge assembly also has two 6mm fasteners with finger-tight lock
nuts inser ted into angle selection holes on each side of the hinge. Both 6mm
fastener sets may be removed for assembly but must all be re-inserted and
fully tightened in accordance with each kit’s specific assembly instructions.
Angles may be adjusted in 2.5° increments from 0° to 45° in any array
configuration. Although it is possible in some configurations, do not exceed
a splay angle of 45° (between adjacent sides).
HH6
HW6
HN6
Best practices: Orient the fasteners in
the hinges to follow the direction of
gravity; i.e. if the hinge will be used
with the hinge bolt vertically oriented,
position the hinge with the nut at the
bottom to prevent the bolt from falling
out if the nut should loosen.
Use the four inner
attachment points for HSB,
HVS, or VSB kits
HH1 -12
HW1
HW1
HN1
PH
Hinge (rotational bracket)
assembly exploded
(shipped preassembled)
HH6
HN6
Horizontal arrays
PH
HH6
HW6
HN6
Vertical arrays
HW6
Secure angle with 6mm fasteners.
The hinge is shipped with the
fasteners in the 45° holes.
Use the four outer attachment points in
DFS and DVS-BFR22 configurations
The hinge brackets have 2 sets of holes
to attach the hinges to the cabinets. Bolt
placement diagrams showing connection
to the cabinet brackets are in each of the
individual kit instructions.
I SERIES BalancePoint™ Flyware Page 9
HELPFUL INSTALLATION TIPS
• Assemble the horizontal arrays on the ground (or lifting surface) and then lift the entire assembly into
place. Large vertical arrays should be assembled top down - lifting each component and attaching it in
order. Smaller vertical arrays can be assembled on the ground and then flown.
• Many brackets and plates come preassembled with the 8mm flat head hardware installed. Some of the
corner brackets have diering bolt patterns and we preinstall them in the most common configuration for
that kit. Refer to the diagrams on install pages to confirm that the bolts are in the correct position for your
cabinet size.
• Assemble the array with the diering models (horn/coverage patterns) in the correct configuration.
• If the cabinets are horizontal, keep the input panels all on the same side for wiring ease, whenever
possible.
• To determine the approximate splay or array angles prior to installation, use simulation software such as
EASE®. Document those values, and set the angles on the hinges and splay brackets as they are attached
to the cabinets.
• When attaching corner brackets, thread both bolts in finger tight first, then continue to tighten equally with
hex wrenches (helps avoid misalignment issues).
• Fully tighten the connections as each assembly is finished without crushing the wood fibers.
• The U-Brackets, Vertical Yokes and Isometric Frames have hole patterns compatible with third party
manufacturers' adapter plates for 1-1/2" NPT rigid pole mounting systems (such as Chief CMA105 UL listed
Ceiling mounting systems, with a SWL rating of 500 lbs [226.7 kg]). See manufacturer's website for details.
• Contact our Technical Assistance Group (TAG) for additional guidance by phone: (610) 876-3400 or email:
tagteam@communitypro.com.
GENERAL ASSEMBLY INFORMATION
The BalancePoint™ Flyware kits for the I SERIES loudspeakers are modular
and can be combined in a number of ways. The most common configuration of
each kit is shown along with instructions for assembly.
Hardware and Parts: There is a key at the beginning of each instruction that
shows the parts, their quantity and abbreviation. We also use a shortened
code for the hardware that oers an easy reference to the type, diameter and
approximate length.
ex: HW6 = Hardware Washer 6mm;
HF1-2 = Hardware, Flat head bolt, 10 x 25mm
Several parts have underside countersunk holes that are threaded for 8mm
flat head bolts. They should be fully seated (at or below the surface of the
piece) before attaching the plate/bracket to the enclosure. Bolt placement
diagrams are shown for the cabinet brackets that have multiple holes. Several
of the brackets are shipped with the 8mm flat head bolts already installed in
the most common configuration for that kit.
IMP O R TANT: The flat head bolts that come installed in each enclosure
must remain in place or be replaced by a threaded fastener from an array
bracket. The bolts attach to internal metal brackets that are critical to
the structural integrity and rated Safe Working Load (SWL) of each point and
each array assembly. Failure to include a fastener in every location could lead
to serious injury, or even death.
TOOLS NEEDED FOR ASSEMBLY:
• Metric socket and ratchet set
• Metric wrench set
• Metric hex key set
Typical bolt placement
diagram for 2-way Cabinet
(angle) Bracket (PB-3)
The loudspeaker enclosure must
have fasteners in all threaded holes
Page 10 BalancePoint™ Flyware I SERIES
GENERAL ASSEMBLY INFORMATION (continued)
SAFETY CABLES
IMP O R TA NT: Attach a safety cable to one of the unused mounting points on the
loudspeaker (and/or the bracket assembly). Safety cables must be secured to a
suitable load-bearing point separate from the loudspeaker mounting point, with as
little slack as possible, oriented to minimize dynamic swinging of the load, so as not to
develop undue shock or kinetic force if the loudspeaker mount were to fail. Safety cables
and hardware are not included. Please consult a structural engineer for the appropriate
cables, hardware, and location(s) for the load and application.
BALANCEPOINT™ FLY RAILS
Positioning:
• The fly rails may be mounted in any position required as long as all
attachment points are used.
• For the best aesthetics, the fly rails should not extend beyond the front edge
of the front cabinet.
• The fly rails can extend beyond the back of the cabinet.
• The rails should be attached to the cabinets using all of the connections
shown in the instructions for each assembly. This will ensure that the
cabinets don't rotate on the rigging and that the rigging is securely attached
to the cabinets.
• In "Subwoofer Behind" configurations, the general rule of thumb is that there
shouldn't be less than 6" (152mm) between the face of the subwoofer and
the rear of the cabinet in front of it (allows sucient air movement from the
subwoofer cones and parts).
Flying:
• Optimally, each array should be lifted from the hole(s) on the fly rails that
produce the desired tilt angle using gravity alone (the "Balance Point").
• A second cable may be used to fine-tune the exact aiming angle and/or
stabilize the array from rotation as necessary.
Typical placement for
safety cable and hardware
(eyebolt not included)
1
2
1) Rails do not extend behind
subwoofer (best aesthetics)
2) Ample distance between the
subwoofer and full-range cabinets
3) Fly rails well behind cabinet face
I SERIES BalancePoint™ Flyware Page 11
3
1) Not enough distance
between cabinets
2) Poor aesthetic choice
1 2
LOUDSPEAKER WEIGHTS
FULL-RANGE 600 Level [lbs (kg)] 800 Level [lbs (kg)] SUBWOOFER 600 Level [lbs (kg)] 800 Level [lbs (kg)]
IP6/8-1122 65.0 (29.5) 55.0 (24.9) IP6/8-112 64.0 (29.0) 58.0 (26.3)
IP6/8-1152 79.0 (35.8) 68.0 (30.8) IP6/8-115 78 .0 (35.4) 72.0 (32.7)
IP8-1153 - 105.0 (47.6) IP6/8-118 97.0 (44.0) 98.0 (44.5)
IP8-0002 - 63.0 (28.6) IP6/8-212 101.0 (45.8) 89.0 (40.4)
IP8-1151 - 54.0 (24.5) IP6/8-215 126 .0 (57.2) 14.0 (51.7)
IP6/8-218 170.0 (77.1) 172.0 (78.0)
Community Professional Loudspeakers
communitypro.com
I SERIES
VSB-SBR54 Manual 8OCT2015
Loading...
