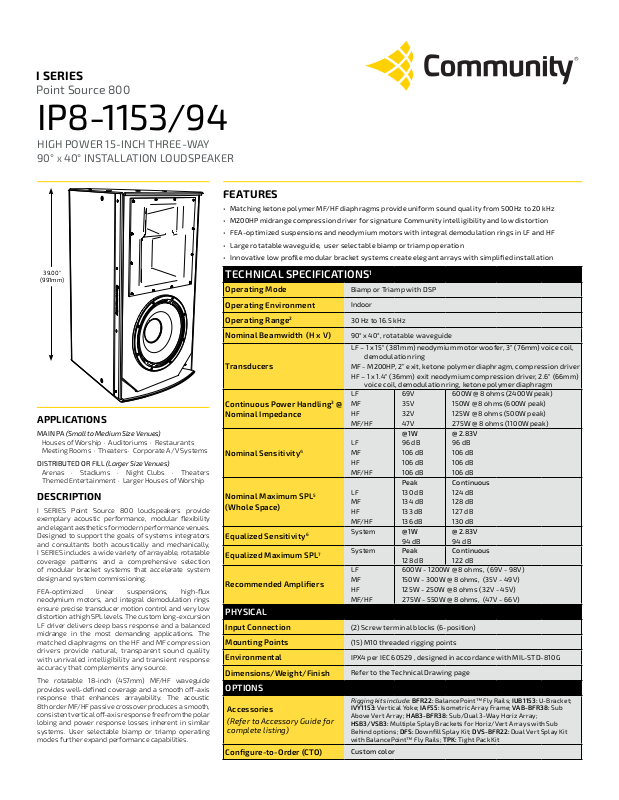

Community IP8-1153/94B Specifications
I SERIES
Point Source 800
IP8-1153/94
HIGH POWER 15-INCH THREE-WAY
90° x 40° INSTALLATION LOUDSPEAKER
FEATURES
• Matching ketone polymer MF/HF diaphragms provide uniform sound quality from 500Hz to 20 kHz
• M200HP midrange compression driver for signature Community intelligibility and low distortion
• FEA-optimized suspensions and neodymium motors with integral demodulation rings in LF and HF
• Large rotatable waveguide, user selectable biamp or triamp operation
• Innovative low profile modular bracket systems create elegant arrays with simplified installation
39.00"
(991mm)
APPLICATIONS
MAI N PA (Small to Medium Size Venues)
House s of Worship · Auditoriums · Restaur ants
Meeting Rooms · Theaters · C orporate A /V Systems
DISTRIBUTED OR FILL (Larger Size Venues)
Arenas · Stadiums · Night Clubs · Theater s
Theme d Entertainment · Larger Houses of Worship
DESCRIPTION
I SERIES Point Source 800 loudspeakers provide
exemplary acoustic performance, modular flexibility
and elegant aesthetics for modern performance venues.
Designed to support the goals of systems integrators
and consultants both acoustically and mechanically,
I SERIES includes a wide variety of arrayable, rotatable
coverage patterns and a comprehensive selection
of modular bracket systems that accelerate system
design and system commissioning.
FEA-optimized linear suspensions, high-flux
neodymium motors, and integral demodulation rings
ensure precise transducer motion control and very low
distortion at high SPL levels. The custom long-excursion
LF driver delivers deep bass response and a balanced
midrange in the most demanding applications. The
matched diaphragms on the HF and MF compression
drivers provide natural, transparent sound quality
with unrivaled intelligibility and transient response
accuracy that complements any source.
The rotatable 18-inch (457mm) MF/HF waveguide
provides well-defined coverage and a smooth o-axis
response that enhances arrayability. The acoustic
8th order MF/HF passive crossover produces a smooth,
consistent vertical o-axis response free from the polar
lobing and power response losses inherent in similar
systems. User selectable biamp or triamp operating
modes further expand performance capabilities.
TECHNICAL SPECIFICATIONS1
Operating Mode
Operating Environment
Operating Range
Nominal Beamwidth (H x V)
Transducers
Continuous Power Handling3 @
Nominal Impedance
Nominal Sensitivity
Nominal Maximum SPL
(Whole Space)
Equalized Sensitivity6
Equalized Maximum SPL7
Recommended Amplifiers
PHYSICAL
Input Connection
Mounting Points
Environmental
Dimensions/Weight/Finish
OPTIONS
Configure-to-Order (CTO)
2
4
5
Accessories
(Refer to Accessory Guide for
complete listing)
Biamp or Triamp with DSP
Indoor
30 Hz to 16.5 kHz
90° x 40 °, ro tatabl e w avegu ide
LF – 1 x 15" (381mm) neodymium motor woofer, 3" (76mm) voice coil,
demodulation ring
MF - M200HP, 2” exit, ketone polymer diaphragm, compression driver
HF – 1 x 1.4" (36mm) exit neodymium compression driver, 2.6" (66mm)
voice coil, demodulation ring, ketone polymer diaphragm
LF
MF
HF
MF/ HF
LF
MF
HF
MF/ HF
LF
MF
HF
MF/ HF
System @ 1W
System Peak
LF
MF
HF
MF/ HF

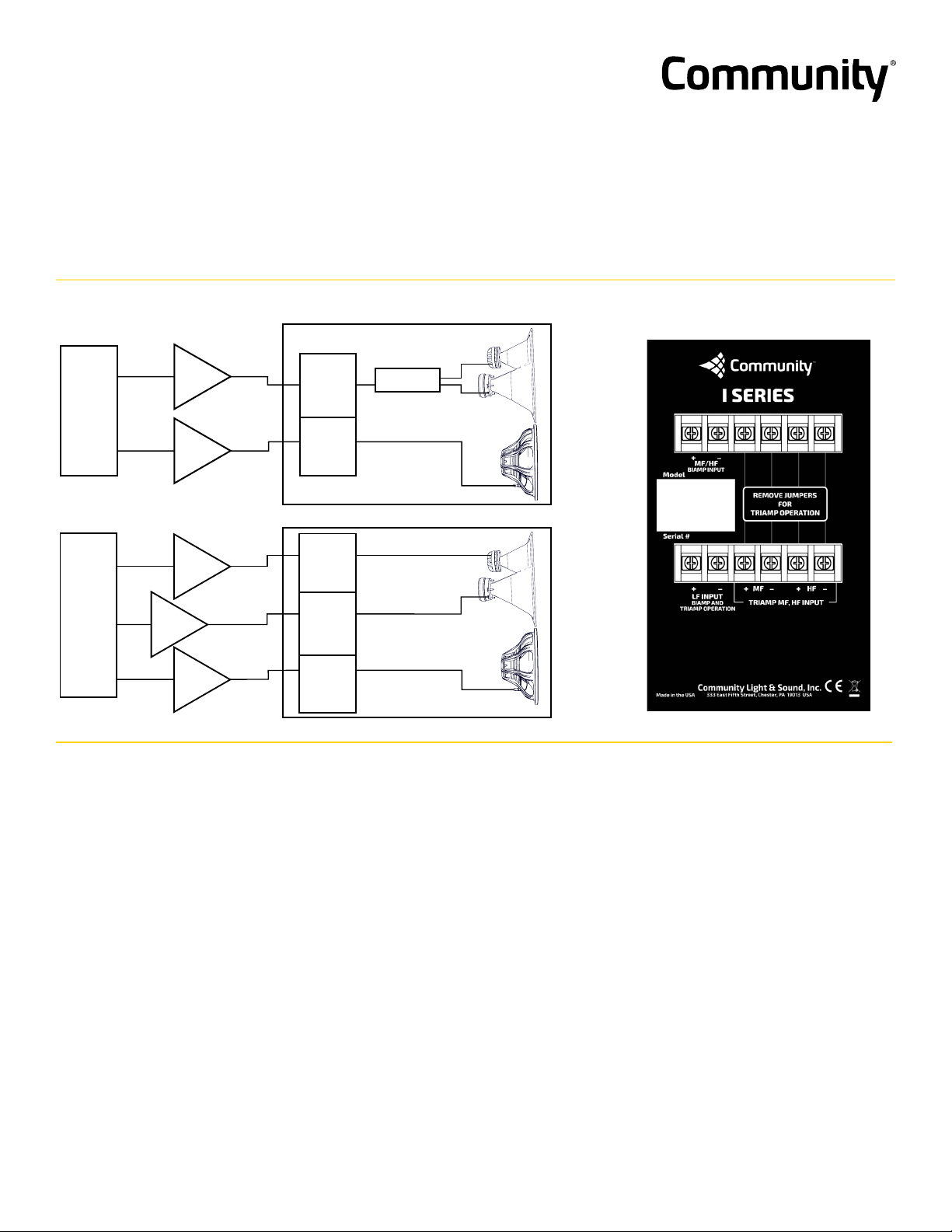

(2) Screw terminal blocks (6-position)
(15) M10 threaded rigging points
IPX4 per IEC 60529 , designed in accordance with MIL-STD-810G

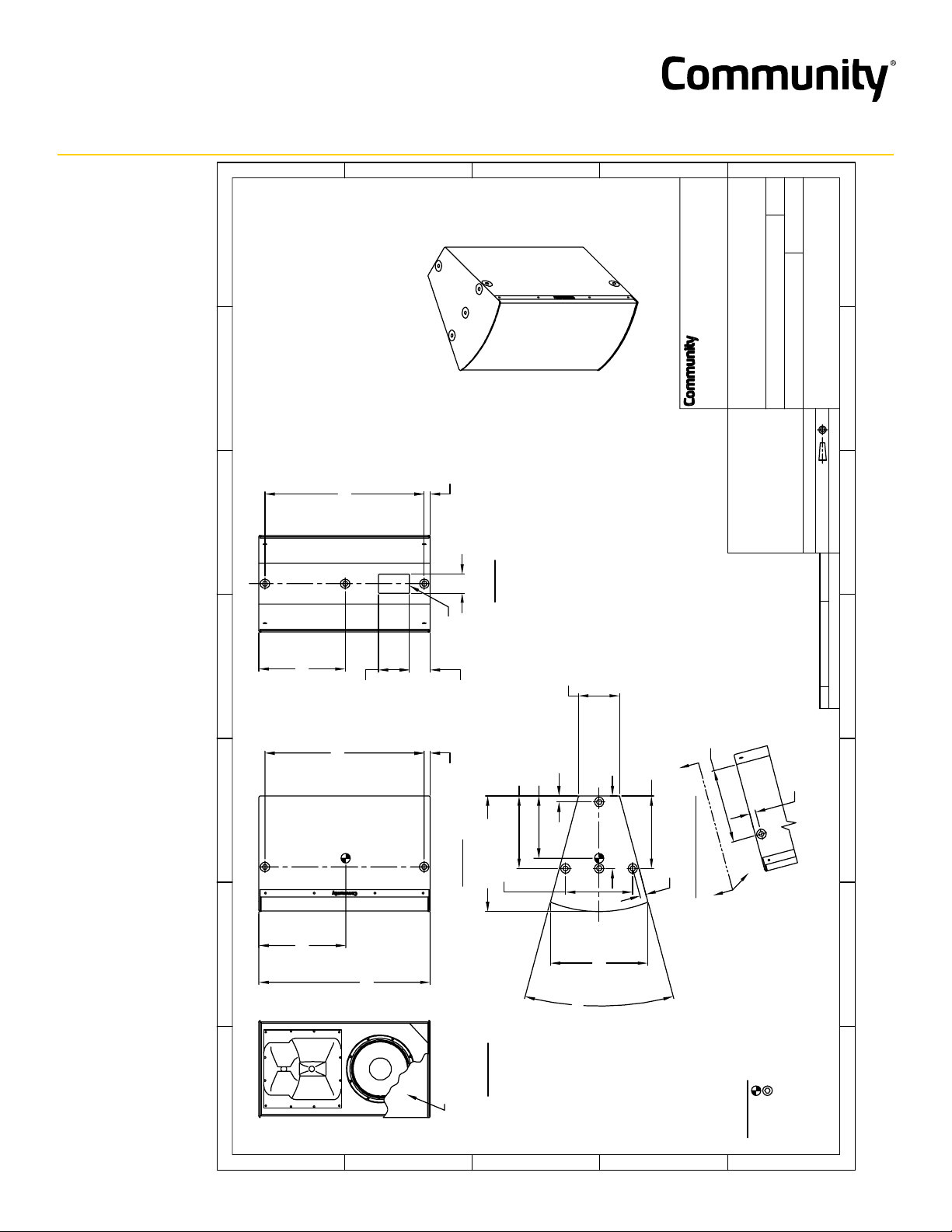

Refer to the Technical Drawing page
Rigging kits include: BFR22: Balan cePoint™ Fly Rail s; IUB1153: U-Bracket;
IVY 1153: Vertical Yoke; IAF 55: Isometr ic Array Frame; VAB-BFR38: Sub
Above Vert Arr ay; HAB3-BFR38: Sub/Dual 3-Way Horiz Ar ray;
HSB3/VSB3: Multi ple Splay Brackets for Horiz/ Vert Arrays with Sub
Behind options; D FS: Downfill Splay Kit; DVS-BFR22: Dual Vert Splay Kit
with BalancePoint™ Fly Rail s; TPK: Tigh t Pack Kit
Custom color
69V
35V
32V
47V
@ 1W
96 dB
106 dB
106 dB
106 dB
Peak
130 dB
134 dB
133 dB
136 dB
94 dB
128 dB
600W - 1200W @ 8 ohms, (69V - 98V)
150W - 300W @ 8 ohms, (35V - 49V)
125W - 250W @ 8 ohms (32V - 45 V)
275W - 550W @ 8 ohms, (47V - 66V)
600W @ 8 ohms (2400W peak)
150W @ 8 ohms (600W peak)
125W @ 8 ohms (500W peak)
275W @ 8 ohms (1100W peak)
@ 2.83 V
96 dB
106 dB
106 dB
106 dB
Continuous
124 dB
128 dB
127 dB
130 dB
@ 2.83 V
94 dB
Continuous
122 dB

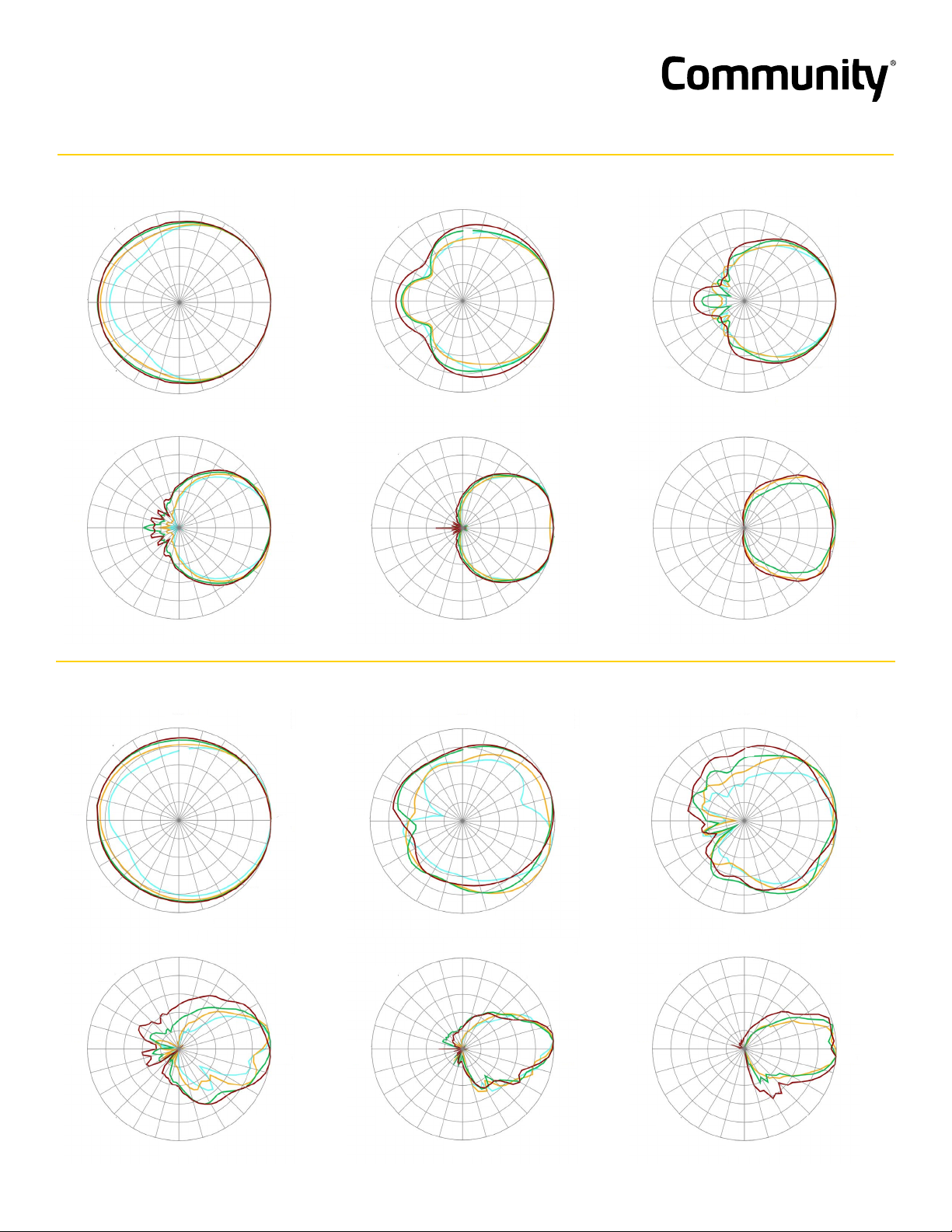

I SERIES
Component Impedance
Frequency Response ALL (Axially Processed)
Unprocessed Axial Sensitivity (dB SPL)
HalfSpace LF_NP BiHF‐MF_np
Beamwidth (Degrees)
BeamH BeamV
Directivity Index
Off-Axis Vertical (down)
Half Space Mag [dB] (0°) Mag [dB] (10°)
Mag [dB] (20°) Mag [dB] (30°) Mag [dB] (40°)
Off-Axis Horizontal
Series1 Mag [dB] (0°) Mag [dB] (15°)
Mag [dB] (30°) Mag [dB] (45°) Mag [dB] (60°)
Off-Axis Vertical (up)
Half Space Mag [dB] (0°) Mag [dB] (10°)
Mag [dB] (20°) Mag [dB] (30°) Mag [dB] (40°)
Point Source 800
IP8-1153/94
HIGH POWER 15-INCH THREE-WAY
90° x 40° INSTALLATION LOUDSPEAKER
AXIAL PROCESSED RESPONSE (dB)
Passive Half Space LF MF HF
120
110
100
90
80
20
AXIAL SENSITIVITY (dB SPL)
LF Half Space MF/HF
120
110
100
90
80
20
100
100
Frequency (Hz)
9
Frequency (Hz)
8
1000
1000
10000
10000
HORIZONTAL OFF-AXIS RESPONSE (dB)
Half-space 0° 15° 30° 45° 60°
110
100
90
80
70
20
100
Frequency (Hz)
1000
VERTICAL OFF-AXIS UP RESPONSE (dB)
Half-space 0° 10° 20° 30° 40°
110
100
90
80
70
20
100
Frequency (Hz)
1000
10
10000
10
10000
IMPEDANCE (Ohms)
LF MF MF/HF HF
100
10
1
20
Min Impedance: (LF) 6.8 ohms @ 40Hz, (MF) 10 ohms @ 1800 Hz,
DIRECTIVITY INDEX (dB)
40
30
20
10
0
20
100
Frequency (Hz)
(MF/HF) 6 ohms @ 5000 Hz, (HF) 8.1 ohms @ 2240 Hz
11
100
Frequency (Hz)
1000
1000
10000
10000
VERTICAL OFF-AXIS DOWN RESPONSE (dB)
Half-space 0° 10° 20° 30° 40°
110
100
90
80
70
20
BEAMWIDTH (Degrees)
Horizontal Vertical
360
100
10
20
100
100
Frequency (Hz)
1000
12
1000 10000
Frequency (Hz)
10
10000
