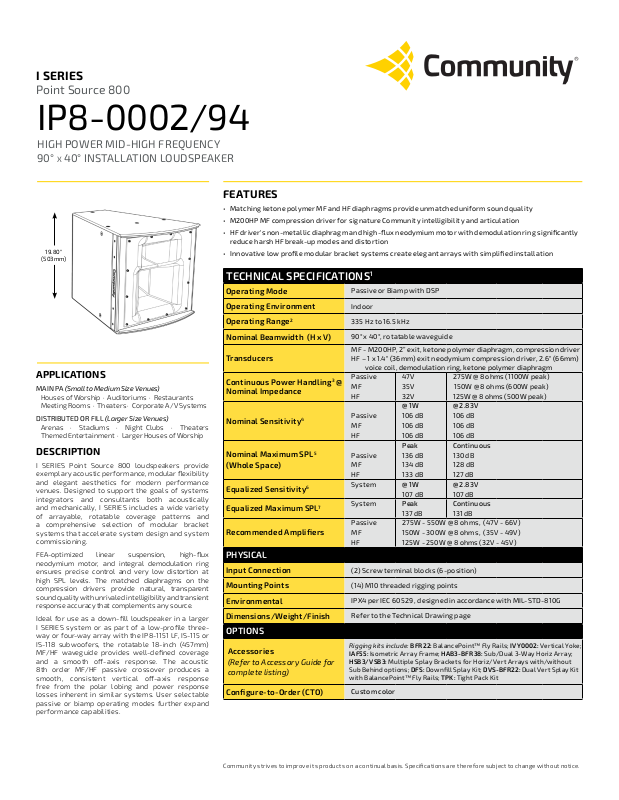

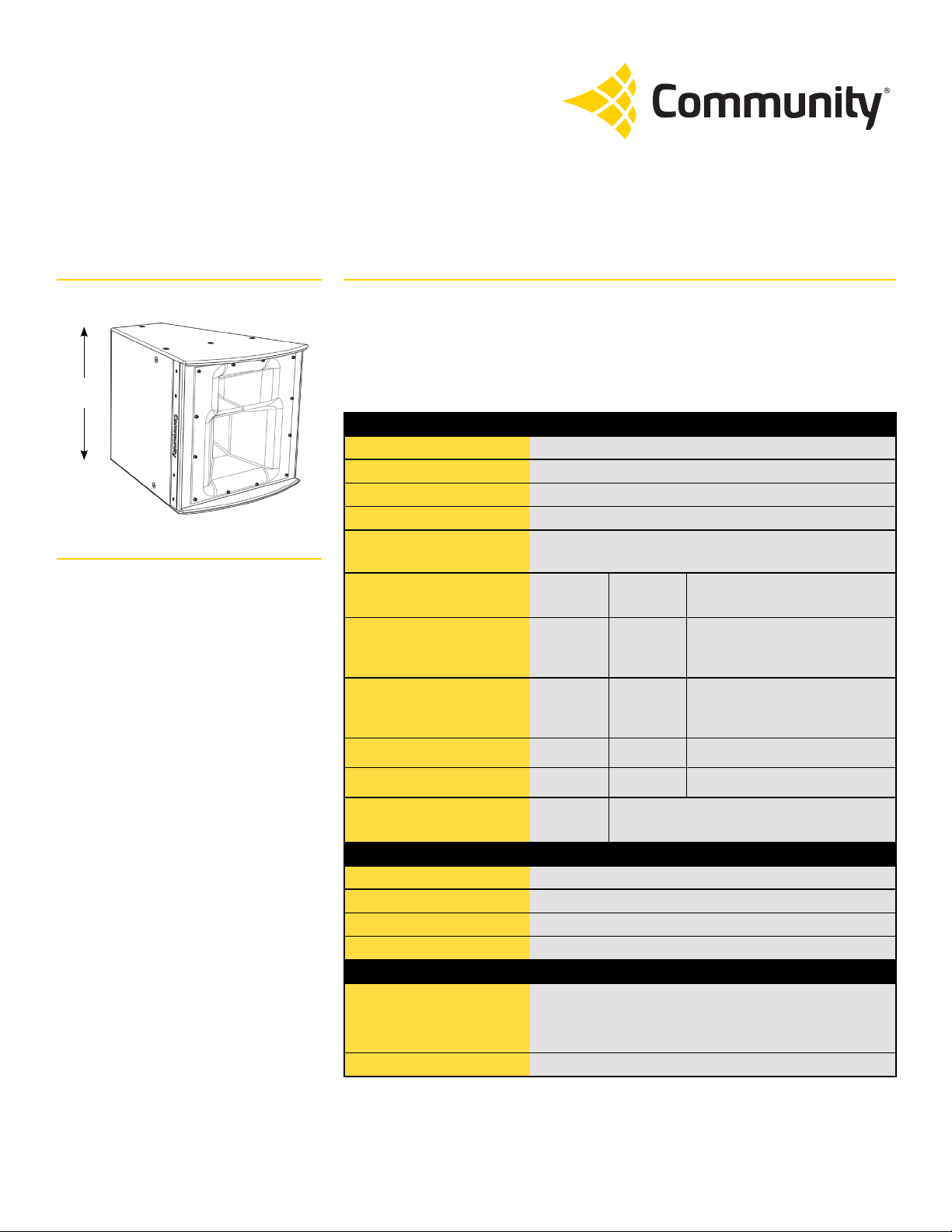

Page 1
I SERIES
Point Source 800
IP8-0002/94
HIGH POWER MID-HIGH FREQUENCY
90° x 40° INSTALLATION LOUDSPEAKER
FEATURES
• Matching ketone polymer MF and HF diaphragms provide unmatched uniform sound quality
• M200HP MF compression driver for signature Community intelligibility and ar ticulation
• HF driver's non-metallic diaphragm and high-flux neodymium motor with demodulation ring significantly
19.80"
(503mm)
APPLICATIONS
MAI N PA (Small to Medium Size Venu es)
House s of Worship · Auditoriums · Re staurant s
Meeting Rooms · Theaters · Corporate A/V System s
DISTRIBUTED OR FILL (Larger Size Venues)
Arenas · Stadiums · Night Clubs · Theaters
Theme d Entertainment · Larger Houses of Worship
DESCRIPTION
I SERIES Point Source 800 loudspeakers provide
exemplary acoustic performance, modular flexibility
and elegant aesthetics for modern per formance
venues. Designed to support the goals of s ystems
integrators and consultants both acoustically
and mechanically, I SERIES includes a wide variety
of arrayable, rotatable coverage patterns and
a comprehensive selection of modular bracket
systems that accelerate system design and system
commissioning.
FEA-optimized linear suspension, high-flux
neodymium motor, and integral demodulation ring
ensures precise control and very low distortion at
high SPL levels. The matched diaphragms on the
compression drivers provide natural, transparent
sound quality with unrivaled intelligibility and transient
response accuracy that complements any source.
Ideal for use as a down-fill loudspeaker in a larger
I SERIES system or as part of a low-profile threeway or four-way array with the IP8-1151 LF, IS-115 or
IS-118 subwoofers, the rotatable 18-inch (457mm)
MF/HF waveguide provides well-defined coverage
and a smooth o-axis response. The acoustic
8th order MF/HF passive crossover produces a
smooth, consistent vertical o-axis response
free from the polar lobing and power response
losses inherent in similar systems. User selectable
passive or biamp operating modes further expand
performance capabilities.
reduce harsh HF break-up modes and distor tion
• Innovative low profile modular bracket systems create elegant arrays with simplified installation
TECHNICAL SPECIFICATIONS1
Operating Mode
Operating Environment
Operating Range
Nominal Beamwidth (H x V)
Transducers
Continuous Power Handling3 @
Nominal Impedance
Nominal Sensitivity
Nominal Maximum SPL
(Whole Space)
Equalized Sensitivity6
Equalized Maximum SPL7
Recommended Amplifiers
PHYSICAL
Input Connection
Mounting Points
Environmental
Dimensions/Weight/Finish
OPTIONS
Accessories
(Refer to Accessory Guide for
complete listing)
Configure-to-Order (CTO)
Passive or Biamp with DSP
Indoor
2
4
5
335 Hz to 16.5 kHz
90° x 40 °, ro tatabl e w avegu ide
MF - M200HP, 2” exit, ketone polymer diaphragm, compression driver
HF – 1 x 1.4" (36mm) exit neodymium compression driver, 2.6" (66mm)
voice coil, demodulation ring, ketone polymer diaphragm
Passive
MF
HF
Passive
MF
HF
Passive
MF
HF
System @ 1W
System Peak
Passive
MF
HF
(2) Screw terminal blocks (6-position)
(14) M10 threaded rigging points
IPX4 per IEC 60529 , designed in accordance with MIL-STD-810G
Refer to the Technical Drawing page
Rigging kits include: BFR22: BalancePo int™ Fly Rails; IV Y0002: Vertical Yoke;
IAF55: Isometr ic Array Frame; HAB3-BFR38: Sub/Dual 3-Way Horiz Arr ay;
HSB3/VSB3: Multi ple Splay Brackets for H oriz/Ver t Arrays with/witho ut
Sub Behind options; DFS: Downfill Splay Kit ; DVS-BFR22: Dual Vert Splay Kit
with BalancePoint™ Fly Rails; TPK: Tight Pa ck Kit
Custom color
47V
35V
32V
@ 1W
106 dB
106 dB
106 dB
Peak
136 dB
134 dB
133 dB
107 dB
137 dB
275W - 550W @ 8 ohms, (47V - 66V)
150W - 300W @ 8 ohms, (35V - 49V)
125W - 250W @ 8 ohms (32V - 45V)
275W @ 8 ohms (1100W peak)
150W @ 8 ohms (600W peak)
125W @ 8 ohms (500W peak)
@ 2.83 V
106 dB
106 dB
106 dB
Continuous
130 dB
128 dB
127 dB
@ 2.83 V
107 dB
Continuous
131 dB
Commu nity str ives to impro ve its products on a con tinual basis . Specific ations are t herefore su bject to cha nge withou t notice.
Page 2
I SERIES
Impedance
Passive MF HF
Sys / Component Axial Sensitivity (dB SPL)
MF HF MF/HF
Beamwidth (Degrees)
BeamH BeamV
Directivity Index
Off-Axis Vertical (down)
Off‐Axis(Horizontal)
Off-Axis Vertical (up)
Point Source 800
IP8-0002/94
HIGH POWER MID-HIGH FREQUENCY
90° x 40° INSTALLATION LOUDSPEAKER

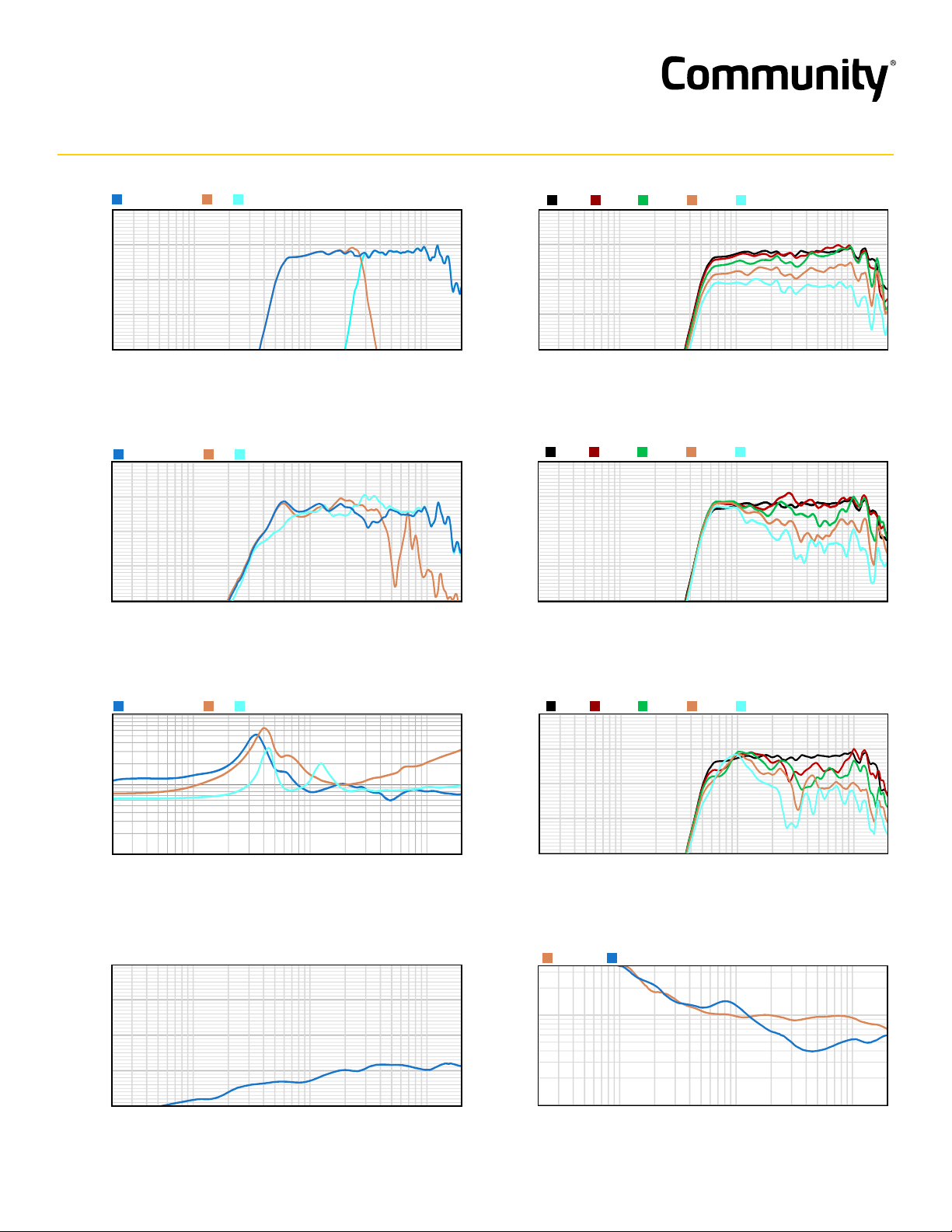

AXIAL PROCESSED RESPONSE (dB)
Passive (MF/HF) MF HF
120
110
100
90
80
20
AXIAL SENSITIVITY (dB SPL)
Passive (MF/HF) MF HF
120
110
100
90
80
20
100
100
Frequency (Hz)
9
Frequency (Hz)
8
1000
1000
10000
10000
HORIZONTAL OFF-AXIS RESPONSE (dB)
0° 15° 30° 45° 60°
120
110
100
90
80
20
100
Frequency (Hz)
1000
VERTICAL OFF-AXIS UP RESPONSE (dB)
0° 10° 20° 30° 40°
120
110
100
90
80
20
100
Frequency (Hz)
1000
10
10000
10
10000
IMPEDANCE (Ohms)
Passive (MF/HF) MF HF
100
10
1
20
Min Impedance: (MF) 10 ohms @ 1800 Hz, (MF/HF) 6 ohms @ 5000 Hz,
(HF) 8.1 ohms @ 2240 Hz
DIRECTIVITY INDEX (dB)
40
30
20
10
0
20
100
Frequency (Hz)
11
100
Frequency (Hz)
1000
1000
10000
10000
VERTICAL OFF-AXIS DOWN RESPONSE (dB)
0° 10° 20° 30° 40°
120
110
100
90
80
20
BEAMWIDTH (Degrees)
Horizontal Vertical
360
100
10
20
100
100
Frequency (Hz)
1000
12
1000 10000
Frequency (Hz)
10
10000
Page 3
I SERIES
Point Source 800
HIGH POWER MID-HIGH FREQUENCY
IP8-0002/94
90° x 40° INSTALLATION LOUDSPEAKER

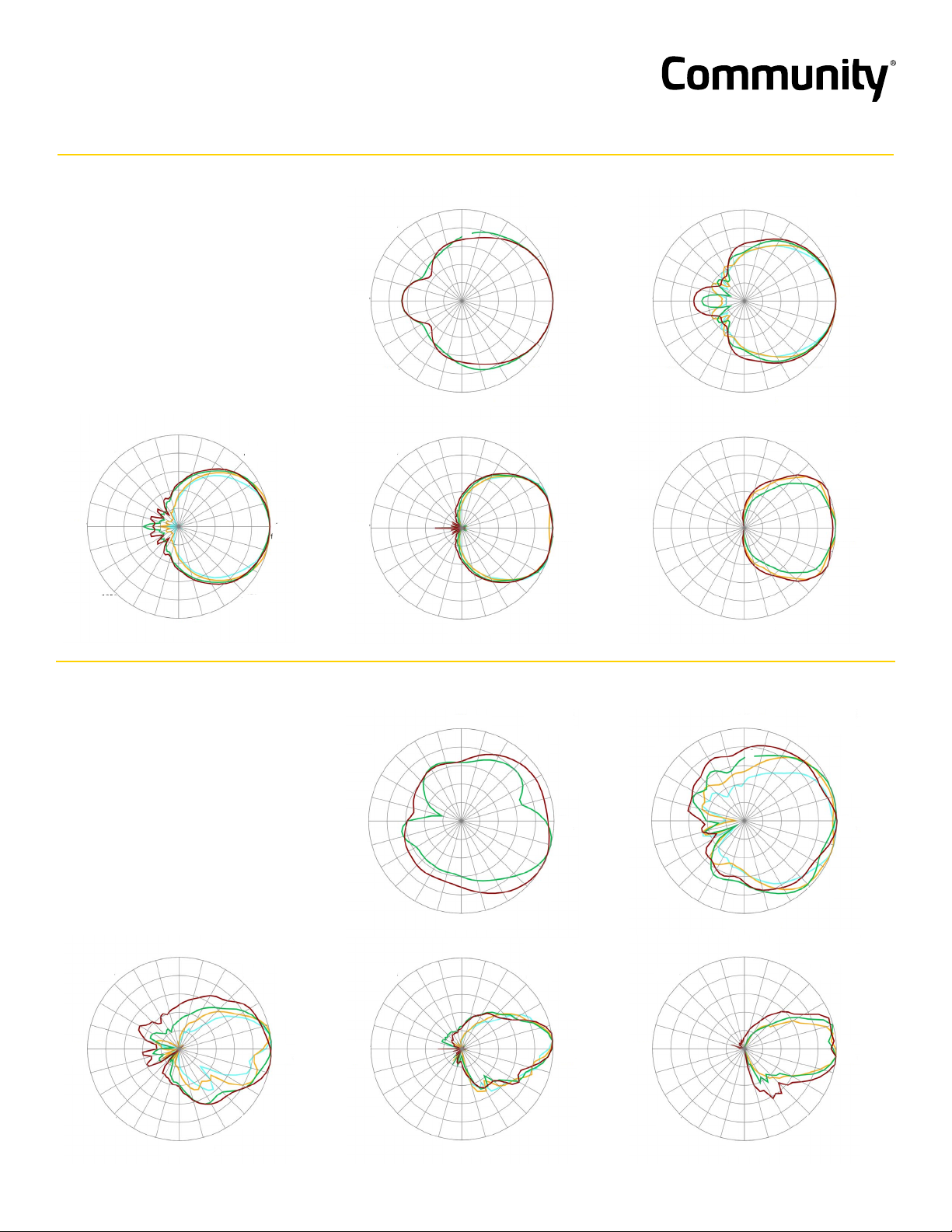

HORIZONTAL POLAR DATA (30dB Scale, 6dB per major division)
90° le ft
135°
-6
45°
— 400 Hz
— 500 Hz
135°
90° le ft
-6
45°
— 630 Hz
— 800 Hz
— 1000 Hz
— 1250 Hz
180°
back
-135 °
-90° right
180°
back
135°
-135 °
90° le ft
-6
-90° right
45°
-45°
— 1600 Hz
— 2000 Hz
— 2500 Hz
— 3150 Hz
0°
front
180°
back
135°
-135 °
90° le ft
-90° right
VERTICAL POLAR DATA (30dB Scale, 6dB per major division)
90° up
135°
0°
front
-45°
— 4000 Hz
— 5000 Hz
-6
-6
45°
-45°
45°
— 6300 Hz
— 8000 Hz
0°
front
— 400 Hz
— 500 Hz
180°
back
180°
back
-135 °
135°
-135 °
135°
-90° right
90° le ft
-6
-90° right
90° up
-6
-45°
45°
-45°
45°
0°
front
— 10000 Hz
— 12500 Hz
— 16000 Hz
0°
front
— 630 Hz
— 800 Hz
— 1000 Hz
— 1250 Hz
180°
back
135°
-135 °
90° up
-6
-90° do wn
45°
-45°
— 1600 Hz
— 2000 Hz
— 2500 Hz
— 3150 Hz
0°
front
180°
back
180°
back
-135 °
135°
-135 °
-90° do wn
90° up
-6
-90° do wn
-45°
45°
-45°
0°
front
— 4000 Hz
— 5000 Hz
— 6300 Hz
— 8000 Hz
0°
front
180°
back
180°
back
-135 °
135°
-135 °
-90° do wn
90° up
-6
-90° do wn
-45°
45°
-45°
0°
front
— 10000 Hz
— 12500 Hz
— 16000 Hz
0°
front
Page 4
I SERIES
Point Source 800
IP8-0002/94
HIGH POWER MID-HIGH FREQUENCY
90° x 40° INSTALLATION LOUDSPEAKER
Grille:
Powder-coated perforated steel backed with
color-matched acoustically transparent woven fabric.
Black (RAL#9005) or White (RAL#9003)
Enclosure / Finish
Black (RAL#9004) or White (RAL#9003)
low gloss, uniformly textured painted
EE
1234567
D
C
17.04" [432.8]
1.38" [35.0]
4.26" [108.1]
B
www.communitypro.com
TEL: (610)876-3400 FAX: (610)874-0190
COMMUNITY PROFESSIONAL LOUDSPEAKERS
333 E FIFTH ST. CHESTER, PA 19013-4511 USA
I SERIES IP8-0002
DRAWING TITLE
A
0
REV
1 OF 1NONE
SHEET
IP8-0002-2D
SCALE
DWG NO.
METRIC: ±0.5mm
1234567
DRAWING REPRODUCED WITHOUT THE WRITTEN PERMISSION OF COMMUNITY.
THE INFORMATION ANDK NOW-HOW THEREON MAY NOT BE USED NORTHE
THIS DRAWING HAS BEEN FURNISHED BY COMMUNITY LIGHT &SOUND, INC.
ALL REPRODUCTIONS WHOLE OR IN PART, INCLUDING VENDOR'S SHOP
DRAWINGS SHALL BEAR OR REFER TOTHIS STAMP.
CL
BACK
ANGLES: ±.5° DECIMALS: ±.03"
TOLERANCES ON ALL DIMENSIONS
DIMENSIONS ACROSS CENTERLINES
UNLESS OTHERWISE NOTED TO BE:
TO BE SYMMETRICAL
DO NOT SCALE DRAWING
TSC = THEORETICAL SHARP CORNER
THIRD ANGLE PROJECTION
ALL DIMENSIONS IN in/mmU.O.S.
INPUT
15mm Baltic Birch plywood
H x W x D
19.80" x 22.10" x 26.30"
7.06" [179.2]
REVISIONS
6.37" [161.8]
16.74" [425.2]
9.30" [236.2] TSC
1.38" [35.0]
14.00" [355.6]
16.52" [419.7]
17.04" [432.8]
CL
DESCRIPTION
1.38" [35.0]
REV DA TE
1.38" [35.0]
16.50" [419.1]
16.52" [419.7]
SIDES
26.30" [668.1]
15.30" [388.5]
9.70" [246.4]
(503 x 561 x 668 mm)
Unit Weight
63 lbs (28.6 kg) loudspeaker only
Shipping Weight
76 lbs (34.5 kg)
19.80" [502.8]
22.10" [561.3]
30°
TOP/BOTTOM
1.38" [35.0]
FRONT
SHOWN
GRILLE PARTIALLY
POINT, M10 THREADED HOLE.
NOTES:
1. SYMBOL INDICATES COG.
3. DRAWING REPRESENTATIVE OF
2. SYMBOL INDICATES MOUNTING

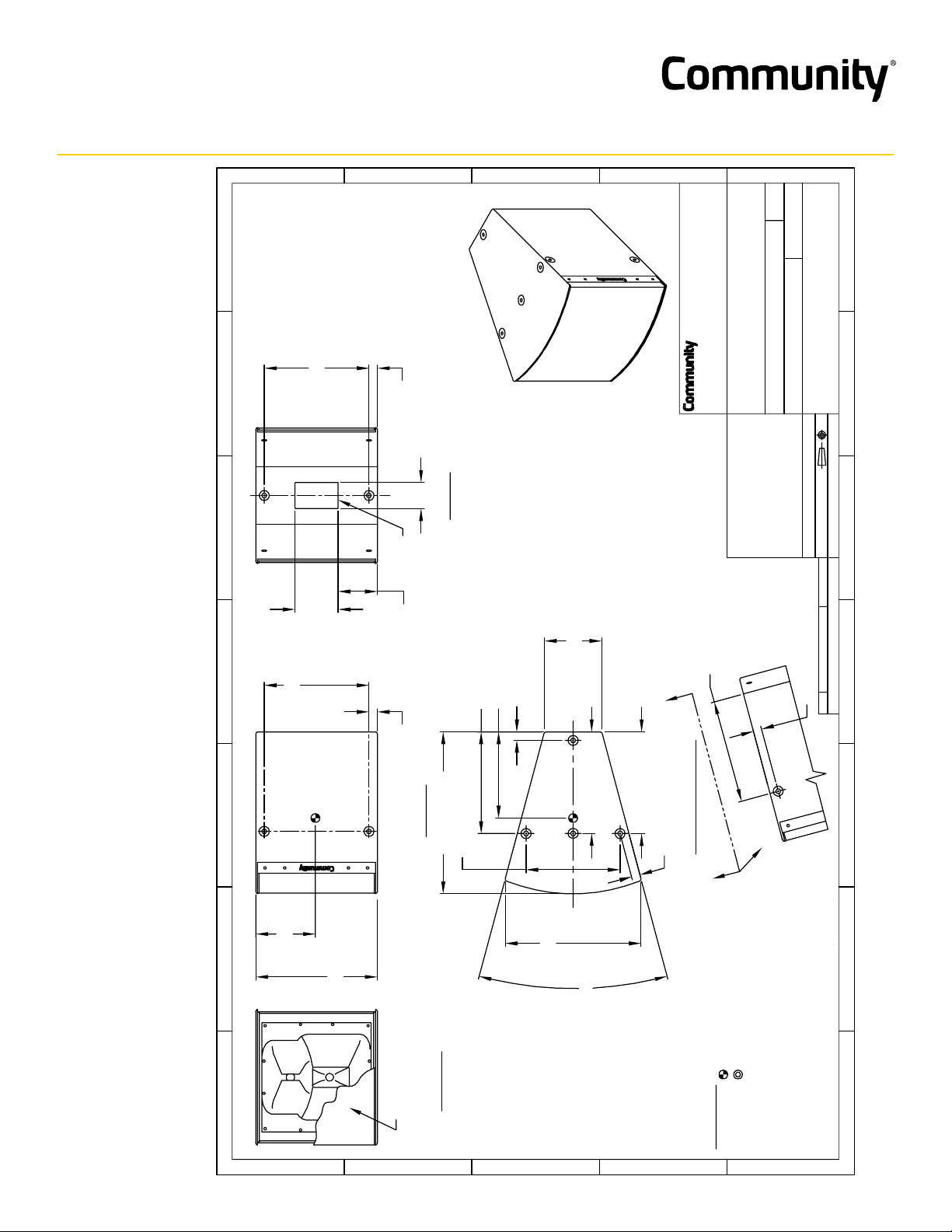

TECHNICAL DRAWING / DIMENSIONS / FINISH
D
C
B
LOUDSPEAKER ONLY: 63LBS. (28.6KG)
IP8-0002/64, IP8-0002/66,
IP8-0002/94.
4. WEIGHT:
A
Page 5
I SERIES
Point Source 800
IP8-0002/94
HIGH POWER MID-HIGH FREQUENCY
90° x 40° INSTALLATION LOUDSPEAKER

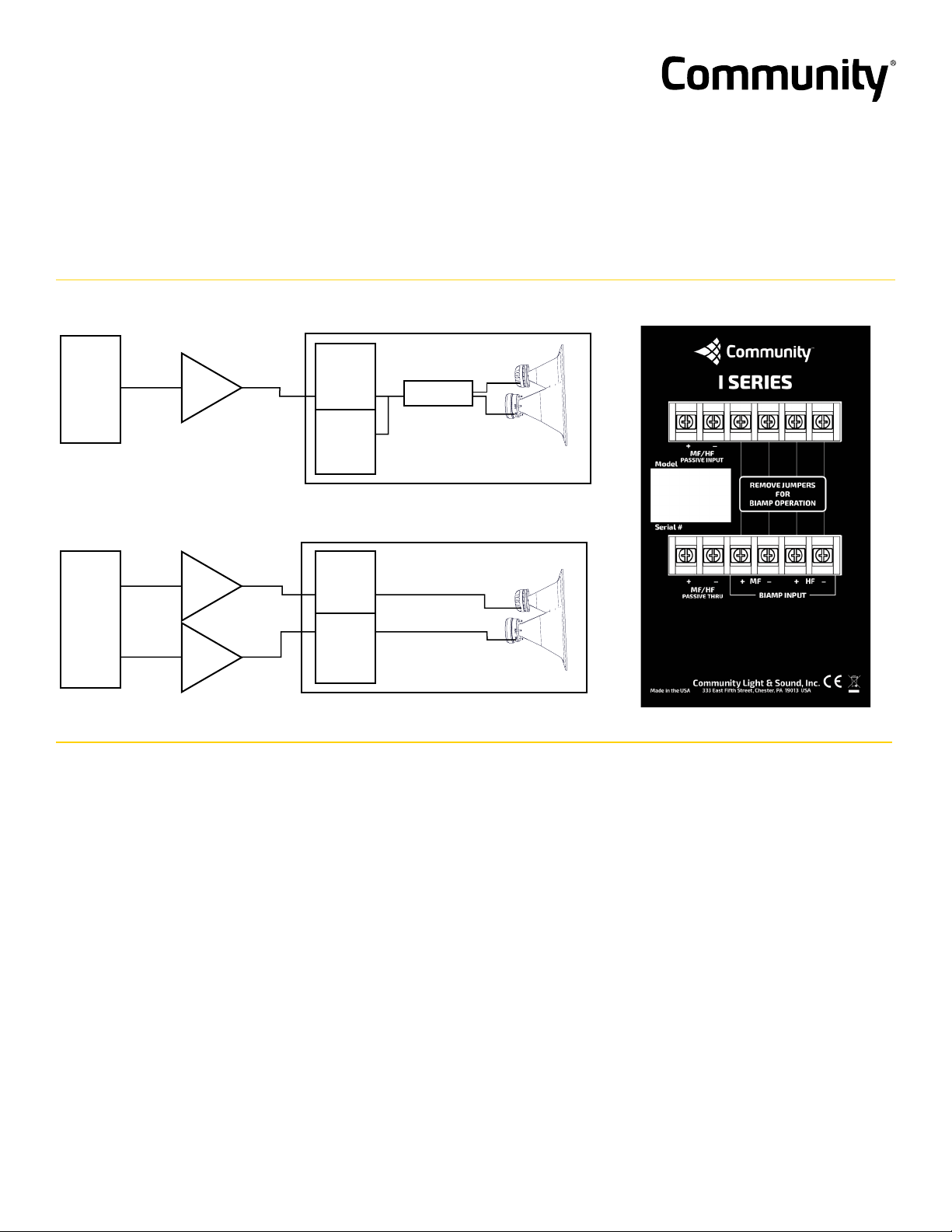

CONNECTION DIAGRAMS
DSP
Amp
Single amp
HF
Amp
DSP
MF
Amp
NOTES
1. PERFORMANCE SPECIFICATIONS All measurements
are taken indoor using a time-windowed and processed
signal to eliminate room eects, approximating an
anechoic environment, a distance of 6.0 m. All acoustic
specifications are rounded to the nearest whole number.
An external DSP with settings provided by Community
Professional Loudspeakers is required to achieve the
specified performance; further performance gains can
be realized using Community’s dSPEC226 loudspeaker
processor with FIR power response optimization.
2. OPERATING RANGE The frequency range in which the
on-axis processed response remains within 10dB of the
average SPL.
3. CONTINUOUS POWER HANDLING Maximum continuous
input voltage (and the equivalent power rating, in watts,
at the stated nominal impedance) that the system can
withstand, without damage, for a period of 2 hours using
an EIA-426-B defined spectrum; with recommended signal
processing and protection filters.
4. NOMINAL SENSITIVITY Averaged SPL over the operating
range with an input voltage that would produce 1 Watt
at the nominal impedance and the averaged SPL over
the operating range with a fixed input voltage of 2.83V,
respectively; swept sine wave axial measurements with
no external processing applied in whole space, except
where indicated.
+/–
Passive
Input
+/–
Passive
Thru
+/–
Input
+/–
Input
Biamp
HF
Crossover
MF
HF
HF
MF
MF
5. NOMINAL MAXIMUM SPL Calculated based on nominal
/ peak power handling, respectively, and nominal
sensitivity; exclusive of power compression.
6. EQUALIZED SENSITIVITY The respective SPL levels
produced when an EIA-426-B signal is applied to the
equalized loudspeaker system at a level which produces
a total power of 1 Watt , in sum, to the loudspeaker
subsections and also at a level which produces a total
voltage, in sum, of 2.83V to the loudspeaker subsections,
respectively; each referenced to a distance of 1 meter.
7. EQUALIZED MAXIMUM SPL The SPL produced when an
EIA-426-B signal is applied to the equalized loudspeaker
system, at a level which drives at least one subsection to
its rated continuous input voltage limit, referenced to a
distance of 1 meter. The peak SPL represents the 2:1 (6dB)
crest factor of the EIA-426-B test signal.
8. AXIAL PROCESSED RESPONSE The on-axis variation
in acoustic output level with frequency of the complete
loudspeaker system with recommended signal processing
applied. 1/6 octave Gaussian smoothing applied.
9. AXIAL SENSITIVITY The on-axis variation in acoustic
output level with frequency for a 1 Watt swept sine
wave, referenced to 1 meter with no signal processing.
1/6 octave Gaussian smoothing applied.
Mid-high input panel
10. HORIZONTAL / VERTICAL OFF-AXIS RESPONSES The
loudspeaker’s magnitude response at various angles
o-axis, with recommended signal processing applied in
the operating mode which utilizes the largest number of
individually amplified pass bands. 1/6 octave Gaussian
smoothing applied.
11. DIRECTIVITY INDEX The ratio of the on-axis SPL
squared to the mean squared SPL at the same distance
for all points within the measurement sphere for each
given frequency; expressed in dB. 1/6 octave Gaussian
smoothing applied.
12. BEAMWIDTH The angle between the -6dB points in
the polar response of the loudspeaker when driven in
the operating mode which utilizes the largest number of
individually amplified pass bands. 1/6 octave Gaussian
smoothing applied.
Data presented on this spec sheet represents a selection of
the basic performance specifications for the model. These
specifications are intended to allow the user to perform a
fair, straightforward evaluation and comparison with other
loudspeaker spec sheets. For a detailed analysis of this
loudspeaker’s performance, please download the GLL file
and/or the CLF file from our website: communitypro.com
Community Professional Loudspeakers
333 East Fifth Street, Chester, PA 19013-4511 USA
Phone (610) 876-3400 • Fax (610) 874-0190
communitypro.com • info@communitypro.com
CAUTION: Installation of loudspeakers should only be
performed by trained and qualified personnel. It is strongly
recommended that a licensed and certified professional
structural engineer approve the mounting design.
IP8-0002/94 [17FEB2015]
Loading...
