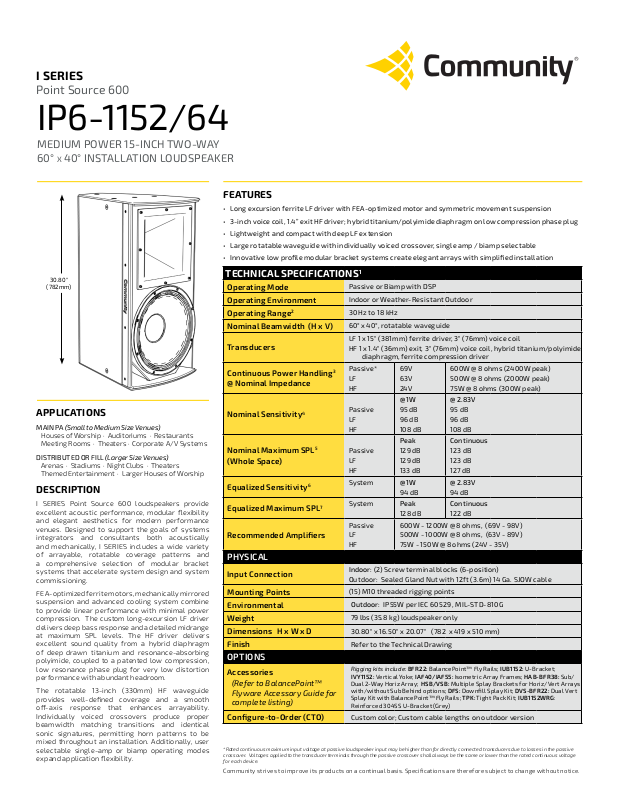

Community IP6-1152WR64 User Manual

I SERIES

Point Source 600

IP6-1152/64

MEDIUM POWER 15-INCH TWO-WAY

60° x 40° INSTALLATION LOUDSPEAKER

FEATURES

• Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension

• 3-inch voice coil, 1.4” exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug

• Lightweight and compact with deep LF extension

• Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable

• Innovative low profile modular br acket systems create elegant arrays with simplified installation

30.80"

(782mm)

APPLICATIONS

MAIN PA (Small to Medium Size Venues)

House s of Worship · Auditoriums · Res taurants
Meeting Rooms · Thea ters · Corporate A /V Systems

DISTRIBUT ED OR FILL (Larger Size Venues)

Arena s · Stadiums · Nigh t Clubs · Theaters
Theme d Entertainment · Larger Houses of Worship

DESCRIPTION

I SERIES Point Source 600 loudspeakers provide
excellent acoustic performance, modular flexibility
and elegant aesthetics for modern performance
venues. Designed to support the goals of systems
integrators and consultants both acoustically
and mechanically, I SERIES includes a wide variet y
of arrayable, rotatable coverage patterns and
a comprehensive selection of modular bracket
systems that accelerate system design and sys tem
commissioning.

FEA -optimi zed ferr ite motor s, mech anically m irrore d
suspension and advanced cooling system combine
to provide linear per formance with minimal power
compression. The custom long-excursion LF driver
delivers de ep bass respo nse and a deta iled midrang e
at maximum SPL levels. The HF driver delivers
excellent sound quality from a hybrid diaphragm
of deep drawn titanium and resonance-absorbing
polyimide, coupled to a patented low compression,
low resonance phase plug for very low distortion
performance with abundant headroom.

The rotatable 13-inch (330mm) HF waveguide
provides well-defined coverage and a smooth
o-axis response that enhances arrayability.
Individually voiced crossovers produce proper
beamwidth matching transitions and identical
sonic signatures, permitting horn patterns to be
mixed throughout an installation. Additionally, user
selec table single-amp or biamp operating modes
expand application flexibility.

TECHNICAL SPECIFICATIONS1

*Rated continuous maximum input voltage at passive loudspeaker input may be higher than for directly connected transducers due to losses in the passive
crossover. Voltages applied to the transducer terminals through the passive crossover shall always be the same or lower than the rated continuous voltage
for each device.

Commu nity str ives to impro ve its products on a cont inual basis . Specifica tions are th erefore sub ject to chan ge without notic e.

Operating Mode

Operating Environment

Operating Range

2

Nominal Beamwidth (H x V)

Transducers

Continuous Power Handling3
@ Nominal Impedance

Nominal Sensitivity

Nominal Maximum SPL

4

5

(Whole Space)

Equalized Sensitivity6

Equalized Maximum SPL7

Recommended Amplifiers

PHYSICAL

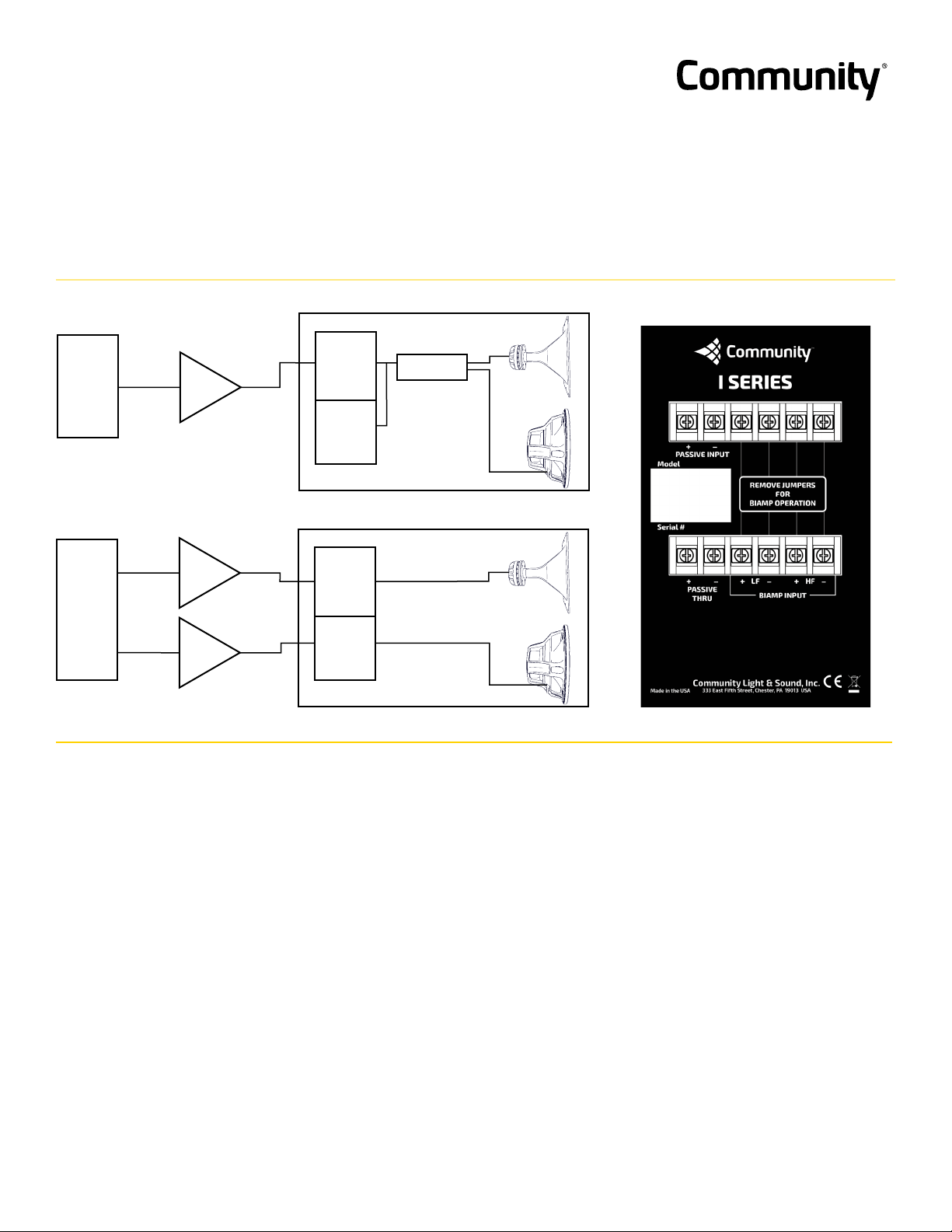

Input Connection

Mounting Points

Environmental

Weight

Dimensions H x W x D

Finish

OPTIONS

Accessories

(Refer to BalancePoint™
Flyware Accessory Guide for
complete listing)

Configure-to-Order (CTO)

Passive or Biamp with DSP

Indoor or Weather-Resistant Outdoor

30 Hz to 18 kHz

60° x 40 °, ro tatabl e w avegu ide

LF 1 x 15" (381mm) ferrite driver, 3" (76mm) voice coil
HF 1 x 1.4" (36mm) exit, 3" (76mm) voice coil, hybrid titanium/polyimide

diaphragm, ferrite compression driver

Passive*
LF
HF

Passive
LF
HF

Passive
LF
HF

System @ 1W

System Peak

Passive
LF
HF

Indoor: (2) Screw terminal blocks (6-position)
Outdoor: Sealed Gland Nut with 12ft (3.6m) 14 Ga. SJOW cable

(15) M10 threaded rigging point s

Outdoor: IP55 W per IEC 60529 , MIL-STD-810G

79 lbs (35.8 kg) loudspeaker only

30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)

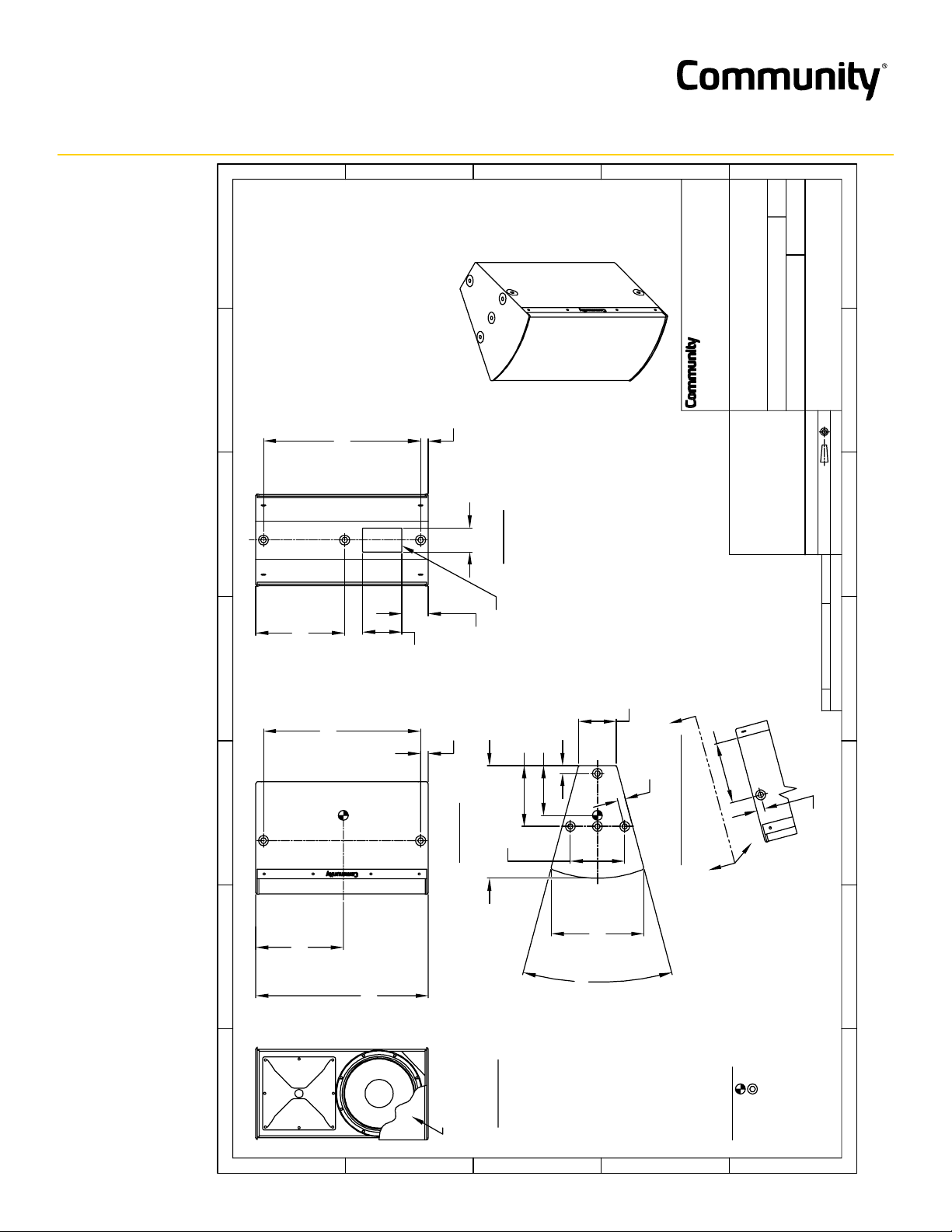

Refer to the Technical Drawing

Rigging kits include: BFR2 2: Balance Point™ Fly Rail s; IUB1152: U-Bracket;
IVY 1152: Vert ical Yoke; IAF40/IAF55: Iso metric Ar ray Frames ; HAB-BFR38: Sub/

Dual 2-Way H oriz Arra y; HSB/VSB: Multipl e Splay Bra ckets for Ho riz/Ver t Arrays
with/without Sub Behind options; DFS: Downfi ll Splay Ki t; DVS-BFR 22: Dual Vert
Spla y Kit with Bal ancePoin t™ Fly R ails; TPK: T ight Pack K it; IUB1152WRG:
Reinf orced 304SS U -Bracket (Gr ey)

Custom color; Custom cable lengths on outdoor version

69V
63V
24V

@ 1W

95 dB
96 dB
108 dB

Peak

129 dB
129 dB
133 dB

94 dB

128 dB

600W - 1200W @ 8 ohms, (69V - 98V)
500W - 1000W @ 8 ohms, (63V - 89V)
75W - 150W @ 8 ohms (24V - 35V)

600W @ 8 ohms (2400W peak)
500W @ 8 ohms (2000W peak)
75W @ 8 ohms (300W peak)

@ 2.83 V

95 dB
96 dB
108 dB

Continuous

123 d B
123 dB
127 dB

@ 2.83 V

94 dB

Continuous

122 dB

I SERIES

LF HF Passive

Beamwidth (Degrees)

BeamH BeamV

Off-Axis Vertical (down)

Half Space Mag [dB] (0°) Mag [dB] (10°)
Mag [dB] (20°) Mag [dB] (30°) Mag [dB] (40°)

Off-Axis Horizontal

Half Mag [dB] (0°) Mag [dB] (10°)
Mag [dB] (20°) Mag [dB] (30°) Mag [dB] (40°)

Off-Axis Vertical (up)

Half Space Mag [dB] (0°) Mag [dB] (10°)
Mag [dB] (20°) Mag [dB] (30°) Mag [dB] (40°)

LF_proc HF_proc HalfSpace_Proc System_Proc

Sys / Component Axial Sensitivity (dB SPL)

Directivity Index

Point Source 600

IP6-1152/64

MEDIUM POWER 15-INCH TWO-WAY
60° x 40° INSTALLATION LOUDSPEAKER

AXIAL PROCESSED RESPONSE (dB)

AXIAL PROCESSED RESPONSE (dB)

Full Range Half Space LF HF

120

110

100

90

80

AXIAL SENSITIVITY (dB SPL)

Passive Half Space LF HF

120

110

100

90

80

100

100 1000 1000020

Frequency (Hz)

9

Frequency (Hz)

8

8

1000

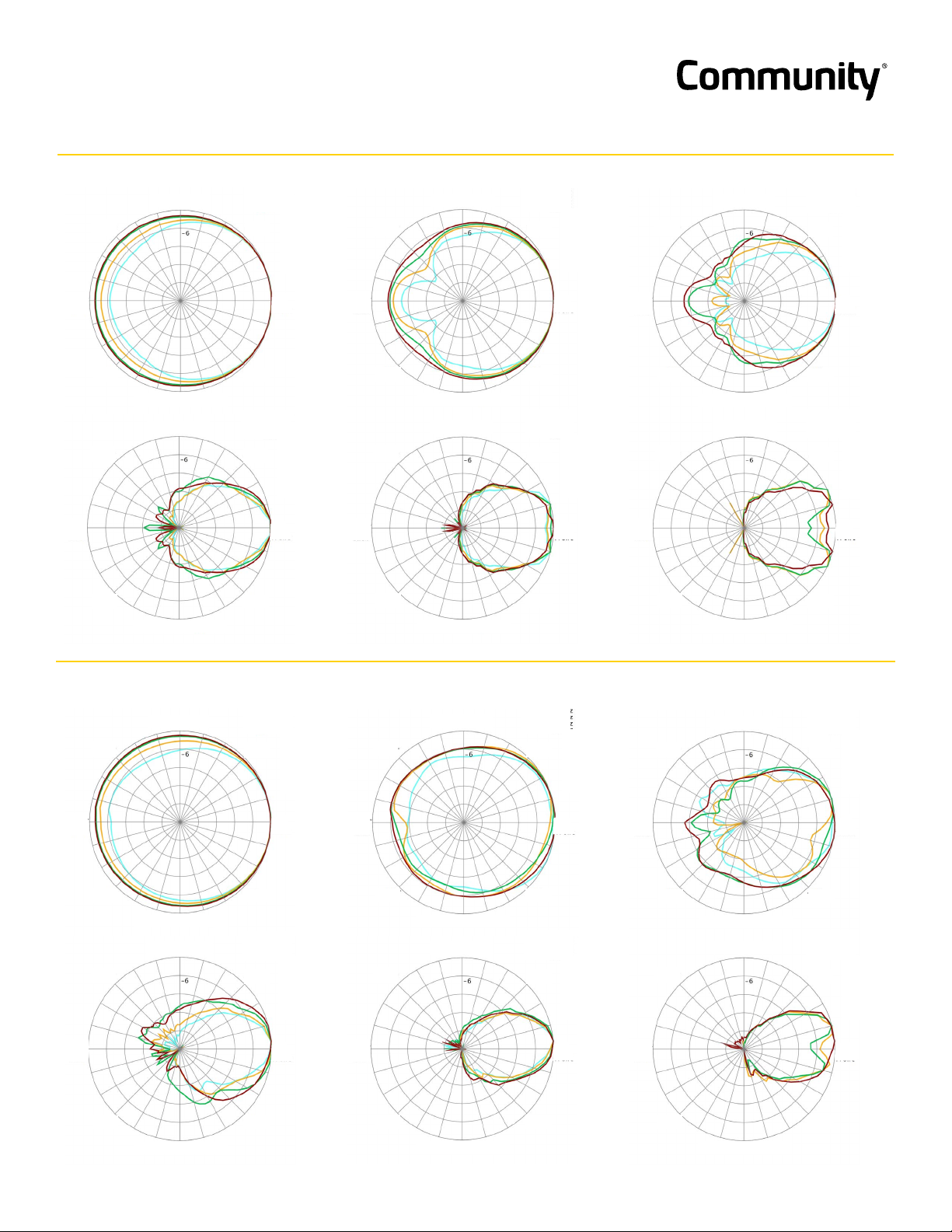

HORIZONTAL OFF-AXIS RESPONSE (dB)

110

100

90

80

70

Half-space 0° 10° 20° 30° 40°

100 1000 1000020

Frequency (Hz)

VERTICAL OFF-AXIS UP RESPONSE (dB)

110

100

90

80

1000020

70

Half-space 0° 10° 20° 30° 40°

100 1000 1000020

Frequency (Hz)

10

10

IMPEDANCE (Ohms)

Passive

100

10

1

Minimum Impedance:

(Passive) 7.6 ohms @ 220 Hz, (LF) 7.9 ohms @ 250 Hz, (HF) 7.8 ohms @ 2800 Hz

DIRECTIVITY INDEX (dB)

40

30

20

10

0

20

LF HF

100 1000 1000020

11

100

Frequency (Hz)

Frequency (Hz)

1000

10000

VERTICAL OFF-AXIS DOWN RESPONSE (dB)

110

100

90

80

70

BEAMWIDTH (Degrees)

360

100

10

Half-space 0° 10° 20° 30° 40°

100 1000 1000020

Horizontal Vertical

20

100

Frequency (Hz)

12

1000 10000

Frequency (Hz)

10
