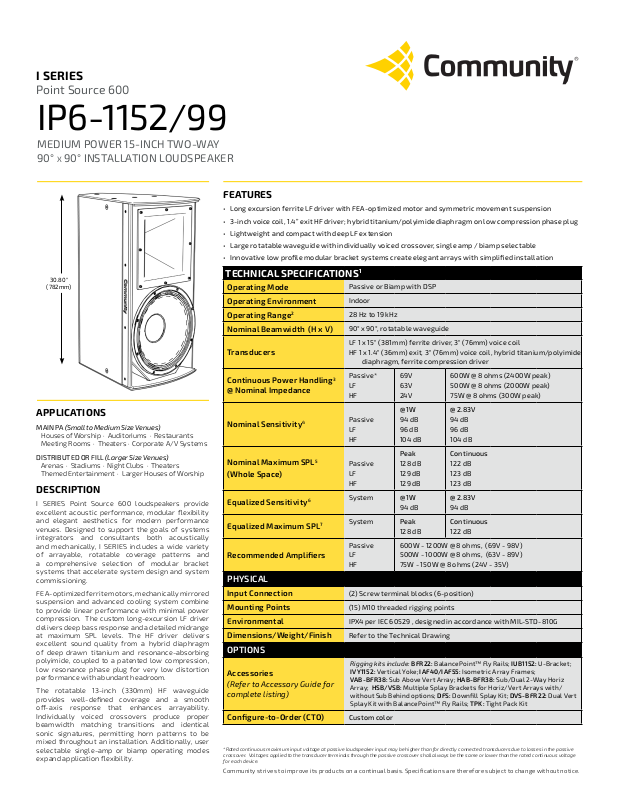

Community IP6-1152/99B Specifications
I SERIES
Point Source 600
IP6-1152/99
MEDIUM POWER 15-INCH TWO-WAY
90° x 90° INSTALLATION LOUDSPEAKER
FEATURES
• Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
• 3-inch voice coil, 1.4” exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug
• Lightweight and compact with deep LF extension
• Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
• Innovative low profile modular br acket systems create elegant arrays with simplified installation
30.80"
(782mm)
APPLICATIONS
MAIN PA (Small to Medium Size Venues)
House s of Worship · Auditoriums · Res taurants
Meeting Rooms · Thea ters · Corporate A /V Systems
DISTRIBUT ED OR FILL (Larger Size Venues)
Arena s · Stadiums · Nigh t Clubs · Theaters
Theme d Entertainment · Larger Houses of Worship
DESCRIPTION
I SERIES Point Source 600 loudspeakers provide
excellent acoustic performance, modular flexibility
and elegant aesthetics for modern performance
venues. Designed to support the goals of systems
integrators and consultants both acoustically
and mechanically, I SERIES includes a wide variet y
of arrayable, rotatable coverage patterns and
a comprehensive selection of modular bracket
systems that accelerate system design and sys tem
commissioning.
FEA -optimi zed ferr ite motor s, mech anically m irrore d
suspension and advanced cooling system combine
to provide linear per formance with minimal power
compression. The custom long-excursion LF driver
delivers de ep bass respo nse and a deta iled midrang e
at maximum SPL levels. The HF driver delivers
excellent sound quality from a hybrid diaphragm
of deep drawn titanium and resonance-absorbing
polyimide, coupled to a patented low compression,
low resonance phase plug for very low distortion
performance with abundant headroom.
The rotatable 13-inch (330mm) HF waveguide
provides well-defined coverage and a smooth
o-axis response that enhances arrayability.
Individually voiced crossovers produce proper
beamwidth matching transitions and identical
sonic signatures, permitting horn patterns to be
mixed throughout an installation. Additionally, user
selec table single-amp or biamp operating modes
expand application flexibility.
*Rated continuous maximum input voltage at passive loudspeaker input may be higher than for directly connected transducers due to losses in the passive
crossover. Voltages applied to the transducer terminals through the passive crossover shall always be the same or lower than the rated continuous voltage
for each device.
Commu nity str ives to impro ve its products on a cont inual basis . Specifica tions are th erefore sub ject to chan ge without notic e.
TECHNICAL SPECIFICATIONS1
Operating Mode
Operating Environment
Operating Range
2
Nominal Beamwidth (H x V)
Transducers
Continuous Power Handling3
@ Nominal Impedance
Nominal Sensitivity
Nominal Maximum SPL
4
5
(Whole Space)
Equalized Sensitivity6
Equalized Maximum SPL7
Recommended Amplifiers
PHYSICAL
Input Connection
Mounting Points
Environmental
Dimensions/Weight/Finish
OPTIONS
Accessories
(Refer to Accessory Guide for
complete listing)
Configure-to-Order (CTO)

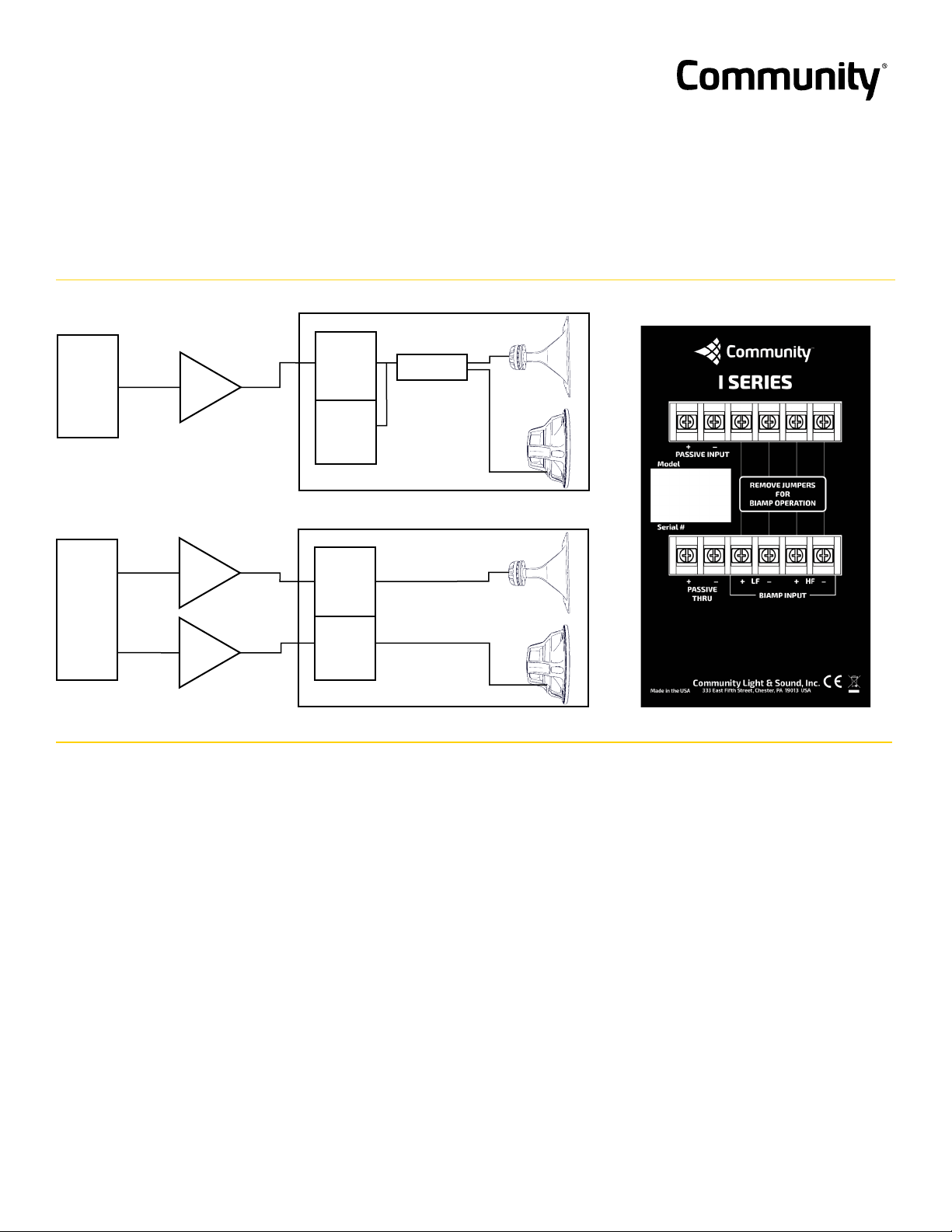

Passive or Biamp with DSP
Indoor
28 Hz to 19 kHz
90° x 90°, rotatable waveguide
LF 1 x 15" (381mm) ferrite driver, 3" (76mm) voice coil
HF 1 x 1.4" (36mm) exit, 3" (76mm) voice coil, hybrid titanium/polyimide
Passive*
LF
HF
Passive
LF
HF
Passive
LF
HF
System @ 1W
System
Passive
LF
HF
(2) Screw terminal blocks (6-position)
(15) M10 threaded rigging point s
IPX4 per IEC 60529 , designed in accordance with MIL-STD-810G

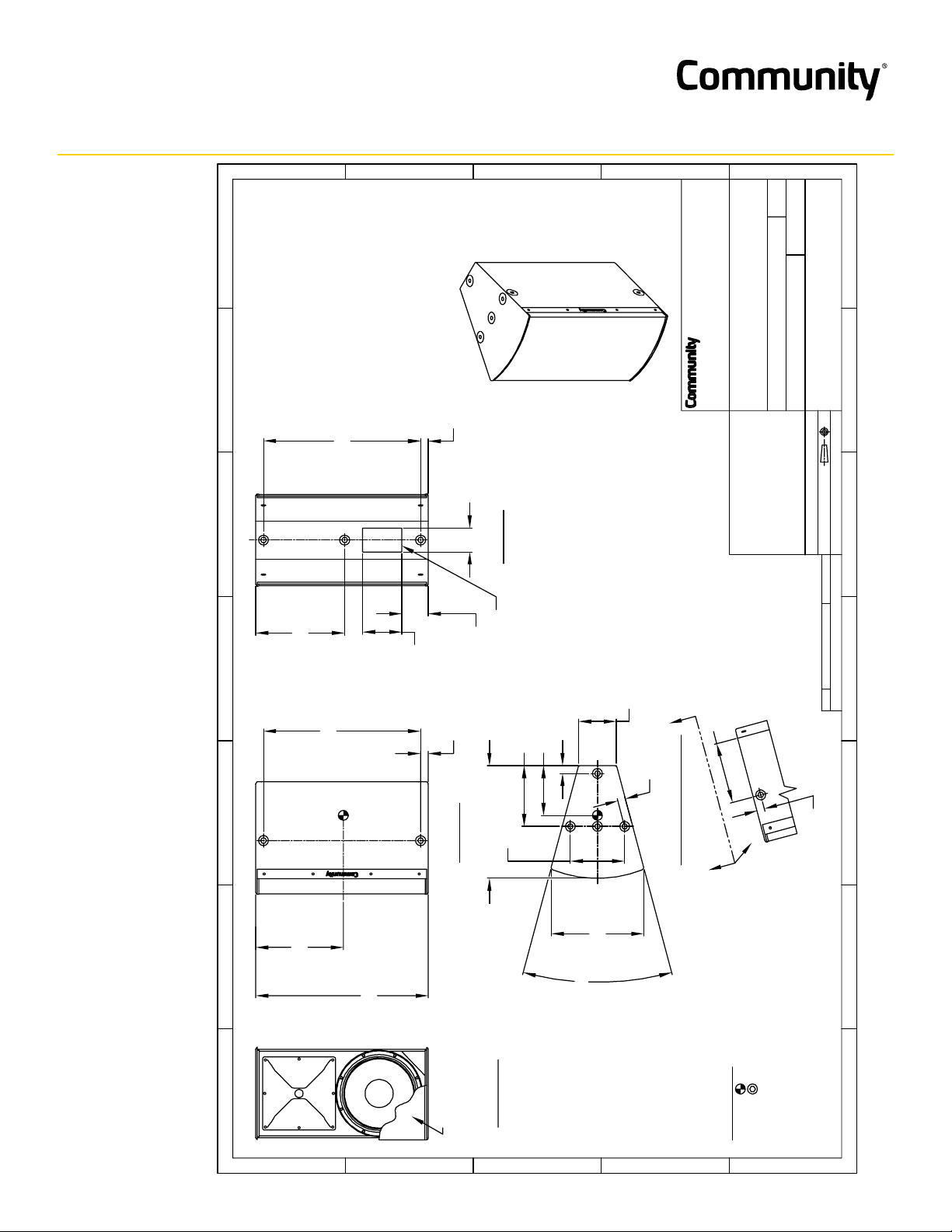

Refer to the Technical Drawing
Rigging kits include: BFR2 2: BalancePoint™ Fly Rails; IUB1152: U-Bracket;
IVY 1152: Verti cal Yoke; IAF40/IAF55: Isome tric Array Frame s;
VAB-BFR38: Sub Above Vert A rray; HAB-BFR38: Sub/Dual 2-Way Hor iz
Array; HSB/VSB: Multiple S play Brackets fo r Horiz/Vert Ar rays with/
without Sub Behind options; DFS: Down fill Splay Kit; DVS-BFR22: Dual Vert
Splay Kit with Bal ancePoint™ Fly Rails; T PK: Tight Pa ck Kit
Custom color
diaphragm, ferrite compression driver
69V
63V
24V
@ 1W
94 dB
96 dB
104 dB
Peak
128 dB
129 dB
129 dB
94 dB
Peak
128 dB
600W - 1200W @ 8 ohms, (69V - 98V)
500W - 1000W @ 8 ohms, (63V - 89V)
75W - 150W @ 8 ohms (24V - 35V)
600W @ 8 ohms (2400W peak)
500W @ 8 ohms (2000W peak)
75W @ 8 ohms (300W peak)
@ 2.83 V
94 dB
96 dB
104 dB
Continuous
122 d B
123 dB
123 dB
@ 2.83 V
94 dB
Continuous
122 dB
I SERIES
Impedance
Beamwidth (Degrees)
BeamH BeamV
Off-Axis Vertical (down)
Half Space Mag [dB] (0°) Mag [dB] (15°)
Mag [dB] ( 30°) Mag [dB] (45°) Mag [dB] (60°)
Off-Axis Horizontal
Half Mag [dB] (0°) Mag [dB] (15°)
Mag [dB] (30°) Mag [dB] (45°) Mag [dB] (60°)
Off-Axis Vertical (up)
Half Space Mag [dB] (0°) Mag [dB] (15°)
Mag [dB] (30°) Mag [dB] (45°) Mag [dB] (60°)
LF_proc HF_proc HalfSpace_Proc System_Proc
Sys / Component Axial Sensitivity (dB SPL)
Directivity Index
Point Source 600
IP6-1152/99
MEDIUM POWER 15-INCH TWO-WAY
90° x 90° INSTALLATION LOUDSPEAKER
AXIAL PROCESSED RESPONSE (dB)
AXIAL PROCESSED RESPONSE (dB)
Full Range Half Space LF HF
120
110
100
90
80
AXIAL SENSITIVITY (dB SPL)
Passive Half Space LF HF
120
110
100
90
80
100
100 1000 1000020
Frequency (Hz)
9
Frequency (Hz)
8
8
1000
HORIZONTAL OFF-AXIS RESPONSE (dB)
110
100
90
80
70
Half-space 0° 15° 30° 45° 60°
100 1000 1000020
Frequency (Hz)
VERTICAL OFF-AXIS UP RESPONSE (dB)
110
100
90
80
1000020
70
Half-space 0° 15° 30° 45° 60°
100 1000 1000020
Frequency (Hz)
10
10
IMPEDANCE (Ohms)
Passive
100
10
1
Minimum Impedance:
(Passive) 7.0 ohms @ 7100 Hz, (LF) 7.9 ohms @ 250 Hz, (HF) 7.8 ohms @ 3150 Hz
DIRECTIVITY INDEX (dB)
40
30
20
10
0
20
LF HF
100 1000 1000020
11
100
Frequency (Hz)
Frequency (Hz)
1000
10000
VERTICAL OFF-AXIS DOWN RESPONSE (dB)
110
100
90
80
70

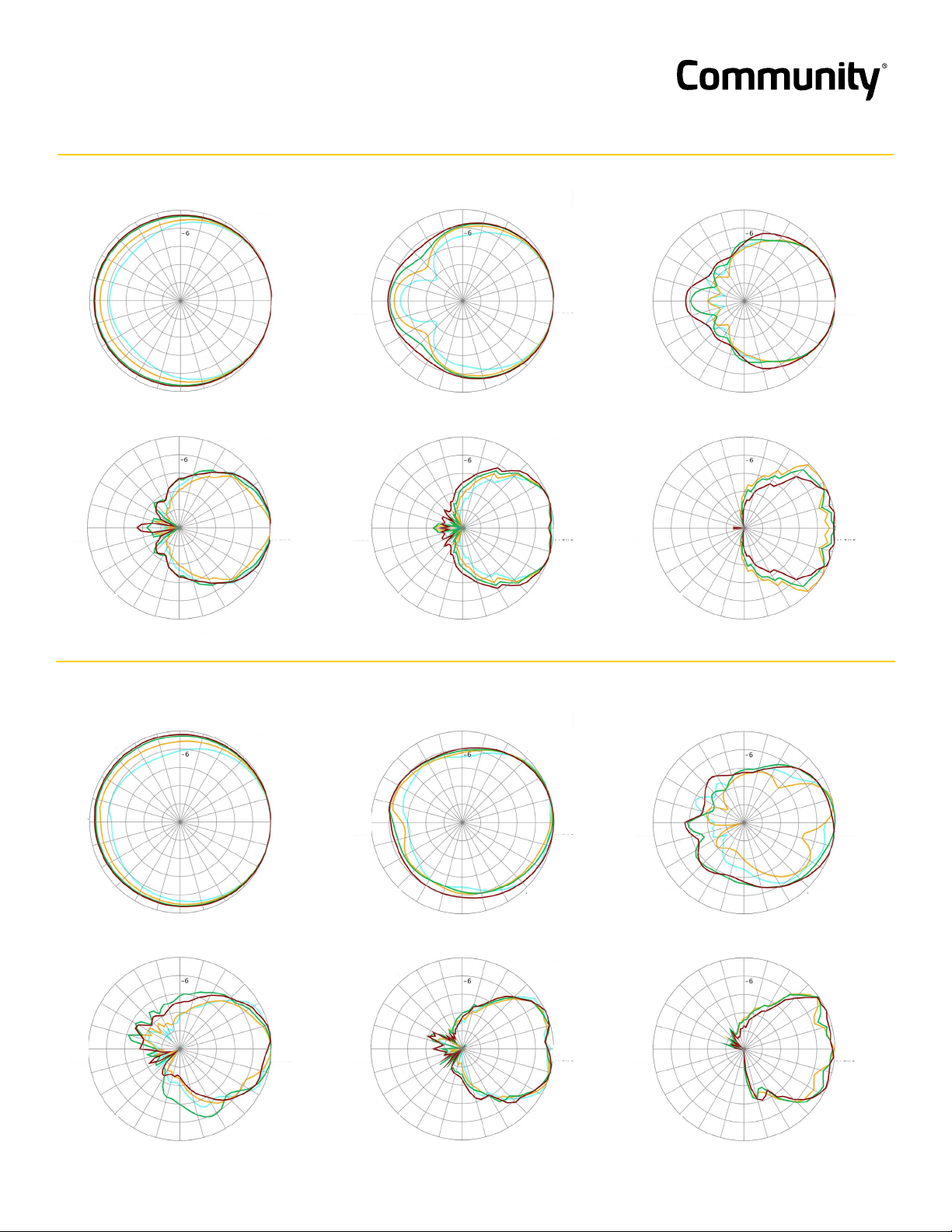

BEAMWIDTH (Degrees)
360
100
10
Half-space 0° 15° 30° 45° 60°
100 1000 1000020
Horizontal Vertical
20
100
Frequency (Hz)
12
1000 10000
Frequency (Hz)
10
