Community D-RAIL48-PR Specifications

49.12" [1247.7]

1.46" [37.2]

47.61" [1209.3]

.49" [12.4]

SECTION A-A

1.02" [26]

1.25" [31.9]

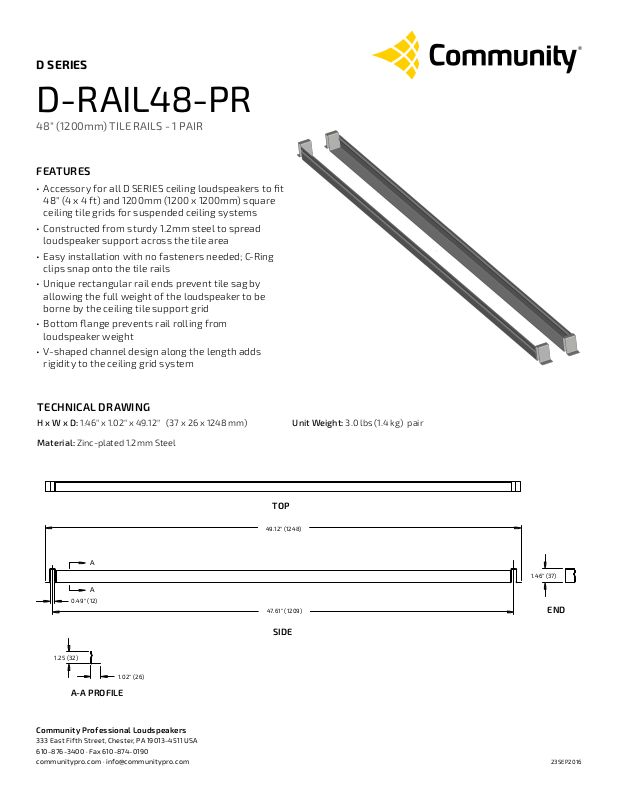

D SERIES

D-RAIL48-PR

48" (1200mm) TILE RAILS - 1 PAIR

FE ATURES

• Accessory for all D SERIES ceiling loudspeakers to fit
48" (4 x 4 ft) and 1200mm (1200 x 1200mm) square
ceiling tile grids for suspended ceiling systems

• Constructed from sturdy 1.2mm steel to spread
loudspeaker support across the tile area

• Easy installation with no fasteners needed; C-Ring
clips snap onto the tile rails

• Unique rectangular rail ends prevent tile sag by
allowing the full weight of the loudspeaker to be
borne by the ceiling tile support grid

• Bottom flange prevents rail rolling from
loudspeaker weight

• V-shaped channel design along the length adds
rigidity to the ceiling grid system

TECHNICAL DRAWING

H x W x D: 1.46" x 1.02" x 49.12" (37 x 26 x 1248 mm)

Material: Zinc-plated 1.2mm Steel

A

A

0.49" (12)

1.2 5 (32)

1.02" (26)

A-A PROFILE

Unit Weight: 3.0 lbs (1.4 kg) pair

TOP

49.12" (1248)

47.6 1" (12 09)

SIDE

1.46" (37 )

END

Community Professional Loudspeakers

333 East Fifth Street, Chester, PA 19013-4511 US A
610-876-3400 · Fa x 610-874-0190
communitypro.com · [e-mail] 23SEP2016
