3350 3G/HD/SD-SDI Series
Broadcast quality 3G/HD/SD-SDI Transmission over one single mode or
multimode ber with full SMPTE
compliance & embedded audio & data signal support.
Ideal Applications:
Broadcast or corporate studios, OB Vans, Rental & Staging, auditoriums, stadiums and theaters, airport
or transportation hubs, distance learning, surgical or medical imaging and more!
Signal Channels Direction
3G/HD/SD-SDI 1
Features
3G/HD/SD-SDI
Loop-Thru
3G/HD/SD-SDI
Source
3G/HD/SD-SDI
Source
Scan Do® HD
DVI or Analog RGB
to 3G/HD/SD-SDI
Scan Converter
3350 Tx
Fiber
Cable
3350 Tx
Fiber
Cable
Fiber
Cable
3351 Rx
Fiber
Cable
3351 Rx
SMPTE 297-2006
Compatible
Switch/Router
Fiber
Cable
3351 Rx
Ordering Information
Part Number Description Fiber Cores
3350-x7z Transmitter 1
3351-x7z Receiver 1
PDPS-1-pp Power Supply
Box
or
Card
SDI Displays or
SDI Equipment
Signal is equalized and re-clocked prior
to ber optic transmission
Transmitter features a re-clocked
SDI loop through
Receiver features two re-clocked
SDI outputs
Designed for ber optic interoperability
with other SMPTE 297-2006 ber optic
compliant devices up to 2.97 Gbps
Immunity to pathological patterns over
entire link budget and operating
temperature range
Compliant with SMPTE 259M-2006,
292-2006, 424M-2006, 297-2006
Supports transmission of SMPTE
305M-2005, 310M-2004, 344M-2000,
DVB-ASI
Supports both Single Mode and
Multimode (62.5u & 50u) ber types
Supports 3G/HD/SD-SDI inputs with or
without embedded audio and data
14 dB Optical Link Budget @ 2.97 Gbps
Wide operating temperature range:
-10º C to +50º C
Available in Box and Card versions
Card version compatible with the
Fiberlink® 6000A Rack Card Cage
Designed and Manufactured
in the USA by CSI
Sales
Power Supply Sux Codes (pp) for AC Line Cord:
NA - North America AU - Australia EU - Europe
JP - Japan UK - United Kingdom
Part Number Sux Codes:
x: B Box Version
C Card Version
z: L LC Connector
S ST Connector
631-273-0404 | commspecial.com
[email protected]
Page 2
Fiberlink® 3350 Transmitter Specications
Serial Video BNC Input
Number of Inputs 1
Data Rate Range 19.4 Mbps to 2.97 Gbps
Supported Standards SMPTE 259M, 292, 297-2006,
424M-2006, 305M, 310M, 344M,
DVB-ASI
Re-clocked Data Rates 270 Mbps (SMPTE 259M, DVB-ASI-270),
1.485 Gbps (SMPTE 292),
2.97 Gbps (SMPTE 424M-2006)
Equalization Automatic up to 100m of Belden
1694A at 3.0 Gbps, 200m at
1.485 Gbps and 350m at 270 Mbps
Return Loss >10dB up to 2.97 Gbps
Serial Video BNC Loop-Through Output
Number of Loop-Throughs 1
Signal Level 800mV ± 10%
DC Oset 0V ± 0.5V
Rise/Fall Time < 135 ps at 2.97 Gbps per SMPTE 424M-2006;
< 270 ps at 1.485 Gbps per SMPTE 292;
0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
3350 3G/HD/SD-SDI Series
Fiberlink®
3350 Transmitter
The 3350 Transmitter provides
a convenient re-clocked and
equalized 3G/HD/SD-SDI
Loop-Through!
Universal Power Supply
makes the 3350 Series
compatible with
any region!
Overshoot < 10% of amplitude
Timing Jitter < 0.2 UI at 270 Mbps; < 1.0 UI at
1.485 Gbps; < 2.0 UI at 2.97 Gbps
with color bar signal
Alignment Jitter < 0.2 UI at 270 Mbps; < 0.2 UI at
1.485 Gbps; < 0.3 UI at 2.97 Gbps
with color bar signal
Re-clocking At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Optical Output
SMPTE 297-2006 Labeling L-PC-ABCD-1310
Connector LC receptacle, PC polish or ST
Wavelength 1310nm (nominal)
Emmiter Type FP Laser
Output Power (nominal) -3.5 dBm at 270 Mbps;
-3.5 dBm at1.485 Gbps;
-3.5 dBm at 2.97 Gbps
Re-clocking At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Compact enclosure makes
installation in tight or
prohibitive spaces a snap!
The 3351 Receiver delivers
pristine output with two
re-clocked 3G/HD/SD-SDI
outputs!
Fiberlink®
3351 Receiver
Learn more about the industry’s largest selection
of ber optic transmission products at
commspecial.com
The Fiberlink®
3350 Series is available in a
card version that is compatible
with the Fiberlink® 6000A
Rackmountable Card Cage.

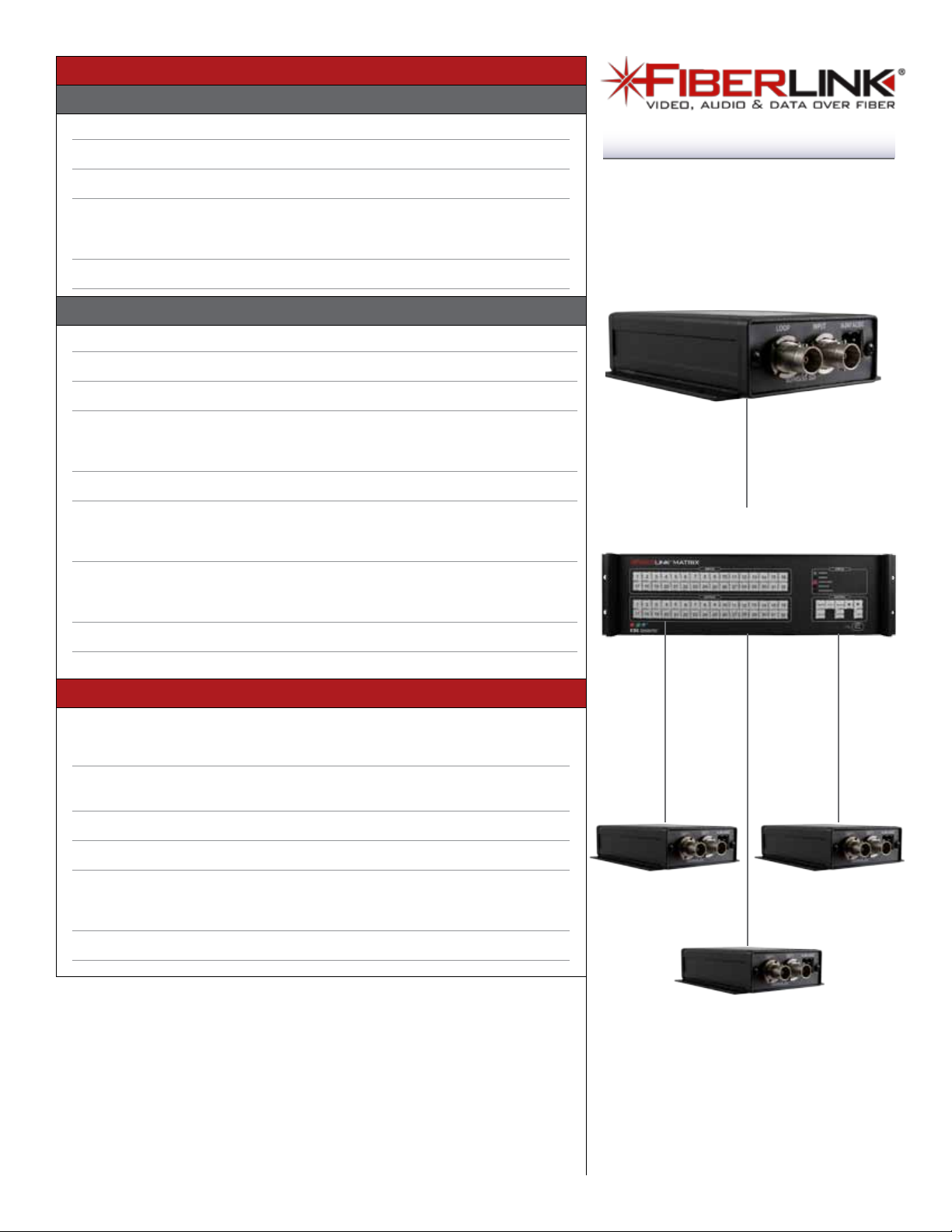

Page 3
Fiberlink® 3351 Receiver Specications
Fiber Optic Input
SMPTE 297-2006 Labeling PC-ABCD-1310-1550
Connector LC receptacle, PC polish or ST
Wavelength 1100 - 1620 nm
Minimum Input Sensitivity -17 dBm at 2.97 Gbps;
-20 dBm at 1.485 Gbps
-21 dBm at 270 Mbps;
Maximum Input Power 0 dBm
Serial Video BNC Outputs
Number of Outputs 2
Signal Level 800mV ± 10%
DC Oset 0V ± 0.5V
Rise/Fall Time < 135 ps at 2.97 Gbps per SMPTE 424M-2006;
< 270 ps at 1.485 Gbps per SMPTE 292;
0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
Overshoot < 10% of amplitude
Timing Jitter < 0.2 UI at 270 Mbps; < 1.0 UI at
1.485 Gbps; < 2.0 UI at 2.97 Gbps
with color bar signal
3350 3G/HD/SD-SDI Series
Smart & Simple 3G/HD/SD-SDI
Signal Routing with
Fiberlink Matrix
Fiberlink®
3350 Transmitter
Fiberlink® Matrix
32x32 Optical Matrix
Alignment Jitter < 0.2 UI at 270 Mbps; < 0.2 UI at
1.485 Gbps; < 0.3 UI at 2.97 Gbps
with color bar signal
Re-clocking At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Fiberlink® 3350 Series General Specications
Indicators Power, Data Rate lock
(3G, HD, SD/DVB-ASI)
Alarm (Card Version Only)
Box Version Dimensions 5.21 x 3.50 x 1.15 (in)
133 x 89 x 30 (mm)
Weight 6.9 ounces, 196 grams
Slots in 6000A Card Cage 1
Power 9-24 volts, AC or DC,
3350: 1.6 watts, 5.46 BTU/Hr
3351: 1.4 watts, 4.78 BTU/Hr
Operating Temperature -10º C to +50º C
Learn more about the industry’s largest selection
of ber optic transmission products at
commspecial.com
Fiberlink®
3351 Receiver
Fiberlink®
3351 Receiver
Learn more about the
Fiberlink® Matrix
at commspecial.com
Fiberlink®
3351 Receiver

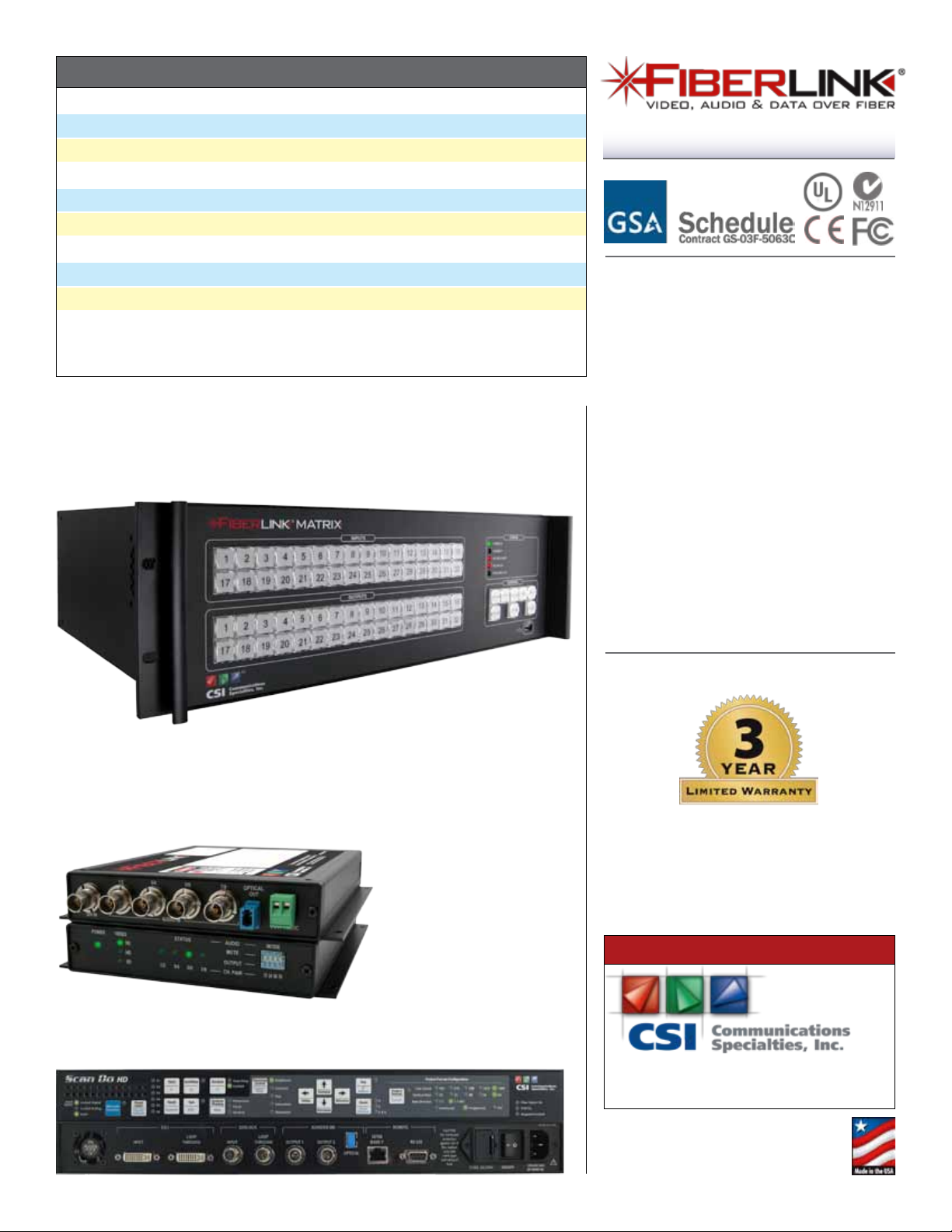

Page 4
Operating Loss Budget & Maximum Usable Distance
Fiber Type Loss(dB) Data Rate Distance
Single Mode 0-14 2.97 Gbps 30 km
0-17 1.485 Gbps 48 km
0-20 270 Mbps 50 km
Multimode ( 62.5u ) 0-14 2.97 Gbps .8 km
0-17 1.485 Gbps 1 km
0-20 270 Mbps 2.5 km
Multimode ( 50u ) 0-14 2.97 Gbps 1 km
0-17 1.485 Gbps 1.3 km
0-20 270 Mbps 3 km
*Distance specications are approximate, based upon connecting a 3350 Transmitter to a 3351 Receiver, and are not guaranteed.
CSI cannot estimate or guarantee operating loss budgets when the 3350 Series is used with other, non-Fiberlink devices.
Operating loss budget must not be exceeded.
*
Other 3G-SDI Products
Fiberlink Matrix
Fully congurable 32x32 Optical Matrix
3350 3G/HD/SD-SDI Series
Learn more about the
industry’s largest selection
of ber optic transmission
products at
commspecial.com
Fiberlink 3360 3G/HD/SD-SDI
& 4 Pairs of AES/EBU Digital Audio Series
SMPTE compliant 3G/HD/SD-SDI with 4 Pairs (8 Channels)
of AES/EBU Digital Audio Embedding over one ber
Scan Do® HD
Computer Video to 3G/HD/SD-SDI Scan Converter
Backed by a 30-day satisfaction
guarantee and a three-year limited
warranty on parts and labor.
See website for terms and conditions.
Sales
631-273-0404 | commspecial.com
[email protected]
UPDATED 4/1/2011
All specications subject to change without notice. ©2011
