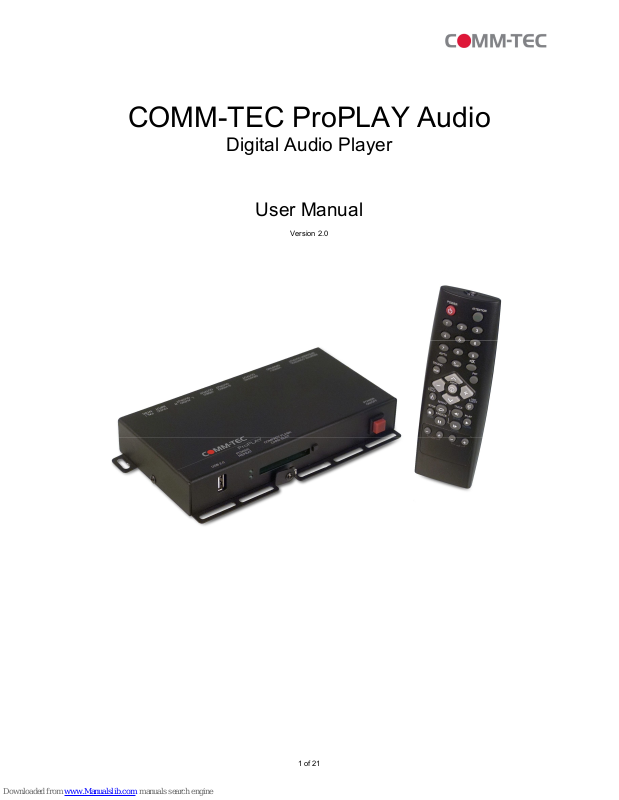

1 of 21
COMM-TEC ProPLAY Audio
Digital Audio Player
User Manual
Version 2.0
2 of 21
1. Table Of Content
1. Table Of Content................................................................................................2
2. General Notes....................................................................................................3
3. Product Description.........................................................................................3
3.1Product Dimensions....................................................................................3
3.2System Features.........................................................................................4
3.3Connector Assignment DB-26 pin male.......................................................5
Infrared Remote Control......................................................................................6
4. User Instruction...............................................................................................7
4.1Quick Start Instruction.................................................................................7
4.2Notes for Correct Use..................................................................................7
4.3System Setup..............................................................................................8
4.4Operating Instructions..................................................................................9
5. USB Host Update...........................................................................................11
5.1What do you need?....................................................................................11
5.2Setup.........................................................................................................12

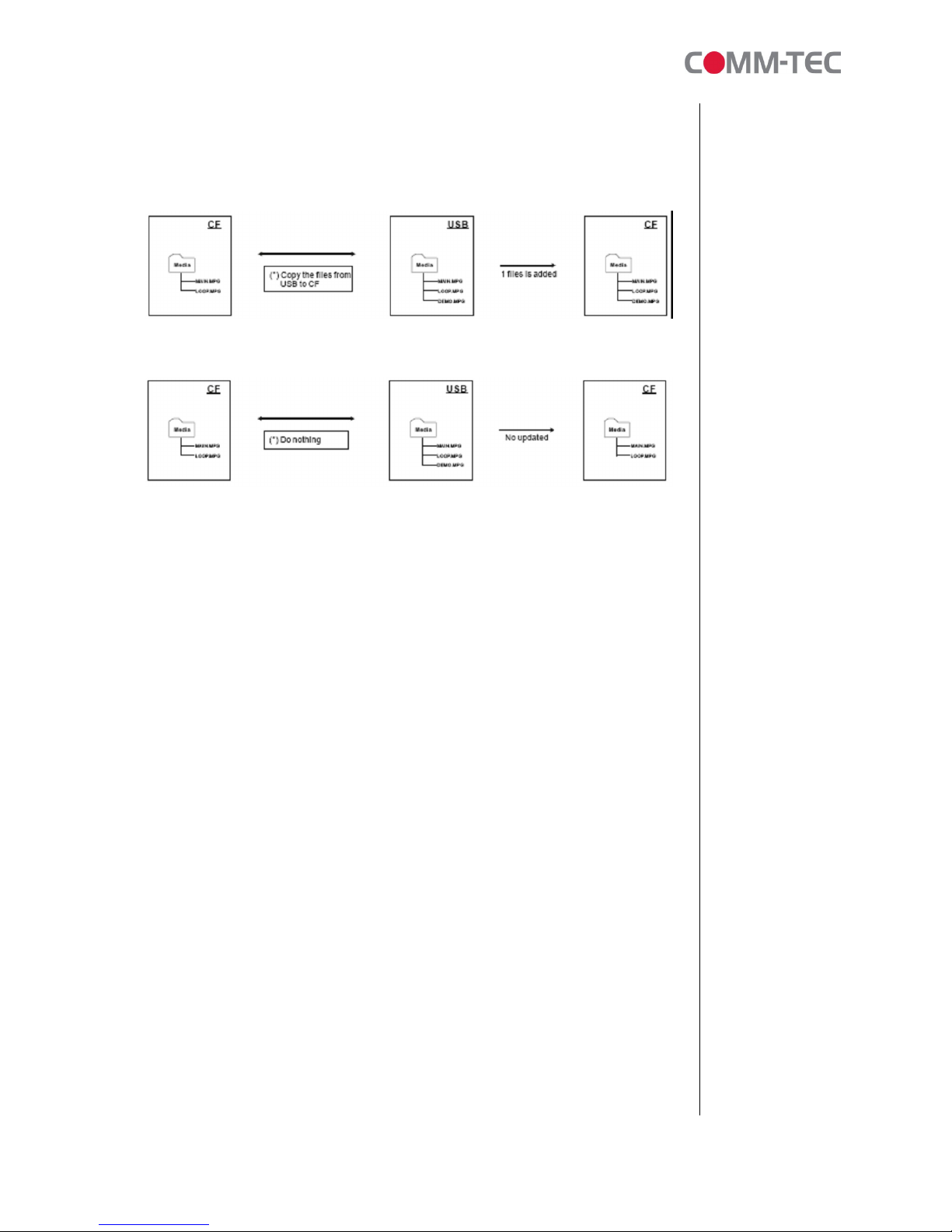

5.3Content Update..........................................................................................13
6. RS-232 Commands on ProPLAY Audio..........................................................17
6.1Connection.................................................................................................17
6.2Command Code.........................................................................................17

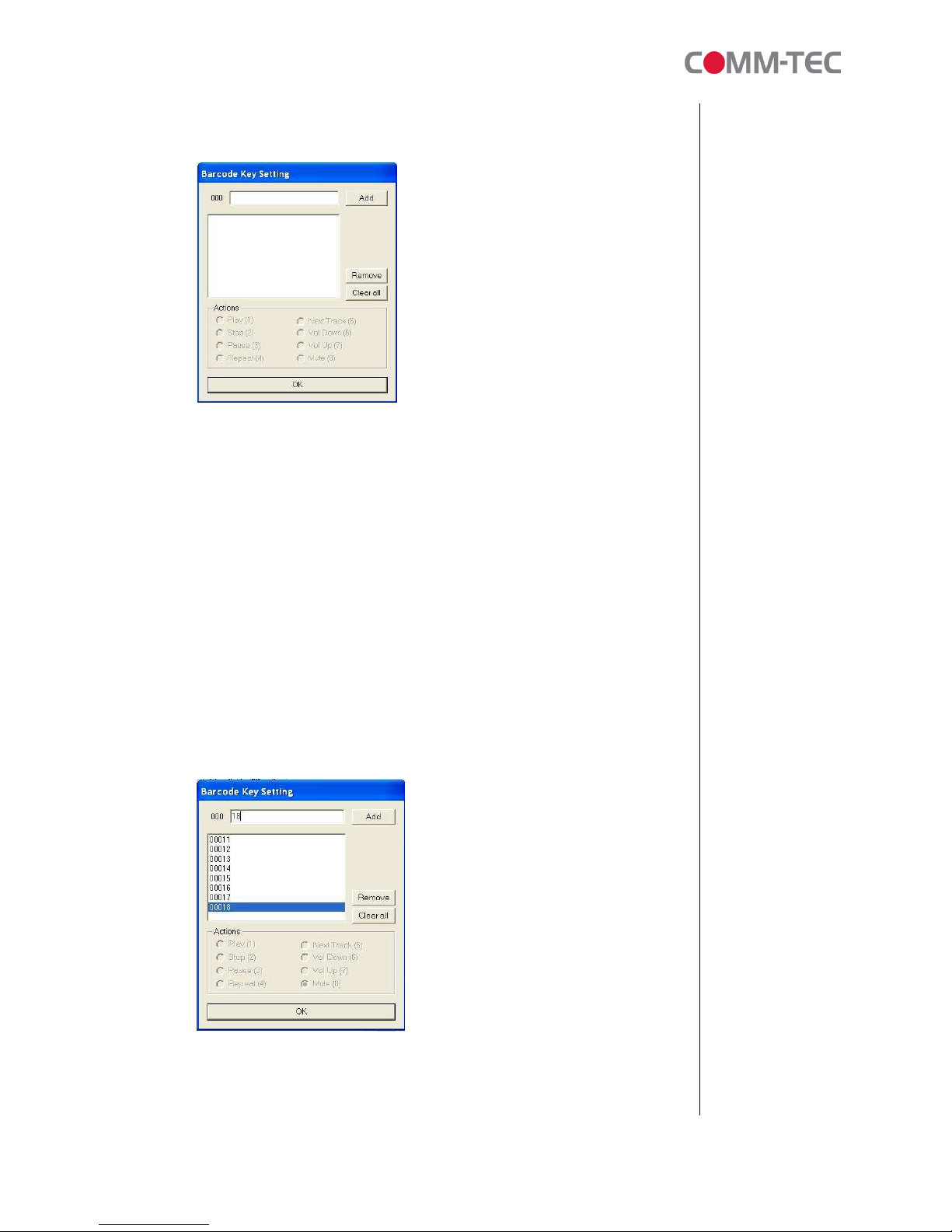

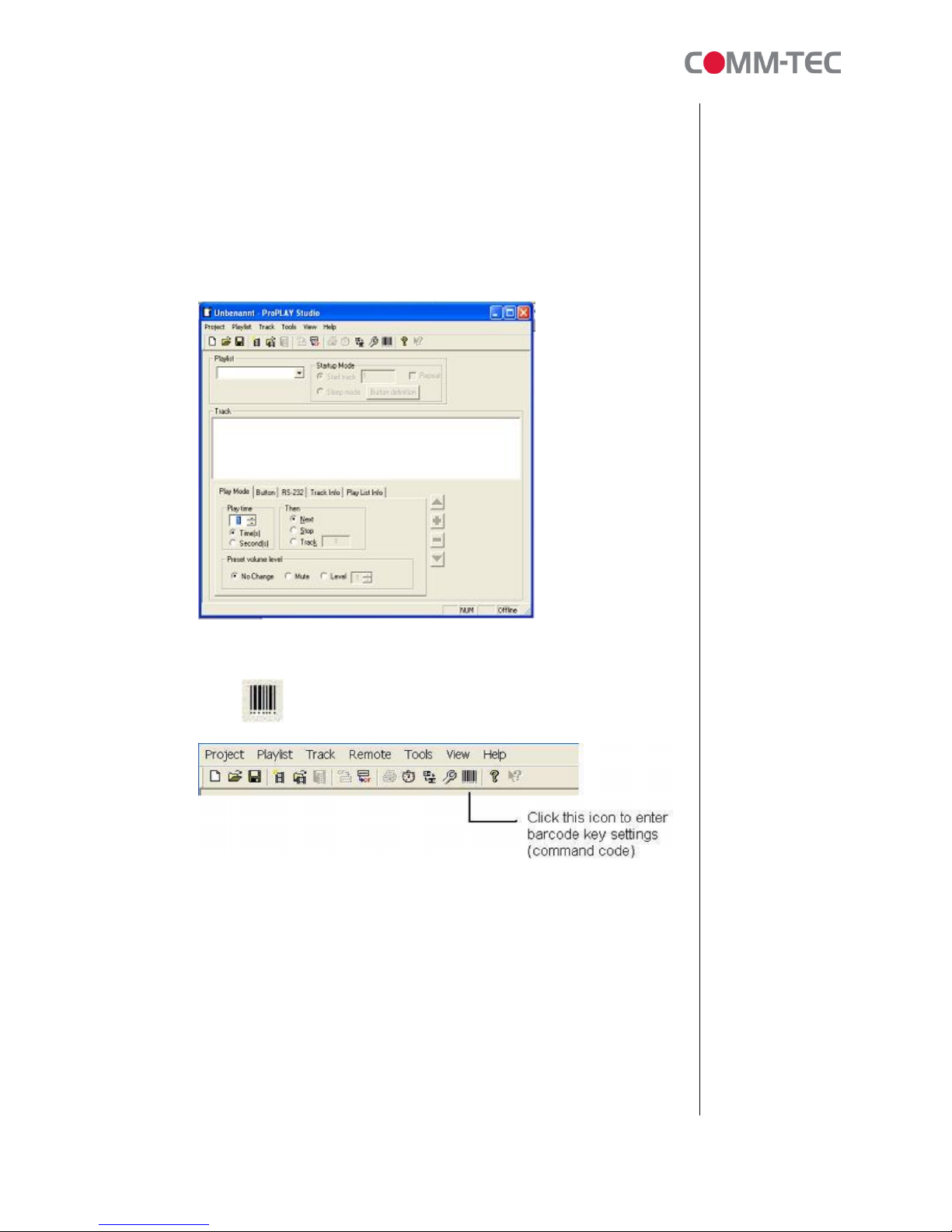

6.3How to create and define the command code in barcode.ini........................19
7. Technical Specifications.................................................................................21
Author: Sven Liebscher
Date: 15/07/08
3 of 21
2. General Notes
The COMM-TEC ProPLAY Audio is a remote controllable Digital Audio Player. The
data will be played back from a Compact Flash Card, which is not in the scope of
delivery.
Please check the scope of supply, after you have received the shipment. Following
has to be included:
· ProPLAY Audio
· 12V power supply
· IEC power cord with EU plug
· DB-26pin male plug
· Infrared remote control unit incl. 2x AAA batteries
· User manual
If you realize a hidden transport damage, please contact your insurance company or
supplier immediately.
3. Product Description
3.1 Product Dimensions

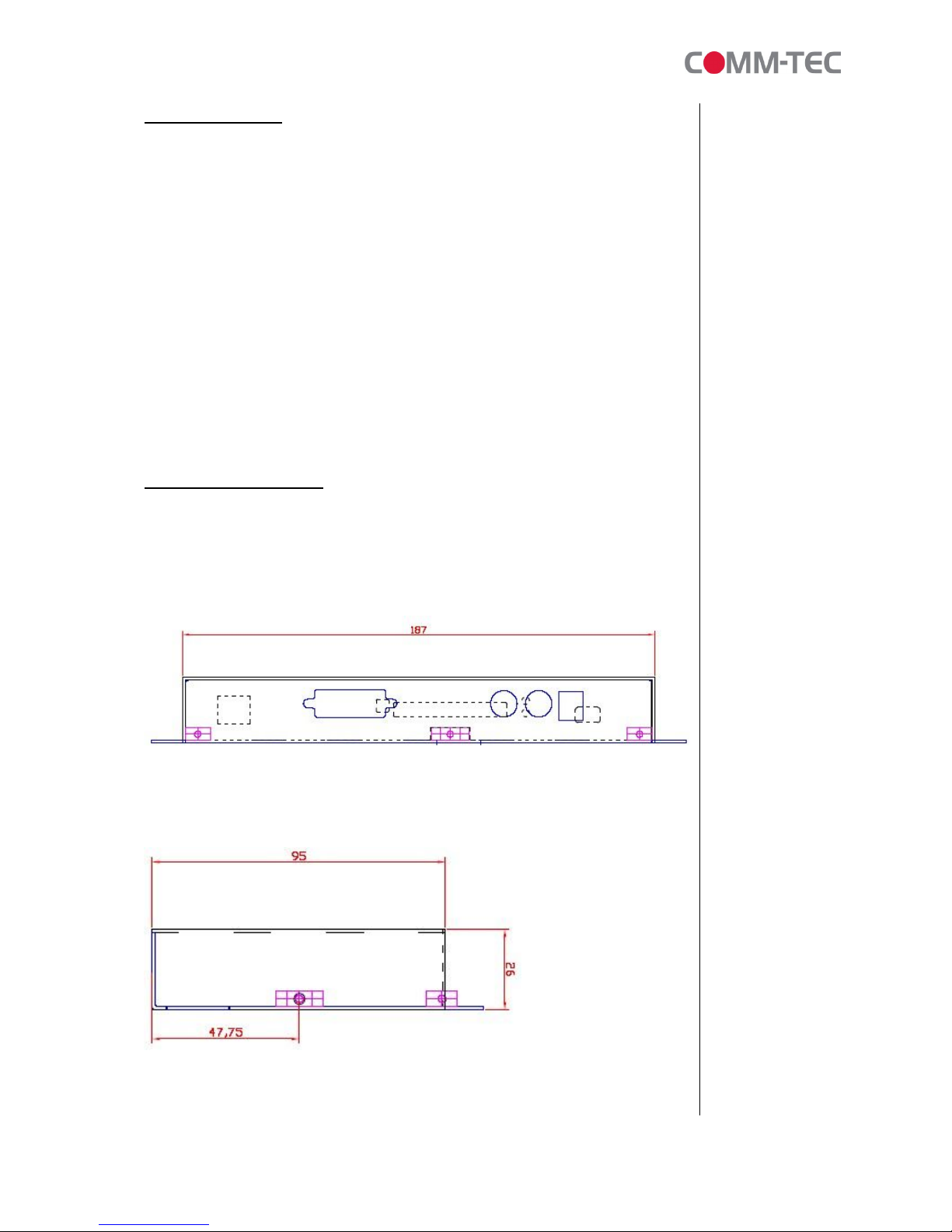

Side View (in mm)
4 of 21

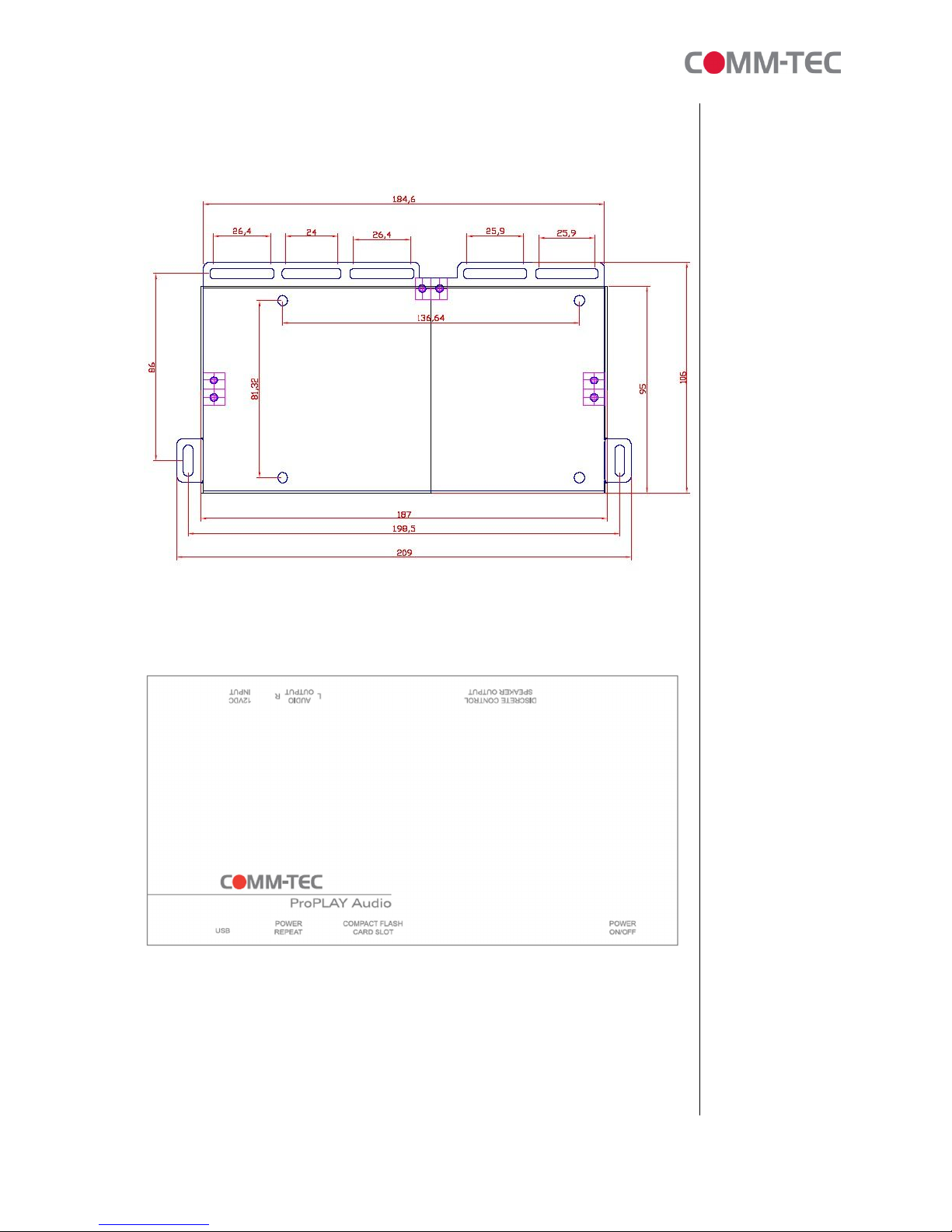

Top View (in mm)
3.2 System Features
5 of 21
Description Type / Use
Compact Flash Card Slot 25x2 pin Hirose CF-II Socket
(accepts CF Card types 1 & 2)
USB USB 2.0 Port
Power LED On (green) / Off (clear)
Status LED Enabled (green) / disabled (clear)
Remote control / Speaker output DB-26 pin female connector
Audio output – stereo right RCA jack – Right (red)
Audio output – stereo left RCA jack – Left (white)
12V DC Power input jack DC power jack. Center pin positive,
2.5mm diam.
Power on/off Rocker switch

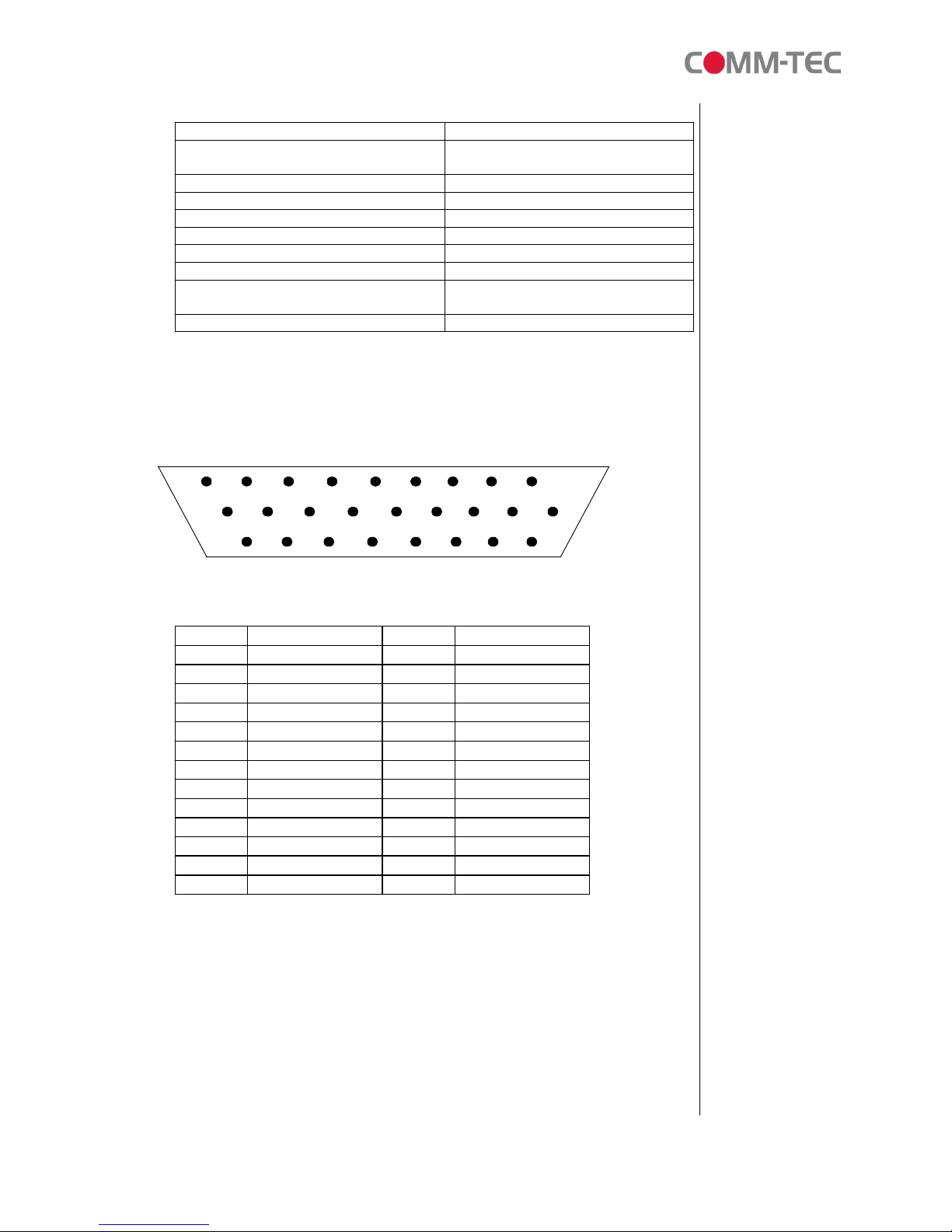

3.3 Connector Assignment DB-26 pin male
front view of the plug
Pin No Description Pin No Description
1 Button 1 14 Button 13
2 Button 2 15 Button 14
3 Button 3 16 Button 15
4 Button 4 17 Button 16
5 Button 5 18 Return for 9-16
6 Button 6 19 RS-232 RX
7 Button 7 20 RS-232 TX
8 Button 8 21 RS-232 Ground
9 Return for 1-8 22 Speaker L
10 Button 9 23 Ground / Signal
11 Button 10 24 Speaker R
12 Button 11 25 Ground / Signal
13 Button 12 26 +12 V out
1 9
10
19
6 of 21

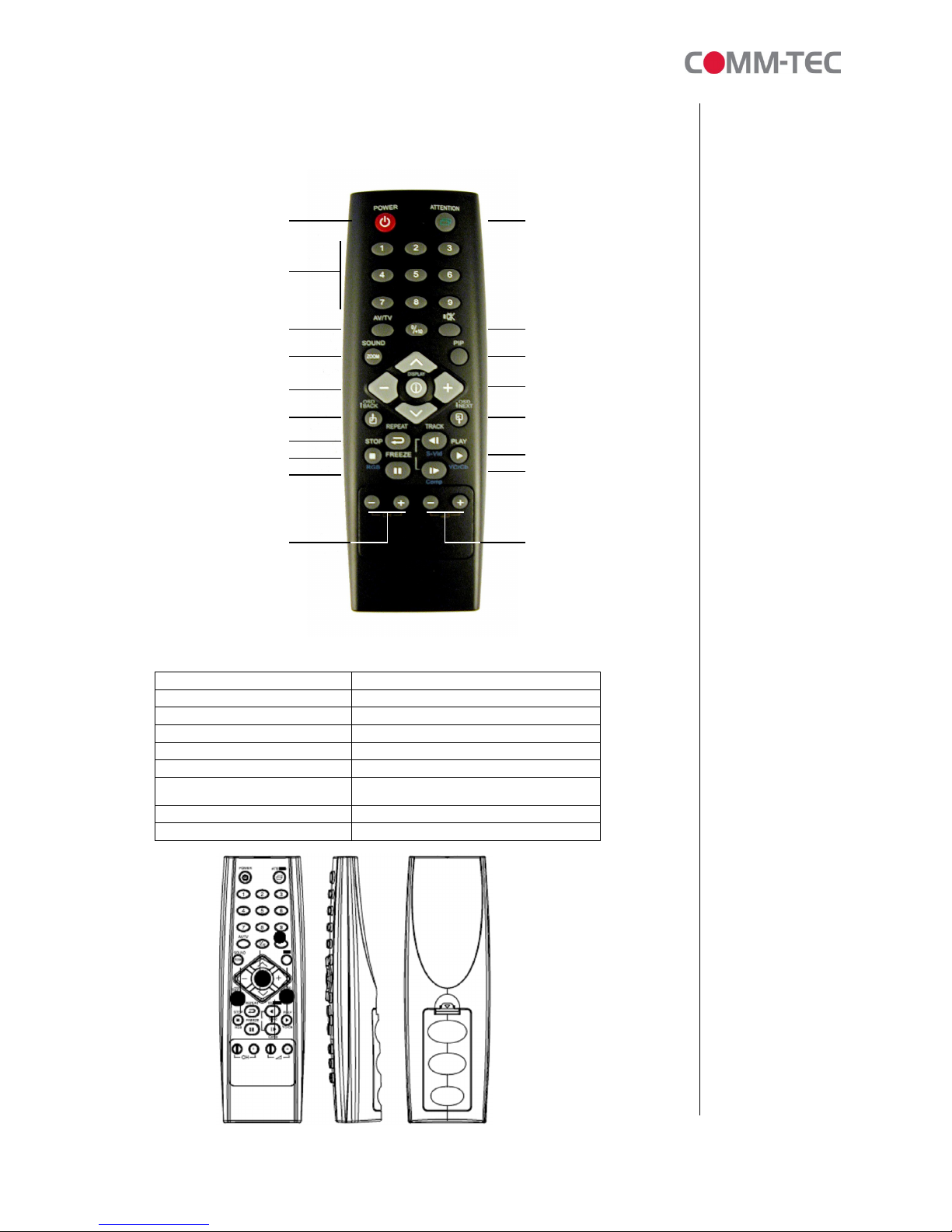

3.4 Infrared Remote Control
Specifications:
Operating Voltage:
DC 3V
Operating Temperature:
-10°C ~ 50°C
Operating Current:
20 K 10mA
Power Source:
2x AAA size batteries
Number of keys:
33
Oscillation frequency:
455 kHz K 2.2 kHz
Arrival distance:
7 m
Dimensions (H)x(W)x(D)
148mm x 47.5mm x 28mm
Weight
Approx. 75g (without batteries)
Select Station ID for IR
enable/disable
Mute
Picture in Picture
Up / Down
Go to next OSD menu
Play (Y CrCb/Component)
Tracks select
Up Track (S-Video)
Next Track (Composite)
Volume
Power On/Off
Digit Keys
Select input source
Zoom / Sound Mode Selection
+/- key
Back to previous OSD menu
Repeat
Stop (RGB)
Pause/Freeze
Volume
7 of 21
4. User Instruction
4.1 Quick Start Instruction
Never connect or disconnect parts of the system when the system is powered up as
this may cause serious damage.
Connection and usage are straightforward. However, care needs to be taken with
the following:
· Ensuring parts have been correctly connected – both power & signal
considerations.
· Checking that all switches are set correctly.
· The input signal is compatible.
· Legal & safety requirements have been met.
· If you are using supplied accessories, ensure they are correct for the model of
speakers.
Now connect the system as follows:
· Connect Audio cables from the ProPLAY Audio to the speakers / audio
equipment.
· Connect the power supply (DC 12V @ 1.2A minimum. - ensure correct + & -
orientation) to the ProPLAY Audio.
· Power on the speakers / audio equipment.
· Power on the ProPLAY Audio unit.
4.2 Notes for Correct Use
The ProPLAY Audio is designed for use with standard audio speakers. Here are
some notes for correct use:
· Preparation - Before you proceed, please familiarize yourself with the various
connectors, jacks, switches and function buttons of the ProPLAY Audio unit (see
item 3.2 - System Features diagrams).
· The unit - Handle the unit with care; any knocking may cause components to
come loose and disconnect. Operate in a cool and dry place.
· Power Input: 12V DC1.2A (minimum) is required; this should be a regulated
supply. It is recommended to use the power supply, which is delivered with the
ProPLAY Audio unit.
· Audio output Audio - Stereo output. Volume is controlled by the switch mount
buttons or preset with the ProPLAY Studio software.
· Discrete Control: A external port for remote button control. User can use this
port as a touch screen or button interface. Maximum up to 16 touches/buttons
can be accessed.
· Discrete Control Cable: The cables to any remote button control should be of
suitable quality and length so that impedance does not affect performance.
Generally lengths up to 1 metre (3 feet) should be acceptable.
8 of 21
· Power LED: The power LED indicator shows power is being supplied to the
player – LED light activated by the power on/off switch.
· Status LED: The LED indicates the status of CompactFlash card.
· USB 2.0 Port: Please see Chapter 5 for how the USB 2.0 Port is being used.
· RS-232 Control: Baud rate must be set to (9600, n,8,1) and record suffix is set
to CR (0DH). Individual RS-232 commands can be set up with the ProPLAY
Studio software.
· RS-232 Port: Please connect your control system to the DB-26 pin port of the
ProPLAY Audio according to the wirering diagramm shown under 3.3
· Service & Warranty: Warranty is invalidated if the unit is dismantled in any way.
The unit is not user serviceable or repairable.
CAUTION: Do not attempt to remove any part of the casing or internal parts.
4.3 System Setup
· Power Up
The Autoplay and Sleep playback mode are selected when writing the audio
files on to the CompactFlash Card by using ProPLAY Studio software.
Auto-Play start up mode
· Plug in the external power supply
· Insert CompactFlash Card containing ProPLAY Studio exported “.pll /
.prj” and other digital files. (e.g. .mpg, .mp3, .jpg) All filenames should be
in 8+3 format (i.e. xxxxxxxx.xxx) and avoid using any illegal characters
like “~”, “_”, “-“, etc
· Switch the power 'on/off' switch to 'on'.
· The first track of the collection of audio files will be auto-played.
Sleep mode
· Plug in the external power supply
· Insert CompactFlash Card containing ProPLAY Studio exported “.pll /
.prj” and other digital files. (e.g. .mpg, .mp3, .jpg) All filename should be
in 8+3 format (i.e. xxxxxxxx.xxx) and avoid using any illegal characters
like “~”, “_”, “-“, etc
· Switch the power 'on/off' switch to 'on'.
· Press the 'play' button'.
· The first track of the collection of audio files will be played.
Special specific track playback activated by assigned button can also be
performed in sleep mode using ProPLAY Studio software.
9 of 21
Auto-Loop Playback
After Track 1 is set to play, it will play to the end, then Track 2 will start playing from
beginning to end, then Track 3 etc. When the ProPLAY Audio plays to the end of the
last track, it will automatically jump back to the beginning of Track 1, repeating tracks
1,2 then 3 etc. The ProPLAY Audio will play in auto-loop play mode, so long as none
of the function buttons are pressed. Loop playback is the standard playback setting
of the ProPLAY Audio (in simple play and playlist mode) but the track playback
sequence can be changed as required using ProPLAY Studio software.
4.4 Operating Instructions
There are two operating modes in ProPLAY Audio– “playlist mode” and “simple play
mode”
.
· Playlist mode
When operating in playlist mode, both project file (*.prj) and playlist file (*.pll)
must be present on the Compact Flash card. These are used to control the
sequence for all audio tracks.
The project and playlist file are created using ProPLAY Studio software. Using
this software, you can set simple sequences or complex sequences including
“jump track“ or “next track” actions. ProPLAY Studio can also program buttons
with different function like “play”, “stop”, “pause”, “mute”, “previous”, “next” and
“volume” as well as RS-232 commands to play tracks.
Note: Make sure all capital letters in filename defined in playlist are consistence
with the filename on CompactFlash card. All filename should be in 8+3 format
(i.e. xxxxxxxx.xxx) and avoid using any illegal characters like “~”, “_”, “-“, etc
· Simple play mode
In simple play mode, the user just copies all audio files (.mp3) onto the
Compact Flash card. The ProPLAY Audio will play these files in alphabetical
sequence.
· Schedule play mode

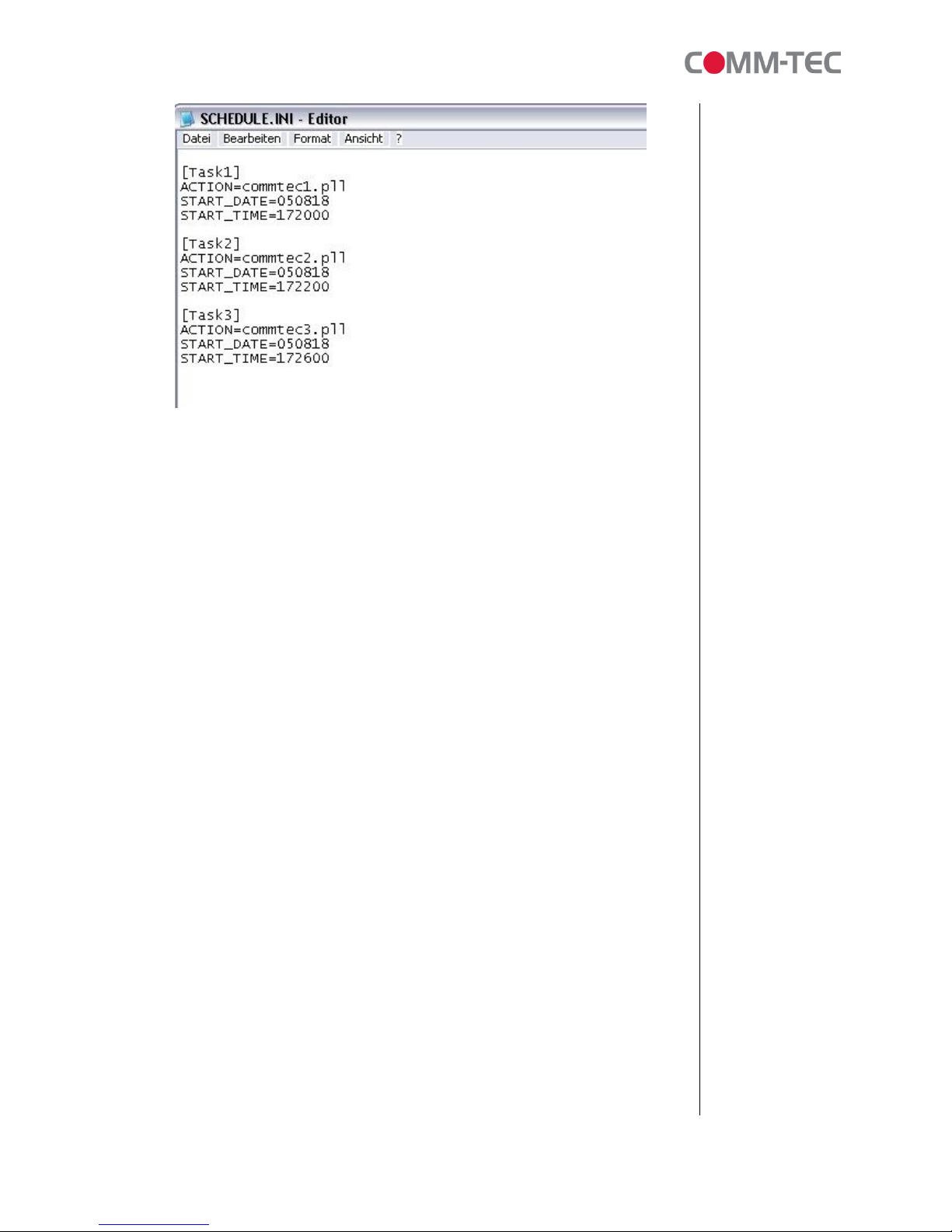

The ProPLAY Audio is able to play back playlists, controlled by date and time
settings. A schedule.ini named file has to be written in the below shown format
and copied onto the CF card. To create the corresponding playlist files,
ProPLAY Studio is required.
10 of 21
Note: The maximum number of schedule tasks you can defined is limited to 40.
Operating Functions
The following key buttons are default in “Simple Play mode”.
PLAY (Button 1)
· Resumes playback of audio files from track 1 after STOP has been pressed.
· Resumes playback of the track from the point that it has been set to PAUSE.
· Playback is reset back to the beginning of the specific track which is being
played at the time the PLAY button is pressed.
STOP (Button 2)
· When STOP is pressed the audio file stops playing
PAUSE (Button 3)
· When PAUSE is pressed the audio file pauses.
· Press Pause again or PLAY to resume normal playback from the position where
it was paused.
REPEAT (Button 4)
· When REPEAT is pressed the current track loop back on itself continuously.
· To disable the repeat mode press REPEAT, PLAY, PREVIOUS TRACK or
NEXT TRACK . When the track plays to the end it will playback the next track
(and etc.) as normal.
NEXT TRACK (Button 5)
· The NEXT TRACK function can be activated only when a track is already
playing. When NEXT TRACK is pressed the current track stops playing and
jumps directly to the start of the next track.
VOLUME DECREASE (Button 6)
· Decreases audio output volume setting.
VOLUME INCREASE (Button 7)
· Increases audio output volume setting.
11 of 21
MUTE (Button 8)
· When MUTE is pressed, all the tracks will have no sound.
· Press MUTE again to resume the normal sound in all tracks.
All above buttons can be re-defined by ProPLAY Studio software if operating in
playlist mode.
5. USB Host Update
Important Notice: This function will only be available on Serial Number 212000 and
higher.
If you are working with ProPLAY Studio version 1.4.020 or below, you have to
manually copy the files onto the CompactFlash card.
5.1 What do you need?
Before using USB memory stick on ProPLAY Audio, please make sure you have
the following parts:
· USB memory stick
· ProPLAY Audio (starting with Serial Number 212000)
· Compact Flash card
· Power supply (DC12V)
12 of 21
5.2 Setup
Preparation
CompactFlash Card
· Ensure your CompactFlash Card has enough space for all your media
content.
· Format the Compact Flash card with FAT32.
· Create a new folder “MEDIA” on CompactFlash Card.

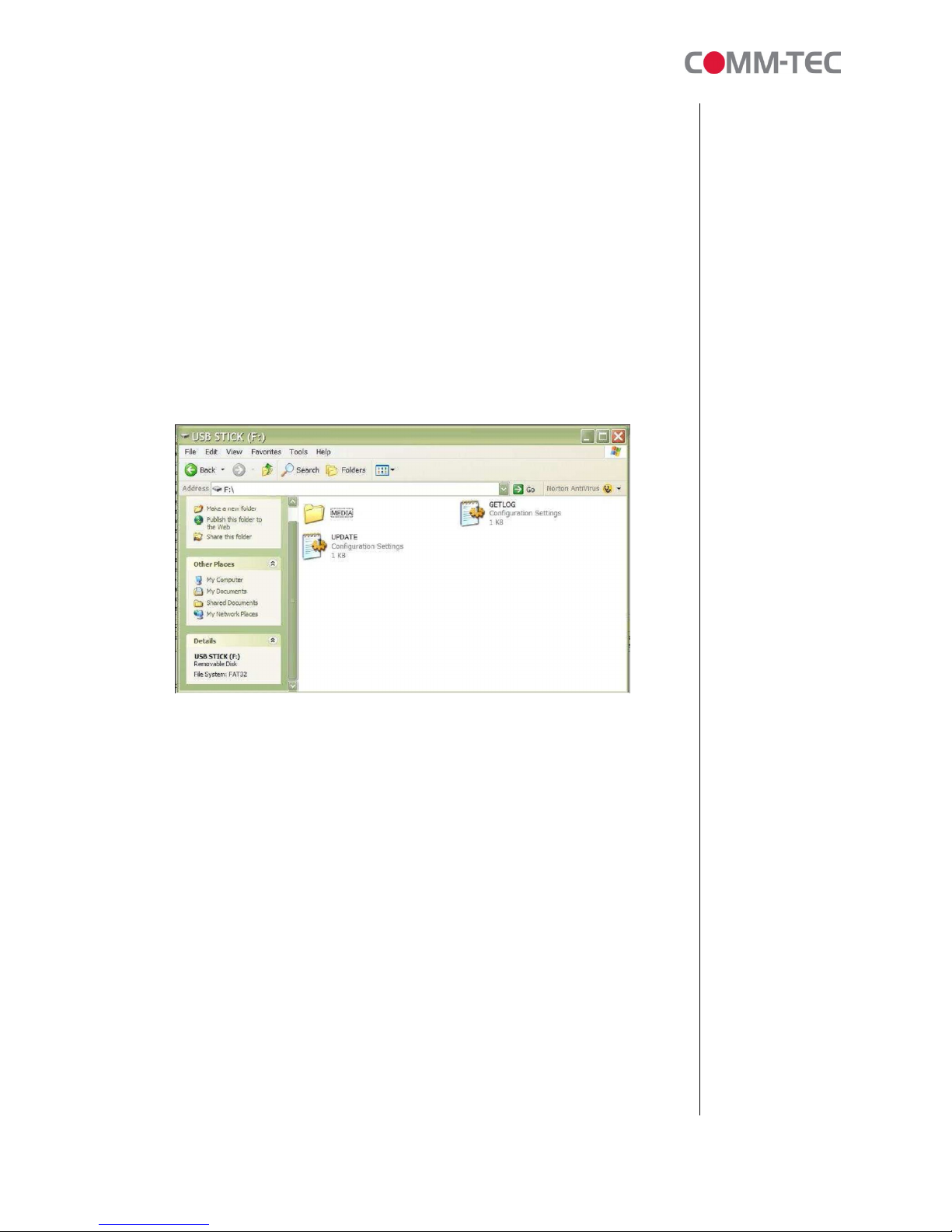

USB Memory Stick
· Ensure the USB memory stick has been formatted with FAT32.
· Create a new folder “MEDIA” on USB memory stick.
· Create a text file named “UPDATE.INI” (The file size must not be 0KB) on
root directory. Refer to Content Update section for details.
· Copy all media content (.mp3) into the “MEDIA” folder. Those files are
prepared for uploading on the CompactFlash card later.
Connection
Connecting USB memory stick directly to the USB port on ProPLAY Audio.
13 of 21
5.3 Content Update
Upload new media content
1. Make sure the ProPLAY Audio must be power off before inserting the
CompactFlash Card and USB memory stick.
2. Once files copy completed, power off the ProPLAY Audio unit and
disconnect the memory stick.
2. Power on the ProPLAY Audio and see if all content are updated and
played.
Note: All media files must be stored and running inside the
“MEDIA” (case sensitive) folder on CompactFlash card. The media file(s) stored
outside “MEDIA”
folder will not be played by the ProPLAY Audio.
14 of 21

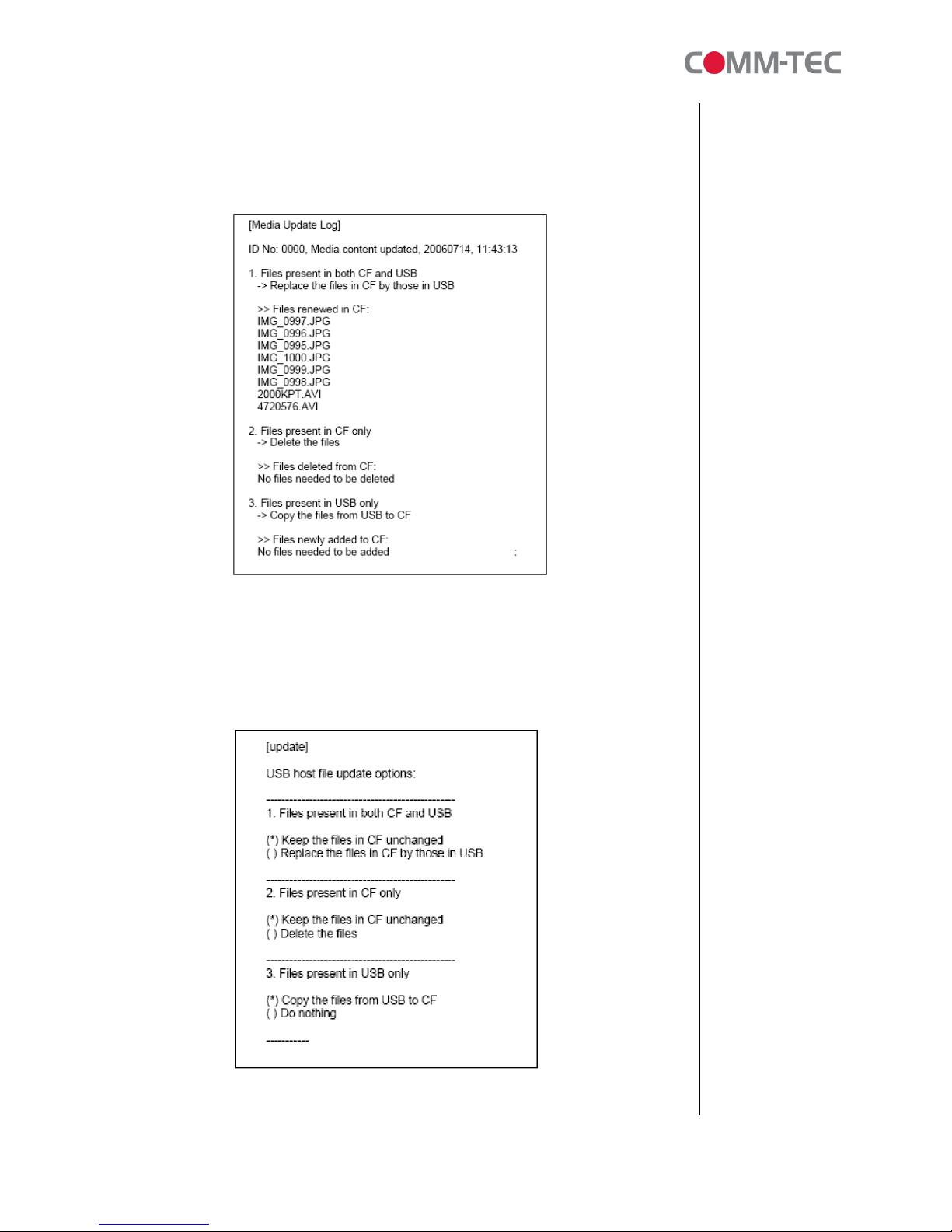

Update.log
A log file will be created automatically on the USB memory stick once the upload
process is done successfully. This log file records the history of content update
as shown as below example:
Partial Update
You can update any files entirely or partially. The options of partial update are
defined in “update.ini” stored on USB Memory Stick (update.ini). Here below
is the definition of update.ini file :
15 of 21

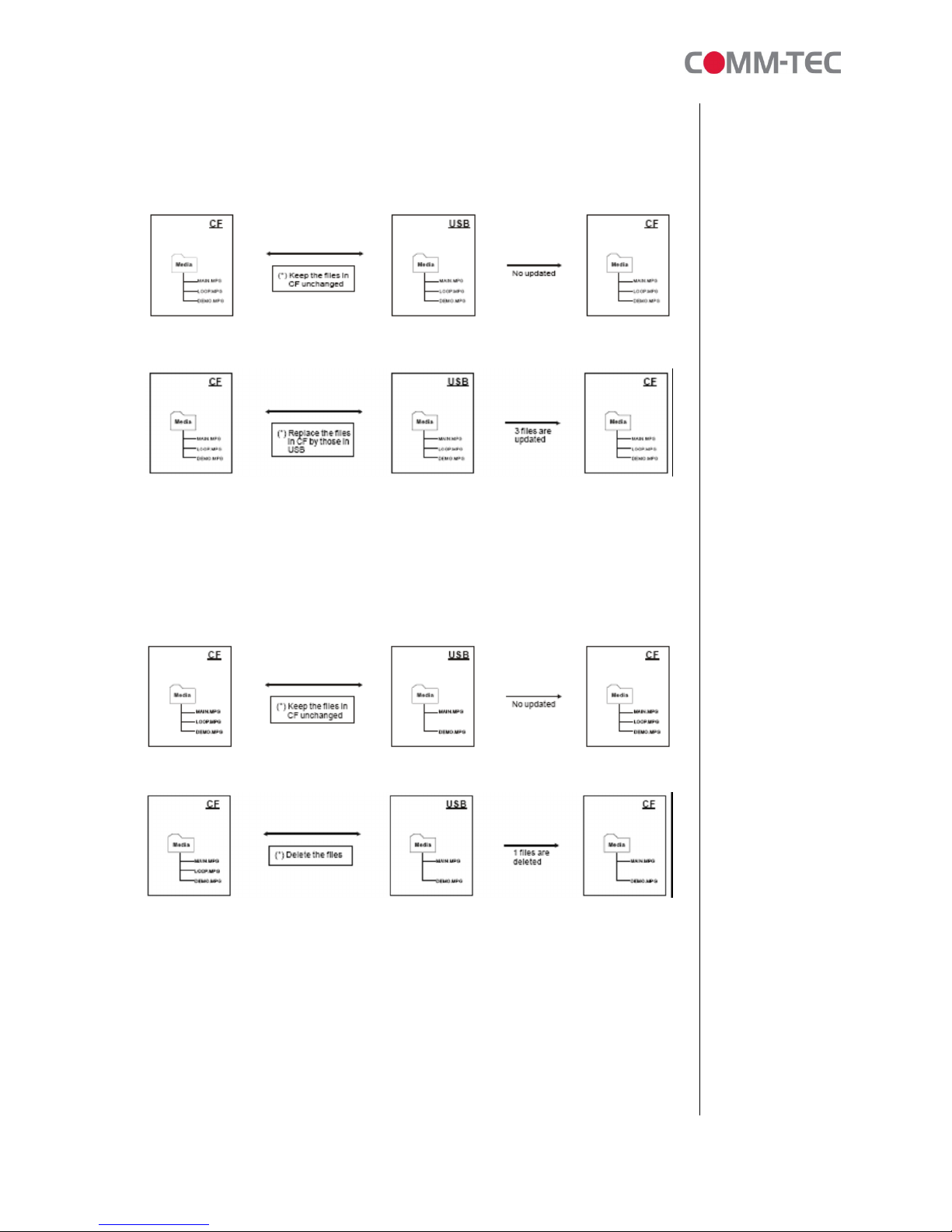

Files present in both CF and USB
If both CF and USB memory stick has the file(s) with same filename, you may
have two options :
Option 1 – Keep the files in CF unchanged
Option 2 – Replace the files in CF by those in USB
Files present in CF only
If the file(s) only be found on CF but not on memory stick, then those files will be
removed from CF or you may have another option to keep the files in CF
unchanged.
Option 1 – Keep the files in CF unchanged
Option 2 – Delete the files
16 of 21
Files present in USB only
If the file(s) only be found on USB memory stick but not on CF, then those files
will be copied to CF.
Option 1 – Copy the files from USB to CF
Option 2 – Do nothing
17 of 21
6. RS-232 Commands on ProPLAY Audio
6.1 Connection
Connect your ProPLAY Audio through RS-232 port. The baud rate setting of 9600
N81 must be used. Note: The ProPLAY Audio needs special firmware for this
function.
6.2 Command Code
All the command codes are stored and defined in the barcode.ini file which is
generated by ProPLAY Studio. Please see the following example:
[Barcode]
BC1=0001
BC2=0002
BC3=0003
BC4=0004
BC5=0005
BC6=0006
BC7=0007
BC8=0008
[0001]
rs232key=1
action=1
[0002]
rs232key=1
action=2
[0003]
rs232key=1
action=3
[0004]
rs232key=1
action=4
[0005]
rs232key=1
action=5
[0006]
rs232key=1
action=6
[0007]
rs232key=1
action=7
[0008]
rs232key=1
action=8
The above barcode.ini file contains eight command codes which match with existing function of 8
buttons (PLAY, STOP, PAUSE, REPEAT, NEXT, VOL DN, VOL UP and MUTE).
18 of 21

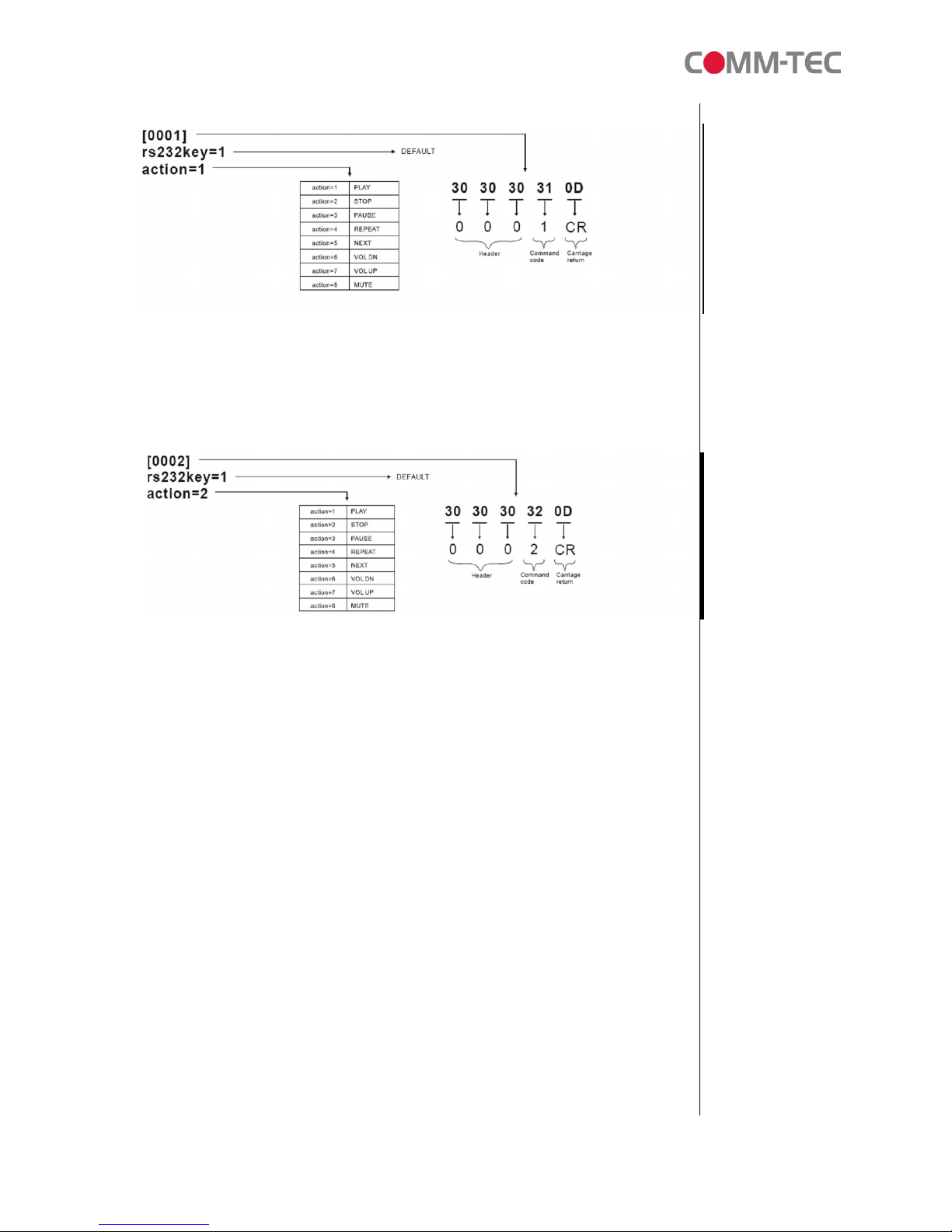

Example of „Play“
In this example, the player will play media if you feed „30 30 30 31 0D“ from terminal through RS-
232.
Example of „Stop“
In this example, the player will stop if you feed „30 30 30 32 0D“ from terminal through RS-232.
19 of 21
6.3 How to create and define the command code in barcode.ini
By using ProPLAY Studio (Version 1.4.024.00), you can add and define your
command code for the existing 8 function keys (PLAY, STOP, PAUSE,
REPEAT, NEXT, VOL DN, VOL UP and MUTE). Note: This command code
feature must be used in playlist mode. Simple play mode cannot support this
command code.
1. Open ProPLAY Studio
2. Open an existing project and playlist file OR create a new one.
3.
3. Click from the tool bar.
20 of 21
4. Enter the command codes in Barcode Key Setting table.
For example:
00011 = Play command
00012 = Stop command
00013 = Pause command
00014 = Repeat command
00015 = Next command
00016 = Volume Up command
00017 = Volume Down command
00018 = Mute command
5. Click OK to confirm and complete the process.
21 of 21
7. Technical Specifications
Playable formats:
MP3 audio
32 kbit/s to 320 kbit/s
Audio Storage
medium:
CompactFlash Memory Cards : Type 1 & Type 2
Audio Outputs:
Stereo output,
connector – RCA jack, 3.2 V p-p max. 5K ohm
Signal-to-Noise:
96 dB
Speaker Output:
2W at 4 Ohm
Indicators:
Power LED, Status LED
Start-up Modes:
Autoplay (at power-on); Sleep mode (after power-on)
Power Input:
12V DC, 500mA typical
Power Consumption:
6 W
Environment:
0 °C to 50 °C , free air circulation
Relative Humidity
5-95% relative humidity, non-condensing
Dimensions:
187 x 26 x 107,5mm (W x H x D)
Weight :
net weight: 400g
RS-232 Port:
Baud rate: 9600, n,8,1
Record suffix = CR (0D Hex)
Discrete Control
16 External Buttons Connection (DB-26 pin)
Audio Storage
Accessories:
CompactFlash Card – various memory capacities
available
16,32,48,64,96,128,192,256,512MB,1,2,4,8GB
Loading...
